Listing# 1096699

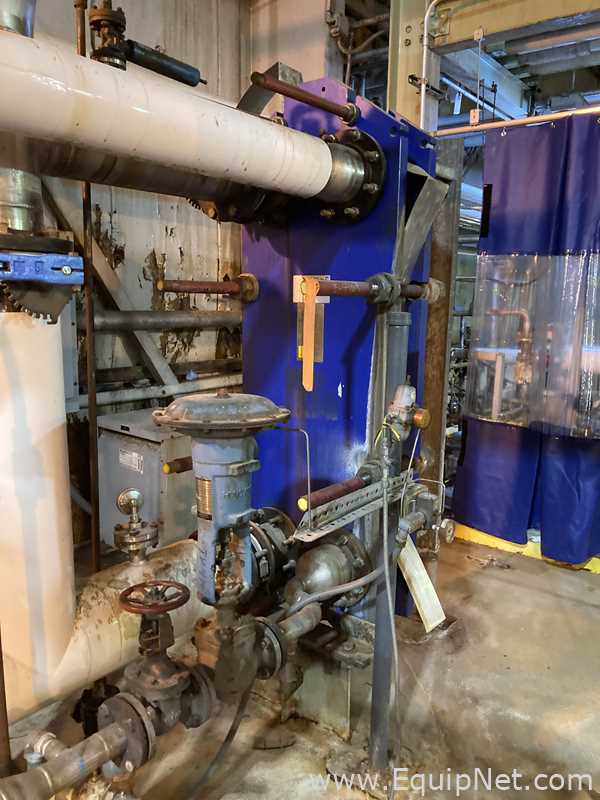

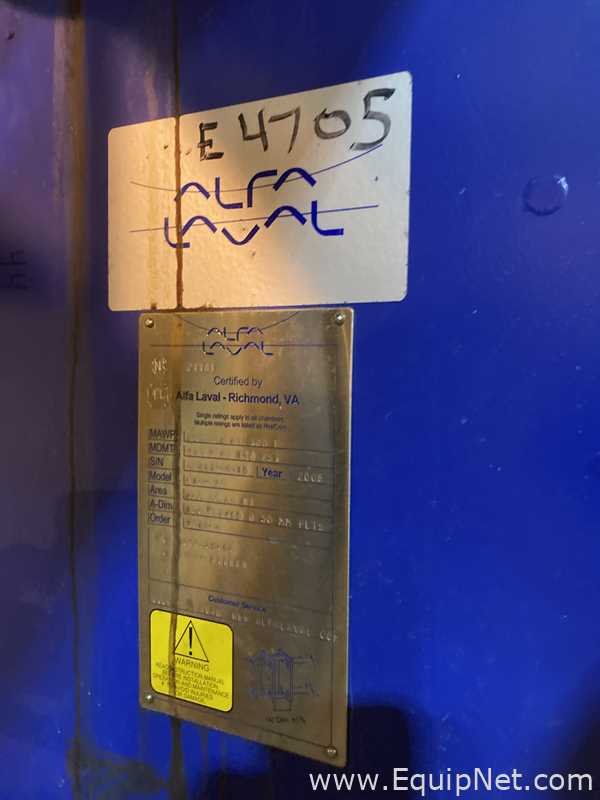

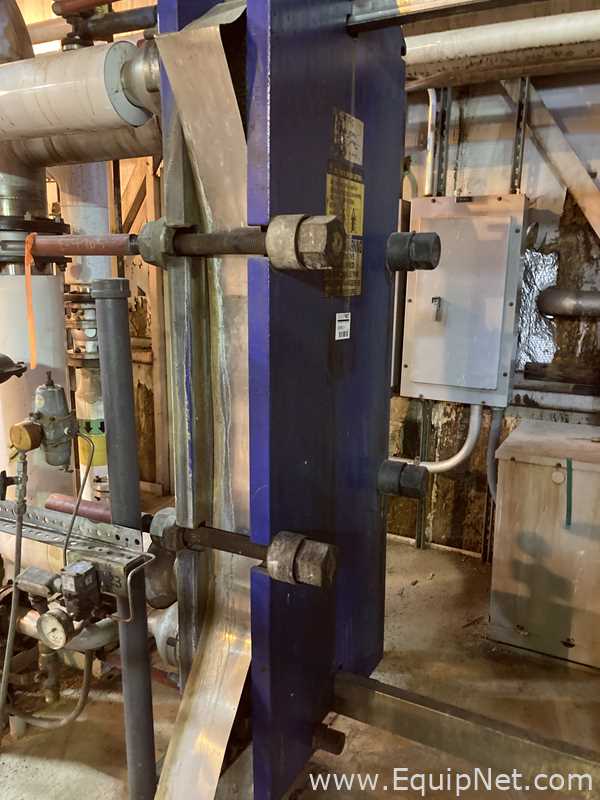

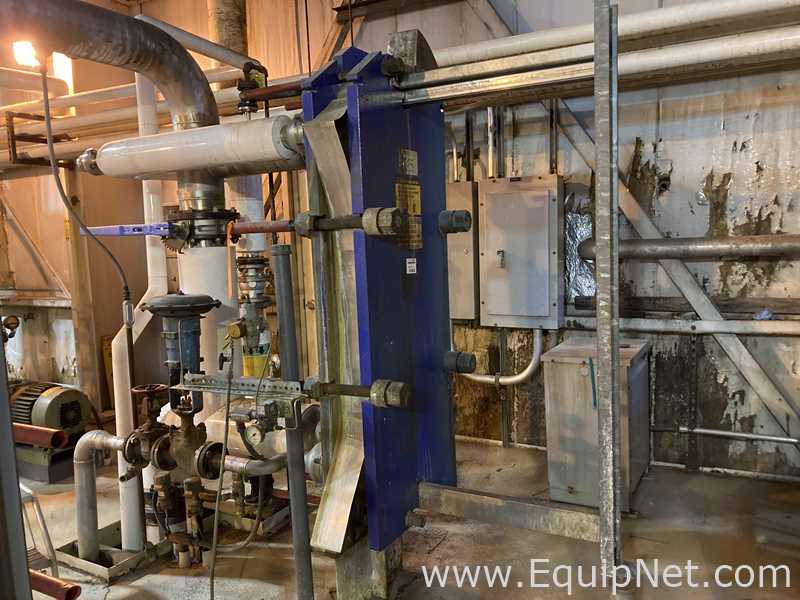

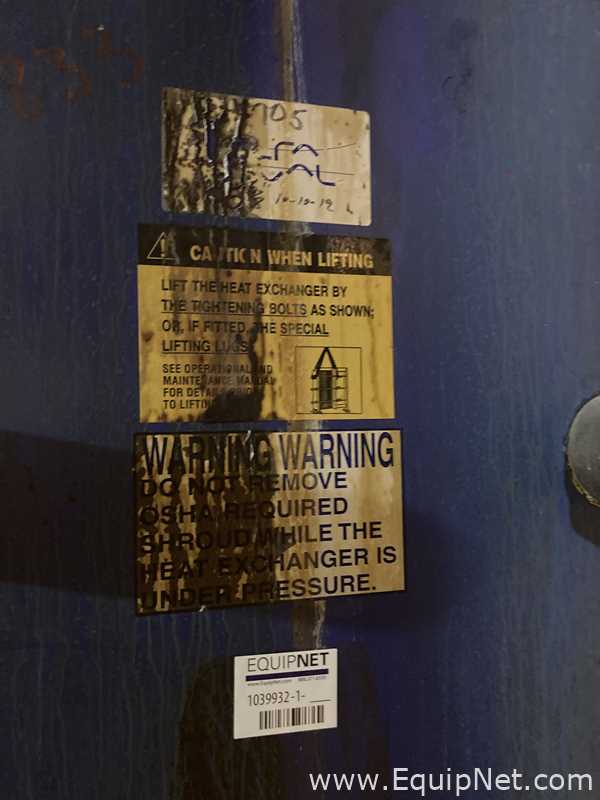

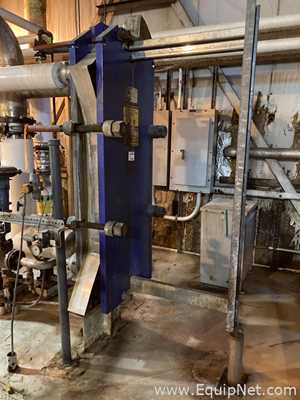

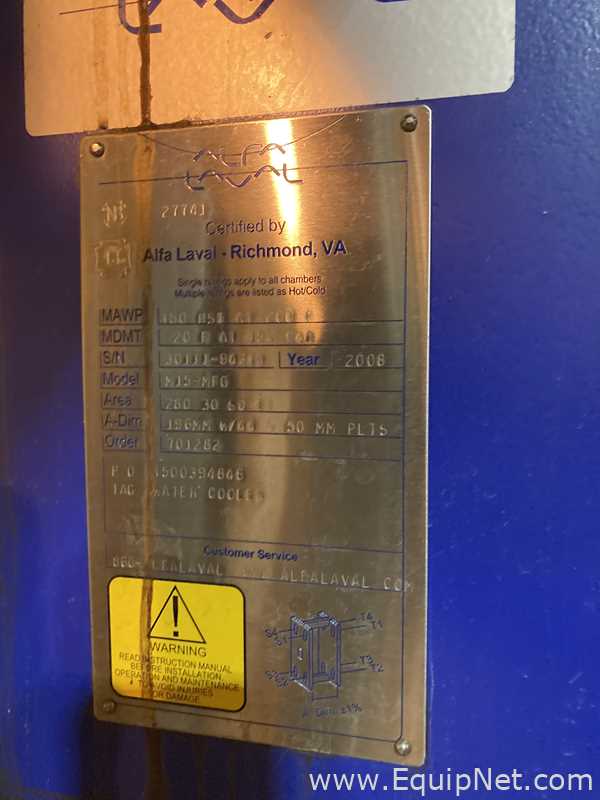

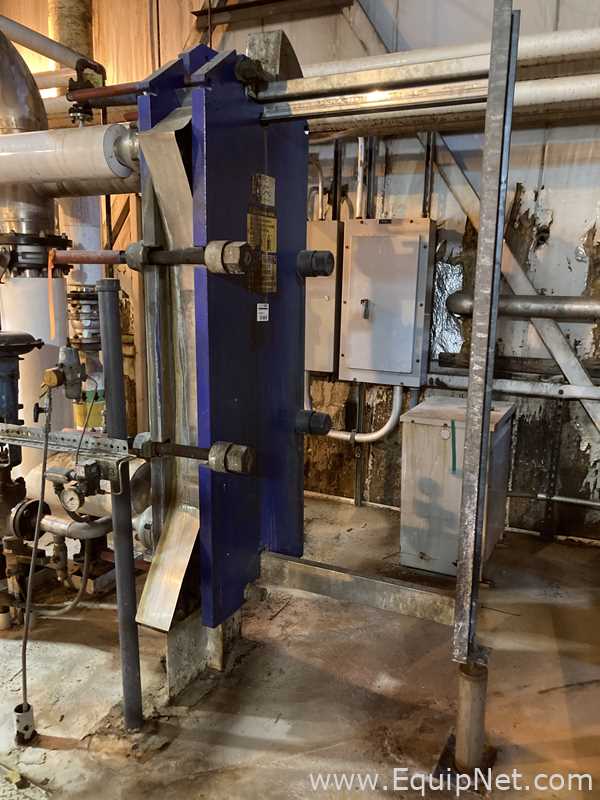

Alfa Laval M15-MFG Stainless Steel Plate and Frame Heat Exchanger 280.30 Sq. Ft. Area E-4705

Download High Res Photos

Make an Inquiry

Seller's Acceptable Currency:

$7,500.00 USD

Make An Offer

Location: IL, USA

Level of Removal: Still Installed

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Equipment Description

Alfa Laval M15-MFG Stainless Steel Plate and Frame Heat Exchanger 280.30 Sq. Ft. Surface Area E-4705

(44) 0.50 Plates

Specifications:

Standard

Metric

Manufacturer Name

Alfa Laval

Year:

2008

Serial Number:

30111-90313

Model:

M15-MFG

Capacity of Heat Exchanger:

280.30 SQ FT

26.04 sq m

Type of Heat Exchanger:

PLATE AND FRAME

Plate Material of Construction:

STAINLESS STEEL

Frame Material of Construction:

CARBON STEEL

Orientation:

VERTICAL

Plate Pressure Rating:

150 PSI

Plate Temperature Rating:

300 DEG F

Plate Dimensions:

0.50MM

Products Run:

Sugar plant

Recommended Packaging Form:

PALLET

Dimensions:

Standard

Metric

Overall:

60 x 36 x 90 IN - 500 LBS

1524.00 x 914.40 x 2286.00 mm - 226.80 kg
