Equipment Description

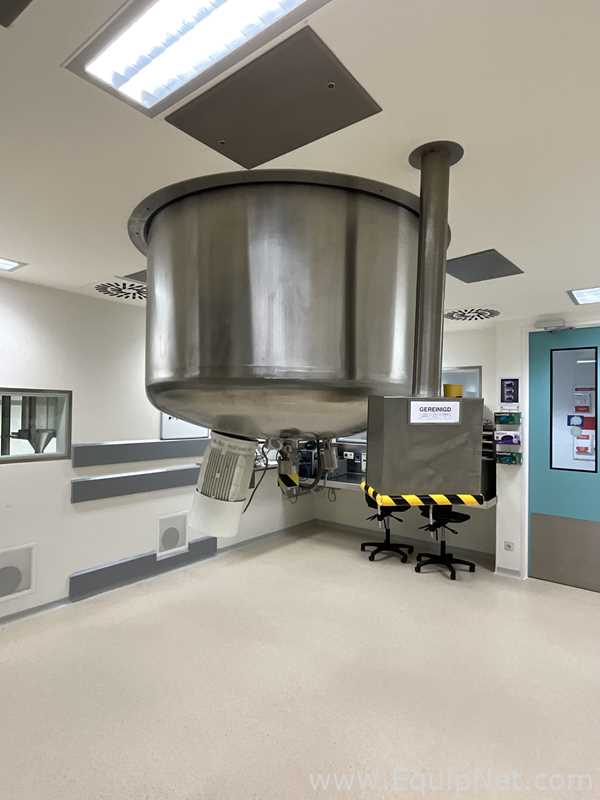

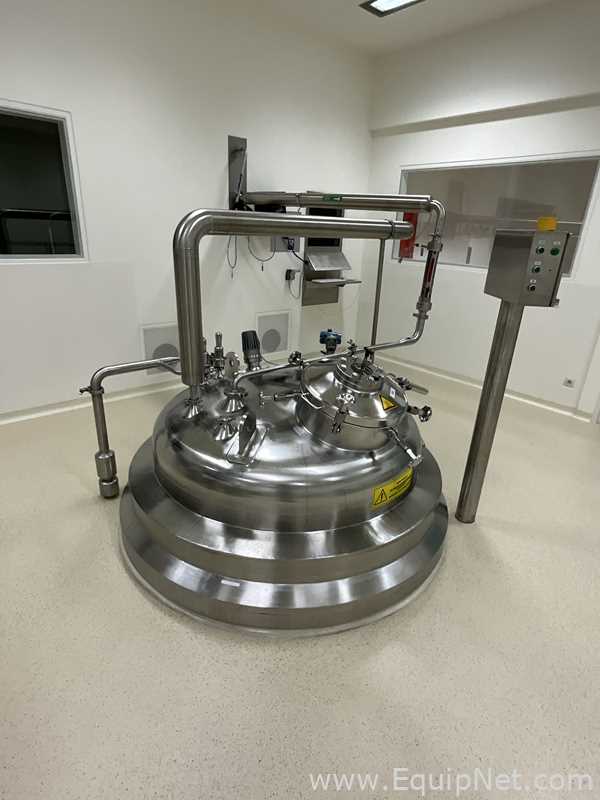

Alteco 3600 Litre Stainless Steel Vacuum Rated Jacketed Mixing Vessel - KK5

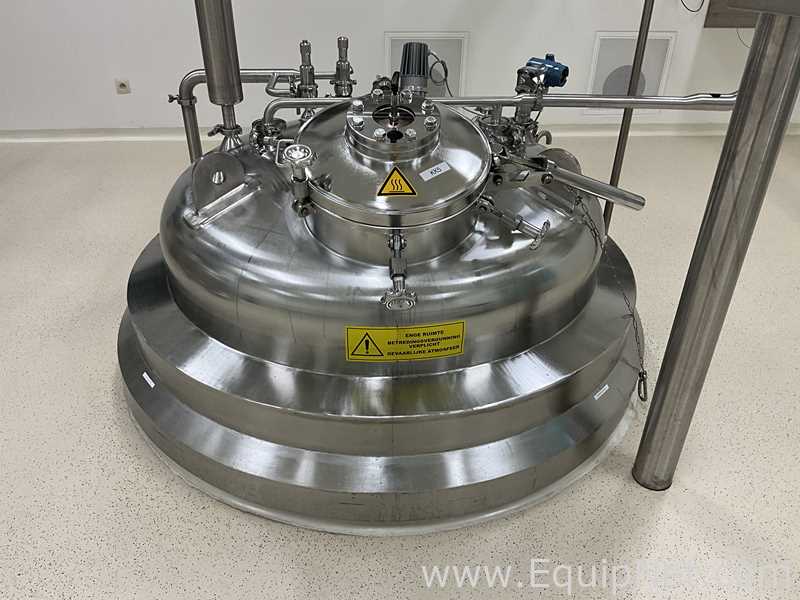

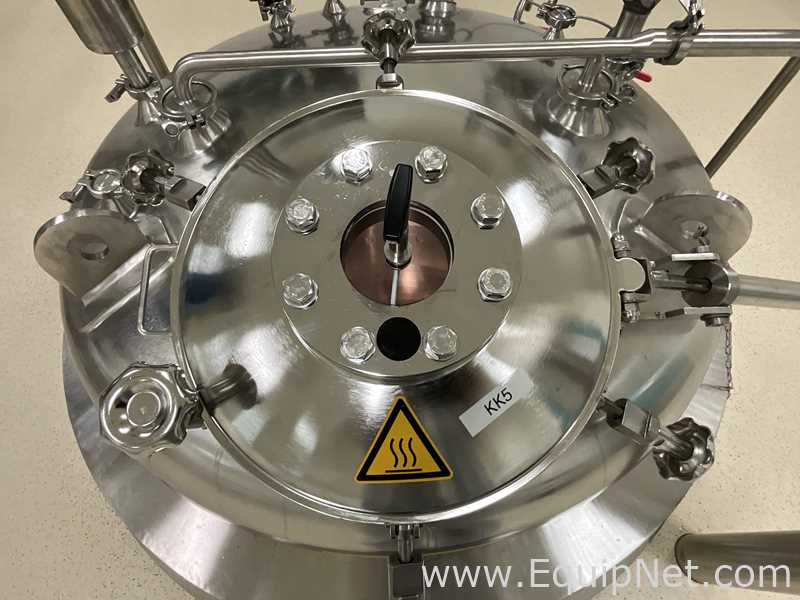

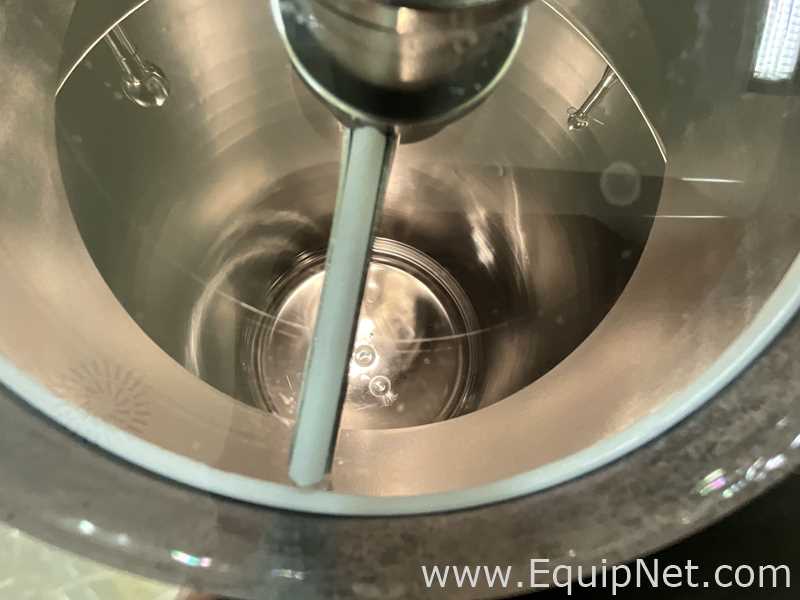

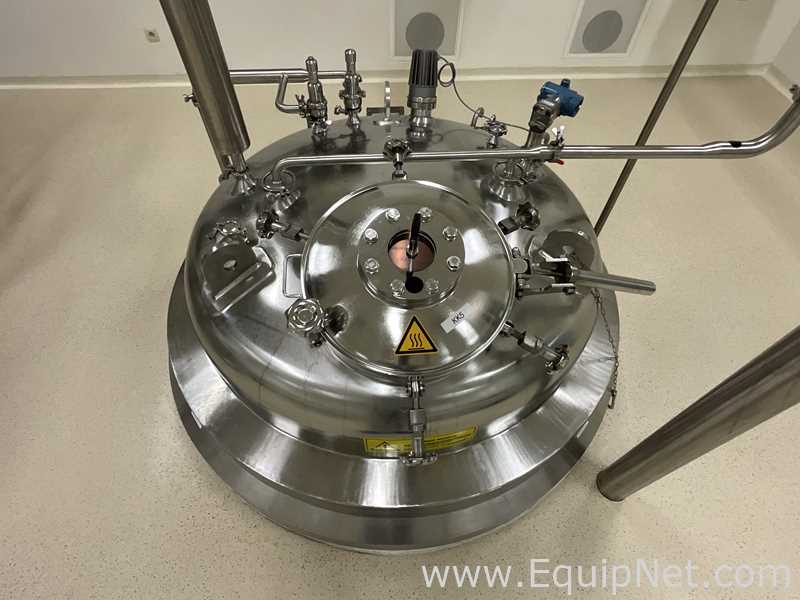

  • 400mm diameter top access nozzle with sight glass and manual wiper

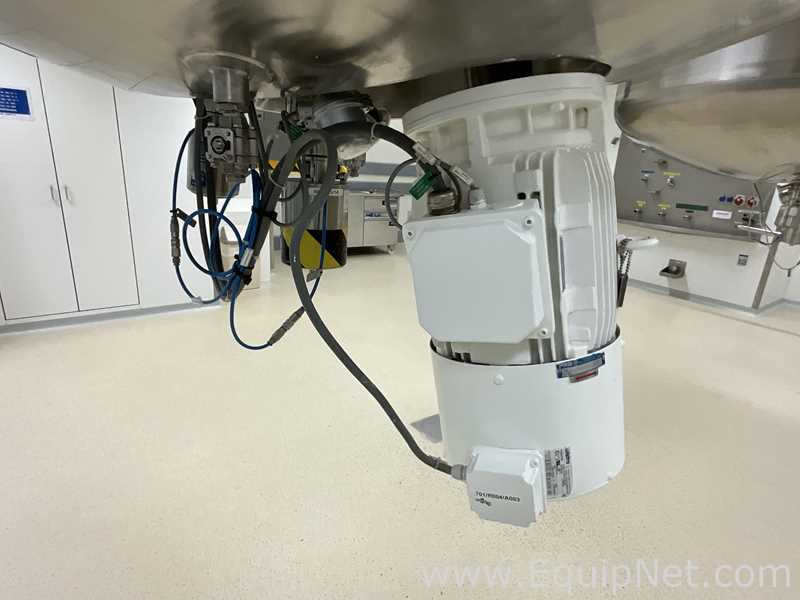

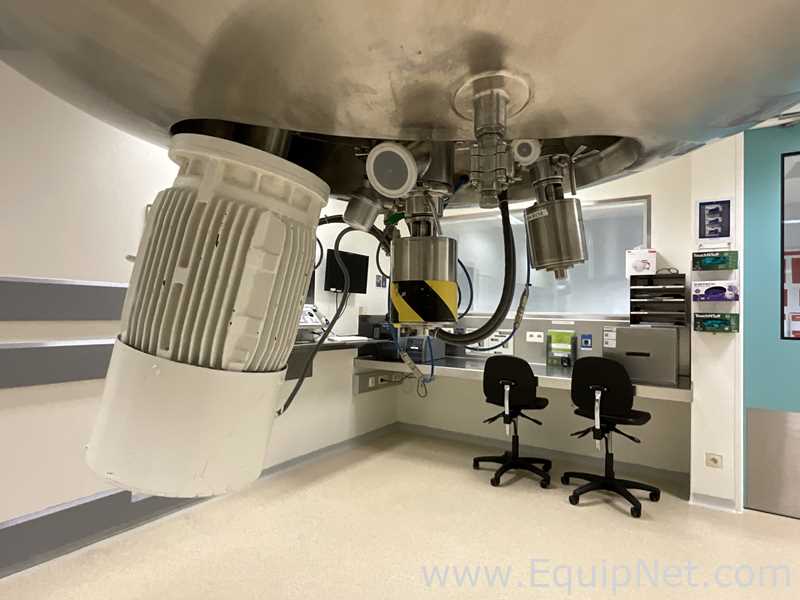

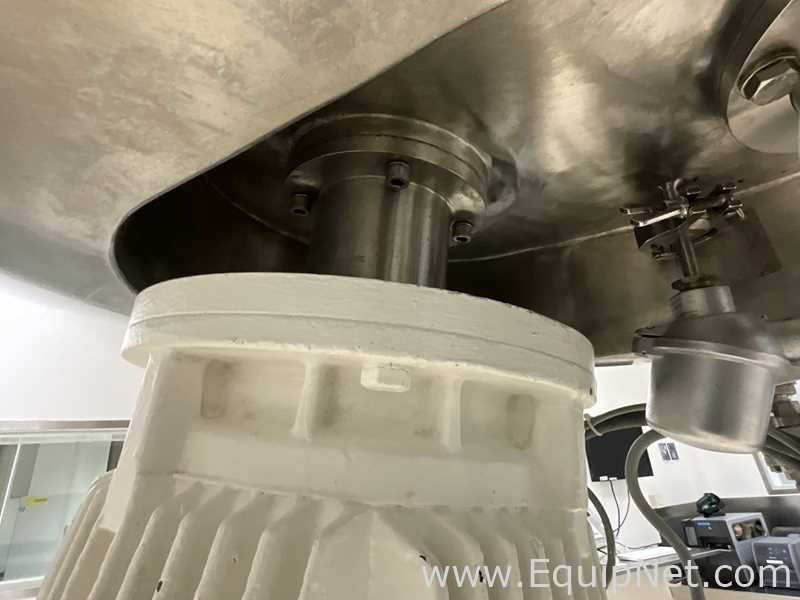

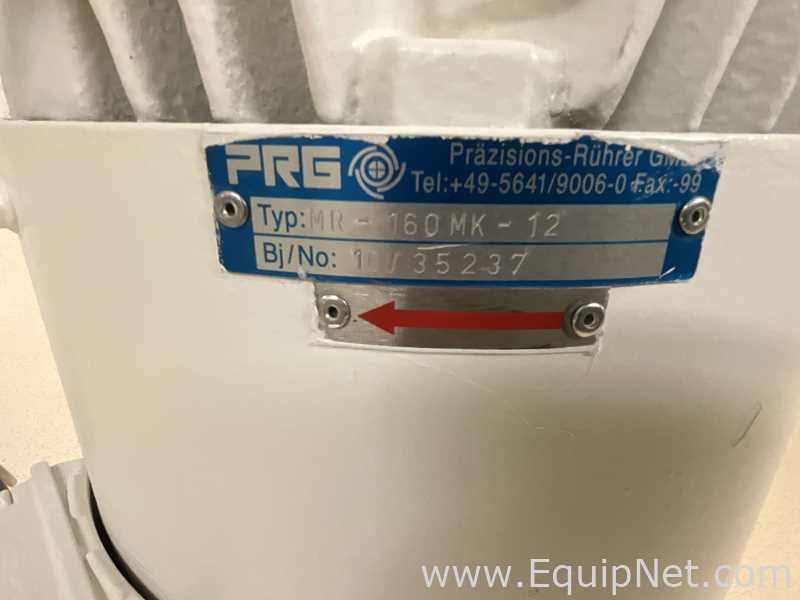

  • Off set magnetic driven bottom agitator

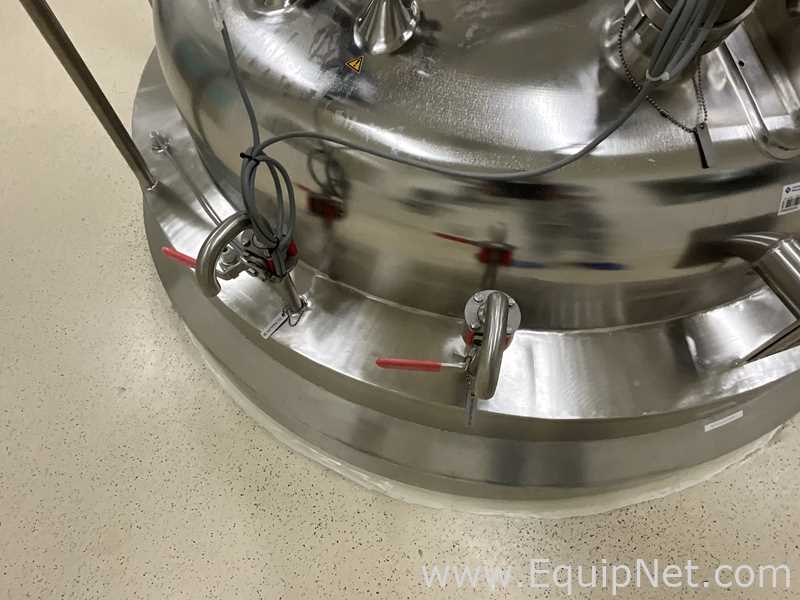

  • Fully welded Jacket

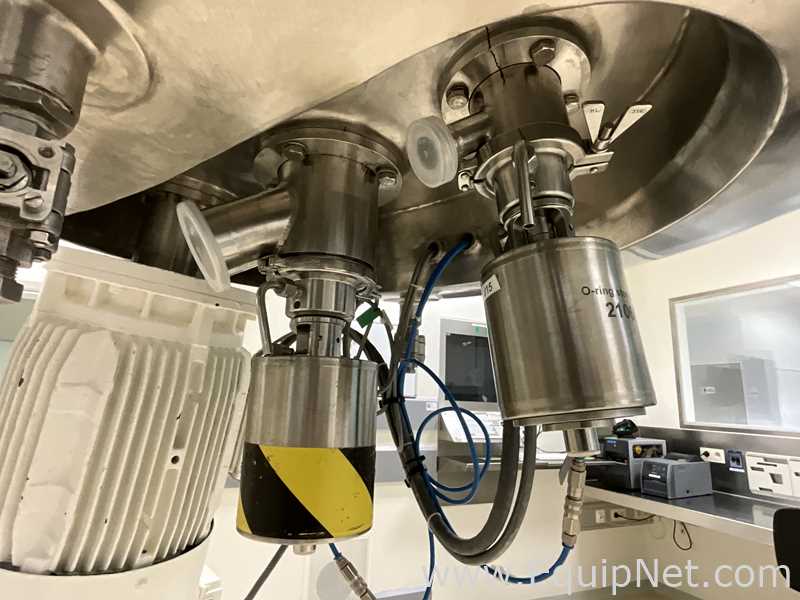

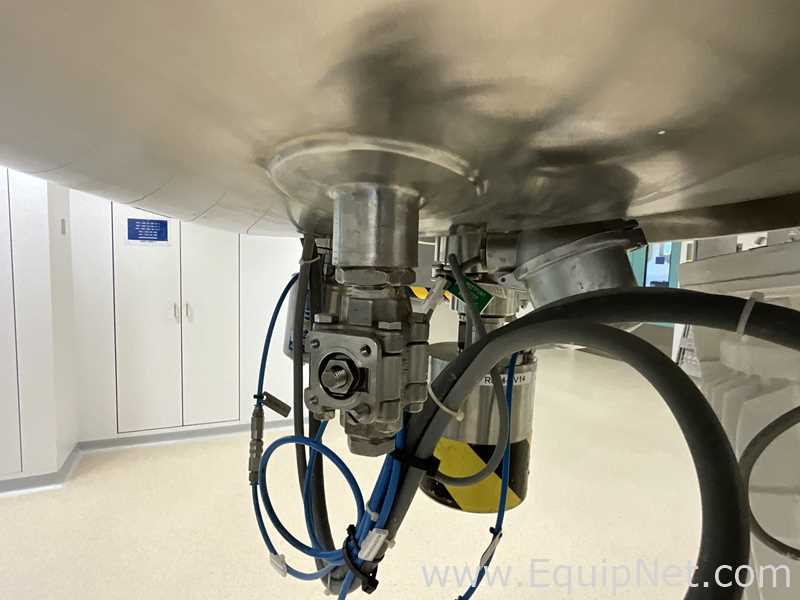

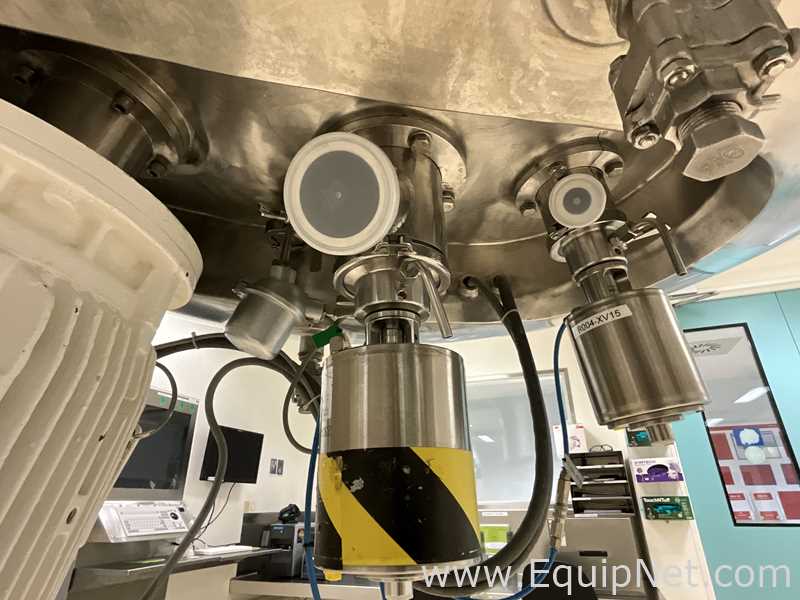

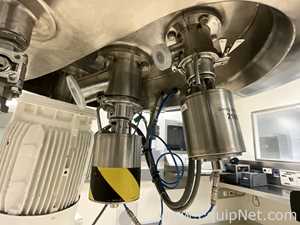

  • 65 and 25mm Triclamp Plug Valve Bottom Outlets

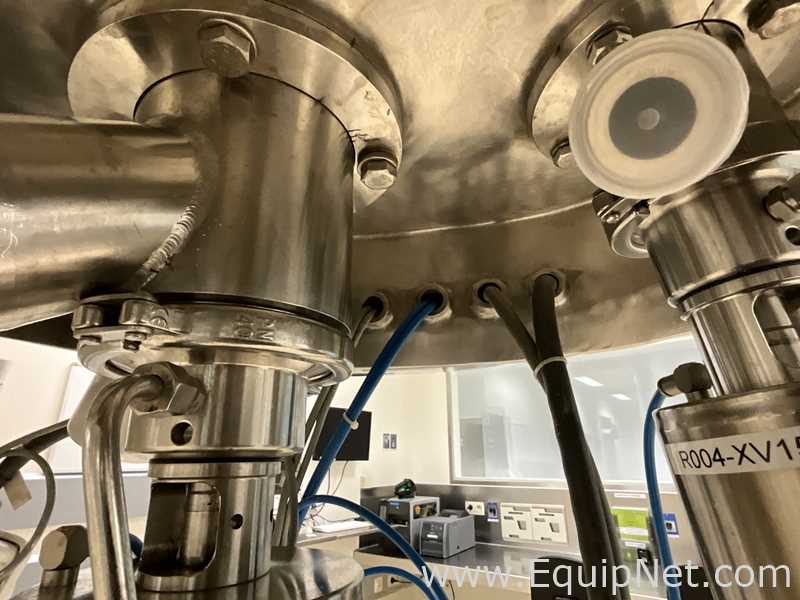

  • Temperature Transmitter in Bottom

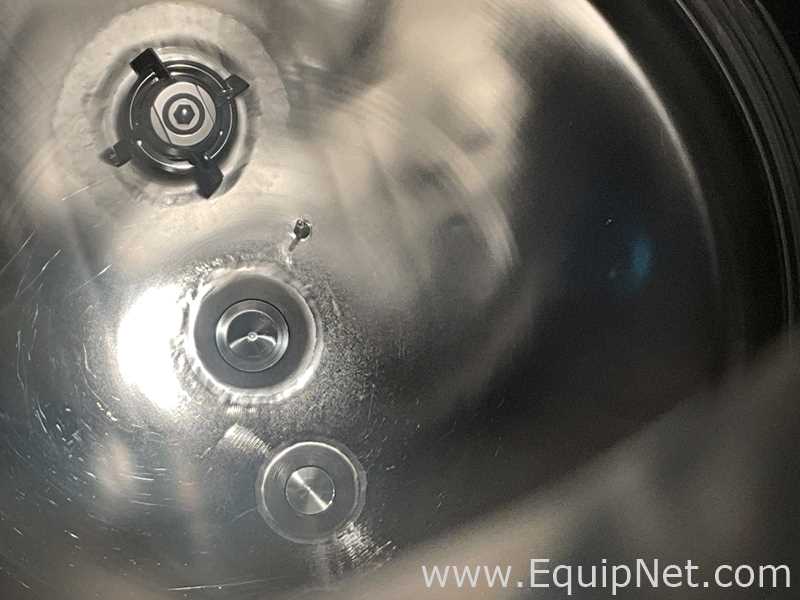

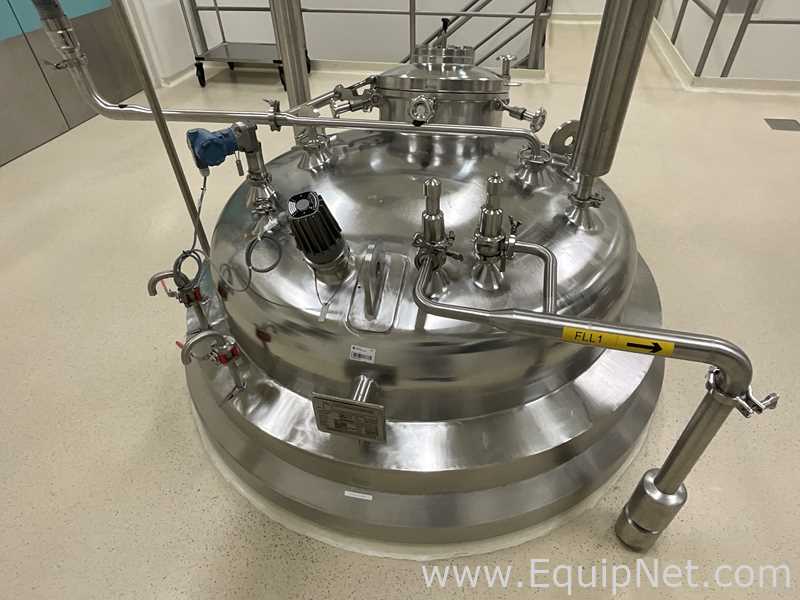

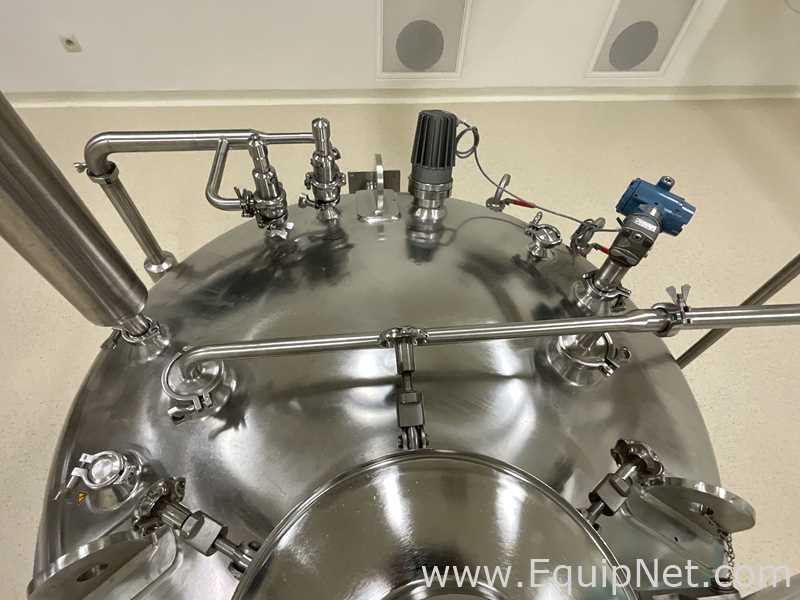

  • 2 off CIP Spray Balls in Top
  • Dimensions are approximate



  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Alteco


    Year:
    2010
    2010

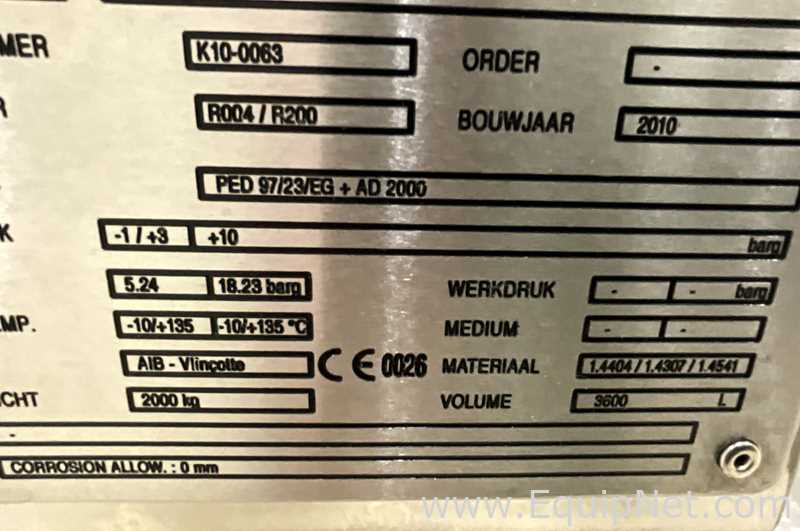

    Serial Number:
    K10-0063
    K10-0063

    CE Marked:
    YES
    YES

    Tank Material of Construction:
    STAINLESS STEEL
    STAINLESS STEEL

    Capacity Size of Vessel:
    951.34 gal
    3600 L

    Internal Pressure Rating:
    3/-1 BAR
    3/-1 BAR

    Internal Temperature Rating:
    135/-10 DEG C
    135/-10 DEG C

    Full Vacuum:
    YES
    YES

    Jacketed:
    YES
    YES

    Jacket Pressure Rating:
    10 BAR
    10 BAR

    Jacket Temperature Rating:
    135/-10 DEG C
    135/-10 DEG C

    Type of Top Head:
    DISHED
    DISHED

    Type of Bottom Head:
    DISHED
    DISHED

    Vertical or Horizontal:
    VERTICAL
    VERTICAL

    Agitation:
    YES
    YES

    Type of Agitation:
    BOTTOM MAGNETIC
    BOTTOM MAGNETIC

    Installation Type:
    LUGS
    LUGS

    Outside Diameter:
    64.57 in
    1640 MM

    Inside Diameter:
    55.12 in
    1400 MM

    Overall Height:
    114.17 in
    2900 MM

    Straight Side:
    49.21 in
    1250 MM

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET

    Phase:
    3
    3


    Dimensions:
    Standard
    Metric

    Overall:
    70.87 x 70.87 x 114.17 in - 5511.50 lb
    1800 x 1800 x 2900 MM - 2500 KGS
