Lot 153 Listing# 1045532

Bio-Rad Bio-Plex 200 Suspension Array System with Bio-Plex HTF


You must be logged in to participate in auctions

Log in



Location:

Philadelphia, PA, USA

Event Start Date:

10/19/2026

Invoices Will be Sent:

10/27/2026
All invoice payments are due immediately upon receipt.

Equipment must be collected during the week of November 16th - 19th. Any equipment not collected during this time period will be considered abandoned. No exceptions.
Equipment Description

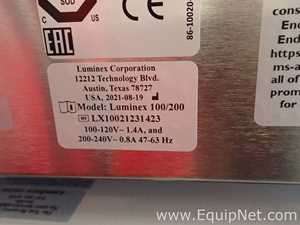

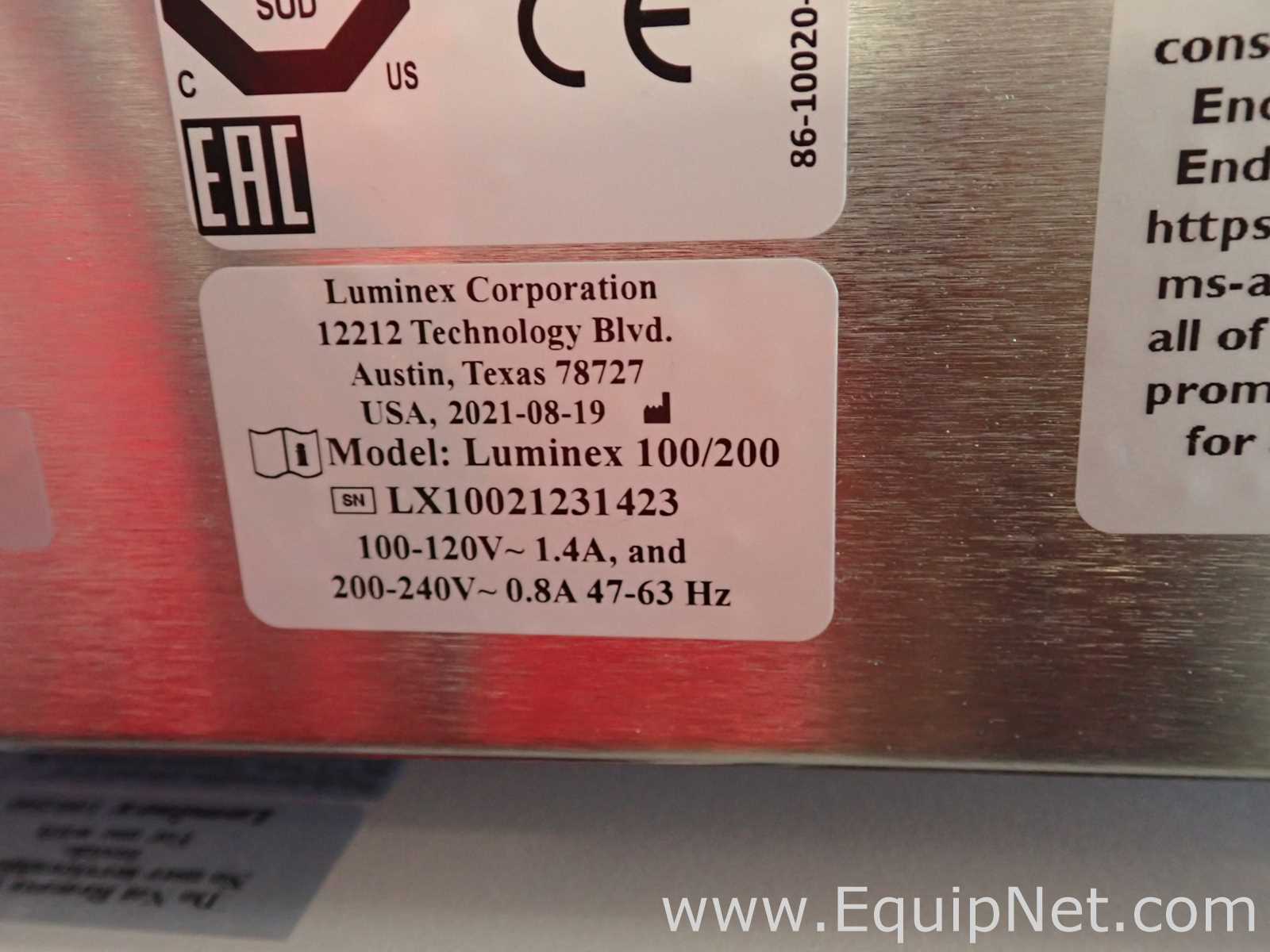

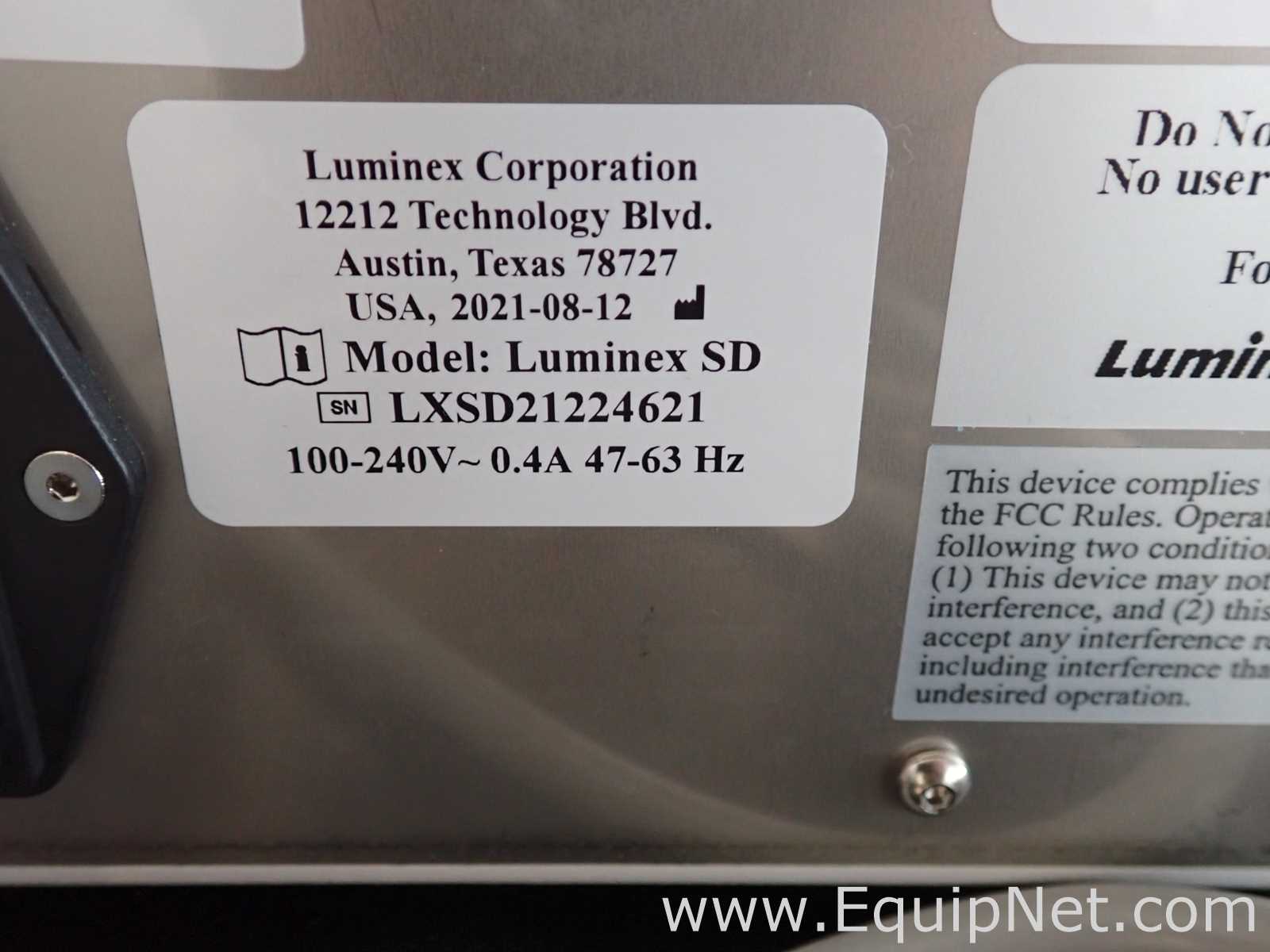

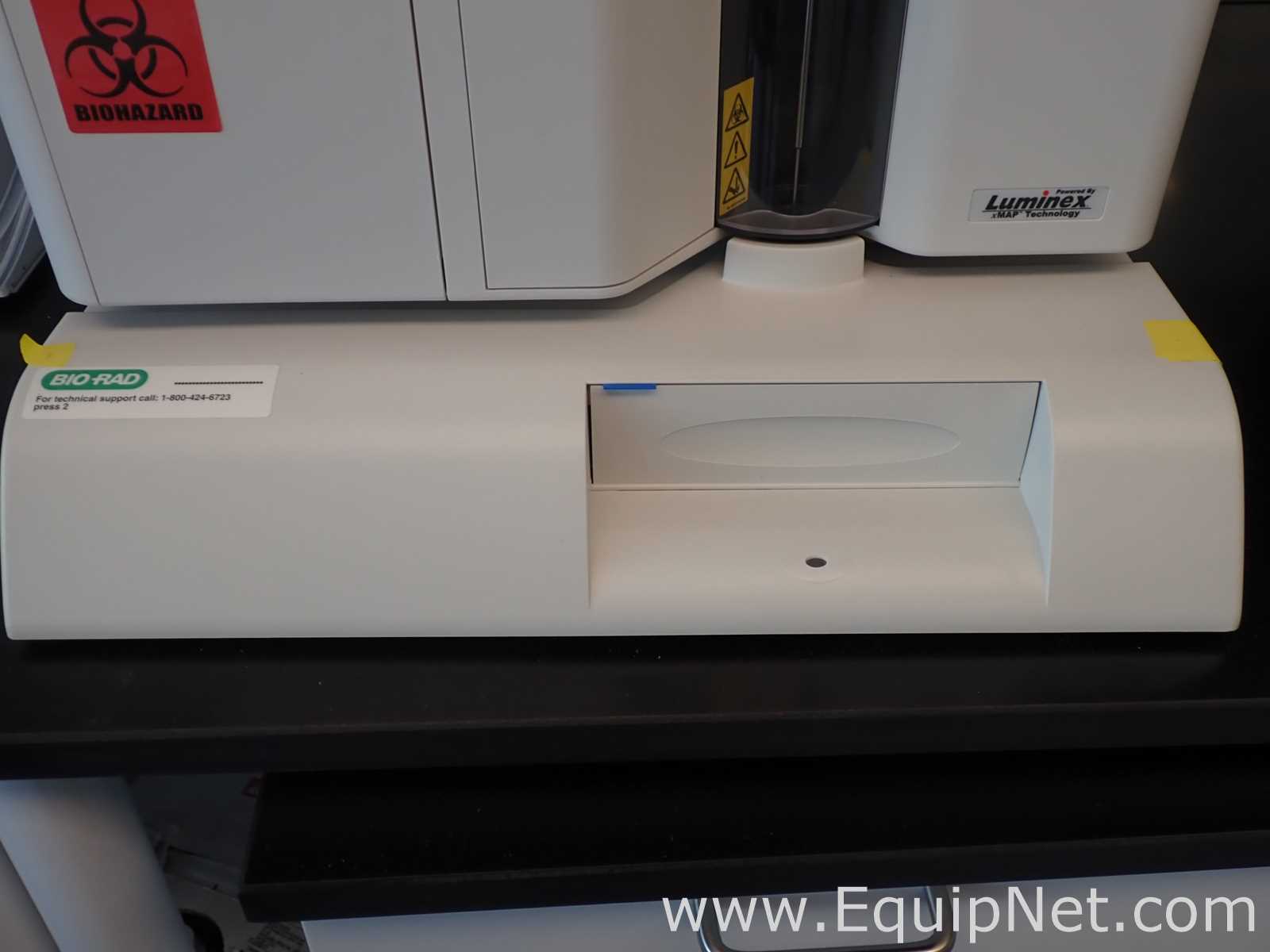

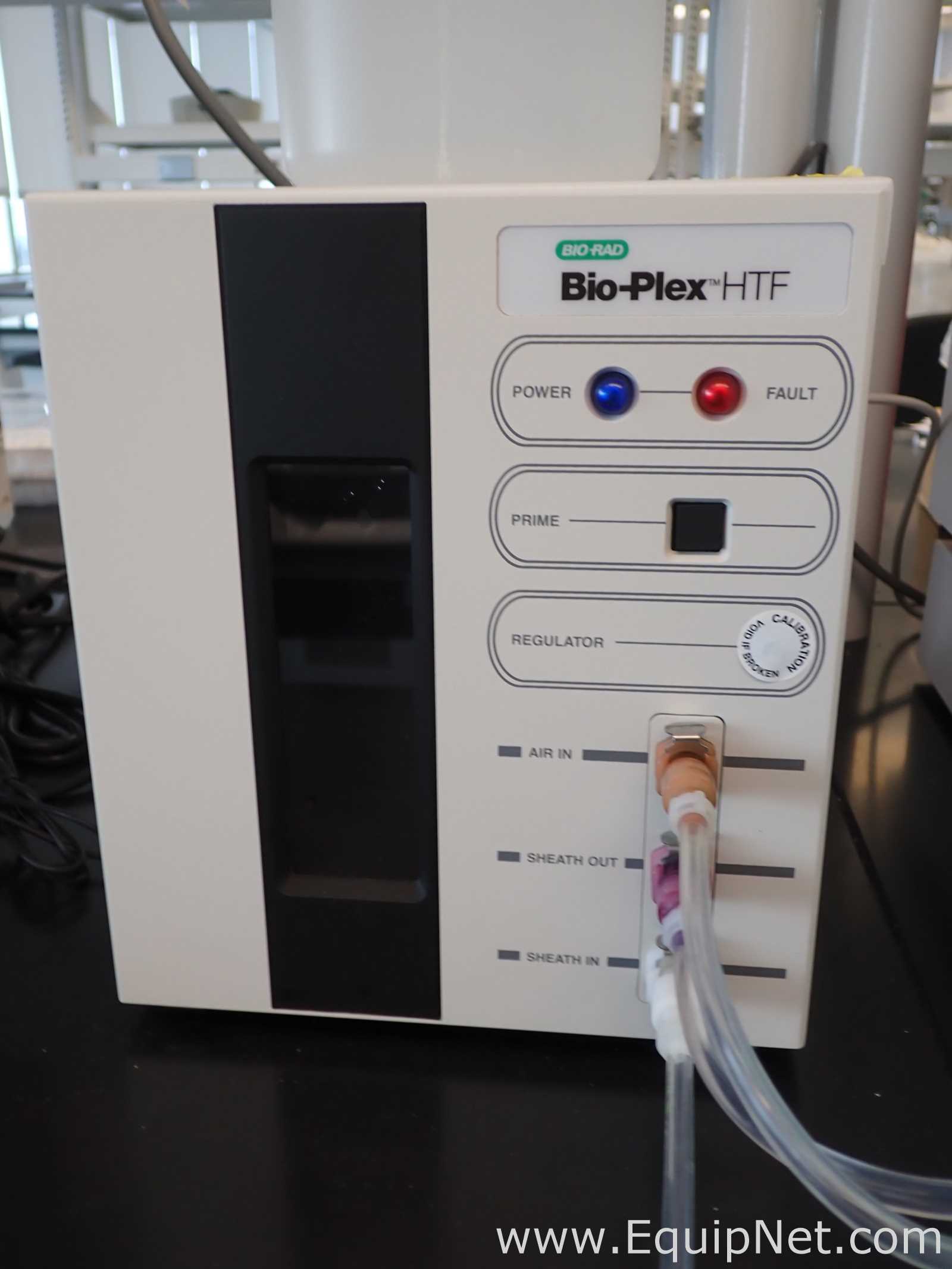

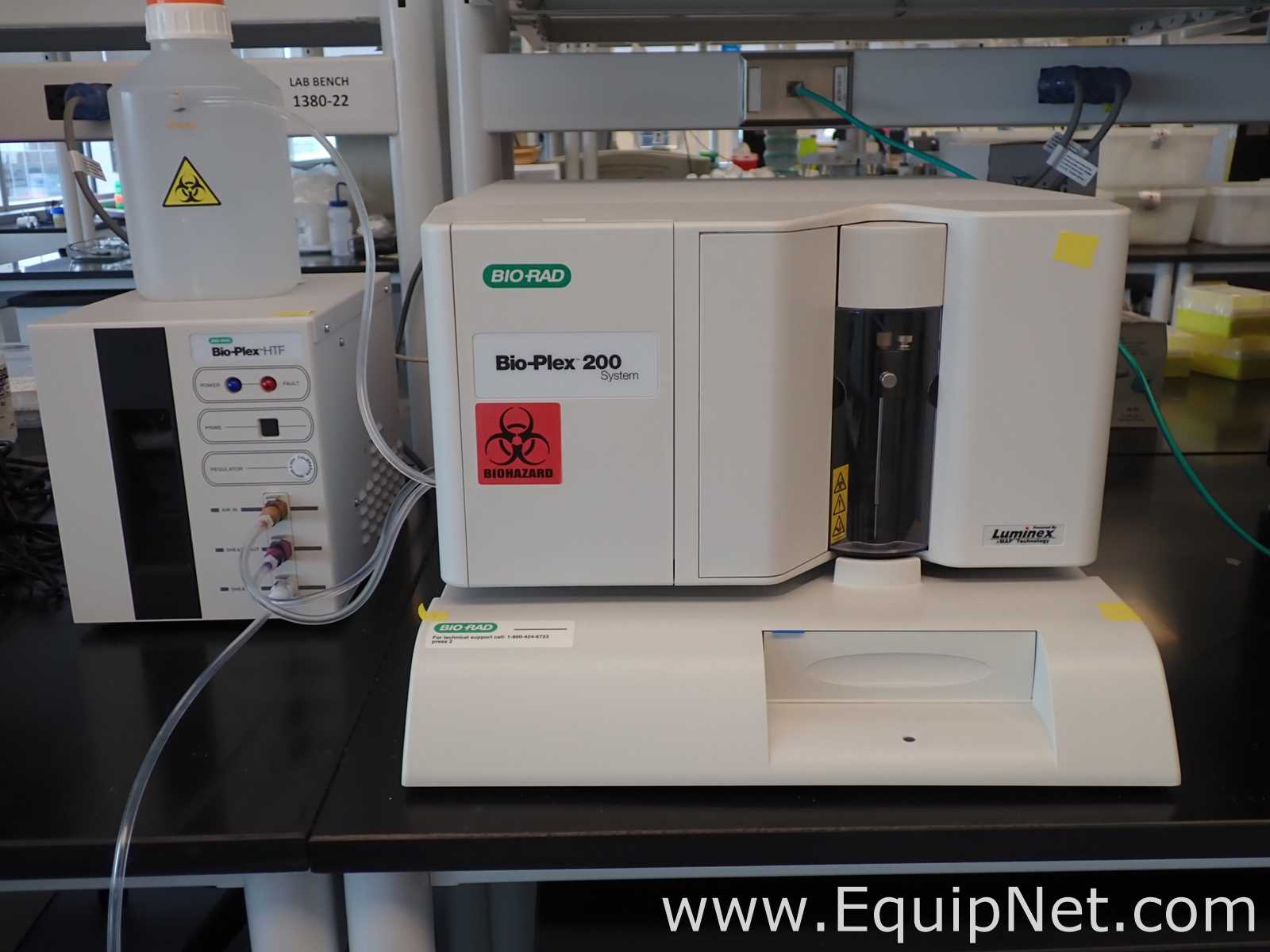

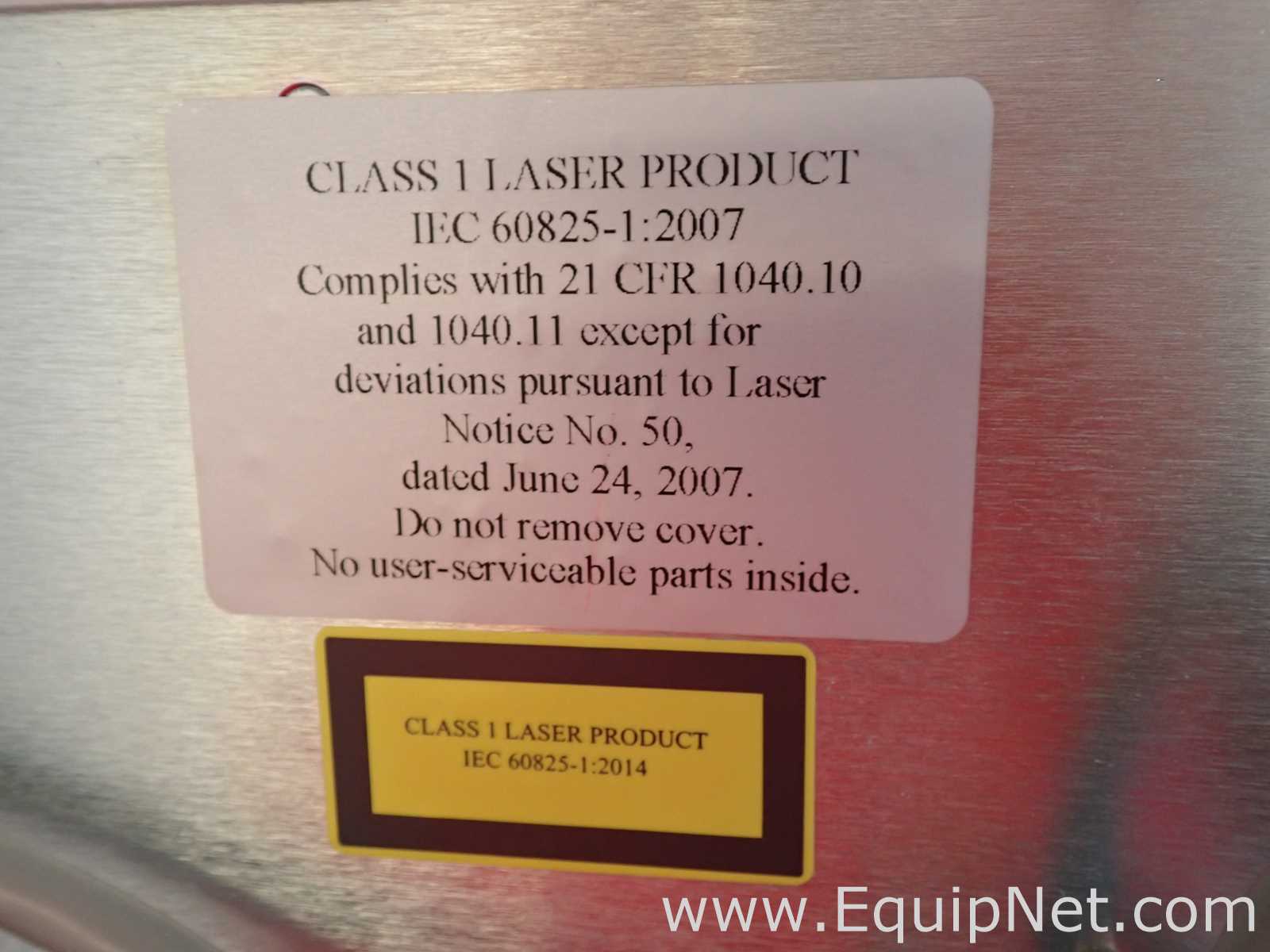

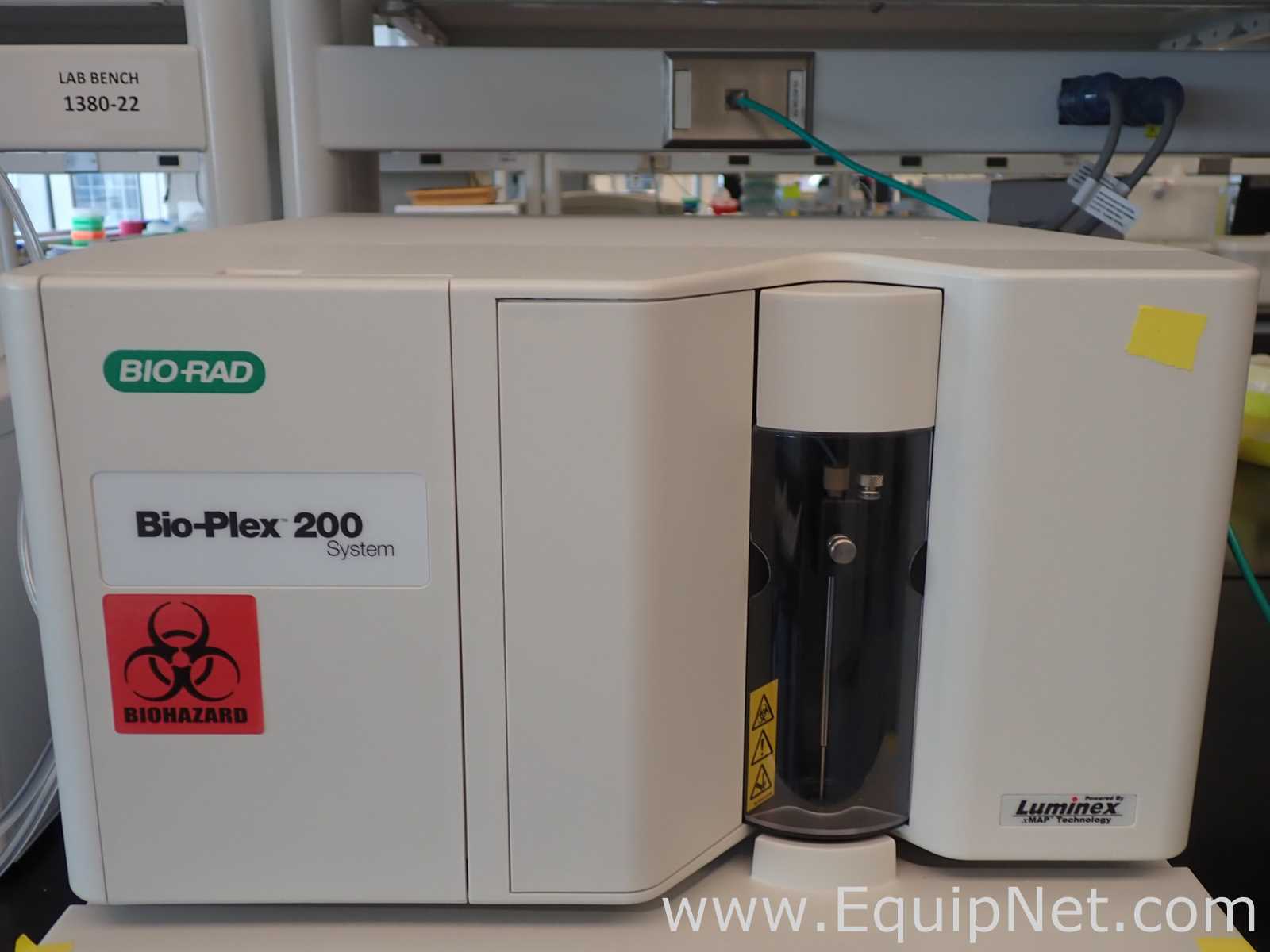

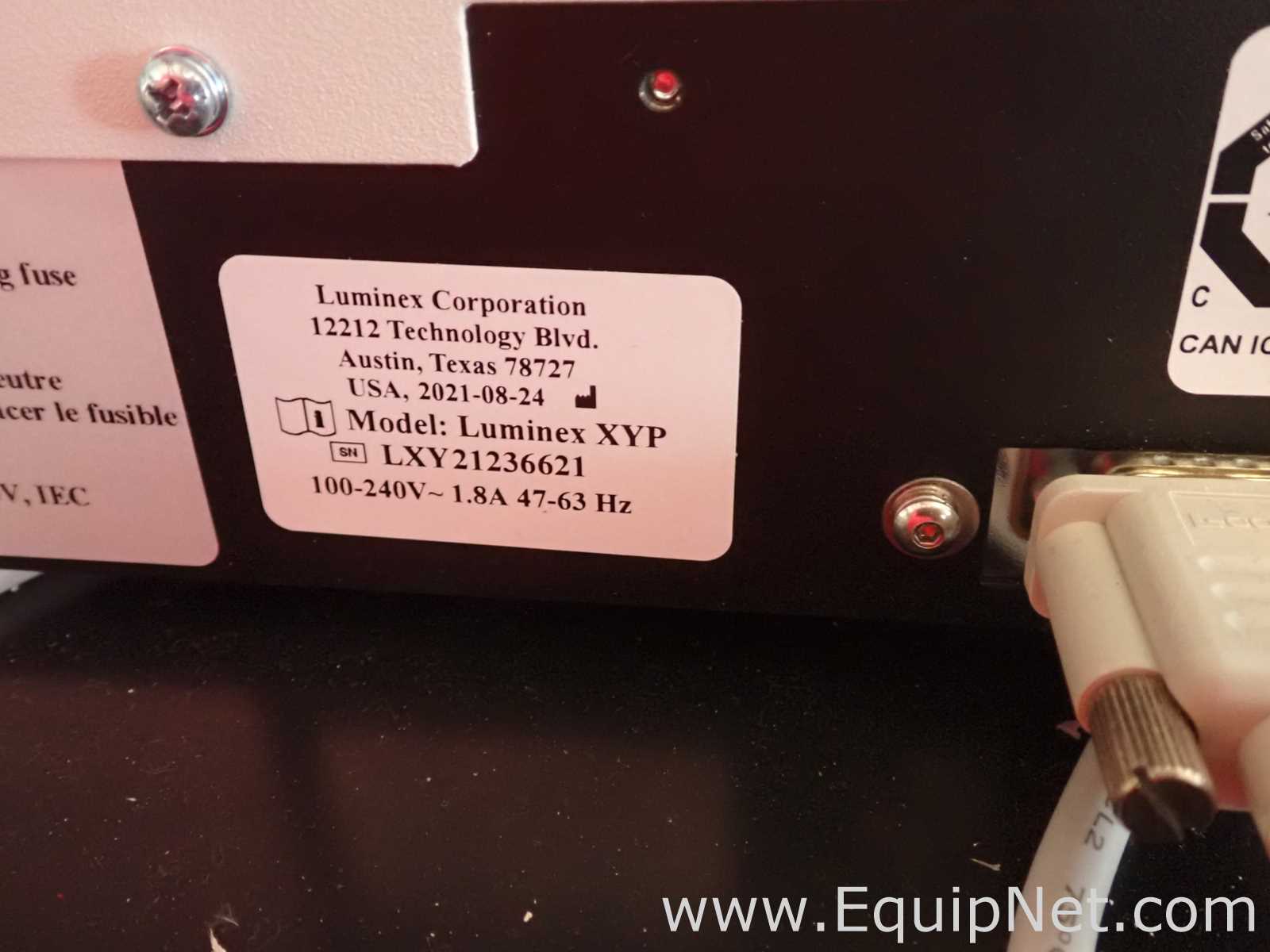

The Bio-Rad Bio-Plex 200 is a benchtop multiplex suspension array system built on Luminex xMAP technology. Using two lasers and a flow-based detection cell, it reads color-coded bead sets so that up to 100 analytes can be quantified simultaneously in a single small-volume sample. Typical applications include cytokine, chemokine, phosphoprotein, isotyping and nucleic acid multiplex assays in research and biopharmaceutical laboratories. This system consists of the Bio-Plex 200 reader (Luminex 100/200, S/N LX10021231423, built 2021-08-19 per the nameplate in photo 5), the Luminex XYP plate-handling platform beneath it (S/N LXY21236621, built 2021-08-24, photo 7) and the Bio-Plex HTF high-throughput fluidics module (Luminex SD, S/N LXSD21224621, built 2021-08-12, photo 8). The reader is rated 100-120 V, 1.4 A / 200-240 V, 0.8 A, 47-63 Hz, single phase; the XYP platform is rated 100-240 V, 1.8 A and the HTF 100-240 V, 0.4 A. The unit carries CE and cTUVus marks and is labeled a Class 1 Laser Product (photos 5 and 6). The XYP platform accepts standard 96-well microplates and is shown with its plate carrier and sample probe in place. Photos show the instrument as removed from service on a laboratory bench, with the HTF connected by sheath/air tubing and a sheath fluid reservoir bottle alongside. A biohazard label is affixed to the front panel of the reader; the system was used in a biopharmaceutical laboratory and should be decontaminated and verified by the buyer. No computer, software, or calibration/validation kits are confirmed in the photos. The system was not reported powered on or tested at the time of the site visit.

Specifications:
Standard
Metric

Manufacturer Name

Bio-Rad


Year:

2021
2021

Serial Number:

LX10021231423
LX10021231423

CE Marked:

YES
YES

Model:

Bio-Plex 200
Bio-Plex 200

Voltage:

100-120 / 200-240 VOLTS
100-120 / 200-240 VOLTS

Frequency:

50/60 HERTZ
50/60 HERTZ

Phase:

1
1

Current:

1.4/0.8 AMPS
1.4/0.8 AMPS

Well Plate:

96
96

Recommended Packaging Form:

PALLET
PALLET


Dimensions:
Standard
Metric

See all item dimensions

Item #1:

26.00 x 22.00 x 18.00 IN - 100.00 LBS
660.40 x 558.80 x 457.20 mm - 45.36 kg

Item #2:

16.00 x 14.00 x 14.00 IN - 25.00 LBS
406.40 x 355.60 x 355.60 mm - 11.34 kg

Item #3:

20.00 x 16.00 x 12.00 IN - 15.00 LBS
508.00 x 406.40 x 304.80 mm - 6.80 kg

Overall:

26 x 22 x 18 in - 140 lbs
660.40 x 558.80 x 457.20 mm - 63.50 kg
