Equipment Description

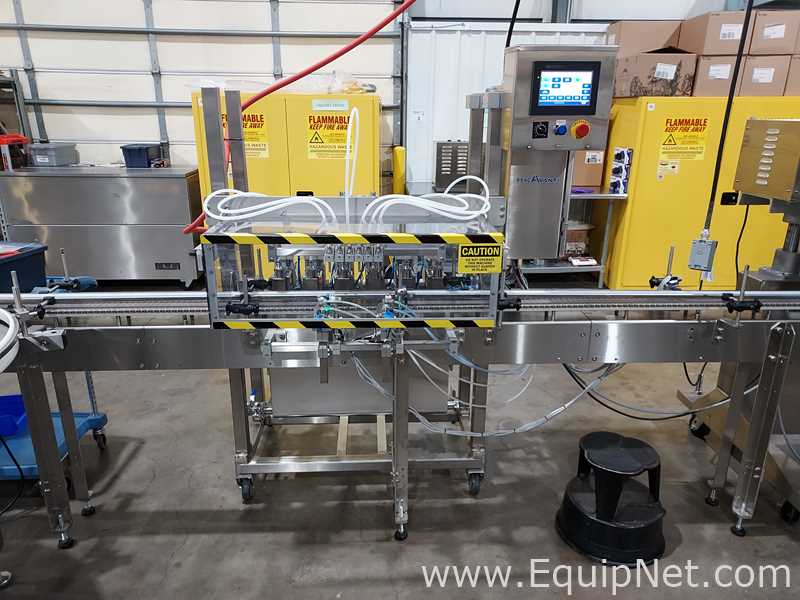

Kinsley, Inc. PSNCAivanti 6 Up Filler

  • In-line 6-Up pump wagon
  • The component of this Filling System unit is the "Filling" portion of a fully automated liquid production line

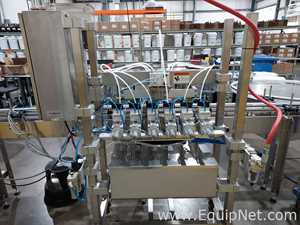

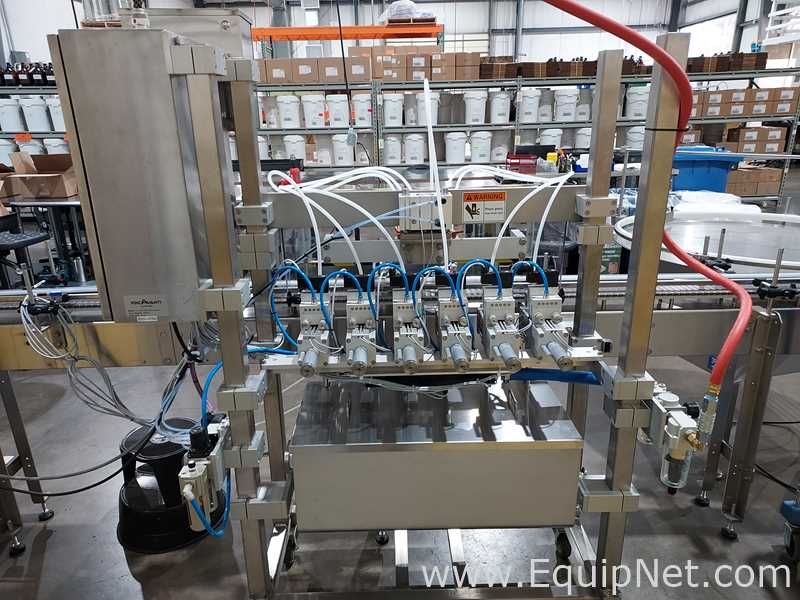

  • It features 6 in-line HiBar pumps that are mounted on a fully adjustable (on x/y) rail connected to the pump wagon. The pumps pull liquid from a trough/hopper (15gallons) that is also fixed to the pump wagon. Each pump can pull .5oz up to 2oz per stroke of the pump
  • It can run approx. 700-800 1oz bottles and 400- 500 2oz bottles an hour and support a bottles ranging from 1in wide x 2in tall and up to 4in wide x 12in tall
  • This filler features optical gates that close while filling selected bottles and open to funnel the next set of bottles into place. For larger bottles these gates can be easily adjusted as well as the pump positions on the rail. This system can also run any combo of the 6 pumps, if all 6 are not needed the operator could choose to run just 3 (or 2 or 4, as needed). This can be helpful for a quicker change over on smaller runs

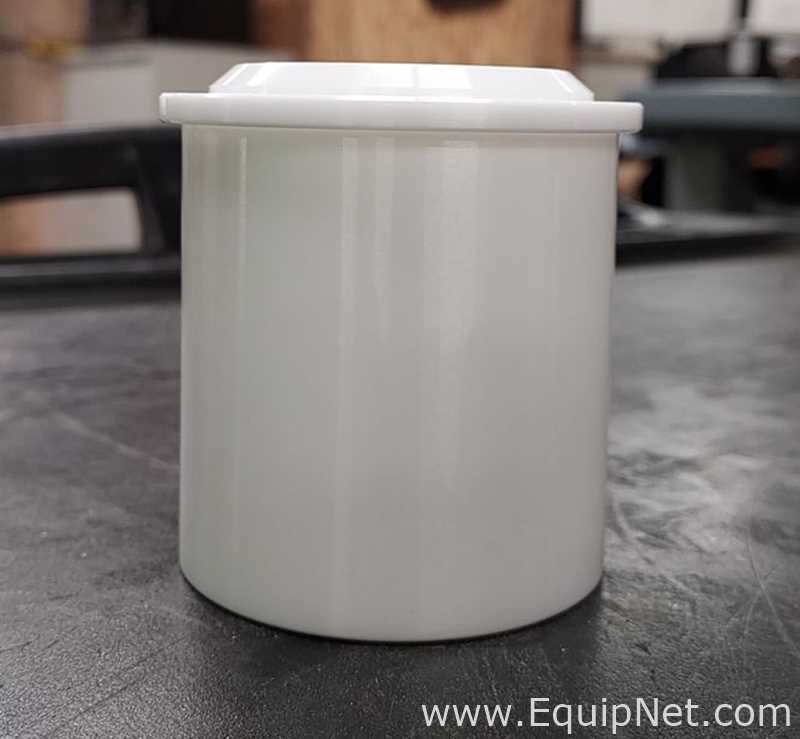

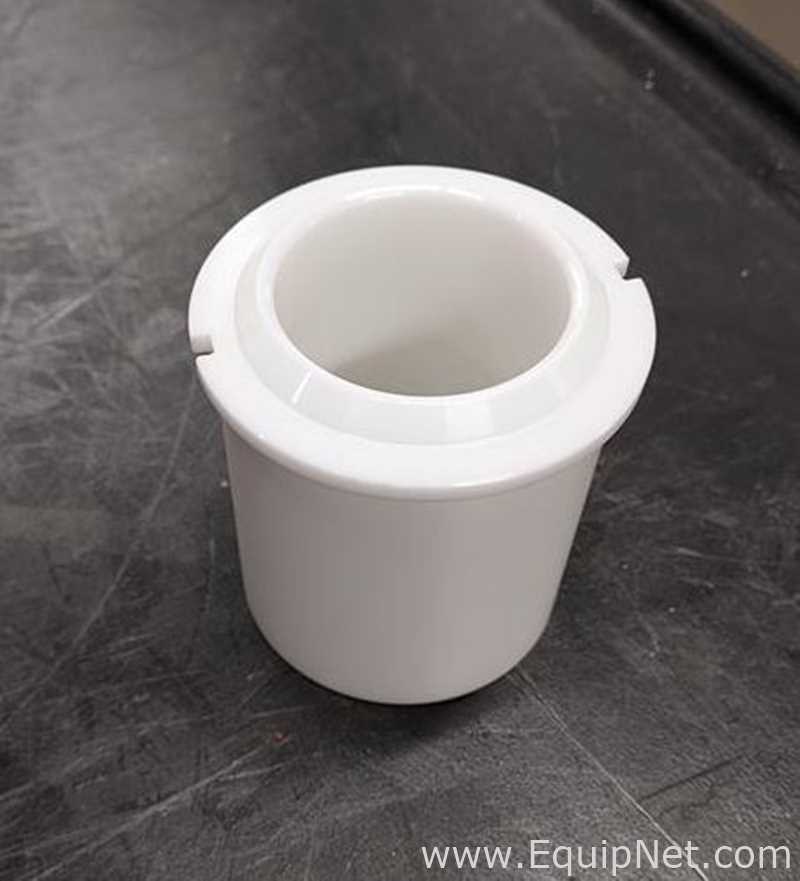

  • Seller also will include 6x ceramic piston sleeves they bought for the liquid line with the idea they would run vinegar through the system but that did not happen. The ceramic sleeves are brand new and were $600.00 each for the total of $3,600.00 and are included

  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Kinsley, Inc. PSNCAivanti


    Year:
    2023
    2023

    Serial Number:
    WO-9193
    WO-9193

    Type of Filler:
    INLINE
    INLINE

    Can Seller Provide a Sample of Product Run:
    Yes
    Yes

    Application Range (Ex Min/Max Range Size Bottles or Tubes, Shape of Bottle):
    Up to 4 OZ.
    Up to 4 OZ.

    Voltage:
    230 VOLTS
    230 VOLTS

    Frequency:
    60 HERTZ
    60 HERTZ

    Phase:
    1
    1

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:
    1 x 1 x 1 IN - 1 LBS
    25.40 x 25.40 x 25.40 mm - 0.45 kg
