Lot 13 Listing# 1108652

Unused - MD-Kinney Kinney TVKVO300CD-FE Lubricated Rotary Vane Vacuum System


You must be logged in to participate in auctions

Log in



Location:

Pointe-claire, Quebec, Canada

Event Start Date:

10/13/2026

Invoices Will be Sent:

10/19/2026
All invoices are to be paid promptly upon receipt.

Equipment Description
MD-Kinney Kinney TVKVO300CD-FE Lubricated Rotary Vane Vacuum System

Configuration:
  • Triplex Stack-Mounted System
  • Three (3) KVO300 Vacuum Pumps

    Pump Specifications:

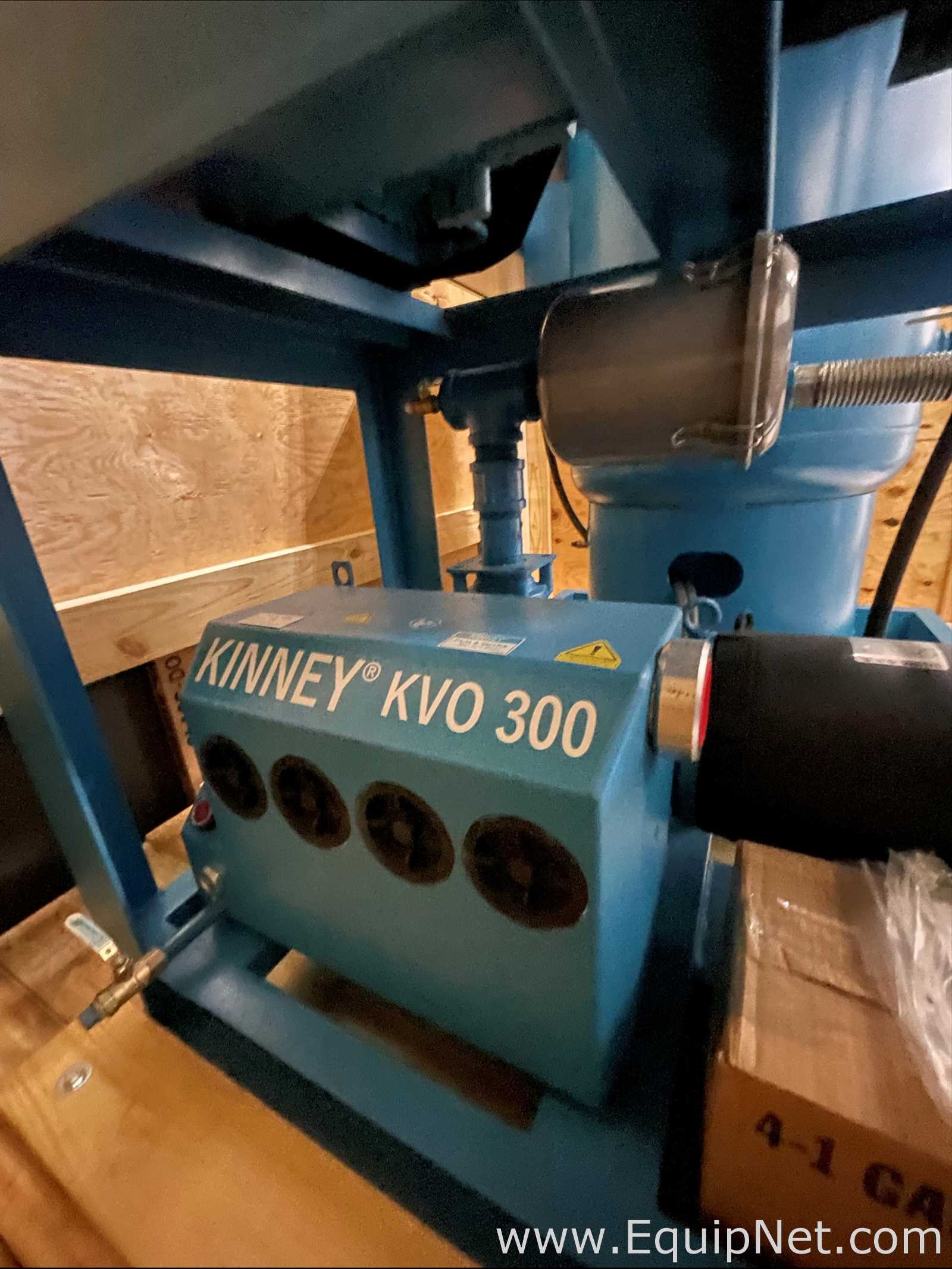

  • Pump Model: KVO300
  • Pump Type: Lubricated (Oil-Sealed) Rotary Vane Vacuum Pump
  • Capacity: 212 ACFM Each
  • Total Capacity: 636 ACFM
  • Cooling: Air Cooled
  • Lubrication: Oil Flooded, Differential Pressure Circulated

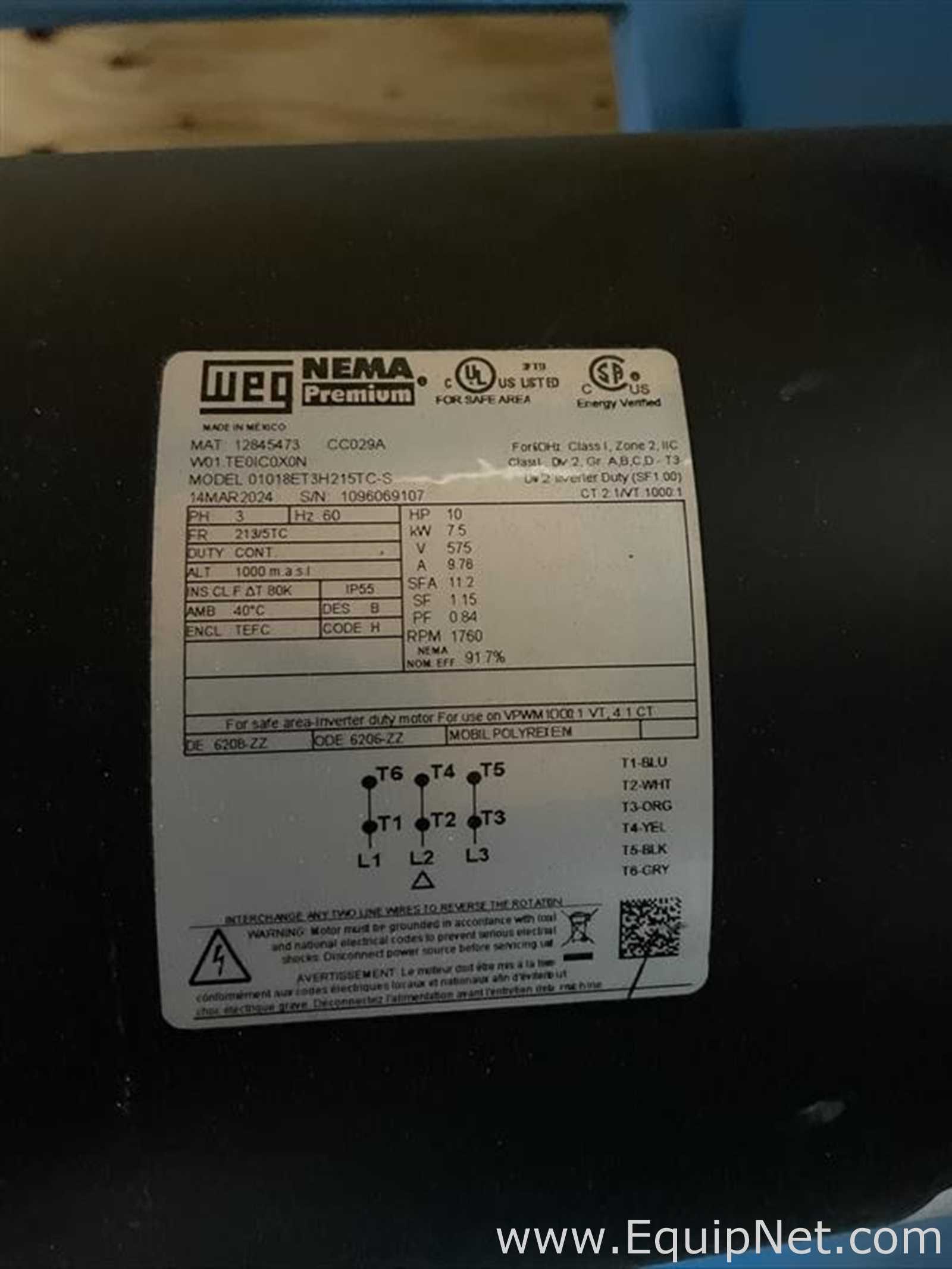

  • Motor Type: TEFC (Totally Enclosed Fan Cooled)
  • Motor Power: 10 HP Each
  • Total Installed Power: 30 HP
  • Motor Mounting: Self-Aligning C-Face Flange

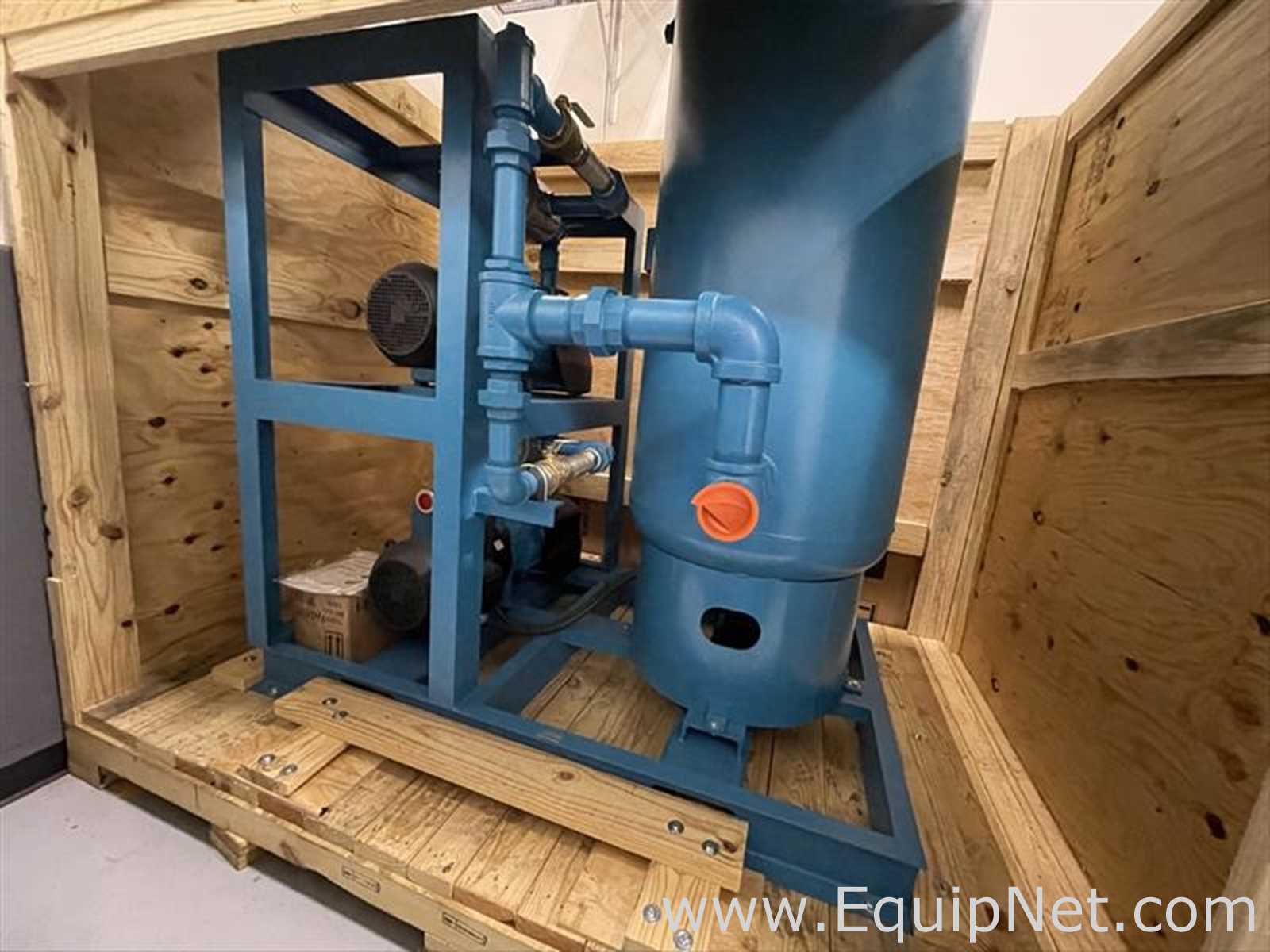

    Receiver Tank:
  • Quantity: 1
  • Capacity: 200 Gallons
  • Orientation: Vertical
  • Material: Carbon Steel
  • Code: ASME Section VIII Division 1
  • Manual Drain Valve

    Control System:
  • PLC-Based Control System
  • Automatic Pump Sequencing
  • Automatic Pump Alternation
  • Operator Interface Terminal (HMI)
  • NEMA 4/12 Enclosure
  • UL 508A Listed Control Panel
  • Hour Meters
  • HOA (Hand-Off-Auto) Switches
  • Motor Starters with Overload Protection
  • Surge Protector
  • Common Alarm Dry Contacts

    Features:
  • Gas Ballast Valve
  • Inlet Non-Return Valve
  • Mesh Inlet Screen
  • High-Efficiency Oil Mist Separator (99.998%)
  • Side-Serviceable Separator Elements
  • Heavy-Duty Cross-Flow Oil Cooler
  • Sound Attenuation Enclosure
  • Back Pressure Gauge
  • Aluminum Alloy Vanes
  • 5-Year Vane Warranty
  • Dynamically Balanced for Low Vibration

    Included Accessories:
  • Inlet Check Valve
  • Manual Pump Isolation Valve
  • Inlet Flex Connector
  • Vacuum Transducer
  • Vacuum Level Indicator
  • Initial Oil Charge
  • 5-Micron Inlet Filter

    System Configuration:
  • Single-Point Electrical Connection
  • Single Vacuum Inlet Connection
  • Individual NPT Discharge Connections for Each Pump
  • Interconnecting Piping Included
  • Interconnecting Wiring Included
  • Modular Structural Steel Frame
  • Factory Packaged System

  • Specifications:
    Standard
    Metric

    Manufacturer Name

    MD-Kinney


    Model:

    Kinney TVKVO300CD-FE
    Kinney TVKVO300CD-FE

    Capacity Speed:

    1800 RPM
    1800 RPM

    Vacuum (in. Hg):

    29.91
    29.91

    Voltage:

    575 VOLTS
    575 VOLTS

    Frequency:

    60 HERTZ
    60 HERTZ

    Phase:

    3
    3

    Recommended Packaging Form:

    PALLET
    PALLET


    Dimensions:
    Standard
    Metric

    Overall:

    118 x 71 x 98 IN - 5070 LBS
    2997.20 x 1803.40 x 2489.20 mm - 2299.75 kg
