Baxter Repeater Pharmacy Pump

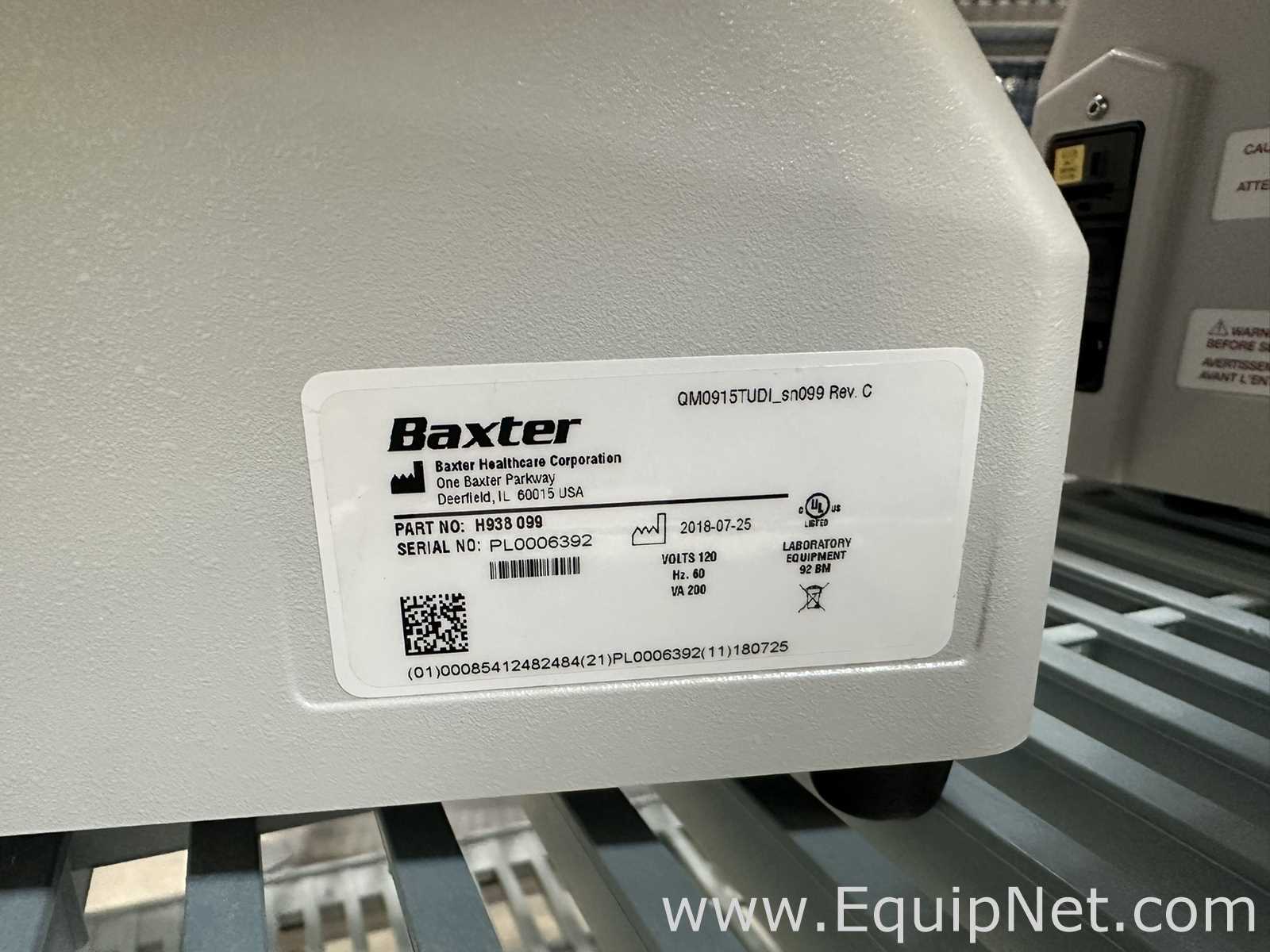

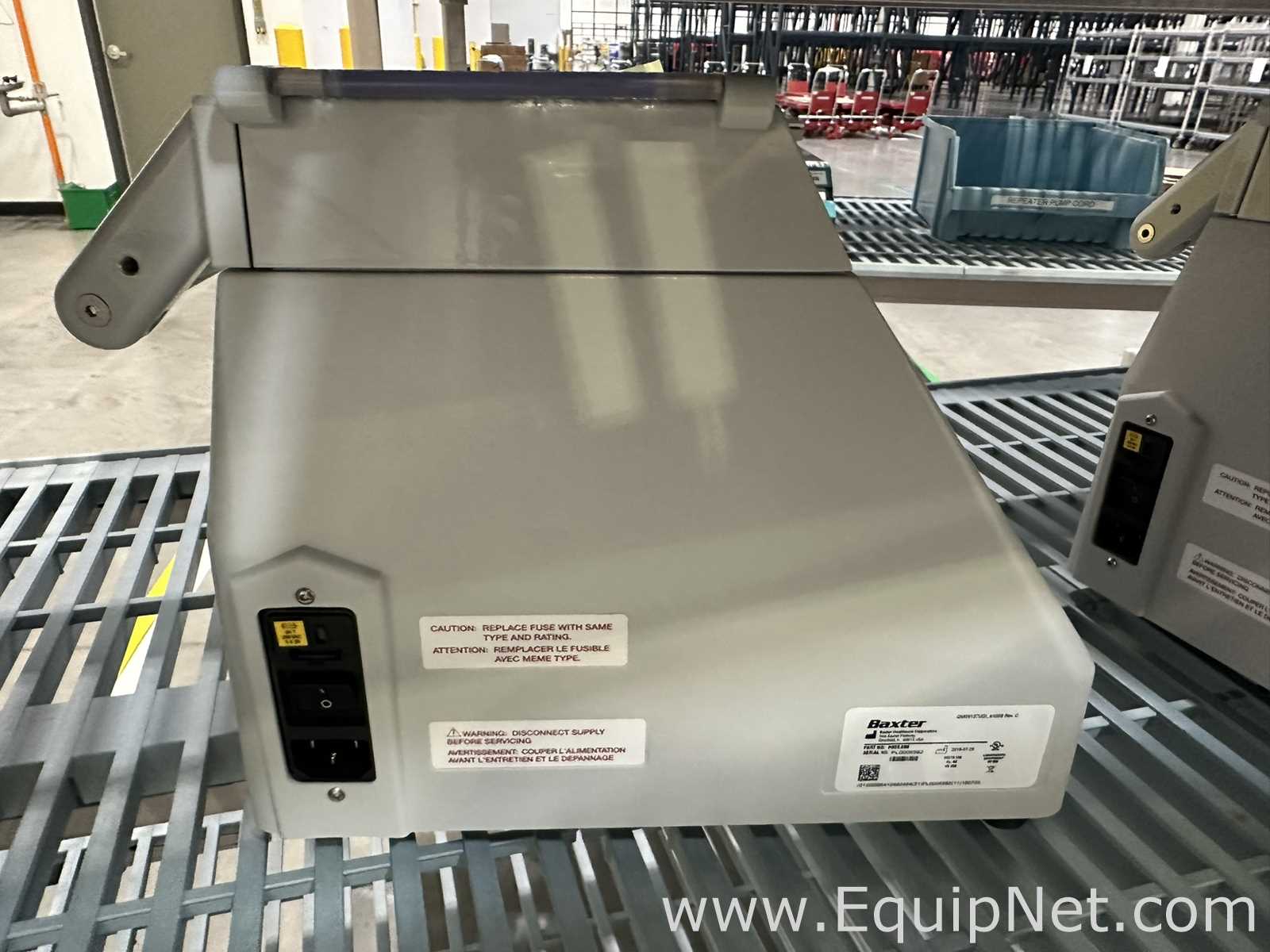

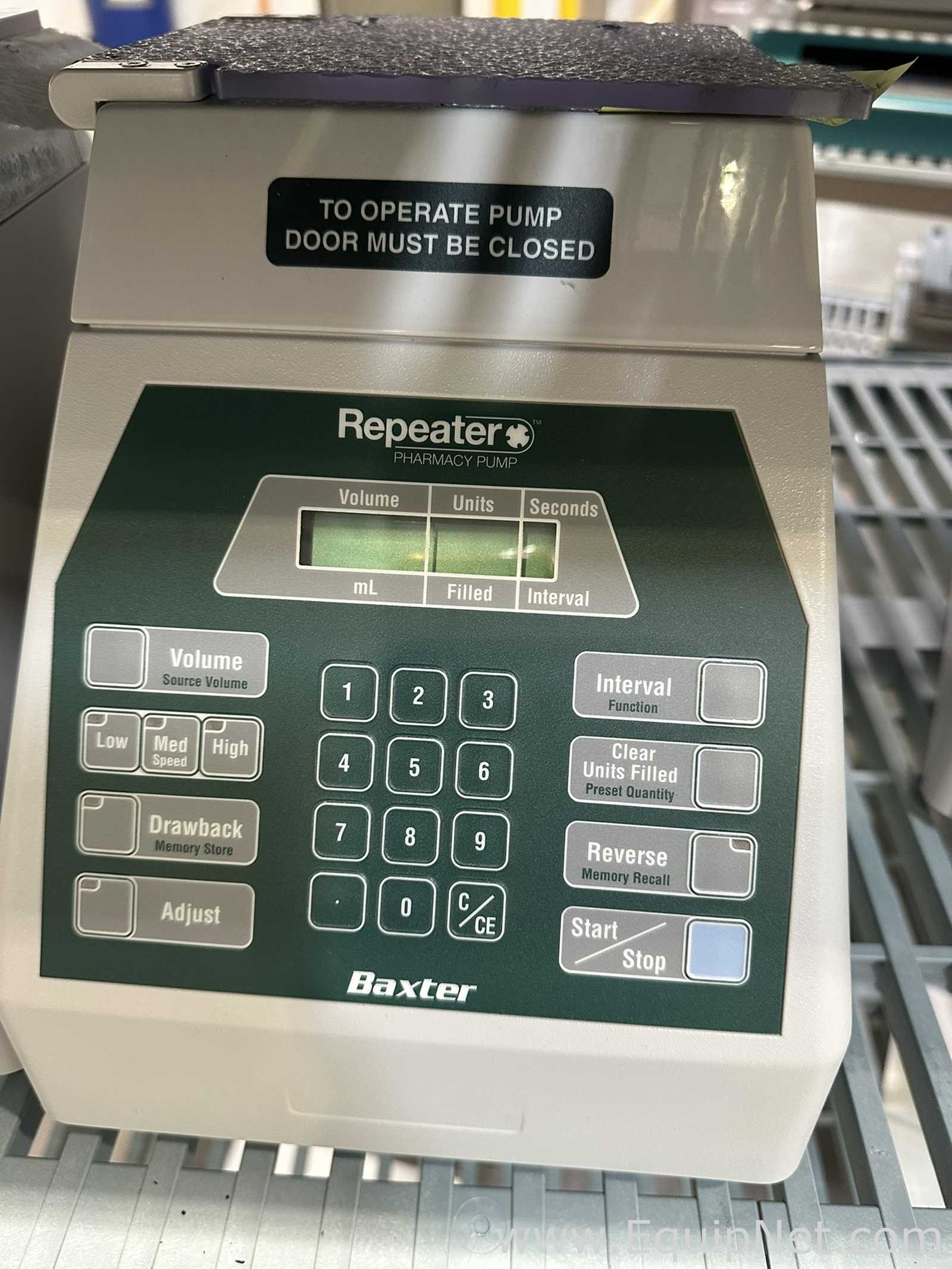

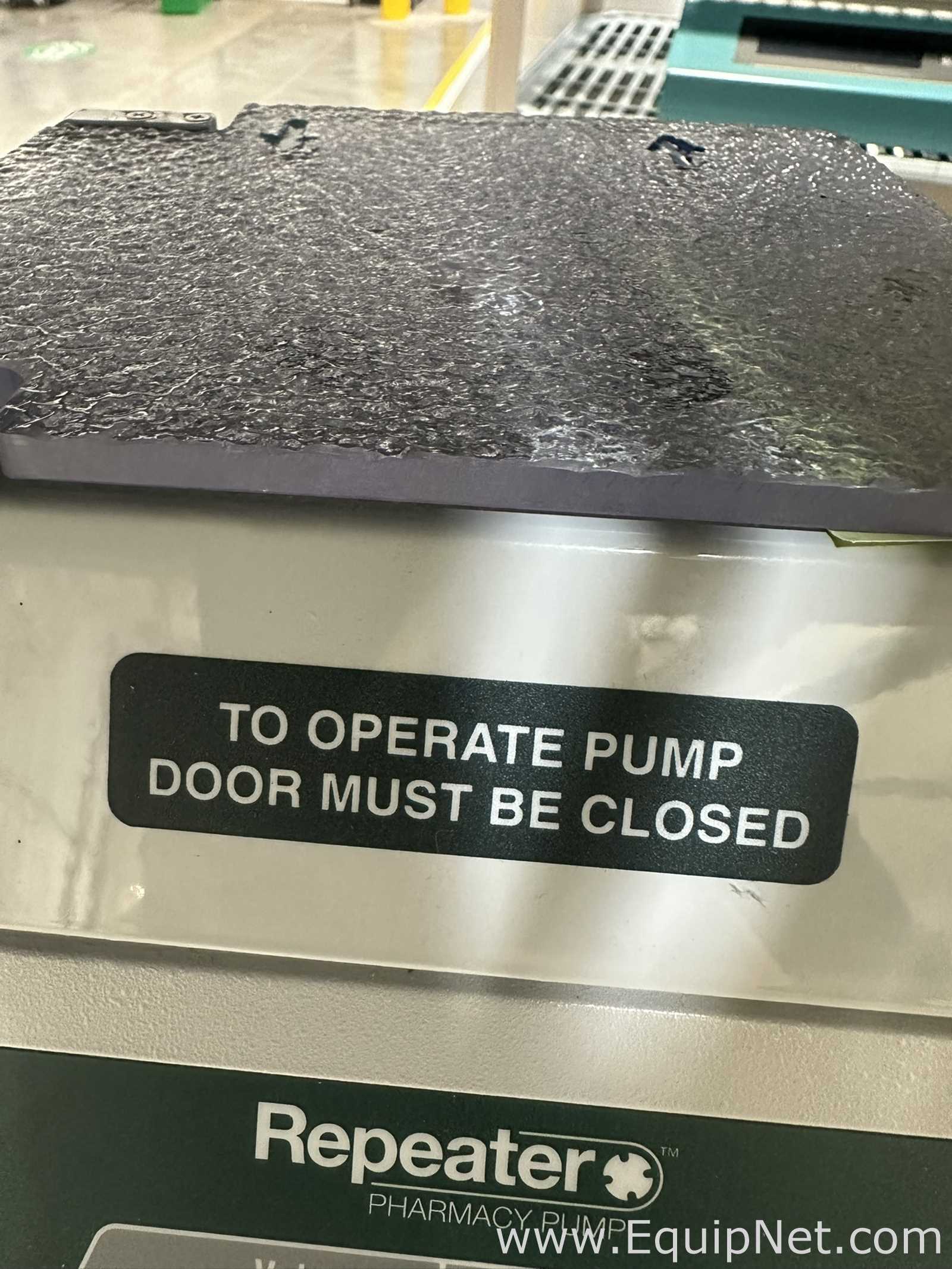

Baxter Repeater Pharmacy Pump (part no. H938 099), a benchtop peristaltic fluid transfer pump used in pharmacy admixture and compounding operations to perform repeated, automated transfers of sterile fluids from a source container into bags, bottles, syringes or vials. The pump operates with a disposable Repeater pump transfer set that loads behind the hinged front door; an interlock label on the door states the door must be closed for the pump to run. The membrane control panel includes a three-field display showing Volume (mL), Units Filled and Seconds/Interval, a numeric keypad with decimal and C/CE keys, Volume (Source Volume) and Adjust keys, Low/Med/High speed selection, Drawback (Memory Store), Reverse (Memory Recall), Interval (Function), Clear Units Filled (Preset Quantity) and a Start/Stop key. Per Baxter's published data the Repeater pump transfers volumes from 0.2 mL to 9,999 mL with accuracy of approximately +/-10% at the low end, at flow rates up to about 13.5 mL per second depending on the set and needle used. The nameplate on the rear housing reads Baxter Healthcare Corporation, Part No. H938 099, Serial No. PL0006392, date 2018-07-25, 120 volts, 60 Hz, 200 VA, UL listed laboratory equipment. The rear panel carries the IEC power inlet, rocker power switch and a fuse holder with fuse-replacement and disconnect-before-servicing labels. The unit is shown as a free-standing benchtop instrument on a warehouse rack, with the cream-colored housing, hinged door and a foam-wrapped rear tray/shelf in place. No power cord, transfer sets or other accessories are shown in the photographs, and no operating or service history was recorded at the time of inspection.
