Listing# 1007065

BOC EDWARDS CALUMATIC Vial washer machine CRW-1


Seller's Acceptable Currency:

€22,600.00 EUR

Make An Offer

Location:  Europe

Level of Removal:  Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you




Equipment Description

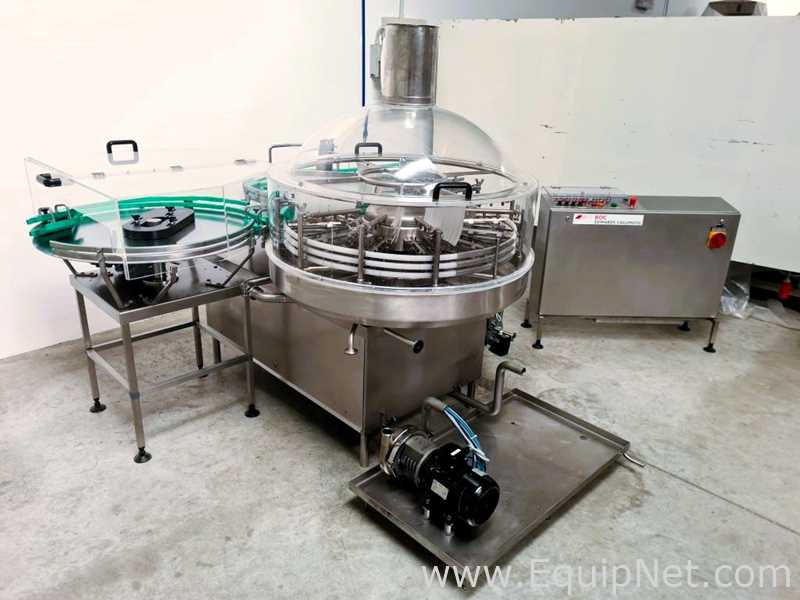

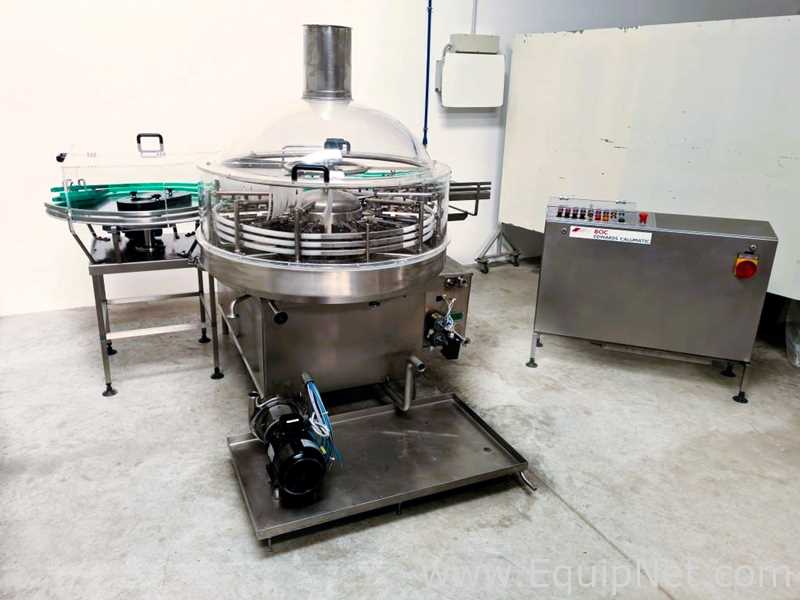

BOC EDWARDS CALUMATIC MOD. CRW-1 - Vial washer machine

DESCRIPTION:

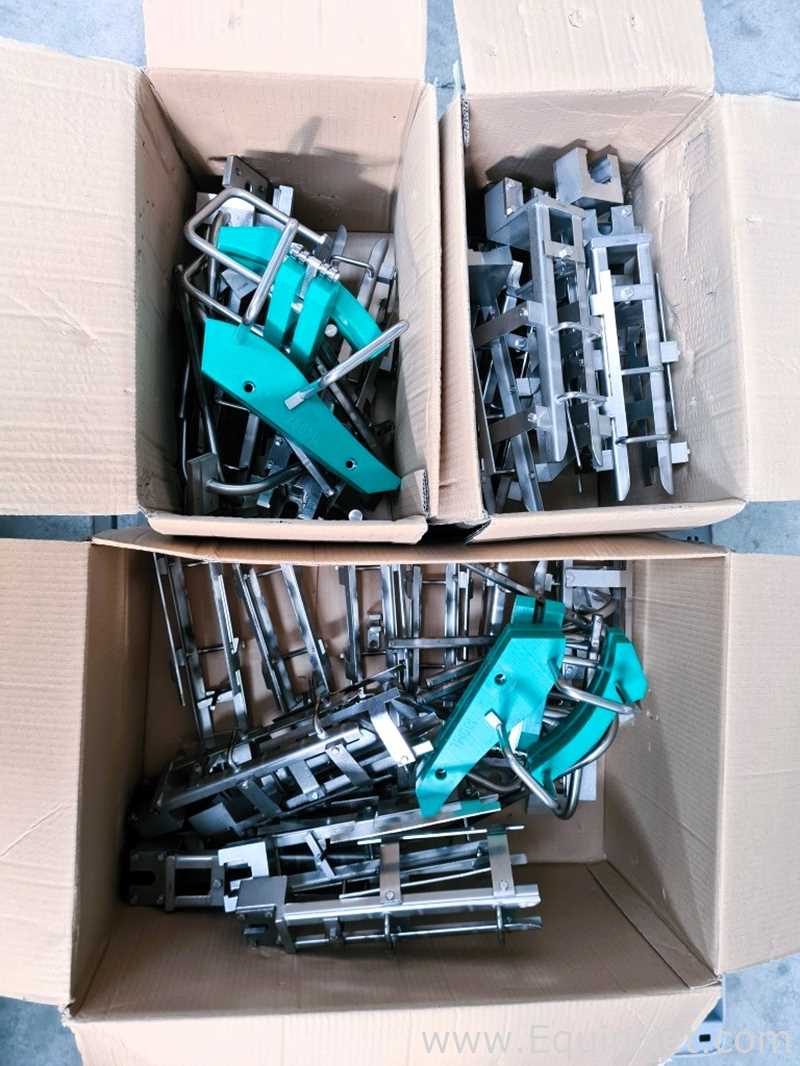

The CRW-1 washing machine has been designed to automatically wash the interior and exterior of vials in glass. Designed according to GMP regulations, and to satisfy the most elevated needs and quality standards of the pharmaceutical industry. All contact parts are in stainless steel. Easy and quick format change. Electronic control panel easy to handle.

SECTORS OF USE:
Pharmaceutical, chemical, cosmetic, food, diet, medical devices, manufacturing.

MAIN FEATURES:

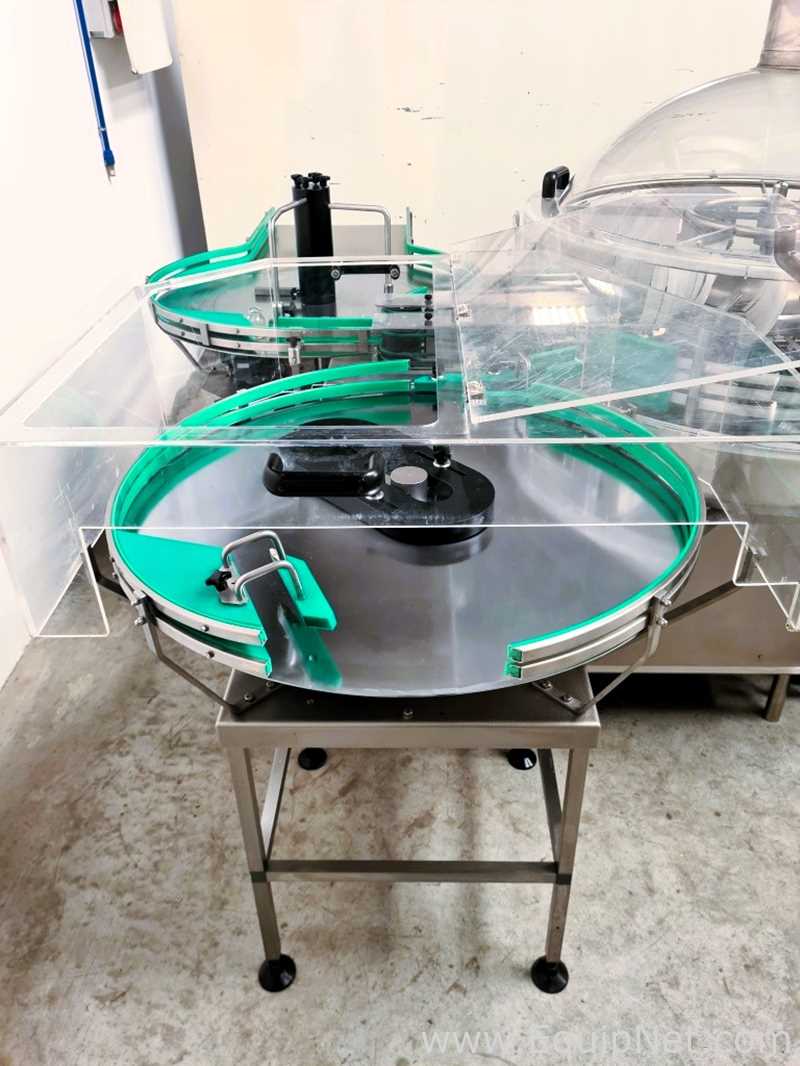

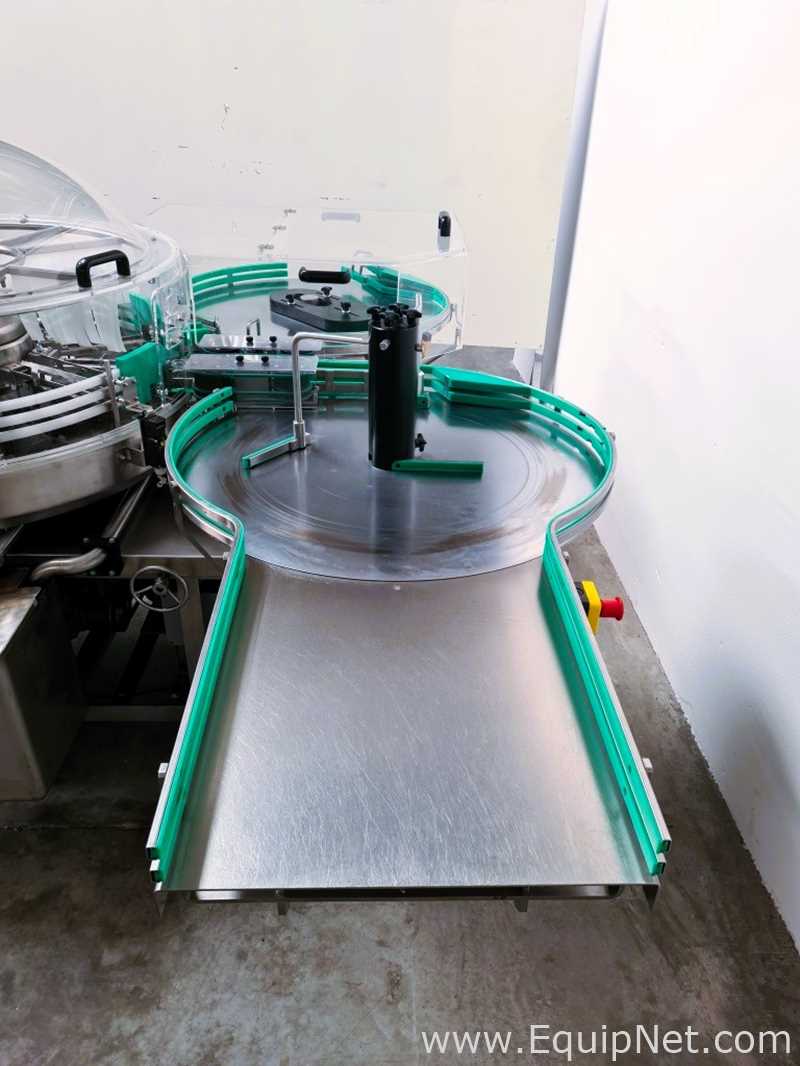

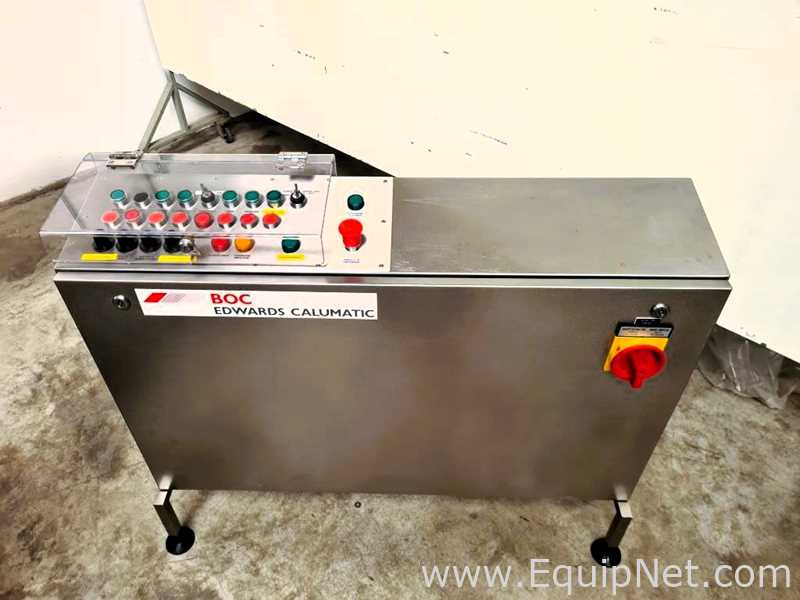

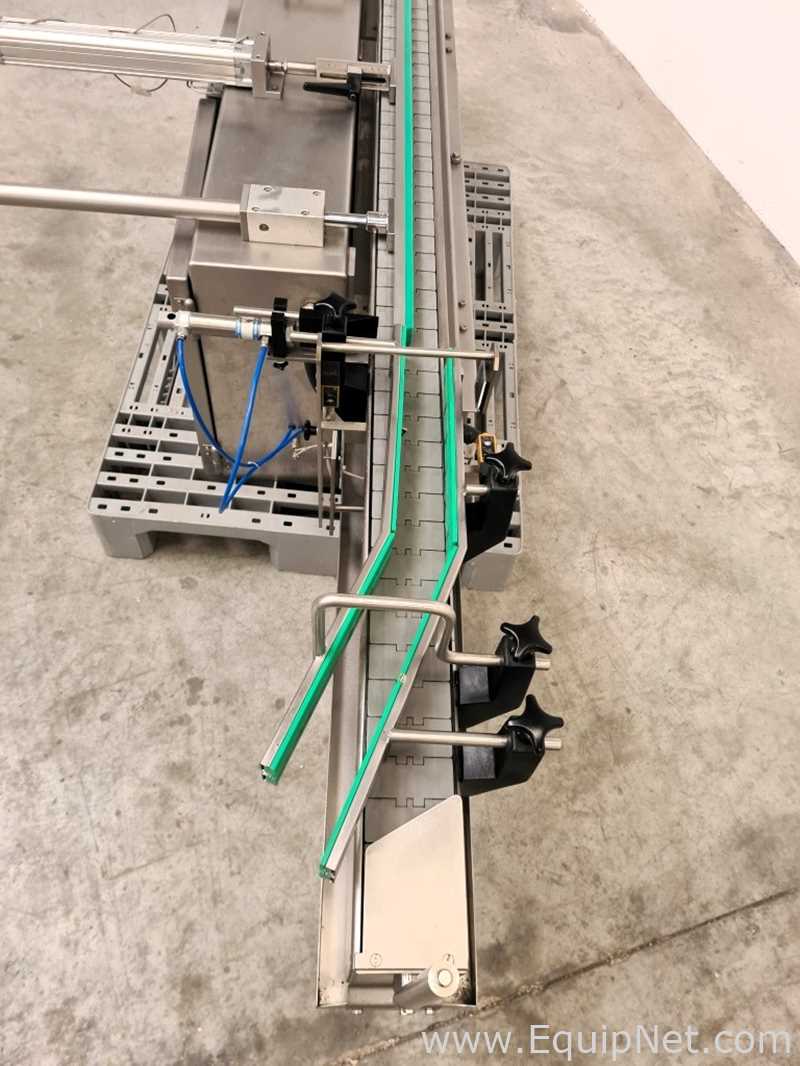

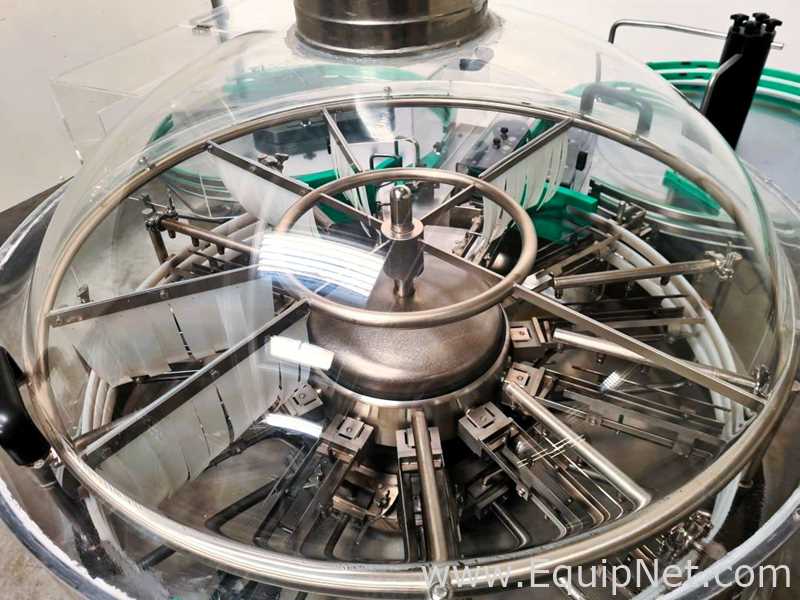

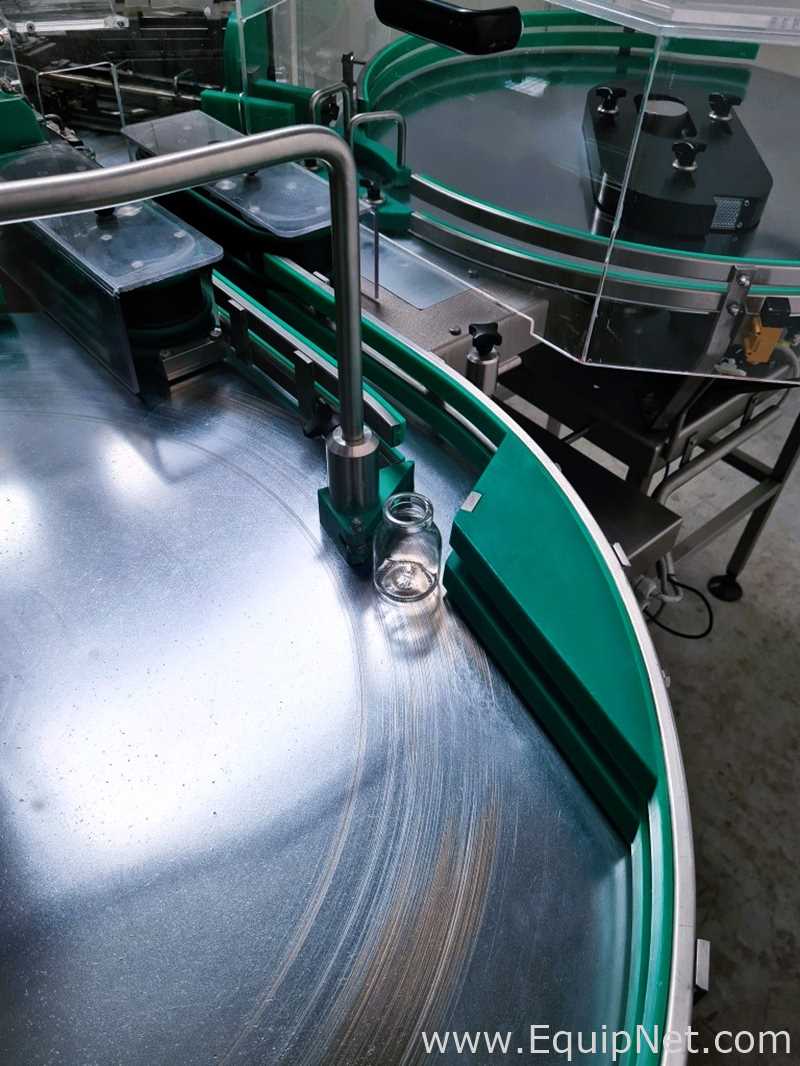

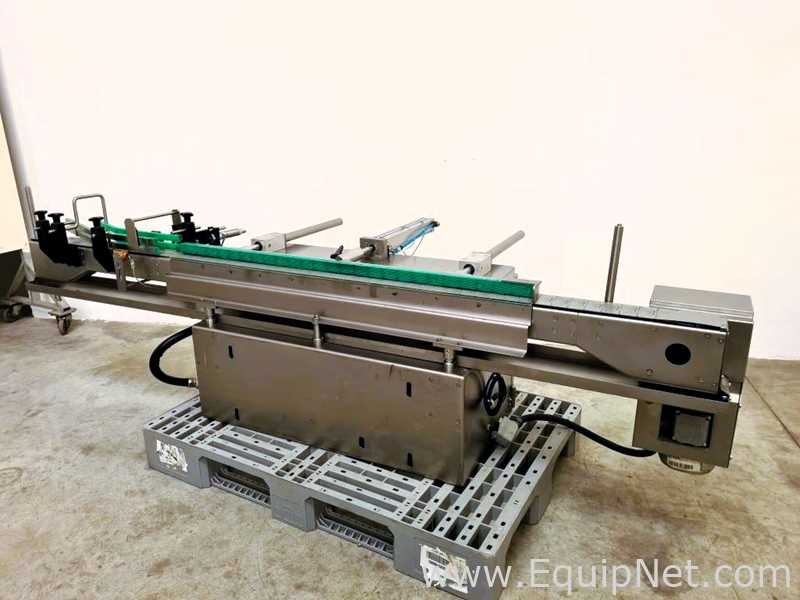

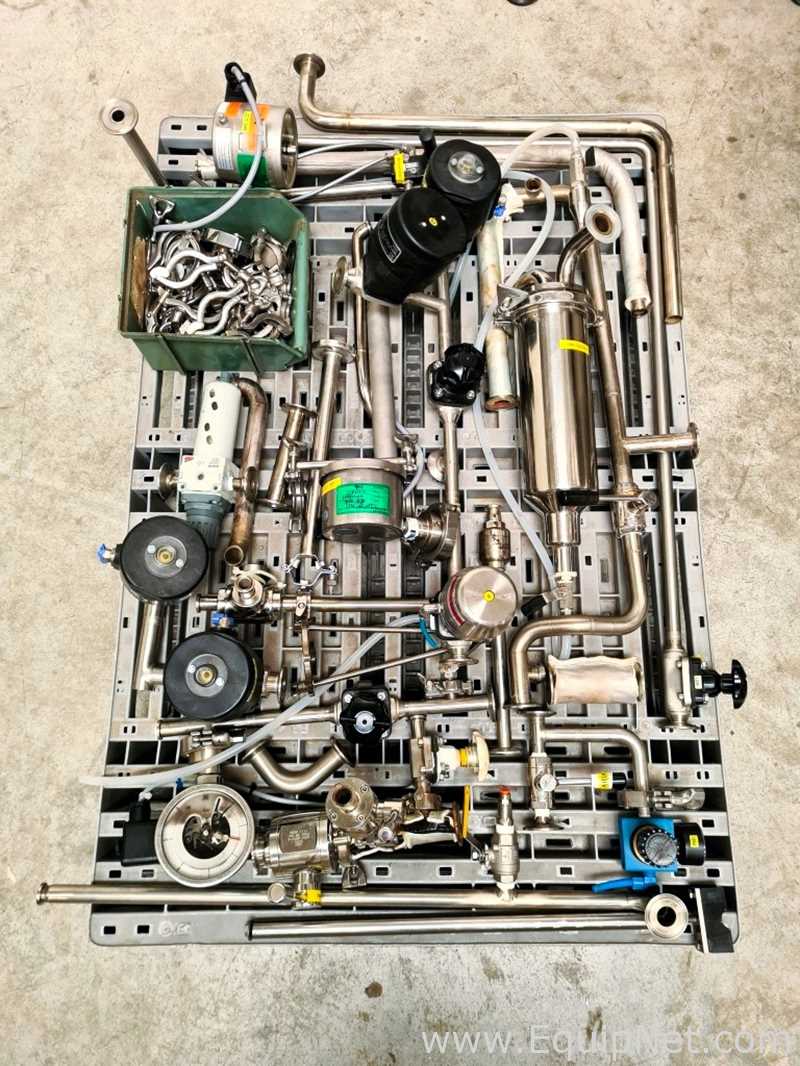

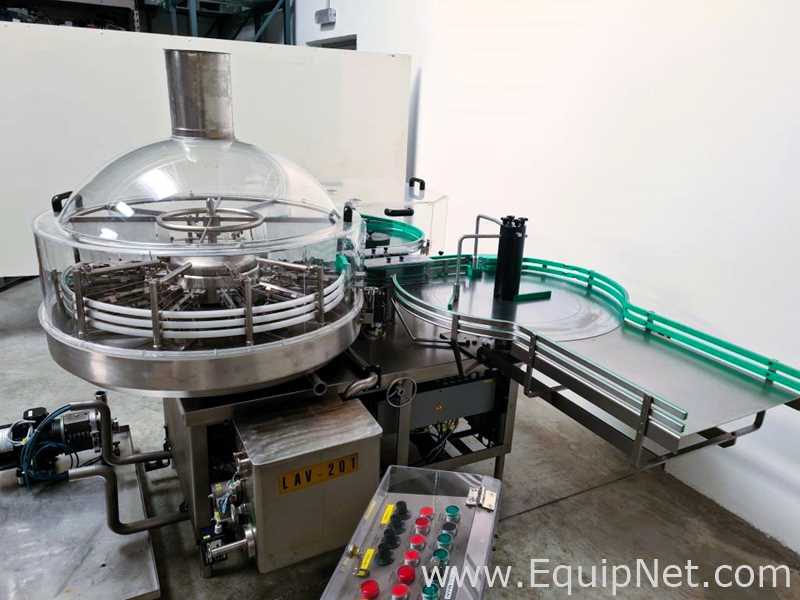

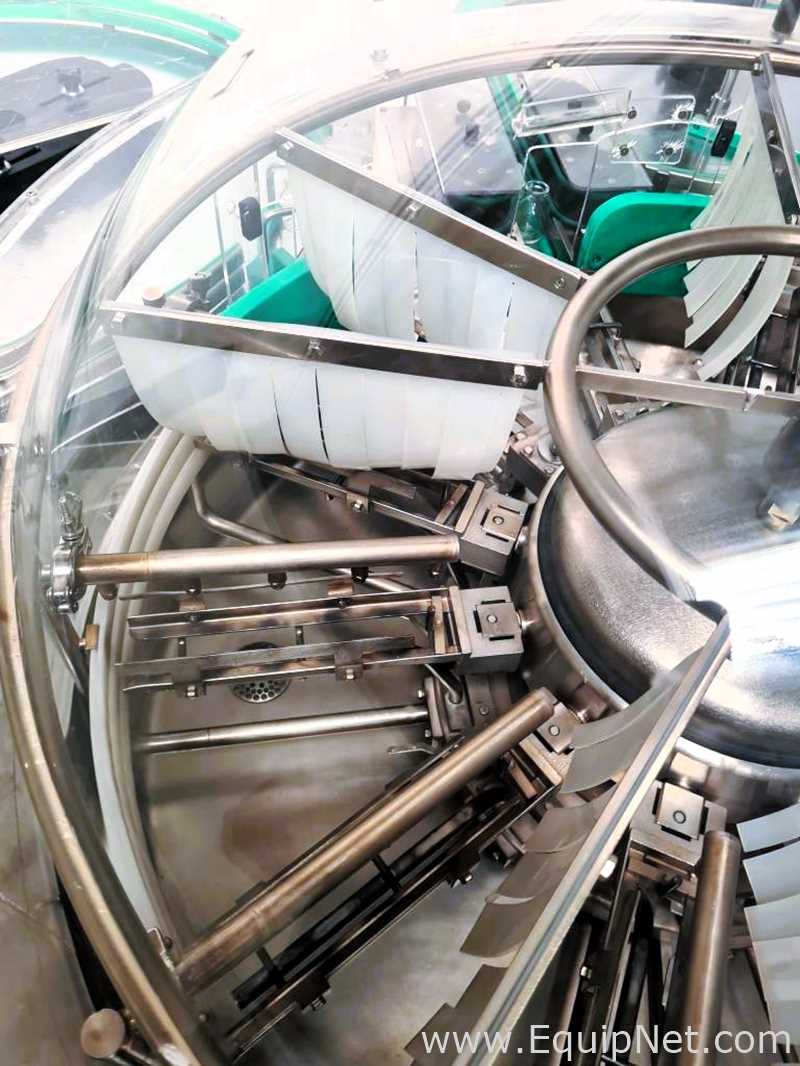

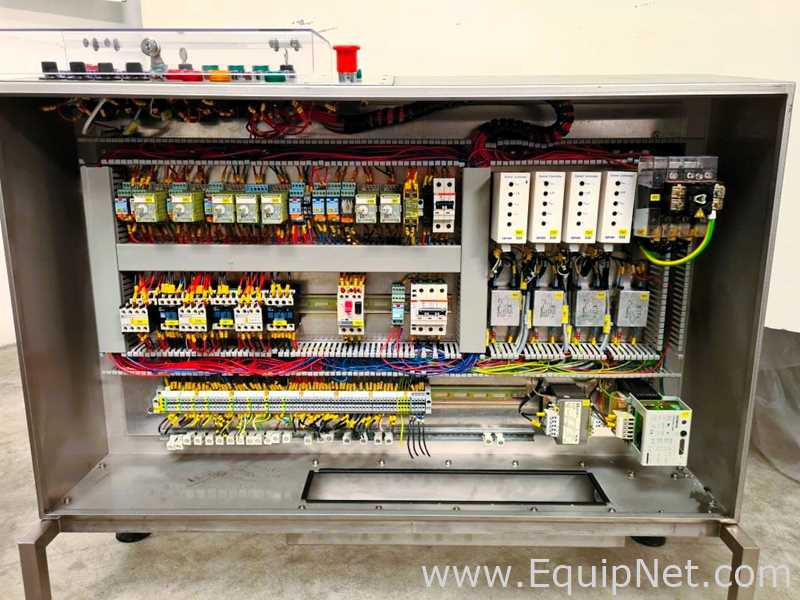

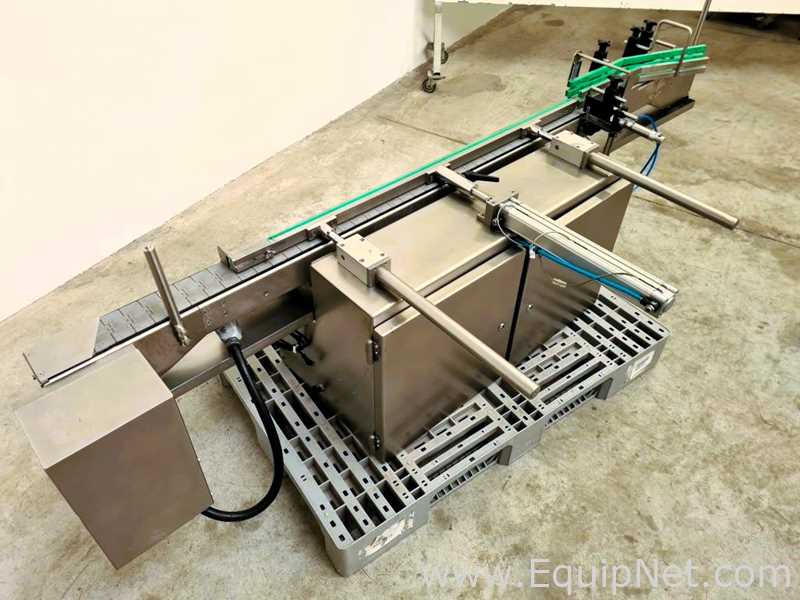

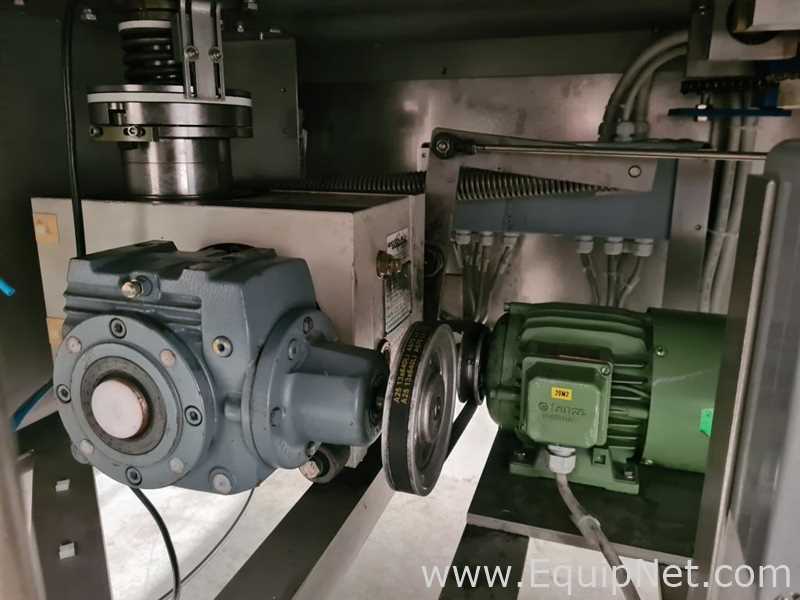

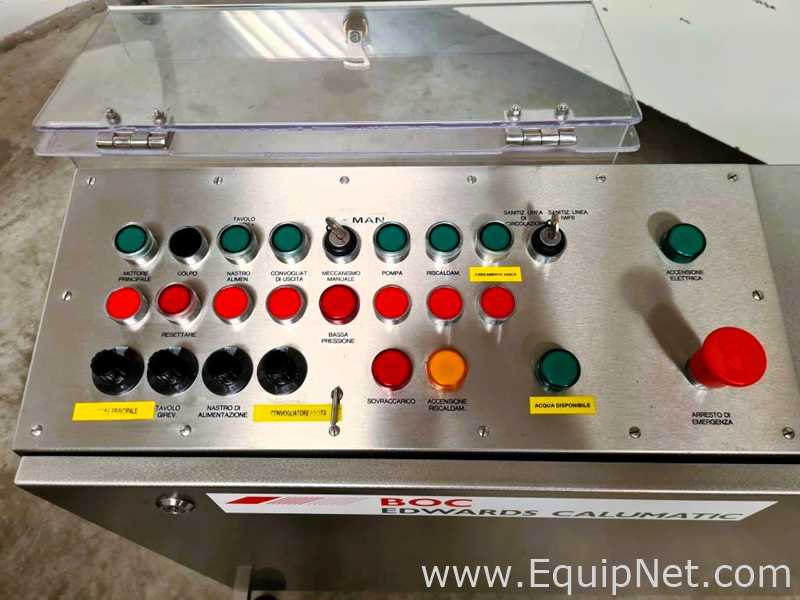

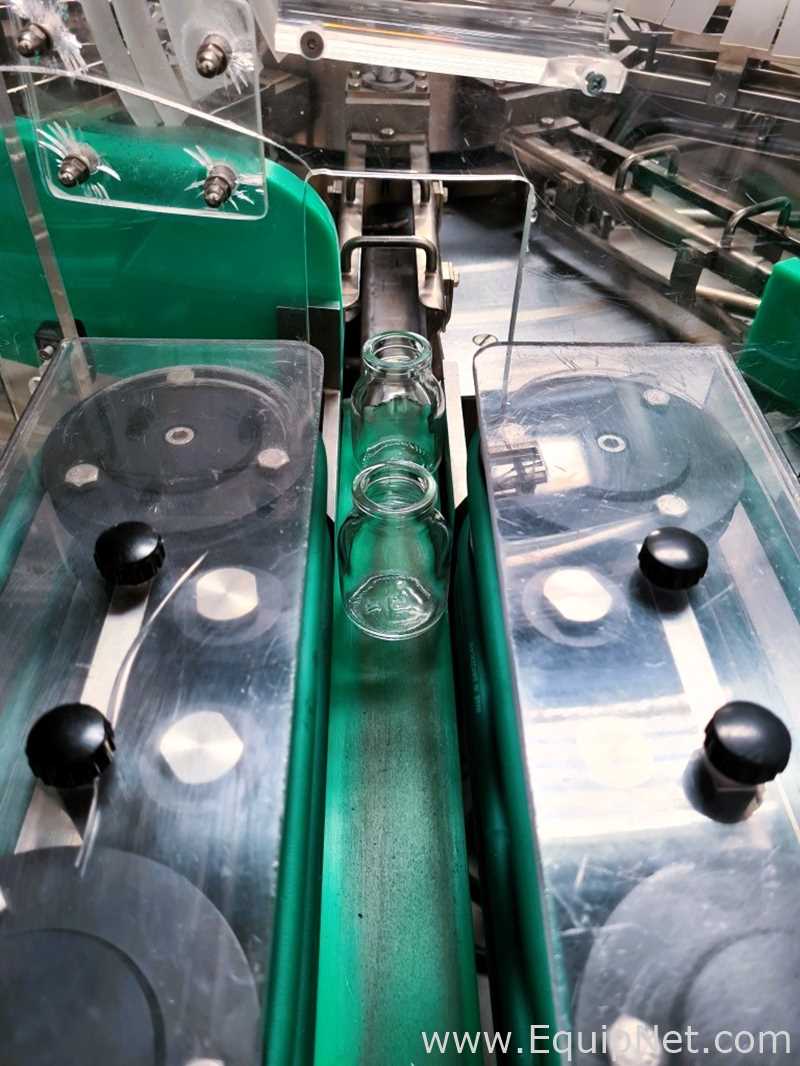

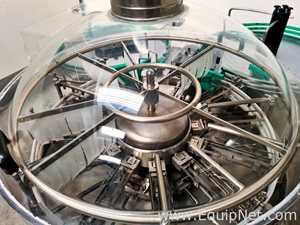

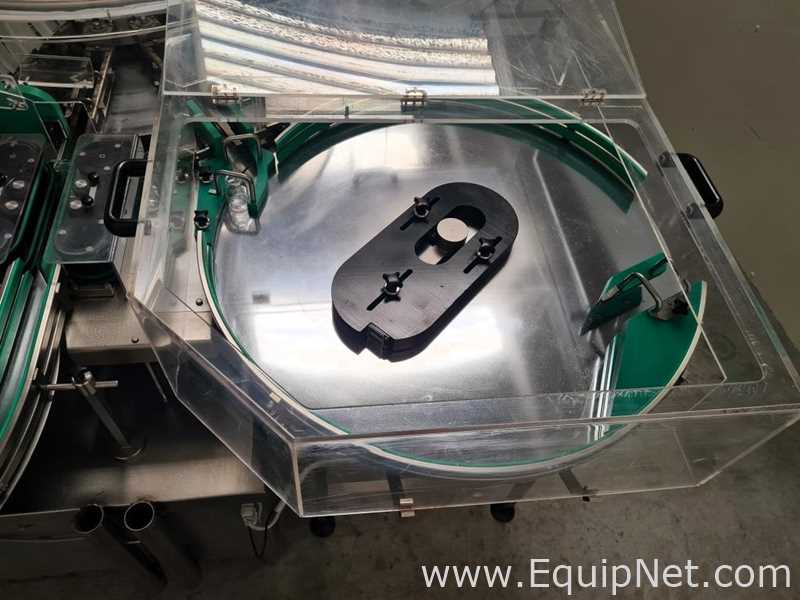

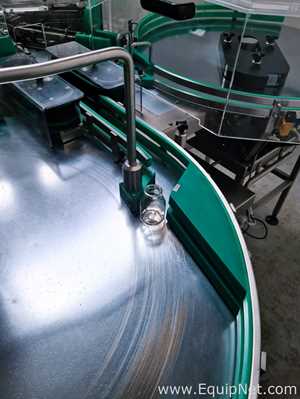

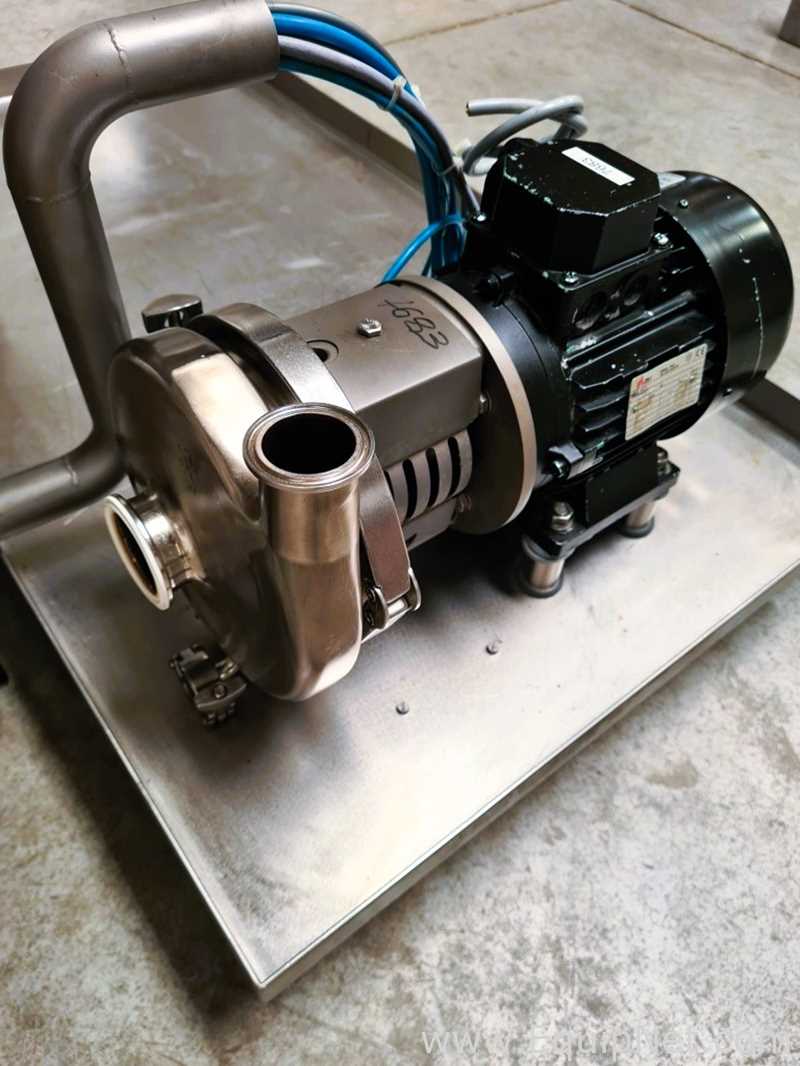

The machine works with two stages of cleaning. In the first stage one cleaning cycle is performed. The second stage of cleaning has 2 washing stations and two drying stations for cleaning and drying both internally and externally the vials. For washing the vials virgin WFI water will be used which then will be filtered and re-used. The machine comprises a main drive with 12 vial holders, and infeed table and outfeed table, a polycarbonate cover of the washbowl and a pump skid for the supply of WFI and compressed air. The dedicated electrical cabinet provides the necessary power supplies. Operator control is facilitated by the MMI interface positioned on the cabinet. Connected to the infeed turntable of the washing machine a loading platform is installed. Vials have to be placed by the operator on this loading platform then the infeed turntable transports the vials to the infeed belts. Vials are pushed into the vial holders and by the rotation of the main drive all vials will pass individual washing stations where they are washed. From the outfeed the vials are transported onto the infeed conveyor of the sterilization tunnel.

Year: 1999

TECHNICAL DATA
Dimensions mm 3000 x 2200 x 1800
Weight kg 320
Frequency Hz 50
Voltage Volt 400
Current A 12

PRODUCTION CHARACTERISTICS
Production 84-140 VPM
Product diameter 45 mm
Product height 70 mm
Formats 50, 100, 250 ml

Specifications:
Standard
Metric
Manufacturer Name
Calumatic


Year:
1999
1999

Model:
CRW-1
CRW-1

Recommended Packaging Form:
PALLET
PALLET


Dimensions:
Standard
Metric

Overall:
118.11 x 86.61 x 70.87 in - 705.47 lb
3000 x 2200 x 1800 MM - 320 KGS

Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

Europe.

This equipment is subject to a removal and loading charge.


The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non-transferable.
