Listing# 1099121
CE King KT320/4 Liquid Filling Line
Pre-Owned CE King Liquid Filling Line for Sale
Seller's Acceptable Currency:
£41,000.00 GBP
Request More Info Make An OfferLocation: Europe
Level of Removal: Still Installed
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description

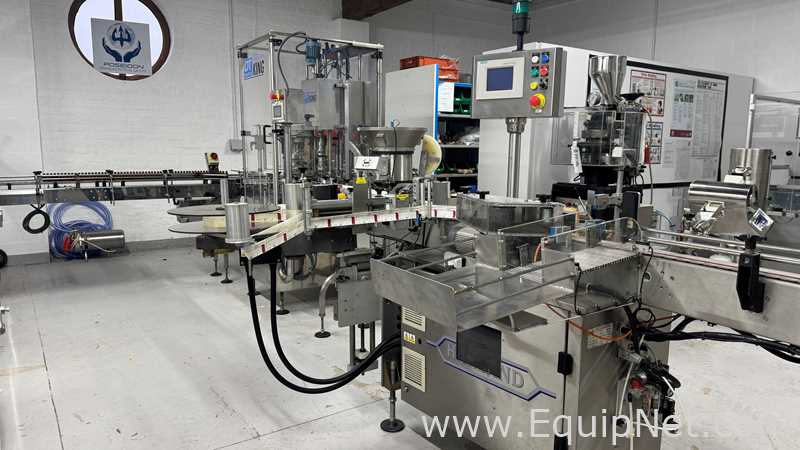

CE King KT320/4 Liquid Filling Line
Fully integrated and built by C.E. King UK to work as one unit with Stainless Steel pharma grade construction throughout.
This filling line was only occasionally used for short runs and is in excellent overall condition with low hours, well looked after, and regularly serviced.
It includes the King KT-320/4 Technofill automatic liquid gear pump liquid filler, renowned for its mechanical precision, pharma grade dose accuracy, and product fill cleanliness.
The line is additionally equipped with a high-end pressure sensitive Harland Sirius labeller at the end of the line, included in the offer free of charge.
Maximum output for the line is up to 55 bottles per minute, depending on container size, liquid viscosity, fill volume, and capping solution.
The system is widely used in the pharmaceutical, nutraceutical, cosmetic, beverage, and chemical industries.

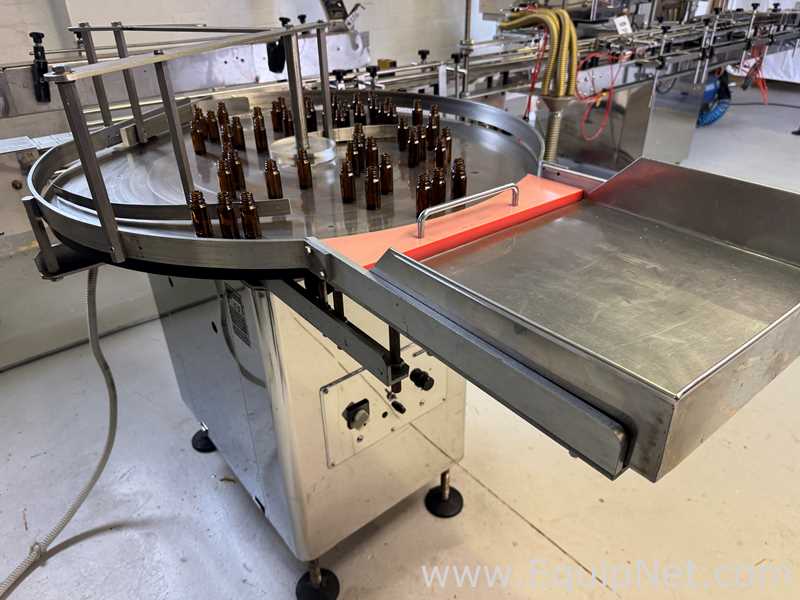

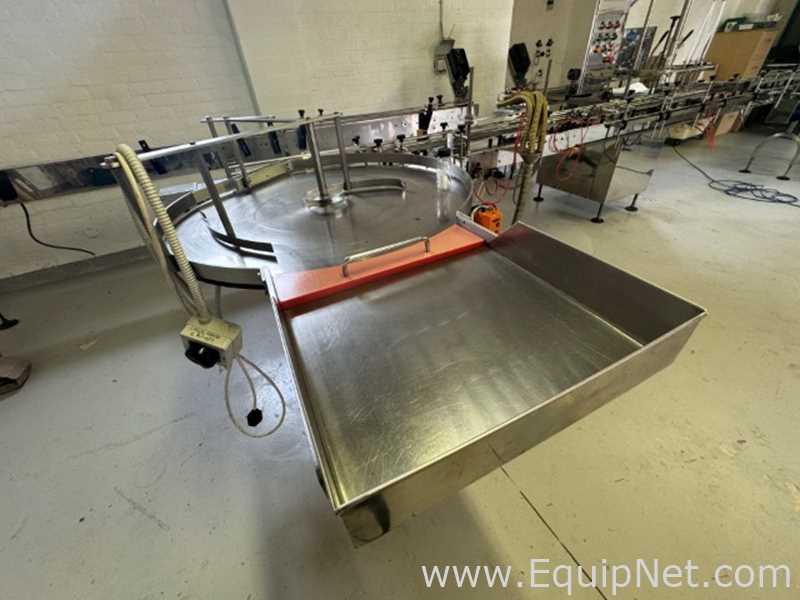

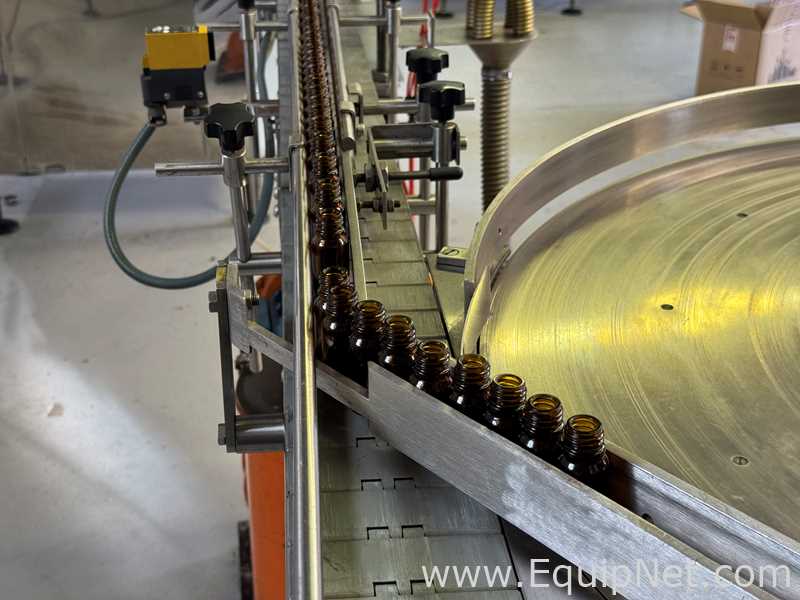

King US3 stainless steel rotary sorting and feeding table for empty bottles, model US3.
King BB SCL/4 bottle sterilising and cleansing unit with 2 stations (blowing and suction) built into the conveyor between the feeding table and the filler.

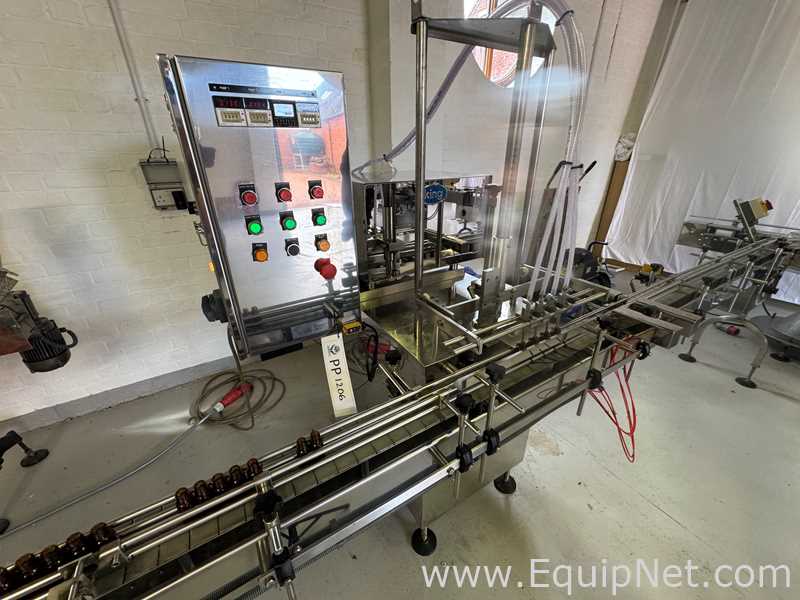

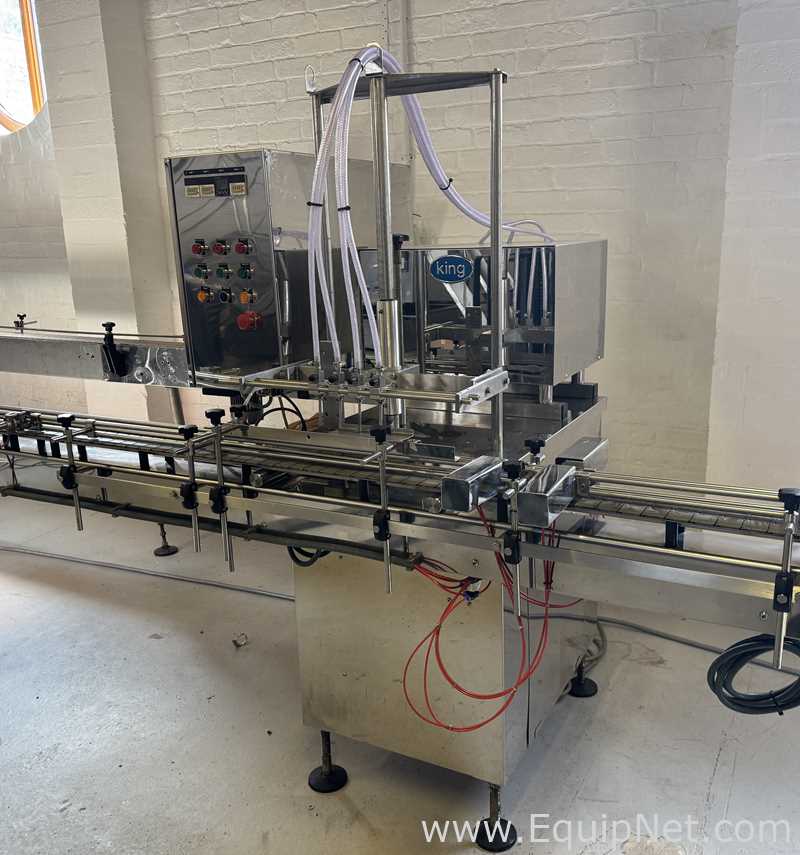

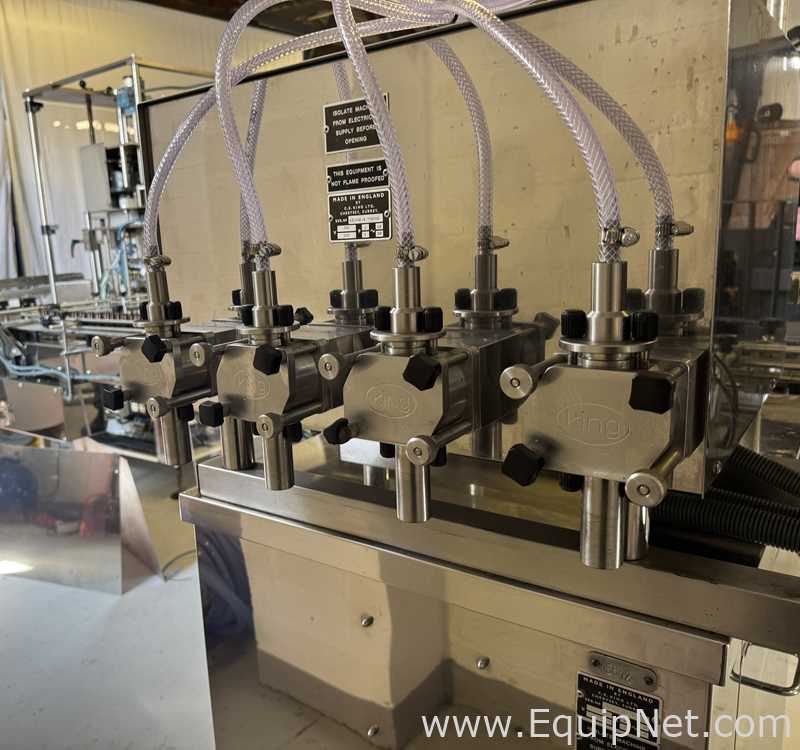

King KT320/4 Technofill 4-head positive displacement gear pump filler allows for repeatable accuracy and a precise amount of liquid being moved with each pump revolution.

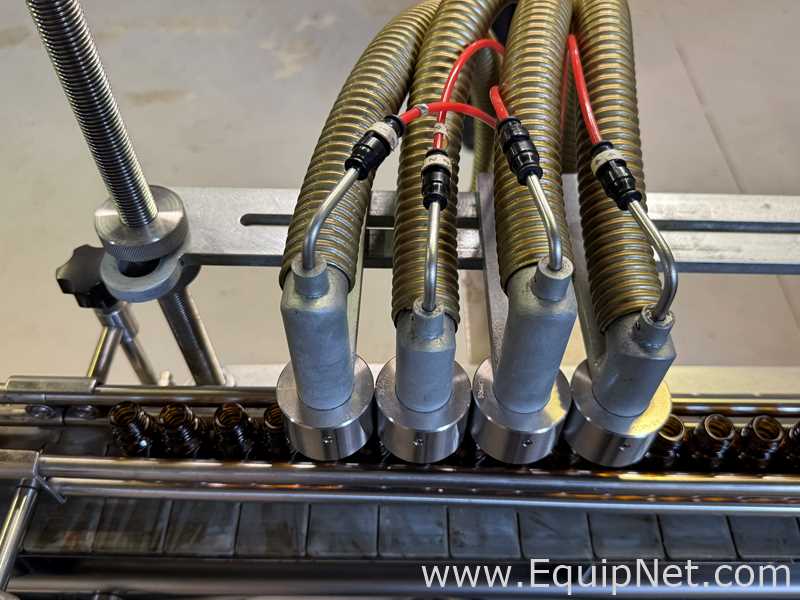

The filler is equipped with a gating system and pneumatic diving nozzles, integrated into a King IL/KT heavy duty base unit.

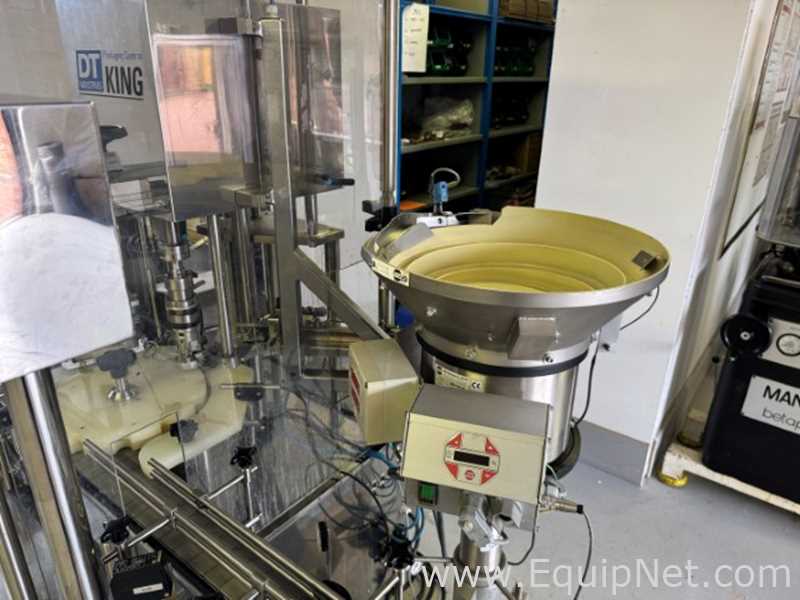

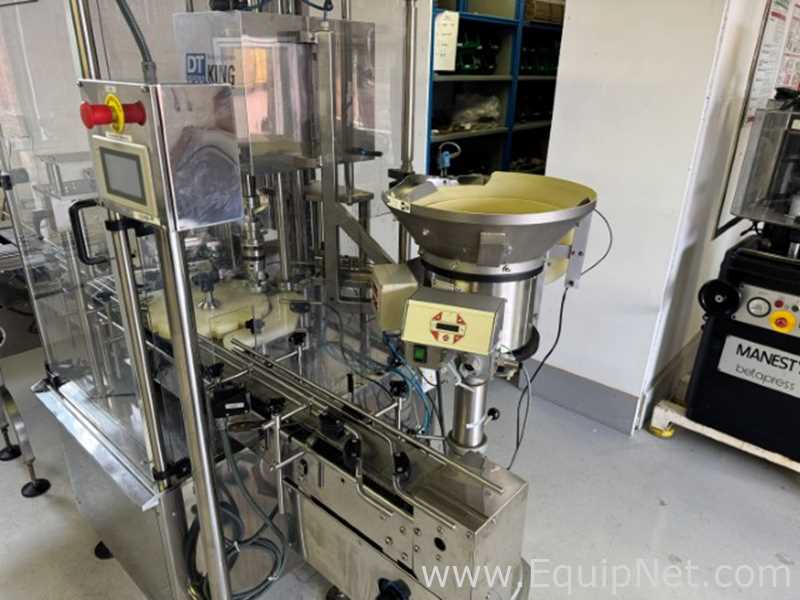

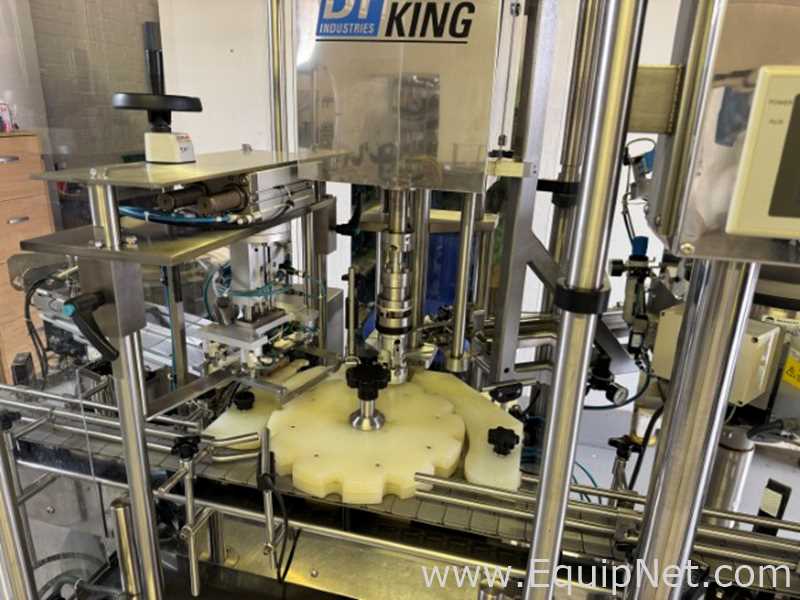

King Caps CS60 screw capper with an automatic Pick and Place system for applying droplet inserts into bottles.
The capper is suitable to run caps for standard and drop bottles, and comes with a vibratory cap sorting-feeding bowl and an integral variable speed through conveyor with Flexlink style slat belt.

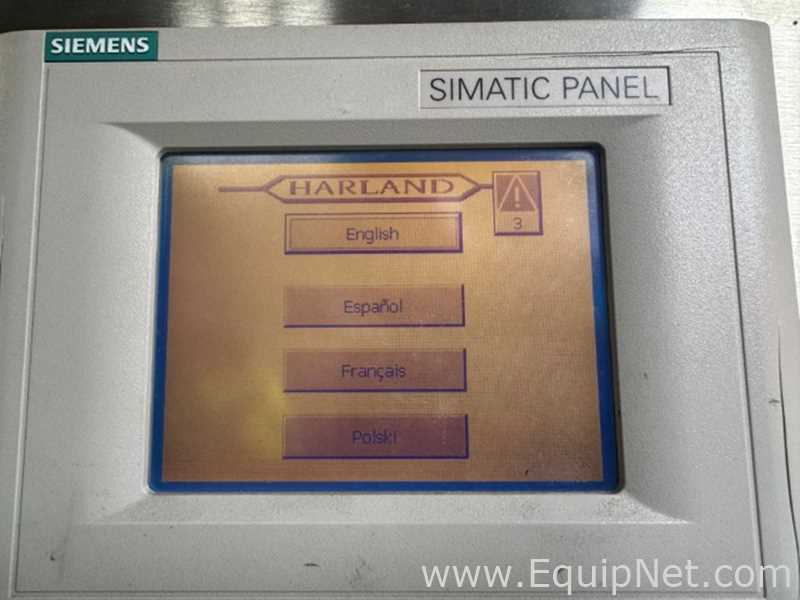

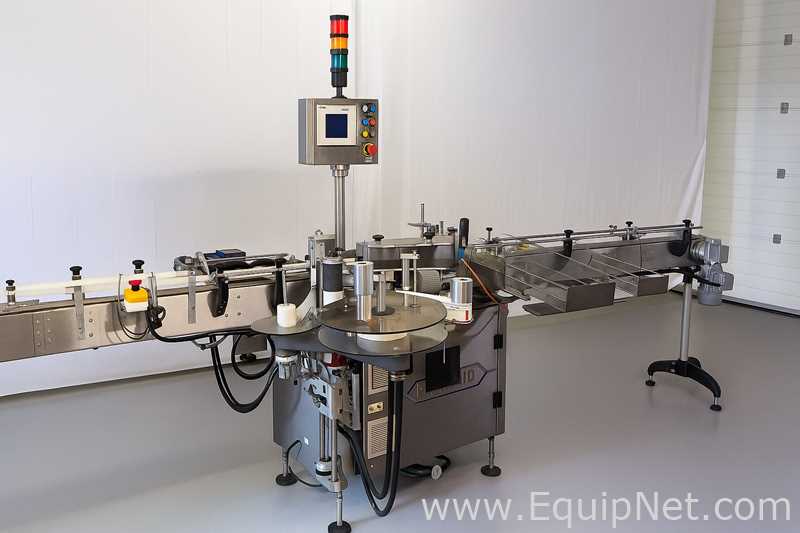

Harland Sirius single-sided and wrap-around fully automatic labeller features an output of up to 300 labels per minute.
The labeller is suitable for bottle and container heights from 20mm to 350mm and widths from 15mm to 200mm.
The maximum bottle diameter for full wrap-around labelling is 100mm.
The machine is capable of handling label widths/heights from 13mm to 155mm and label lengths from 10mm to 330mm.
The labelling system accommodates a maximum reel outer diameter of 400mm and a nominal reel internal diameter of 76mm.
The labeller is entirely constructed with a prefabricated stainless steel frame, a support plate, and mounting feet.

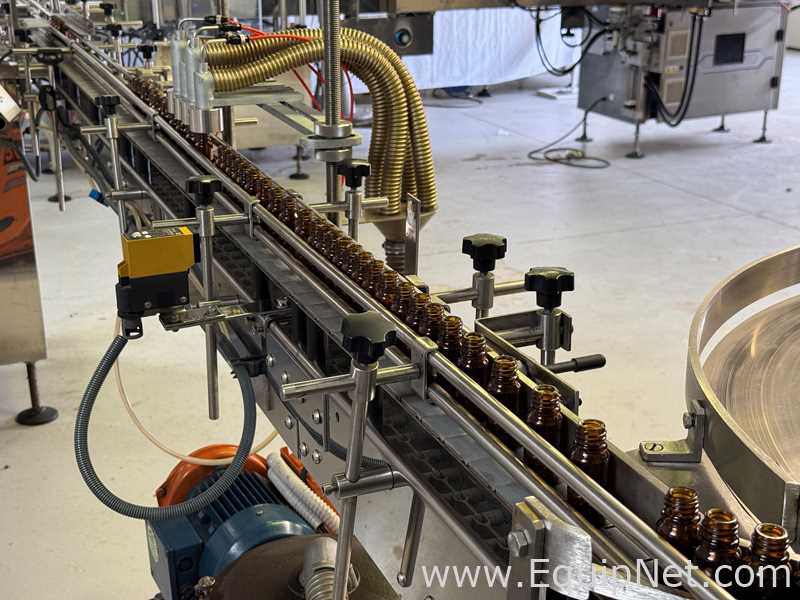

Interconnecting conveyors between all devices are fitted with Flexlink style slat belts and stainless-steel guide rails.
The conveyors feature fully adjustable speed, width, and height from the floor.
Previous product run data involves a drops bottle with a 38mm diameter, a height of approximately 50mm, and a fill size of 30ml.
The condenser dispenser used is a cartridge for a 15mm nut.
The cap dimensions feature a diameter of 20mm in the middle and an outside diameter of 25mm.
Specifications:
Standard
Metric
Manufacturer Name
CE King
Year:
2001
2001
Model:
KT320/4
KT320/4
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
137.80 x 62.99 x 82.68 in - 5511.50 lb
3500 x 1600 x 2100 MM - 2500 KGS
Disclaimer:
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in
Europe.
This equipment is subject to a removal and loading charge.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
