Listing# 1099129

C.E. King TB-4 Capsule Counter

Pre-Owned CE King Capsule Counter for Sale

Browse this pre-owned CE King Capsule Counter available now on EquipNet MarketPlace™ located in , United Kingdom and backed by our logistics support - Inquire today.


Seller's Acceptable Currency:

£10,250.00 GBP

Request More Info   Make An Offer

Location:  Europe

Level of Removal:  Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Equipment Description

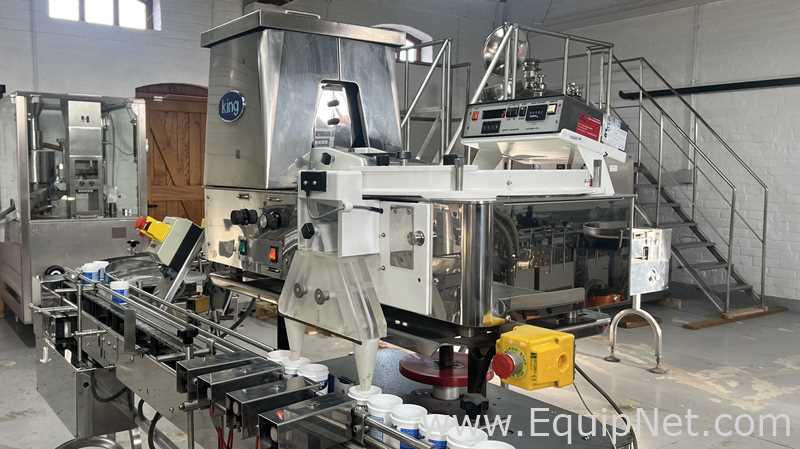

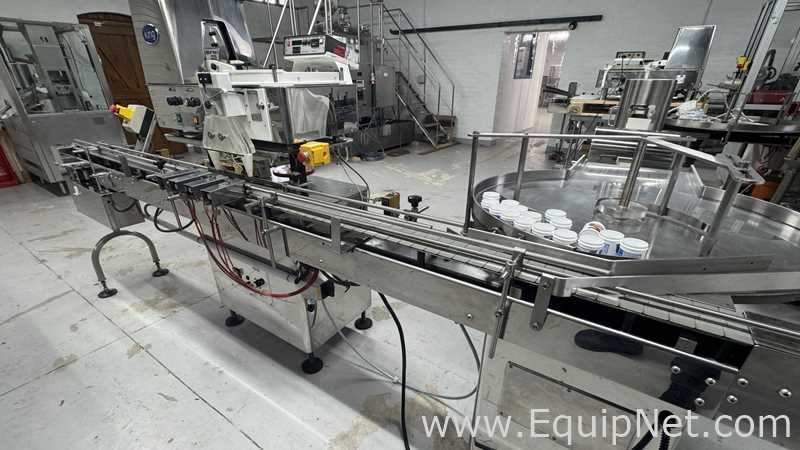

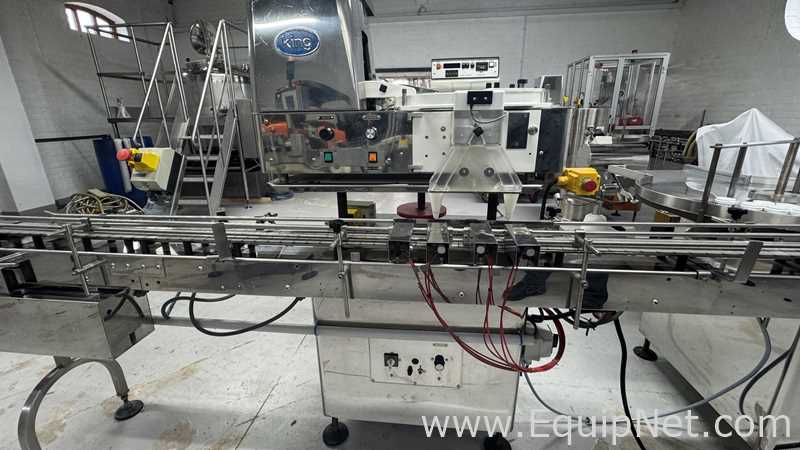

C.E. King TB-4 Capsule Counter

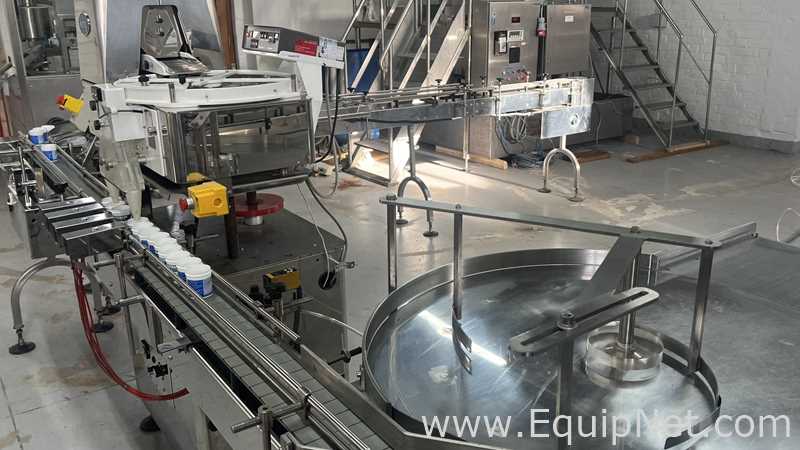

  • King US3 stainless steel rotary sorting and feeding table, DIA 920mm - for empty containers
  • Automated 2-head King TB4 counter tablet and capsule filler with Gating System for 2 Filling Stations.
  • Medium output Pharma grade tablet and capsule line fully integrated and built by C.E. King UK to work as one unit.
  • Stainless Steel pharma grade construction throughout the entire system.
  • Production rate of up to 60 containers per minute with low operating hours and excellent overall condition.
  • Main Stainless-Steel height-adjustable conveyor measuring 3250mm long, equipped with variable-speed drive, 100mm wide slat conveyor, and width-changeable guide rails.
  • Versatile and precise counting method for various types of coated and uncoated tablets, capsules, and hard/soft gelatine capsules.
  • Highly adaptable design that is quick to install, easy to clean, and fitted with a stainless steel hopper and insert.
  • Two-unit machine breakdown consisting of a feeding unit (hopper, vibrating chute, rotating glass disk) and a counting unit (photocell and light source).
  • Adjustable hopper outlet plate to allow the passage of tablets and capsules of various sizes from the bulk product container.

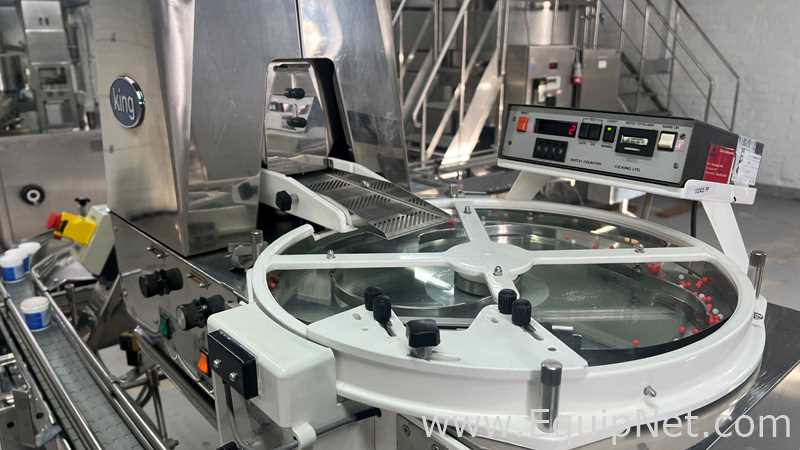

  • Vibrating chute and rotating glass plate system driven by a geared motor to transport products clockwise and align them into a single line.
  • Photocell and light source assembly at the outlet to register individual falling objects on the electronic counter.
  • Flap mechanism that tips over after a preset count is reached to direct the tablets into separate containers.
  • Dual plastic outlet funnels mounted at the final position to channel the product efficiently into the containers.
  • Output capabilities via 2-head filling station for tablets (dimensions mm/count per minute): 5mm/2600, 9mm/1800, 10mm/1600, 15mm/1000.
  • Output capabilities via 2-head filling station for capsules (size/count per minute): 1/800, 2/900, 3/1000, 4/1100, 5/1200.
  • Acceptable product dimensions ranging from 3 mm to 25 mm.
  • King Small rotary outfeed table with a 360mm diameter, equipped with a motor and a 90-degree bend leading to the outfeed accumulation table.

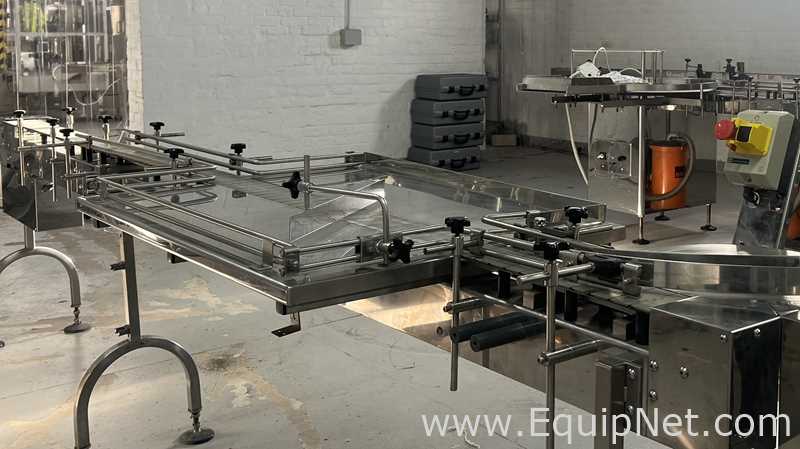

  • King square shaped outfeed accumulation table with a top size of 1000mm x 750mm for filled containers.

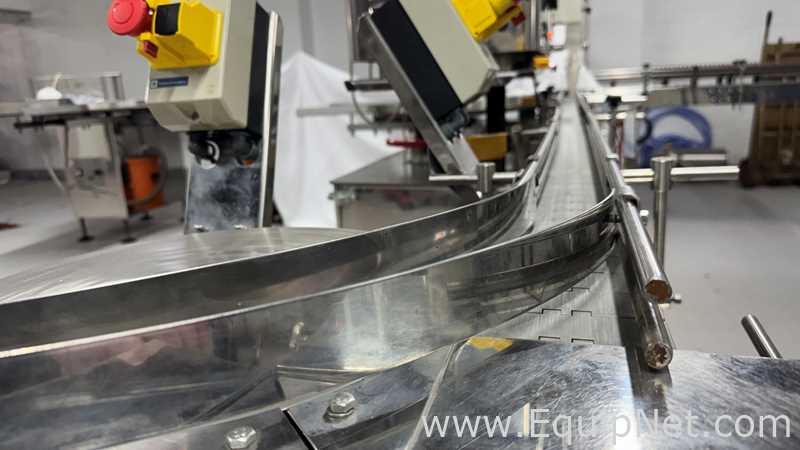

  • Interconnecting conveyors in Stainless-Steel featuring a 100mm wide slat conveyor and width-changeable guide rails.
  • Total line dimensions including a 3950mm outfeed conveyor with square table, a 3250mm main conveyor under the TB4 counter, and a 1550mm infeed table.

  • Specifications:
    Standard
    Metric

    Manufacturer Name

    CE King


    Year:

    1998
    1998

    Model:

    TB-4
    TB-4

    Capacity Speed:

    60 CPM
    60 CPM

    Recommended Packaging Form:

    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    Overall:

    295.28 x 78.74 x 70.87 in - 1432.99 lb
    7500 x 2000 x 1800 MM - 650 KGS
