Listing# 1138576

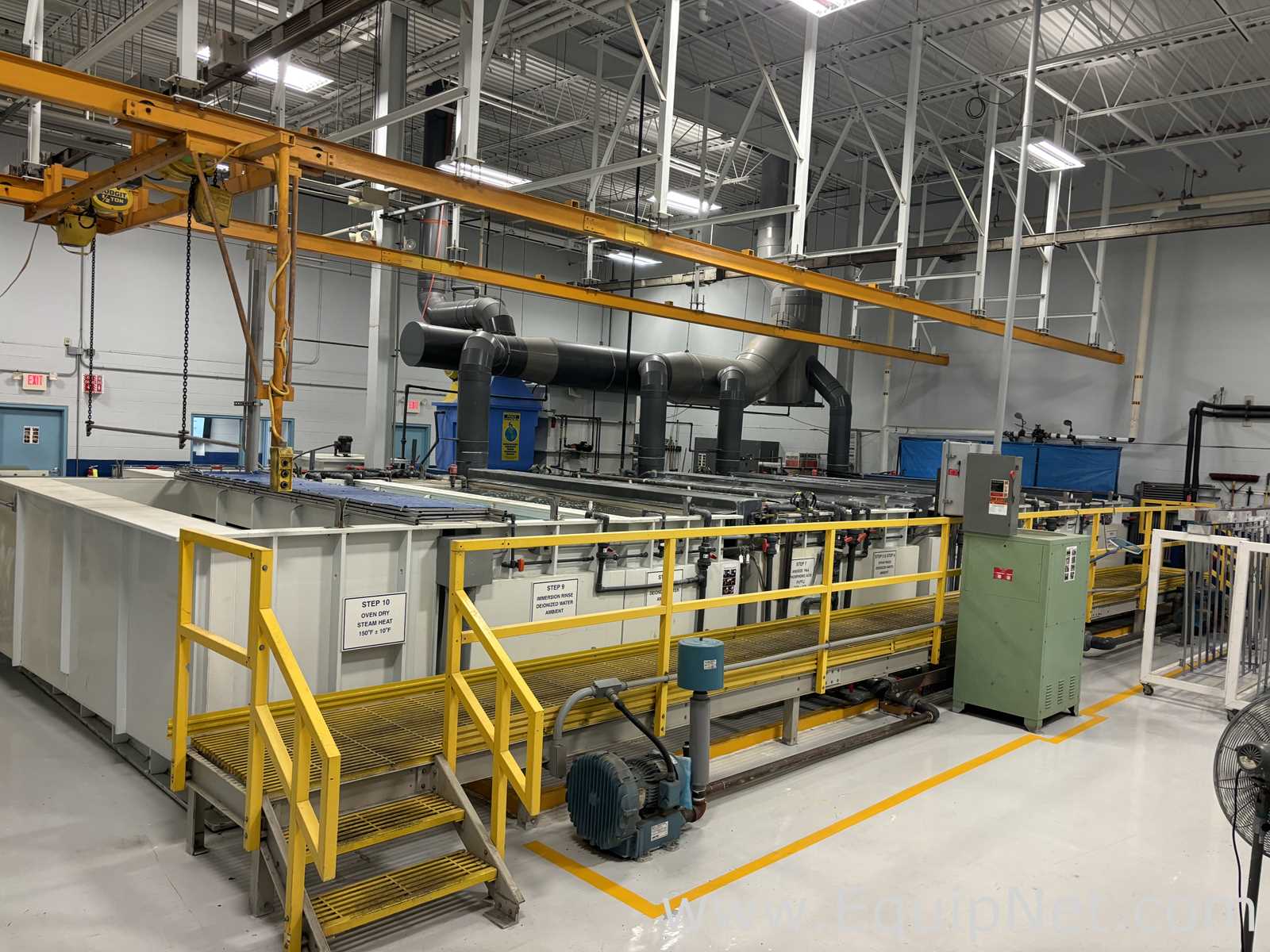

Complete PAA Anodizing and Adhesive Primer Line

Name: Complete PAA Anodizing and Adhesive Primer Line
Brand: Unknown
SKU: 1138576
Price: 100000.00 USD
Availability: InStock

Pre-Owned Unknown Anodization Line for Sale

Browse this pre-owned Unknown Anodization Line available now on EquipNet MarketPlace™ located in CT, USA and backed by our logistics support - Inquire today.

Complete PAA Anodizing and Adhesive Primer Line

Seller's Acceptable Currency:

$100,000.00 USD

Request More Info Make An Offer

Location: CT, USA

Level of Removal: Still Installed

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Download High Res Photos

Sell Your Anodization Lines View All Anodization Lines View All Unknown Equipment

Equipment Description

Complete PAA Anodizing and Adhesive Primer Line

General Specifications:

Overall Footprint: 69’ Long x 20’ Wide (including catwalks).

Power Supply: 163 Amps total load (requires 200 Amp service) | 480V input to a 208V transformer.

Standard Tank Capacity: 1,414 Gallons per tank.

Tank Inside Dimensions: 144” Long x 42” Wide x 60” Deep (12'L x 3.5'W x 5'H).

Process & Compliance:

Anodizing Standard: Phosphoric Acid Anodize in accordance with SS8482 (PAA).

Primer Standard: Application of adhesive primer in accordance with SS8603.

Operation Control: Manual timers for managing workload movement between stages.

Tank Configuration (9 Tanks Total).

Chemical Stages:

1 Alkaline Tank (temperature controlled).

1 Deoxidation Tank (temperature controlled).

1 Anodizing Tank (temperature controlled).

Rinse Stages:

1 Hot Rinse Water Tank.

3 Cold Rinse Tanks.

1 Spray Rinse Tank.

Drying Stage:

1 Dryer Tank.

Support Systems & Ancillary Equipment

Heating & Cooling:

Steam heated process lines (Gas-fired boiler included).

Chill water plant (dedicated to Anodize and De-ox tank temperature control).

Water & Fluid Management:

1 Self-contained regeneration plant for de-ionizing feed and rinse water.

1 Evaporator tank equipped with a rooftop filtration system.

Inline agitation & filtration systems specifically for the 3 chemical tanks.

Air & Ventilation:

Main exhaust system integrated with rooftop filtration.

2 blowers dedicated to providing agitation air for the rinse tanks.

Material Handling & Controls:

3 Titanium dipping racks complete with clamps.

Associated control power systems.

Specifications:

Standard

Metric

Manufacturer Name

Unknown

Current:

163 AMPS

Capacity Size:

1414 GALS

Voltage:

480 VOLTS

Frequency:

50/60 HERTZ

Phase:

Recommended Packaging Form:

CUSTOM PALLET

Dimensions:

Standard

Metric

Overall:

69 x 20 x 7 FT - 20000 LBS

2103.12 x 609.60 x 213.36 cm - 9072.00 kg

Disclaimer:

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

This equipment is subject to a removal and loading charge.

The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non-transferable.
