Listing# 1083780

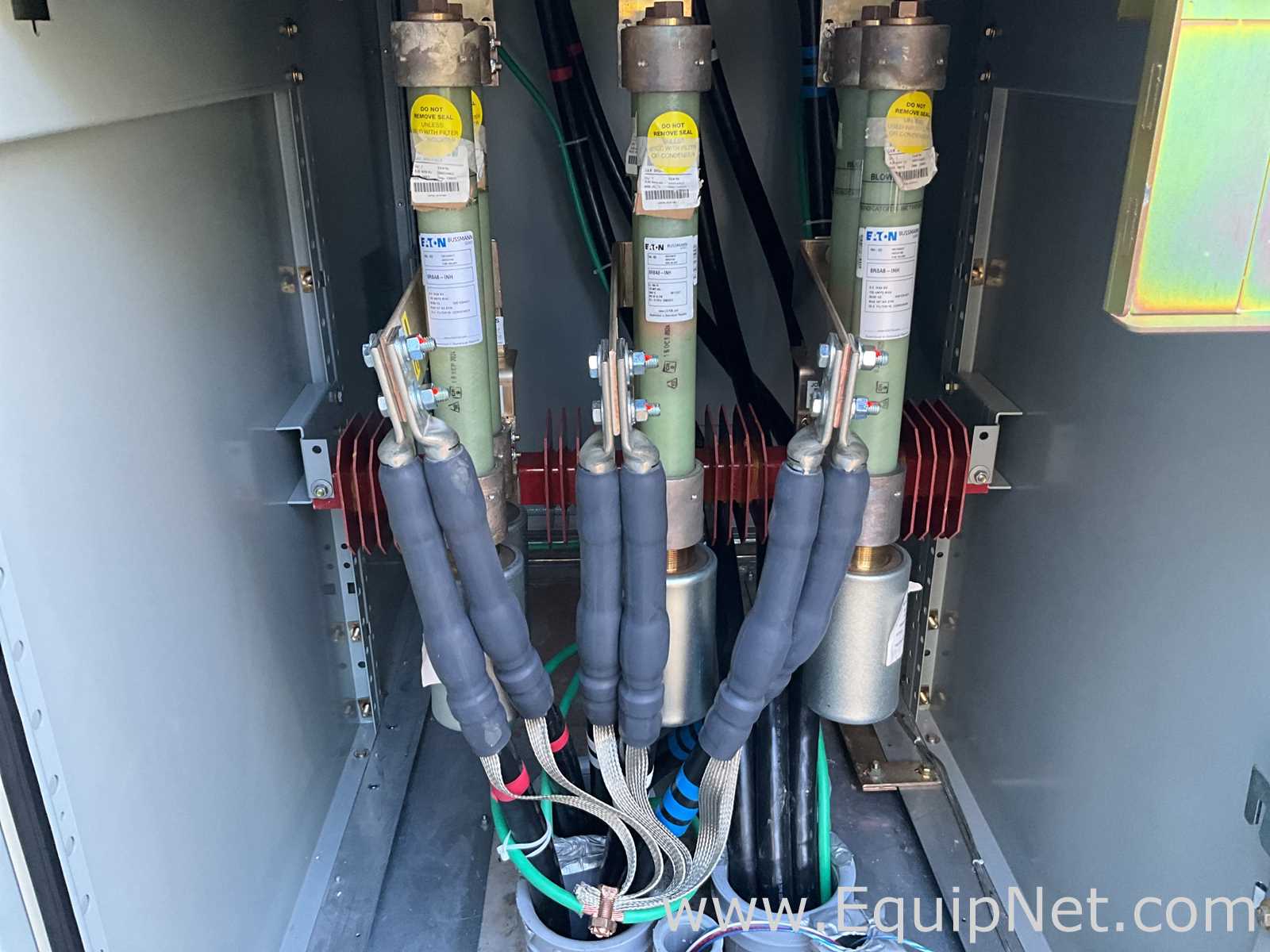

Eaton Medium Voltage Outdoor Switch Assembly 4.76 kV

Download High Res Photos

Make an Inquiry

Make An Offer

Request Price Information

Location: NJ, USA

Level of Removal: Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

NOT AVAILABLE FOR REMOVAL UNTIL NOVEMBER 2026

Equipment Description

Eaton Medium Voltage Outdoor Switch Assembly

Medium voltage outdoor switch assembly rated for 4.76 kV systems. The unit operates at 60 Hz and provides a continuous current capacity of 1200 amps per phase. It is designed with a robust outdoor enclosure, suitable for medium voltage distribution and protection applications. Built for reliable performance, the switch offers a short-time withstand of 25 kA rms symmetrical and a momentary withstand capacity of 65 kA peak. Manufactured by Eaton in Greenwood, South Carolina, USA.
Specifications:

Manufacturer: Eaton.

Type: MVS (Medium Voltage Switchgear Assembly)

Enclosure Type: Outdoor.

Frequency: 60 Hz.

Rated Maximum Voltage: 4.76 kV.

Lightning Impulse Withstand (BIL): 60 kV Peak.

Power Frequency Withstand (1 min): 19 kV RMS.

Continuous Current Rating: 1200 A.

Short-Time Withstand (2 sec): 25 kA RMS Symmetrical.

Momentary Withstand: 65 kA Peak (40 kA RMS Asymmetrical)

Enclosure Category: B.

Manufacturing Location: Greenwood, SC, USA.

Date: June 2025.
Ideal for industrial and utility power distribution systems requiring dependable medium voltage switching, protection, and load control in outdoor environments.

Specifications:

Standard

Metric

Manufacturer Name

Eaton

Year:

2025

Recommended Packaging Form:

CUSTOM PALLET

Dimensions:

Standard

Metric

Overall:

62 x 62 x 96 IN - 3500 LBS

1574.80 x 1574.80 x 2438.40 mm - 1587.60 kg

Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

This equipment is subject to a removal and loading charge.

The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non-transferable.
