MACHINE TYPE:

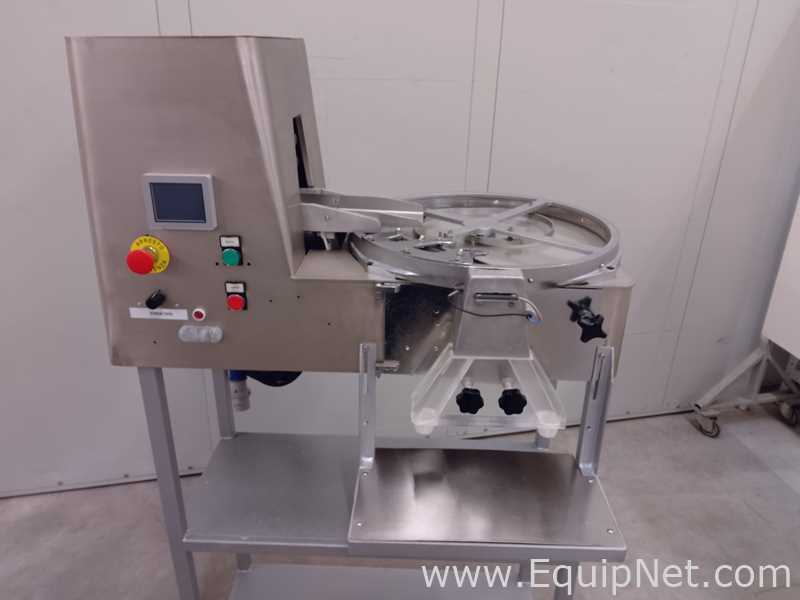

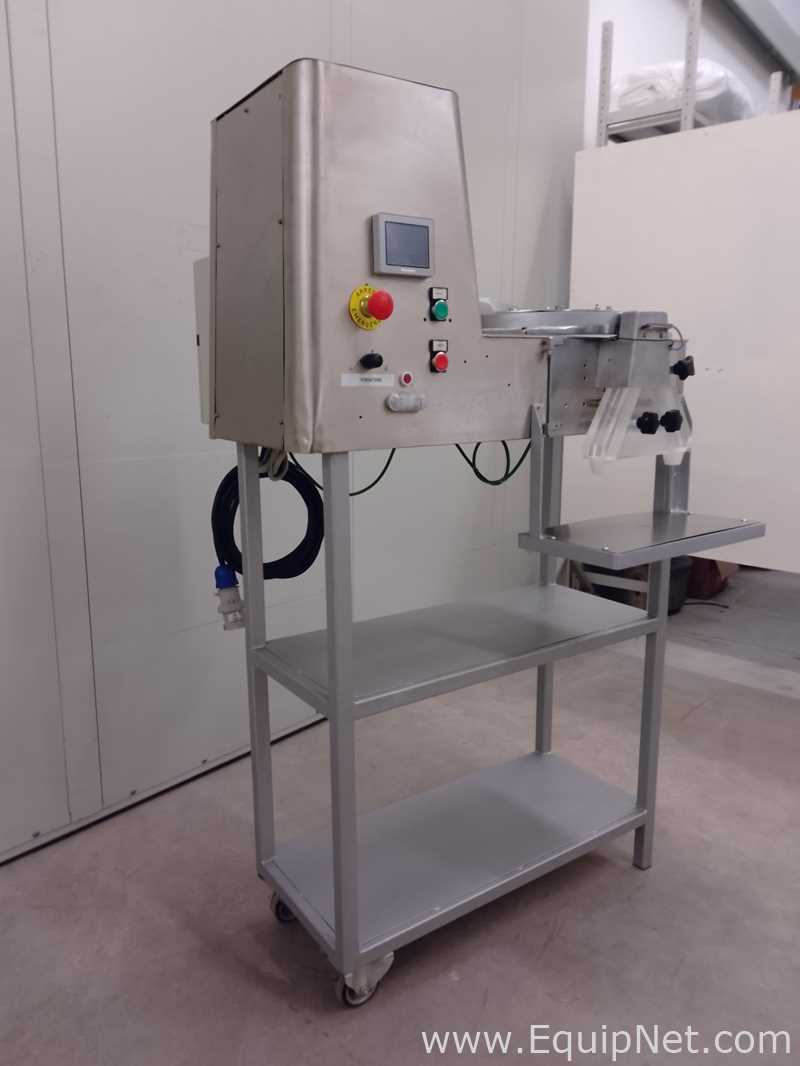

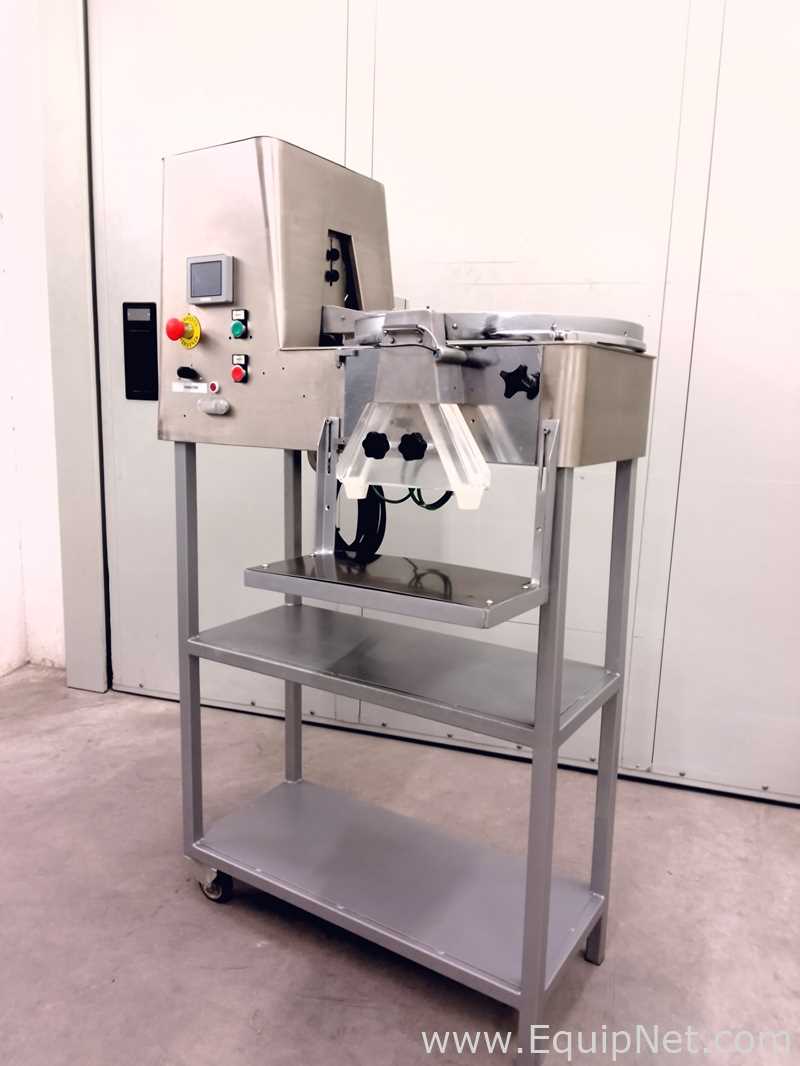

Semi-automatic tablet counter made of stainless steel.

APPLICATION SECTOR:
Production, Tablet and capsule counters, Capsule fillers

FEATURES:

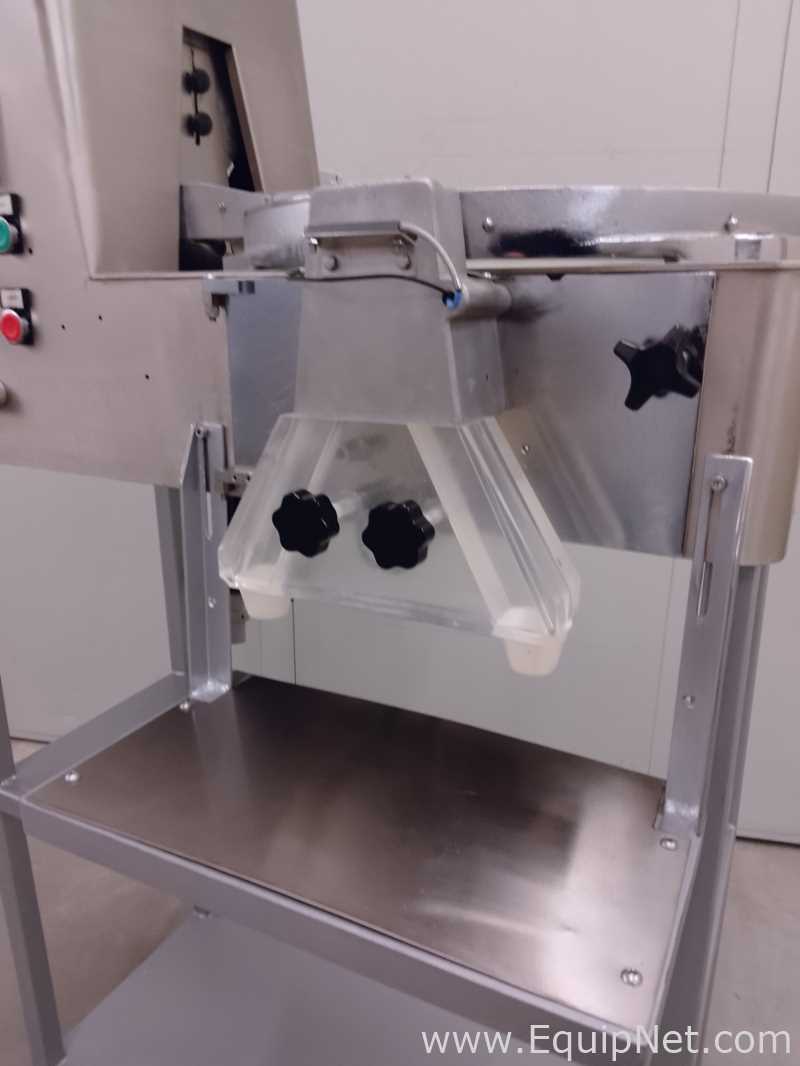

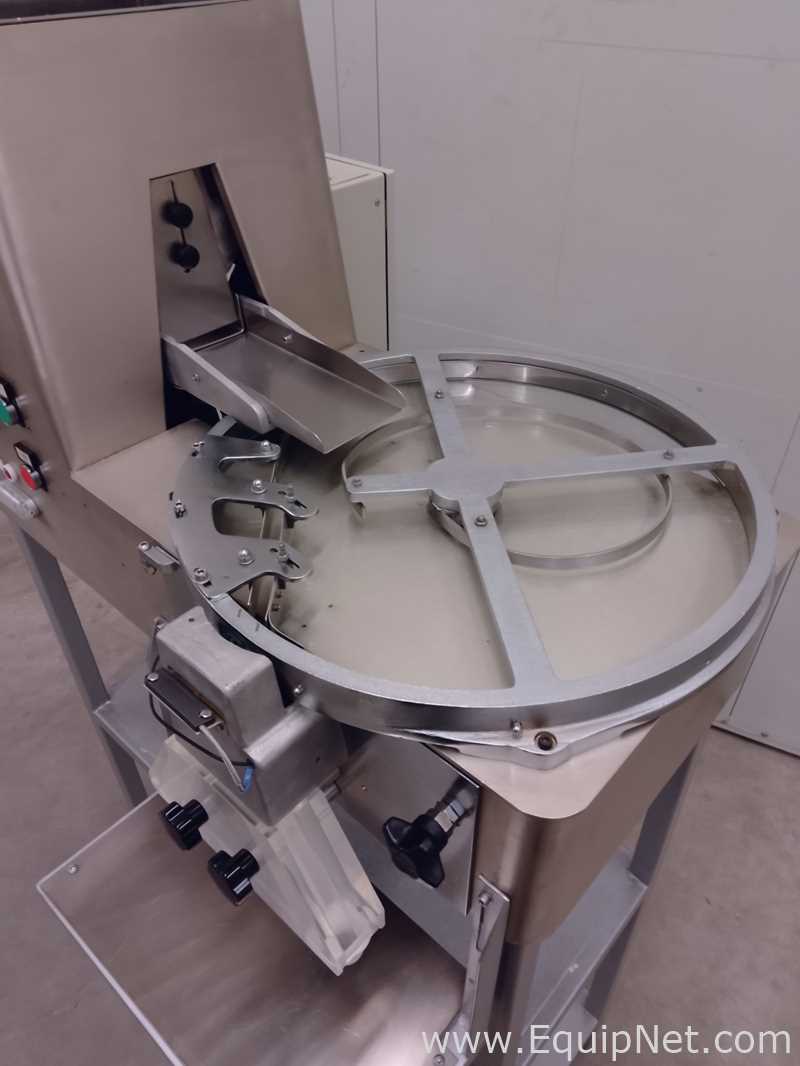

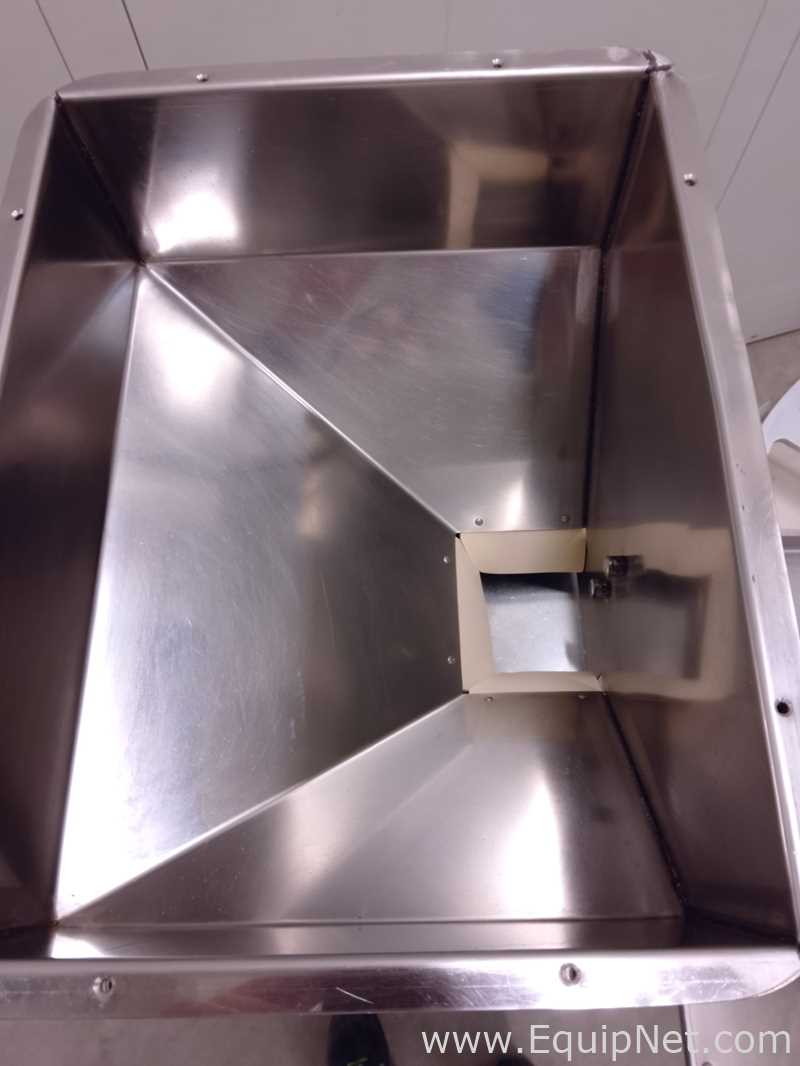

The KING counter offers an extremely versatile and precise counting method for various types of coated and uncoated tablets, hard and soft gelatin capsules. The machine is highly adaptable, quick to install and clean, with excellent design. The hopper holds bulk tablets with an adjustable output plate to allow the passage of tablets of various sizes. The product moves along the slide by vibration and falls onto a rotating glass plate driven by a gear motor. This rotating plate transports the tablets clockwise, diverting the products outward in a single line through guides mounted near the glass until reaching the arrangement of the picking and exit plate at the front of the machine. At the exit, a photocell and a light source group are positioned such that a single row of tablets falls individually, interrupting the light beam, thus registering them on the electronic counter. The tablets then fall over a flip mechanism that tilts after a preset count is reached, directing the tablets into another container. This configuration allows for filling separate containers. In the final exit position, two plastic output funnels are mounted to channel the product into containers. An adjustable shelf is mounted to accommodate various container heights.

TECHNICAL SPECIFICATIONS:

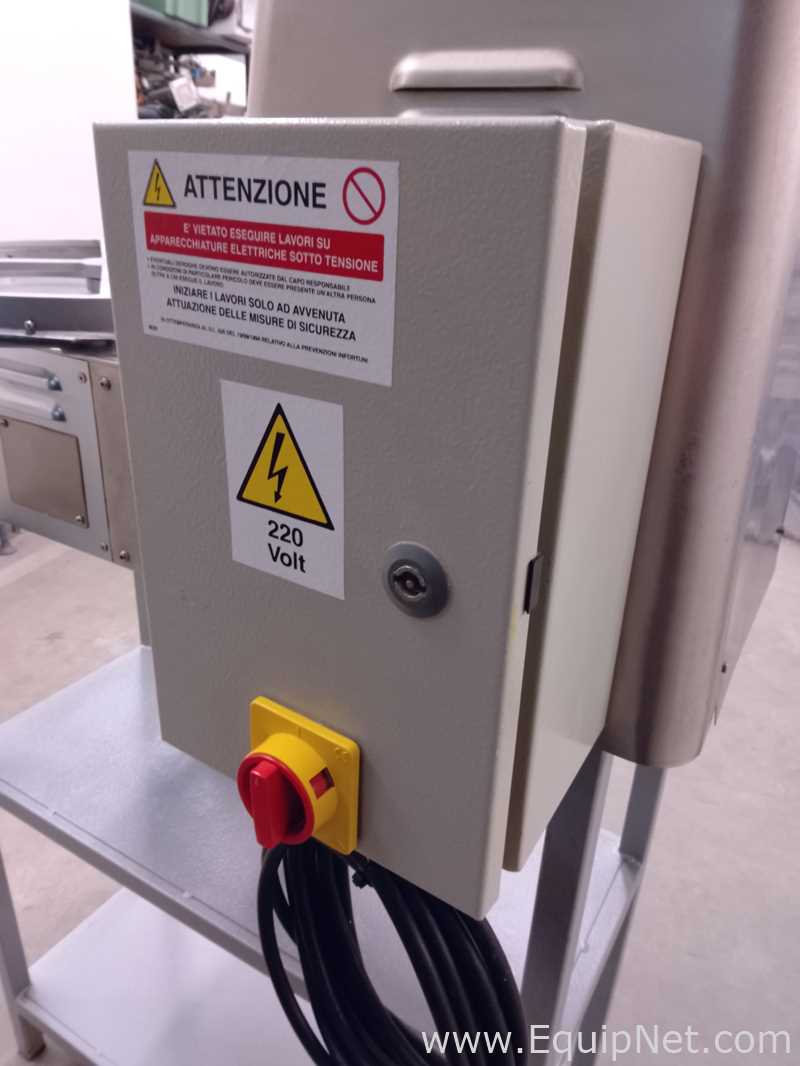

Voltage: 220 Volt
Dimensions (LxWxH) mm: 860 x 740 x 1480 h
Weight: 60 kg
