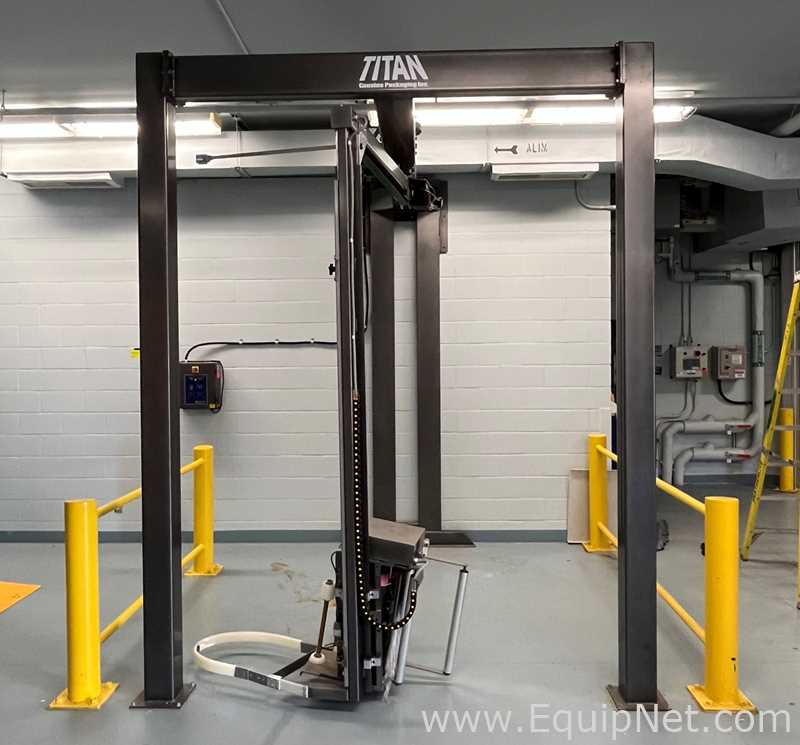

Titan Free Standing 3 Post Overhead Semi-Automatic Stretch Wrapping System

MODEL 4100 TITAN FSU OVERHEAD SEMI-AUTOMATIC STRETCH WRAP SYSTEM

GENERAL SPECIFICATIONS

Note: FSU refers to the machine support frame style. Includes a free-standing frame making
the machine independent and able to be placed almost anywhere. It is accessible for loading
from the front only.

PRODUCTION SPEED • 1-30 loads per hour
NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time

LOAD CAPACITY • Maximum load weight: Unlimited (floor supported)
• Maximum load size: 50” W x 50” L (71” max. load diagonal) x 86” H (plus up to 4” top overlap)

ROTARY ARM • Double flange bearing support system
• Twin V-belt drive pulleys with belt tensioner
• 1-12 RPM rotational speed c/w soft start acceleration
• Final revolution deceleration and positive stop alignment
• 1/2 HP DC variable speed motor

FILM CARRIAGE ELEVATOR
• 1/2 HP DC variable speed motor
• Direct flat belt drive system
• Maintenance free 12 point carriage guidance system

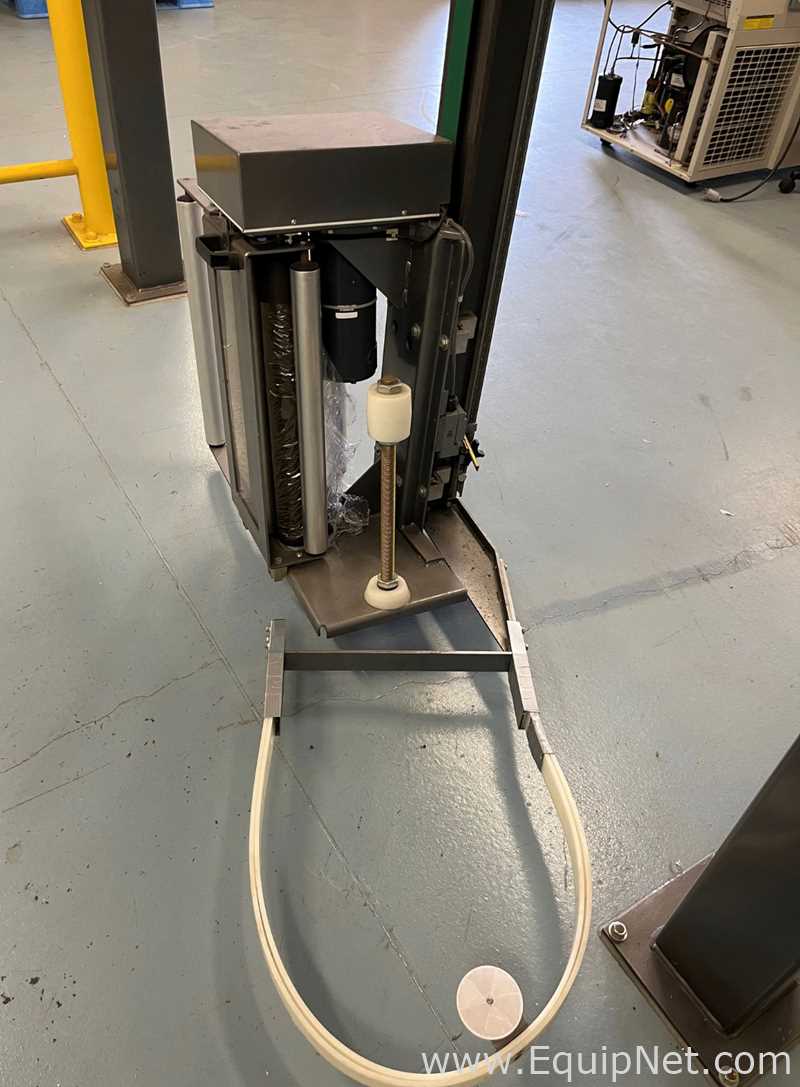

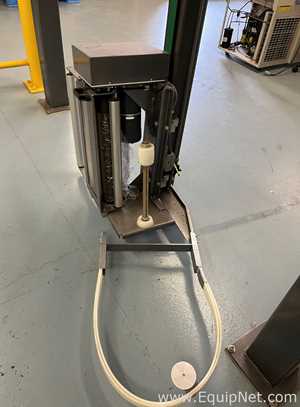

FILM DELIVERY SYSTEM
• NEW Super Rapid Thread II ™ 20” capacity pre-stretch film carriage
• Special Film Threading Device – Uniquely orientates the sticky side of the film against the pre-stretch rollers and the
inside of the load.
• 1/2 HP DC variable speed motor
• Fully electronic dynamic dancer corner compensation
• 33 to 313% fixed stretch capability
• Pre-stretch ratio variable by easy sprocket change
…continued…
• Rapid Thread ™ Safety Door with auto power cut-off
switch
• Superior film-to-roller contact area
• Lifetime warranty on pre-stretch rollers

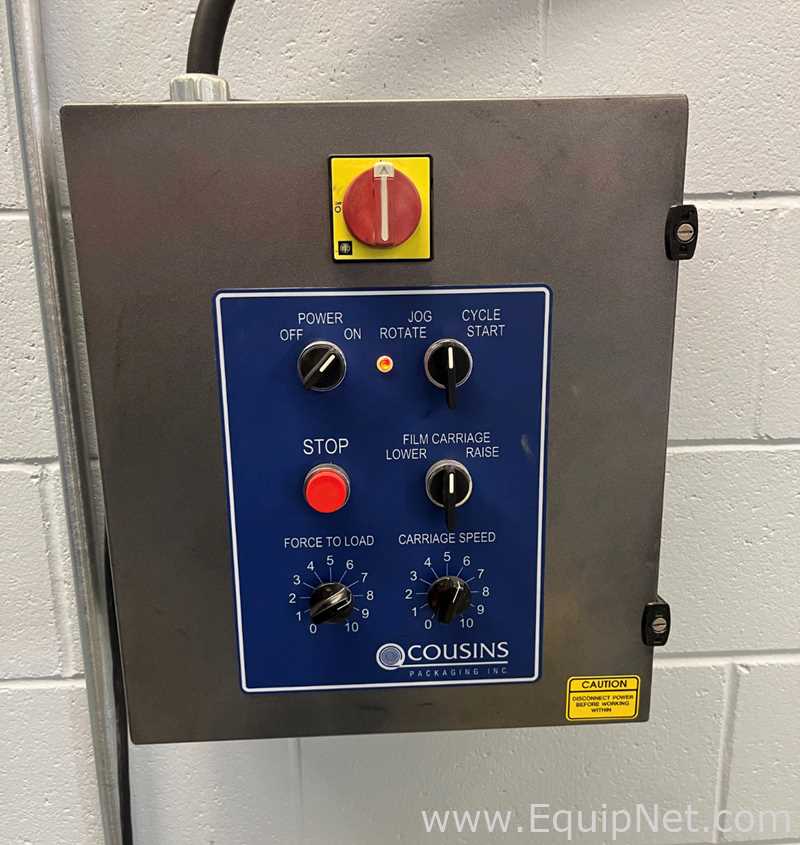

CONTROL FEATURES • Simple to operate
• PANASONIC PLC
• Power Off – On – Reset switch & Power On indicator light
• Single button Auto Wrap Cycle Start/Pause
• Cycle Pause for applying top sheets
• Base or Top Wraps First program
• Reinforce Wrap control for mid-wrapping
• Up Only or Up/Down wrap program
• Emergency Stop button
• Rotary Arm Jog switch
• Film Carriage Lower/Raise switch
• Film tension (Force-to-Load) control
• Separate film carriage raise & lower speed controls
• Variable rotary arm speed control
• Rotary arm and carriage elevator dynamic braking system

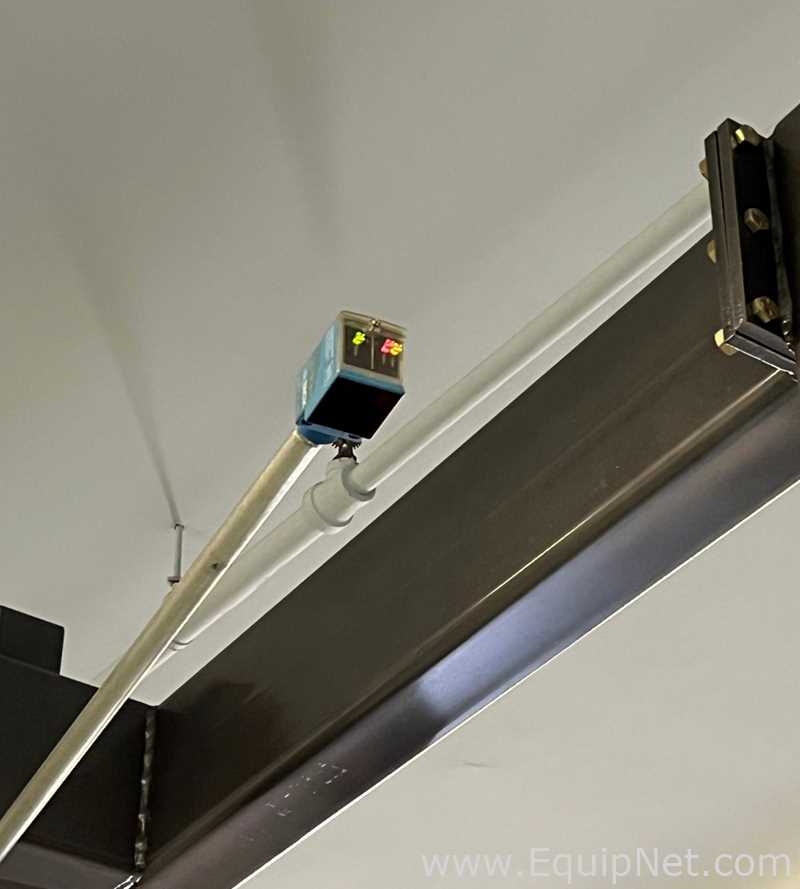

• Triple beam type auto load height sensing photo-eye, detects
dark or shiny loads
• Separate 1 to 9 revolution top & bottom wrap control
• NEMA 12 control panel enclosure
• Dust tight slip ring assembly
• Non-proprietary UL/CSA approved components
STRUCTURAL
FEATURES
• All structural steel construction
• Integral structural steel wall/floor mounting stand
• Electro-static powder coated paint finish
SAFETY FEATURES • Rotary Arm Obstruction Emergency Safety Stop Sensor
ELECTRICAL INPUT
REQUIREMENT

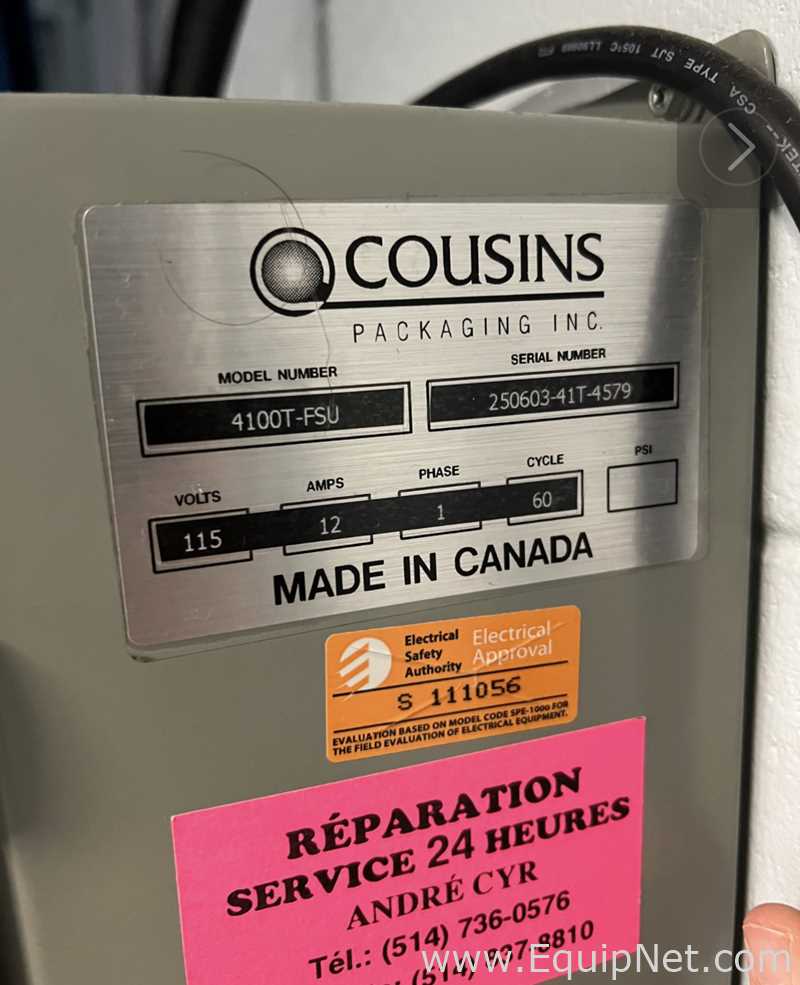

• 115 Volts 1 Phase 60 Hz 15 Amps
