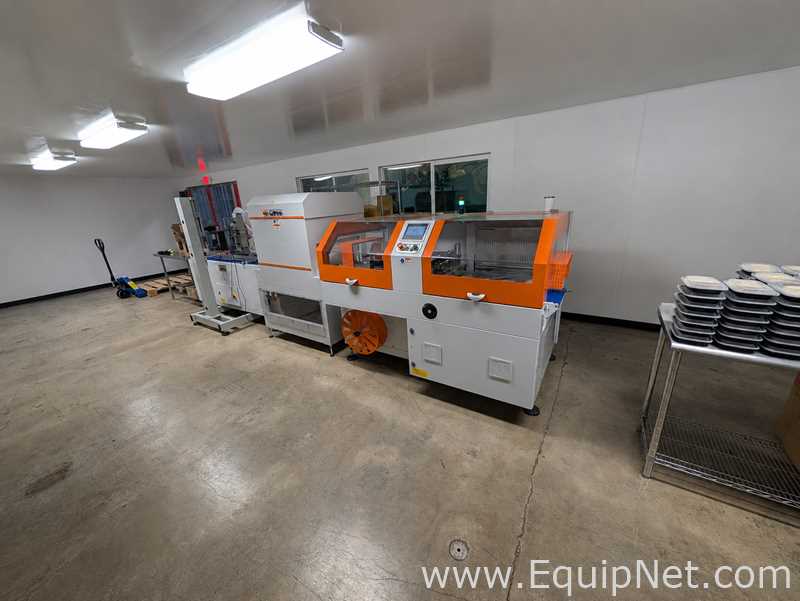

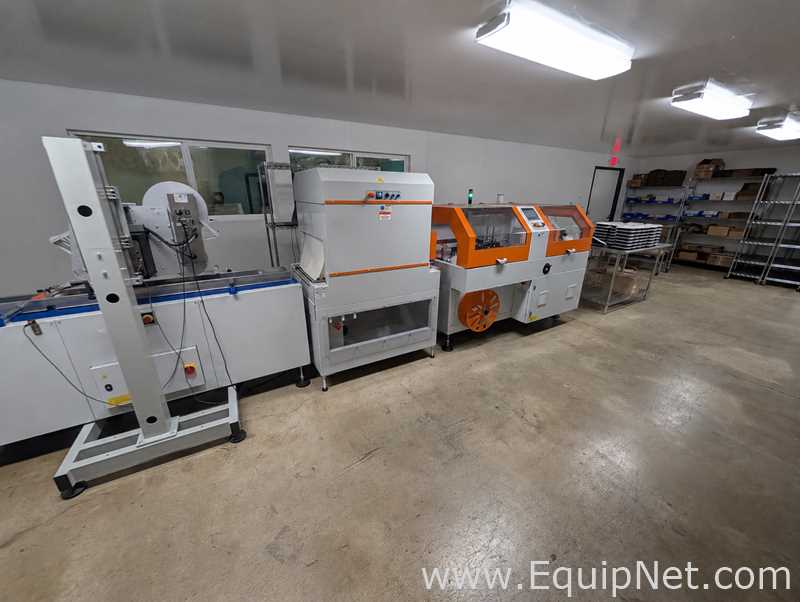

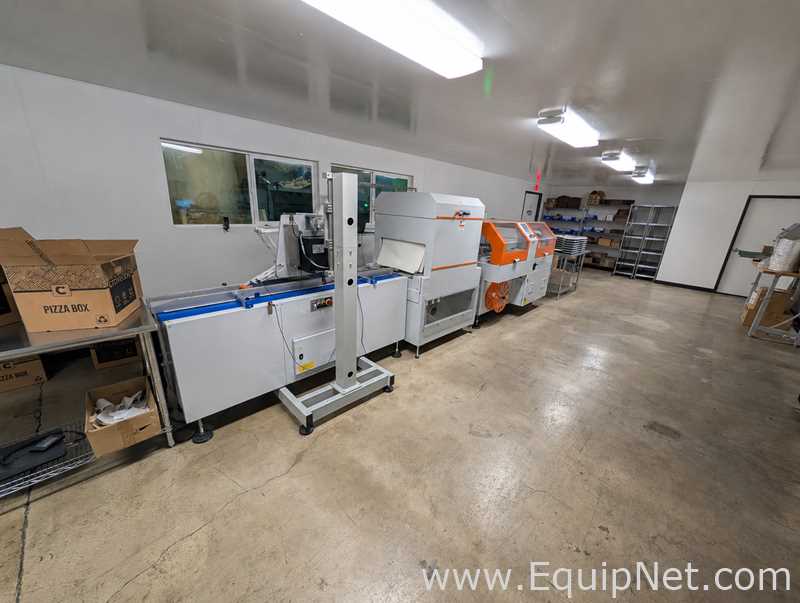

Línea de Línea de Empaque Clamco 6750EL

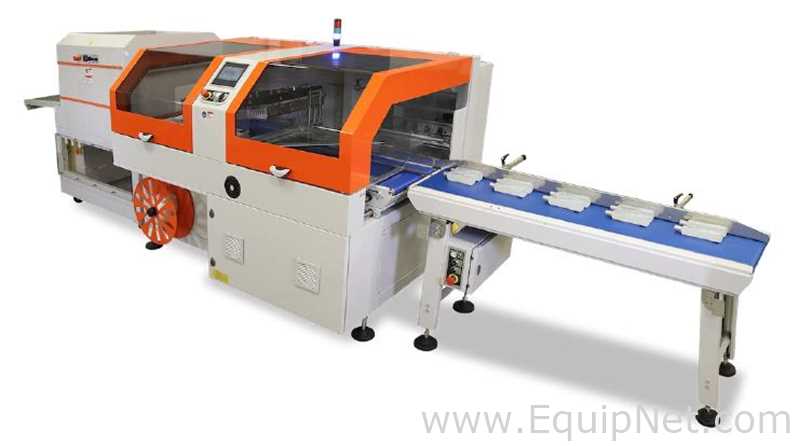

Auto L-Bar Sealer Operating Benefits:
? Quiet all-electric smooth operation, no need for air
? Package speed up to 60/min for high production output, dependent on product size and film thickness
? Smooth Quiet Operation to reduce plant noise levels
? Easy to navigate touchscreen interface for operators of most skill levels
? Display of key packing statistics, including production rate and efficiency
Auto L-Bar Sealer Sealing Benefits:
? Film economizer wheels reduce scrap and improve final package appearance
? Film Minimizer allows the operator to adjust the trim tail away from the seal bar
? Trim take-up wheel keeps the work area clean
? Closing conveyor for smooth product transfer of small or flexible products
? Rounded cross seal bar decreases film breakage
? PTFE-coated sealing knives for high quality seals on most films
? Soft start/stop for stacked product helps reduce shingling to keep the product aligned
Auto L-Bar Sealer Set-Up Benefits:
? Motorized seal centering and package opening height for effectively controlling proper film feeding and
enhancing package appearance of the seal to the package
? Independent temperature adjustment of cross seal and longitudinal seal
? Low powered film cradle with a film inverting plow for easy film loading and threading
? Quick changeover and 50 program memory allows for product setup in less than five minutes
Auto L-Bar Sealer Safety Benefits:
? Fully enclosed electrical interlocked guarding ensures operator safety
? Seal Bar safety sensors to detect product obstructions during closing
? Fully enclosed electrical interlocked guarding for all doors, including the electrical panel
? CE Compliant design for proper wiring, and safety operations
? Emergency stop button strategically placed for quick operator response

Auto L-Bar Specifications:
Speed: up to 60 cycles/min 1
Conveyor speed: up to 95 ft/min
Seal Bar (cross x front): 20” x 25” 2
Product Height (max): 8”
Film Width (max): 23.5?, Centerfold
Film Roll Diameter (max): 13.75?
Power Requirements: 220 Volt / 1 Phase / 18 Amp
Overall Dimensions: 86"L X 60" W x 65" H
Machine Weight: 1450 lbs

6T Tunnel Features
Variable speed live/dead roller conveyor
? Heavy gauge stand with casters
? Fully insulated chamber
? Slide dampers
? Standard 1.5” roller spacing
? Digital temperature controller
? Automatic cool down
? 360° air flow
? Double entry and exit curtains
? Leveling foot pads
? 2 year limited warranty
Included Tunnel Options
? Variable air velocity control
? Product transfer conveyor
? 27” exit conveyor
6T Tunnel Specifications:
Heating power: 9,000 Watts
Tunnel opening width: 23.5"
Tunnel opening height: 13.5"
Tunnel inside height: 15.5"
Tunnel inside length: 34:
Conveyor speed (max): 125 ft/min
Electrical requirements 220 Volt / 3 Phase / 30 Amp
Overall dimensions: 45” L x 38” W x 67” H
