Pipeteador Integra Biosciences mini 96 12.5ul

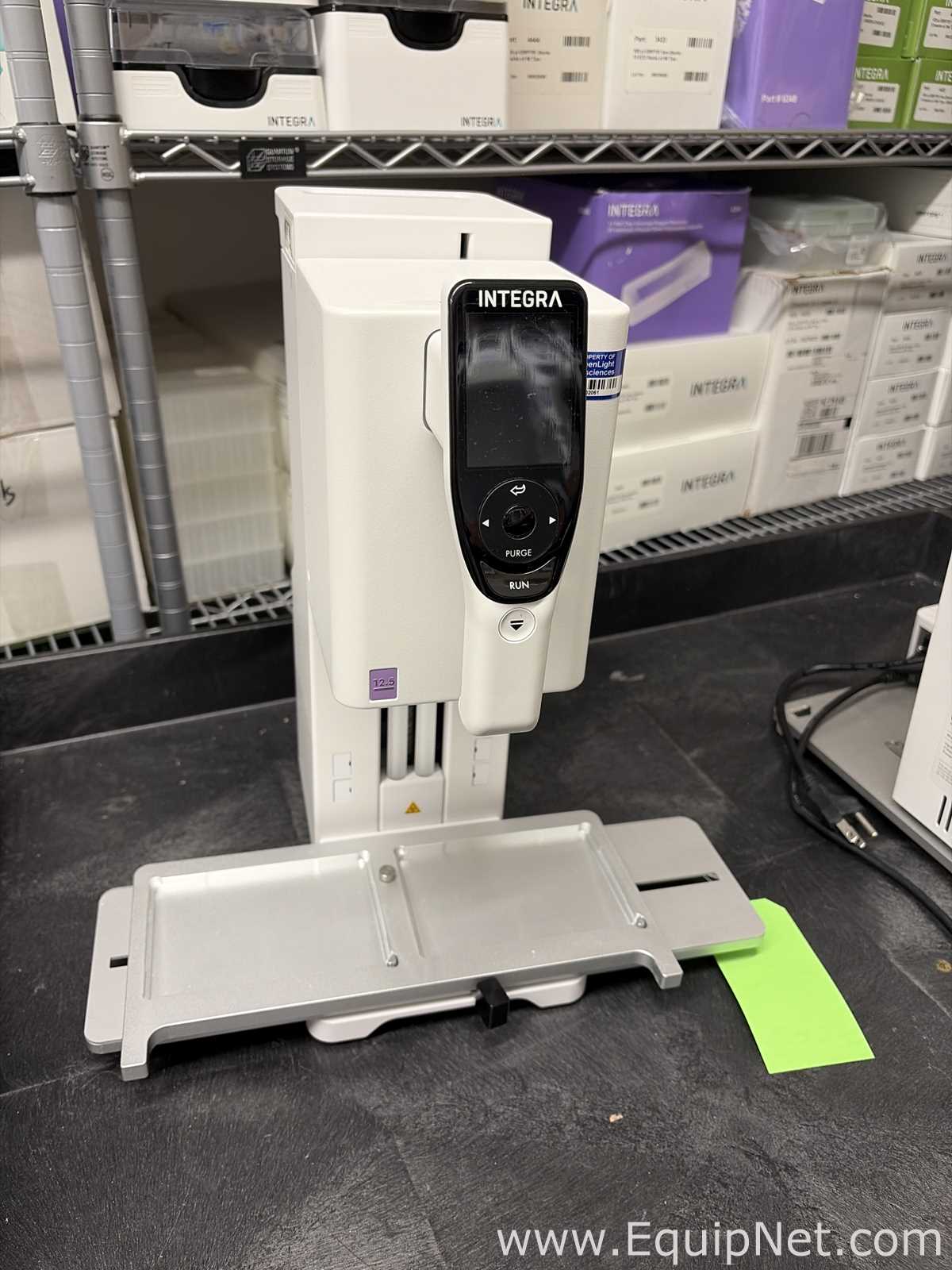

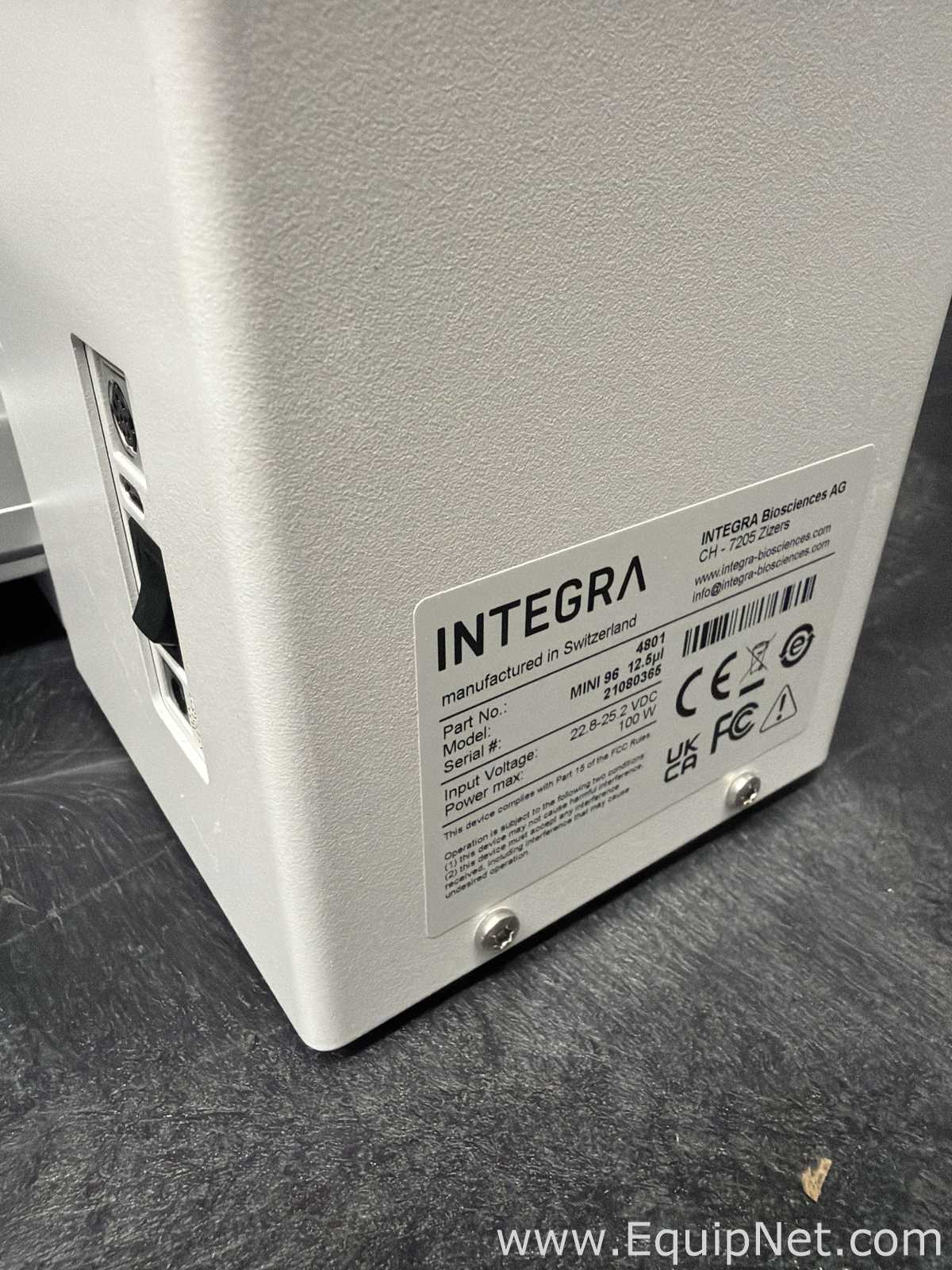

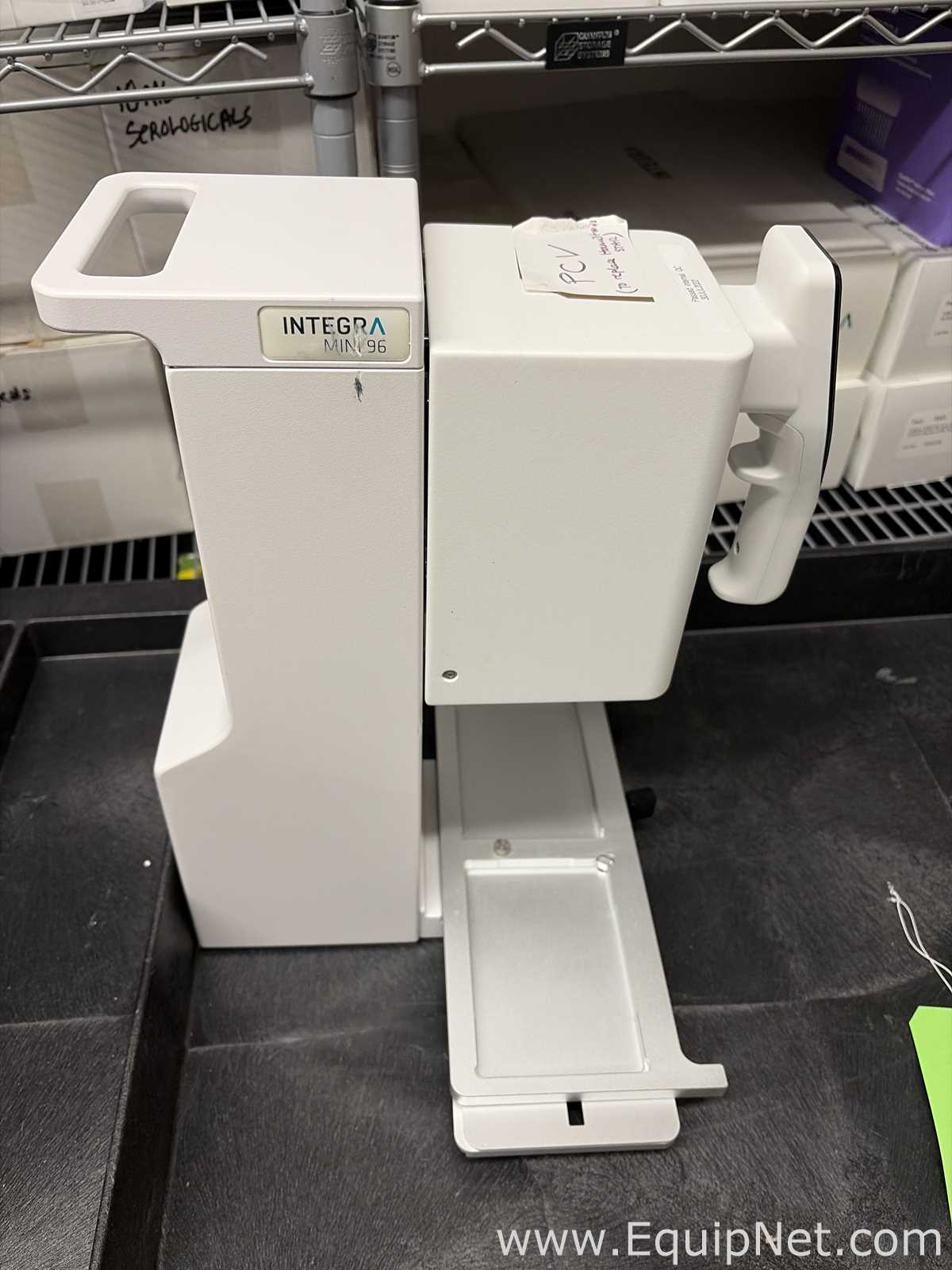

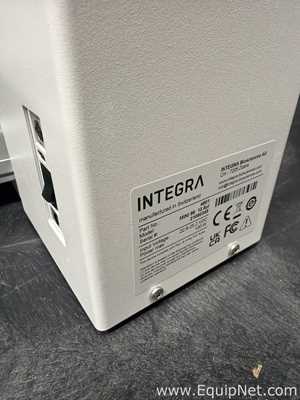

The INTEGRA Biosciences MINI 96 is a portable, handheld 96-channel electronic pipette used for parallel liquid transfer across a full microplate. This unit is the 12.5 ul version (part no. 4801 on the nameplate), covering the low-microliter range typical of PCR setup, qPCR plate filling, normalization, replication and other plate-to-plate transfers where all 96 channels are dispensed at once. The pipetting head lifts off its base so plates can be loaded anywhere on the bench, and the instrument runs on an internal rechargeable battery fed from an external 22.8-25.2 VDC supply, 100 W maximum. Operation is through the front color display with the purge, run and tip-eject controls seen in photo 1; volume, speed and pipetting mode are set on-screen rather than by mechanical adjustment. The nameplate in photo 3 identifies the unit as INTEGRA Biosciences AG, model MINI 96 12.5 ul, serial number 21080365, and carries CE, UKCA and FCC marks. The photographs show the pipetting head on its stand together with a metal plate adapter/deck insert. Cosmetically the housing shows normal laboratory use, including a small mark on the left side panel (photo 2) and a facility property/asset label and a handwritten tag left on the unit. No power supply, charger, tip racks or other accessories are visible in the photos, and the instrument was not shown powered on; condition and function have not been verified.
