Listing# 994296

GE AKTApilot Liquid Chromatography System


Seller's Acceptable Currency:

$28,000.00 USD

Make An Offer

Location:  CA, USA

Level of Removal:

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you





Asset Documents
Equipment Description
GE AKTApilot Liquid Chromatography System (LC) 56317181

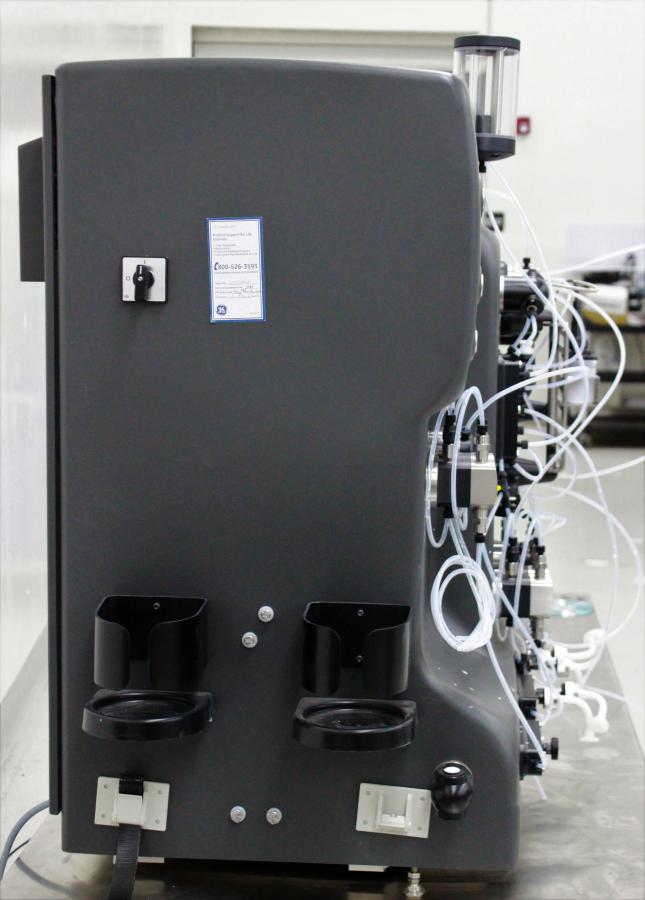

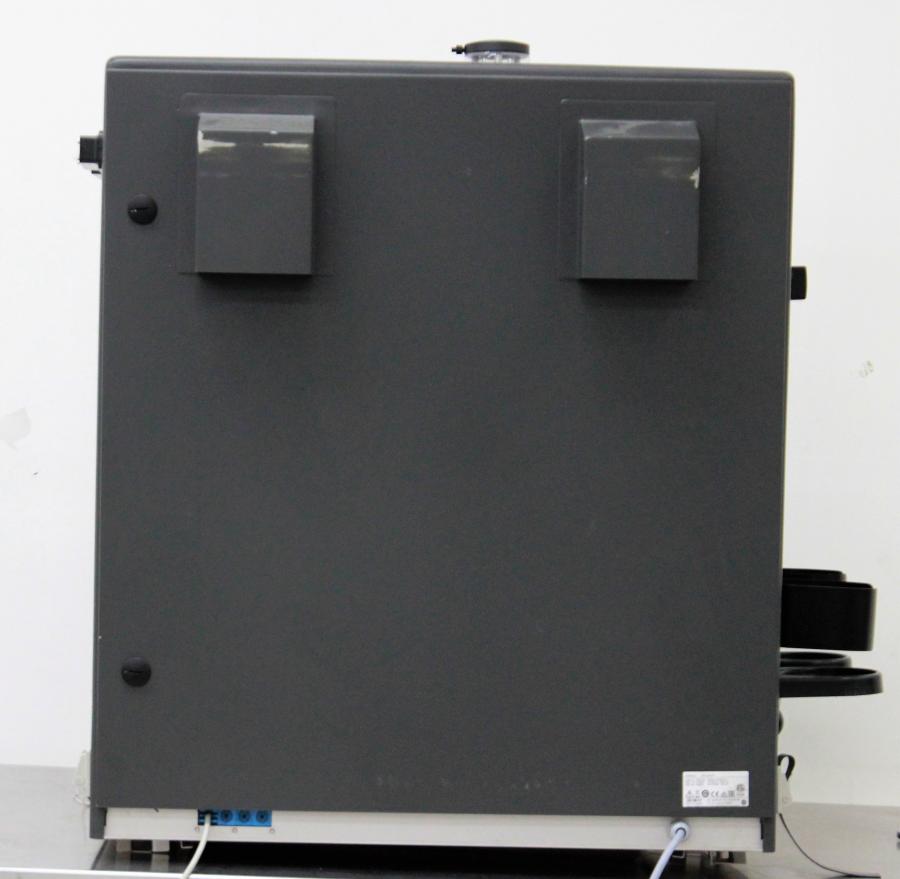

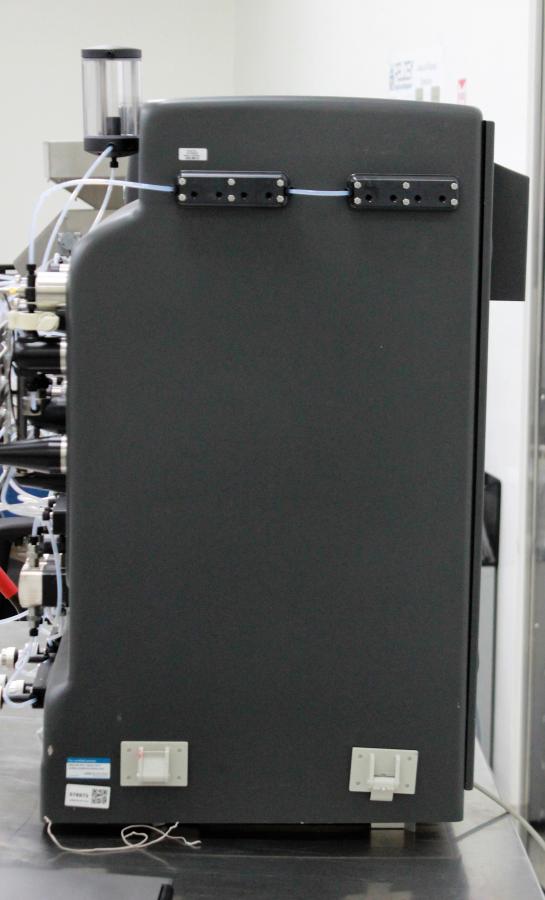

**This instrument has been tested and is working to specifications. Unit has slight wear from normal use. Buyer should expect a working machine with a 30-day warranty. Does NOT include software and work bench. Everything pictured included. See photos for details.

KTApilot is a high performance, automated liquid chromatography system.
The system is designed for process development, process scale-up and scaledown, and small-scale production.

KTApilot is biocompatible, hygienic and subitizable. It meets all GLP and cGMP
demands for Phase IIII in drug development and small-scale production.

KTApilot system consists of KTApilot separation unit, the connected computer

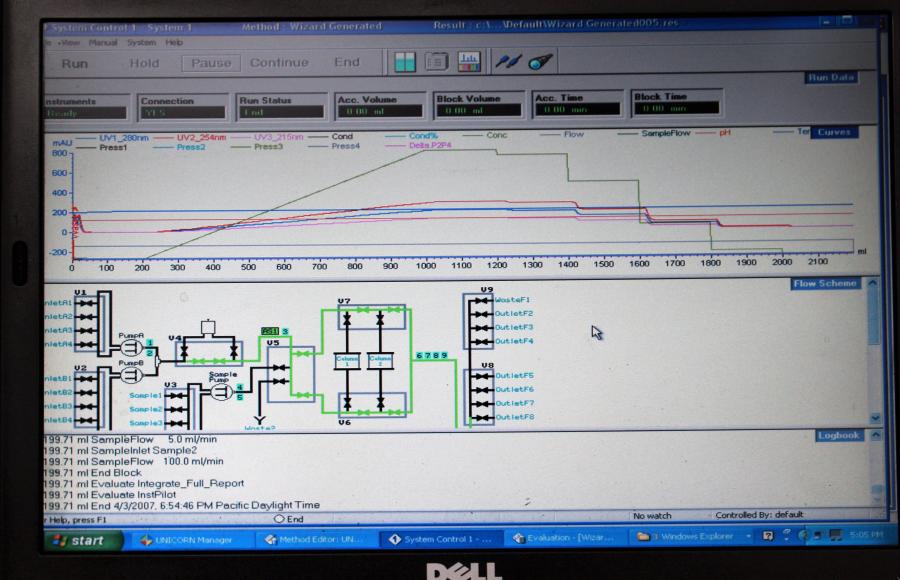

including a flat-screen monitor, and UNICORN control system.

Liquid flow rates from 4 to 800 ml/min (limited gradient performance at 400800 ml/min).
Operating pressure up to 20 bar.
Principle of KTApilot
KTApilot contains all the fluid handling components required to perform buffer
delivery and mixing, sample application, and in-line monitoring.

Detectors and monitors
KTApilot is equipped with detectors for continuous in-line measurement of pH,
conductivity and UV absorbance. The detectors provide accurate and reliable
monitoring through self-test and self-calibration. The flow cells are placed close together and are easily accessible from the front panel to facilitate maintenance. As a result, band broadening and time delay between detectors are lessened.

Pre-programmed method templates and optimized system configurations minimize preparation time by allowing rapid media screening, method scouting and optimization as well as scale up experiments. Dedicated method templates are supplied for the most common scouting procedures including automatic media screening and automatic eluent pH scouting for ion exchange chromatography. Convenient sample application and column packing is also possible by regulating the flow rate, while pressure can also be monitored through four points.

Specifications:
Standard
Metric
Manufacturer Name
GE


Model:
AKTApilot
AKTApilot

Serial Number:
2154655
2154655


Dimensions:
Standard
Metric

Overall:
30.00 x 38.00 x 48.00 IN - 292.00 LBS
762.00 x 965.20 x 1219.20 mm - 132.45 kg

Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

CA

This equipment is subject to a removal and loading charge.


The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non-transferable.
