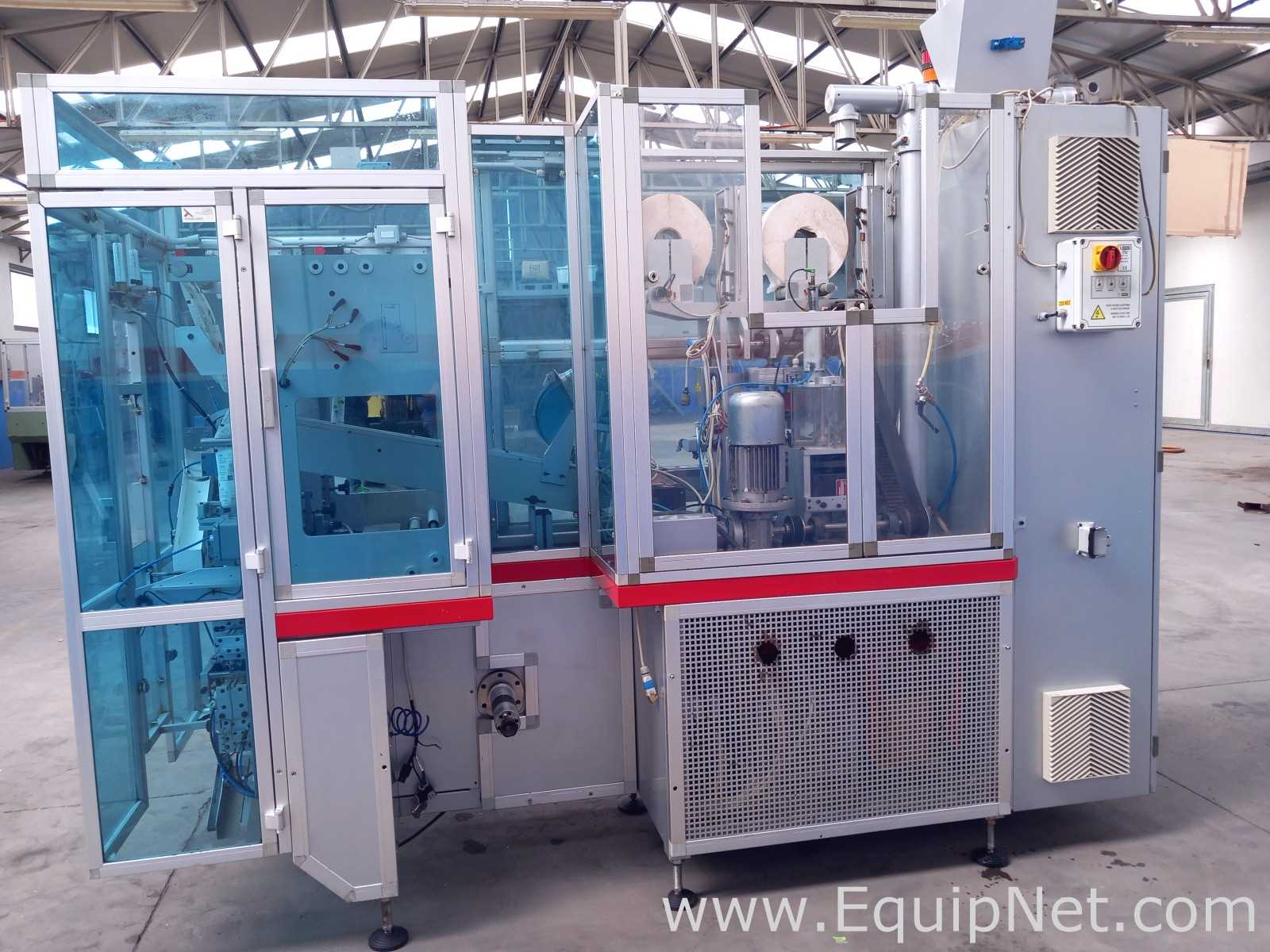

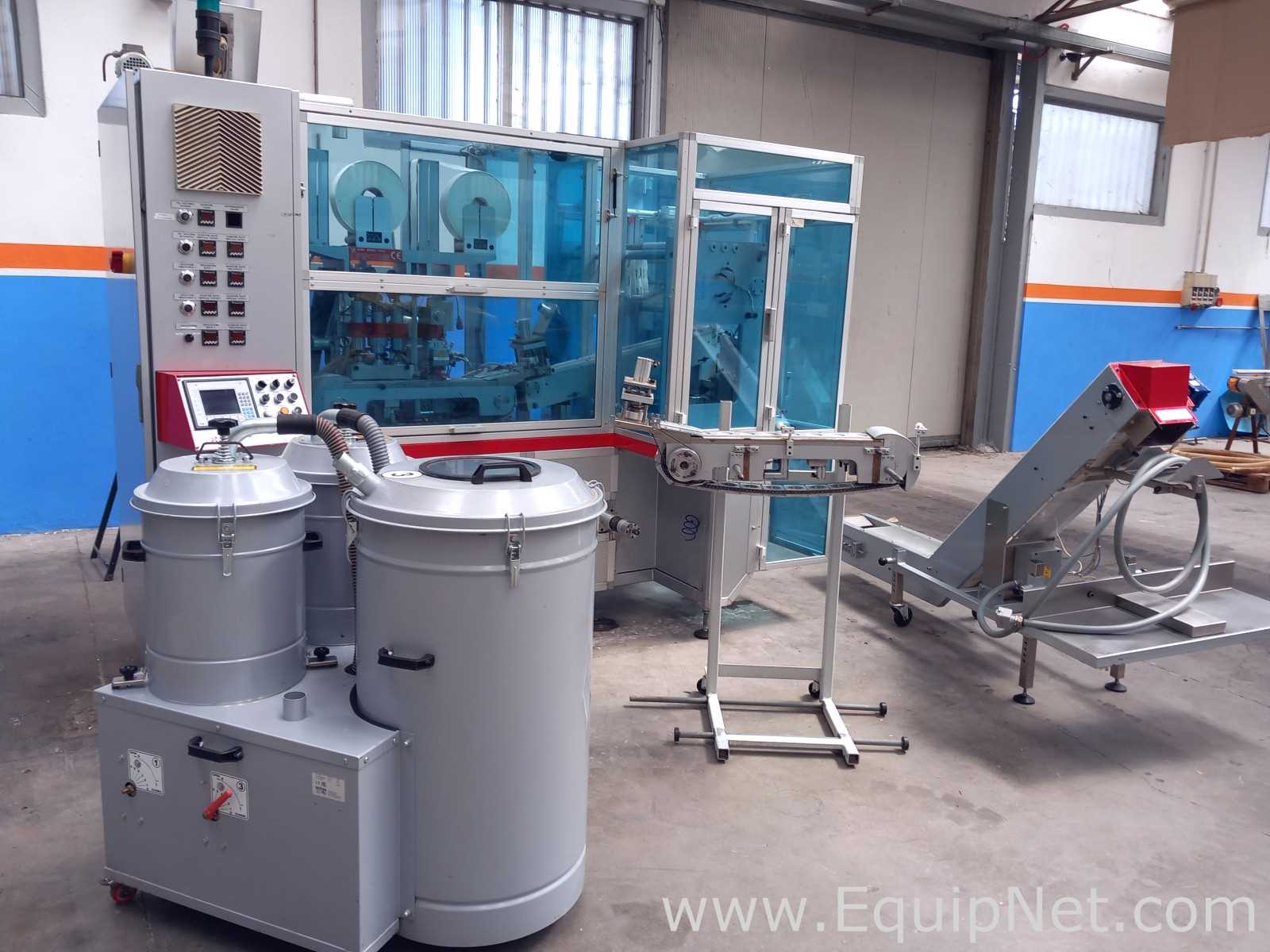

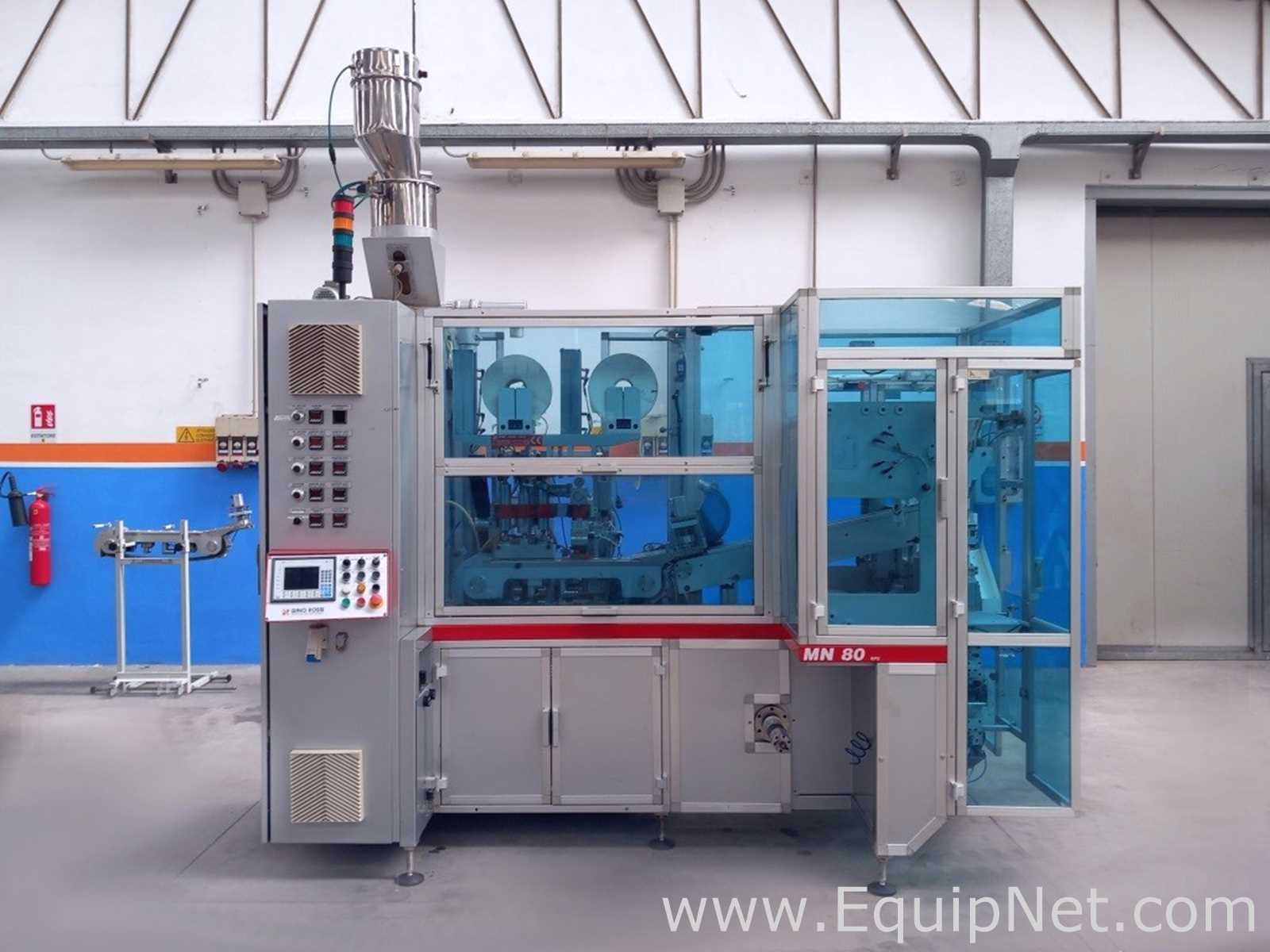

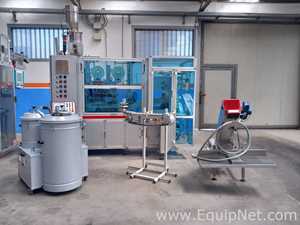

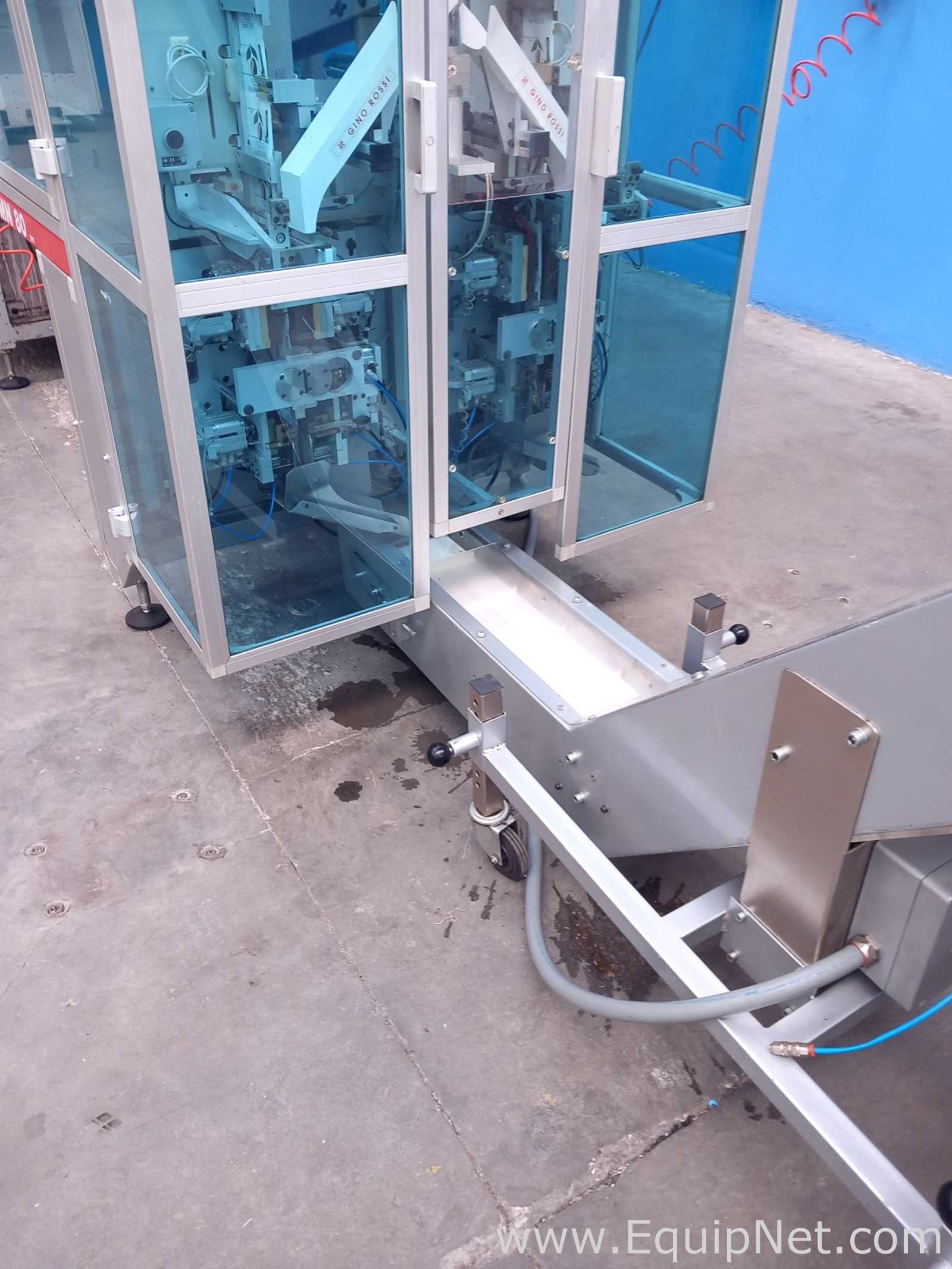

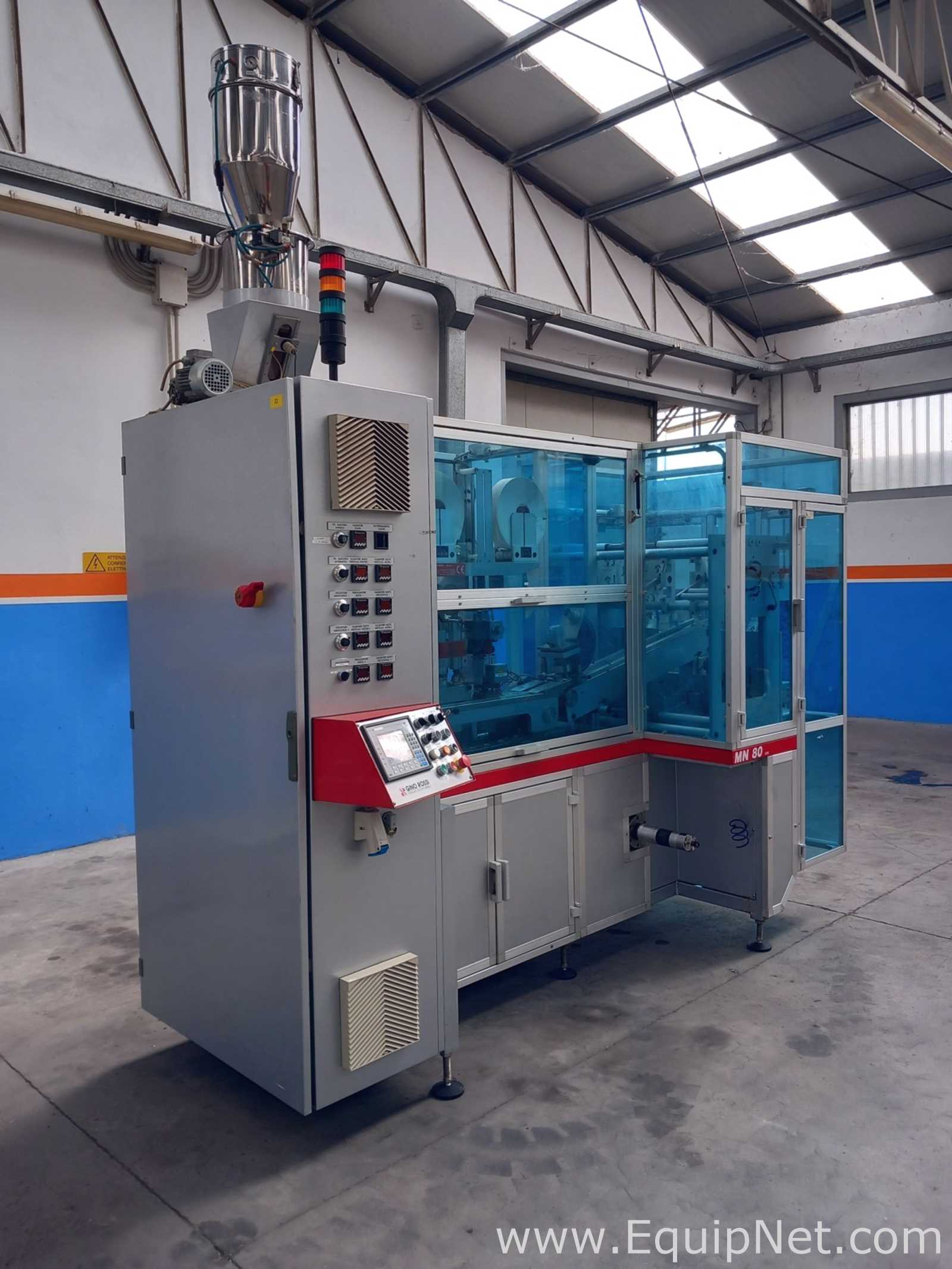

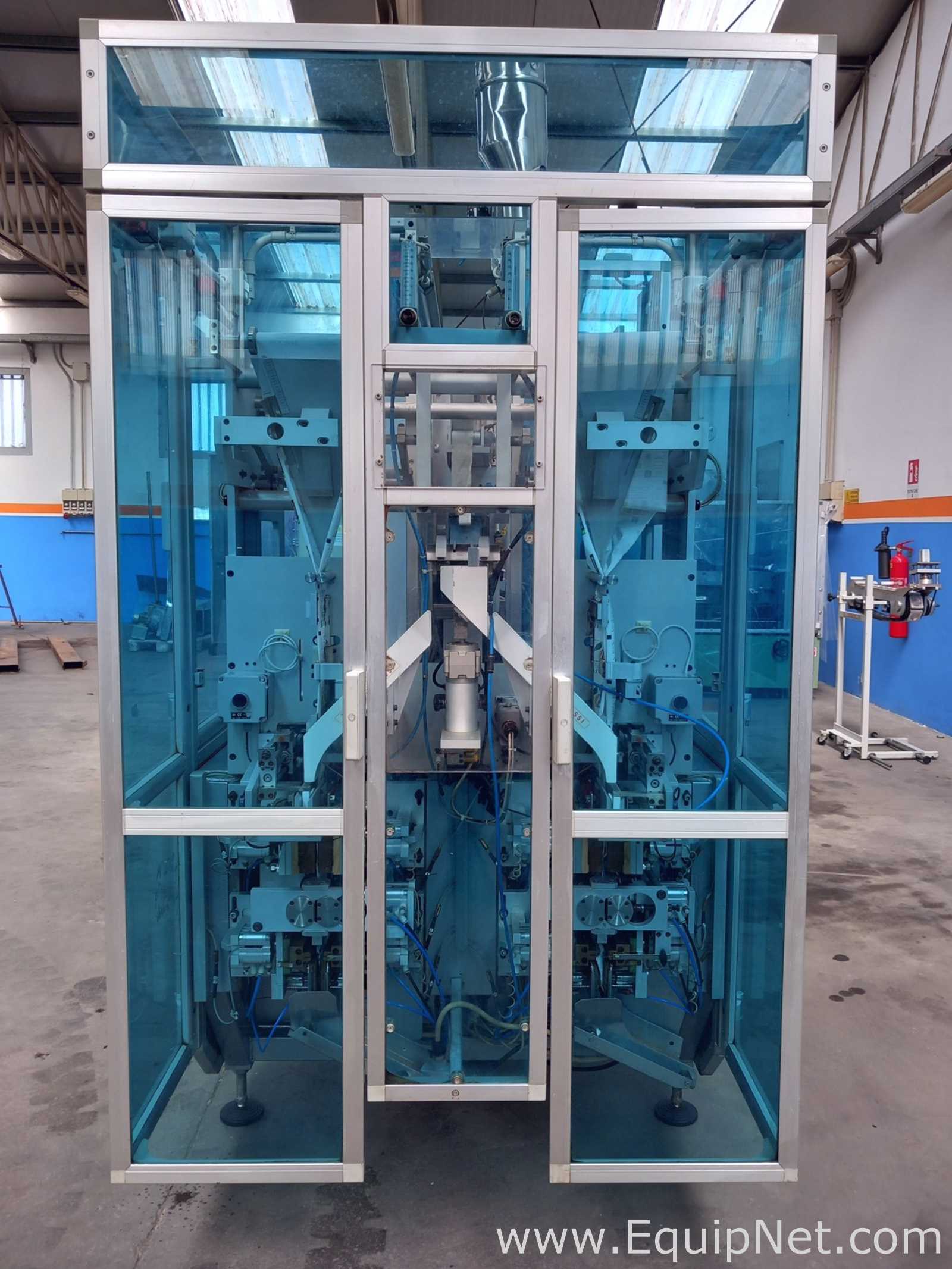

GINO ROSSI MOD. MN 80 - Coffee pod packaging line

MACHINE TYPE:

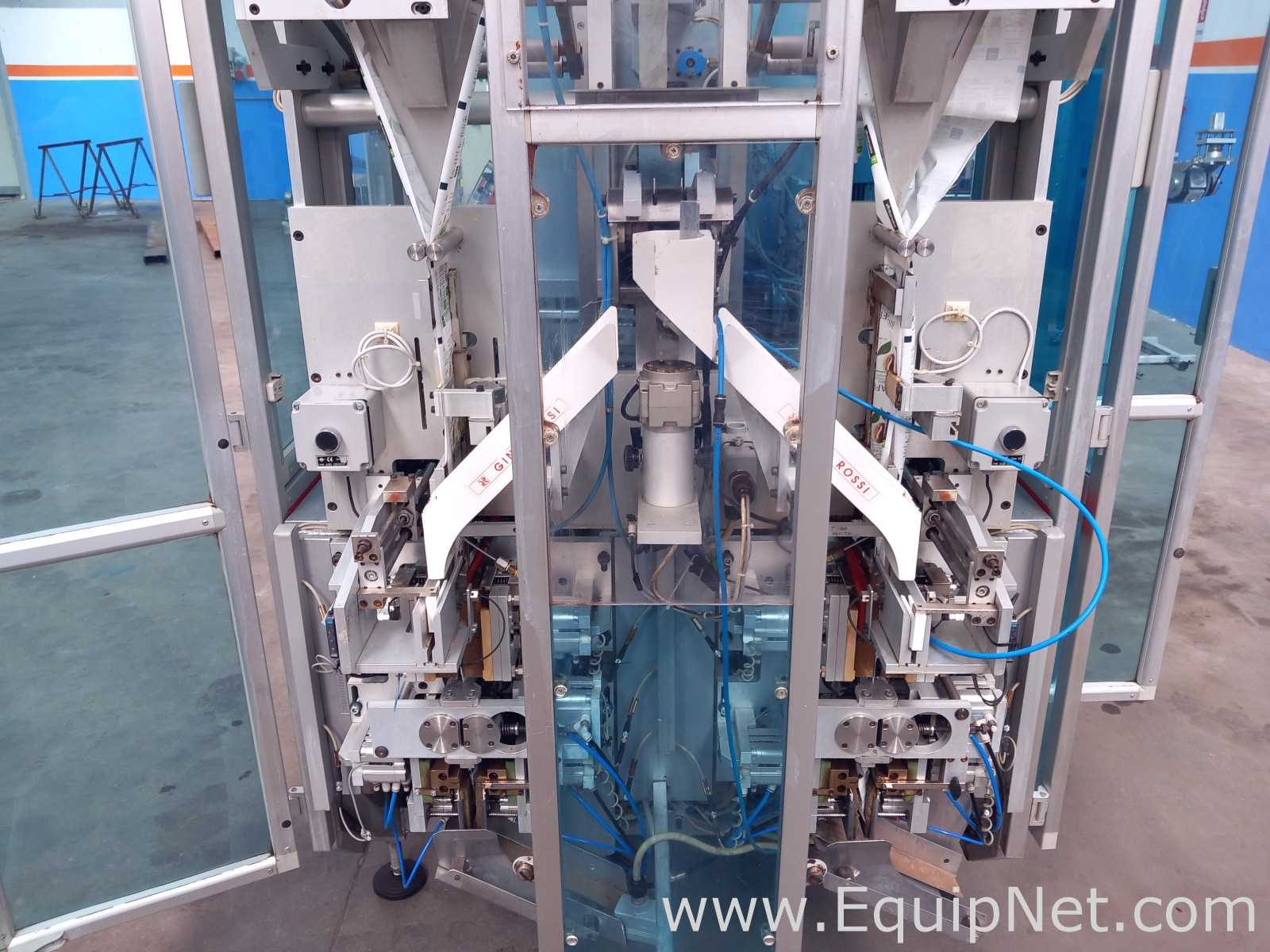

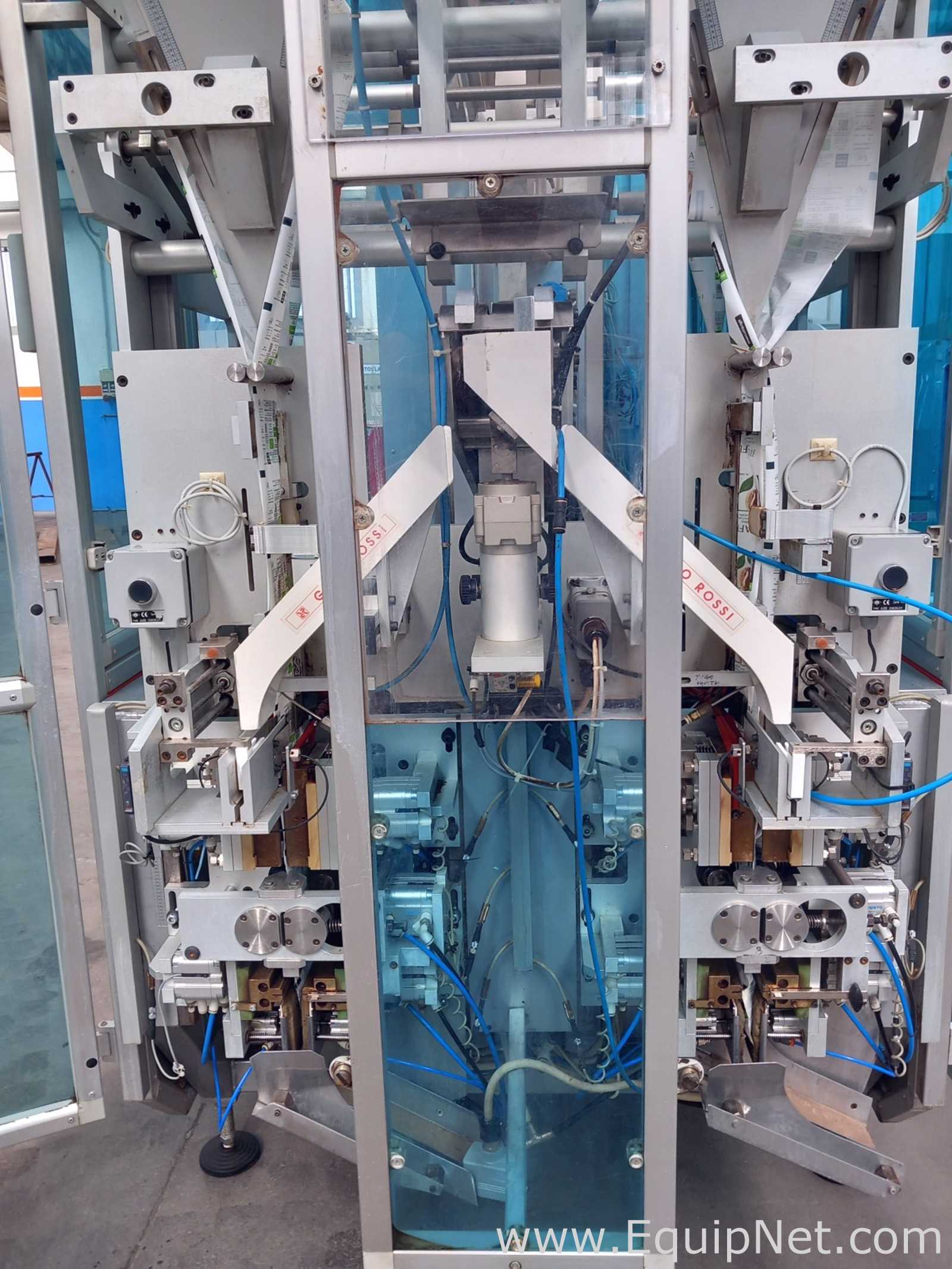

The MN80 is a semi-automatic pod-filling machine—a vertical single-serving bag packaging machine—for the production and packaging of coffee pods (ESE – Easy Serving Espresso) for compatible home and professional espresso machines, designed for small- and medium-capacity roasting lines.

INDUSTRIES:
Pharmaceutical, chemical, cosmetic, food, dietary supplements, medical devices, manufacturing

FEATURES:

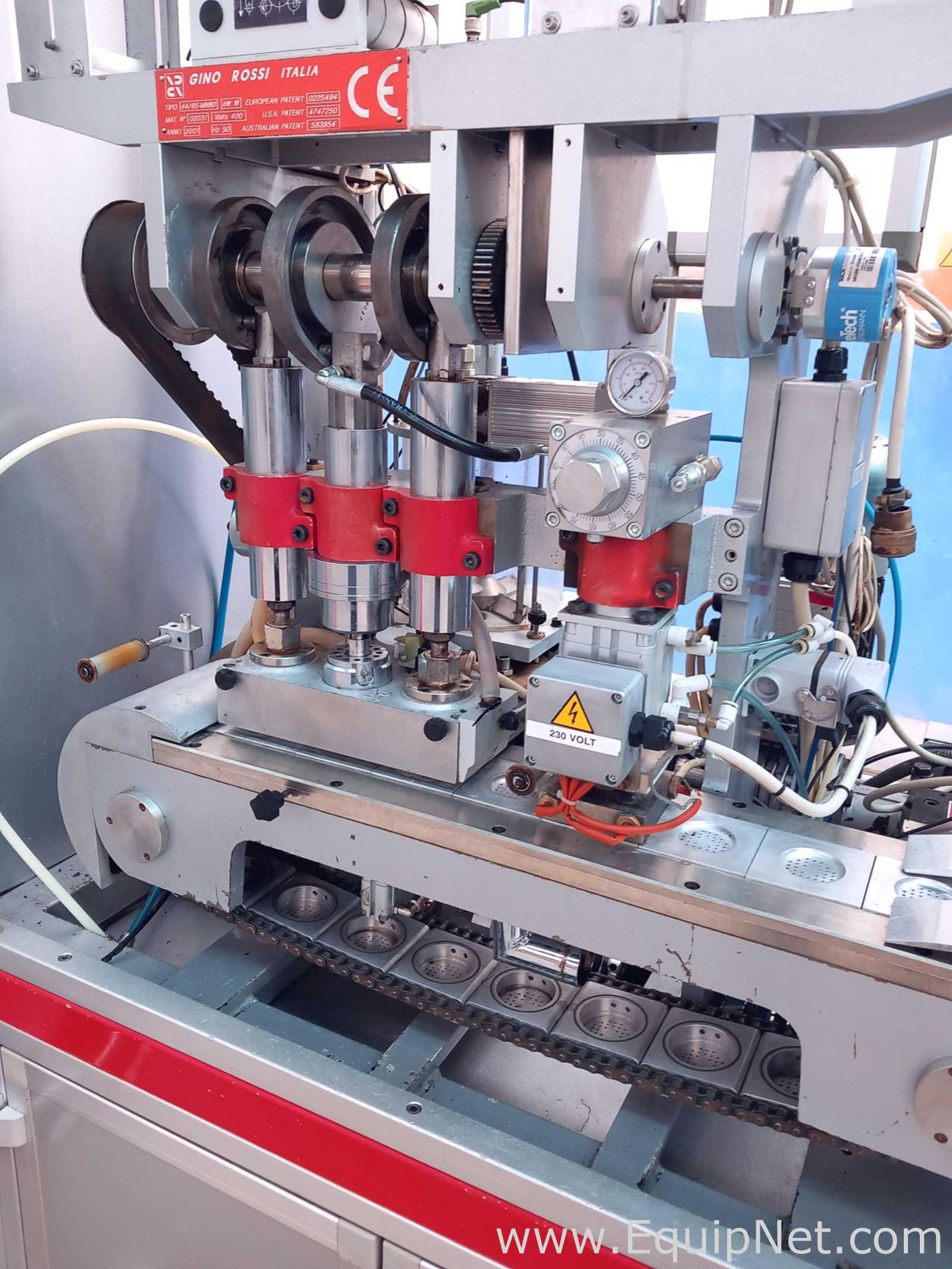

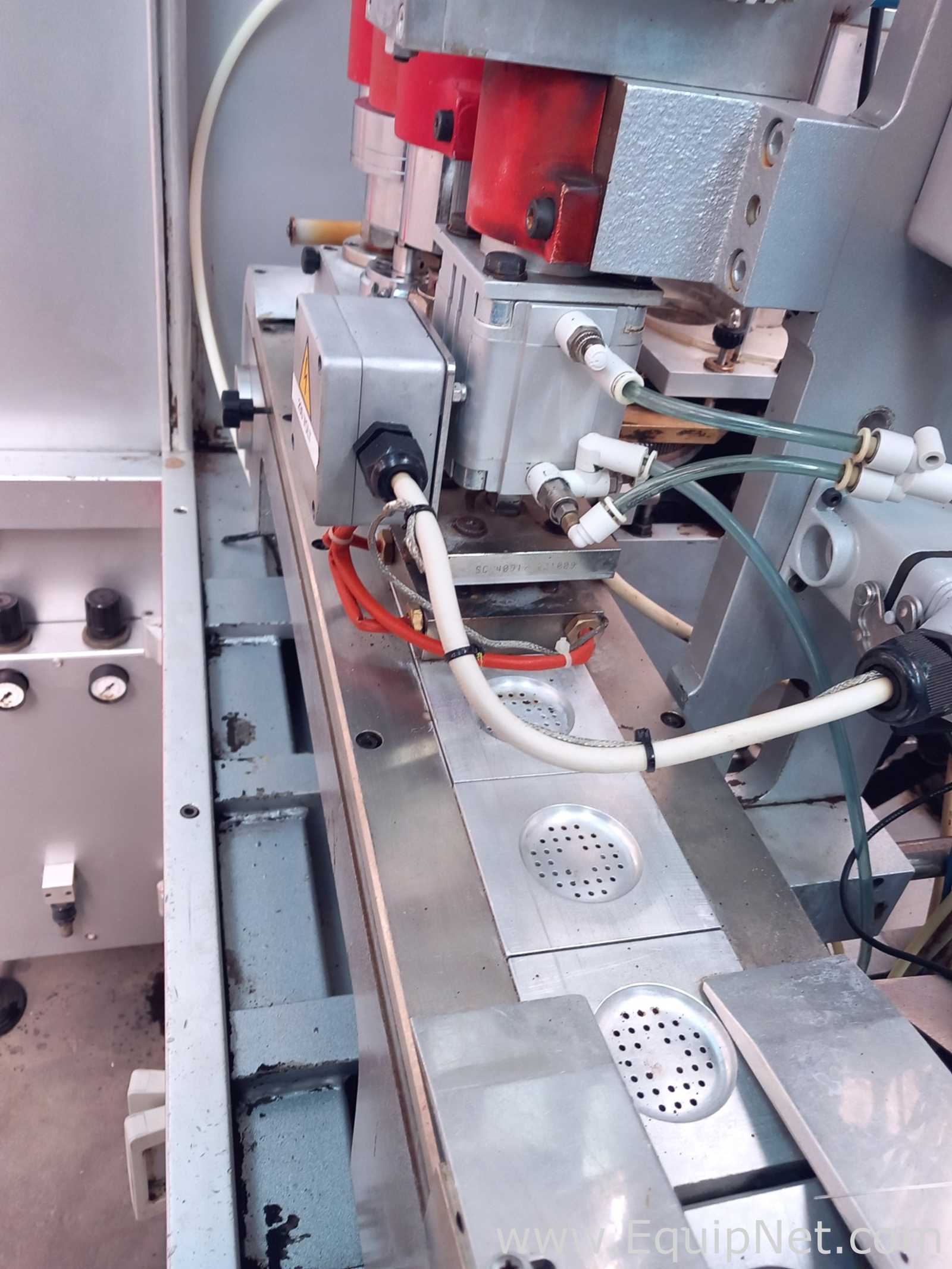

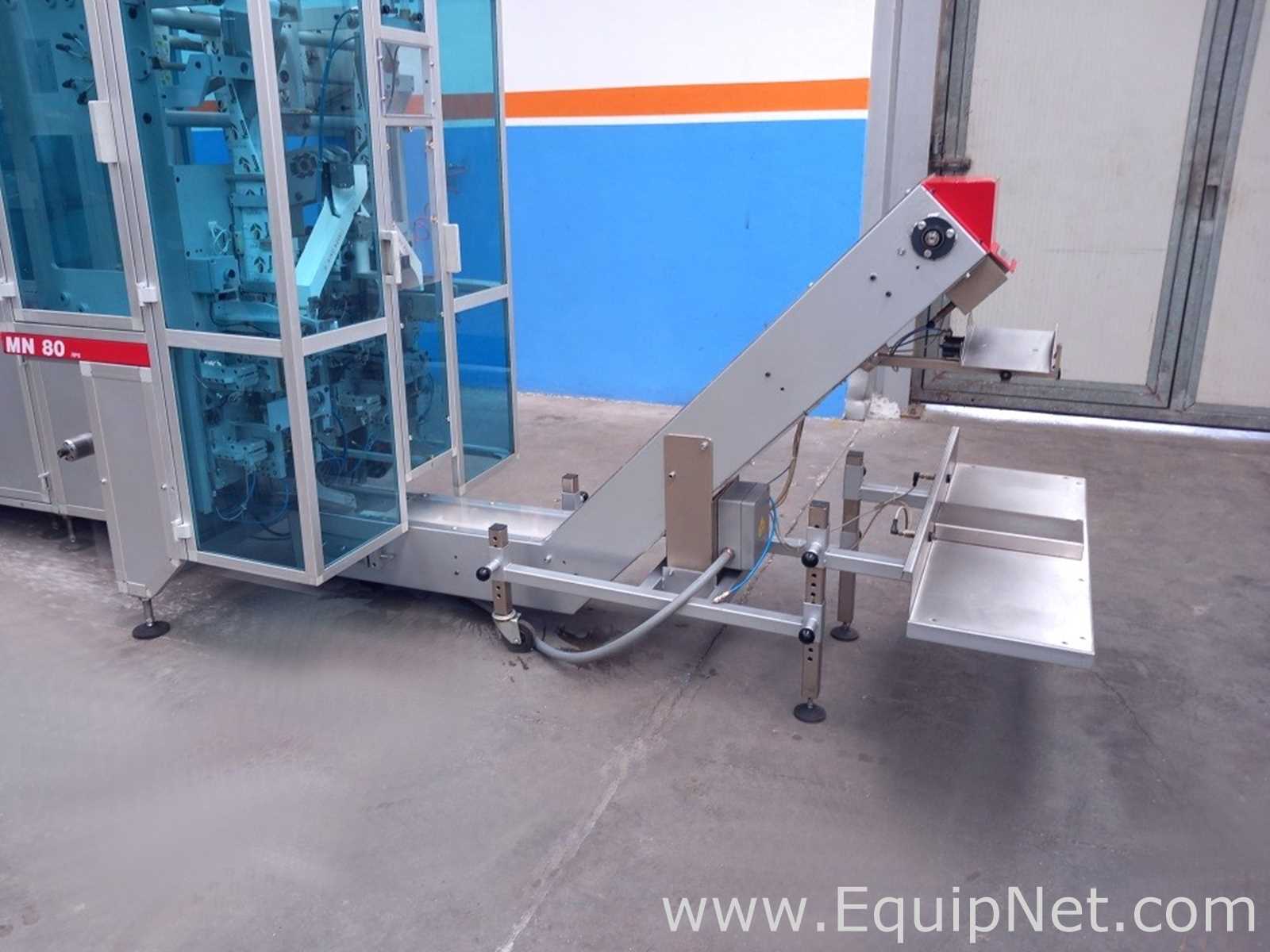

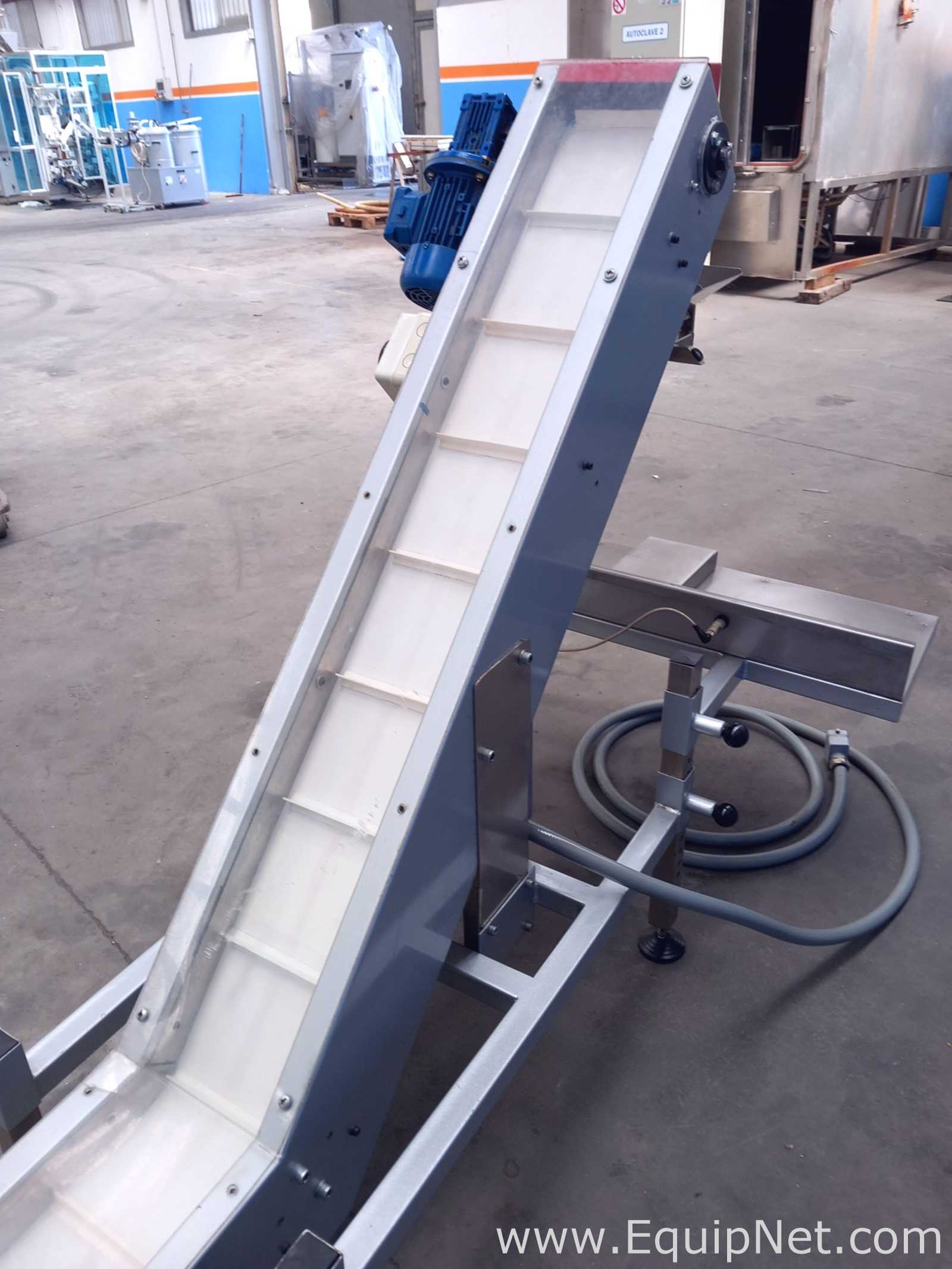

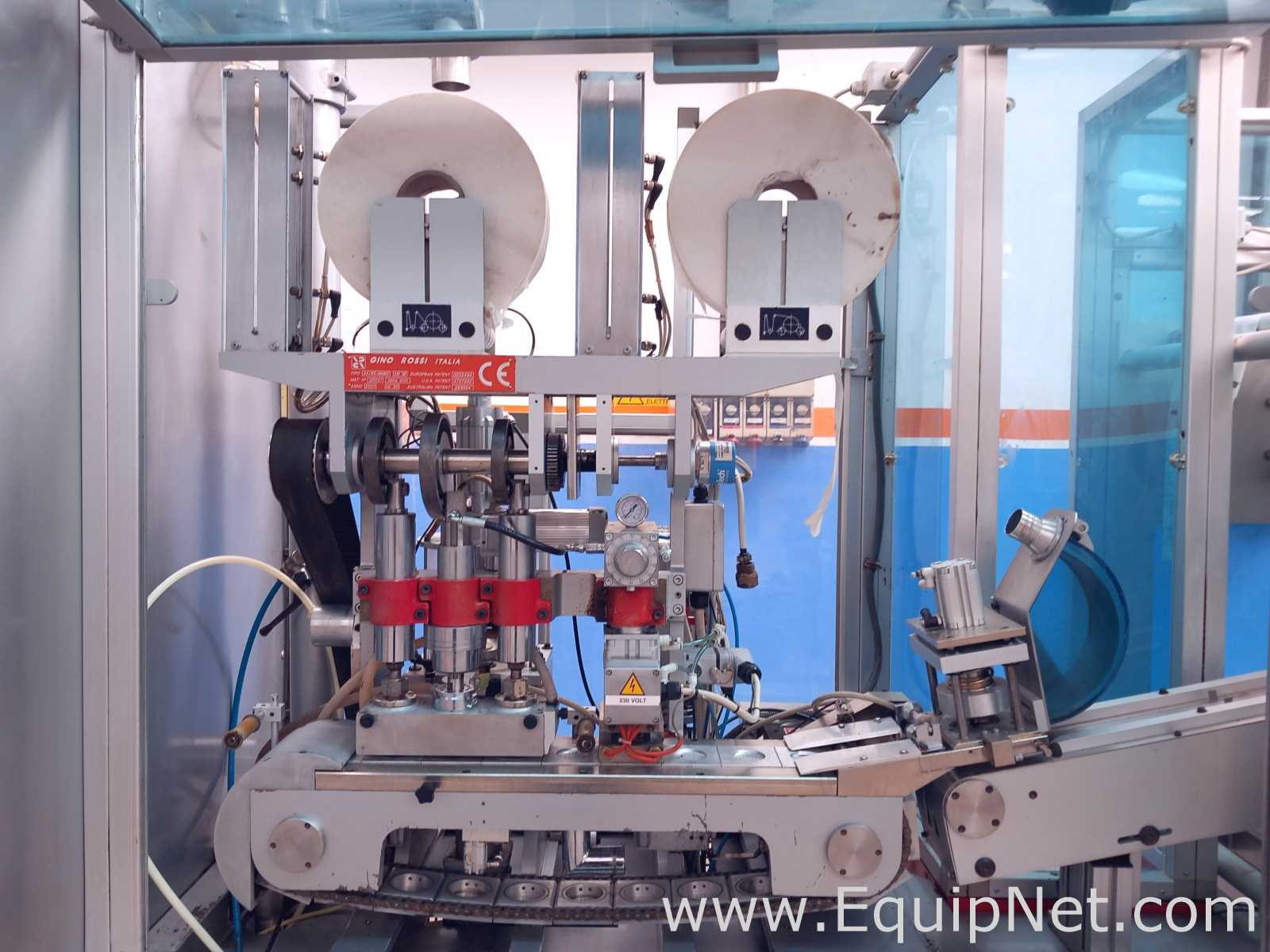

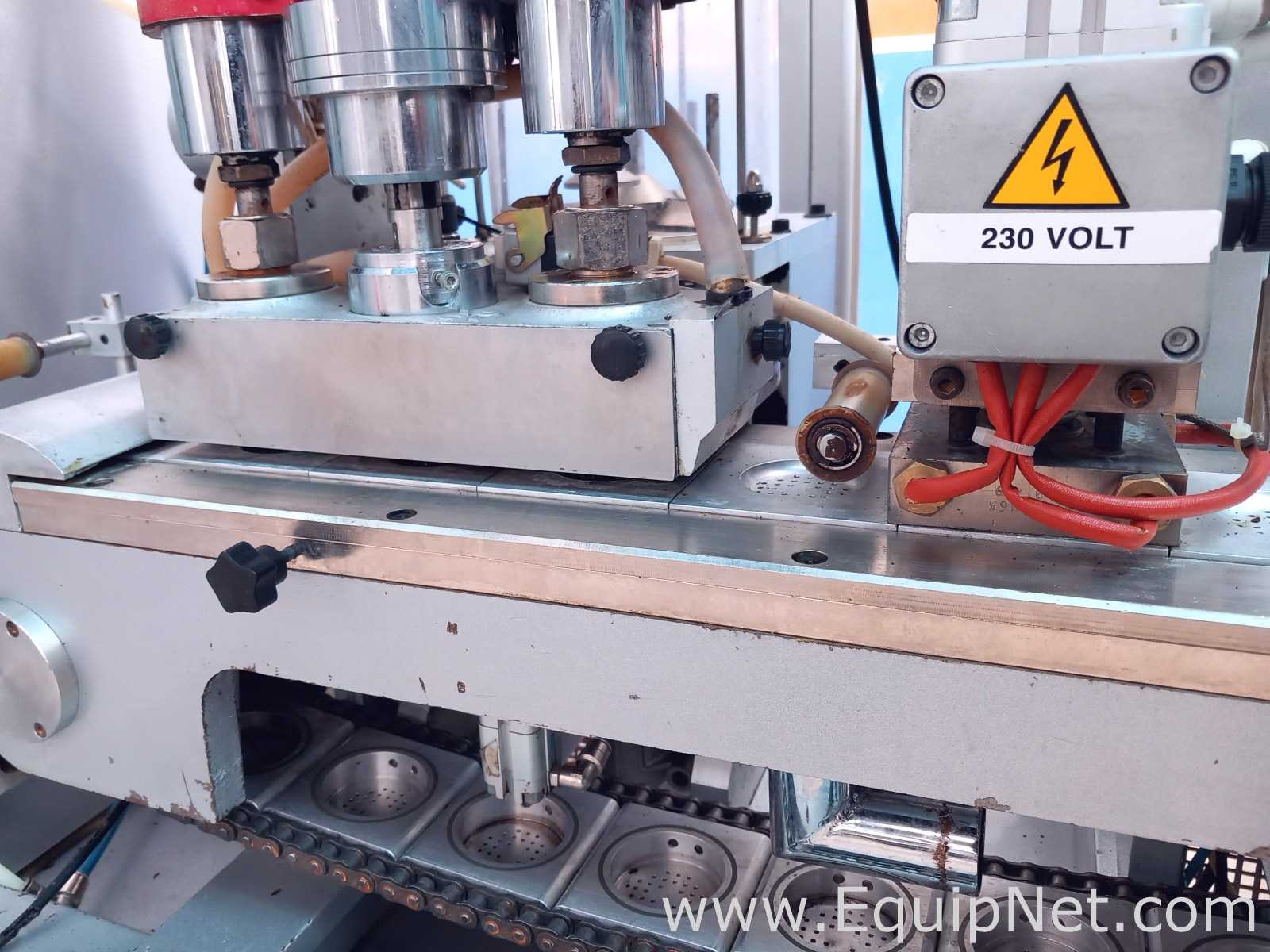

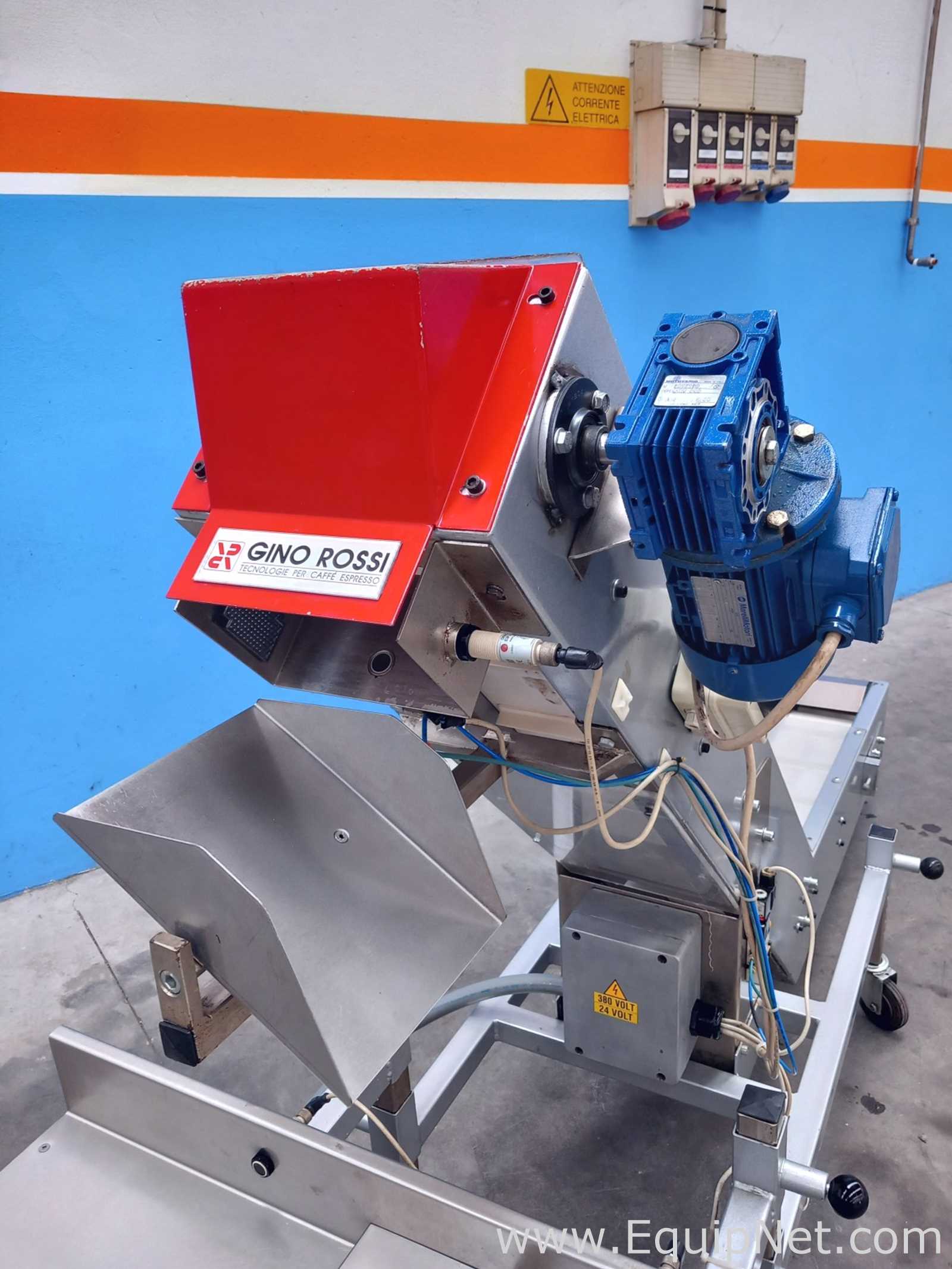

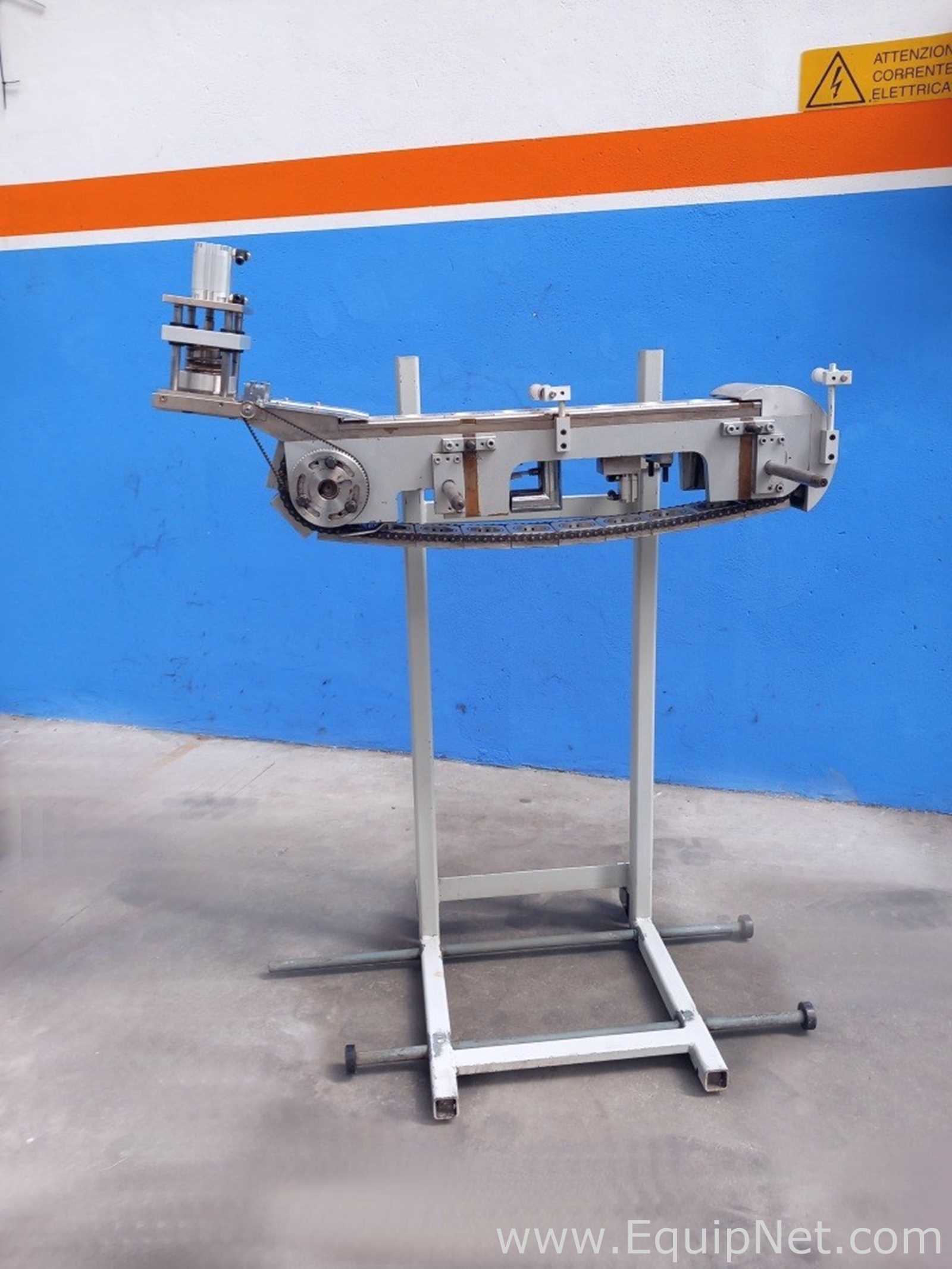

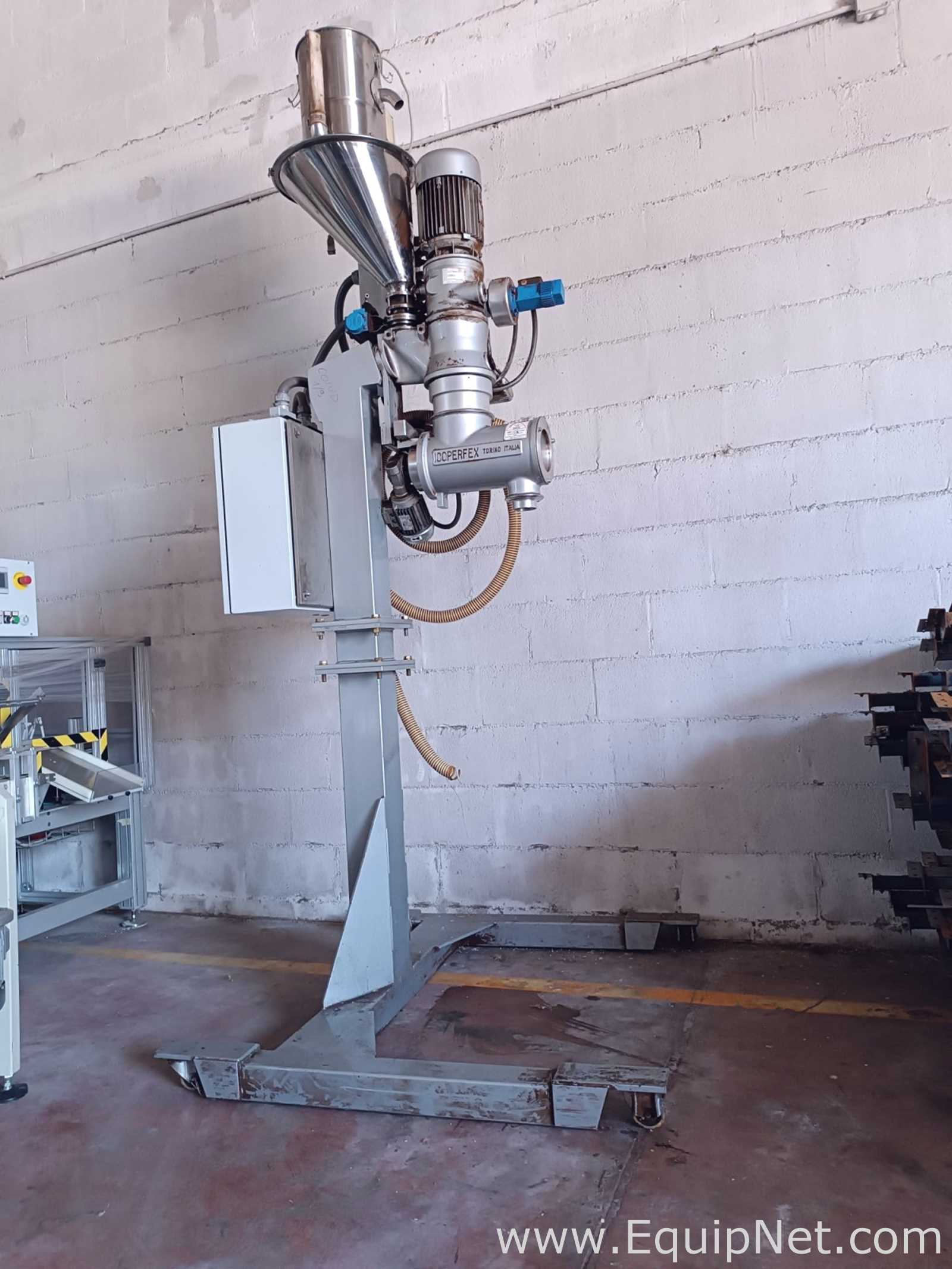

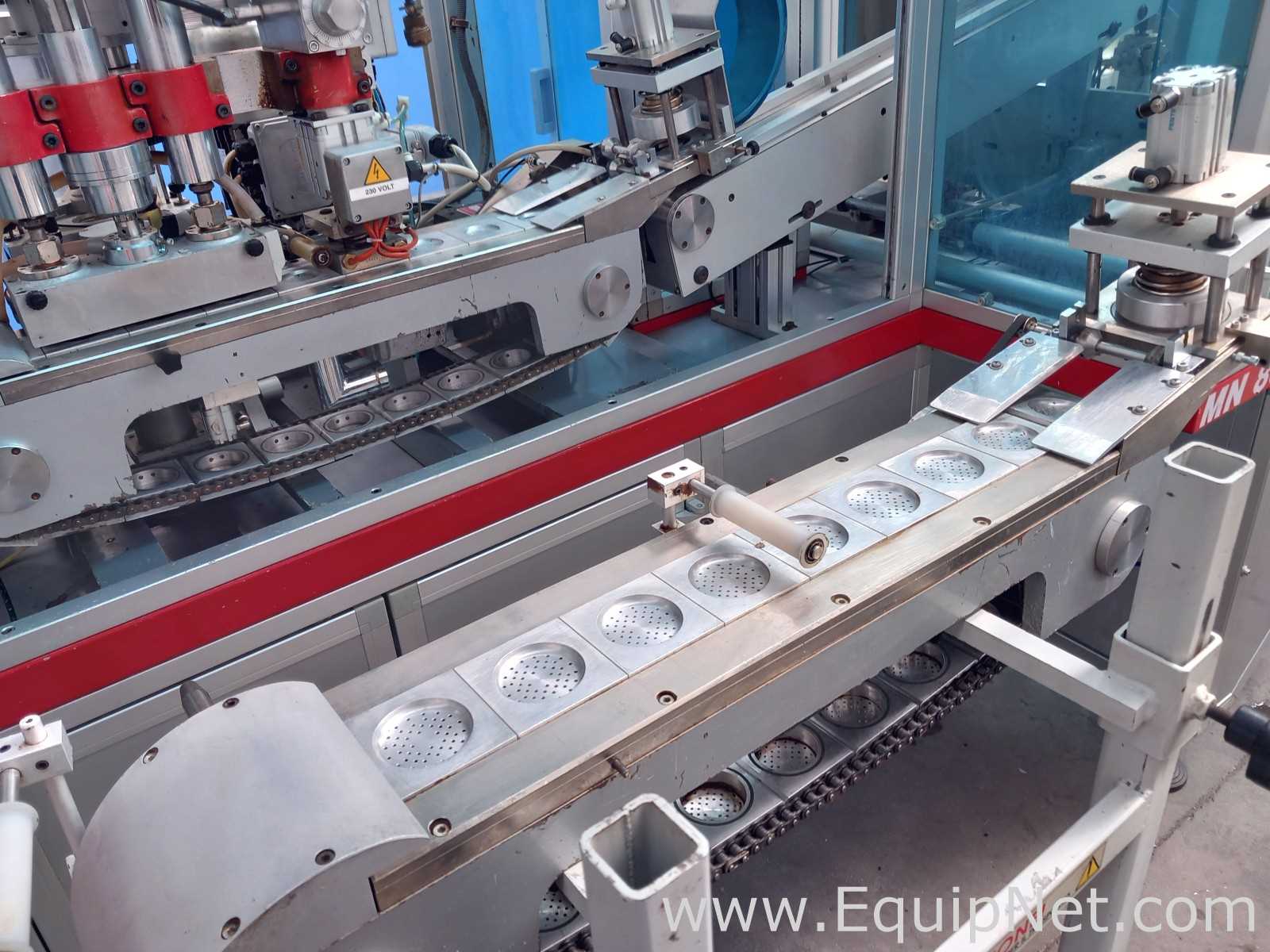

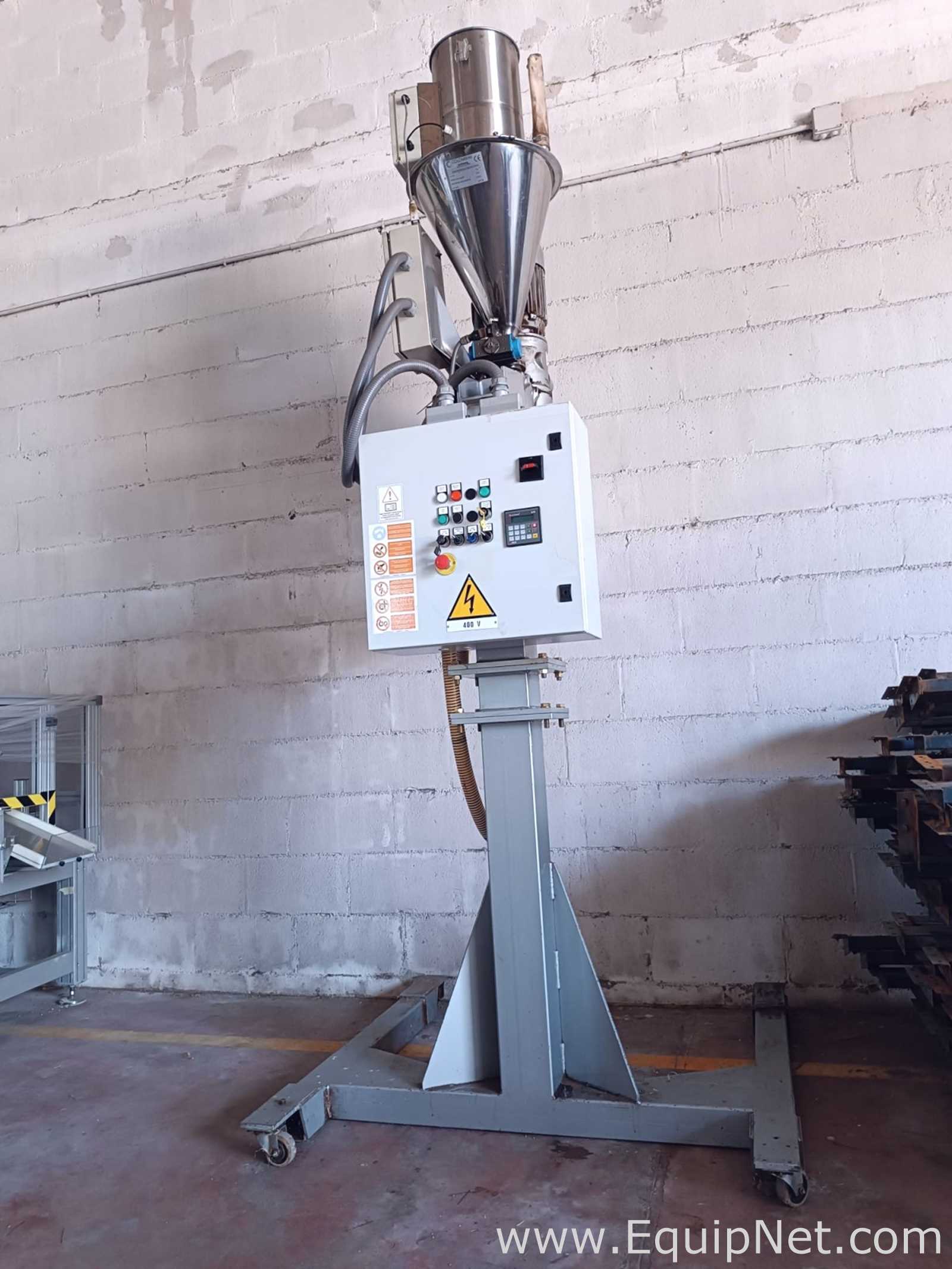

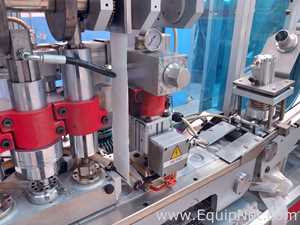

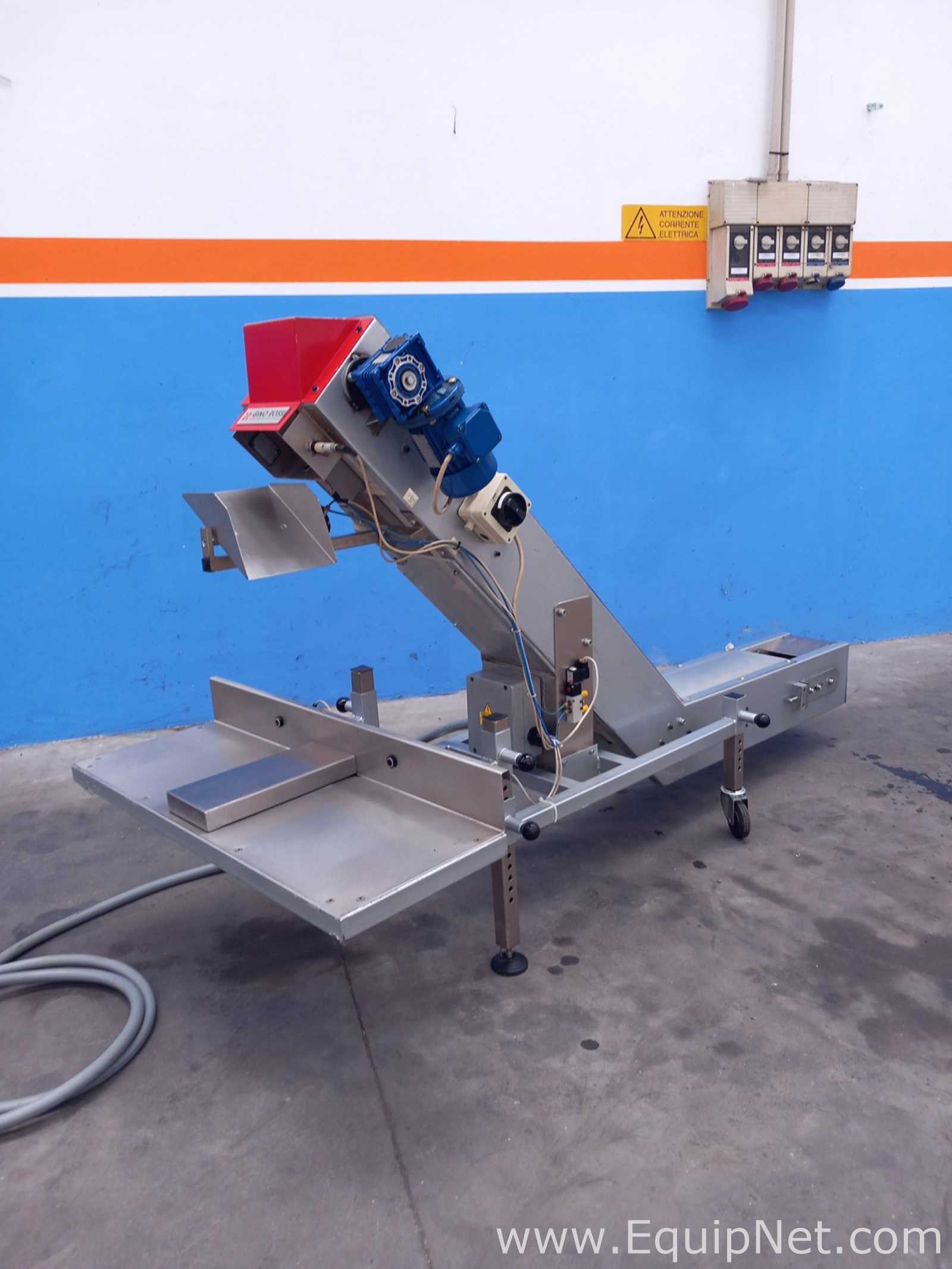

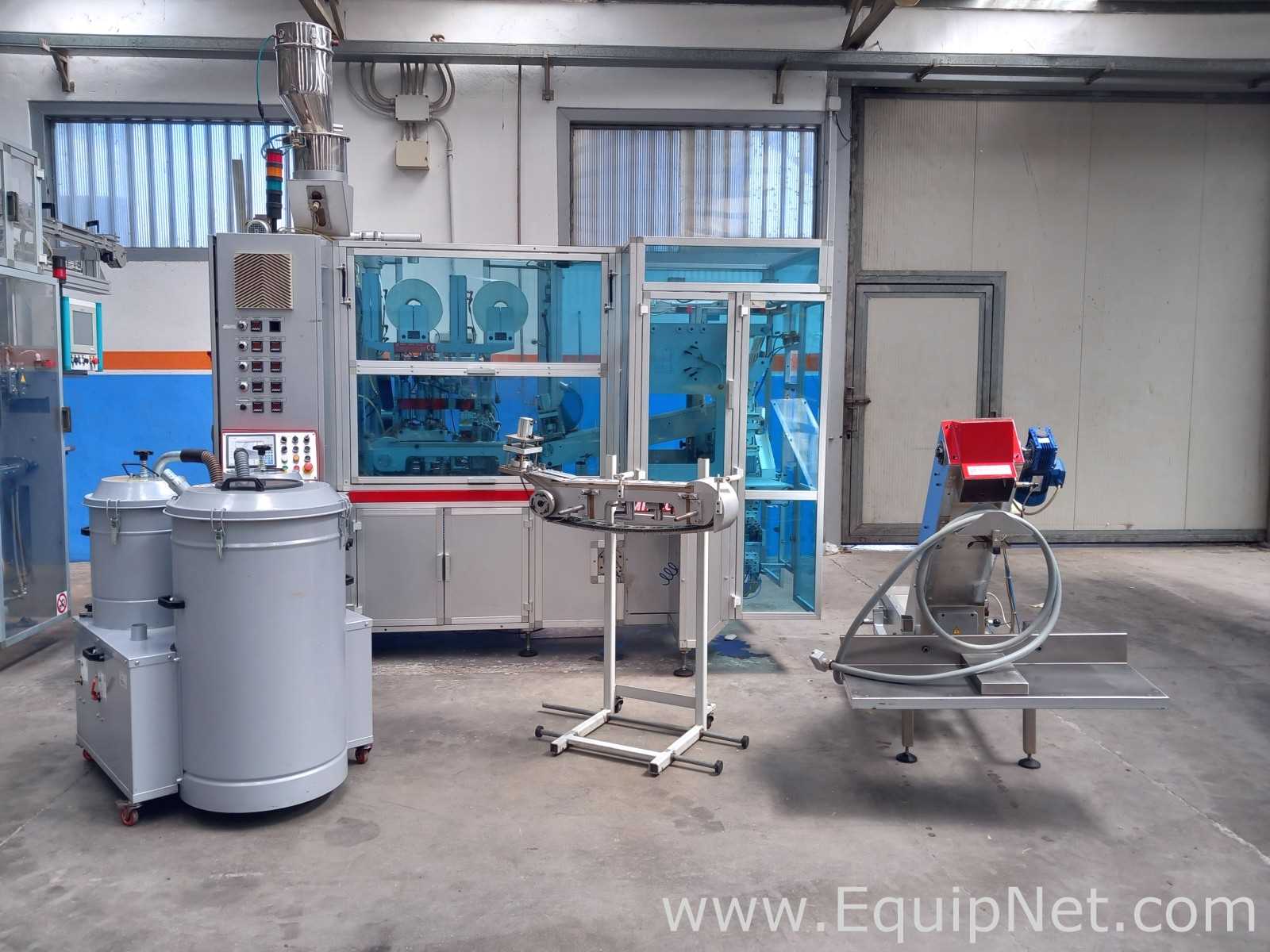

The machine integrates the stages of coffee grinding, dosing, pressing, forming, and sealing the filter, ensuring a production capacity of up to approximately 80 pods per minute. It features a robust, electro-pneumatic structure, suitable for flexible production and industrial settings that do not require extremely high speeds. The pods, made of heat-sealable food-grade filter paper, are designed to withstand pressure and temperature. The ground coffee is enclosed between two layers of paper that are heat-sealed along the perimeter. The machine is equipped with a COLOMBINI grinder from the TA series and a conveyor belt with a counter and pouch diverter, completing the packaging process with a pouch made of barrier-laminated film to protect against oxygen and moisture.

YEAR: 2001

TECHNICAL SPECIFICATIONS
Voltage: 400 Volts
Frequency: 50 Hz
Power: 18 kW
Dimensions (LxWxH): 3000 x 1400 x 3300 mm
Weight: 1,200 kg
Single filter size: diam. 44–55 mm
Filter thickness: 10 mm

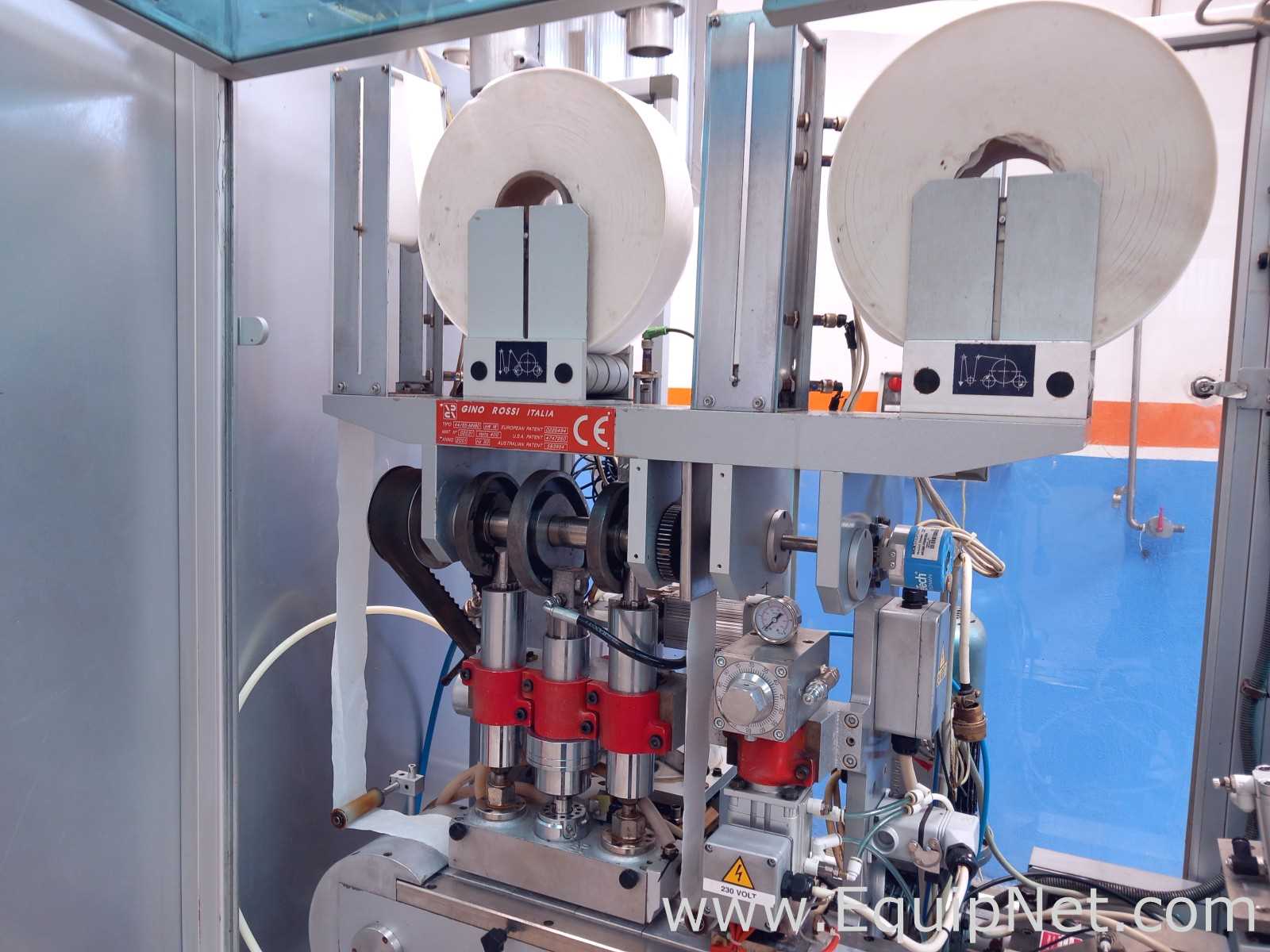

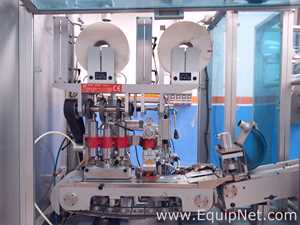

Filter paper roll dimensions: diam. 300 mm, width 65–82 mm
Bag dimensions: 95 x 95 mm / 110 x 110 mm
Production capacity: up to 80 pods/min.
Pod sizes: 45 mm diameter and 55 mm diameter
