Equipment Description

Henmar 1000L Mixing Vessel

Used Hen-Mar 1000 Litre Stainless Steel 316L Propeller Mixer.

Location: England, United Kingdom.

Contact phone: +44 (0) 800 009 6246.

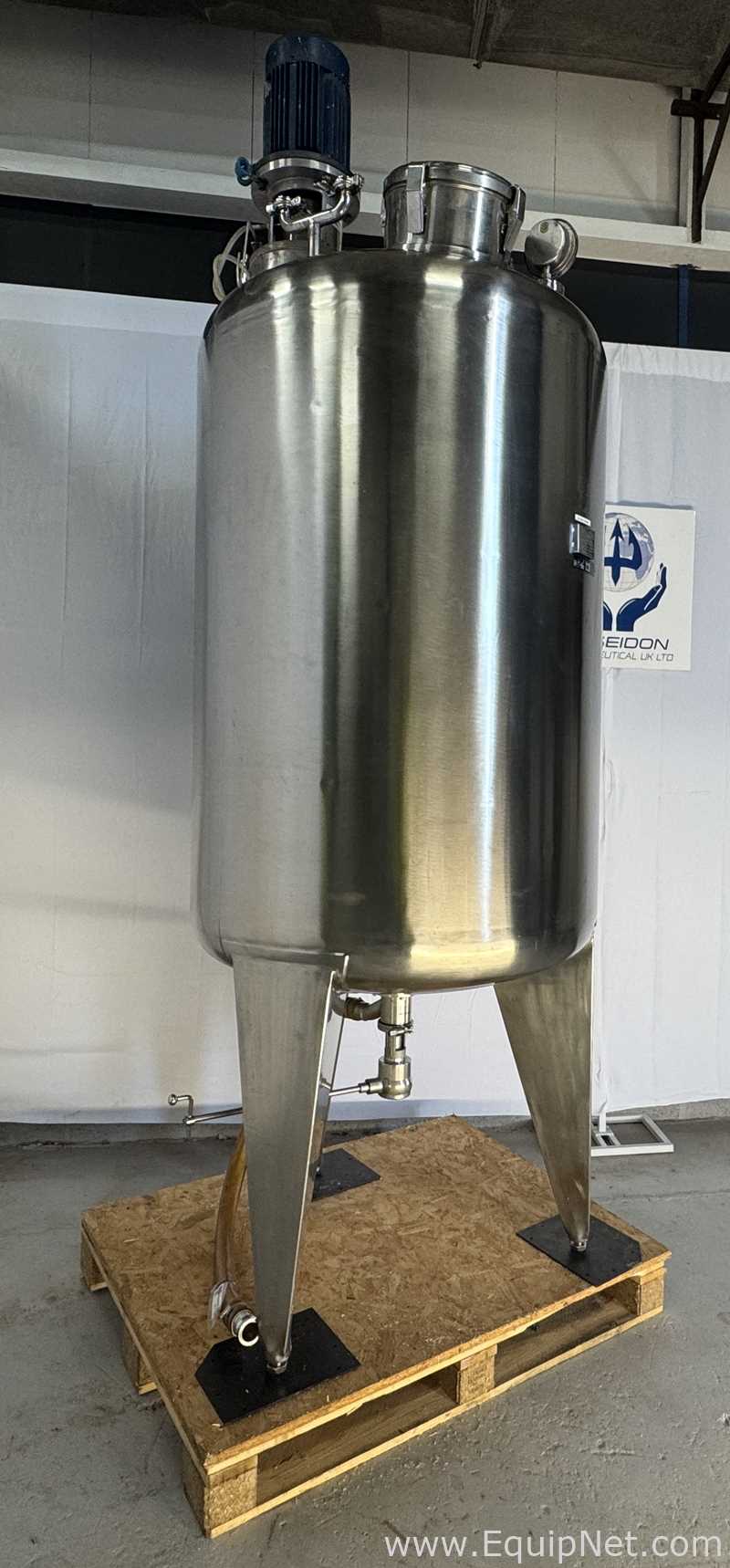

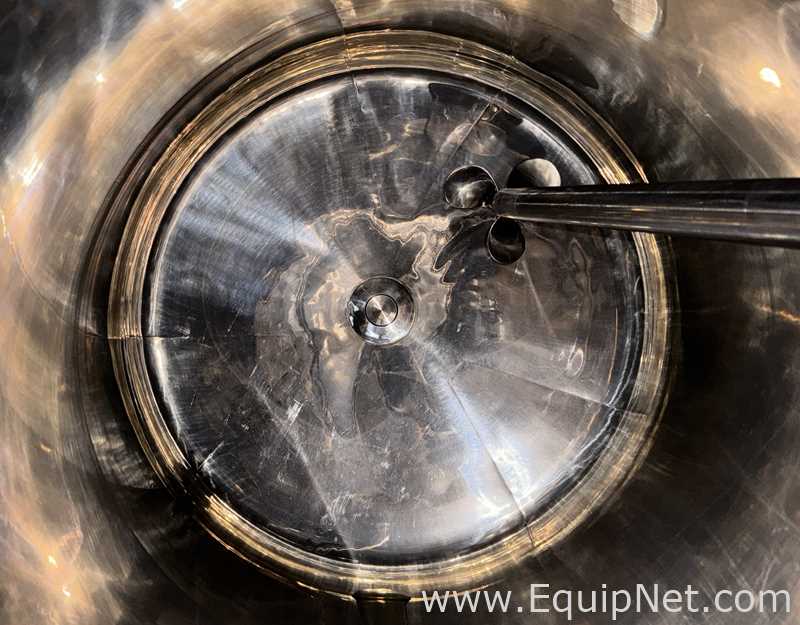

The vessel is purposed for the mixing of liquids, featuring a cylindrical shape with a dish-type top and bottom.

All product contact parts are manufactured from stainless steel AISI 316L or AISI 316Ti.

Internal surfaces have a polished 320 grit finish with Ra = 0.4 µm, and welds are ground down smooth and buffed.

External surfaces have a 120 grit finish with Ra = 1.6 µm, and welds are ground down.

The vessel is supported by 3 stainless steel legs made from AISI 304.

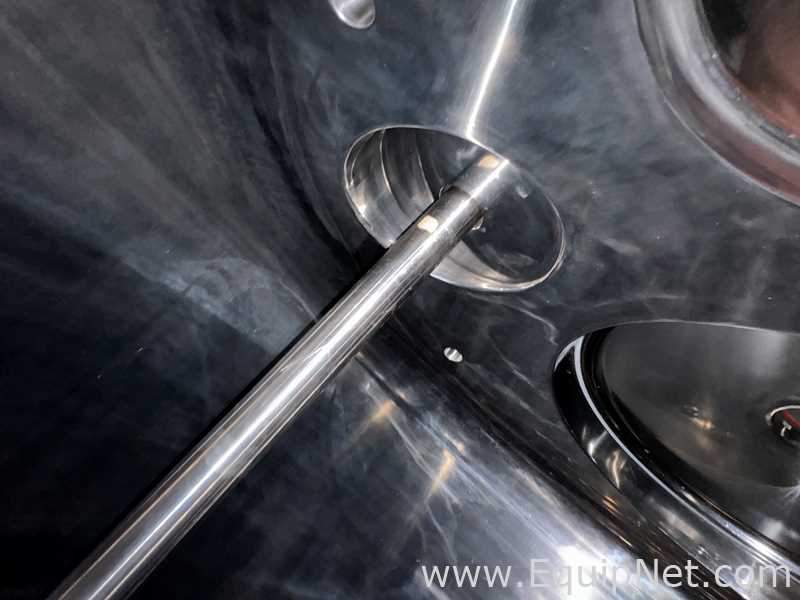

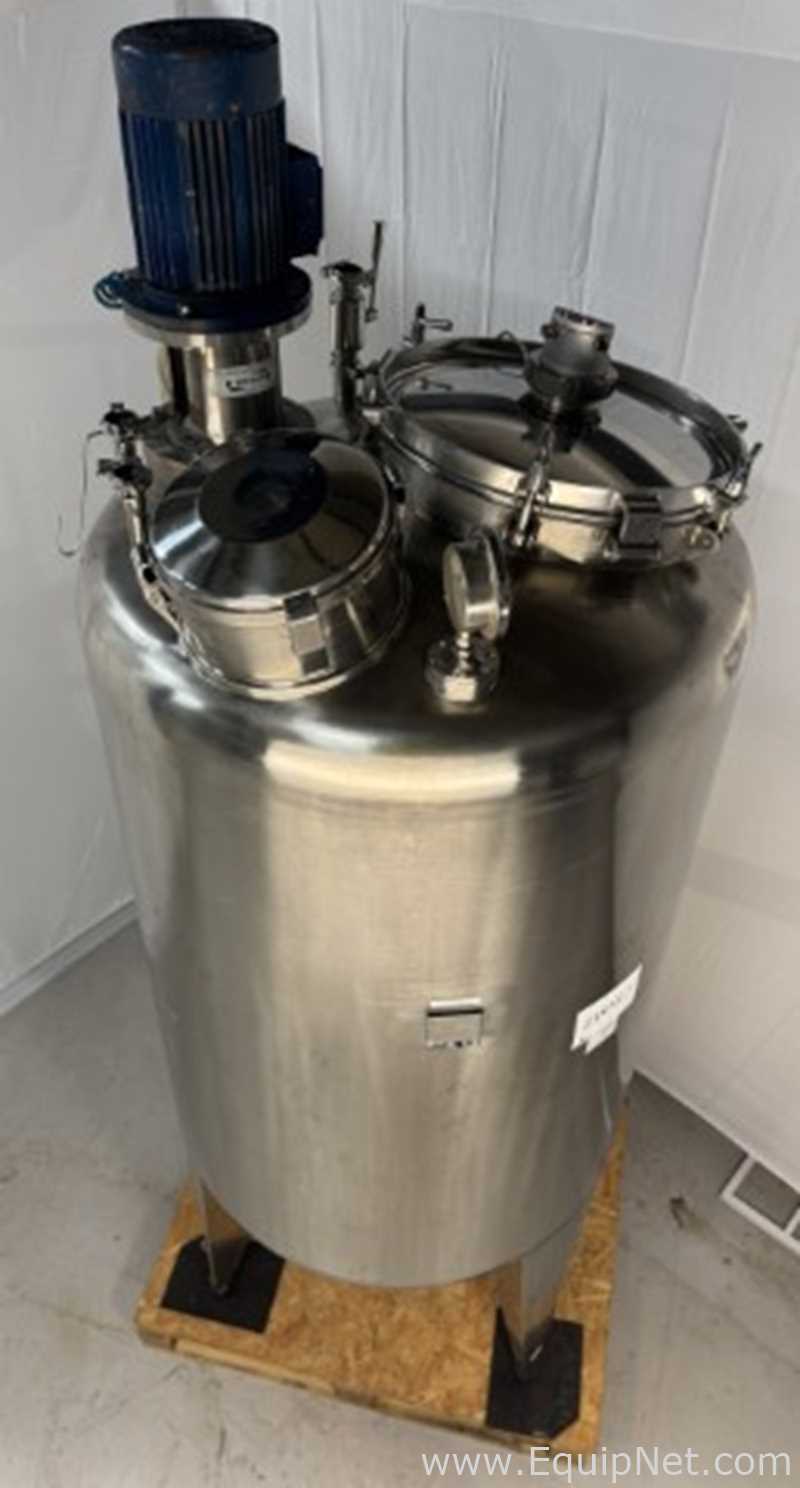

Comes equipped with a top-mounted motor and a three-bladed propeller agitator for an even mix and for keeping products homogenous.

The mixer is in overall excellent condition, showing little use, and has been fully serviced and well looked after.

Working temperature: 20 °C.

Sterilisation temperature: 100 °C.

Total weight: 450 kg.

Working pressure: atmospheric/slight vacuum.

Max. allowed pressure: 2 BAR.

Electrical specifications: 220/380V, 50Hz, 1.1 kW.

Electric protection rating: IP 54.

Maximum number of revolutions of agitator: 690 rpm.

Type of agitator: 3-way propeller with a diameter of ø 180 mm.

Manufacturer: Henmar.

Year of manufacture: 1998.

Stock number: PP1211.

Specifications:

Standard

Metric

Manufacturer Name

Hen-Mar

Year:

1998

Tank Material of Construction:

STAINLESS STEEL

Capacity Size of Vessel:

264.26 gal

1000 L

Jacketed:

Type of Top Head:

DISHED

Type of Bottom Head:

DISHED

Agitation:

YES

Inside Diameter:

39.37 in

1000 MM

Overall Height:

104.33 in

2650 MM

Straight Side:

84.65 in

2150 MM

Recommended Packaging Form:

PALLET

Model:

1000L

Dimensions:

Standard

Metric

Overall:

51.18 x 51.18 x 104.33 in - 992.07 lb

1300 x 1300 x 2650 MM - 450 KGS
