Listing# 1135970
Hydrology HAWS-120 Stainless Steel Alkaline Water Processing and Treatment Skid System
Pre-Owned Hydrology pH Control Systems Water Purification and Still System for Sale
Seller's Acceptable Currency:
$62,500.00 USD
Request More Info Make An OfferLocation: CA, USA
Level of Removal: Still Installed
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description

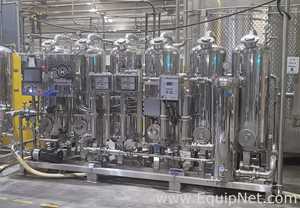

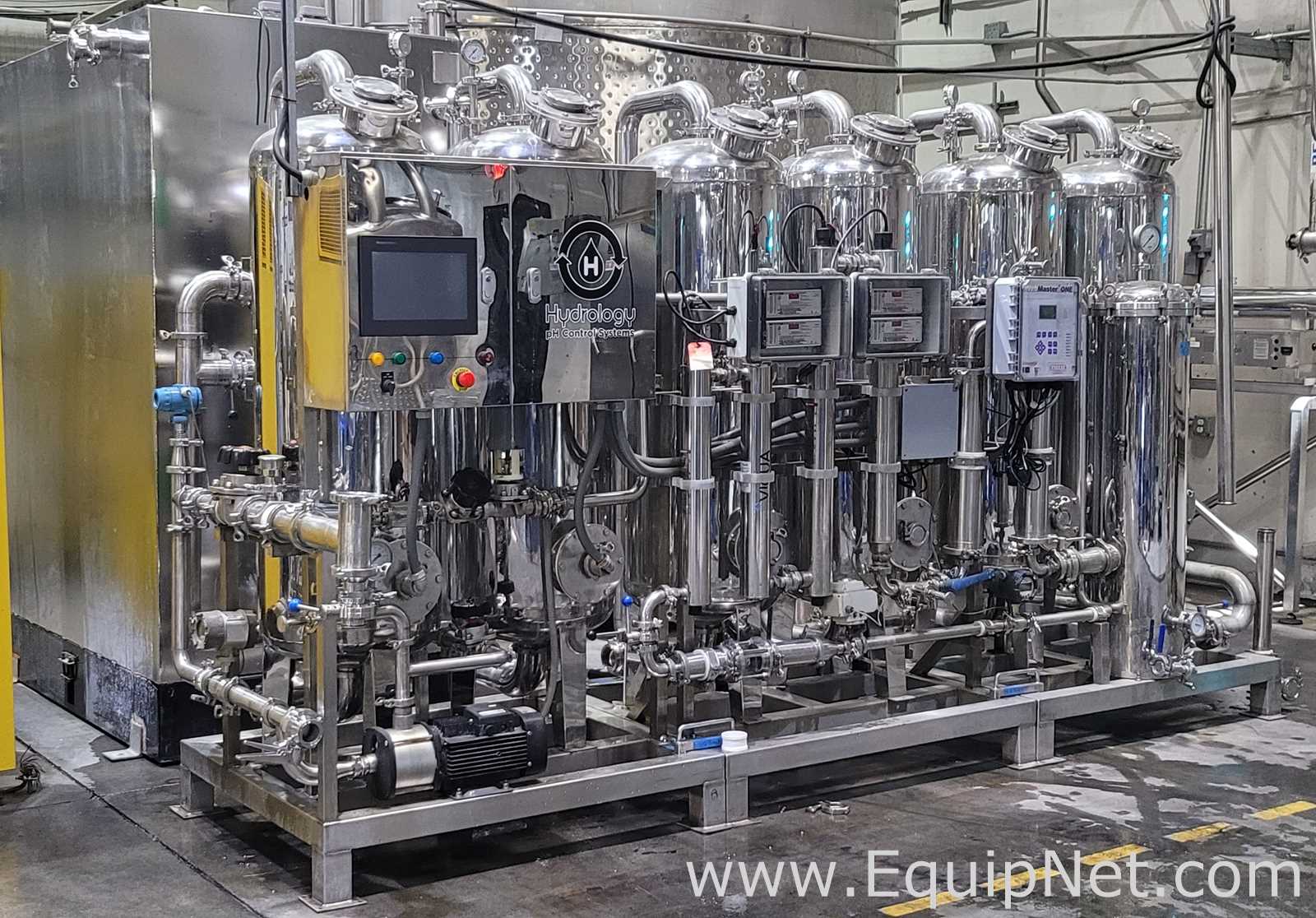

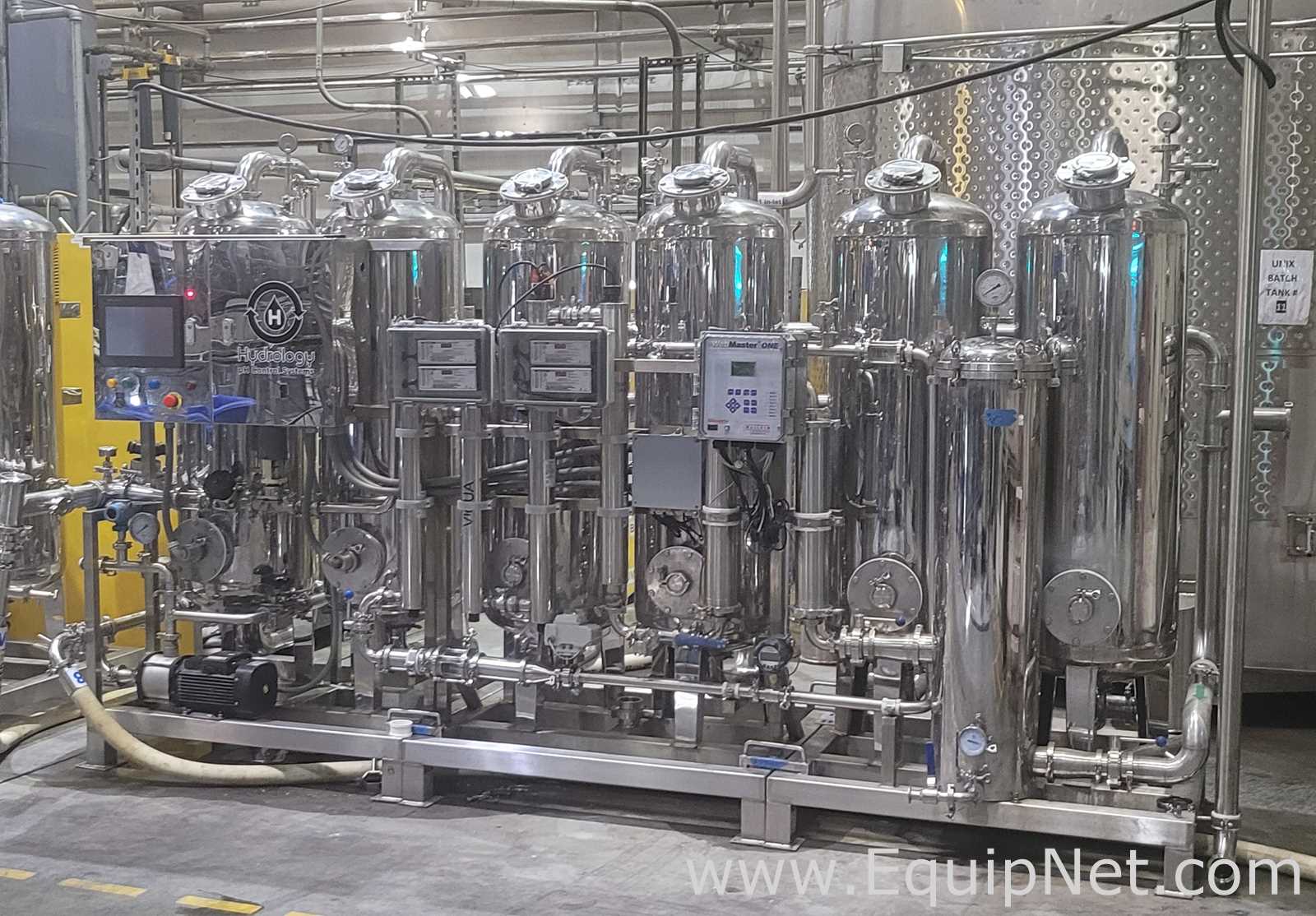

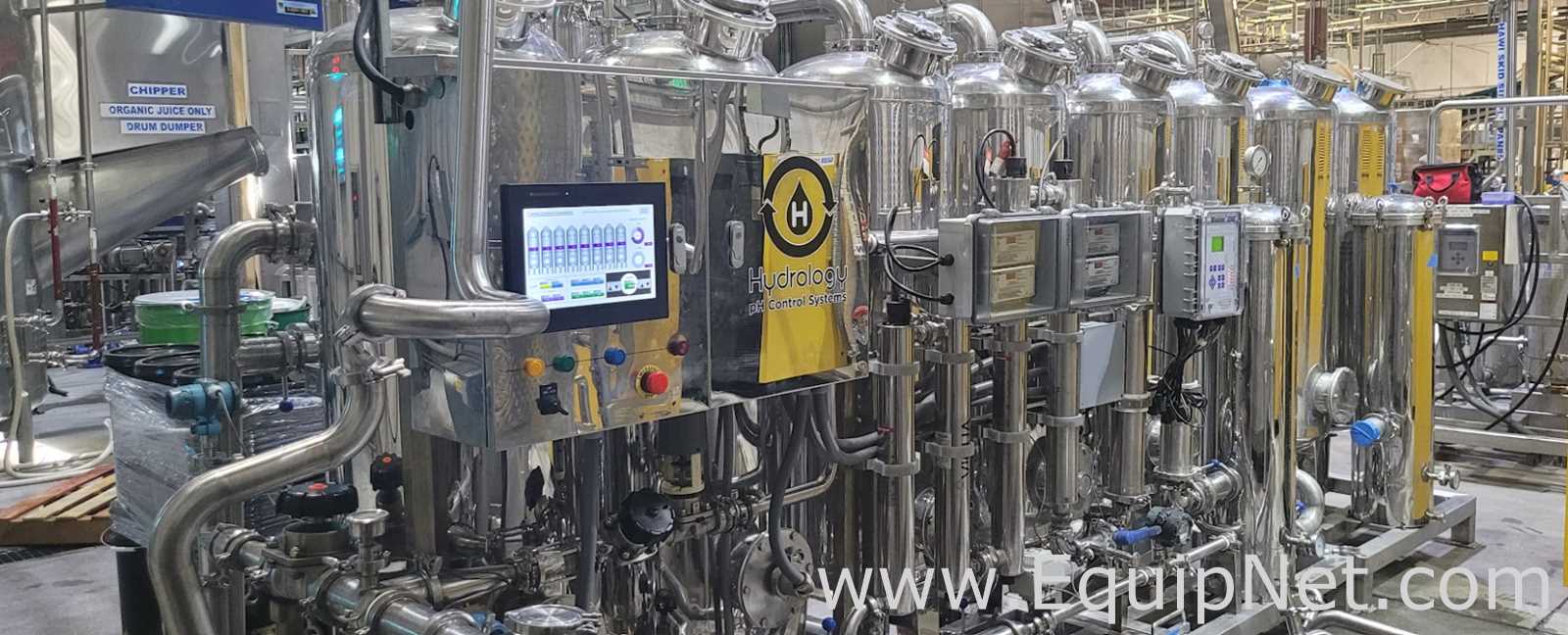

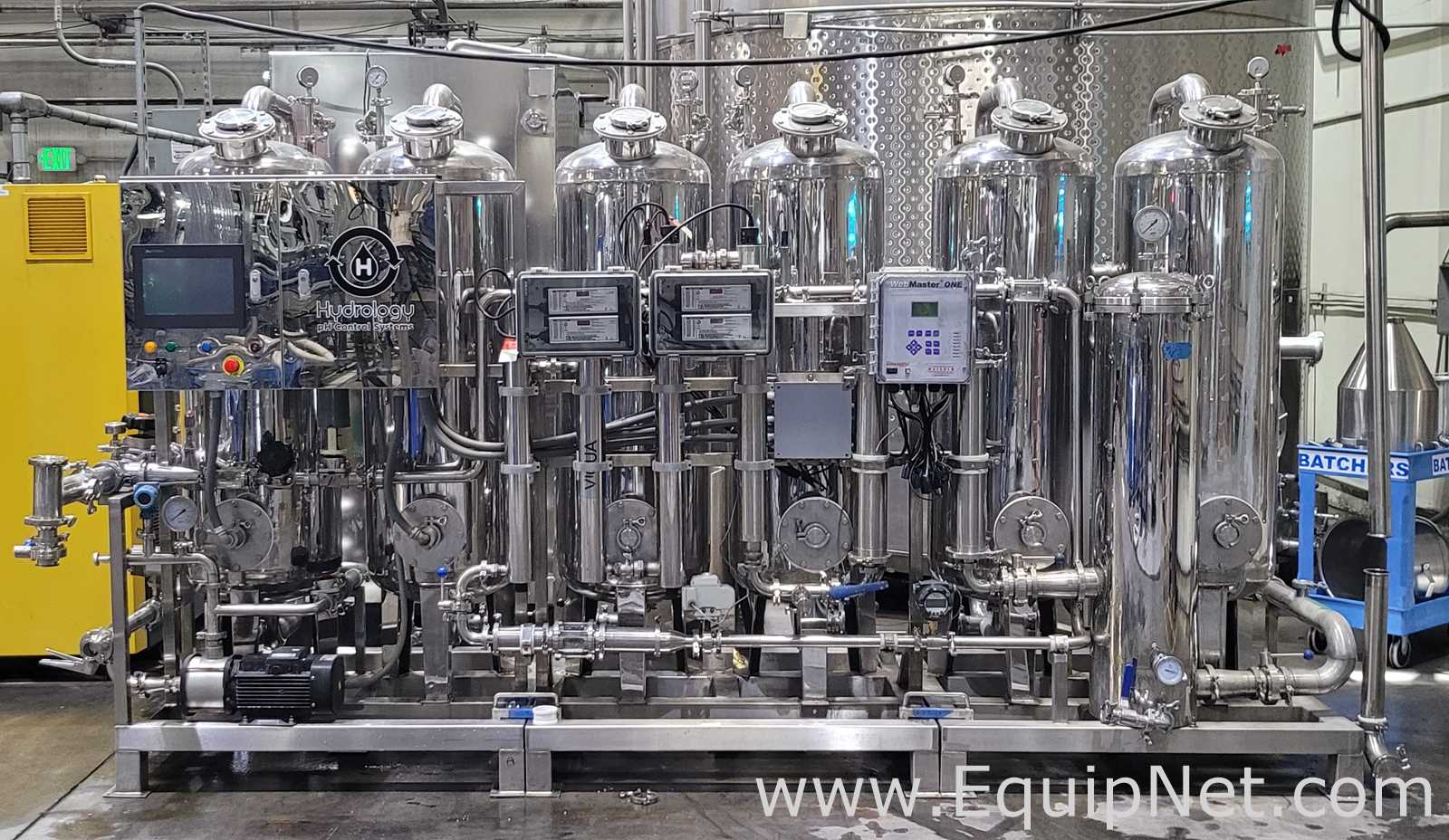

Hydrology HAWS-120 Stainless Steel Alkaline Water Processing and Treatment Skid System
This premium, custom-fabricated water treatment skid is designed to safely elevate water pH from 7.0 to 11.0 pH, with an optimal operating range of 9.5 pH, without the use of chemical additives. Originally engineered for high-speed bottled water production and trusted by suppliers serving Kroger, Costco, Whole Foods, and Trader Joe's, this system is now available at a fraction of its original cost.
Ideal for industrial corrosion control, boiler feedwater treatment, food and beverage process water, and agricultural applications, this proven technology delivers consistent, high-pH water while eliminating the ongoing costs and handling concerns associated with traditional chemical dosing systems.
Condition:
Near-new, excellent condition with very minimal wear
Approximately 5 years old
Fully operational in manual mode
pH, TDS, and temperature probes should be replaced as part of normal maintenance
Includes approximately 1 ton of alkaline ceramic media
Media can last up to 3 years depending on annual processing volume
Construction & Materials:
Approximately 99% 304 stainless steel construction
304 stainless steel vessels, frame, piping, and electrical cabinet
316 stainless steel valves and hardware
Designed for long-term durability and corrosion resistance
Applications:
Industrial & Food Processing: Chemical-free pH control and reduced scaling
Agriculture & Hydroponics: Stable high-pH water source with reduced scale buildup
Capacity & Performance:
Maximum Capacity: 75 GPM at 9.0 pH
Optimal Capacity: 50 GPM at 9.5 pH
Up to 10 GPM at 11.0 pH
Reactor System:
Six (6) 304 stainless steel reactor vessels
Approximately 500 lbs media capacity per vessel
Utilizes alkaline ceramic oxide media for chemical-free pH elevation
Filtration & Disinfection:
Four (4) UV lights with approximately 12 ft of UV disinfection
Fifty-three (53) total 0.05-micron sediment filters
Typical output water quality of 10 to 33 TDS
Chemical-Free Operation:
Eliminates the need for caustic soda or soda ash dosing
Reduces the costs and safety risks associated with chemical handling and storage
Utilizes alkaline ceramic oxide media for pH adjustment
Control System:
Walchem WebMaster One control system
12" AutomationDirect HMI touchscreen PLC
Provides reliable, easy-to-use control and operational reporting
Monitoring
Redundant inlet and outlet pH, TDS, temperature, and flow sensors
Comprehensive quality control logging
Historical reporting capability
Remote operation capability
Modular Design:
Three-piece modular frame design
Allows for disassembly and movement with a standard pallet jack
Suitable for tight spaces
Process Piping:
3", 2", and 1.5" Tri-Clamp 304 stainless steel piping
Fast, hygienic Tri-Clamp connections suitable for food and beverage applications
Compliance:
EPA compliant
FDA compliant
NSF compliant
GMP compliant
Includes Title 21 water reports for quality control validation
PLC Integration Note:
The system is fully operational in manual mode and is capable of producing the desired pH blend. A qualified PLC technician will be required to complete the integration of the sensor probes, mixing valve, and pumps for fully automated operation. All major controllers and the 12" HMI touchscreen are installed and ready for final wiring, allowing the system to be configured to the buyer's specific process requirements. No additional components are required for manual operation.
Condition:
Construction & Materials:
Applications:
Capacity & Performance:
Reactor System:
Filtration & Disinfection:
Chemical-Free Operation:
Control System:
Monitoring
Modular Design:
Process Piping:
Compliance:
PLC Integration Note:
Specifications:
Standard
Metric
Manufacturer Name
Hydrology pH Control Systems
Model:
HAWS-120
HAWS-120
Capacity Speed:
50
GPM
50
GPM
Voltage:
110
VOLTS
110
VOLTS
Current:
40
AMPS
40
AMPS
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
168 x 48 x 84 IN - 1600 LBS
4267.20 x 1219.20 x 2133.60 mm - 725.76 kg
