Listing# 1102580

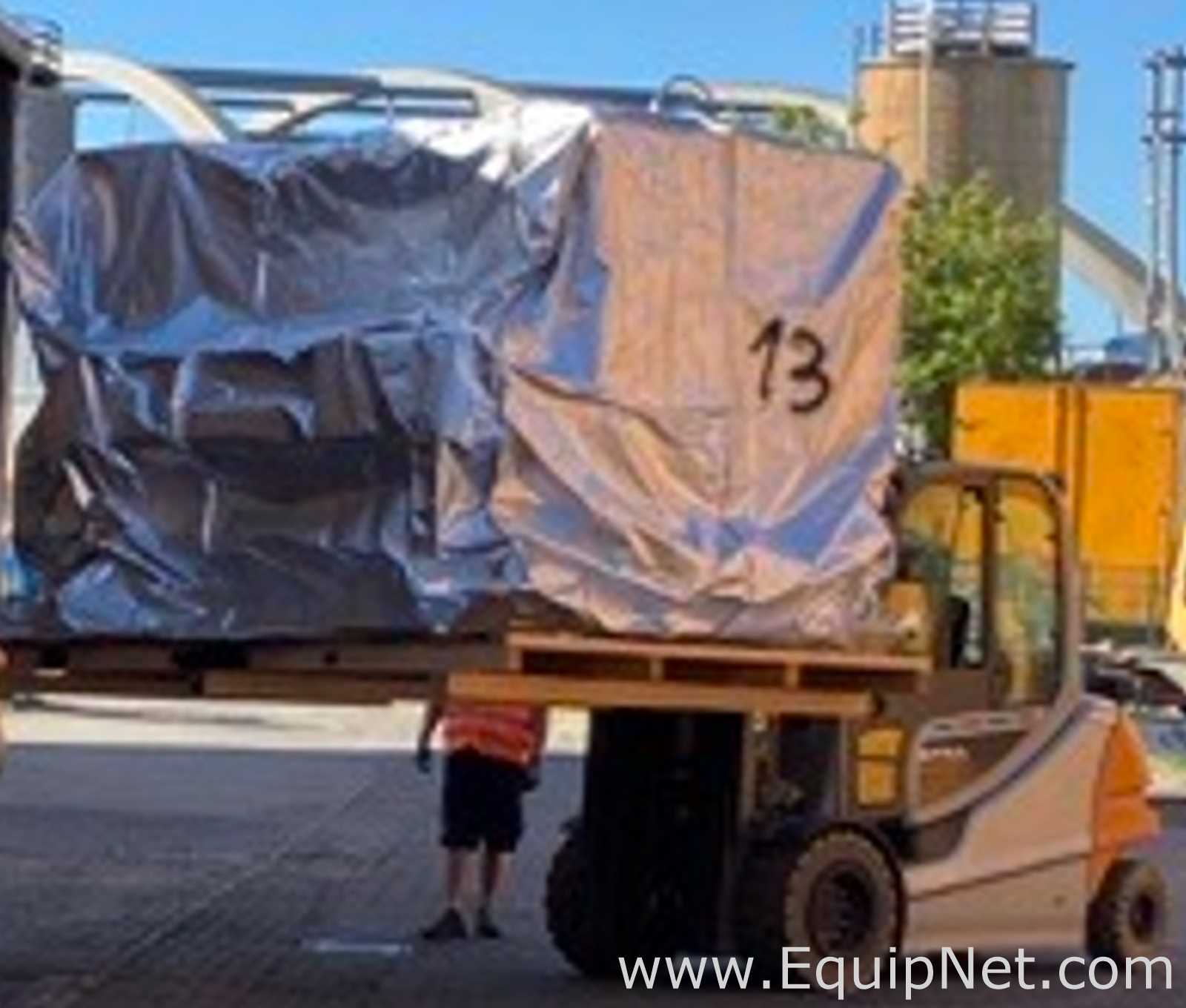

IMA - BFB End of Line Vial Packing Line for Multi-packs of Vials


Make an Inquiry
Make An Offer
Request Price Information


Location:  Germany

Level of Removal:  Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Click here to view the sales agreement.




Asset Documents
IMATLSTrayLoadingSystemBrochure.pdf (1)
(PDF) Requires® Adobe® Acrobat)

IMAMMP400CasePackerBrochure.pdf (2)
(PDF) Requires® Adobe® Acrobat)

Equipment Description
IMA - BFB End of Line Vial Packing Line for Multi-packs of Vials

Line was not used commercially. Only test runs were conducted.
  • One leg of the packaging line was running single vials into a single carton with automatic case packer (see listing 1102576)
  • The other leg of the packaging line was running multi-packs (10 vials per tray) with automatic case packer (this listing)
    Vial Filler is listed separately (see listing 1094854)
  • The line was going to run glass containers in 50ml and 100ml sizes

    Tray Loader
  • Manufacturer: IMA / BFB
  • Model: TLS
  • Serial #:
  • Robot number 1 picks-up one bottom tray from the tray magazine and deposits it on the
    conveyor belt.
  • The bottom tray placed on the conveyor belt advances of one pitch and the robot number 2
    picks up 5 vials arranged in row on the transport screw and places the 5 vials inside the bottom tray
  • After the first row of vials are placed the robot picks up 5 more vials arranged in step on the transport screw and deposits the second row of 5 vials inside the bottom tray that is now completed with 10 vials.
  • The tray proceeds to the next station where the camera checks its completeness (i.e. the presence of 10 bottles)
  • Robot number 3 picks-up a booklet from the magazine and, while gripping the booklet, picks-up
    the top tray from the tray magazine and places both on the vials presentation.

    Case Packer
  • Manufacturer: IMA / BFB
  • Model: MMP-400
  • Serial #:
  • Wrap around style case packer
  • Infeed product collation station
  • Side loaded product push station
  • Flat blank is picked up from case magazine and pre-folded. Presentation arriving from the TLS in
    front of the introduction station is withdrawn from the introduction group.
  • The presentation (infeed product) is rotated 90° and transferred inside the pre-folded blank.
  • After the product is loaded the lateral case flaps on the insertion side are folded and glue is applied on upper flap.
  • External lateral flaps are closed and folded inside the presentation; superior flap is then folded, so the case is completely formed.
  • The closed case exits the MMP400 and moves to the labeler. During this movement, the case is rotated 90° to allow the label application in correct position.
  • Corner style label on cases with camera verification
  • Automatic reject on case discharge with reject verification.

    • Specifications:
    Standard
    Metric
    Manufacturer Name
    IMA

    Frequency:
    60 HERTZ
    60 HERTZ
    Phase:
    3
    3
    Voltage:
    400 VOLTS
    400 VOLTS
    Model:
    TLS
    TLS
    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET

    Dimensions:
    Standard
    Metric
    Overall:
    0.00 x 0.00 x 0.00 in - 0.00 lb
    0 x 0 x 0 MM - 0 KGS

    Disclaimer

    This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

    Europe

    This equipment is subject to a removal and loading charge.

    Please Note The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.


    The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

    Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

    Any license associated with this equipment is non-transferable.
