Listing# 1090661

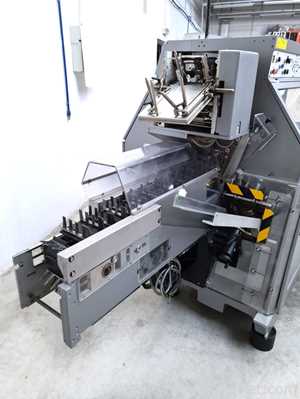

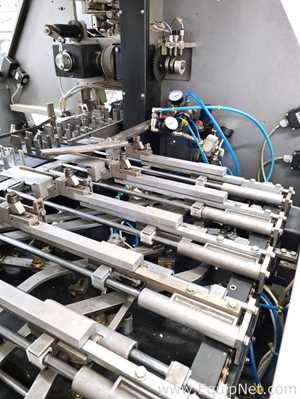

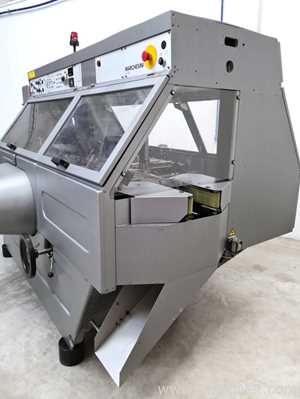

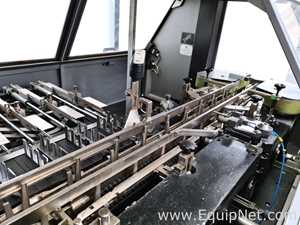

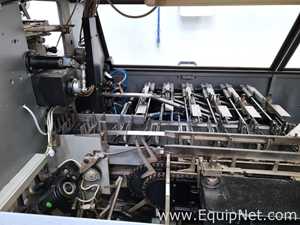

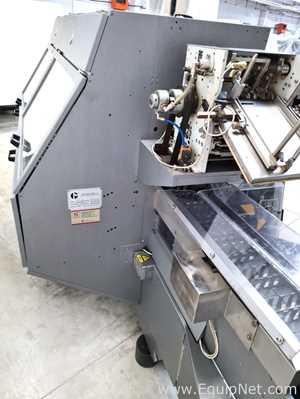

MARCHESINI Mod. BA300 - Automatic Horizontal Cartoner
Seller's Acceptable Currency:
€29,000.00 EUR
Make An OfferLocation: Italy
Level of Removal:
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description
DESCRIPTION:
The Marchesini BA 300 is a continuous motion horizontal cartoning machine. Cartoner suitable to pre-break and to open either reverse or straight tuck-in three flap cartons, insert product, which has been delivered to infeed, close cartons and discharge.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:
- Product insertion into the carton achieved with a set of pushers placed opposite the operator side;
- The cartoning section is composed of two enclosed drive units. One section is mounted fix and the other one adjustable and servo motor driven to suit the carton length (“h” dimension);
- Easy size adjustments;
- Servo powered adjustment for change in carton length (“h” dimension);
- Main servo motor. Vacuum pump for carton opening drum and transfer shafts;
- High capacity carton magazine;
- Venturi type pump for carton and leaflet aspiration;
- Product transport chain with adjustable drawers in width;
- Underneath the pusher group is free of obstacles to allow for easy dropping of components;
- Quick and easy format change.
Year of construction: 1991
TECHNICAL DATA
Length mm 3360
Width mm 1580
Height mm 1860
Net weight Kg 2000
Frequency Hz 50
Voltage Volt 400
PRODUCTION CHARACTERISTICS
Speed Up to 260 cartons/ min
Carton Length Min 25 mm – Max 100 mm
Carton Width Min 15 mm – Max 70 mm
Carton Height Min 78 mm – Max 150 mm
The Marchesini BA 300 is a continuous motion horizontal cartoning machine. Cartoner suitable to pre-break and to open either reverse or straight tuck-in three flap cartons, insert product, which has been delivered to infeed, close cartons and discharge.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:
- Product insertion into the carton achieved with a set of pushers placed opposite the operator side;
- The cartoning section is composed of two enclosed drive units. One section is mounted fix and the other one adjustable and servo motor driven to suit the carton length (“h” dimension);
- Easy size adjustments;
- Servo powered adjustment for change in carton length (“h” dimension);
- Main servo motor. Vacuum pump for carton opening drum and transfer shafts;
- High capacity carton magazine;
- Venturi type pump for carton and leaflet aspiration;
- Product transport chain with adjustable drawers in width;
- Underneath the pusher group is free of obstacles to allow for easy dropping of components;
- Quick and easy format change.
Year of construction: 1991
TECHNICAL DATA
Length mm 3360
Width mm 1580
Height mm 1860
Net weight Kg 2000
Frequency Hz 50
Voltage Volt 400
PRODUCTION CHARACTERISTICS
Speed Up to 260 cartons/ min
Carton Length Min 25 mm – Max 100 mm
Carton Width Min 15 mm – Max 70 mm
Carton Height Min 78 mm – Max 150 mm
Specifications:
Standard
Metric
Manufacturer Name
Marchesini
Model:
BA 300
BA 300
Disclaimer
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in
Europe
This equipment is subject to a removal and loading charge.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
