Listing# 1089682

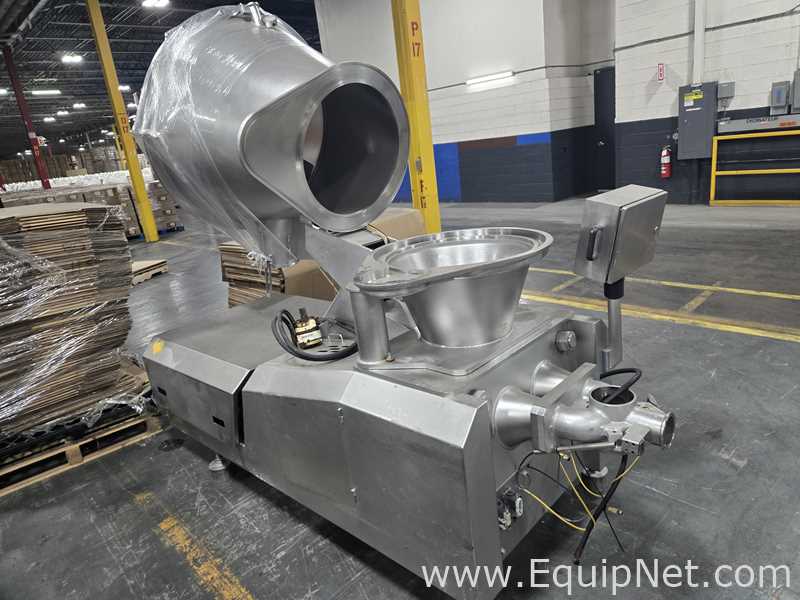

Marlen Opti 280 Twin Piston Vacuum Stuffer with Hydraulic Power Pack
Make An Offer
Location: PQ, Canada
Level of Removal: Uncrated/Loose
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description

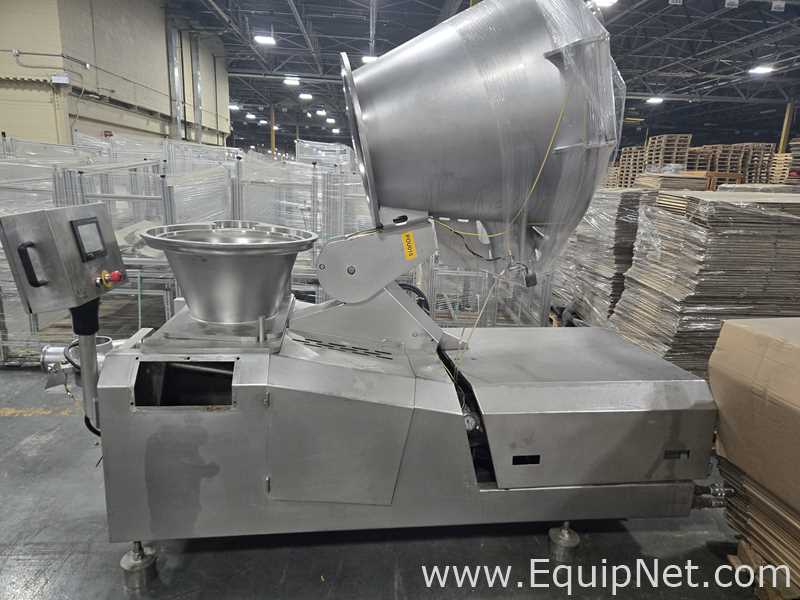

Marlen Opti 280 Twin Piston Vacuum Stuffer with Hydraulic Power Pack

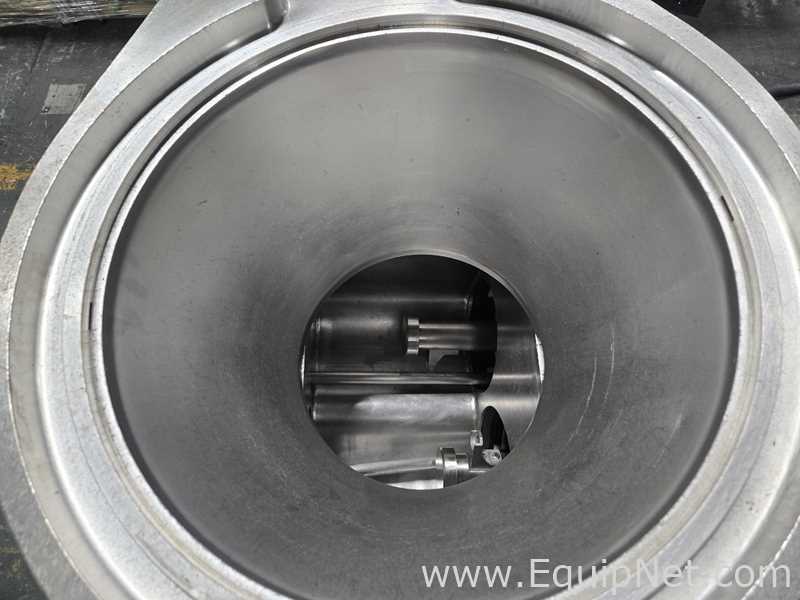

Marlen’s Opti 280 features a twin-piston vacuum stuffing and pumping system with a variety of hopper options designed to match product requirements. Maximum capacity is 28,000 lbs per hour, 430 psi pumping pressure. The Opti 280 is ideal for all applications. Can be equipped with an optional hydraulic fluid cooling unit without the need for water cooling.
Specifications:
Piston Stroke: 14? (355 mm)
Maximum Capacity: 28,000 lbs/hr (12,701 kg/hr)
Maximum Volume (based on water): 55 gpm (208 lpm) based on water

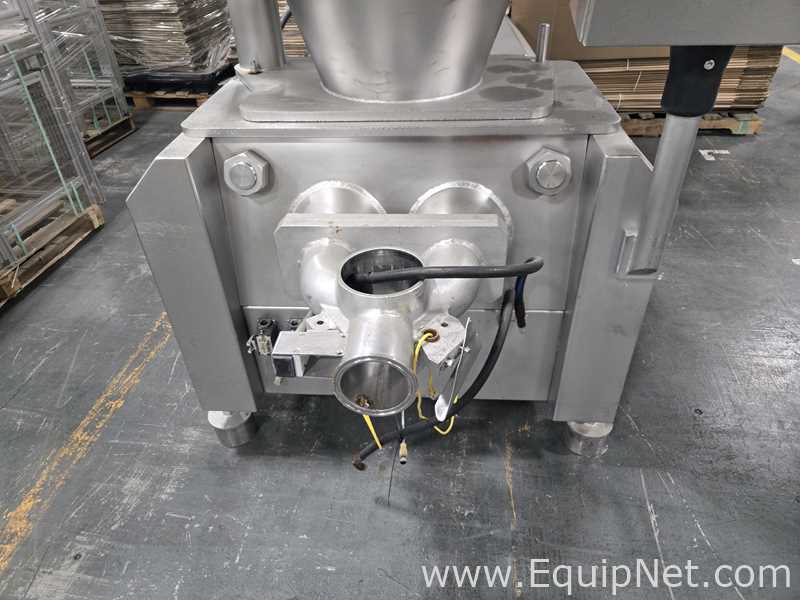

Product Outlet: 4? (102 mm)
Max. Product Pressure: 480 psi (33 bar)
Machine Weight: 4,000 lbs (1815 kg)
Pump Electrical: 110V, 10AMP, 1-Ph
Air Requirements: 3 CFM at 100 PSI

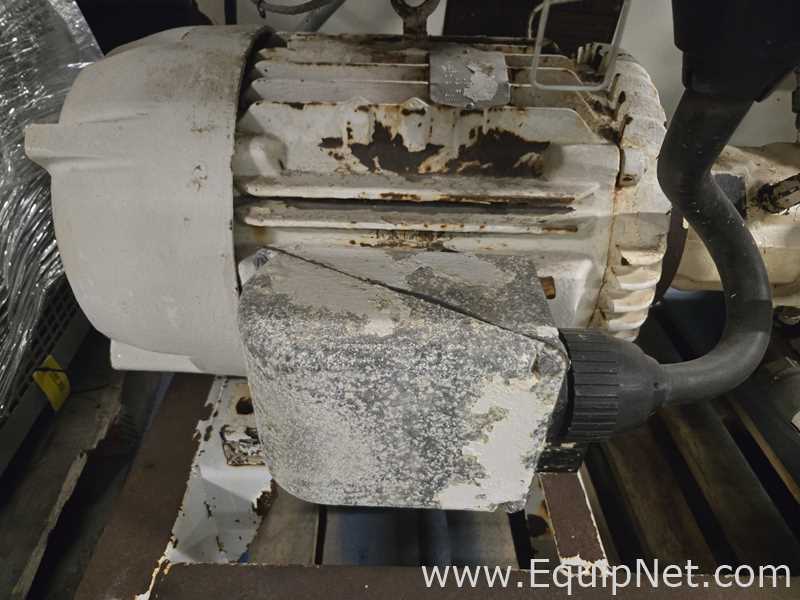

Power Unit: 40 HP, 230/460V, 3-Ph/60HZ, 104/52 AMP
Cooling Water: Up to 8 GPM
Vacuum Pump: 7.5 HP, 130 CFM, 230/460V, 22/11 AMP (or) 10 HP, 173 CFM, 230/460V, 27/14 AMP

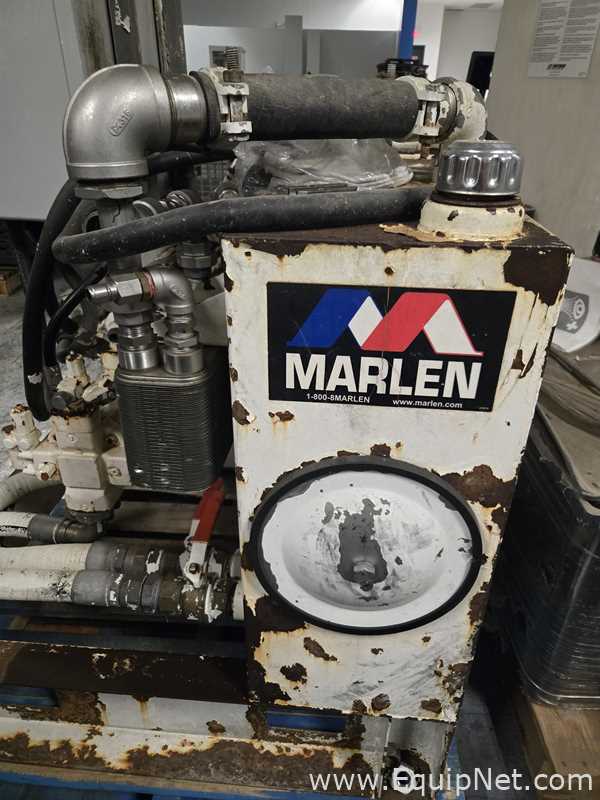

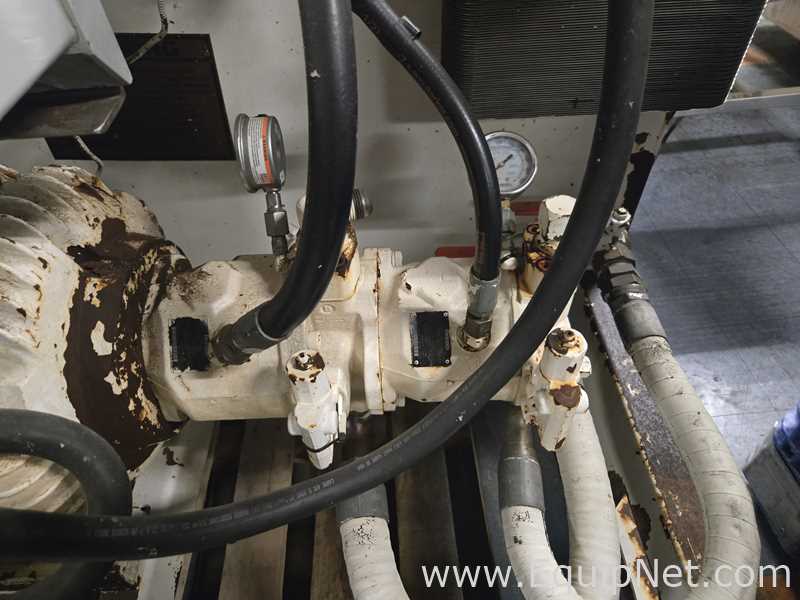

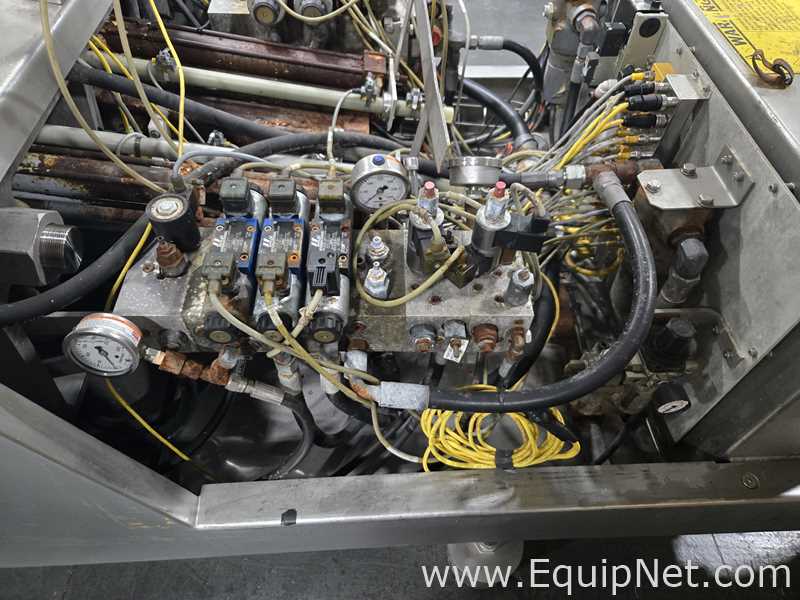

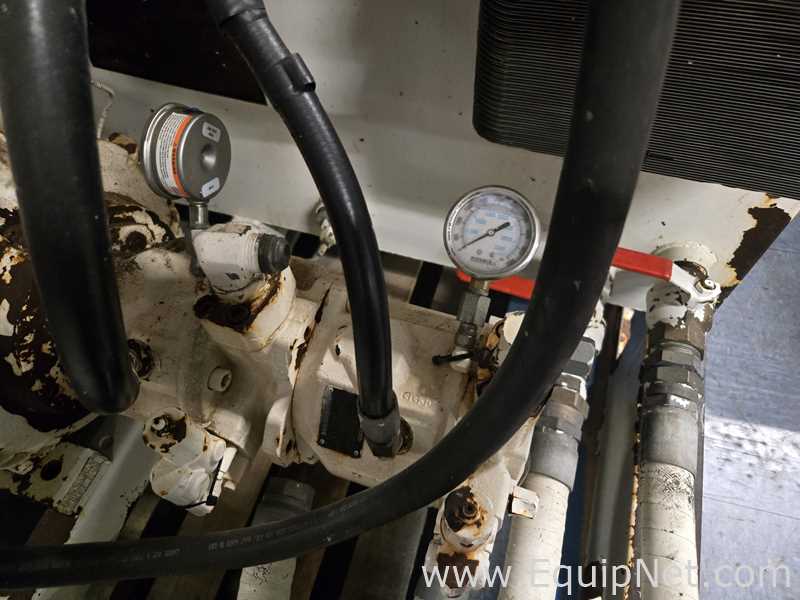

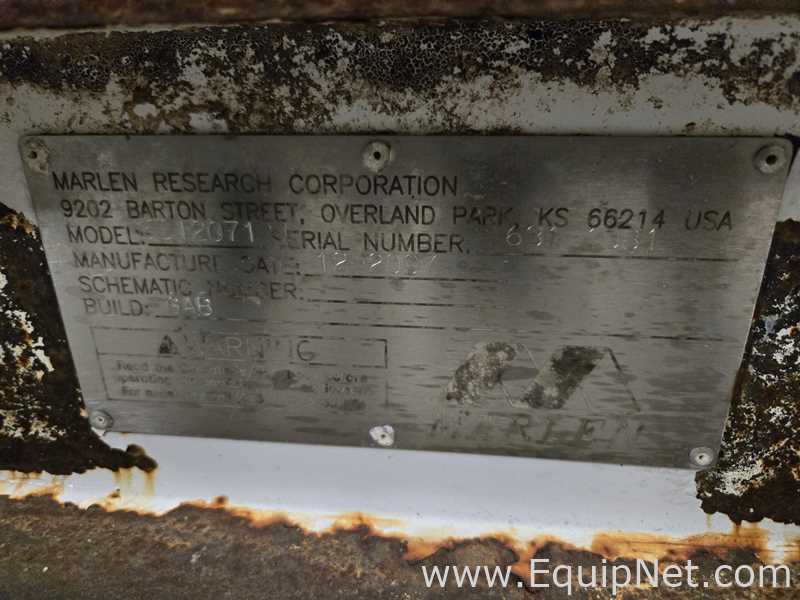

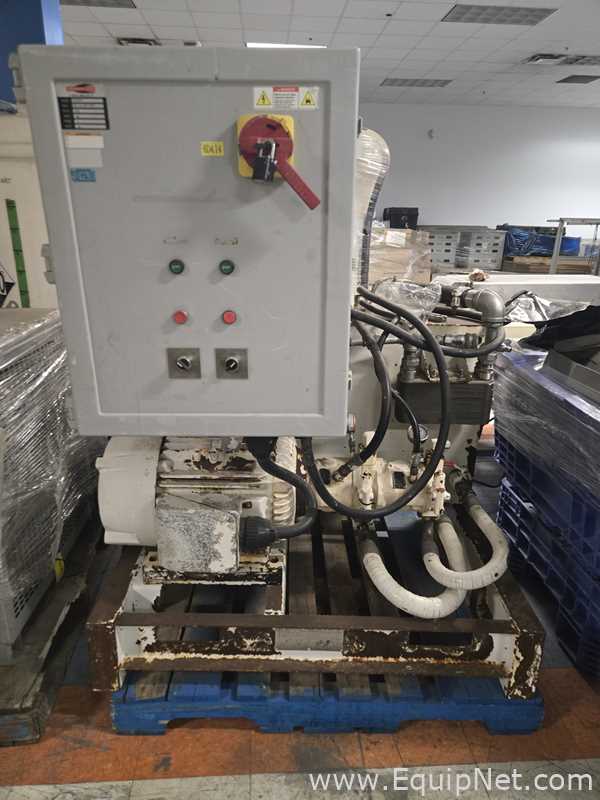

Available with Marlen Hydraulic Unit Model Number 6312071 with 40HP Motor
Marlen’s Opti 280 features a twin-piston vacuum stuffing and pumping system with a variety of hopper options designed to match product requirements. Maximum capacity is 28,000 lbs per hour, 430 psi pumping pressure. The Opti 280 is ideal for all applications. Can be equipped with an optional hydraulic fluid cooling unit without the need for water cooling.
Specifications:
Piston Stroke: 14? (355 mm)
Maximum Capacity: 28,000 lbs/hr (12,701 kg/hr)
Maximum Volume (based on water): 55 gpm (208 lpm) based on water
Product Outlet: 4? (102 mm)
Max. Product Pressure: 480 psi (33 bar)
Machine Weight: 4,000 lbs (1815 kg)
Pump Electrical: 110V, 10AMP, 1-Ph
Air Requirements: 3 CFM at 100 PSI
Power Unit: 40 HP, 230/460V, 3-Ph/60HZ, 104/52 AMP
Cooling Water: Up to 8 GPM
Vacuum Pump: 7.5 HP, 130 CFM, 230/460V, 22/11 AMP (or) 10 HP, 173 CFM, 230/460V, 27/14 AMP
Available with Marlen Hydraulic Unit Model Number 6312071 with 40HP Motor
Specifications:
Standard
Metric
Manufacturer Name
Marlen
Current:
10
AMPS
10
AMPS
Frequency:
50/60
HERTZ
50/60
HERTZ
Phase:
1
1
Voltage:
100/240
VOLTS
100/240
VOLTS
Year:
2008
2008
Model:
Opti 280
Opti 280

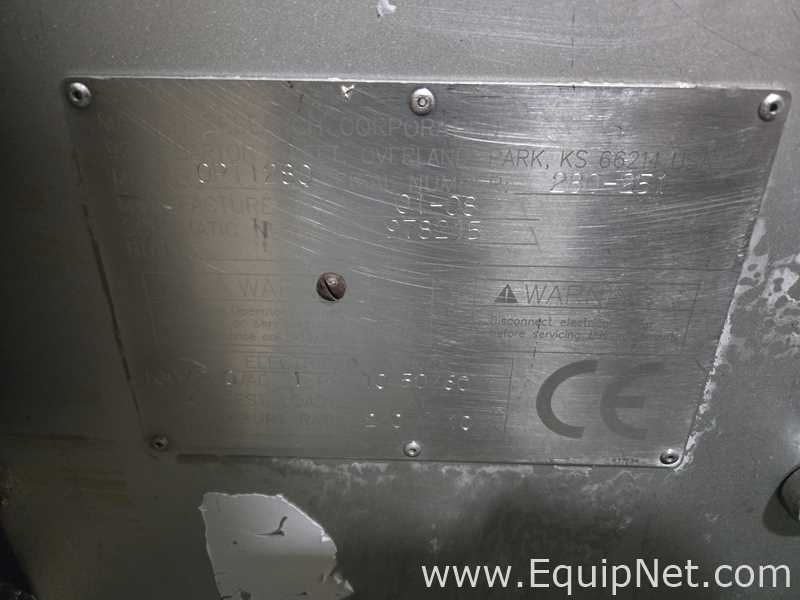

Serial Number:
280-251
280-251
Capacity Size:
40
HP
40
HP
CE Marked:
YES
YES
Capacity Speed:
28000
LBS/HR
28000
LBS/HR
Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
See all item dimensions
Item #1:
120 x 45.00 x 93.00 IN - 0.04 LBS
120.00 x 45.00 x 93.00 IN - 4,000.00 LBS
Item #2:
50 x 42.00 x 67.00 IN - 0.01 LBS
50.00 x 42.00 x 67.00 IN - 1,000.00 LBS
Overall:
170 x 45 x 93 IN - 5000 LBS
4318.00 x 1143.00 x 2362.20 mm - 2268.00 kg
