Equipment Description

Equipment Located in La Salle, Quebec, Canada

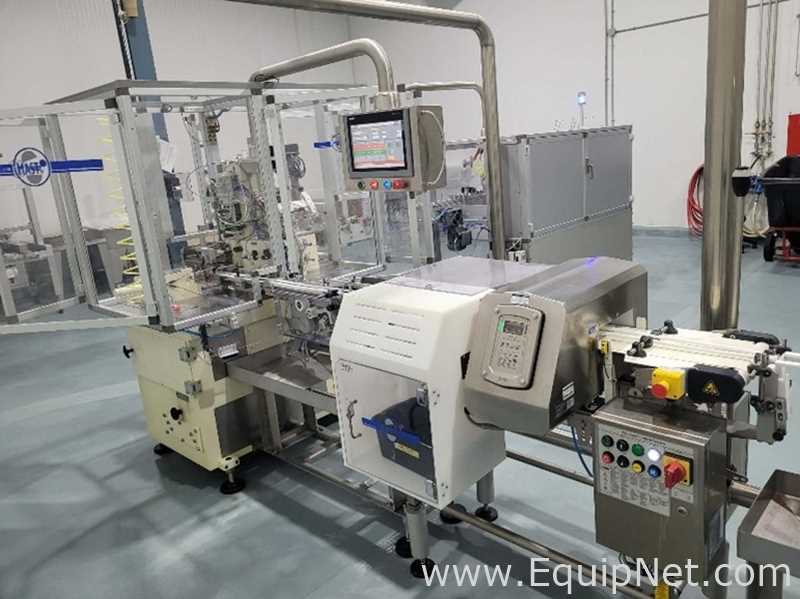

Mast Yeast Block Processing And Packaging Line With Cutter, Metal Detector, Tray Former And Wrapper

This machine is designed to produce compact blocks of yeast, wrap them securely in aluminum foil, and then package the wrapped blocks into cardboard cartons. It supports two block formats:
-57 g blocks measuring 60 × 32 × 32 mm
-17 g blocks measuring 30 × 30 × 18 mm

This machine is constructed from stainless steel, fully complies with the mandatory food-processing machinery standard EN 1672-2, and carries CE certification.

Items included:

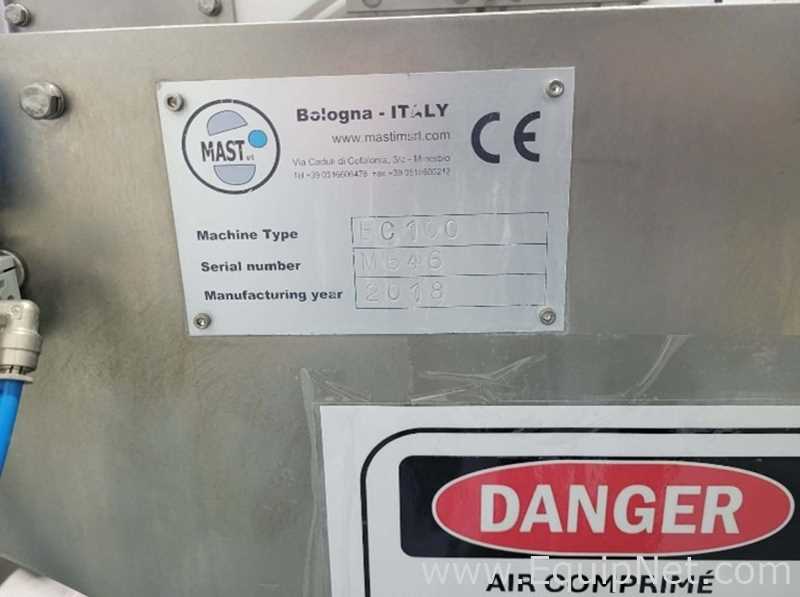

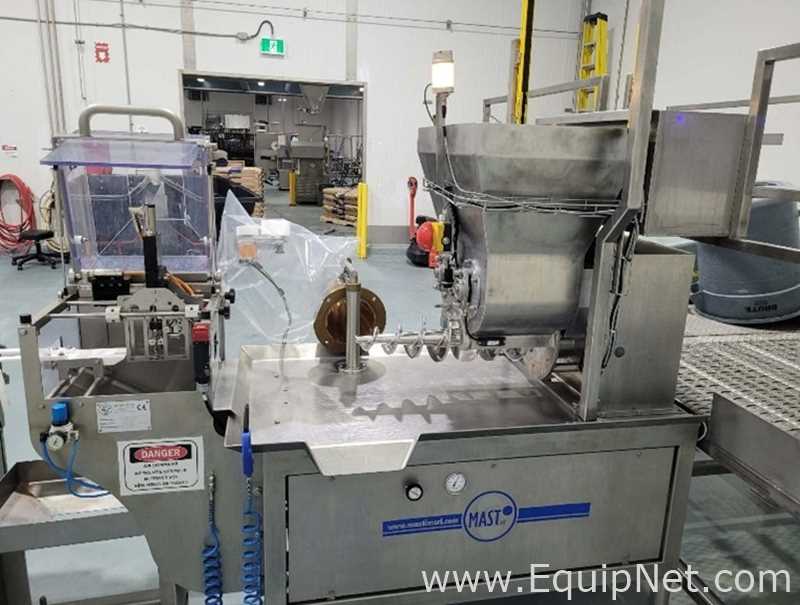

Mast EC100 Cutting Machine

Serial Number: M646

Manufacturing Year: 2018

Input material: Crumbled yeast packaged in 50LB bags.

Feeding method: Yeast bags are opened and dropped into a hopper where it is mixed by two rotating shafts.

Mixing system: Dual-shaft mixer inside the hopper ensures uniform compression and yeast consistency.

Extrusion mechanism: Auger screw compresses and pushes the yeast through an extrusion cone.

Output: Continuous rectangular strip of yeast.

Extrusion size options: Two different reduction gears available at the extrusion outlet to modify block dimensions.

Support surface: Teflon surface guiding the extruded strip toward the cutting tunnel.

Length measurement: Encoder mounted on a roller detects strip length to determine cut size. Cutting length adjusts automatically to maintain consistent cube weight.

Cutting mechanism: Pneumatically powered guillotine blade. Cuts during both downward and upward strokes.

Lubrication pump: Supplies oil to the extruded product for smooth discharge.

Connection: Quick-coupling pipe linking the pump to the end of the auger.

This machine can maintain a work cycle of 110 pieces per minute.

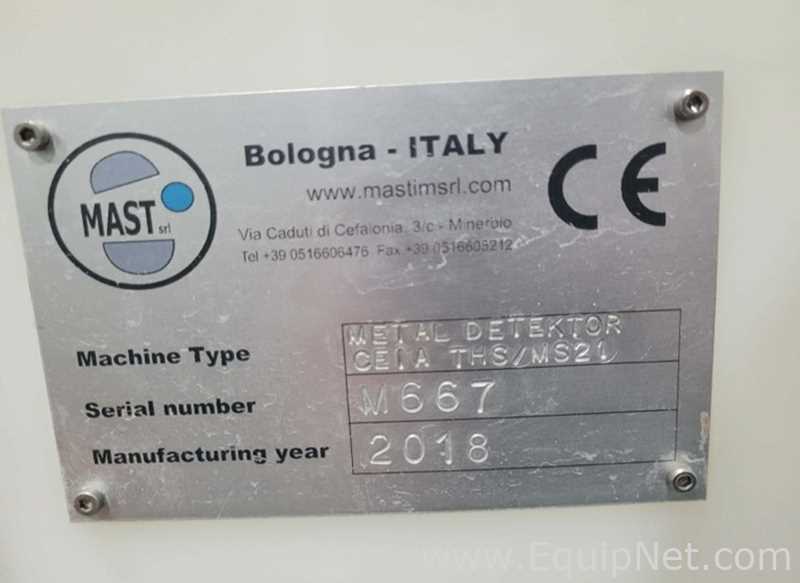

CEIA THS/MS21 Metal Detector

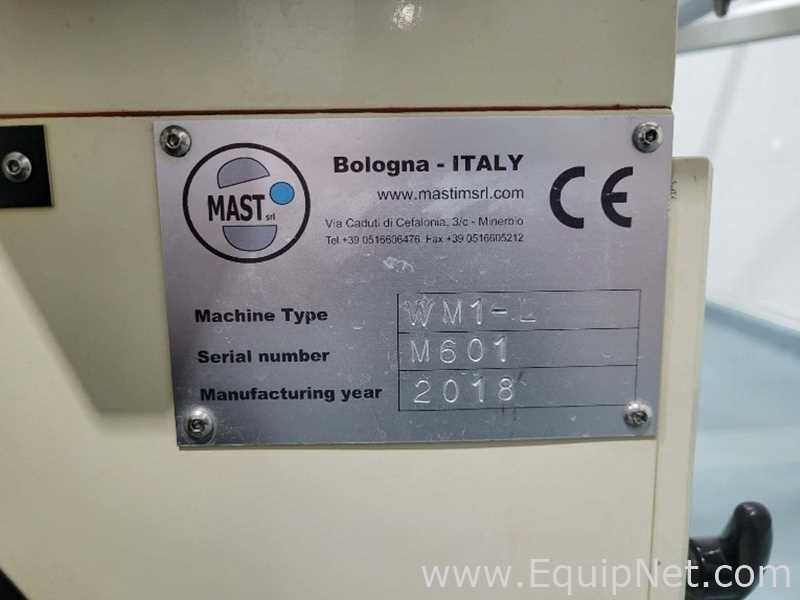

MAST WM1-L Aluminum Wrapping Machine

Serial Number: M601

Manufacturing Year: 2018

Non-adjustable wrapping machine with a single wrapping head, specifically designed for high-speed wrapping of parallel-sided products.

Performance: up to 100–110 products per minute

Product dimensions:
60 × 32 × 32 mm (57 g)
30 × 30 × 18 mm (17 g)

Paper roll specifications:
Outer diameter: 300 mm
Core diameter: 76.2 mm
Maximum roll weight: 10 kg

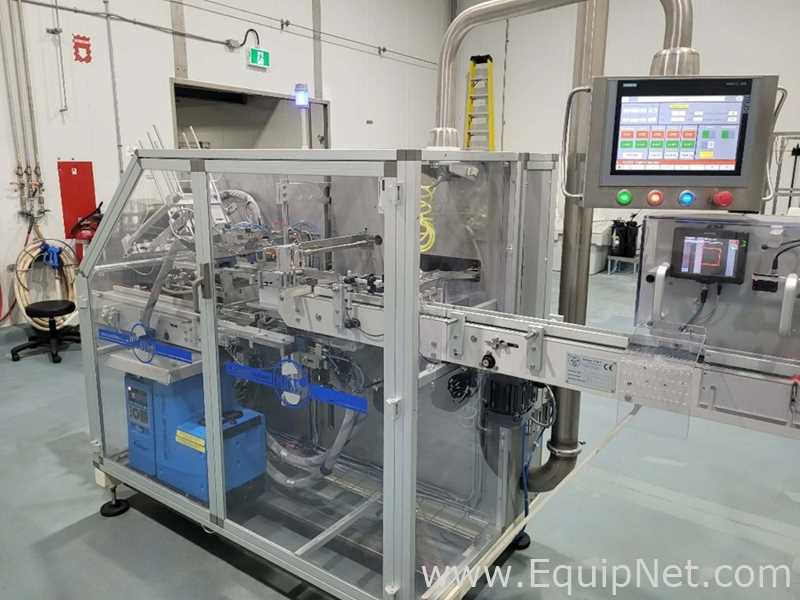

MAST TMA Automatic Multiformat Tray Machine

Serial Number: M646

Manufacturing Year: 2018

Fully automatic traying machine for pre-wrapped yeast cubes.

Receives product continuously without operator intervention.

Driven by a motor with inverter control and a pneumatic system.

Maximum output: up to 10 trays per minute, depending on upstream and downstream systems.

The machine operates in five main stages: Product infeed, Bundle transfer, Box erection, Tray exit and Lid closure.

Yeast cubes arrive in a single row.

Photocells on the conveyor monitor stack and detect minimum load.

Each tray is erected from a flat blank.

Bundles are transferred into the tray-forming station.

Finished trays are glued at three points using a gluing system.

Depending on cube size, trays are loaded as follows:
17 g cubes: layout 4 × 3 (one layer) and 57 g cubes: layout 3 × 4 (one layer)

Specifications:

Standard

Metric

Manufacturer Name

Mast International Machinery S.r.l

Year:

2018

Voltage:

575 VOLTS

CE Marked:

YES

Frequency:

60 HERTZ

Phase:

Recommended Packaging Form:

PALLET

Dimensions:

Standard

Metric

See all item dimensions

Item #1:

186 x 166.00 x 75.00 IN - 0.02 LBS

186.00 x 166.00 x 75.00 IN - 1,543.00 LBS

Item #2:

1 x 1.00 x 1.00 IN - 0.00 LBS

1.00 x 1.00 x 1.00 IN - 1.00 LBS

Item #3:

1 x 1.00 x 1.00 IN - 0.02 LBS

1.00 x 1.00 x 1.00 IN - 2,425.00 LBS

Item #4:

1 x 1.00 x 1.00 IN - 0.03 LBS

1.00 x 1.00 x 1.00 IN - 2,866.00 LBS

Overall:

189 x 166 x 75 IN - 6835 LBS

4800.60 x 4216.40 x 1905.00 mm - 3100.36 kg
