DESCRIPTION:

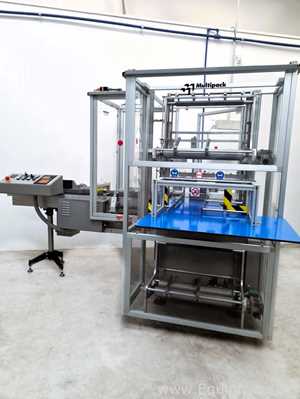

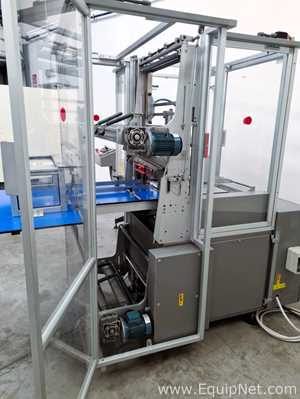

Automatic stretch bundler machine, suitable to bundle the product using stretchable film, which guarantees high productivity, reliability, accuracy in bundling and easy use. Its original functioning criterion, along with its simple manufacturing concepts, are particularly appreciated by its users. The machine adopts the most up-to-date manufacturing technologies. Different types of products and collations can be handled.

SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.

MAIN FEATURES:

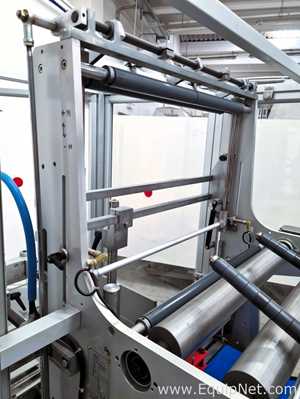

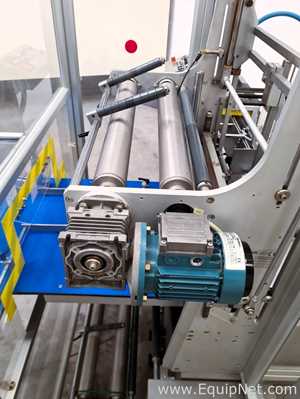

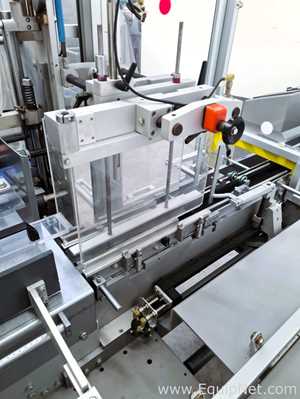

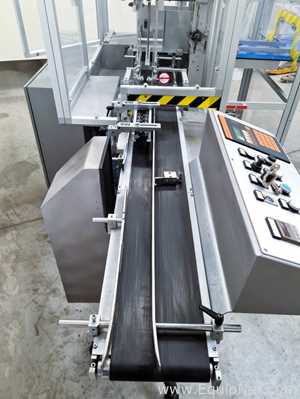

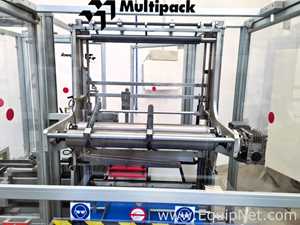

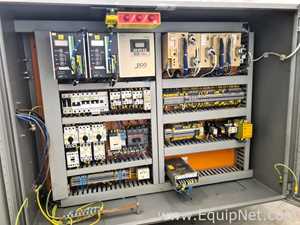

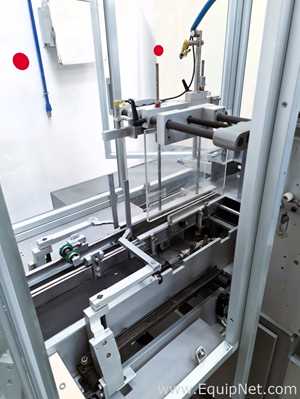

The stretchable polyethylene film is unwound by two motorized wheels, which keep a steady tension and can be adjusted according to the customer’s need. The product is bundled without being pushed against the film. Setting of main data is performed through an operator’s functional display. Easy and fast size changeover. It is suitable to carry out various packaging solutions-stretch banded or overwrapped as well as a wide range of bundle patterns. High quality seal in terms of stretching resistance, as well as surface result. Bundle is kept in an orderly manner during sealing operations, and sealer temperature is constantly checked by thermo-regulators. A suitable sealer cooling system allows working even at a very high speed. Adjustable film stretching around the bundle. Setting of main data (e.g. size, dimensions and speed) is performed through an operator’s functional display. Main movements are protected and controlled with indication on control panel and machine stops upon emergency conditions.

Year: 1998

TECHNICAL DATA
Dimensions mm 2800 x 2220 x 2000
Weight kg 800
Bundle dimension max. mm 330 x 150 x 250
