Precision Boilers ST16S-060B-480-15 60kW Electric Steam Boiler

Pre-Owned Precision Boiler for Sale

Browse this pre-owned Precision Boiler available now on EquipNet MarketPlace™ located in FL, USA and backed by our logistics support - Inquire today.

Precision Boilers ST16S-060B-480-15 60kW Electric Steam Boiler

Seller's Acceptable Currency:

$4,000.00 USD

Request More Info Make An Offer

Location: FL, USA

Level of Removal: Still Installed

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Download High Res Photos

Sell Your Boilers View All Boilers View All Precision Equipment

Equipment Description

Precision Boilers ST16S-060B-480-15 60kW Electric Steam Boiler

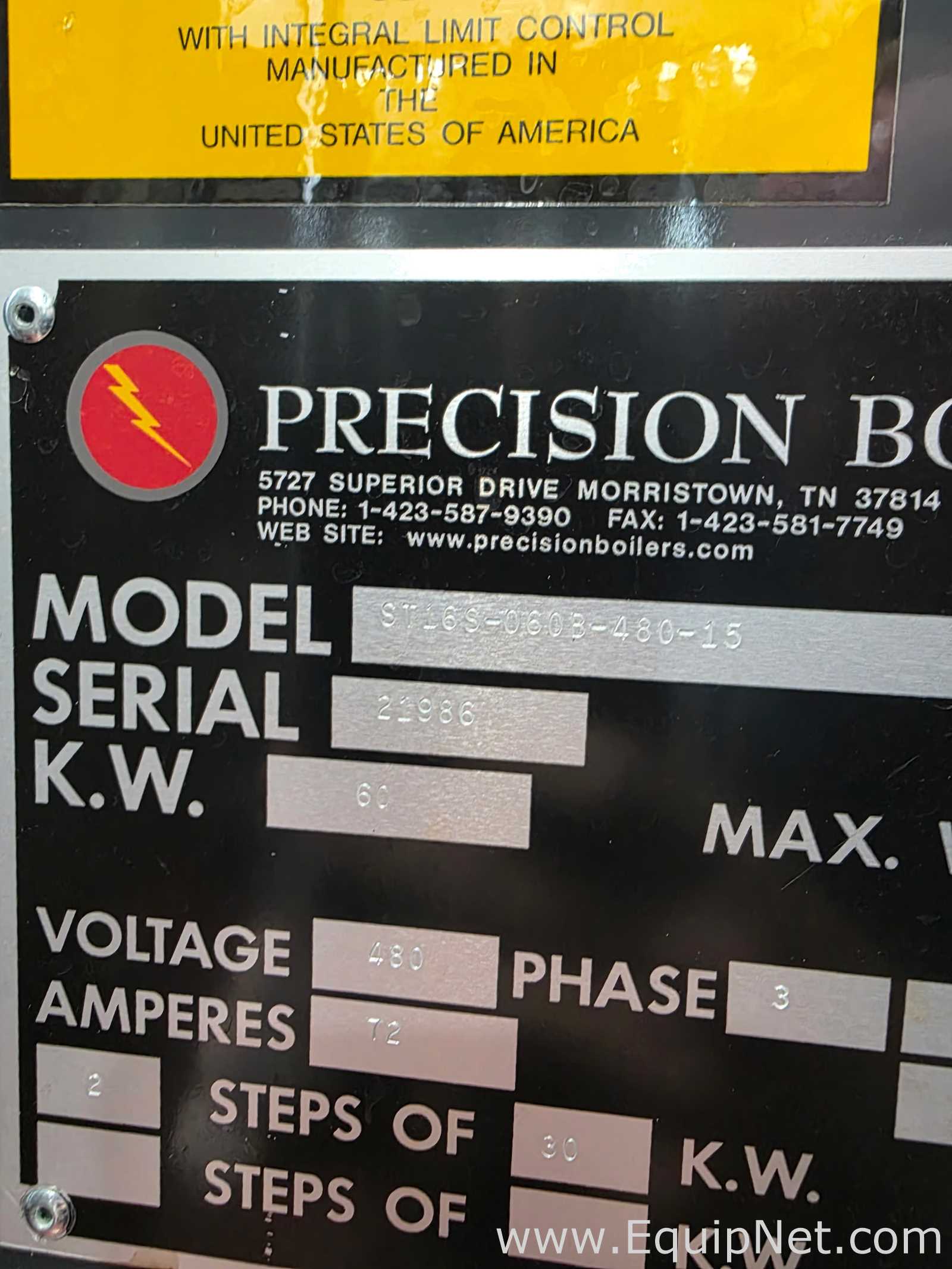

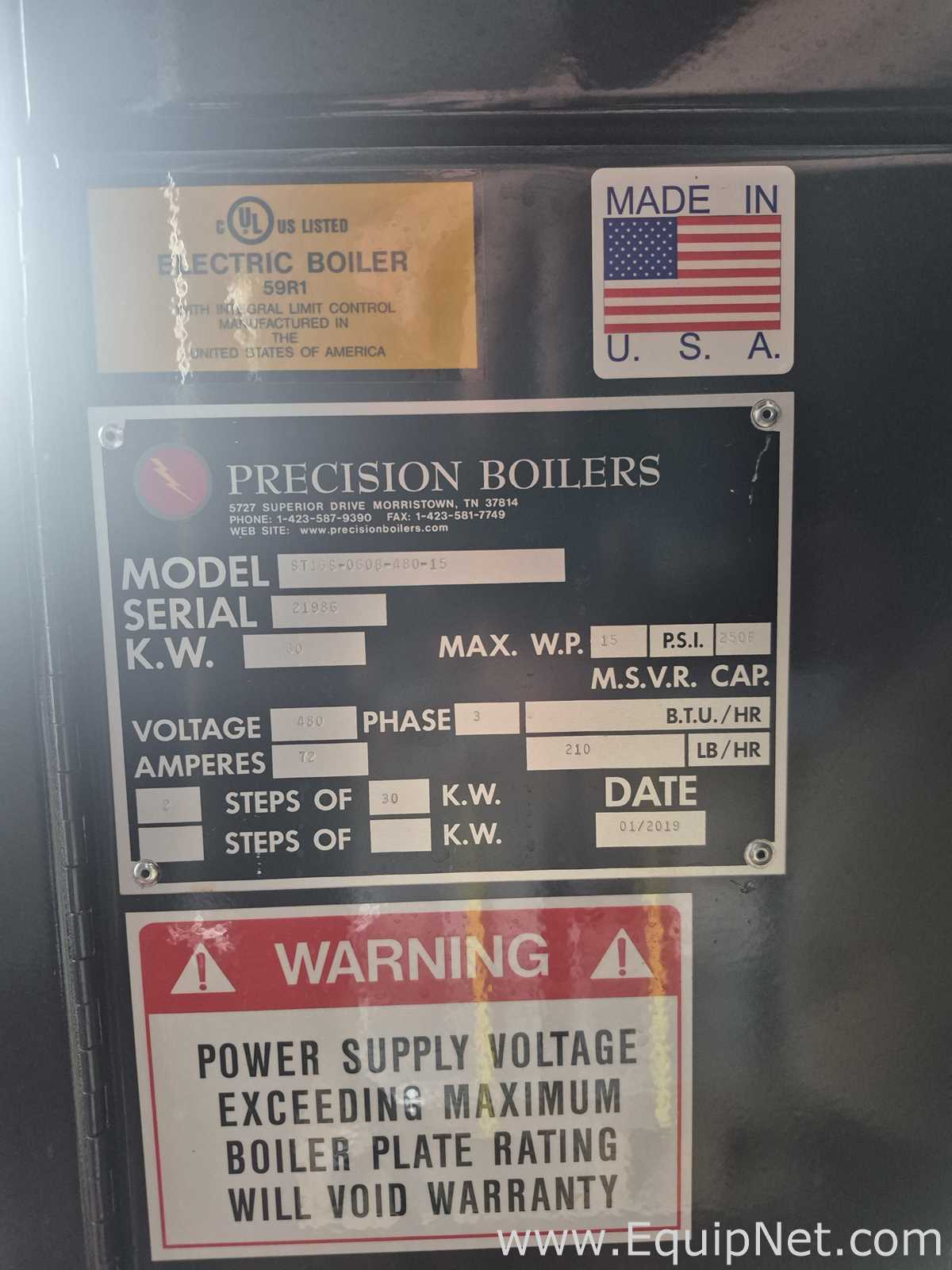

Precision Boilers ST16S-060B-480-15 electric steam boiler, a compact packaged low-pressure steam generator built in Morristown, TN and UL/cUL listed as an electric boiler with integral limit control. The nameplate reads 60 KW input, 480 volts, 3 phase, 72 amperes, arranged as 2 steps of 30 KW, with a maximum working pressure of 15 PSI and a steam output of approximately 210 lb/hr. Nameplate date is 01/2019, serial 21986.

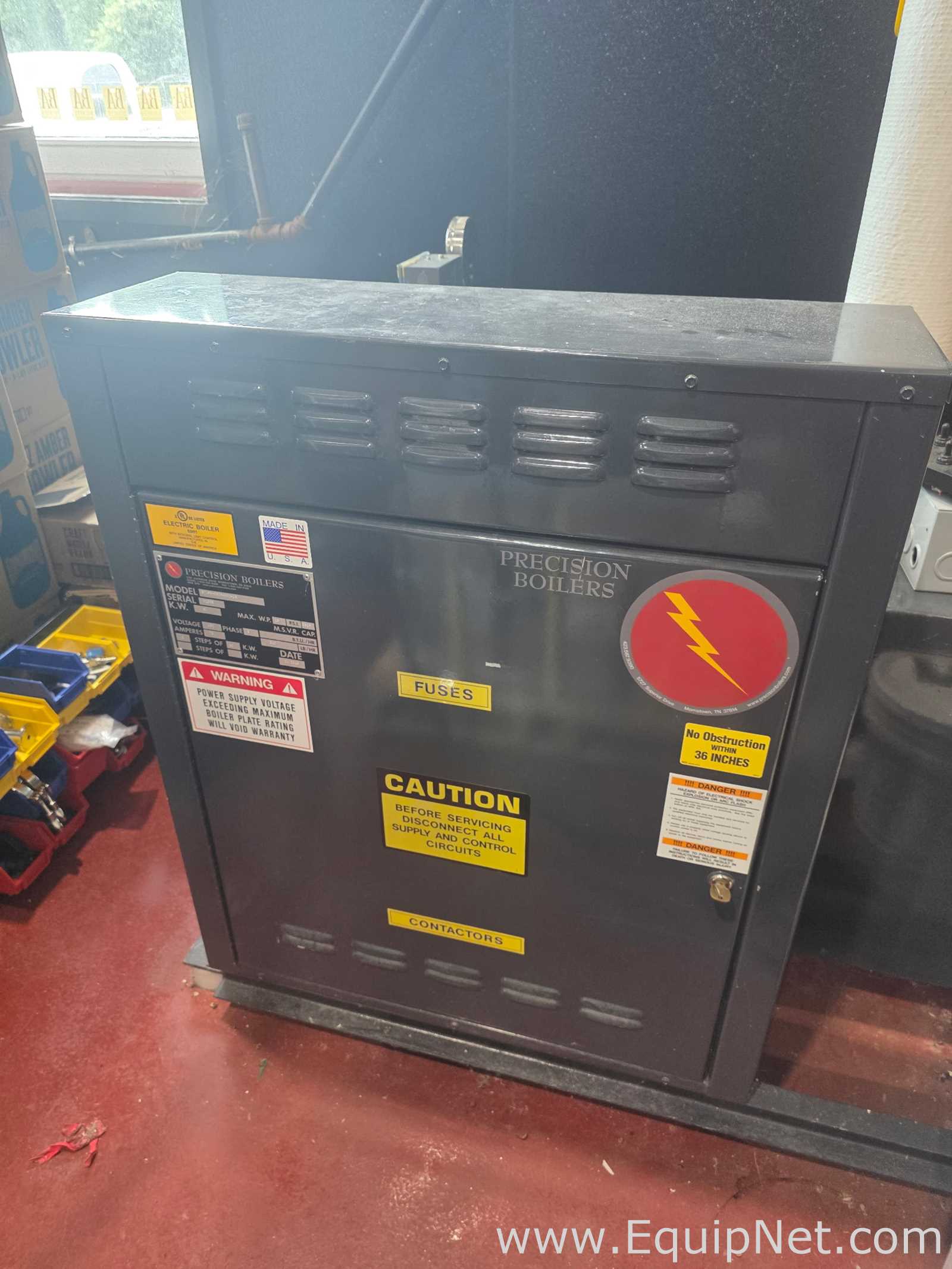

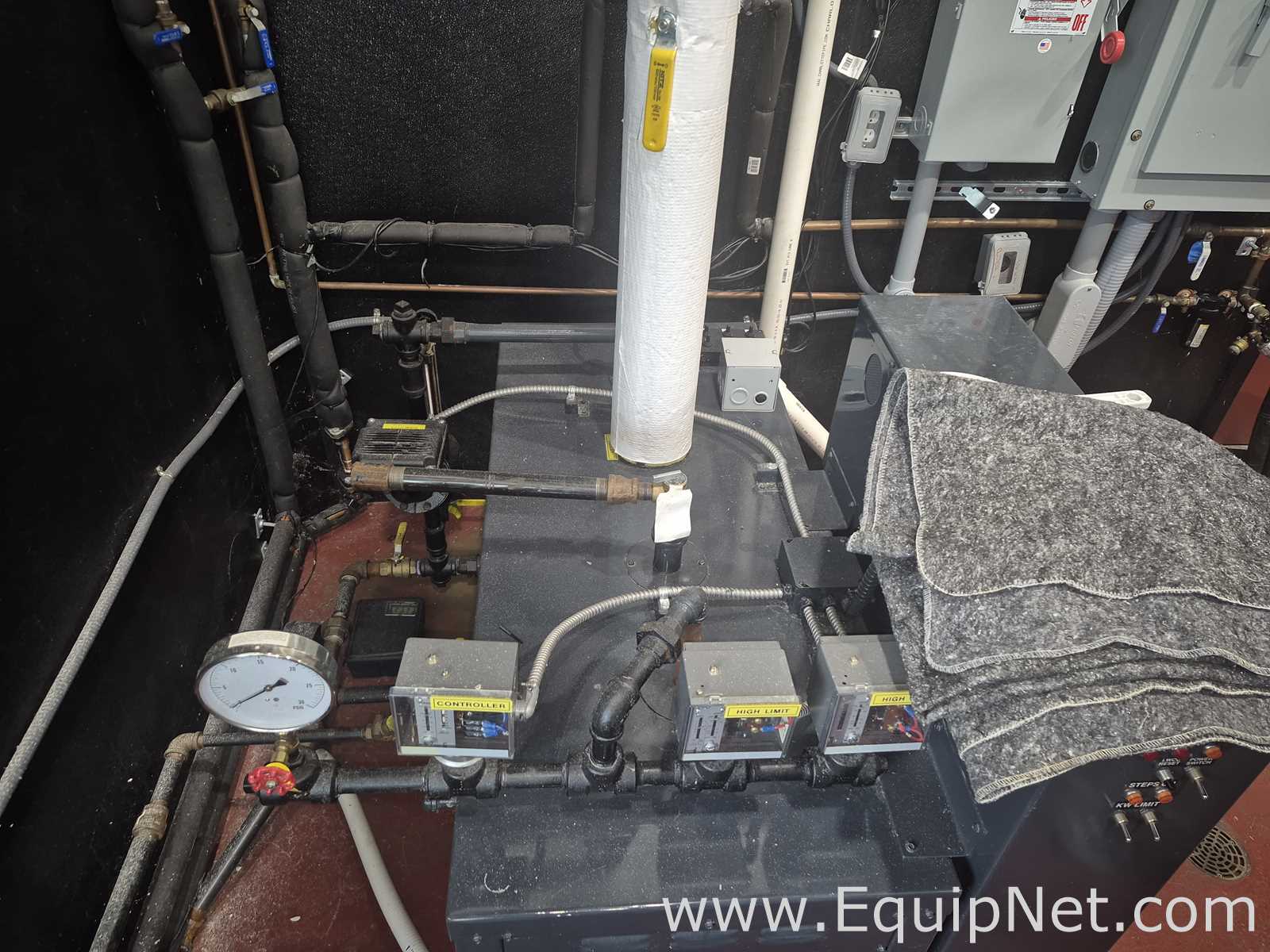

The unit is a self-contained cabinet-style boiler with a hinged front access door over the fuse and contactor sections, louvered ventilation on the upper panel, and a sealed steam chest with immersion heating elements. Visible on the boiler top are the pressure controller, two high-limit pressure controls, a siphon-mounted pressure gauge, a water column/sight glass assembly, and a safety relief valve connection. A local step/KW-limit control panel with power switch and reset is mounted at the right-hand end of the unit.

Because it is electric, the boiler requires no fuel piping, flue or combustion air and can be installed indoors in confined spaces; the 36 inch clearance label on the cabinet indicates the required service clearance. Approximate overall dimensions are 40 in long x 24 in wide x 52 in high with an estimated shipping weight of 900 lbs.

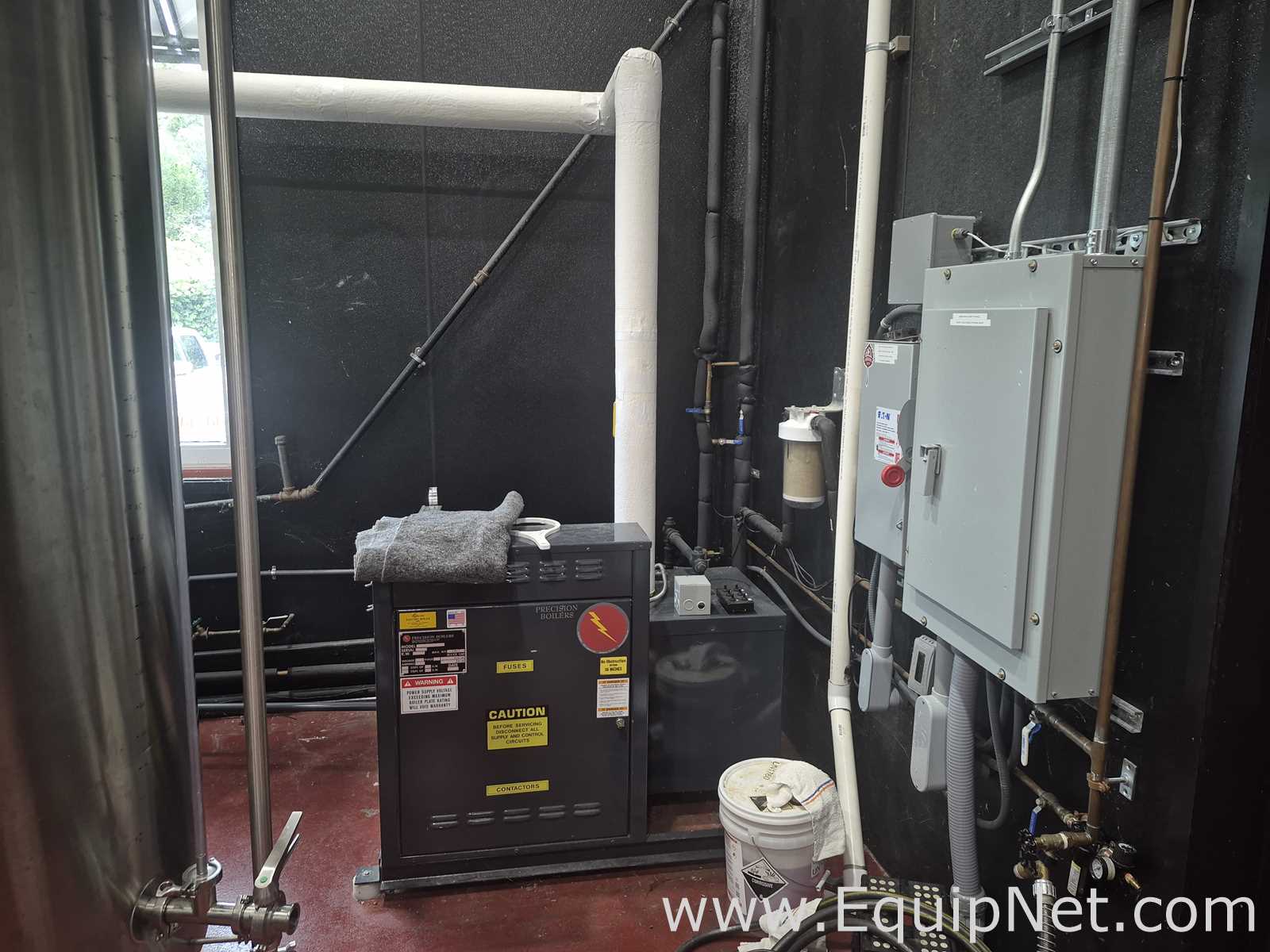

The boiler was photographed in service in a food and beverage (brewery) utility room, hardwired through a wall-mounted fused disconnect and connected to insulated steam and feedwater piping, so it will have to be electrically and mechanically disconnected before removal.

Specifications:

Standard

Metric

Manufacturer Name

Precision

Year:

2019

Serial Number:

21986

CE Marked:

UNKNOWN

Capacity Size:

60 KW

Model:

ST16S-060B-480-15

Boiler Type:

ELECTRIC

Voltage:

480 VOLTS

Frequency:

60 HERTZ

Phase:

Pressure Rating (Pressure):

15 PSI

Pressure Rating (Temperature):

250 DEG F

Fuel Type:

ELECTRIC

Recommended Packaging Form:

PALLET

Dimensions:

Standard

Metric

Overall:

40 x 24 x 52 IN - 900 LBS

1016.00 x 609.60 x 1320.80 mm - 408.24 kg
