Listing# 1073035

Qunzhen BGP-2 Closed Spray Dryer Spray Dryer

Download High Res Photos

Make an Inquiry

Seller's Acceptable Currency:

$79,000.00 USD

Make An Offer

Location: UT, USA

Level of Removal: Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Equipment Description

General Description:
The BGP-2 Closed Spray Dryer is a small-scale laboratory unit designed for production under nitrogen protection, with online recycling of organic solvents. It features centrifugal atomization and air-flow atomization capabilities, suitable for powders with varying particle sizes. Applicable industries include ceramics, cemented carbide, metal powders, and others.

Equipment Specs:

Evaporation (ethanol) rate: 2–4 kg/h
Inlet temperature: Adjustable between 140–200°C
Outlet temperature: Adjustable between 70–100°C
Atomization method: Centrifugal atomization, Two-fluid spray atomization
System oxygen content: =3%
Circulating gas: Nitrogen (or Argon)
Cooling water temperature: 0–7°C
Total power consumption: Approx. 20 kW
Main drying chamber dimensions: Diameter: 800 mm, Height: 1000 mm, Cone angle: 60°
Solvent recovery rate: =95%

Utility Requirements:

Nitrogen gas pressure: 0.4–0.5 MPa
Consumption for initial oxygen removal: 10 Nm³ per batch
Consumption for centrifugal atomization: 2 Nm³/h
Consumption for air-flow atomization: 6 Nm³/h
Compressed air pressure: 0.4–0.5 MPa
Consumption: 0.1 m³/min
Power supply: Three-phase, 480 V, 20 kW

The spray dryer includes:

Feed & Atomization System:
Centrifugal atomizer: 1 unit, Stainless steel (304)
Two-fluid atomizer nozzle: 1 unit, Stainless steel (304)
Main Circulation System:
Main drying tower: 1 set, Stainless steel (304)
Explosion-proof electric heater: 1 set, Stainless steel (304)
Cyclone separator: 1 set, Stainless steel (304)
Bag-type dust collector: 1 set, Stainless steel (304)
High-pressure blower: 1 unit
Condenser: 1 set, Stainless steel (304)
Circulation duct: 1 set, Stainless steel (304)
Nitrogen System:
Automatic nitrogen makeup valve: 1 set, Stainless steel (304)
Manual nitrogen makeup valve: 1 set, Stainless steel (304)
Pneumatic exhaust valve: 1 set, Stainless steel (304)
Manual exhaust valve: 1 set, Stainless steel (304)
Tower-top pressure relief valve: 1 set, Stainless steel (304)
Tower-top breathing valve: 1 set, Stainless steel (304)
Explosion-proof diaphragm: 1 set, Stainless steel (304)
Electrical Control System:

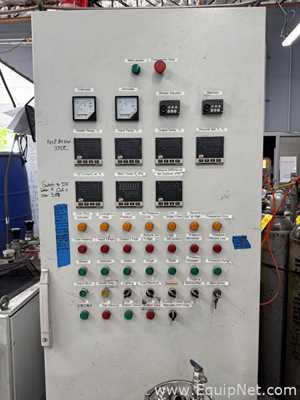

Complete electrical control system: 1 set
Cooling Water Chiller:

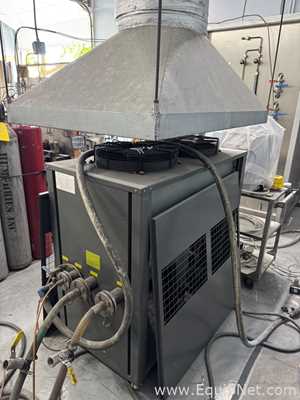

Cooling water unit: 1 set

Specifications:

Standard

Metric

Manufacturer Name

Qunzhen

Model:

BGP-2 Closed Spray Dryer

Capacity Speed:

2-4 KG/HR

Type of Atomizer:

CENTRIFUGAL

Recommended Packaging Form:

CUSTOM PALLET

Dimensions:

Standard

Metric

Overall:

1 x 1 x 1 IN - 1 LBS

25.40 x 25.40 x 25.40 mm - 0.45 kg

Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

This equipment is subject to a removal and loading charge.

The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non-transferable.
