Equipment Description

Stainless Steel Mash Lauter Tun With False Bottom And Hinged Lid

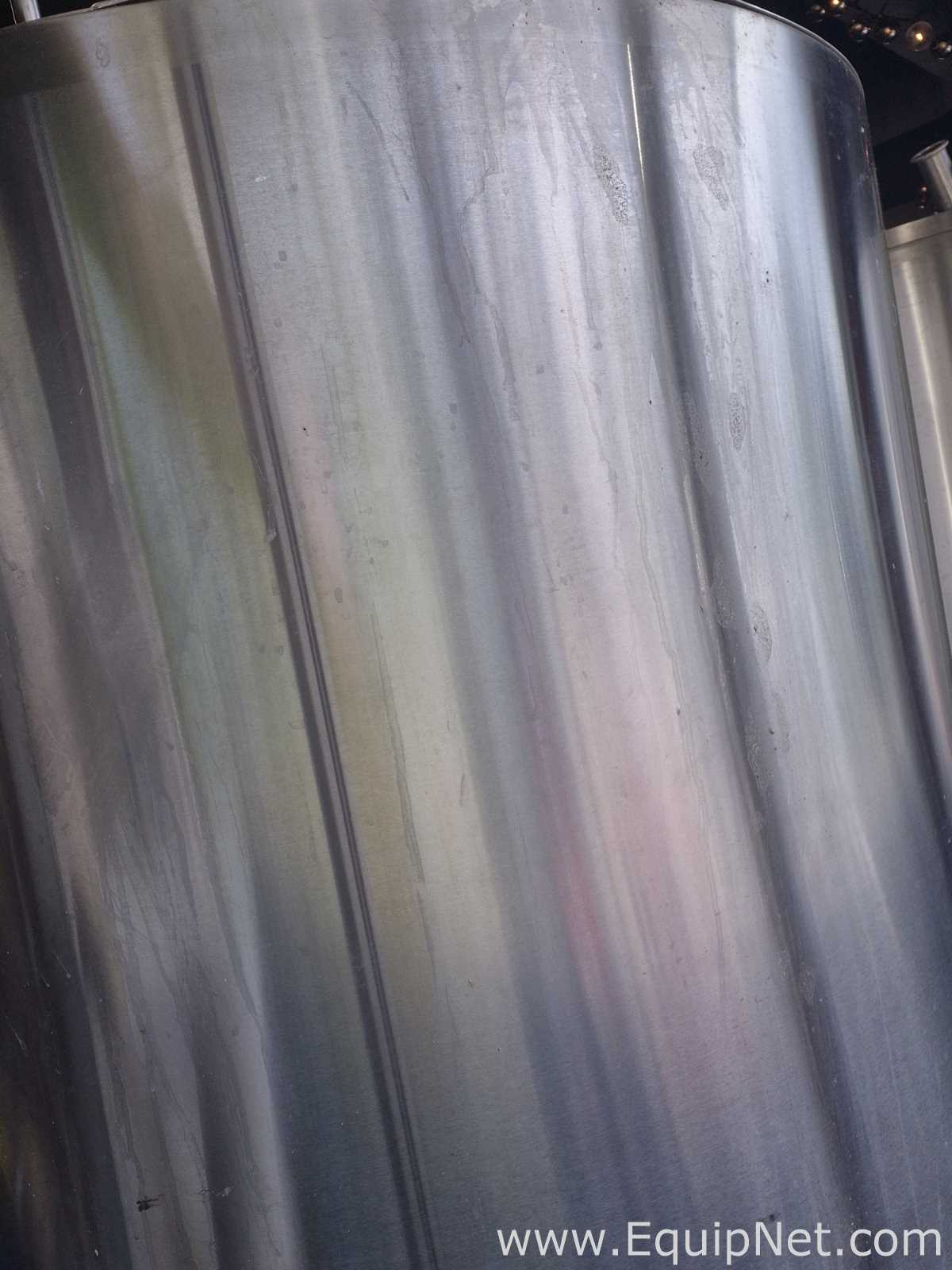

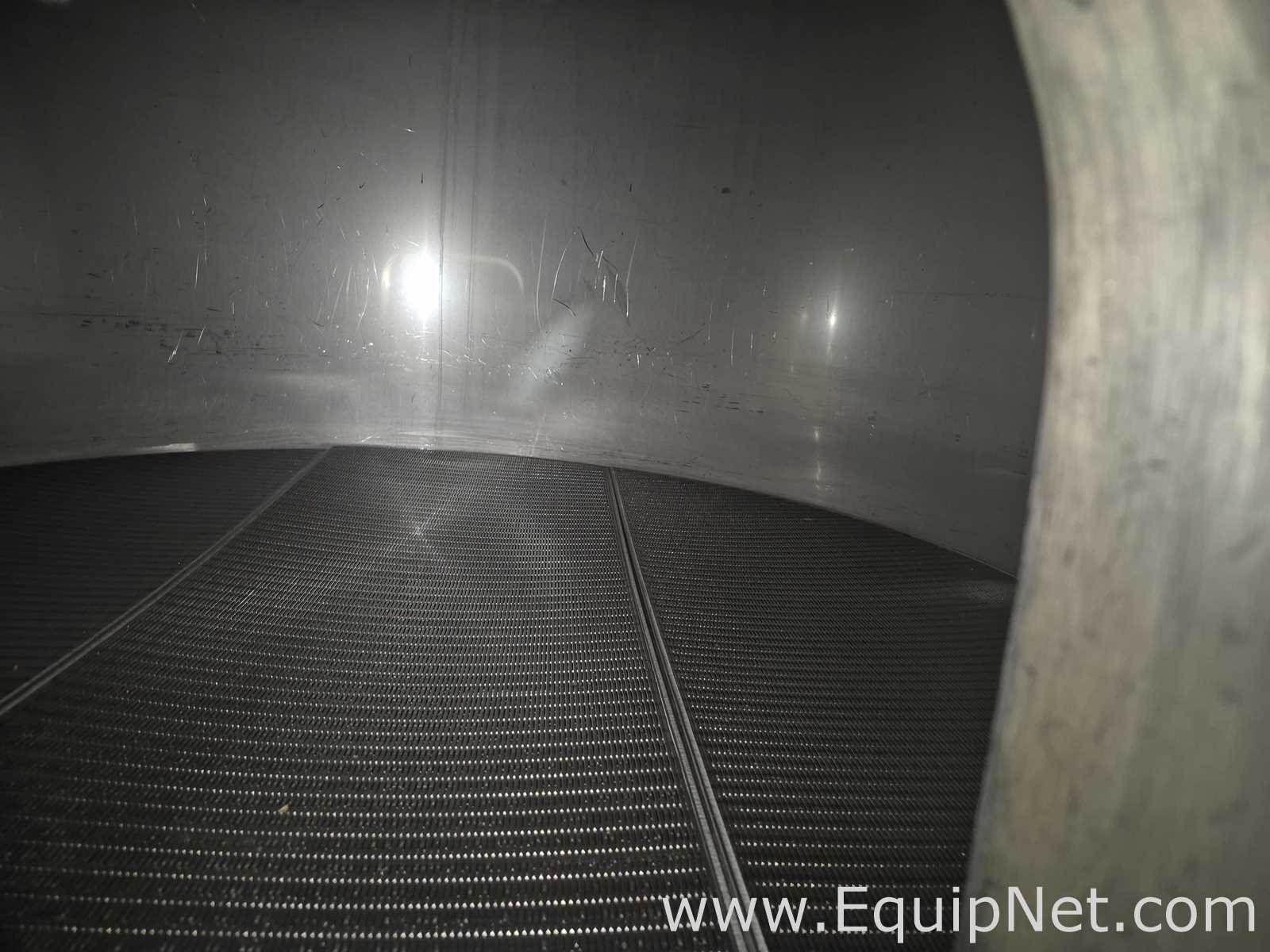

Stainless steel mash lauter tun of vertical cylindrical design, used in a craft brewhouse to mix milled grain with hot liquor and then separate the sweet wort from the spent grain bed. The vessel is fitted with a wedge-wire/perforated false bottom (visible in photo 4) that supports the grain bed during lautering and allows the wort to be run off clear.

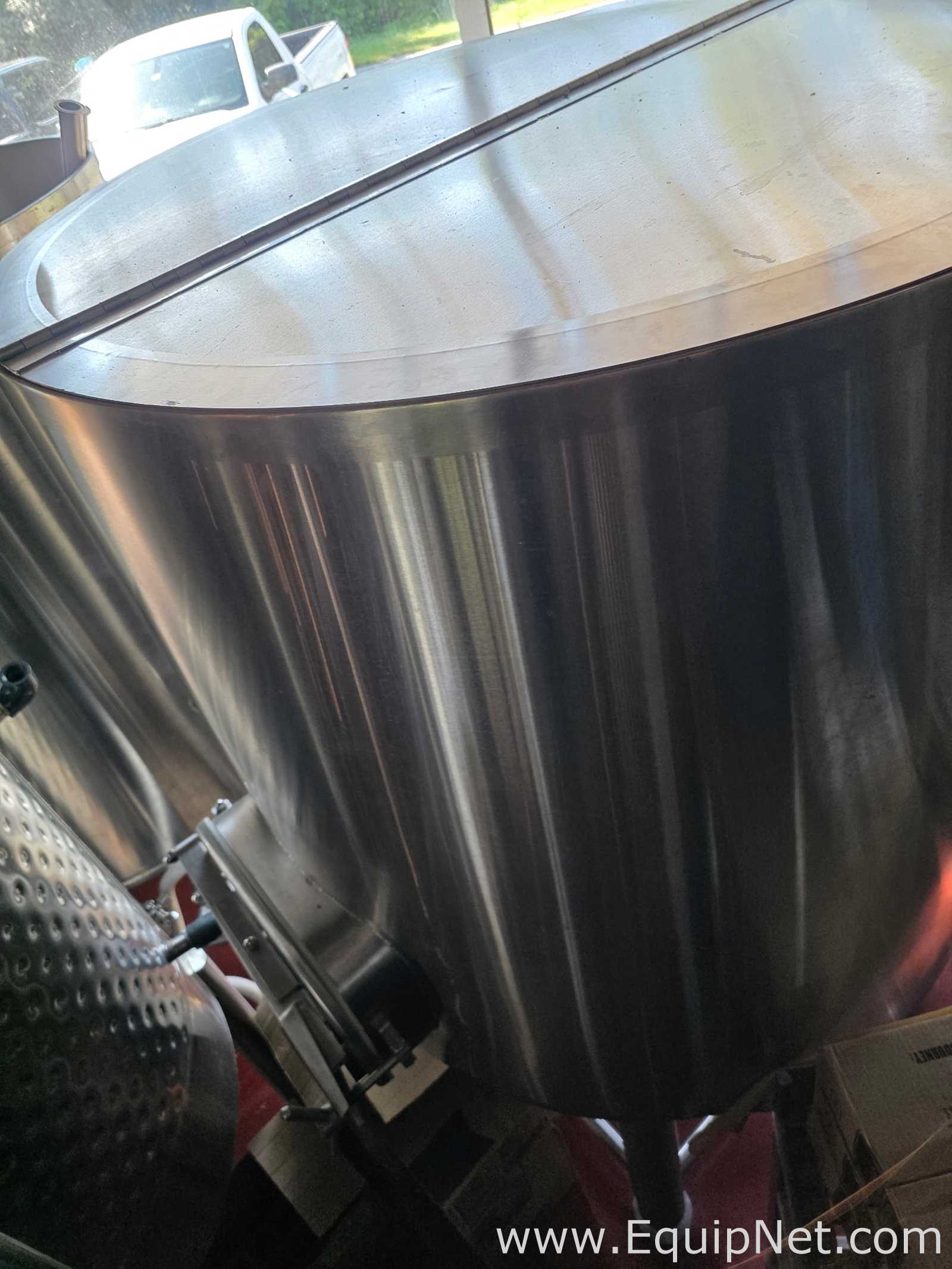

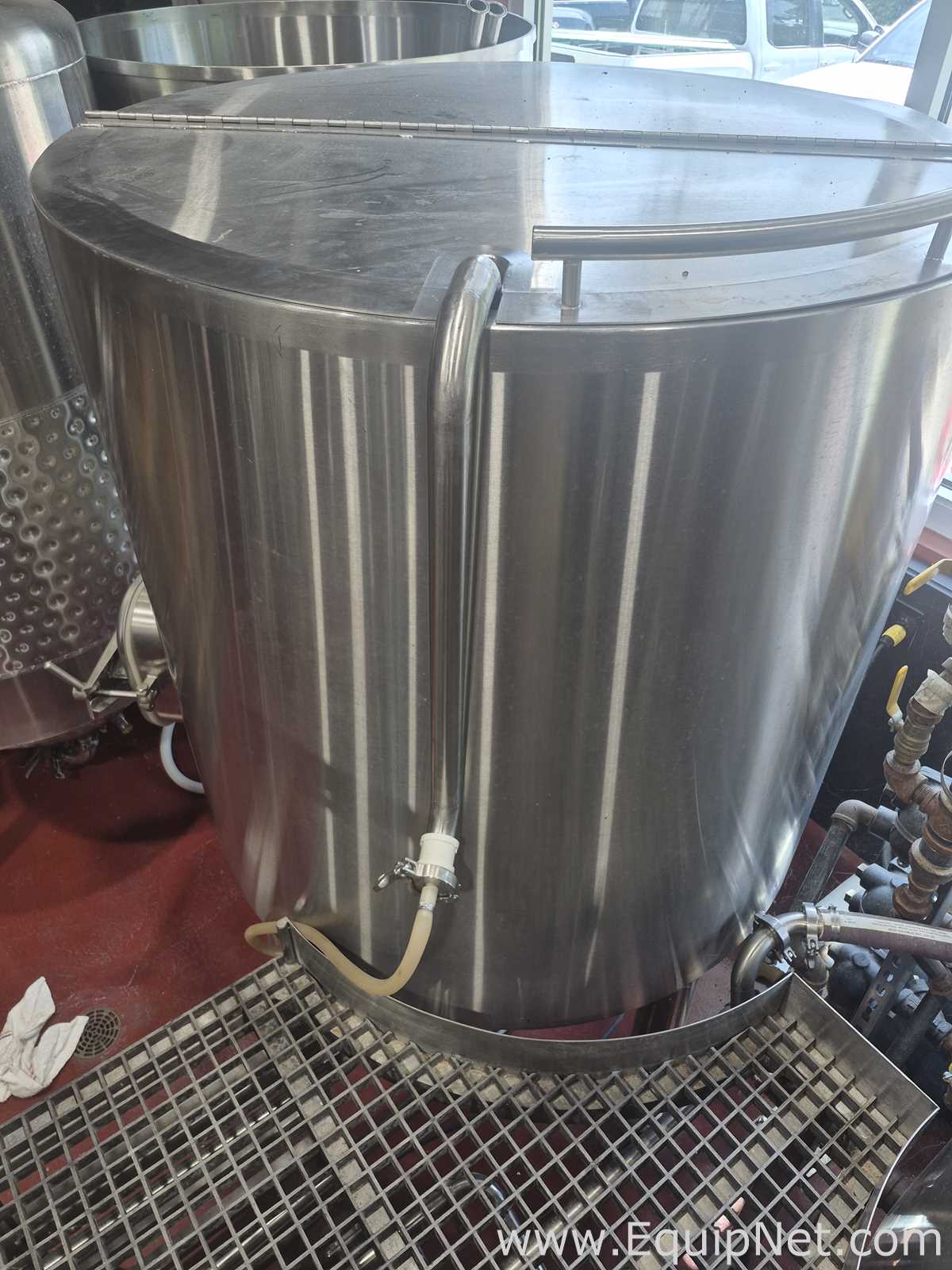

The tank measures approximately 54 in diameter and 66 in overall height and is closed by a two-piece hinged top with a full-length piano hinge and a lift handle. The shell is unjacketed, with a bottom side outlet fitted with a sanitary clamp and flexible hose, and an external run-off/return tube running up the side of the vessel. The unit stands on legs on a grated brew-deck floor next to the rest of the brewhouse and is connected by hose and hard piping to the adjacent kettle/hot liquor vessels shown in the photos.

Specifications:

Standard

Metric

Manufacturer Name

Unknown

CE Marked:

UNKNOWN

Capacity Size:

300 GALS

Capacity Details:

Vertical cylindrical vessel approximately 54 in diameter, two-piece hinged top with lift handle, perforated/wedge-wire false bottom, side bottom outle

Products Run:

Beer - mash and sweet wort

Heating Cooling Requirements:

None integral - unjacketed vessel; requires external hot liquor supply

Recommended Packaging Form:

PALLET

Dimensions:

Standard

Metric

Overall:

54 x 54 x 66 IN - 1200 LBS

1371.60 x 1371.60 x 1676.40 mm - 544.32 kg
