Listing# 1105089

Tank Inoxcal Stainless Steel 2500 Litres With Agitation

Pre-Owned Inoxcal Tank for Sale

Browse this pre-owned Inoxcal Tank available now on EquipNet MarketPlace™ located in Barcelona, Spain and backed by our logistics support - Inquire today.

Tank Inoxcal Stainless Steel 2500 Litres With Agitation

Seller's Acceptable Currency:

€12,960.00 EUR

Request More Info Make An Offer

Location: Barcelona, Spain

Level of Removal: Skidded

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Download High Res Photos

Sell Your Tanks View All Tanks View All Inoxcal Equipment View All Equipment At This Location

Equipment Description

Tank Inoxcal Stainless Steel 2500 Litres With Agitation

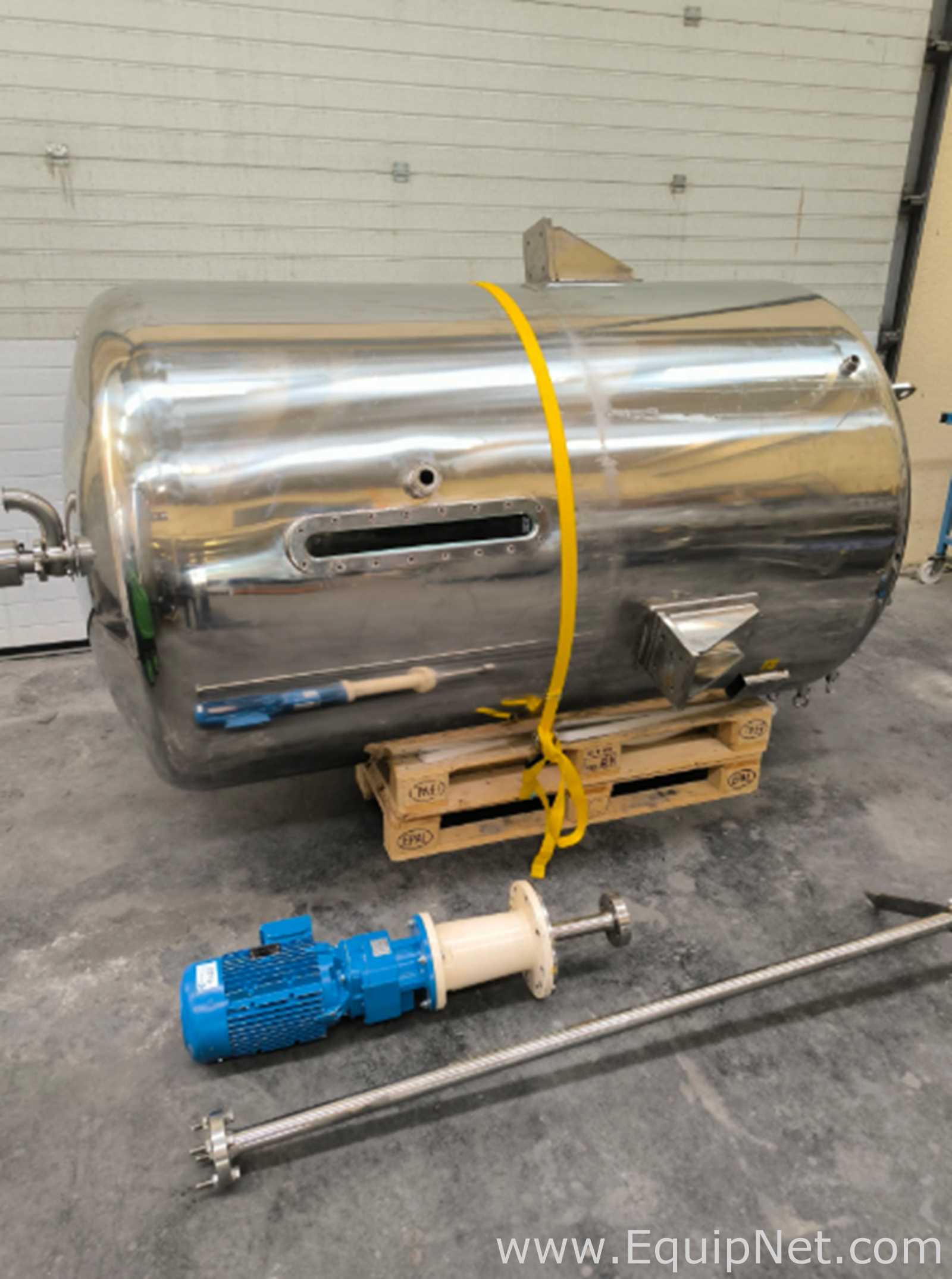

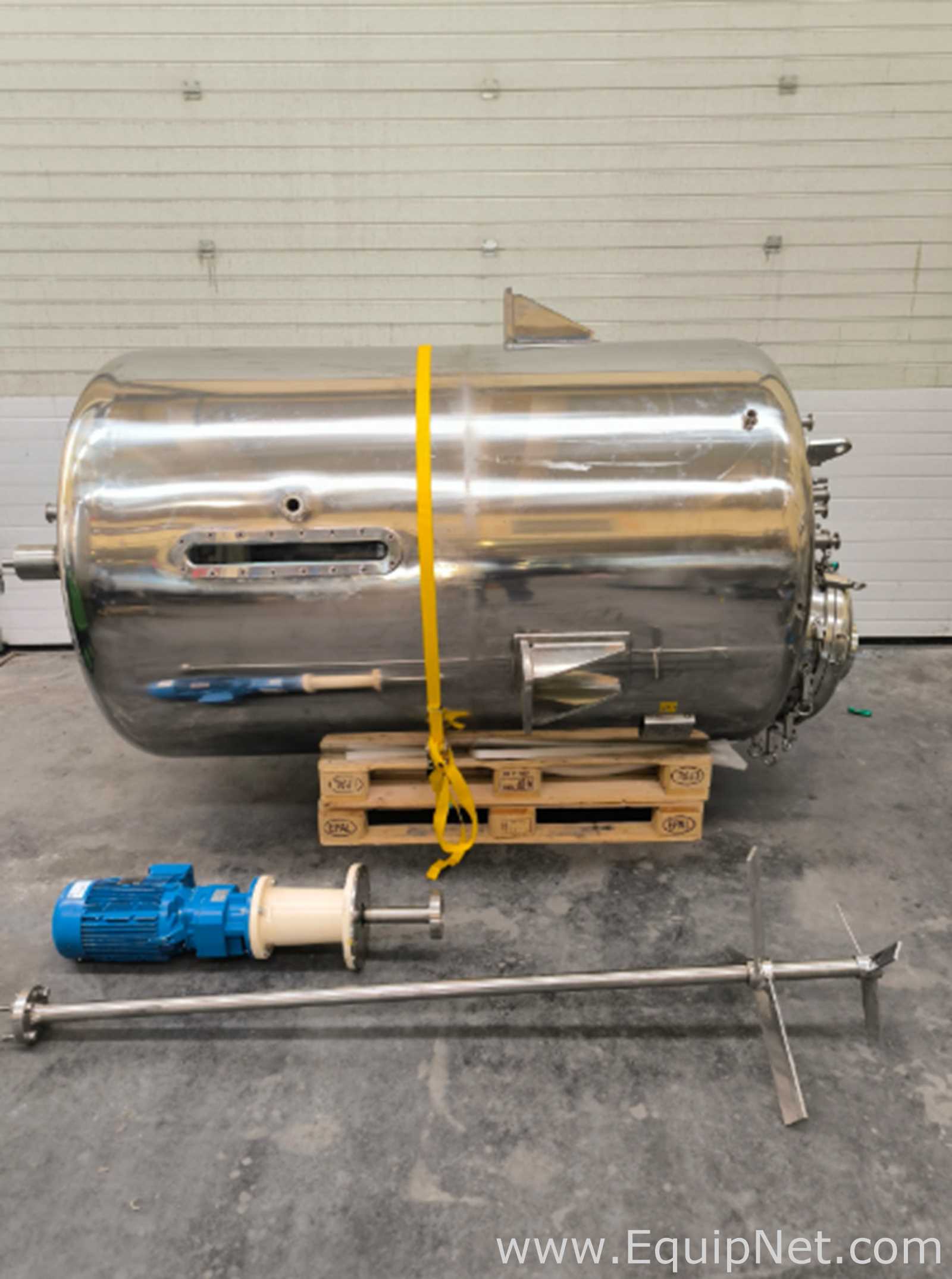

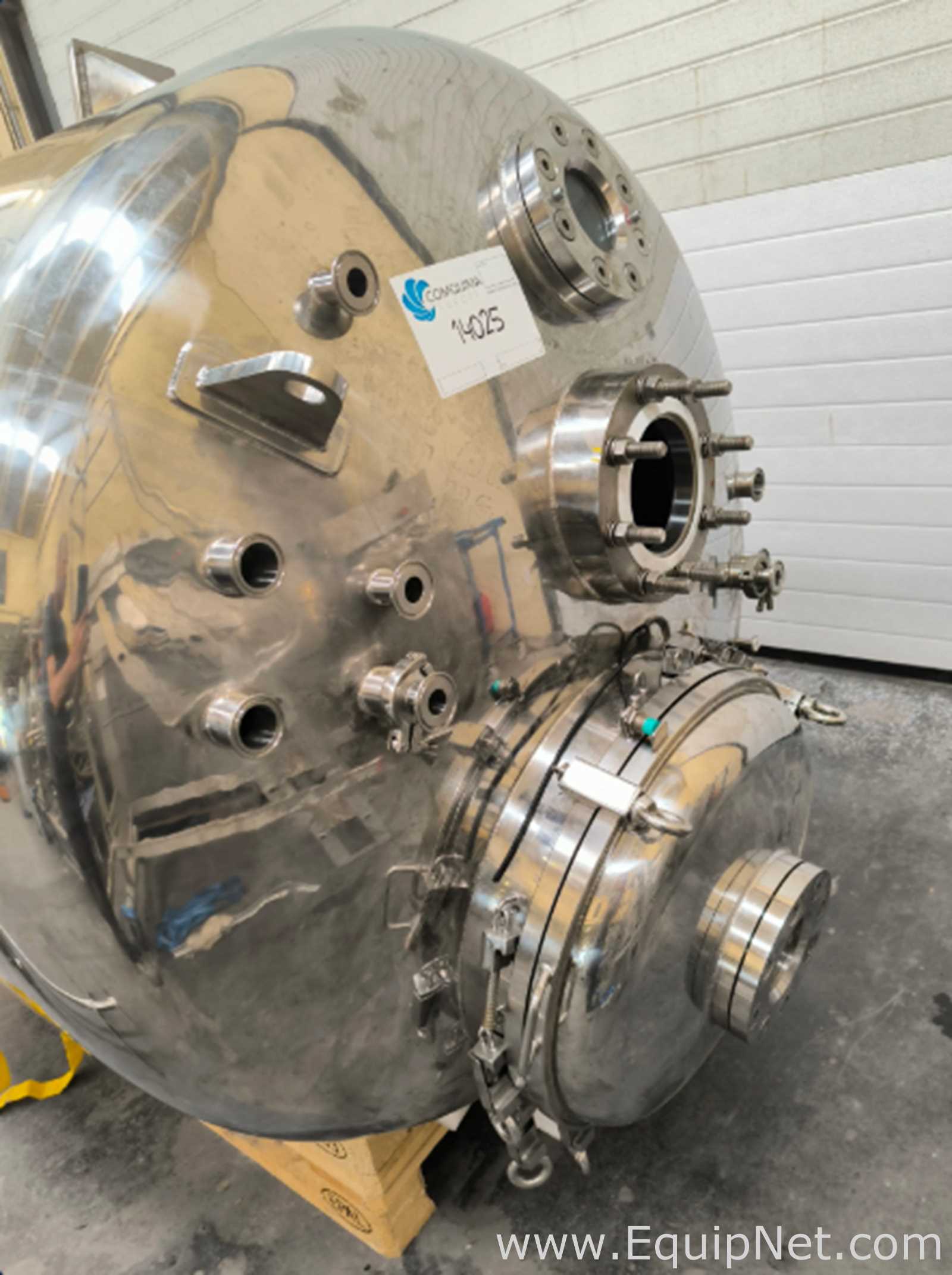

Vertical 2,500-liter Inoxcal tank manufactured in stainless steel, designed for low and high viscosity liquids and suspensions. Equipped with an offset two-stage three-blade propeller agitation system. Pressure-rated design with a maximum working pressure of 1 bar and working temperature of 80 ºC. Features upper and lower Klopper-type bottoms and top manway. Tank mounted on brackets with 2.2 kW agitator motor and 202 rpm agitation speed.

Technical Features

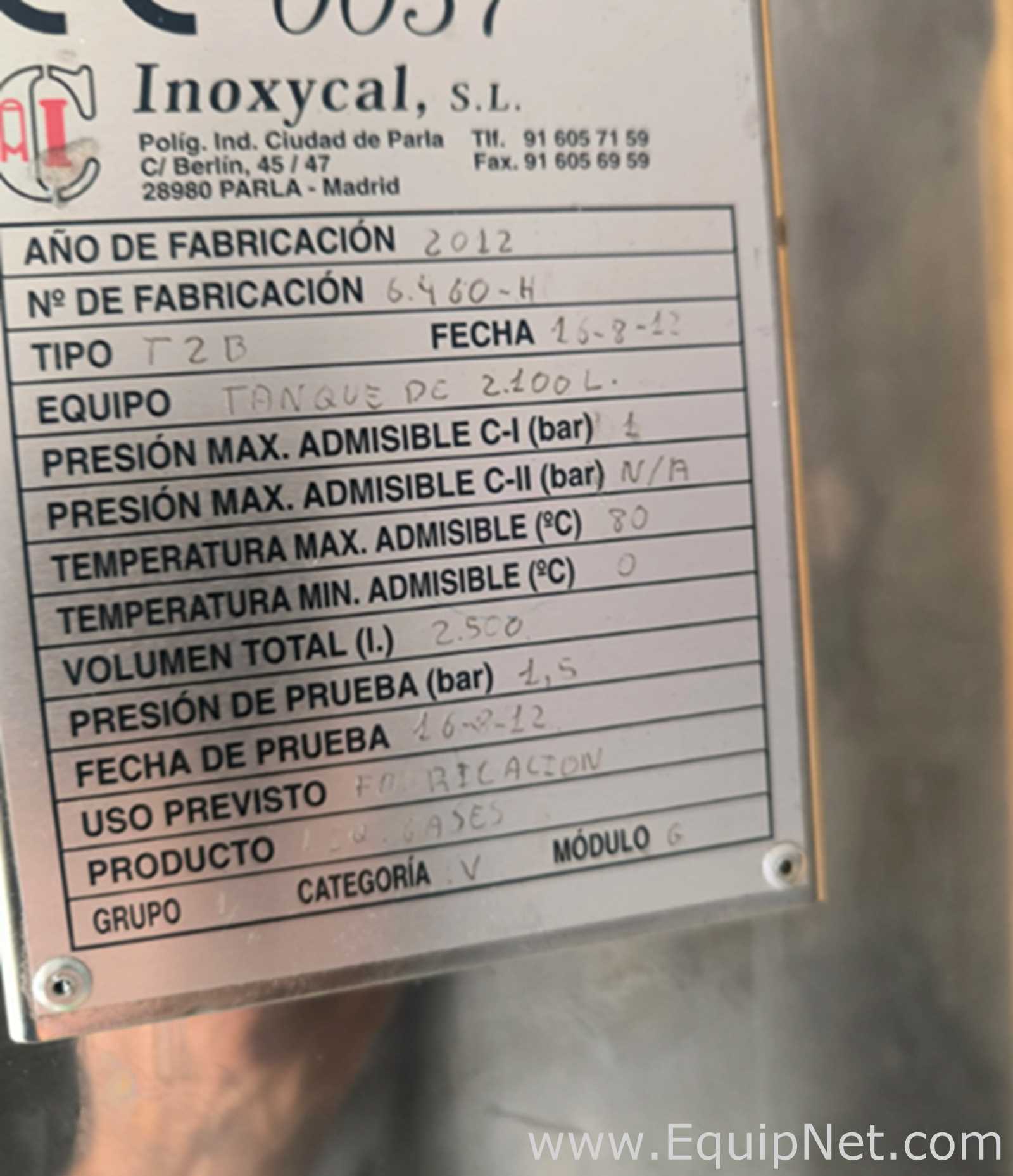

Vessel working pressure: 1 bar

Vessel working temperature: 80 ºC

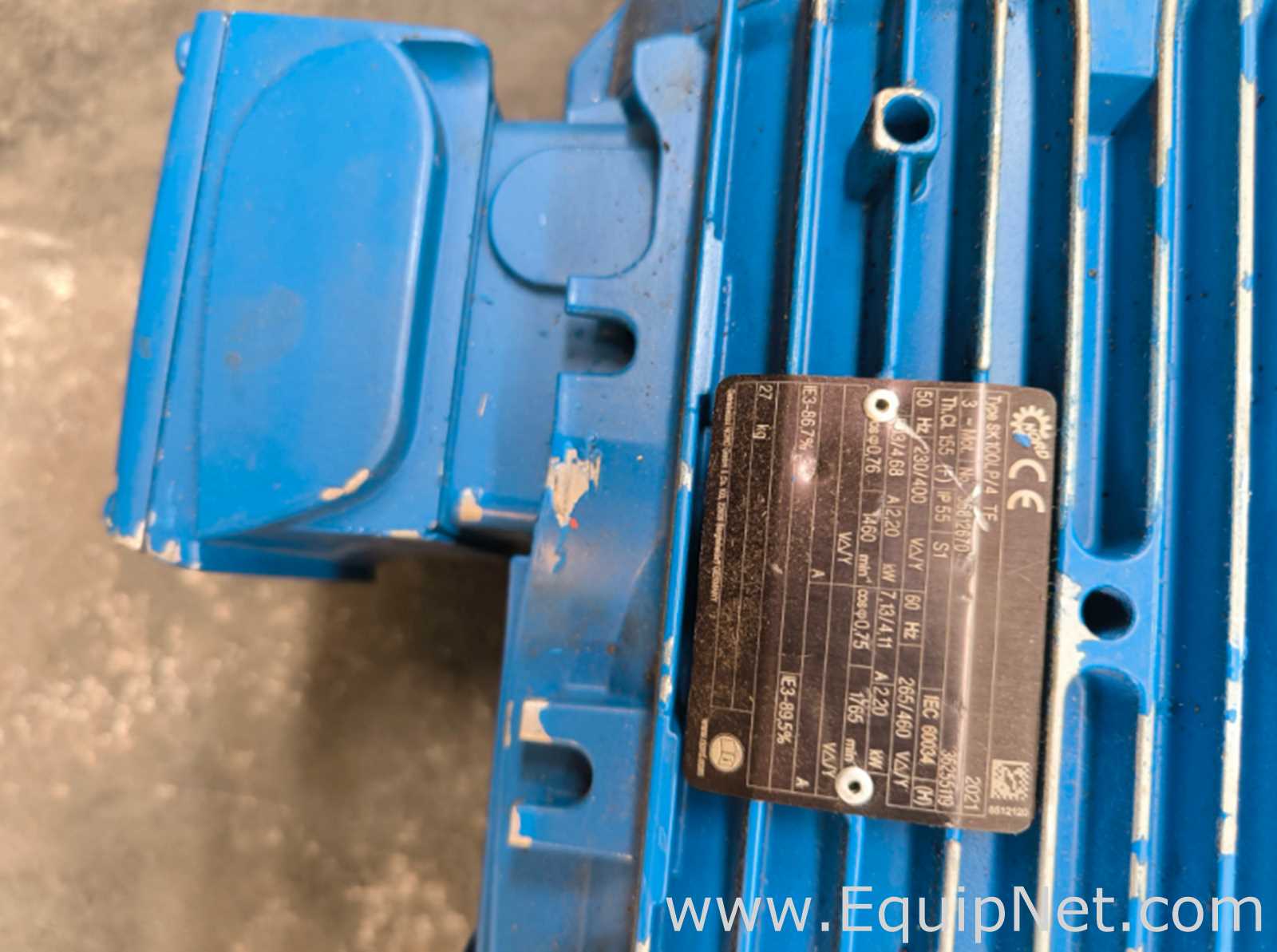

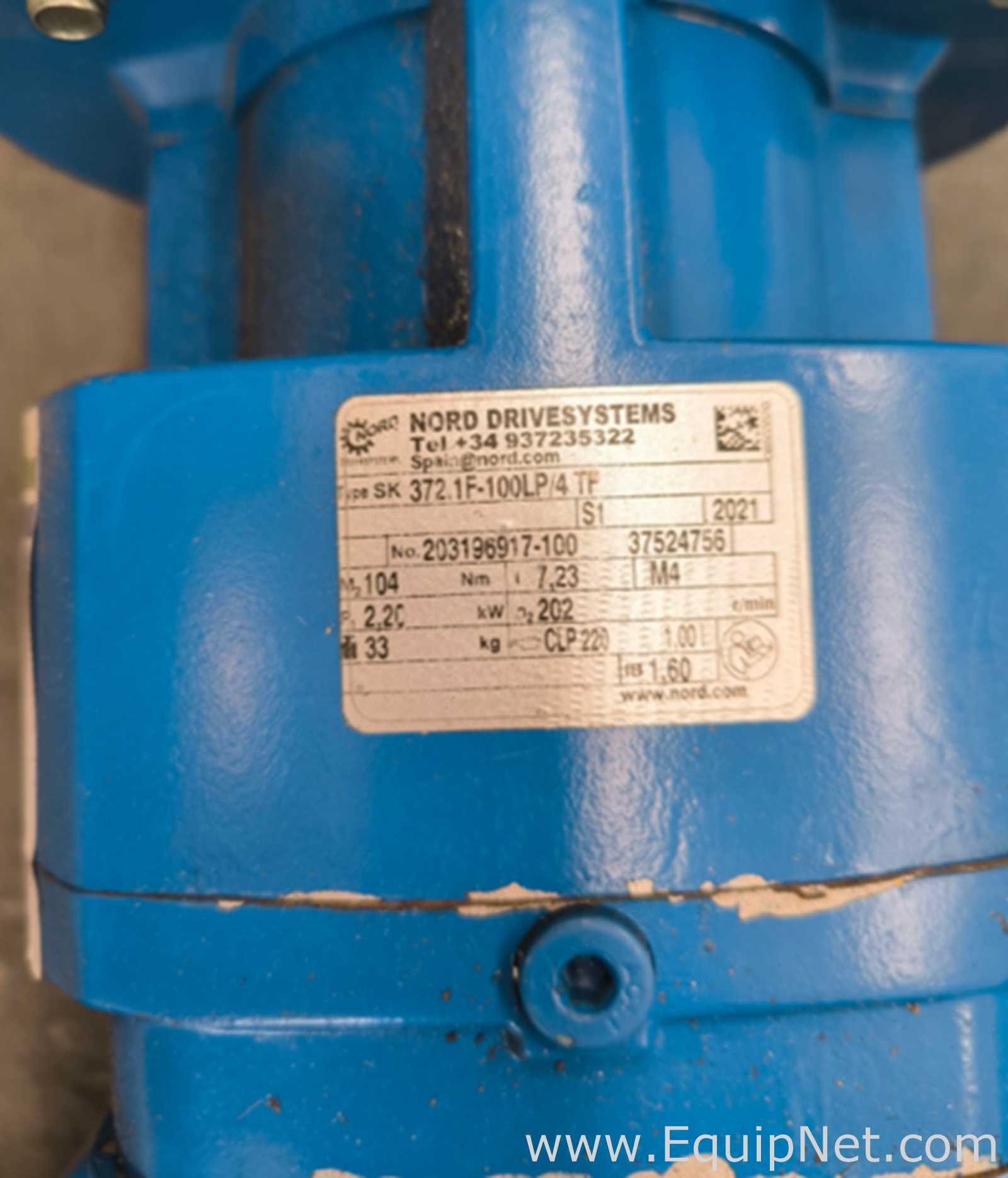

Agitator motor: 2.2 kW, 1460 rpm, 50 Hz, 230 V

Agitator rotation speed: 202 rpm

Reducer reduction ratio: 7.23 i

Equipment Configuration

Agitator

Under pressure

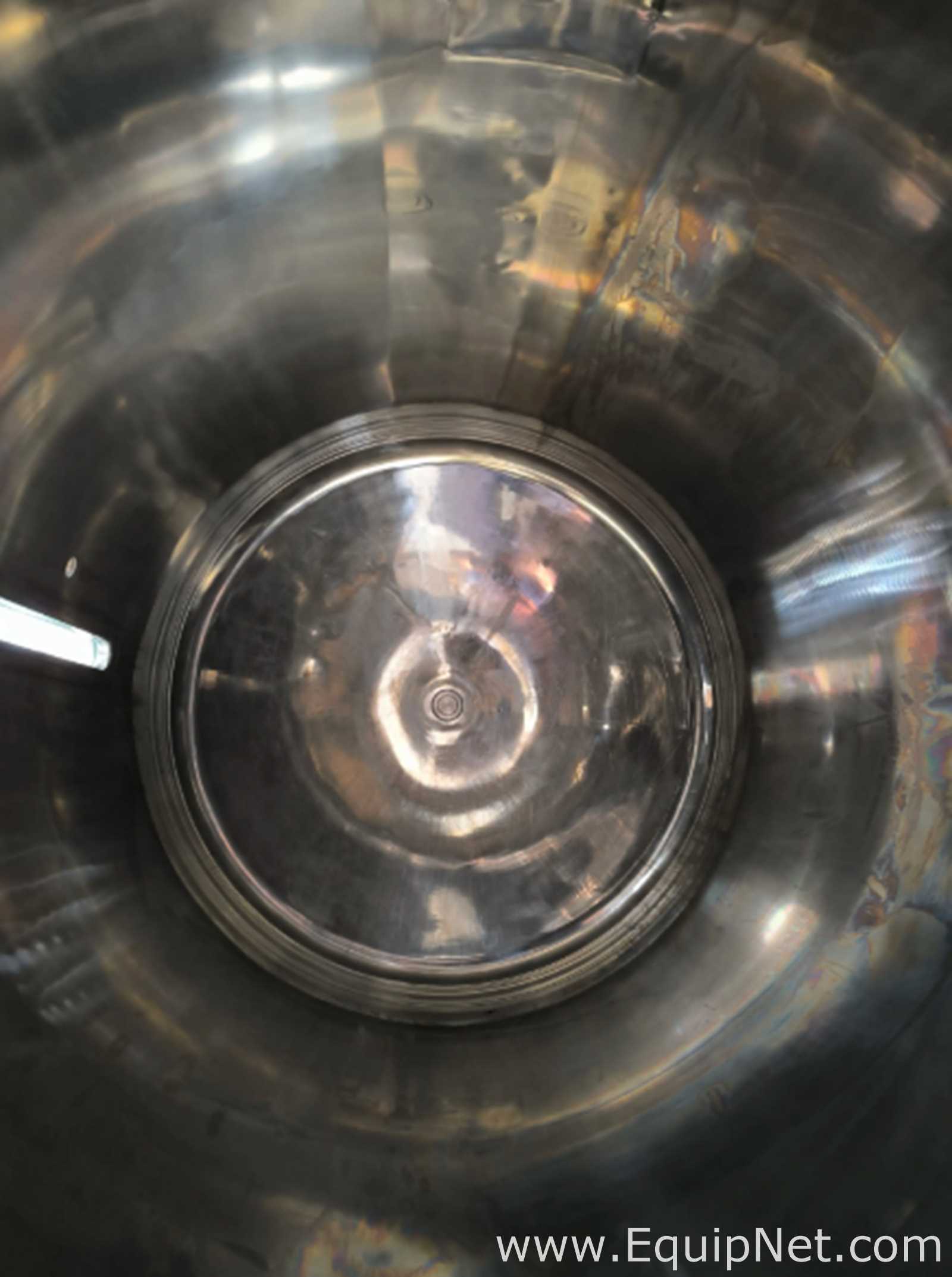

Klopper top bottom

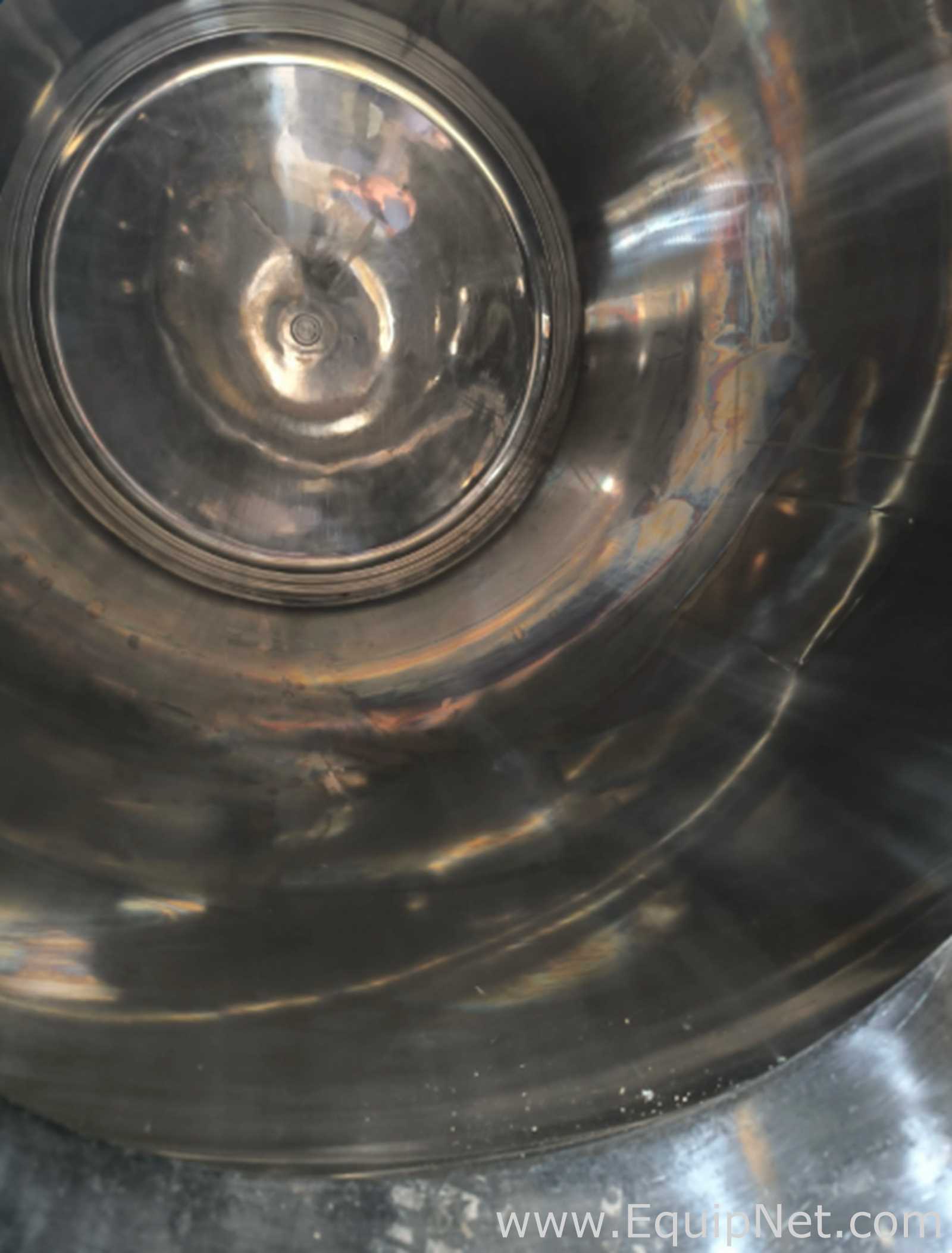

Klopper bottom

On brackets

Top manway

Vertical tank

Agitation System

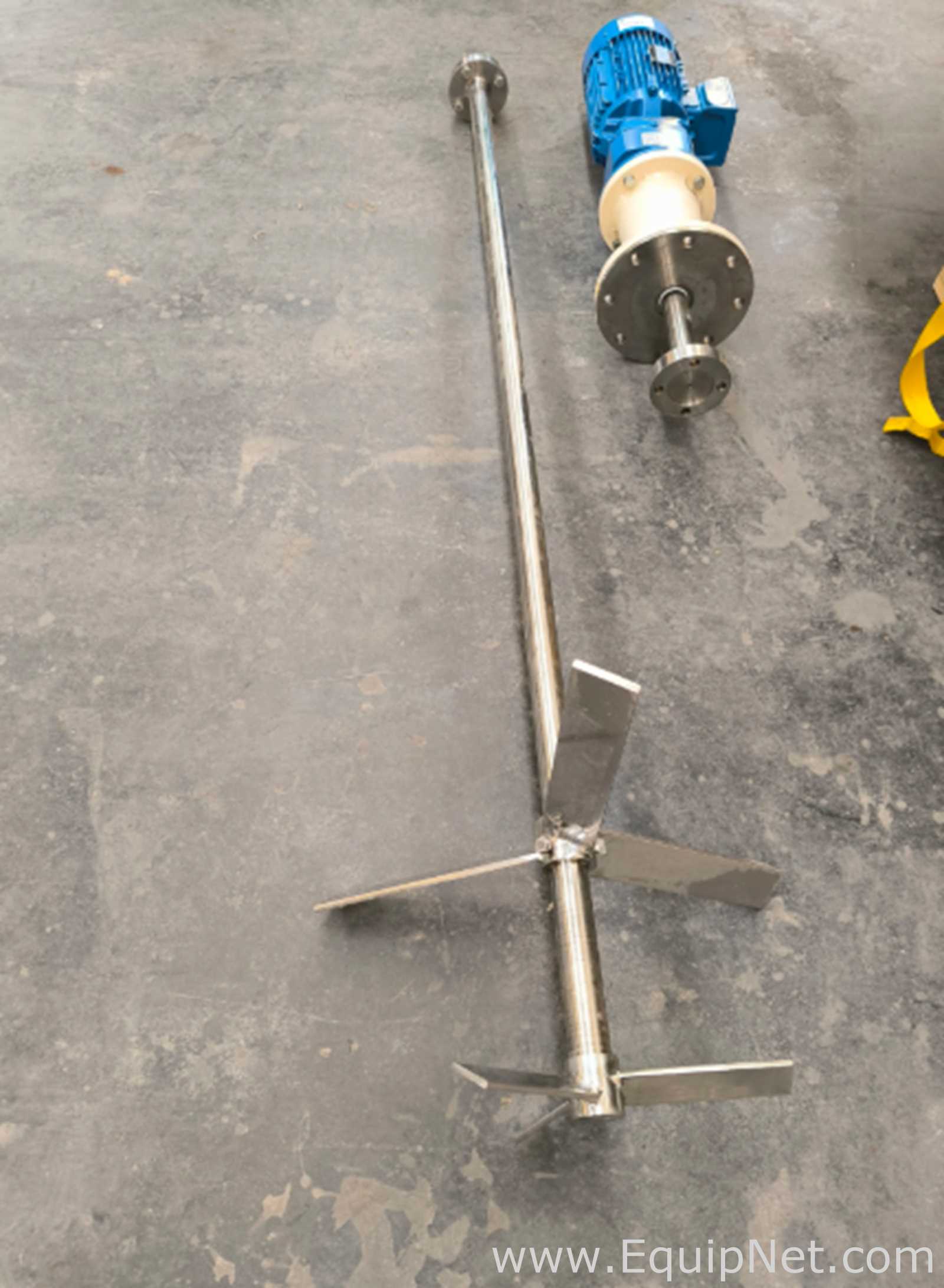

Three-blade propeller agitation at two levels

Off-center agitator

Serial number: 2

Specifications:

Standard

Metric

Manufacturer Name

Inoxcal

Year:

2012

CE Marked:

YES

Capacity of Tank:

660.65 gal

2500 L

Tank Material of Construction:

STAINLESS STEEL

Agitation:

YES

Inside Diameter:

49.21 in

1250 MM

Overall Height:

Straight Side:

66.93 in

1700 MM

Recommended Packaging Form:

CUSTOM PALLET

Dimensions:

Standard

Metric

Overall:

131.89 x 68.90 x 66.93 in - 1653.45 lb

3350 x 1750 x 1700 MM - 750 KGS
