MACHINE TYPE:

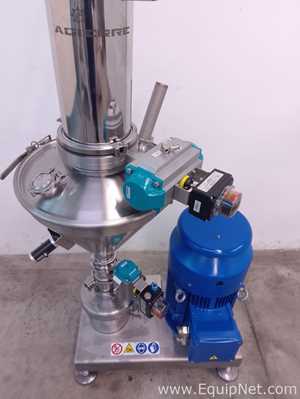

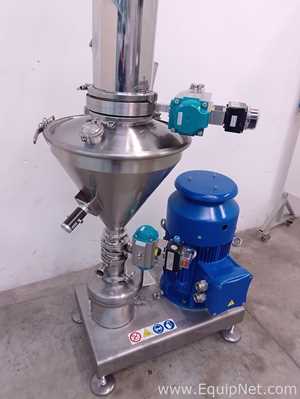

Powder-liquid mixing system complete with Agierre powder transfer unit.

INDUSTRY OF USE:
Pharmaceutical, chemical, cosmetic, food, dietary, medical device, manufacturing.

DISTINCTIVE FEATURES:
Tri-blender systems are designed to speed up and improve the mixing of powders and liquids, especially by minimizing the amount of air introduced during loading procedures. This limits wasted time and product, significantly reducing problems related to pre- and post-mixing operations, such as lumps, foam, and overflow. The Tri-blender is a compact and easily transportable system, designed for quick installation near the preparation tank. The height of the hopper facilitates loading, eliminating the need for lifting by the operator. The powdered ingredients are poured into the hopper; the pump creates a vacuum that draws them into the mixing chamber. The liquid is introduced through a tangential inlet and simultaneously transported into the same chamber. The diffuser tube keeps the two ingredients, liquid and powder, separate until they enter the mixing chamber, where a special filter mesh allows the mixture to be homogeneous. The Tri-blender is a simple and safe system for mixing liquids and powders quickly and homogeneously, avoiding the introduction of air. Powder absorption is rapid and uniform, up to 159 kg/min. Ideal for pharmaceutical preparations such as syrups, as well as for food preparations. It is easily adaptable for CIP applications. The Tri-blender is made of AISI 316 stainless steel for the parts in contact with the product, while the base is made of AISI 304 steel.

YEAR: 2018

TECHNICAL SPECIFICATIONS
Voltage: 380 Volts
Frequency: Hz
Power consumption: 10 kW
Dimensions (WxDxH): 1100 x 700 x 2500 mm
Weight: 200 kg
