Listing# 923430
Tinyard - CFD-6- Inline Filler and Sealer. 6 Lane
Seller's Acceptable Currency:
$24,900.00 USD
Make An OfferLocation: North America
Level of Removal: Uncrated/Loose
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description

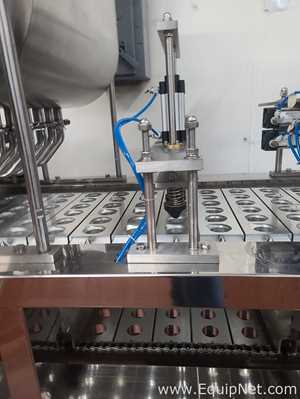

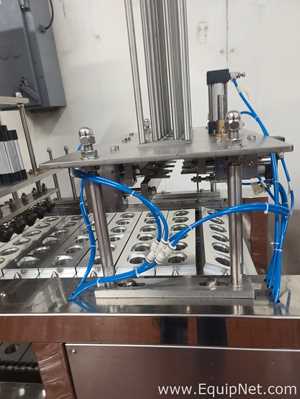

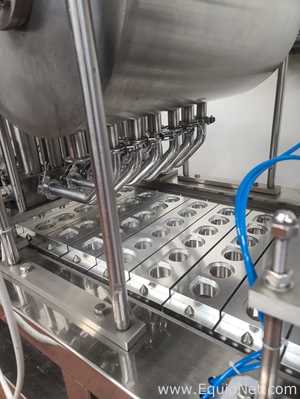

Tinyard - CFD-6- 6 Lane Inline Filler and Sealer Machine for Dairy and Frozen Products. Heat Sealer.
BRAND NEW EQUIPMENT! NEVER BEEN USED! Tinyard - 6 lane - Inline Filler/Sealer Machine
Fills cups and tubes
The product we ran was sorbet
The line Is currently tooled for calippo tubes, but can be re-tooled to run cones and other sized cups
Applications: water, juice, milk, fresh cream, jelly, pudding, yogurt, and frozen products such as sorbet and ice cream.
Capacity- 5000-6500 cups/hour
Filling volume is 100-250 mL
Air Source - .5m3/min
Dimensions: Length 3150 mm, Height 1750 mm, Width 1150 mm
Weight 800 kg
We are selling the line because our co-packer relationship ended
BRAND NEW EQUIPMENT! NEVER BEEN USED! Tinyard - 6 lane - Inline Filler/Sealer Machine
Specifications:
Standard
Metric
Manufacturer Name
Tinyard
Year:
2020
2020
CE Marked:
UNKNOWN
UNKNOWN
Model:
CFD-6
CFD-6
Type of Filler:
INLINE
INLINE
Current Application (Products,Sizes Run and Shape of Bottle):
Cups and tubes, 5000-6500 cups per hour,
Cups and tubes, 5000-6500 cups per hour,
Can Seller Provide a Sample of Product Run:
No
No
Application Range (Ex Min/Max Range Size Bottles or Tubes, Shape of Bottle):
100-250 ml
100-250 ml
Average operating speed :
6000
BPH
6000 BPH
Max operating speed:
6500
BPH
6500 BPH
Minimum operating speed:
5000
BPH
5000 BPH
Number of heads:
6
6
Lot and Date Coding for Tube Filler:
NO
NO
Type of seal for tube filler:
HOT JAW
HOT JAW
Voltage:
380
VOLTS
380 VOLTS
Frequency:
50
HERTZ
50 HERTZ
Phase:
3
3
Current:
4.5
KW
4.5 KW
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
124.02 x 45.28 x 68.90 in - 1763.68 lb
3150 x 1150 x 1750 MM - 800 KGS
