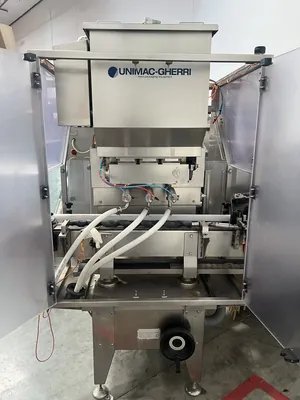

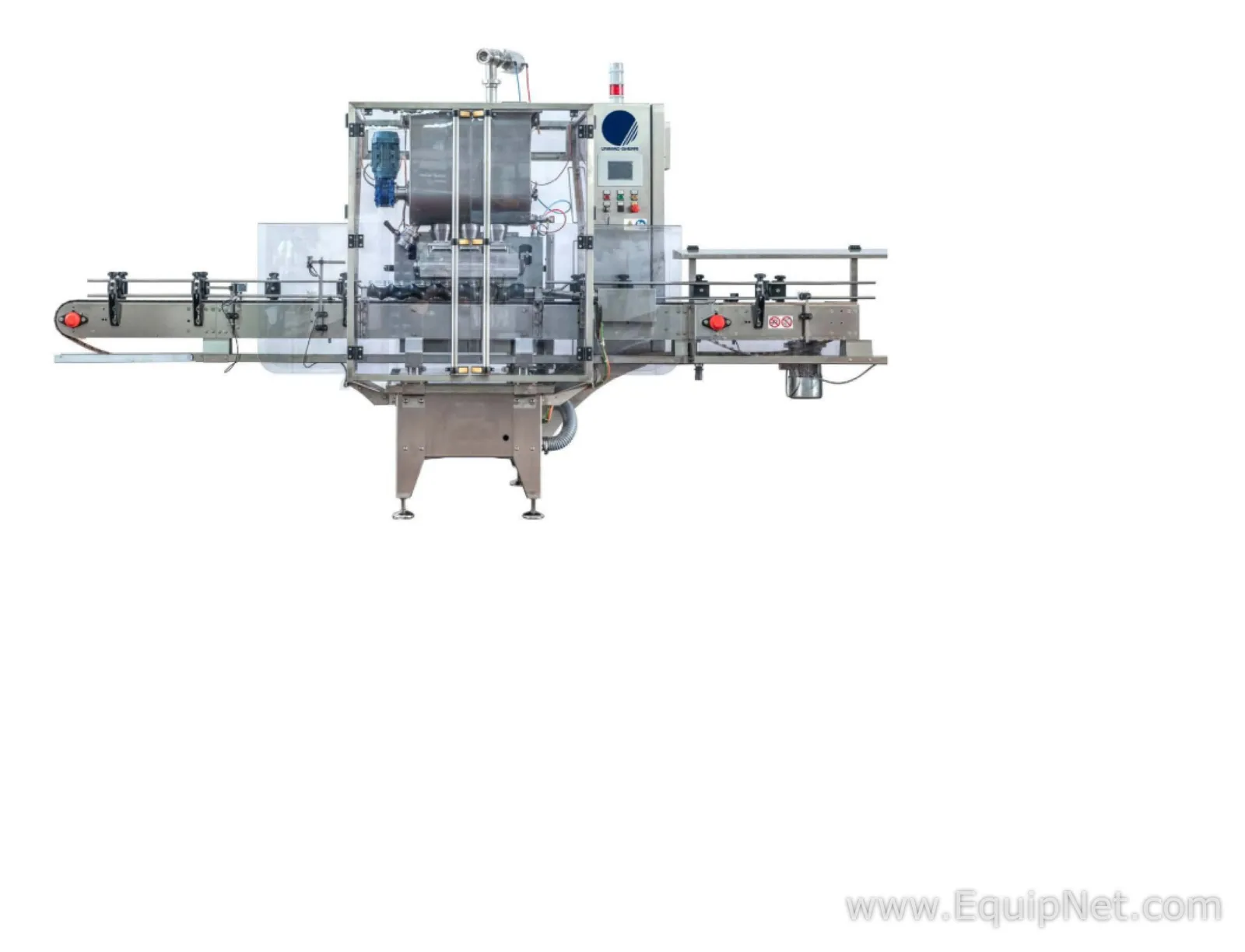

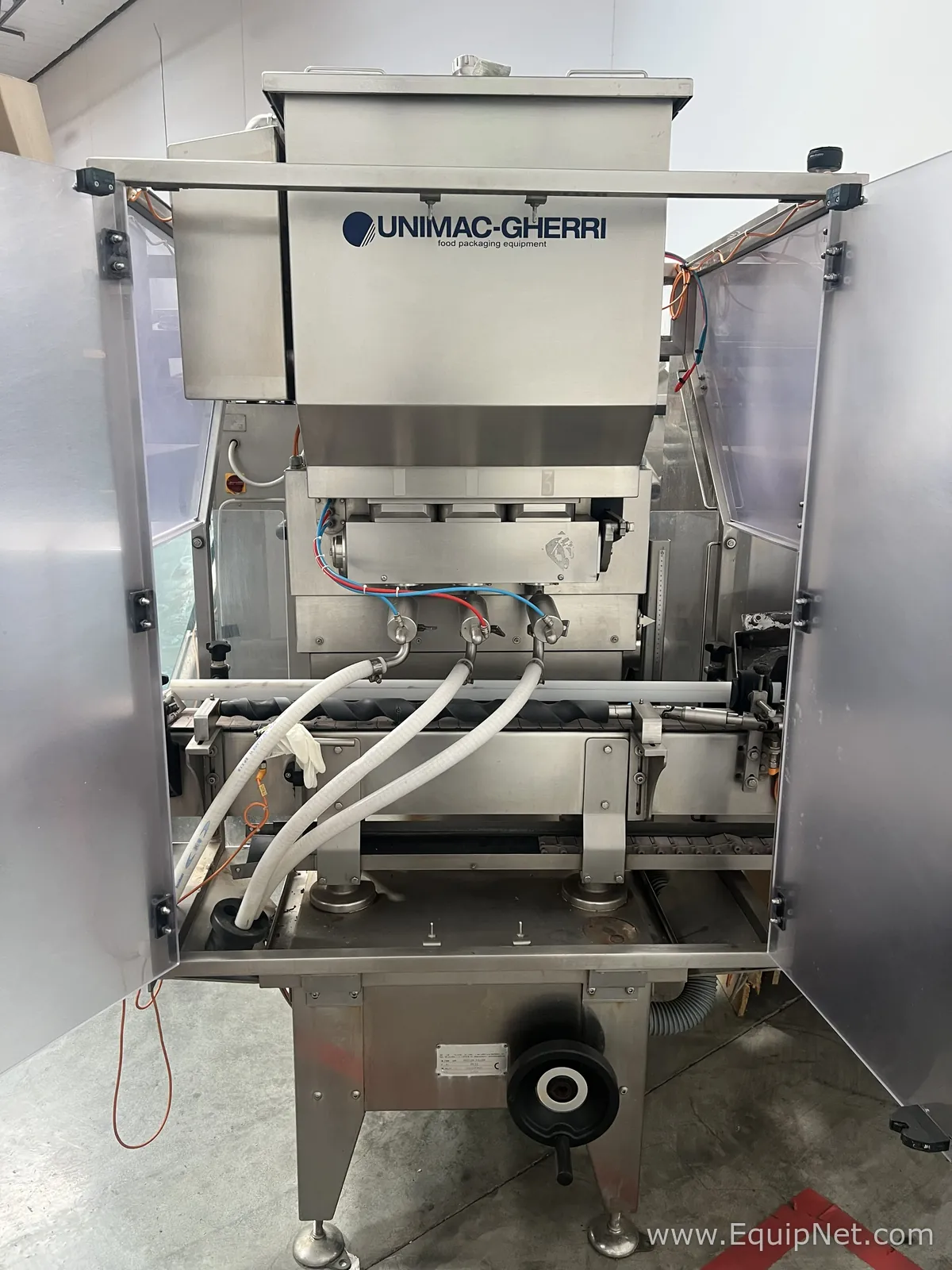

Unimac/Gherri LINEAR PISTON FILLER MOD. PF3T Filler

Also Have Capping Machine GG100 and Cap Feeder GG700 Priced and Listed Separately Highly reliable machine, suitable for filling dense and semi-dense products such as cream, mousse, yogurt, jam, tomato paste, ketchup, meat or vegetable-based sauces, baby-food, paté, etc. Max. Production: 5500 cph with 300 g jar The machine consists of: - Extremely compact, functional stainless steel base frame, which can be easily cleaned and integrated in existing lines - Motorised height-adjustment controlled by encoder, complete with supporting columns - Upper machine head (cylinder and pistons unit, slide and motorisation) contained in a stainless steel case, which can be easily opened for maintenance operations - Piston/cylinder filling unit for jars/bottles/cans - Dosing adjustment with brushless motor LENZE and storage of positions in recipes. - Dosing unit with different nozzles (with passage up to 25mm) pneumatic opening and closing - Product hopper – capacity 90 litres – with 2-way product inlet valve with spray balls - Product level probe - Motorised conveyor belt in polyacetal resin, width 114.1mm, length 3500mm, with gear motor controlled by frequency converter - Worm screw with LENZE brushless motor and electronic adjustment of container movement, including: ▪ mechanical components ▪ motorisation with brushless motor ▪ electric control ▪ protection - Photocell to detect lack of containers at infeed, counting photocell, overaccumulation photocell at outfeed - Stainless steel electric control box, with 6” Touch-Screen and PLC for control - Safety guards complying with CE regulations - Semi-automatic hopper washing cycle with water to waste - Parts in contact with product made of AISI 316 stainless steel or special material suitable for the food industry Including: - Double piston/cylinder filling unit suitable for jars/bottles/cans with capacity from 20 to 1100 ml (single- serving) - PLC ALLEN BRADLEY - UL MATERIALS Construction materials used for the parts in contact with product: Hopper AISI 316 stainless steel cylinders AISI 316 stainless steel pistons AISI 316 stainless steel with seals suitable for the food industry valve body AISI 316 stainless steel nozzle special material (suitable for the food industry). Advantages - Memorization of parameters and recipes - Easy cleaning and high sanitation level - Simple use and ergonomic controls - Flexible product change and quick format change-over adjustments Technical data:  Jar diameter : 40 ÷ 120 mm  Jar height: . 40 ÷ 270 mm  Dosing capacity: : 100 ÷ 1050 ml  Filling accuracy : ± 0.5% (reference value with 300gr size and homogeneous product)  Installed electric power 1,5 kW – 5 kW  Air consumption: : 50 Nl / min  Water consumption : 150 litres/h on cleaning  Overall dimensions : 3500 x 1500 x H = 2000 mm  Net Weight: : 600 kg
