DESCRIPTION:

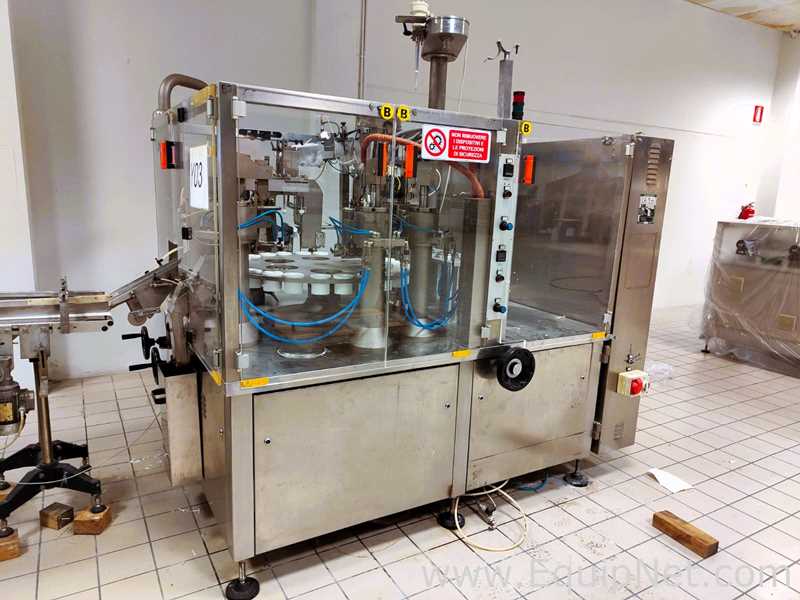

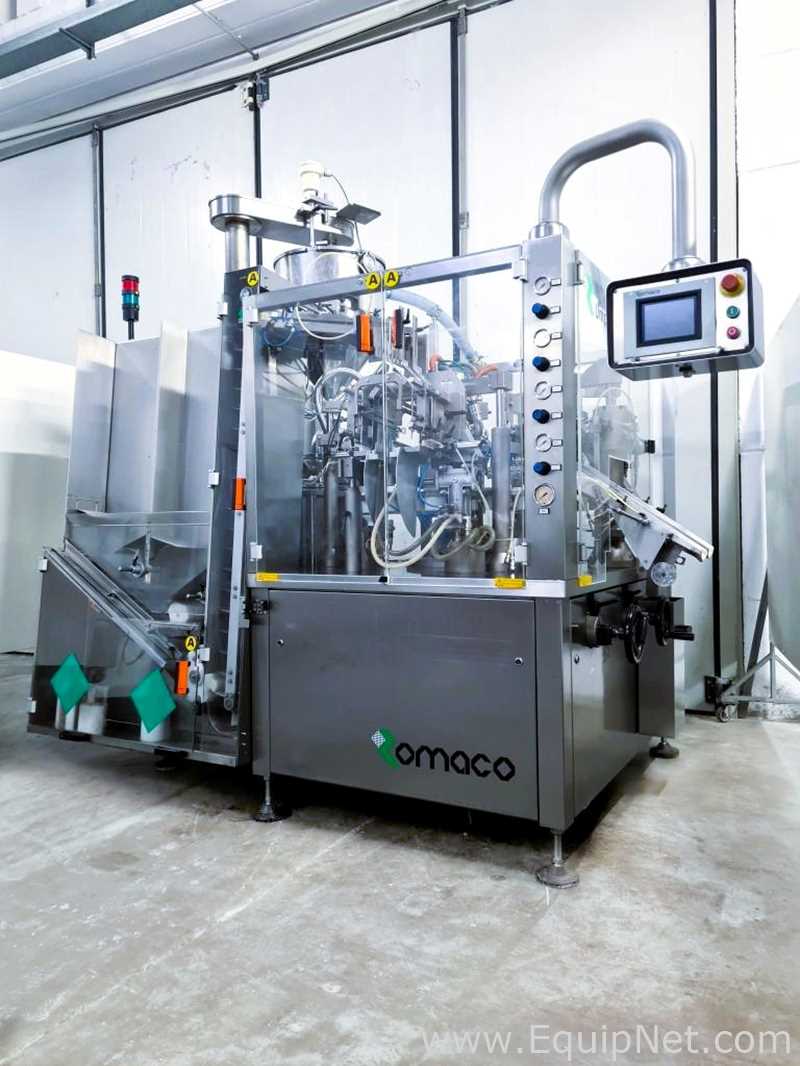

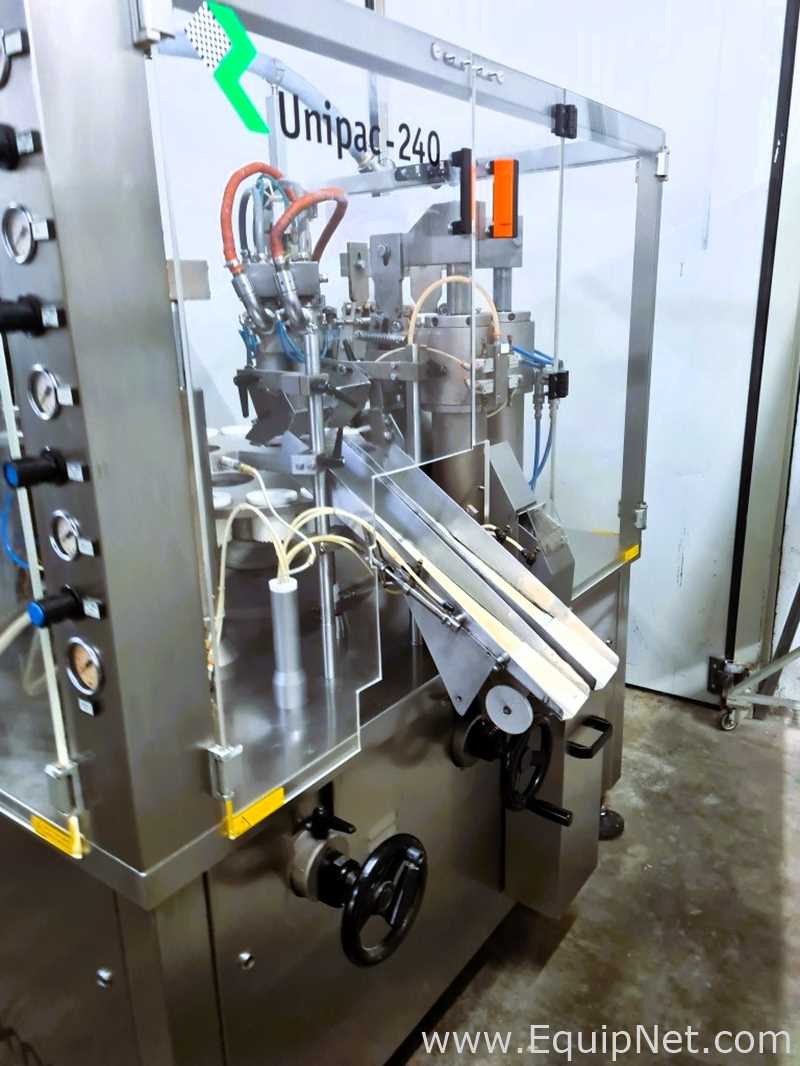

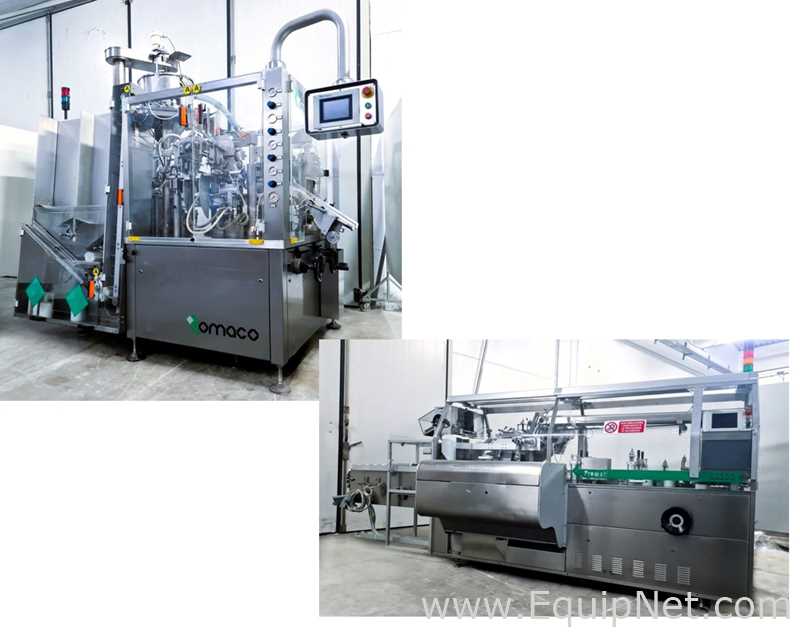

This is a linear automatic filling and closing machine for plastic tubes. The construction principles, materials used and innovative concepts guarantee maximum productivity, user friendliness and quality, making this machine an ideal solution for the pharmaceutical and the cosmetic market.

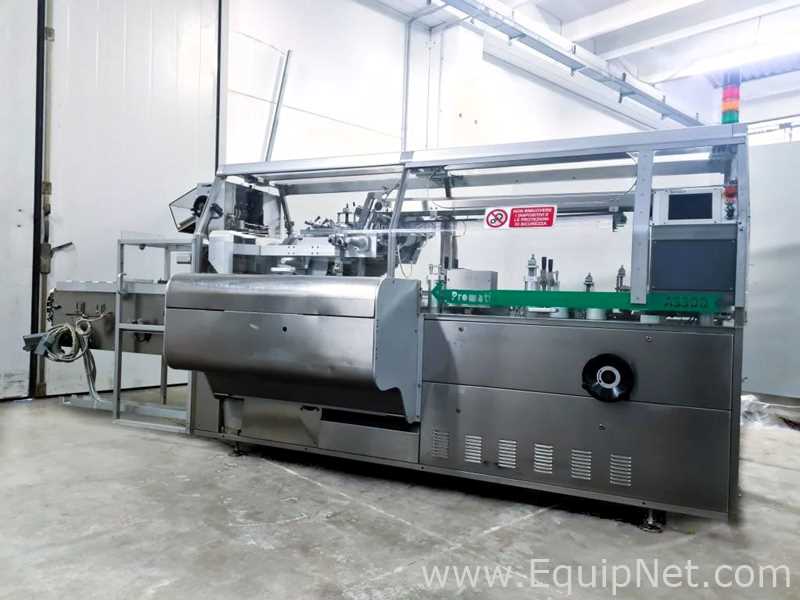

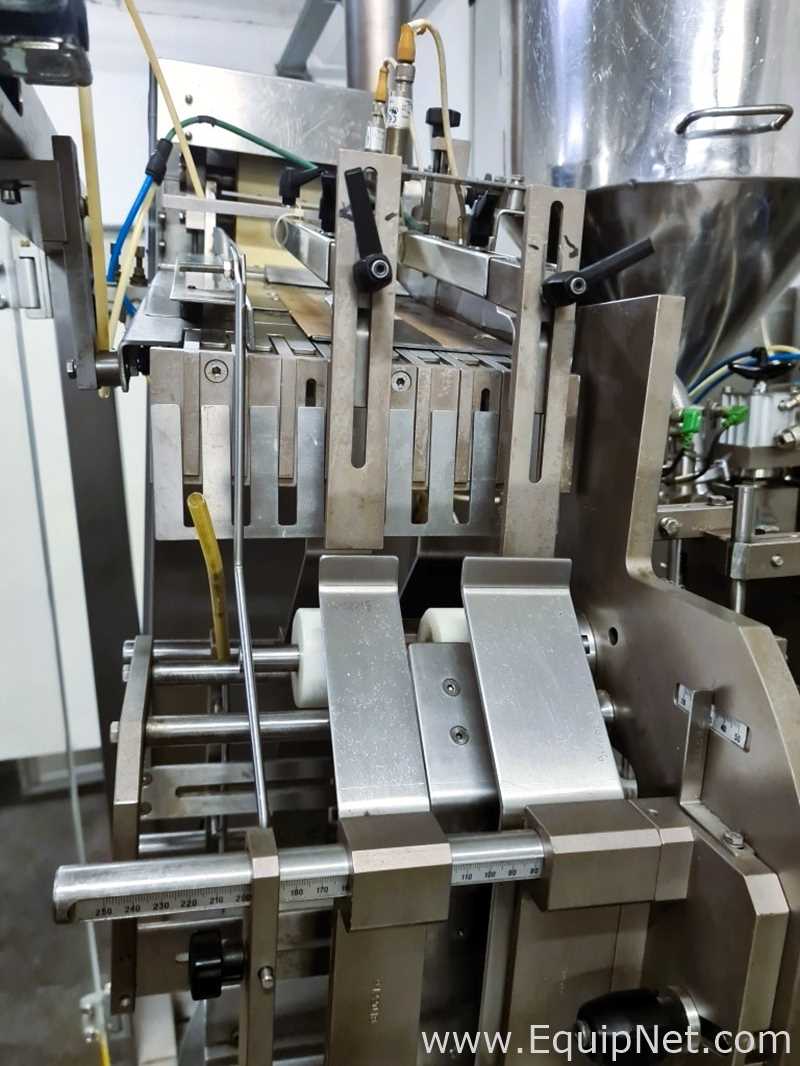

Automatic Horizontal Cartoner Promatic mod. AS 300 totally automatic machine, glazed stainless steel base. Simple and quick format change by adjustments; all format adjustment devices are equipped with metric scales.

SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.

MAIN FEATURES:

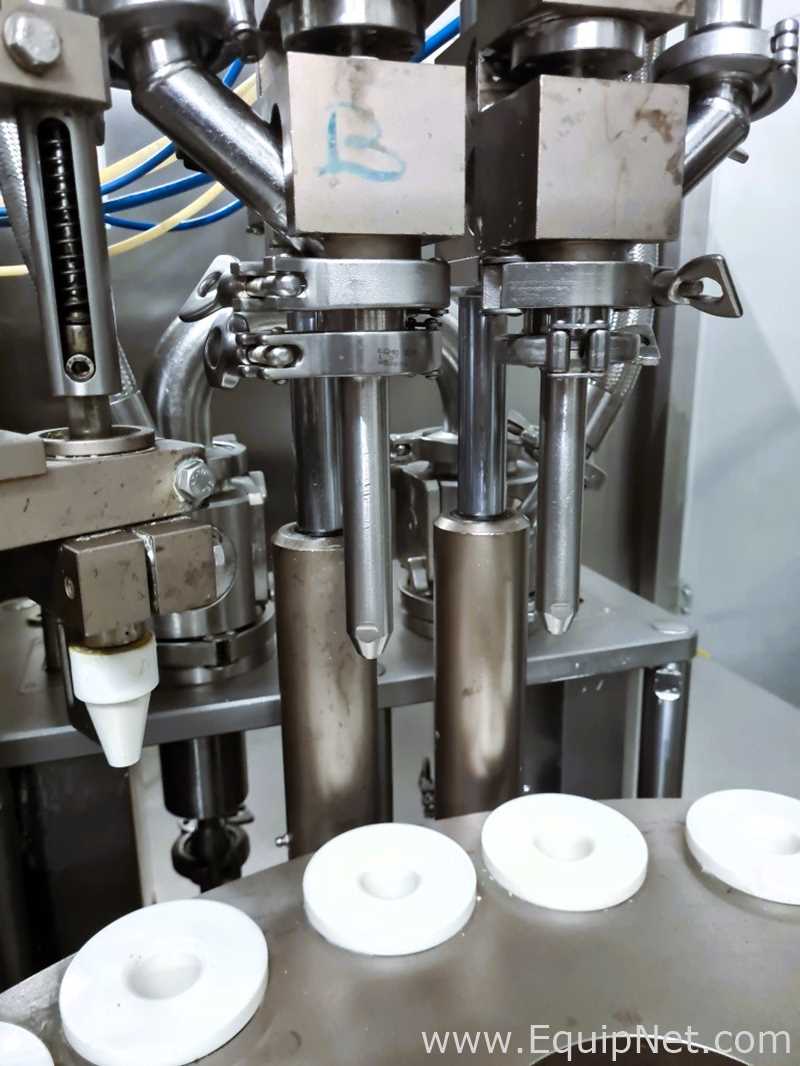

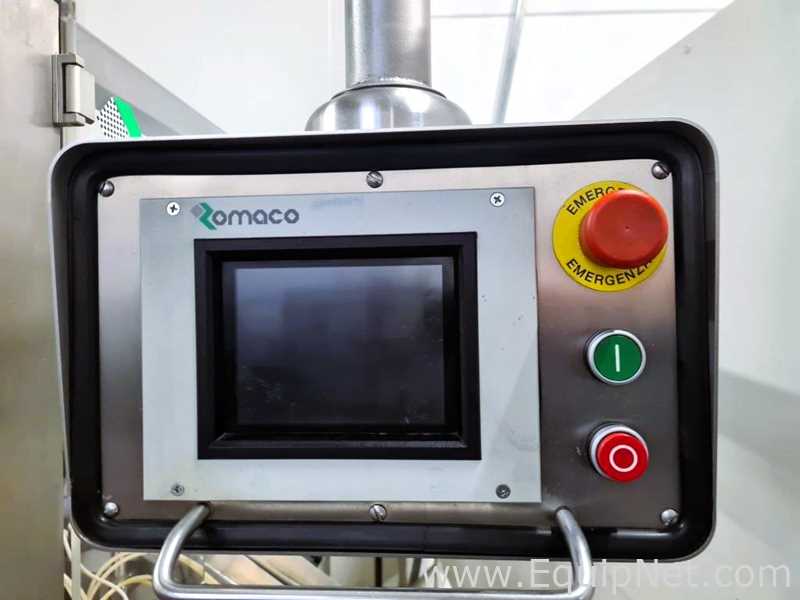

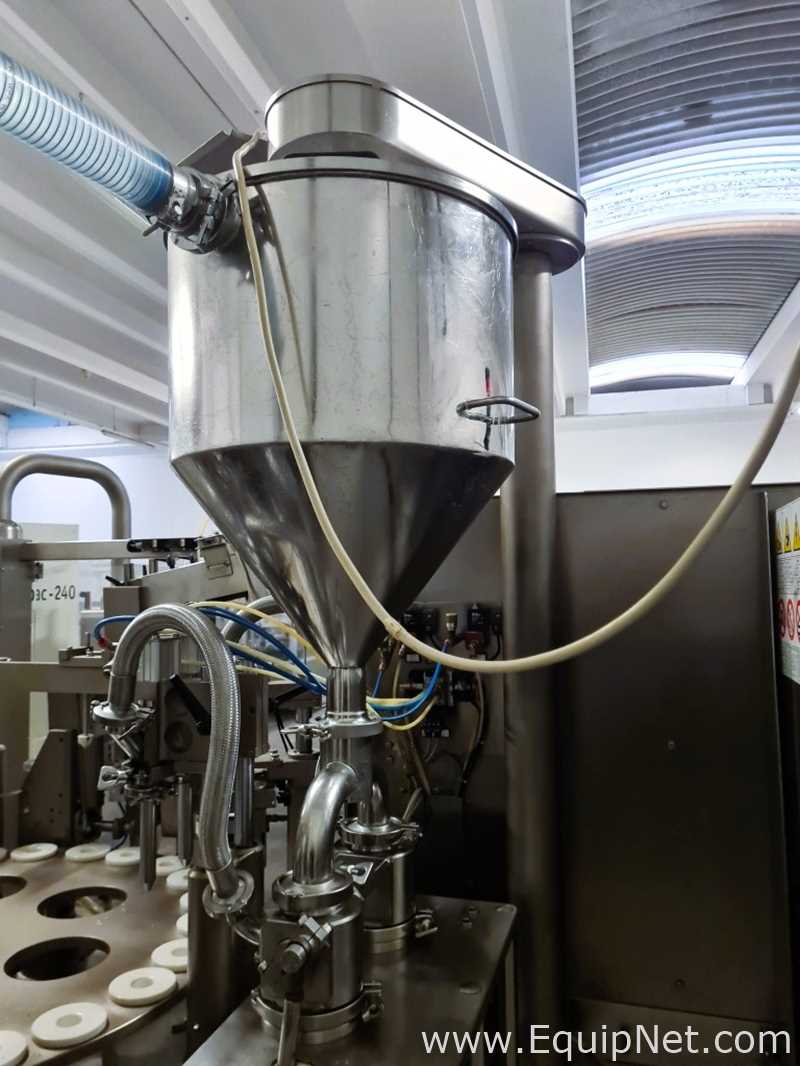

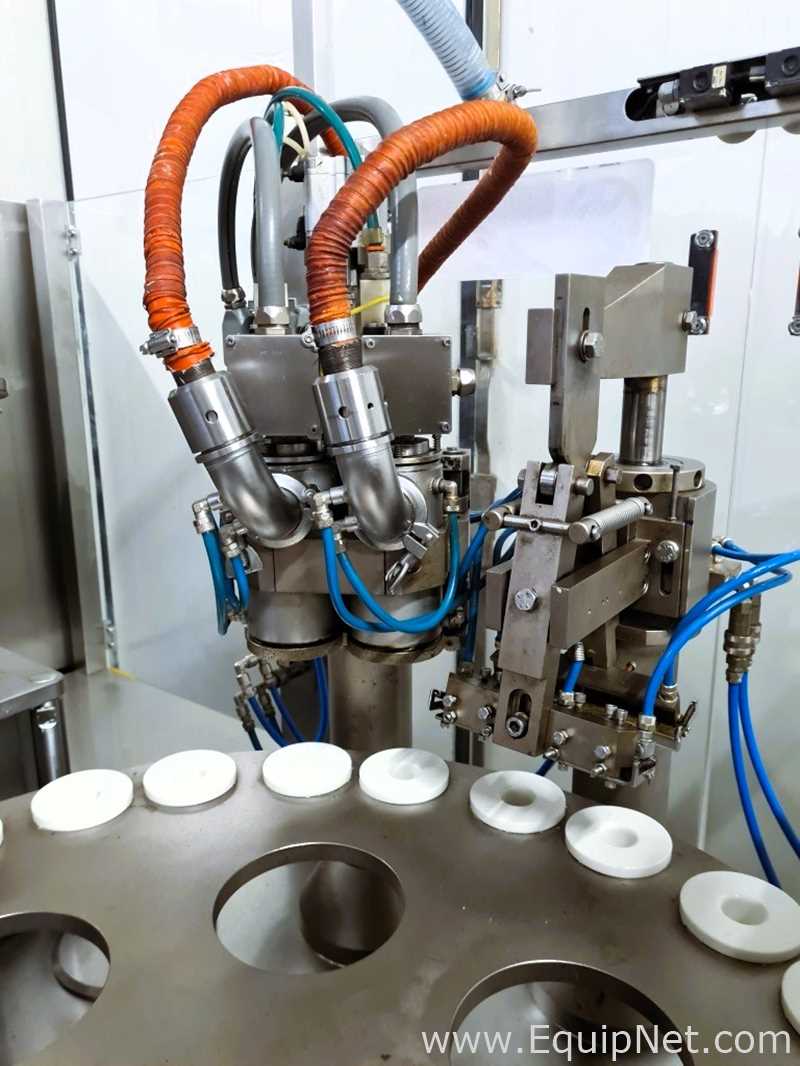

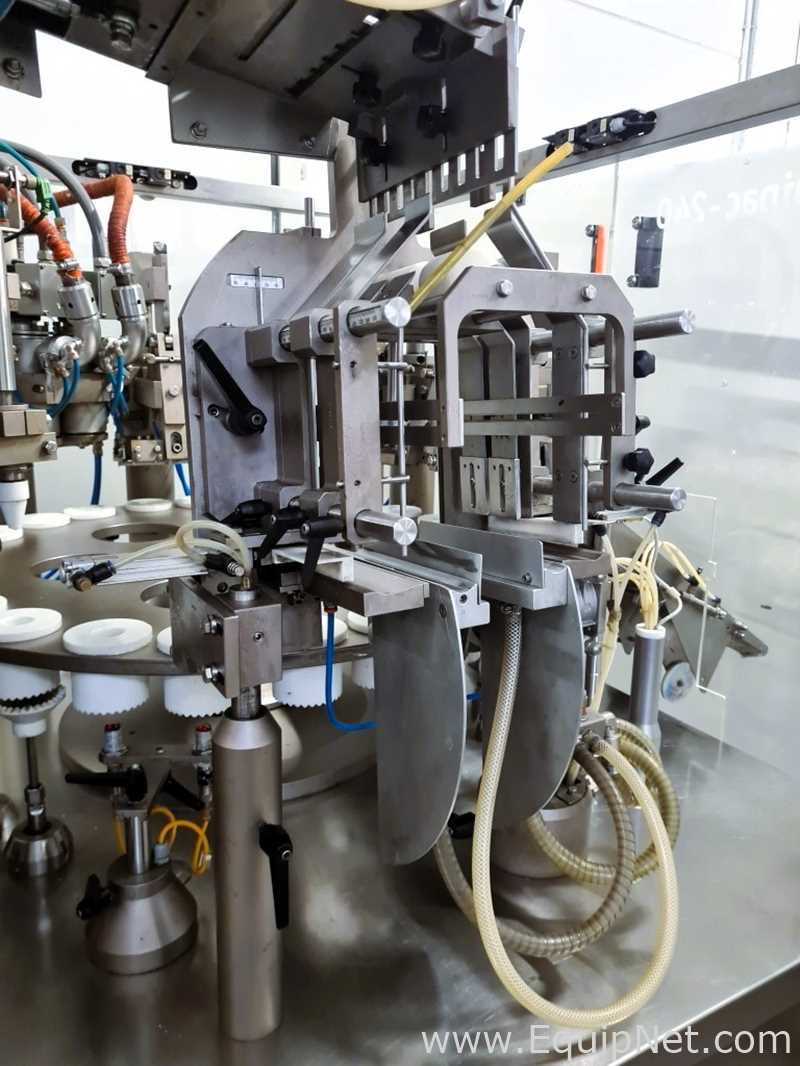

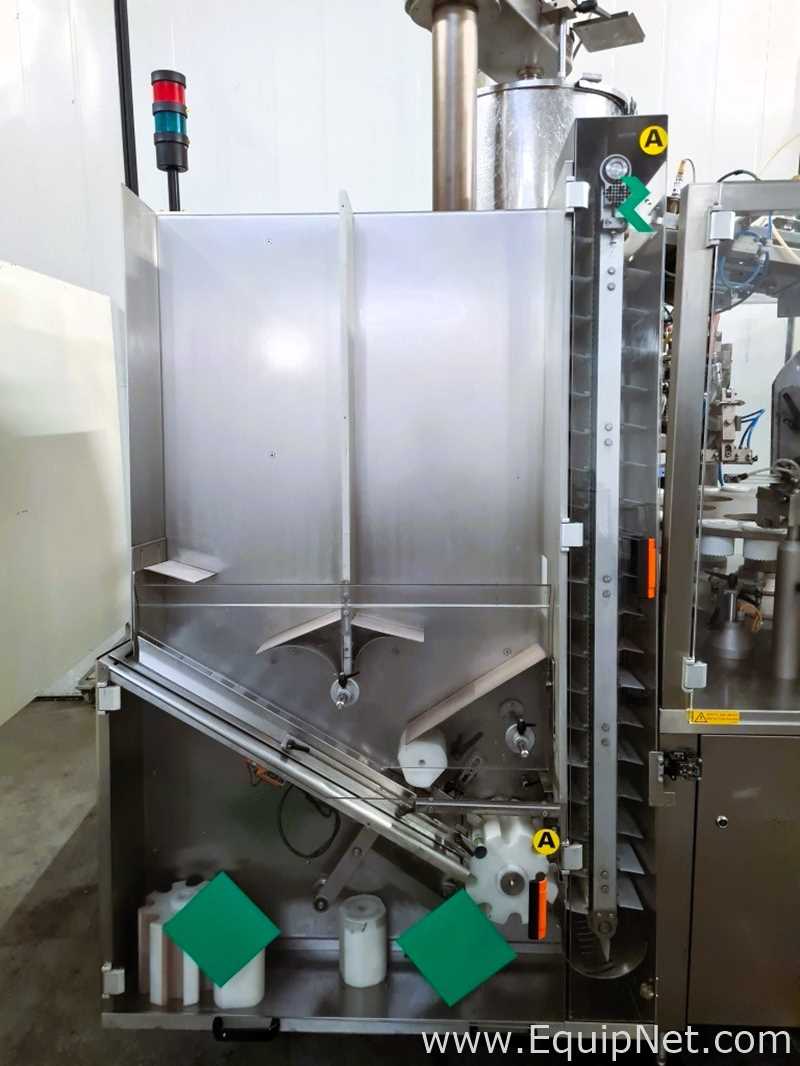

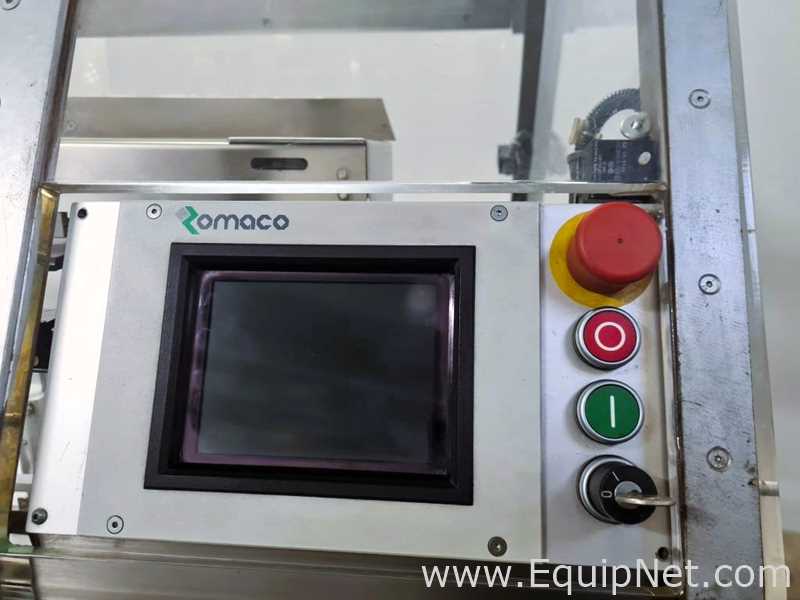

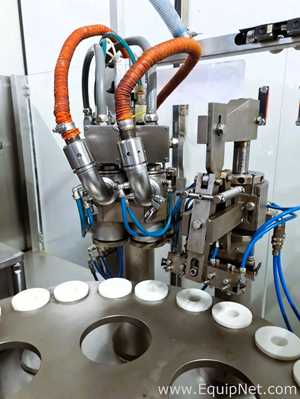

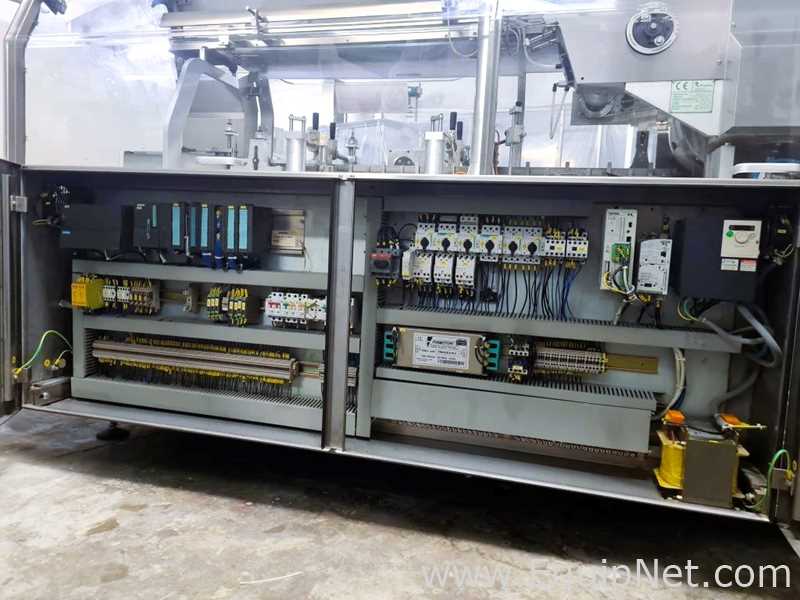

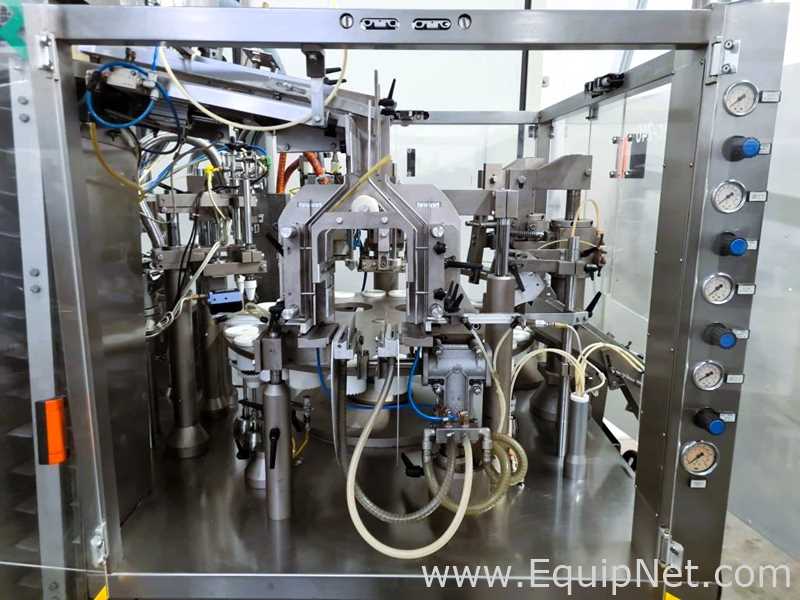

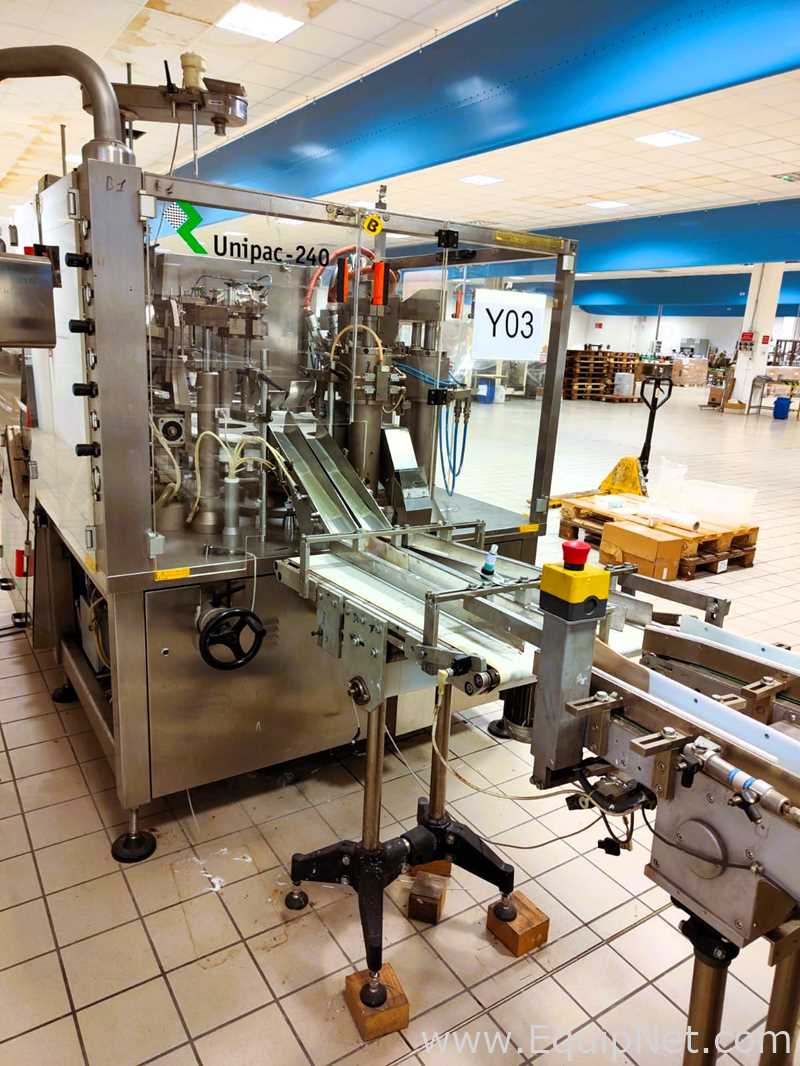

The tube filling machine is furnished with sealing device by hot air. Easy to use with fast size changeover without tools. Quick interchangeability of closing groups. Tube orientation and guarding with interlocks. Stainless steel construction, integrated tube feeder, tube orientation, setup for single filling station, stainless steel product hopper, electrical panel with controls. Two filling heads. An additional feeder format is available for 100 ml tubes.

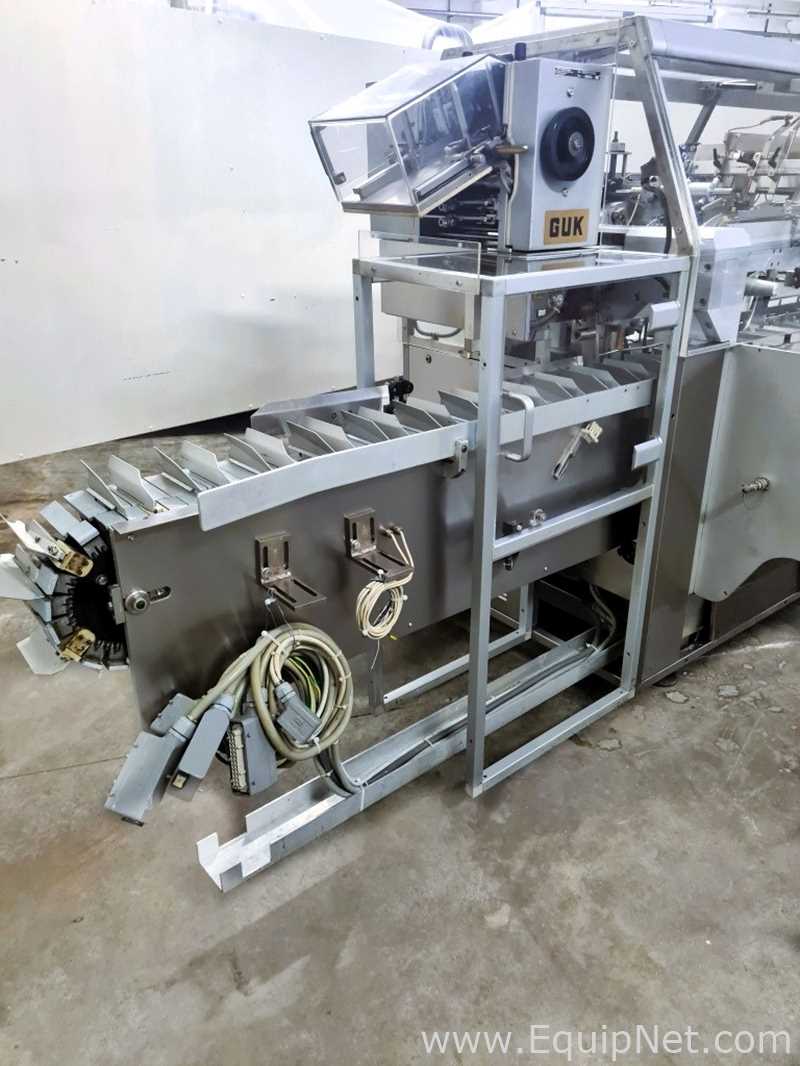

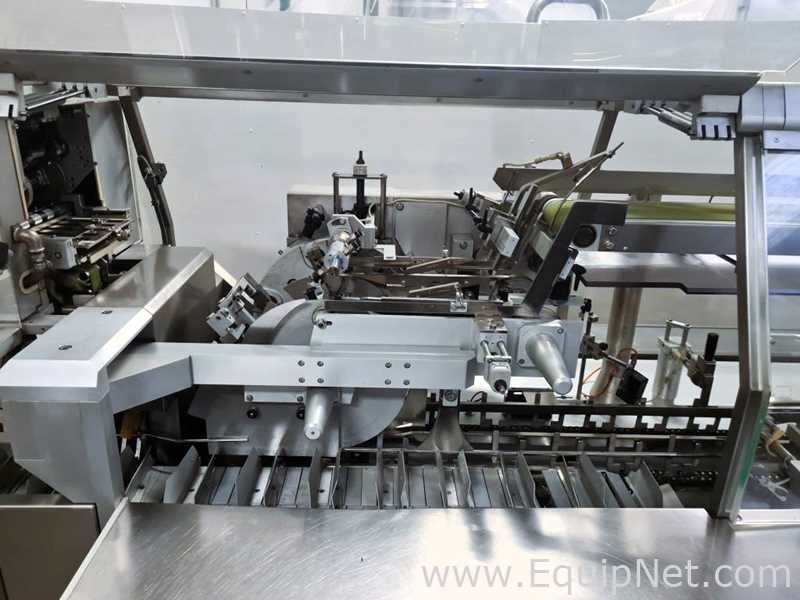

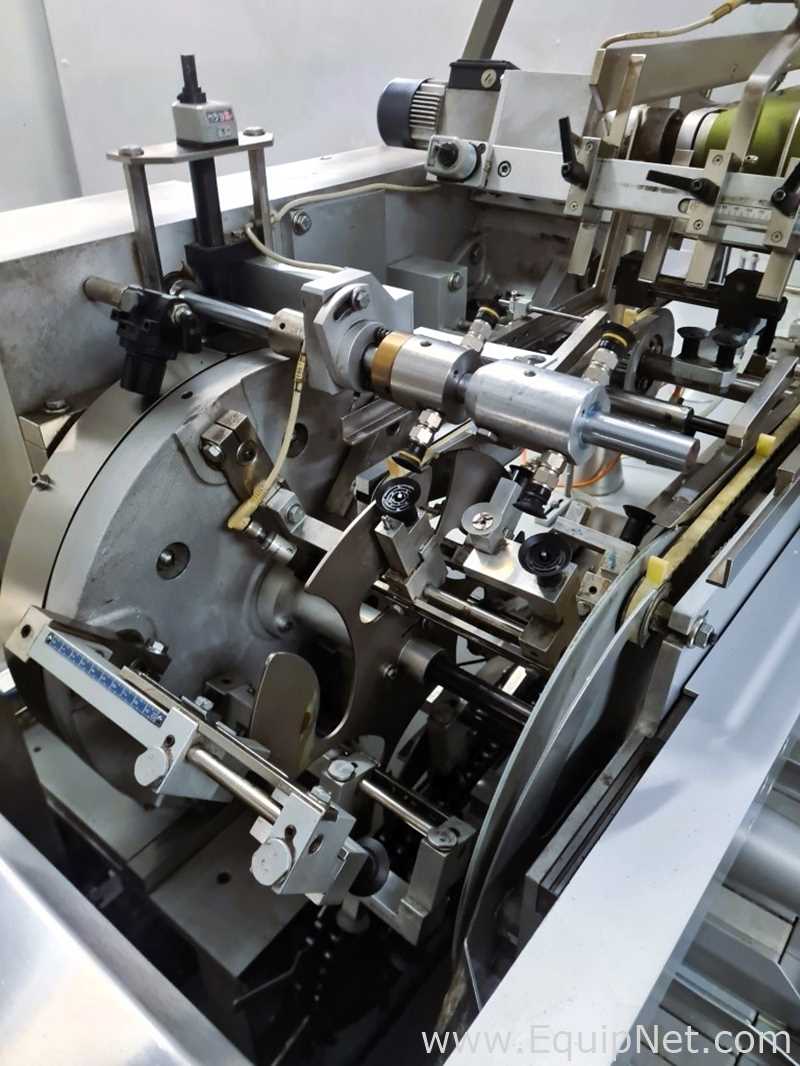

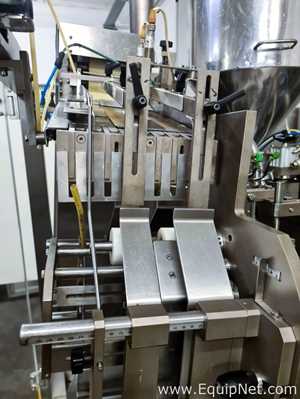

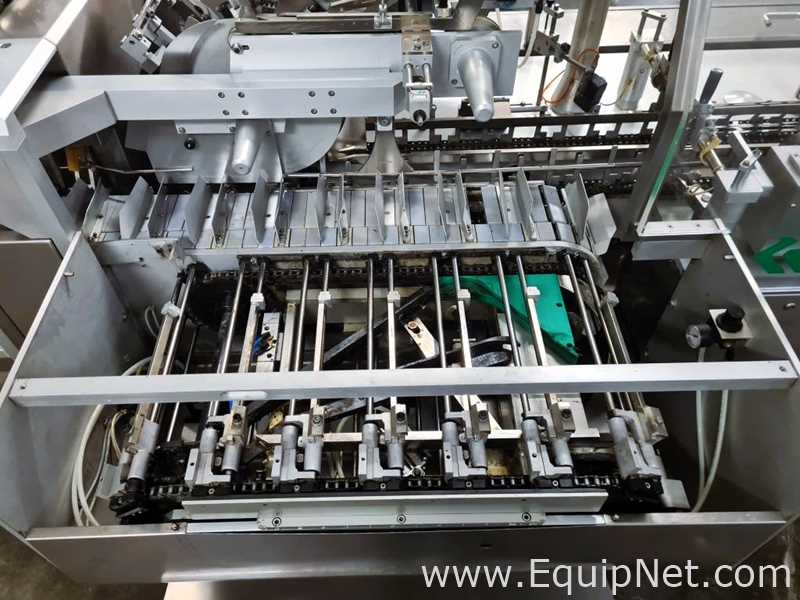

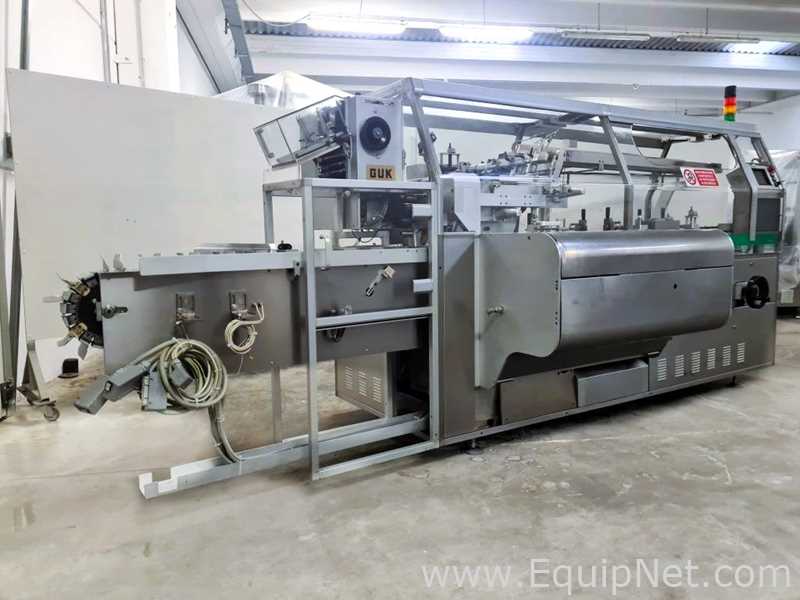

The cartoner machine takes the carton from the magazine by means of suction cups, delivering the carton into erected position at the same time. The product placed on the product chains is transported to the insertion station, which inserts the product into carton with the leaflet. The carton transport continues upper completing embossing, closing of the various flaps and the carton is discharged. The machine is complete with GUK leaflet feeder, consisting of a unit able to carry out the folding of the instructions leaflet before the introduction into the cartons. Last product processed: 25 x 180 mm tubes. Tube loader available.

Year: 2000

TECHNICAL DATA TUBE FILLER
Dimensions mm 2830 x 1700 x 2600
Weight kg 2000
Frequency Hz 50
Voltage Volt 380
Power Kw 23
Current tube format, diam. x H mm 29 x 80
Current tube format ml 75
Output max. Tubes/min. 200

TECHNICAL DATA CARTONER
Dimensions mm 4240 x 1750 x 2000
Weight kg 3000
Carton width min-max mm 25-100
Carton height min-max mm 12-70
Carton length min-max mm 65-200
Production speed max. cartons/mm 280
Voltage Volt 380
Frequency Hz 50
Power Kw 6
