Listing# 1104428
Universal Laser Systems ILS 12.75 CO2 Laser Engraving and Cutting System
Seller's Acceptable Currency:
$35,000.00 USD
Make An OfferLocation: AZ, USA
Level of Removal: Already Crated
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Asset Documents
Equipment Description

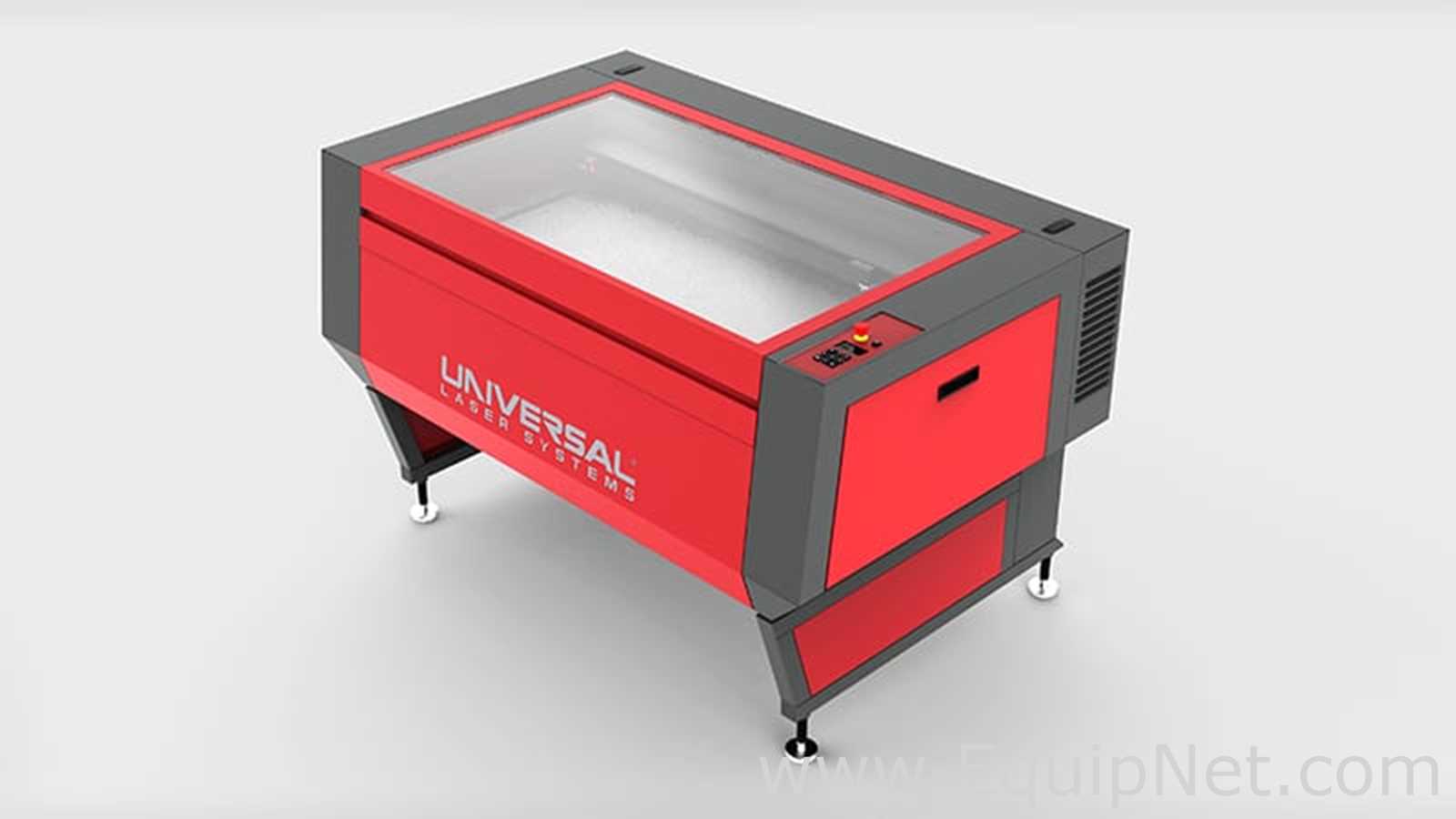

Universal Laser Systems ILS 12.75 CO2 Laser Engraving and Cutting System
Large ILS platforms designed for high productivity and large objects
Work areas up to twice the size of PLS or VLS platforms
Patented Class 4 material pass-through for processing unlimited-length items
Suitable for standalone production or integration into automated assembly lines
Universal Control Panel (UCP) with integrated materials database
Automatic optimization of processing settings by material type and thickness
Rapid Reconfiguration allows quick laser source changes without tools
Modular platform supports multiple laser wattage options
Patented metal core, air-cooled, free-space slab CO2 laser sources
Even power distribution and long laser life
Dual laser configuration increases speed, edge quality, and power
Dual lasers optically combined into a single beam
High Power Density Focusing Optics for smallest spot size and fine detail
1-Touch Laser Photo software for photographic engraving
Class 4 conversion enables safe processing of unlimited-length materials
SuperSpeed enables faster raster processing with dual lasers
Vector cutting benefits from combined laser power
Compatible with any Windows-based software with print function
Supports multi-material processing
Supports cutting, engraving, marking, and photo imaging
Non-contact material processing
On-demand production without hard tooling
Includes compressor (small box)
Specifications:
Work surface area: 48 × 24 in (1219 × 610 mm)
Maximum part size: 36 × 24 in (914 × 610 mm)
System dimensions: 52.5 × 30 × 12 in (1334 × 762 × 305 mm)
Cabinet dimensions: 69 × 44 × 46 in (1753 × 1118 × 1168 mm)
Laser power options: 10, 25, 30, 40, 50, 60, 75 W
Maximum laser power: Up to 150 W with dual lasers
Dual laser configuration: Available
Focus lenses: 2.0, 3.0, HPDFO™
Motorized Z-axis lifting capacity: 60 lbs (27 kg)
Rotary capacity: Max diameter 10.25 in (260 mm)
Control panel: Keypad and LCD display
Computer requirement: Dedicated PC, Windows 7/8/10, USB 2.0+
Exhaust connection: Two 4 in (102 mm) ports
Power requirements: 220–240 V / 10 A (1 laser), 16 A (2 lasers)
Safety enclosure: CDRH Class 1 for CO2 laser
Added information:
Used in R&D environment for cutting nylon laminate materials for soft goods

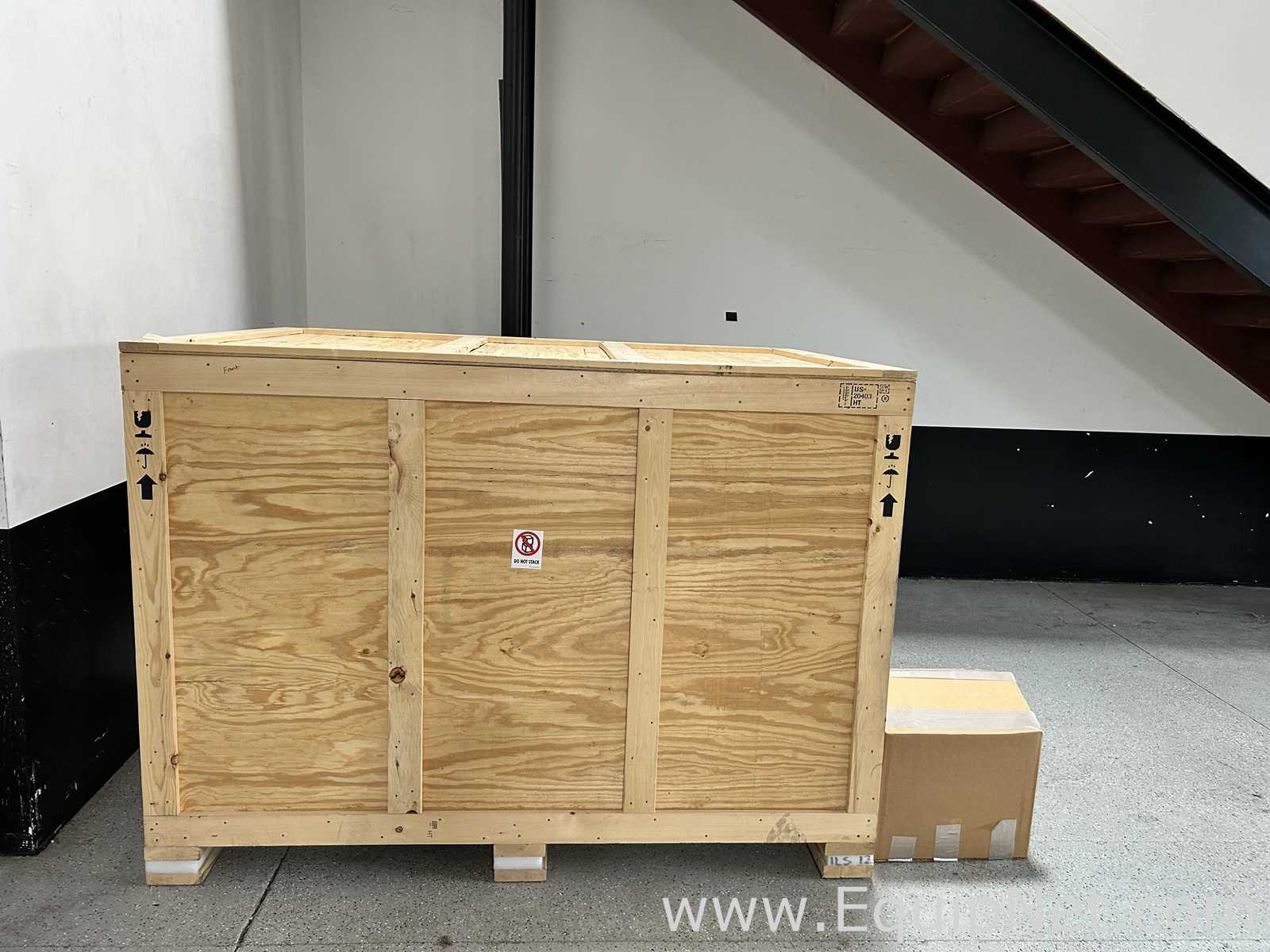

Final service performed by Universal Laser Systems prior to crating; system professionally crated and sealed, with full service records maintained
Purchased in 2020
Specifications:
Added information:
Specifications:
Standard
Metric
Manufacturer Name
Universal Laser Systems
CE Marked:
YES
YES
Model:
ILS 12.75
ILS 12.75
Recommended Packaging Form:
CRATE
CRATE
Dimensions:
Standard
Metric
See all item dimensions
Item #1:
76 x 54.00 x 55.50 IN - 0.00 LBS
76.00 x 54.00 x 55.50 IN - 430.00 LBS
Item #2:
19 x 18.00 x 16.00 IN - 0.00 LBS
19.00 x 18.00 x 16.00 IN - 41.00 LBS
Overall:
95 x 54 x 56 IN - 471 LBS
2413.00 x 1371.60 x 1422.40 mm - 213.65 kg
