Listing# 1103987

Unused Yaskawa MV1000 Medium Voltage Drive and Motor

Download High Res Photos

Make an Inquiry

Seller's Acceptable Currency:

$440,000.00 USD

Make An Offer

Location: NY, USA

Level of Removal: Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Equipment Description

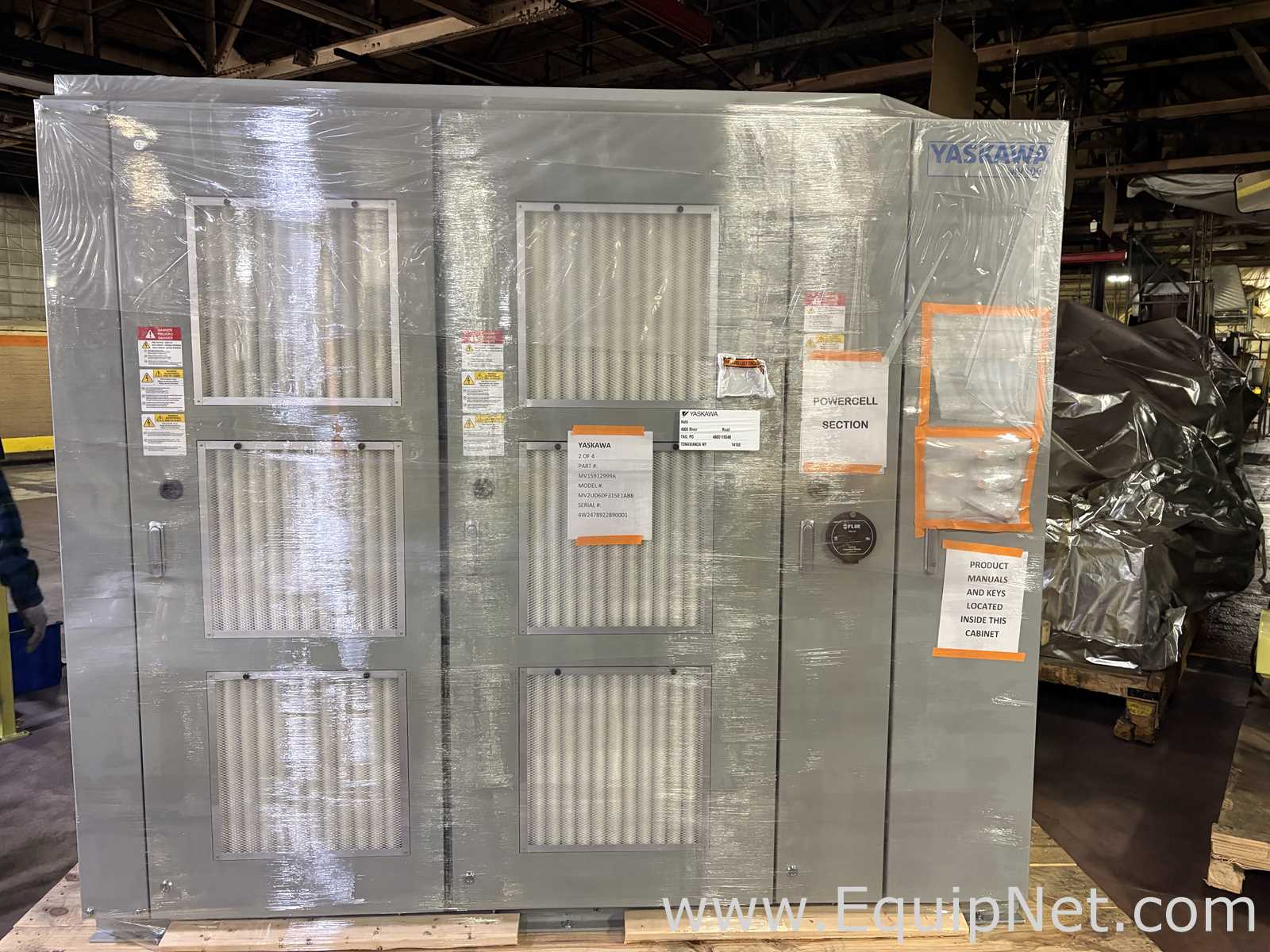

Unused Yaskawa MV1000 Medium Voltage Drive and Motor

Full electrical schematics available.

Key Specifications (MV1000):

Power: Integrated transformer (isolated winding, 36-pulse phase shifting), Diode (Multi-Pulse) rectifier.

Input: 4160V or 2400V ±10%/-20%, 60Hz ±5%, exceeds IEEE 519 harmonics.

Output: IGBT, 9-Level Line-to-Neutral (17-Level line-to-line), <4% THD.

Motor Compatibility: Standard induction motors, up to 1000m (3300 ft) lead length without filter.

Efficiency: 97%.

Power Factor: 0.95 or better (50-100% frequency).

Control: Open/Closed Loop Vector, V/f.

Enclosure: NEMA 1 (IP40), front access only, ANSI 61 Gray.

Operating Temp: -5°C to 40°C (up to 50°C with derating).

Overload: 110% for 1 min, 120% for 15 sec.

Additional protections and features as per full spec sheet (available).

Asking Price: $330,000
Minimum Price: $290,000

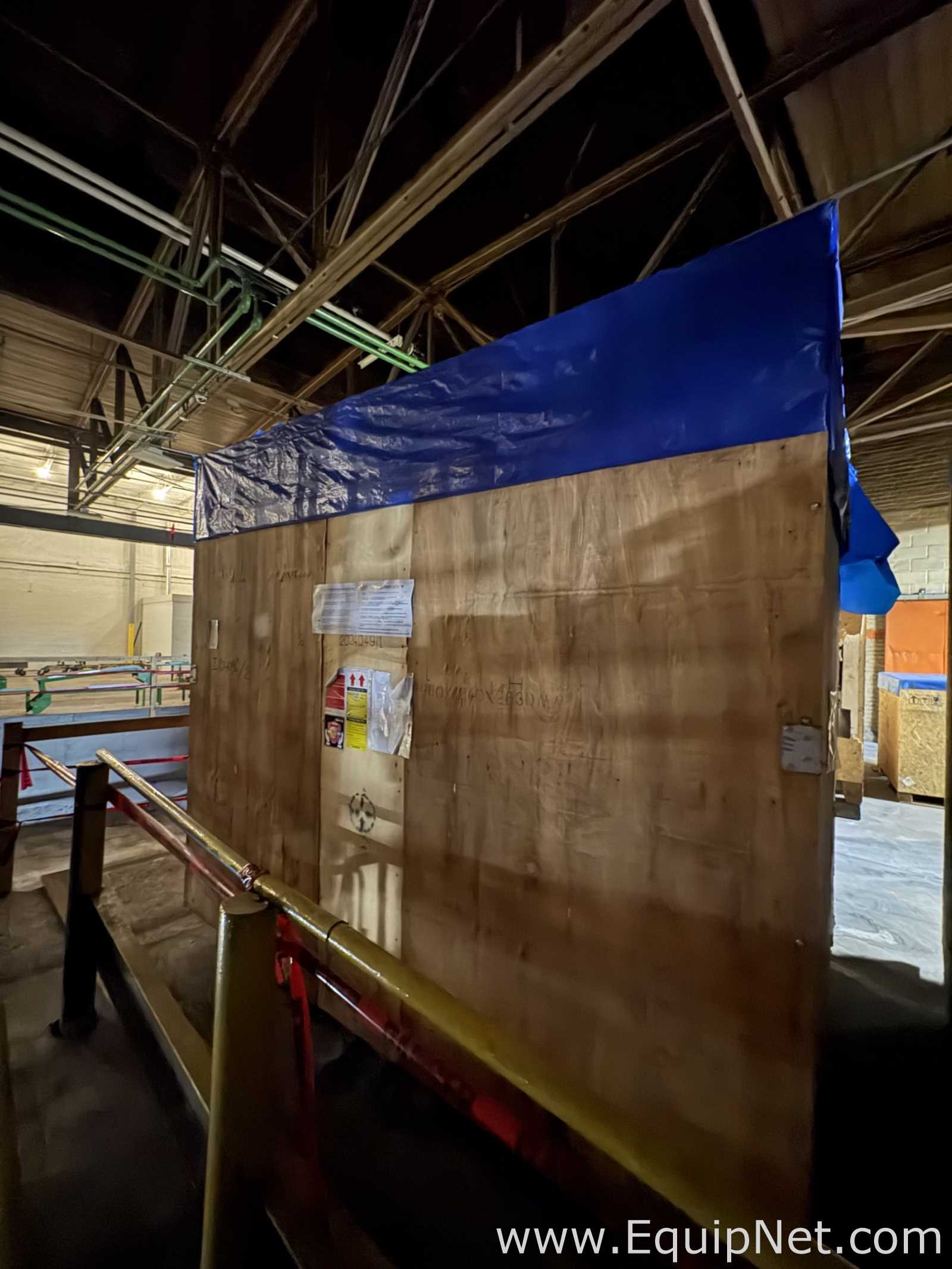

Brand New Motor (in box)
Asking Price: $110,000
Minimum Price: $95,000
Perfect for industrial applications requiring reliable medium voltage performance.

Specifications:

Standard

Metric

Manufacturer Name

Yaskawa

Model:

MV1000

HP Rating:

Recommended Packaging Form:

CUSTOM PALLET

Dimensions:

Standard

Metric

Overall:

72 x 50 x 95 IN - 5000 LBS

1828.80 x 1270.00 x 2413.00 mm - 2268.00 kg

Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

This equipment is subject to a removal and loading charge.

The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
