Equipment Description

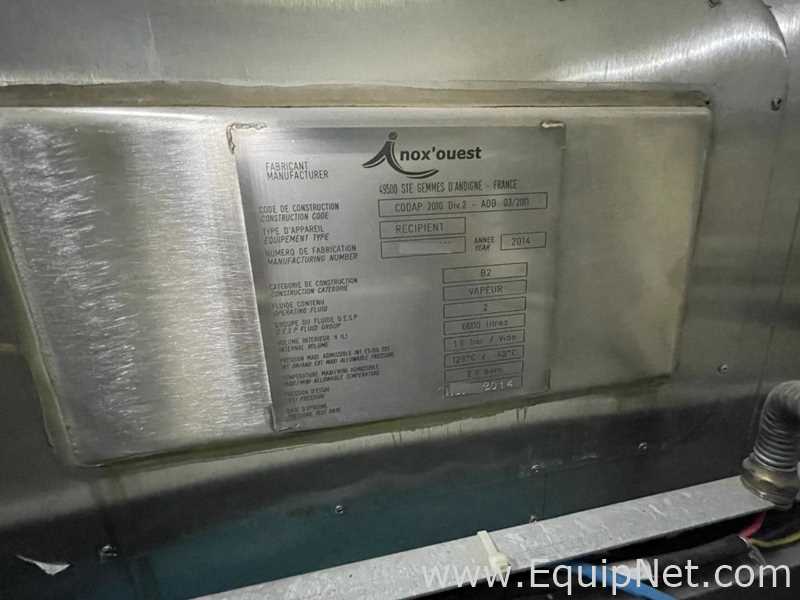

You are making an offer on an Usifroid (Inox'ouest) Reconditioned SMH 1715 Freeze Dryer located in India.

Usifroid (Inox'ouest) Reconditioned SMH 1715 Freeze Dryer

This machine purchased in 1990; has been reconditioned as new (both chamber and condenser have been replaced in 2014-2015 which are steam sterilisable) with the control system and SCADA updated accordingly in 2014-15.

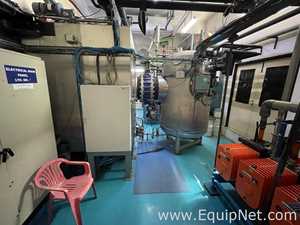

This equipment was in use till 2021, and is still installed in place.

The machine though not in operation at the moment, it is ready to start if needed.

Ice Condensing Capacity: 300 Kgs.

No. of Shelves (usable): 17 (usable).

Shelf Dimensions: 1000(W) x 1560(D) x 20 mm(thk).

Shelf MOC: SS 316 L.

Total Usable Area: 26.05 m²

Inner-shelf distance: 80 mm.

Vial Capacity (dia 16.5 mm x 40 mm / 50 mm height) and loading type: 93500 vials in trays to be loaded manually.

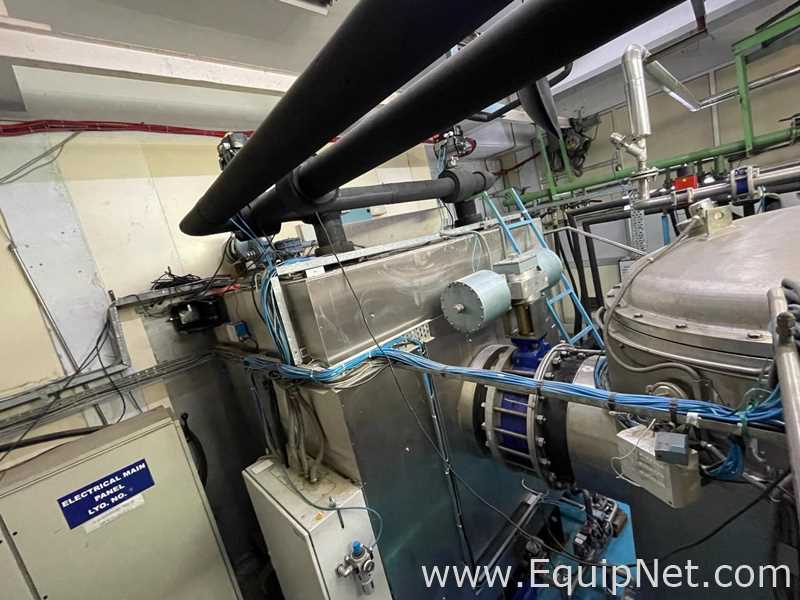

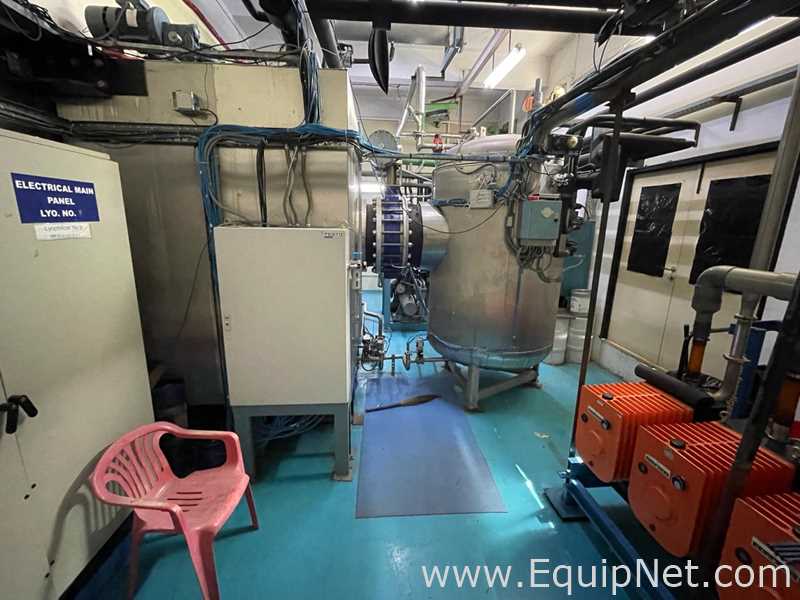

MOC of chamber & condenser:SS 316L, rectangular chamber & cylindrical condenser with butterfly type separating valve.

CIP/SIP: SIP.

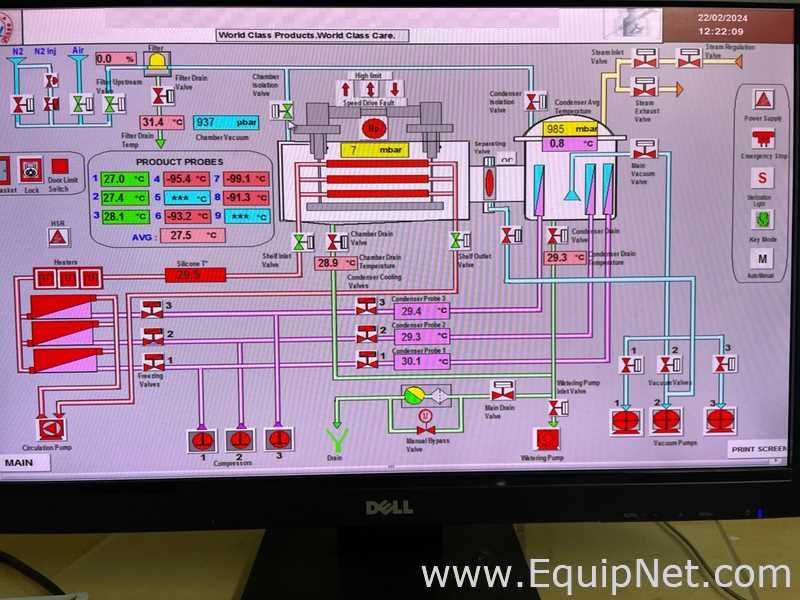

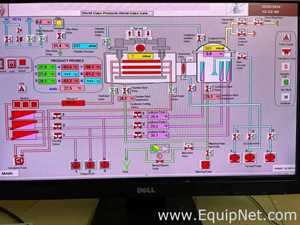

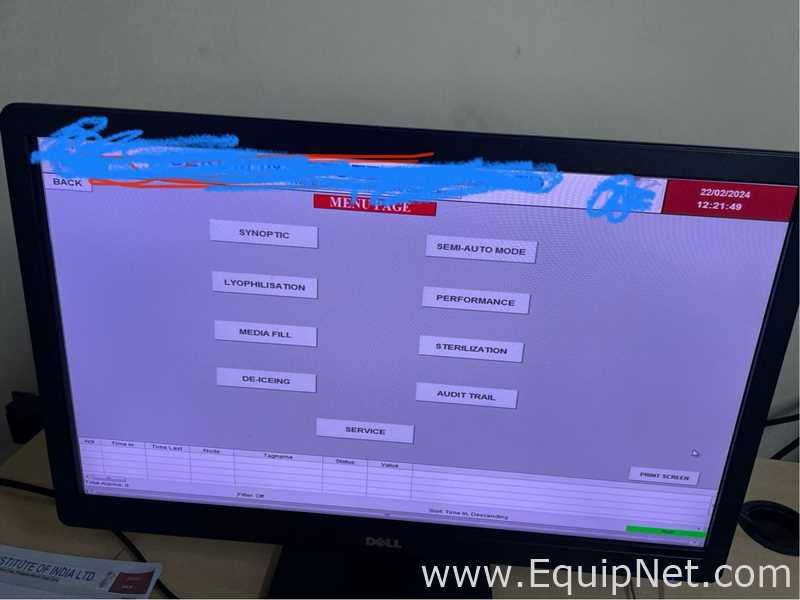

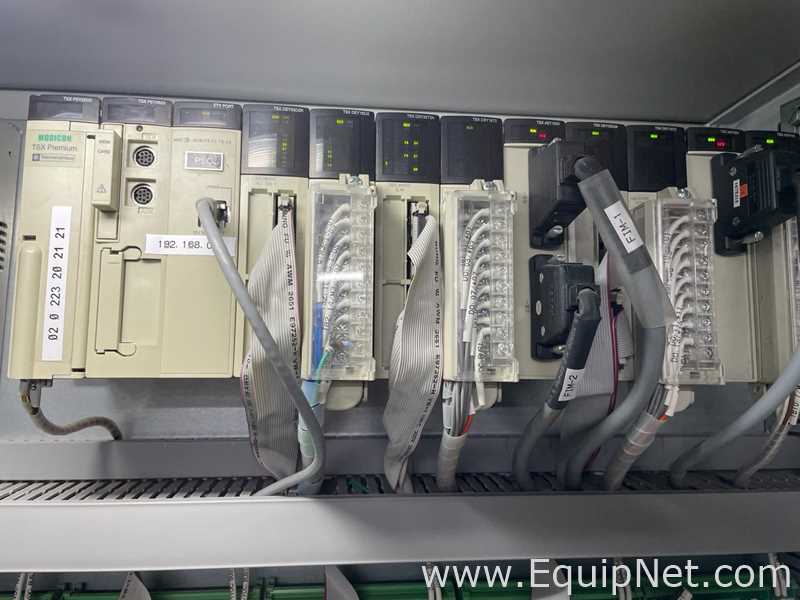

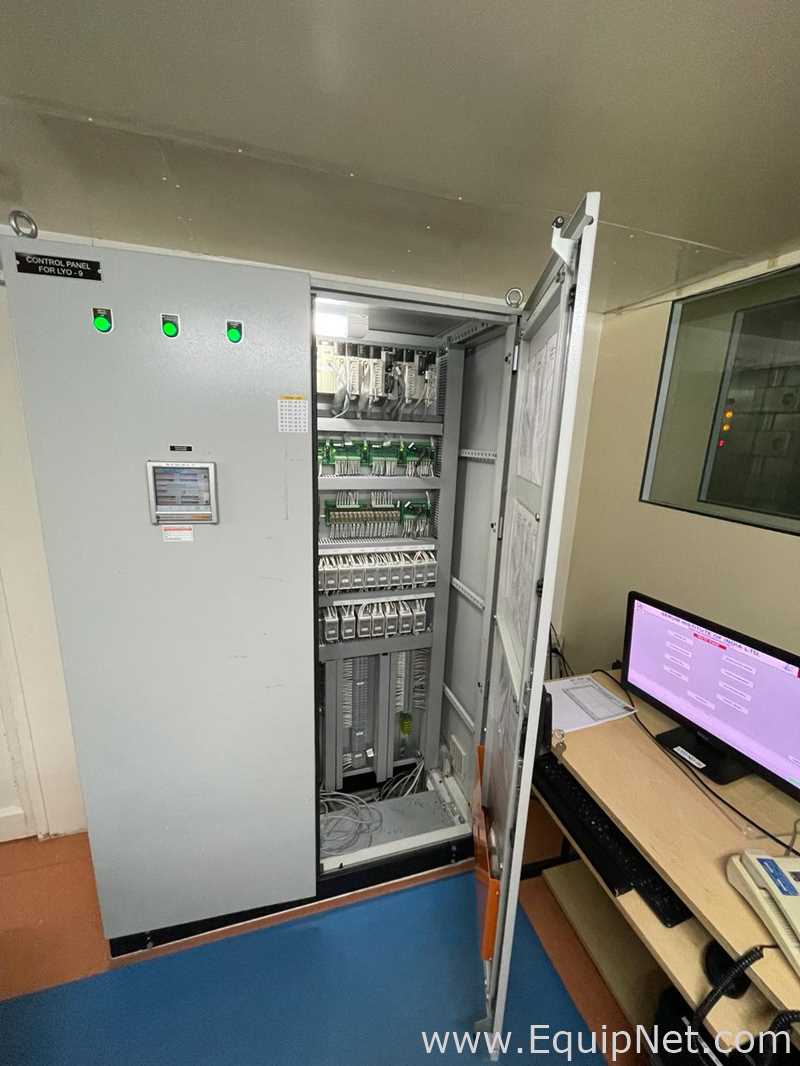

Control System: PLC: Schneider, Model: TSXP572623M; Control software: iFix5.8 GE Fanuc.

Type of Stoppering: Screw Stoppering.

Total weight: 20000 Kgs.

Back up monitoring: Eurotherm Paperless recorder.

Stoppering: Top Down screw Stoppering.

Condenser Maximum Low Temperature: -80C / MOC of Shelves: SS316 / Condenser Capacity: 180Kgs/24hrs / Cooling time to -400C: 20 Minutes.

Ultimate Vacuum: 15 micro bar (around 11.27 mTorr).

Pump down time to 100 micro bar: 45 mts.

Vacuum Sensor type: MKS 631 C.

Heater: 50kW.

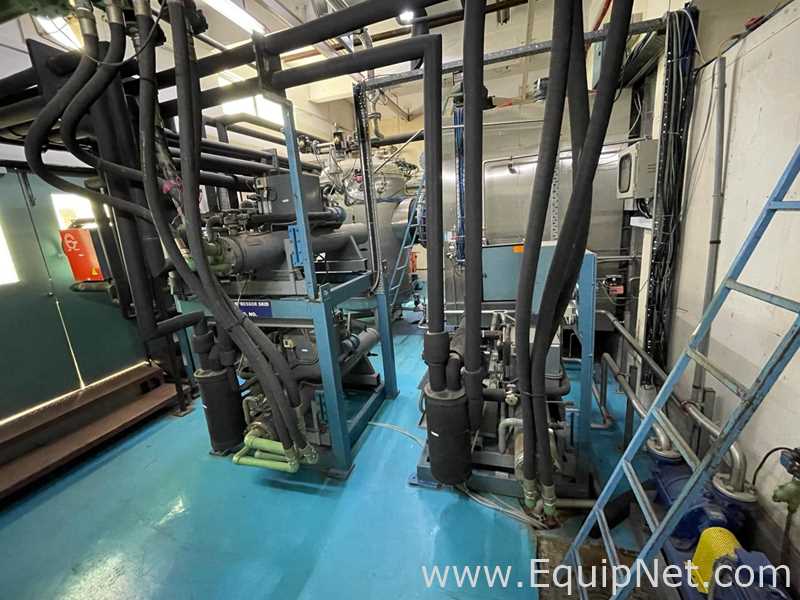

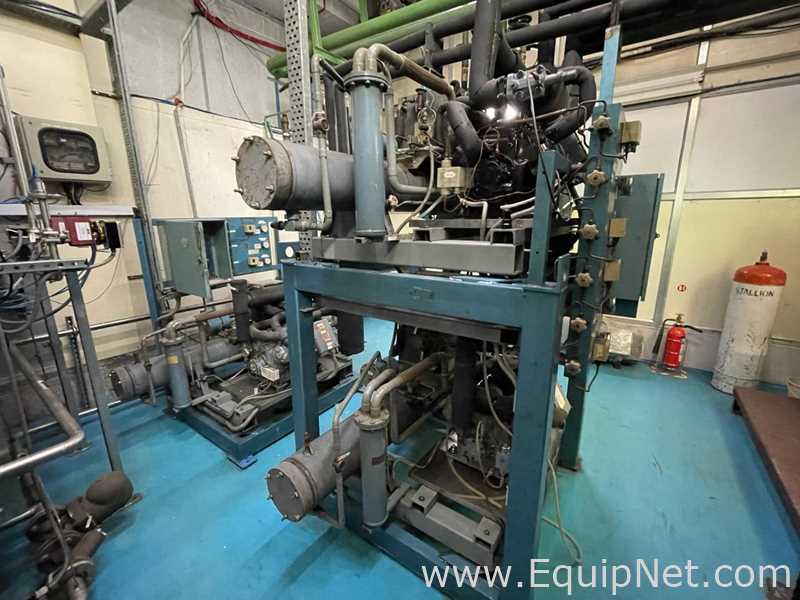

Compressor: Copeland 3 Nos.

Vacuum Pump: 3 Alcatel 2100sd 100 m3/h each.

Usifroid (Inox'ouest) Reconditioned SMH 1715 Freeze Dryer

Specifications:

Standard

Metric

Manufacturer Name

Usifroid

Year:

1990 / 2014

Model:

SMH 1715

Number of Shelves:

17 (usable)

Size of Shelves - length x width:

1560 (D) x 1000 (W) x 20 (T) in

1560 (D) x 1000 (W) x 20 (T) MM

Stoppering Capable:

YES

Usable Shelf Area:

280.40 sq ft

26.05 SQ M

Distance Between Shelves:

3.15 in

80 MM

Products and size run previously:

Vial Capacity (dia 16.5 mm x 40 mm / 50 mm height) and loading type: 93500 vials in trays to be loaded manually

Material of Construction:

STAINLESS STEEL

Frequency:

50/60 HERTZ

Phase:

Recommended Packaging Form:

CUSTOM PALLET

Dimensions:

Standard

Metric

Overall:

0.00 x 0.00 x 0.00 in - 44092.00 lb

0 x 0 x 0 MM - 20000 KGS
