Listing# 1109775
Varian 450-GC Gas Chromatography GC
Pre-Owned Varian Gas Chromatograph (GC) for Sale
Request More Info
Make An Offer
Location: Mexico DF, Mexico
Level of Removal: Still Installed
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description
Cromatógrafo de gases Varian 450-GC
Cromatógrafo de gases VARIAN 450-GC equipado con un sistema automuestreador CTC CombiPAL con detector de ionización de llama (FID)
Velocidad máxima de rampa de temperatura: 120 °C/min para todas las tensiones
Velocidad de enfriamiento: 400 °C a 50 °C en 4,5 minutos
Métodos almacenados máximos: 50 (máximo 30 caracteres alfanuméricos).
El cromatógrafo maneja temperaturas extremas, pero lo hace sin líquidos:Calentamiento: El horno de la columna, los inyectores y los detectores se calientan mediante resistencias eléctricas de alta potencia.Enfriamiento Estándar: Para enfriar el horno rápidamente (por ejemplo, bajar de 300 °C a 50 °C para la siguiente carrera), el equipo abre automáticamente una compuerta trasera y utiliza un ventilador de aire forzado de alta velocidad.
Consumibles del Varian 450-GCInyectores (Ej. CP-1177 Split/Splitless): Septums de alta temperatura (11 mm), liners de vidrio (desactivados, con o sin lana de cuarzo), y filamentos de soporte.Conexiones de columna: Virolas (ferrules) de grafito o Vespel/grafito, y tuercas capilares de bronce o acero inoxidable.Gases de soporte: Trampas de humedad, oxígeno e hidrocarburos para las líneas de gas acarreador (Helio/Nitrógeno) y gases de encendido (Hidrógeno/Aire para el FID).Refacciones del Muestreador CombiPAL Jeringas dedicadas: Jeringas para líquidos (de 10 µL a 500 µL) y jeringas herméticas calientes para Headspace (de 1.0 mL a 5.0 mL).Mecánica del brazo: Émbolos de repuesto, agujas, bandas de transmisión para los ejes X/Y/Z, y cables de interconexión con el GC.Lavado: Viales y septums grandes de reemplazo para la estación de lavado de solventes.
Varian 450-GC Gas Chromatography GC

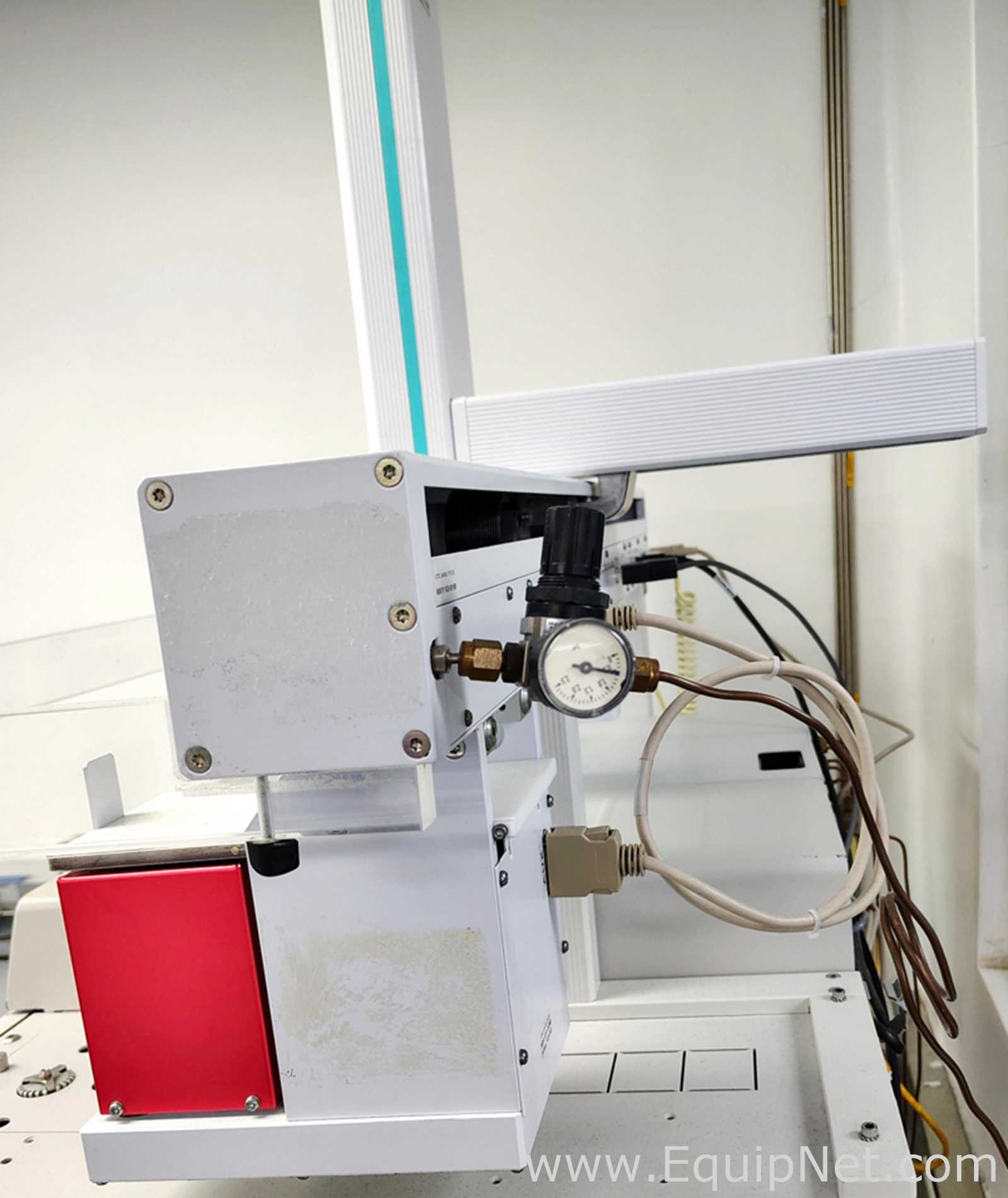

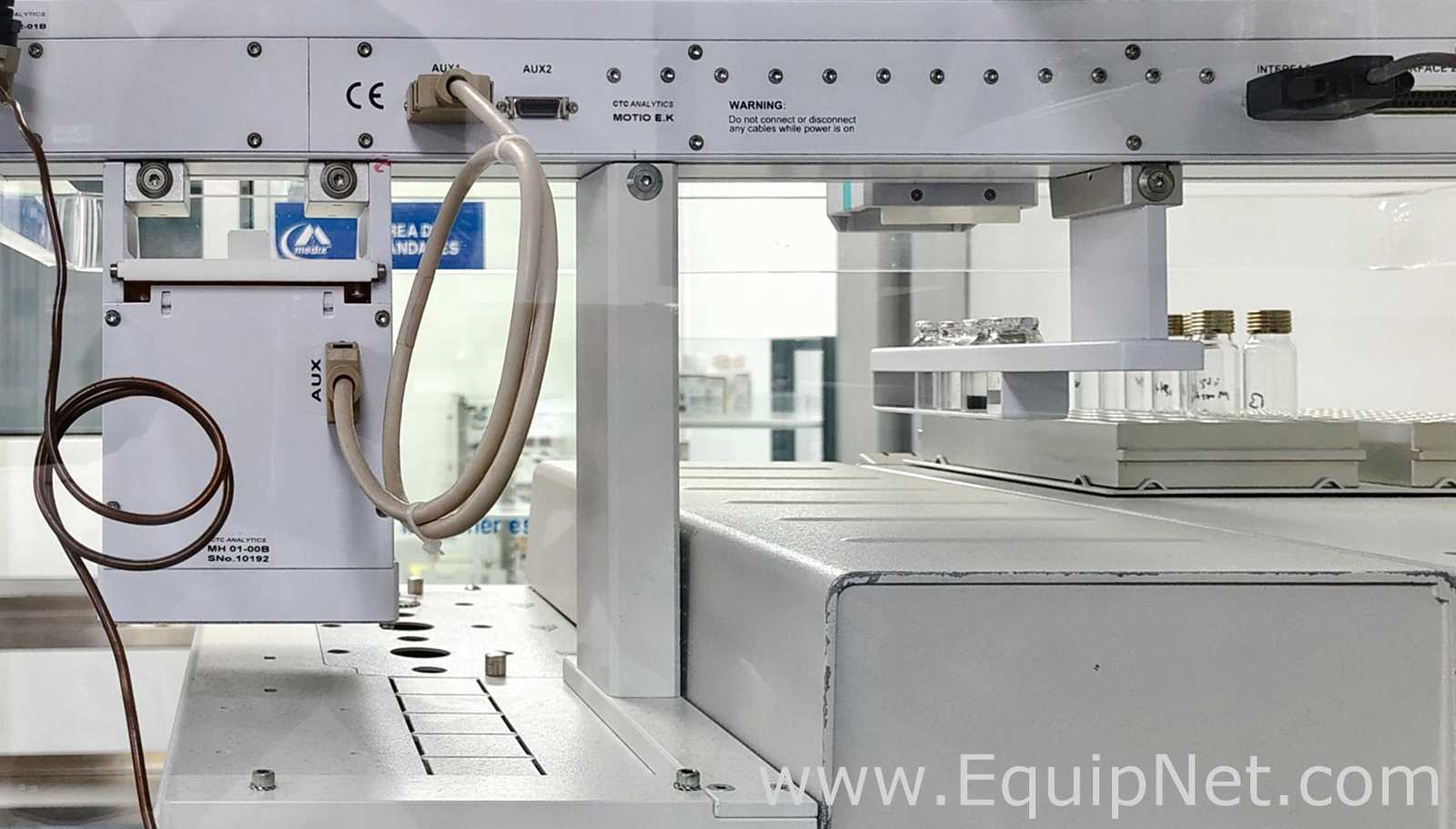

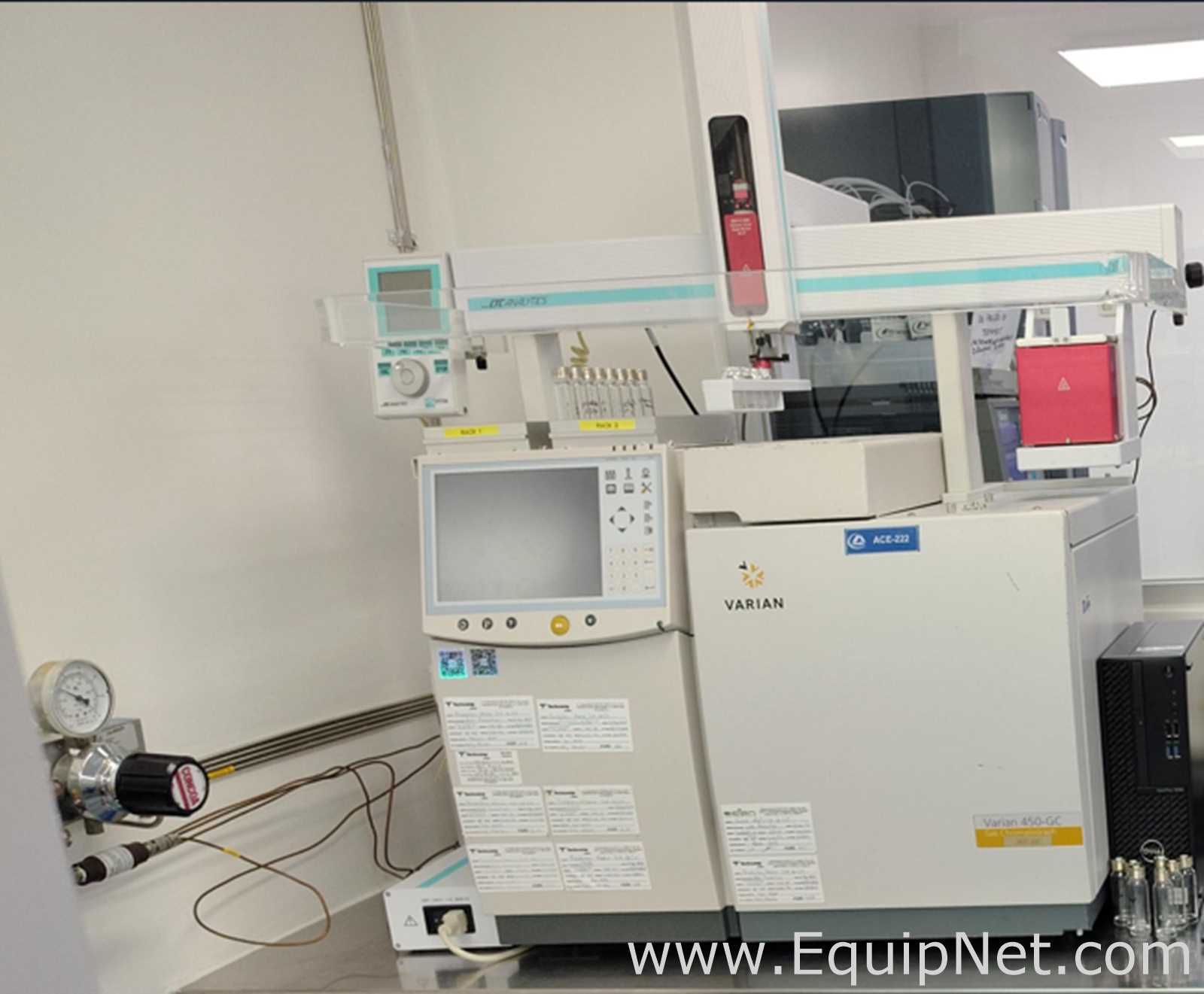

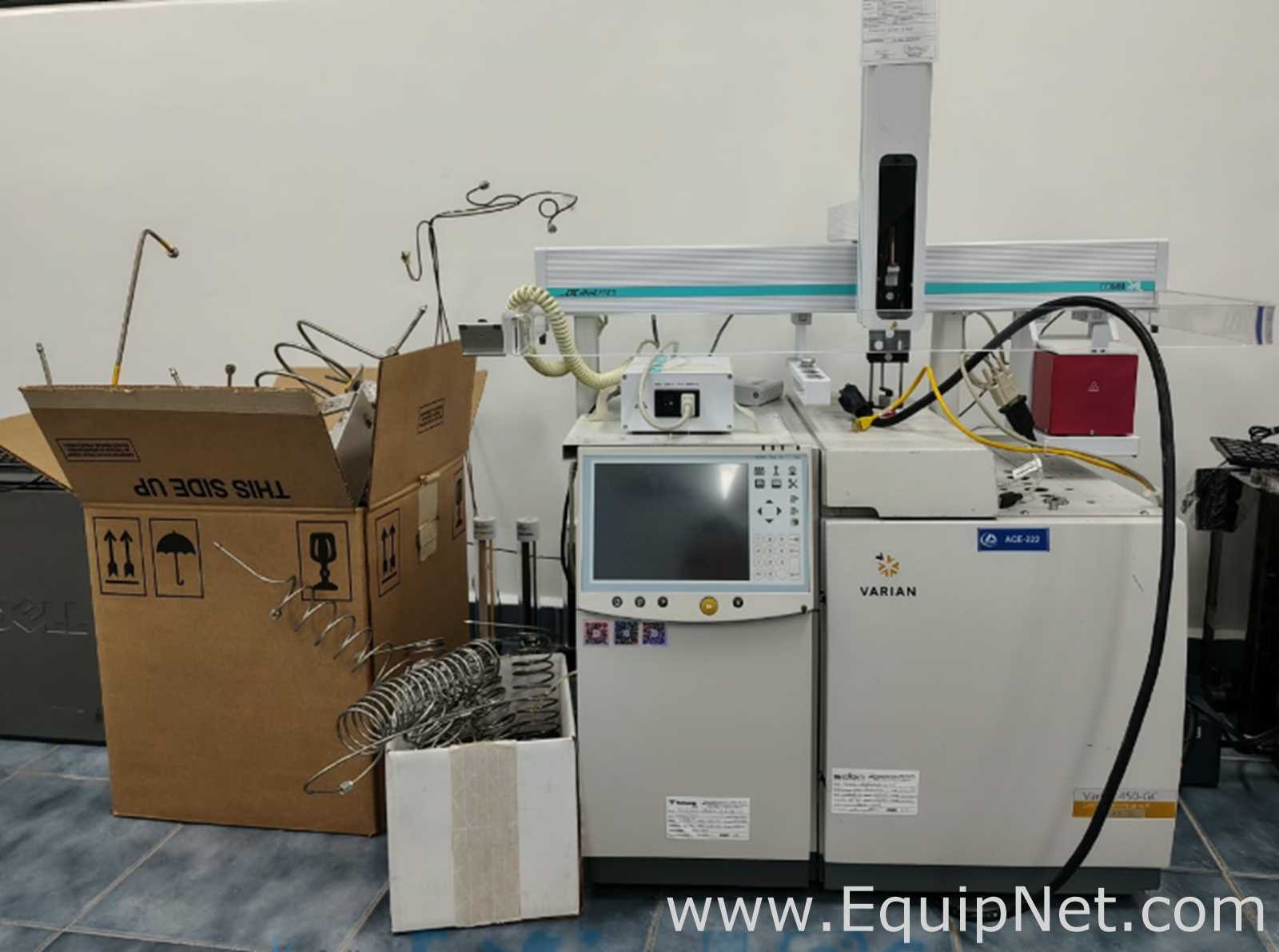

Gas Chromatograph VARIAN 450-GC equipped with a CTC CombiPAL autosampler system and Flame Ionization Detector (FID)
Maximum temperature ramp rate: 120 °C/min for all voltages
Cooling rate: 400 °C to 50 °C in 4.5 minutes
Maximum stored methods: 50 (maximum 30 alphanumeric characters)

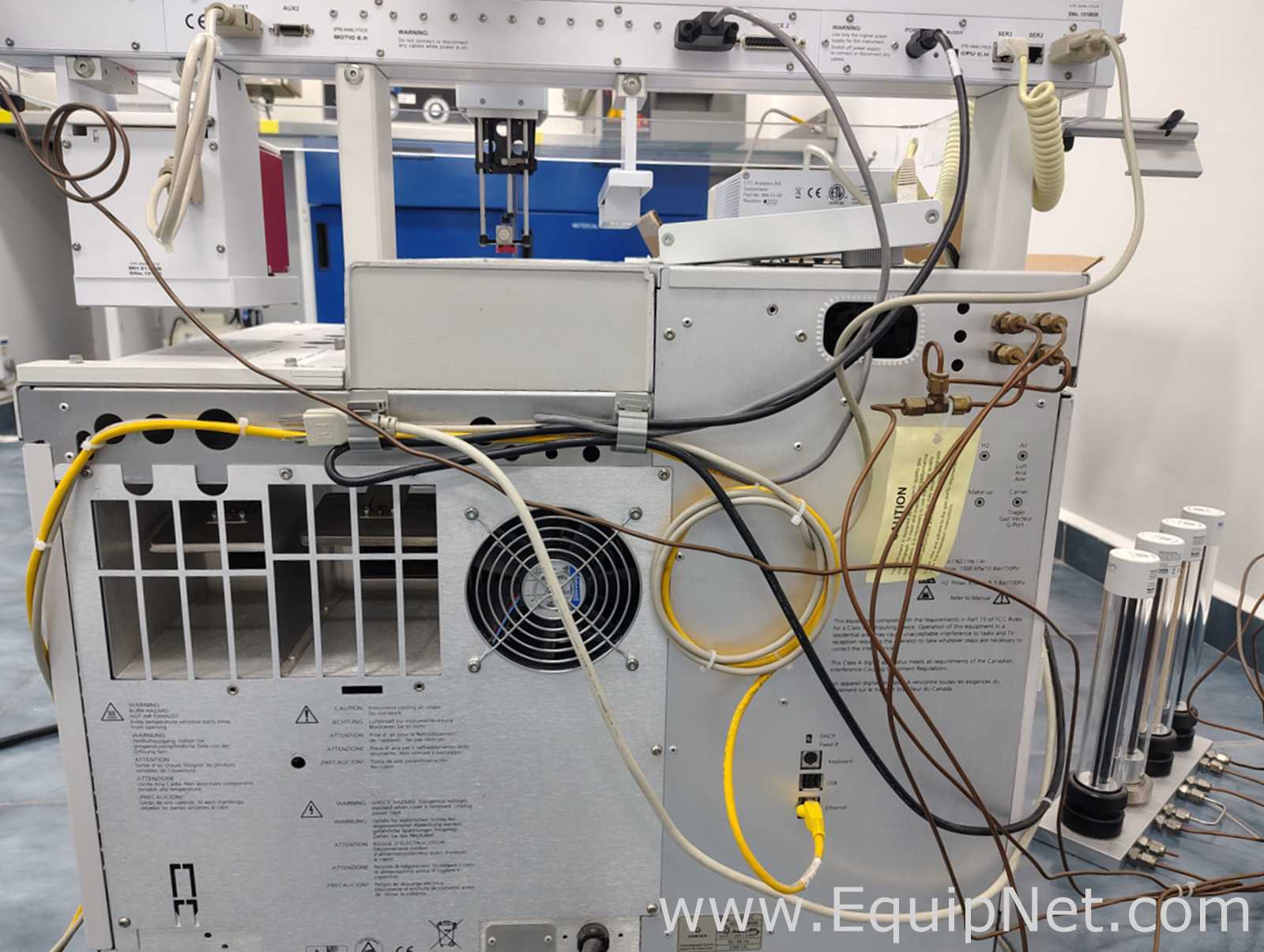

The chromatograph handles extreme temperatures without the use of liquids: Heating: The column oven, injectors, and detectors are heated using high-power electrical heating elements. Standard Cooling: To rapidly cool the oven (e.g., from 300 °C to 50 °C for the next run), the equipment automatically opens a rear vent and uses a high-speed forced-air fan.

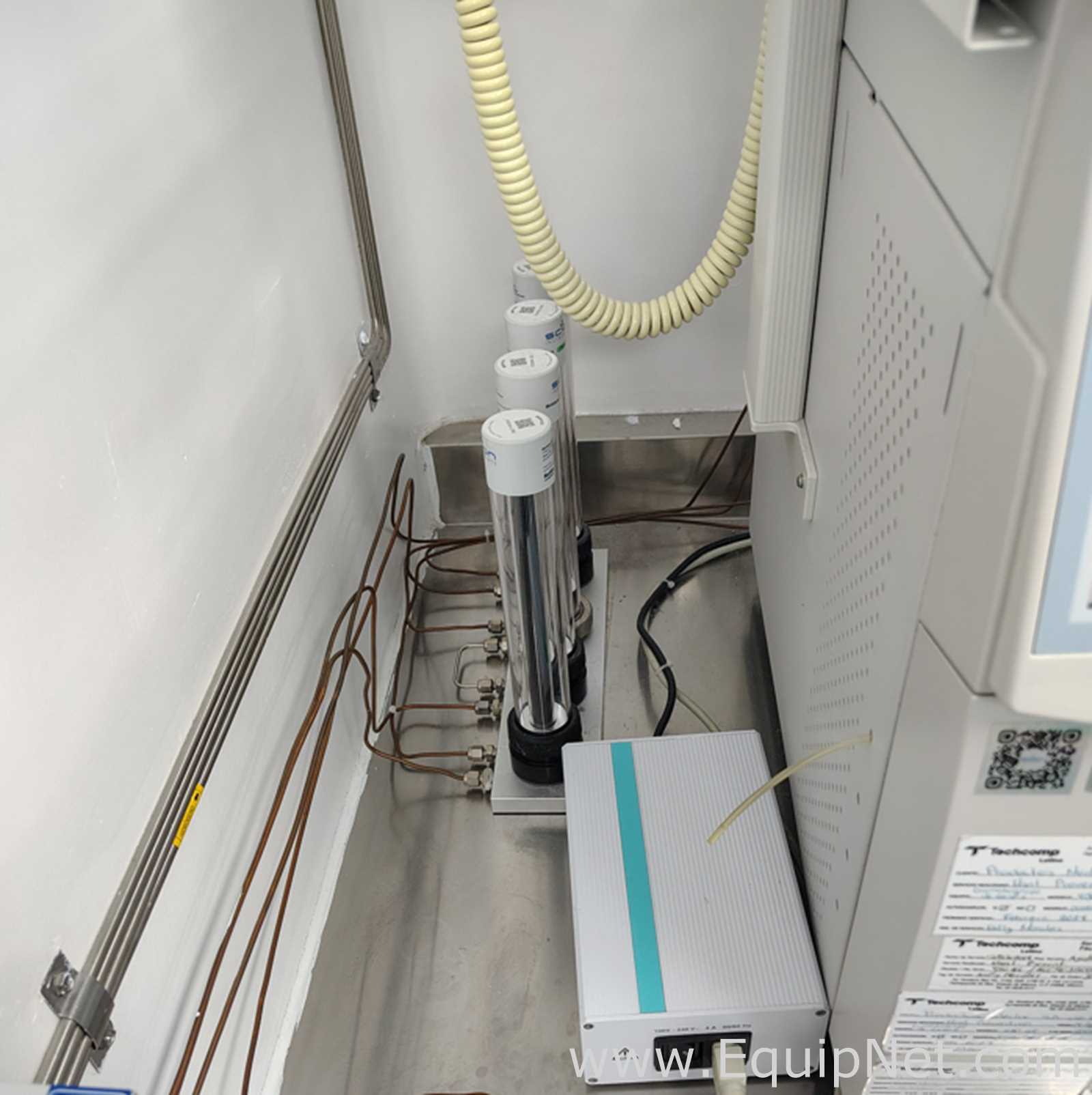

Consumables for the Varian 450-GC: Injectors (e.g., CP-1177 Split/Splitless): High-temperature septa (11 mm), glass liners (deactivated, with or without quartz wool), and support filaments. Column connections: Graphite or Vespel/graphite ferrules and brass or stainless-steel capillary nuts. Carrier gases: Moisture, oxygen, and hydrocarbon traps for carrier gas lines (Helium/Nitrogen) and ignition gases (Hydrogen/Air for the FID). CombiPAL Autosampler Spare Parts: Dedicated syringes: Liquid syringes (10 µL to 500 µL) and heated, gas-tight Headspace syringes (1.0 mL to 5.0 mL). Arm mechanics: Replacement plungers, needles, drive belts for the X/Y/Z axes, and interconnection cables with the GC. Washing: Replacement vials and large septa for the solvent washing station.
Varian 450-GC Gas Chromatography GC
Specifications:
Standard
Metric

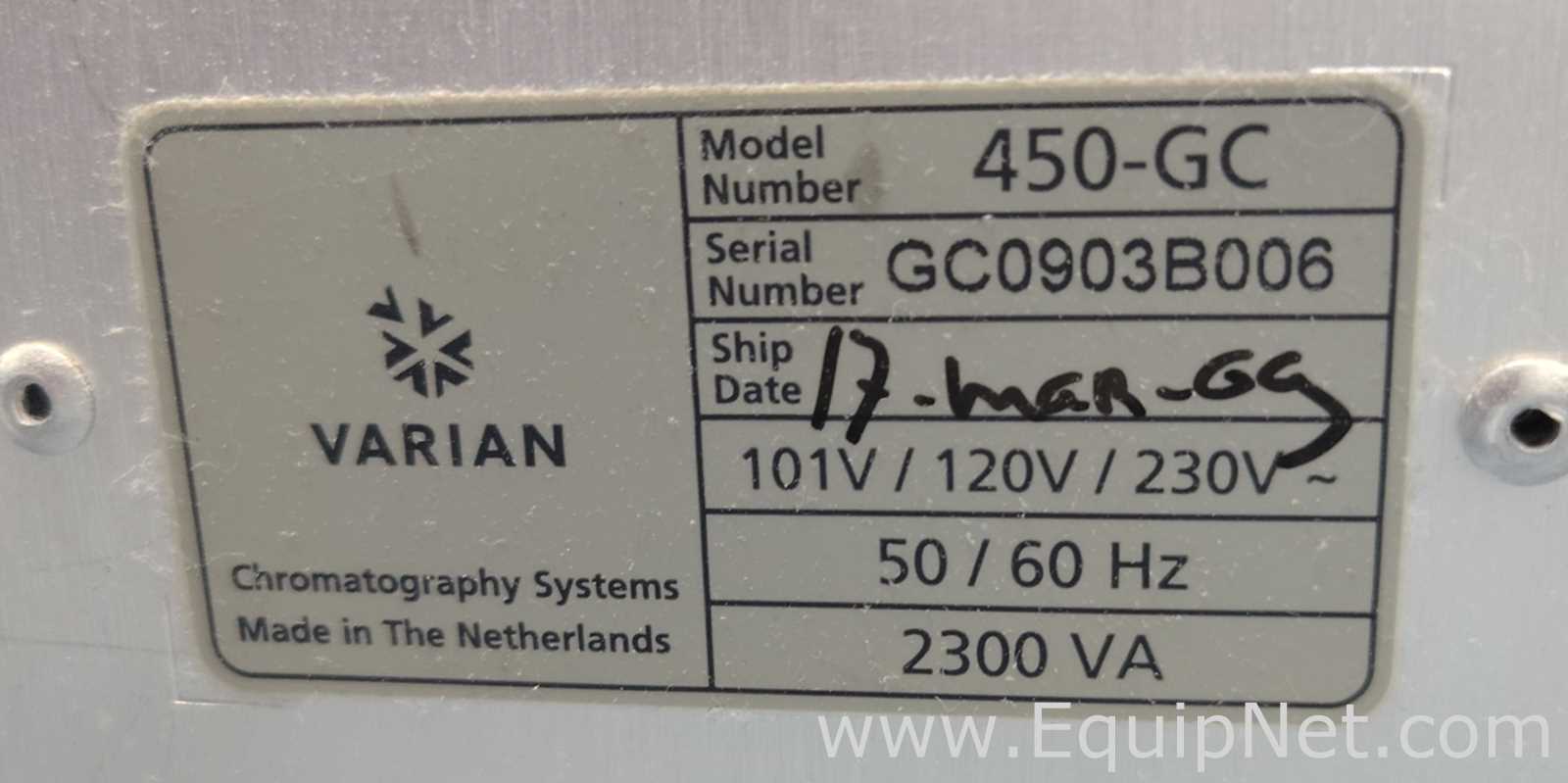

Manufacturer Name
Varian
Year:
2009
2009
Serial Number:
GC0903B006
GC0903B006
CE Marked:
YES
YES
Model:
450-GC
450-GC
Type of Detector for GC:
FID
FID
Voltage:
101/120/230
VOLTS
101/120/230
VOLTS
Frequency:
50/60
HERTZ
50/60
HERTZ
Phase:
1
1
Current:
2300
VA
2300
VA
Recommended Packaging Form:
CRATE
CRATE
Dimensions:
Standard
Metric
Overall:
22.05 x 25.98 x 20.87 in - 94.80 lb
560 x 660 x 530 MM - 43 KGS
Disclaimer:
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in
Mexico DF
This equipment is subject to a removal and loading charge.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
