Listing# 912299
Corniani Bottle Orienter
Pre-Owned Corniani Orienter for Sale
Seller's Acceptable Currency:
€17,500.00 EUR
Request More Info Make An OfferLocation: Italy
Level of Removal:
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description

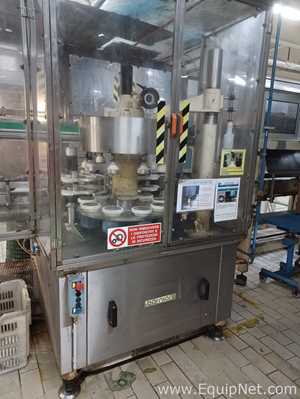

Rotary machine, mechanically synchronized with fillers, capper and labeler.
Machine handing left to right with respect to the operator side.
Number of stations : 9
Pitch = 200mm.
It receives stand-up random bottles on 1 lane, via 2 inlet scrolls.
No.2 sensors detect the bottle orientation and by means of pneumatical cylinders under each platform rotate them, when required.
An additional sensor controls the correct orientation before exit, and if necessary the wrong one is rejected via an air blow.
Being in syncro- block the orienter is nor equipped with own motor, but is driven mechanically via a central motor installed down-stream.
Specifications:
Manufacturer Name
Year:
Model:
Serial Number:
Capacity Size:
CE Marked:
Capacity Speed:
Product Sizing:
Products Run:
Air Requirements:
Heating Cooling Requirements:
Voltage:
Frequency:
Phase:
Current:
Capacity Details:
Package Type:
No. Lanes In:
No. Lanes Out:
Infeed Manner:
Discharge Manner:
Dimensions:
Overall:
