Listing# 912300

Lanfranchi L3-SR21 Bottle Unscrambler

Download High Res Photos

Make an Inquiry

Seller's Acceptable Currency:

€37,500.00 EUR

Make An Offer

Location: Italy

Level of Removal: Still Installed

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Asset Documents

More Equipment Detail 1 (DWG)
(Requires DWGBravaViewer)

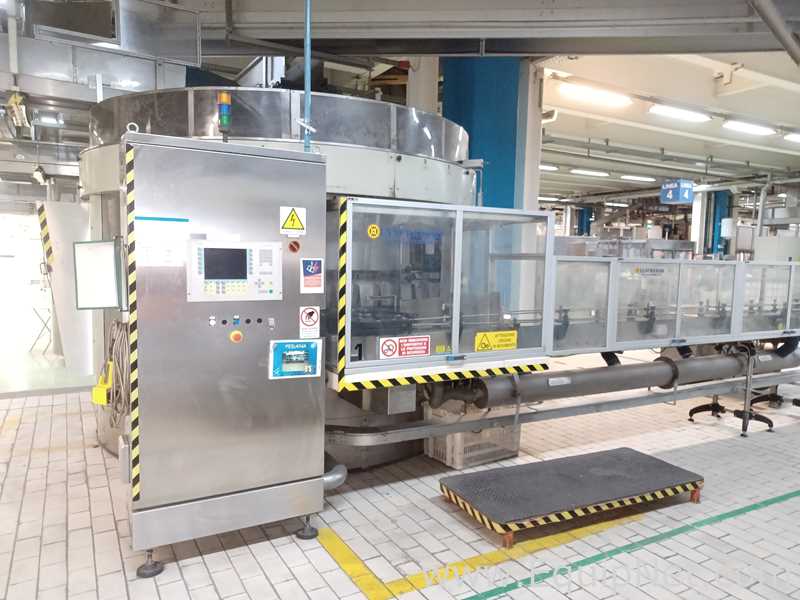

Equipment Description

Machine handing left to right to respect the operator side.

Random bottles slide gently from the top on to a fixed stainless steel cone and are positioned on the
circumference of the unscrambler. From here, bottles are selected by lifters that convey them smoothly to the
upper part of the unscrambler.

In this way the bottles avoid being re-scrambled and knocked about due to the high relative velocities.

The unscrambler carry out this operation up to 3 times per machine cycle, allowing 3 bottles to be positioned
vertically on the carousel underneath in the space, which, in the upper part, is normally occupied by a single
bottle lying down.

The efficiency of the unscrambler is further increased by the bottle extractor systems that remove (normally
without stopping the machine) any damaged bottles that are conveyed to the unscrambler.

Machines are constructed in stainless steel.

The Lifters, controlled by a mechanical system, ensure that bottles are smoothly hoisted during the sorting
phase, allowing profiled or unstable bottles to be processed with zero scuffing.

The two overlapped horizontal carousels turn at differentiated speeds, allowing the loading of three bottles in one
machine cycle.

At machine exit a star wheel extract bottle in a stand-up position and place them on a vacuum conveyor.

Machine design speed 21000 b/h

Change parts are treated with coating system to manage PET bottles.

Specifications:

Standard

Metric

Manufacturer Name

Lanfranchi

Year:

2002

Model:

L3 SR21

Serial Number:

200.29.90

CE Marked:

YES

Voltage:

400 VOLTS

Frequency:

50/60 HERTZ

Phase:

3+1

Current:

3 KW

Dimensions:

Standard

Metric

Overall:

156.30 x 172.83 x 118.11 in - 4409.20 lb

3970 x 4390 x 3000 MM - 2000 KGS
