Listing# 1069420
Prisma PRN 08 Check Weigher
Pre-Owned Prisma Check Weigher for Sale
Seller's Acceptable Currency:
€14,500.00 EUR
Request More Info Make An OfferLocation: Italy
Level of Removal: Uncrated/Loose
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description

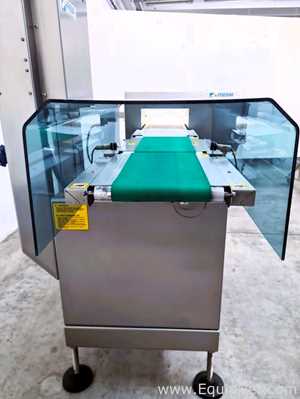

An inline scale integrated with a metal detector, specifically designed for precise weight control and effective metal detection in small to medium-sized products. This innovative system is user-friendly and easy to maintain. It comprises a base supporting the scale and the transport device, a high-sensitivity comparison scale with an electromagnetic detector that converts the position of the scale’s plate, burdened by the passing weight, into an electrical signal; a conveyor belt, and a projector-photocell unit that signals the moment the object is about to leave the scale’s plate.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:
This inline scale model 'Metal Detector', integrated into a conveyor line for objects of various shapes and sizes, automatically checks deviations from the nominal weight of the items, comparing them with predefined limit values. As the objects are transported and weighed, their weight is compared against tolerance limits. The machine then decides whether to accept or reject each item, diverting or ejecting it based on the detected weight, ensuring precise weighing. Additionally, this model is equipped with protective covers to enhance safety and reliability during the weighing process.
Year: 2001
TECHNICAL DATA:
Dimensions (LxWxH) mm 2050x1250x1590
Weight kg 220
Checkweigher conveyor belt dimensions mm 800x200x max. 160
Metalcheck conveyor belt dimensions mm 1200x200x max. 105
Voltage V 220
Frequency Hz 50
Power kW 0,4
Total mass Kg 100
Prisma PRN 08 Check Weigher
Specifications:
Manufacturer Name
Year:
Model:
Recommended Packaging Form:
Dimensions:
Overall:
Disclaimer:
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in
Europe
This equipment is subject to a removal and loading charge.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
