Autoclave Sanyo MLS-5750

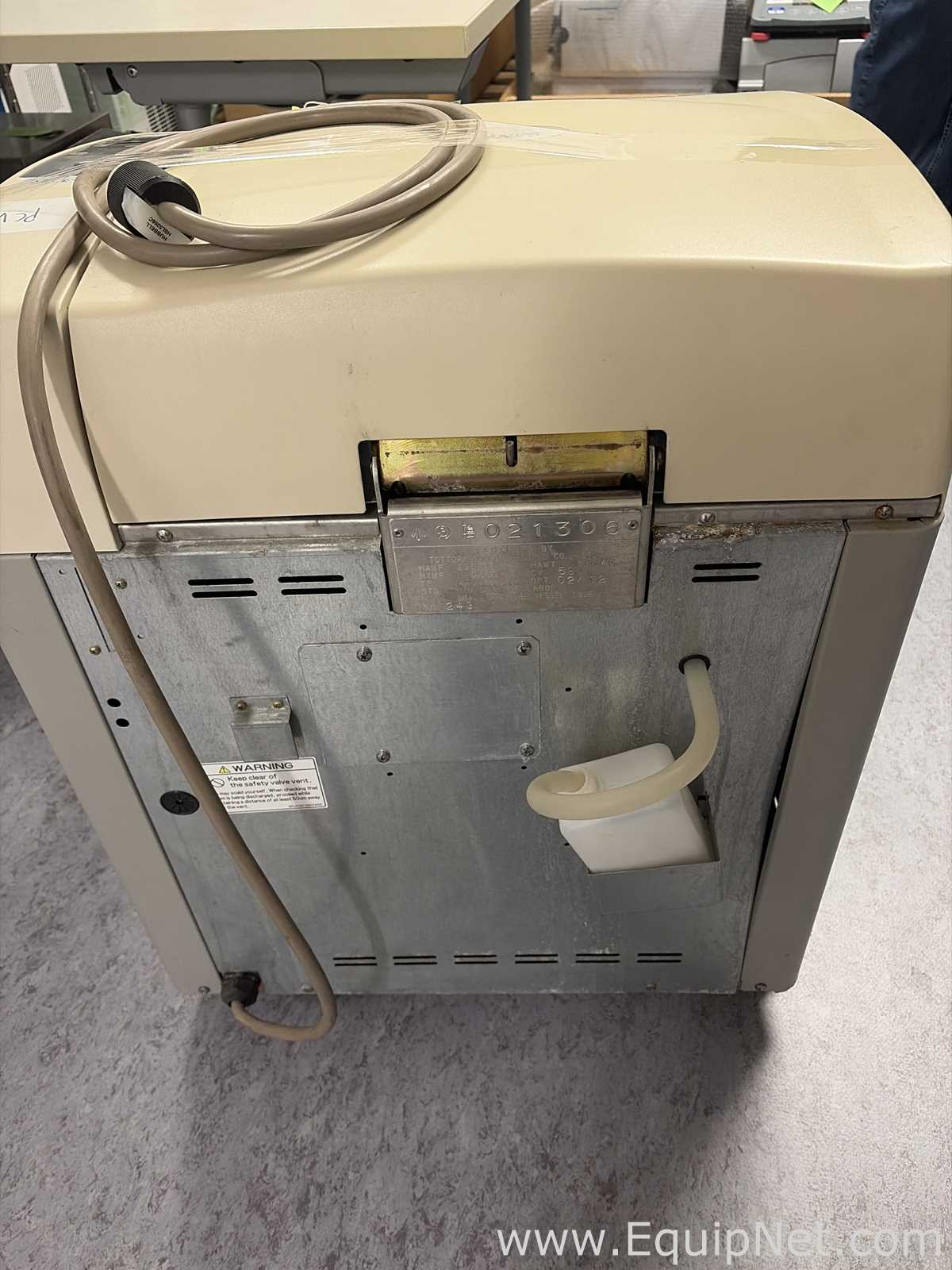

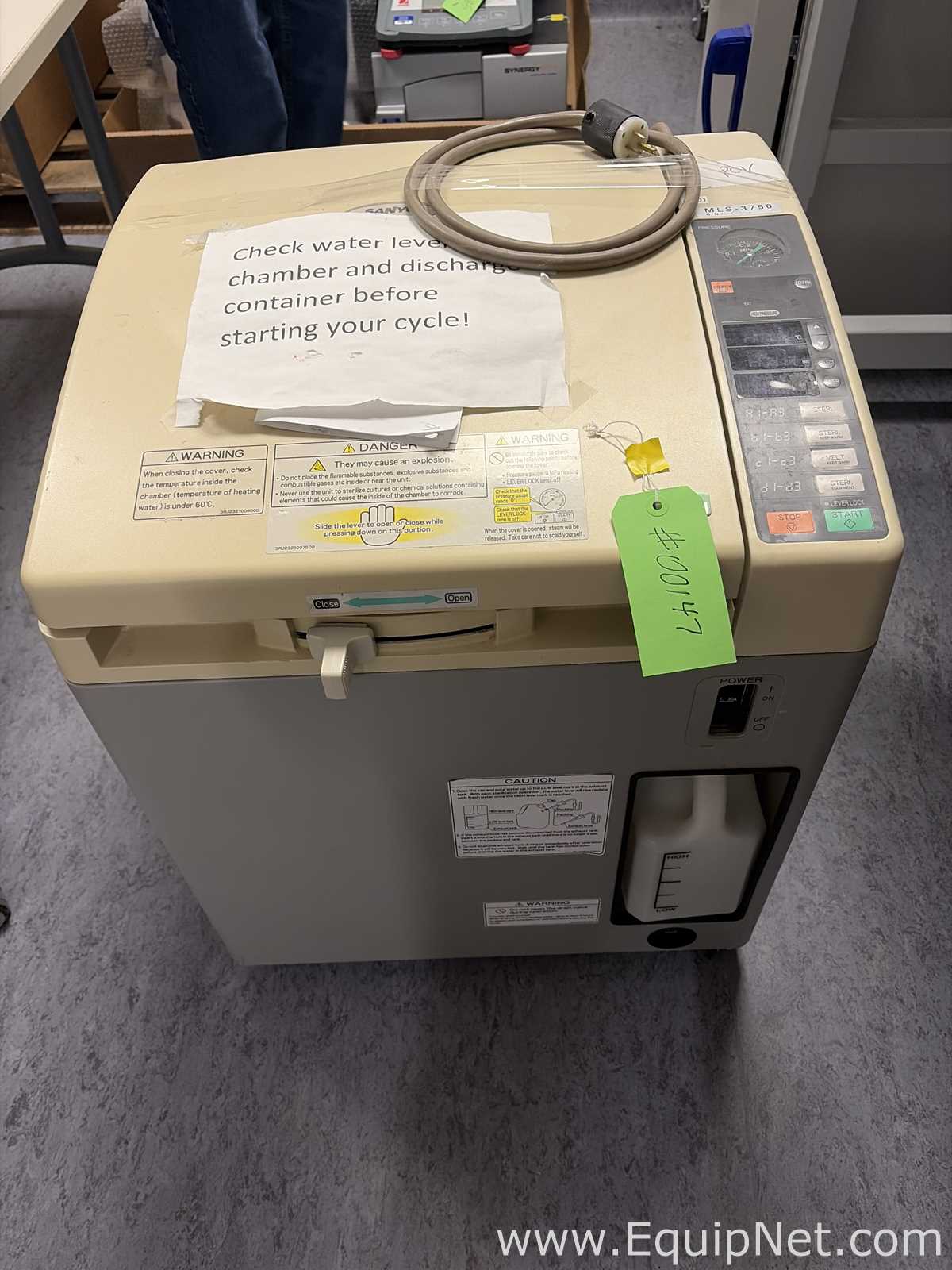

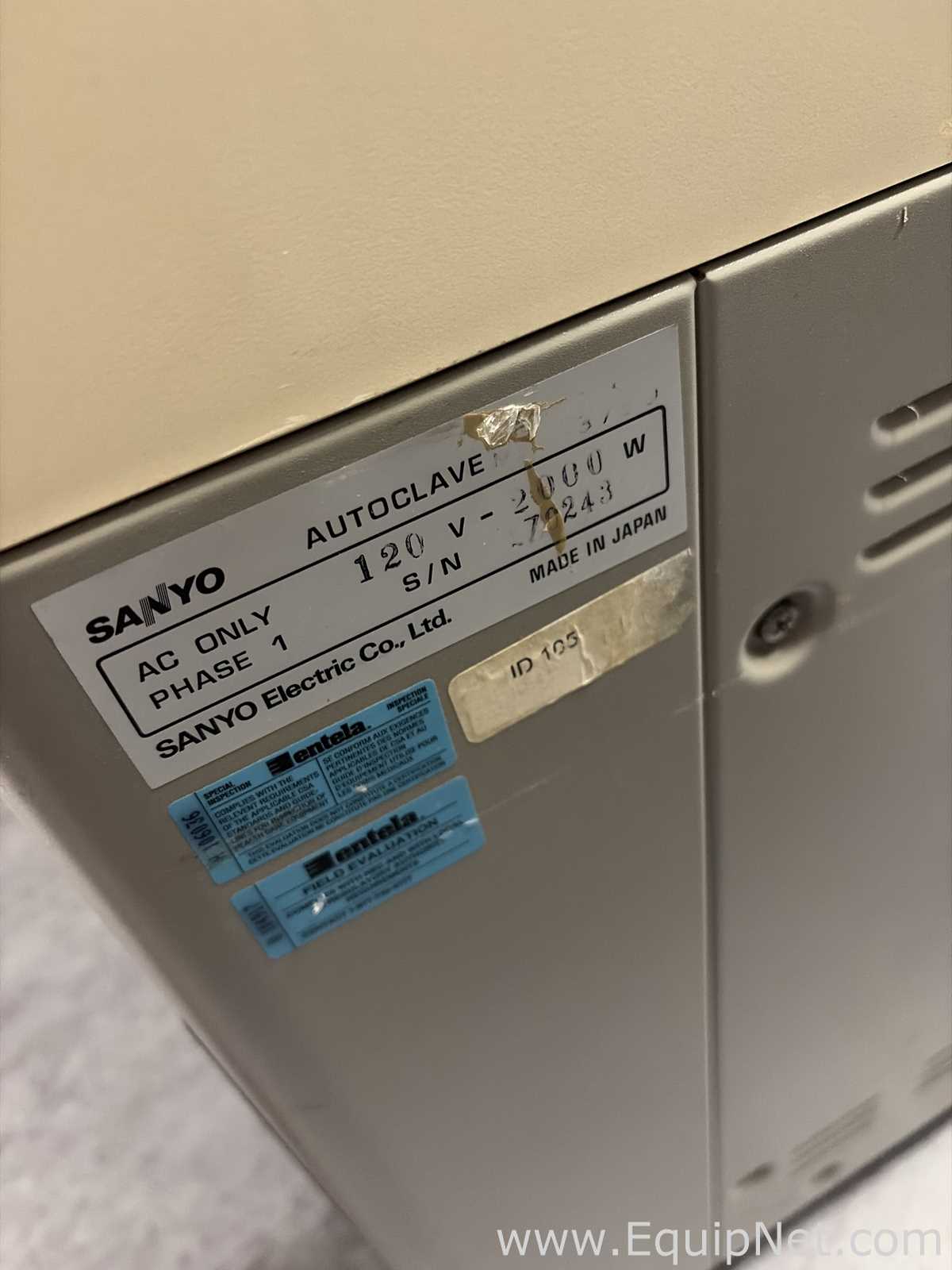

Sanyo MLS-3750 top loading laboratory autoclave (high pressure steam sterilizer), serial number 270243. The unit is a floor-standing, vertical top-load sterilizer intended for routine lab work such as sterilizing media, liquids, glassware, instruments and biohazard waste. The lid opens upward on a sliding open/close lever, so no side clearance is needed, and the low chamber height makes loading baskets from above straightforward. The machine is electrically heated and runs on 120 V AC, single phase, 2000 W as read from the manufacturer's data plate on the front of the cabinet. Published data for this model lists a nominal 50 liter stainless steel chamber approximately 370 mm (14.5 in) in diameter, with microprocessor-controlled sterilizing temperatures in the 105 to 135 degrees C range. The front membrane control panel provides sterilize, sterilize/keep warm, melt/keep warm and sterilize/equipment cycle keys with start and stop buttons, a temperature/time display, a lever lock indicator and an analog chamber pressure gauge. Visible on the unit are the removable exhaust/condensate collection bottle in the front recess with its drain hose, the rear pressure vessel data plate, a Sanyo/Entela inspection and field evaluation label set, and an attached twist-lock power cord. The listing includes the main autoclave only; no baskets, racks or other accessories are shown in the photographs. The cabinet shows normal cosmetic wear and residue from operator notes taped to the lid. Condition has not been verified beyond the photographs; power-up and cycle function were not recorded at the time of inspection.
