Coletor (Manifold) Biotage Pressure+96

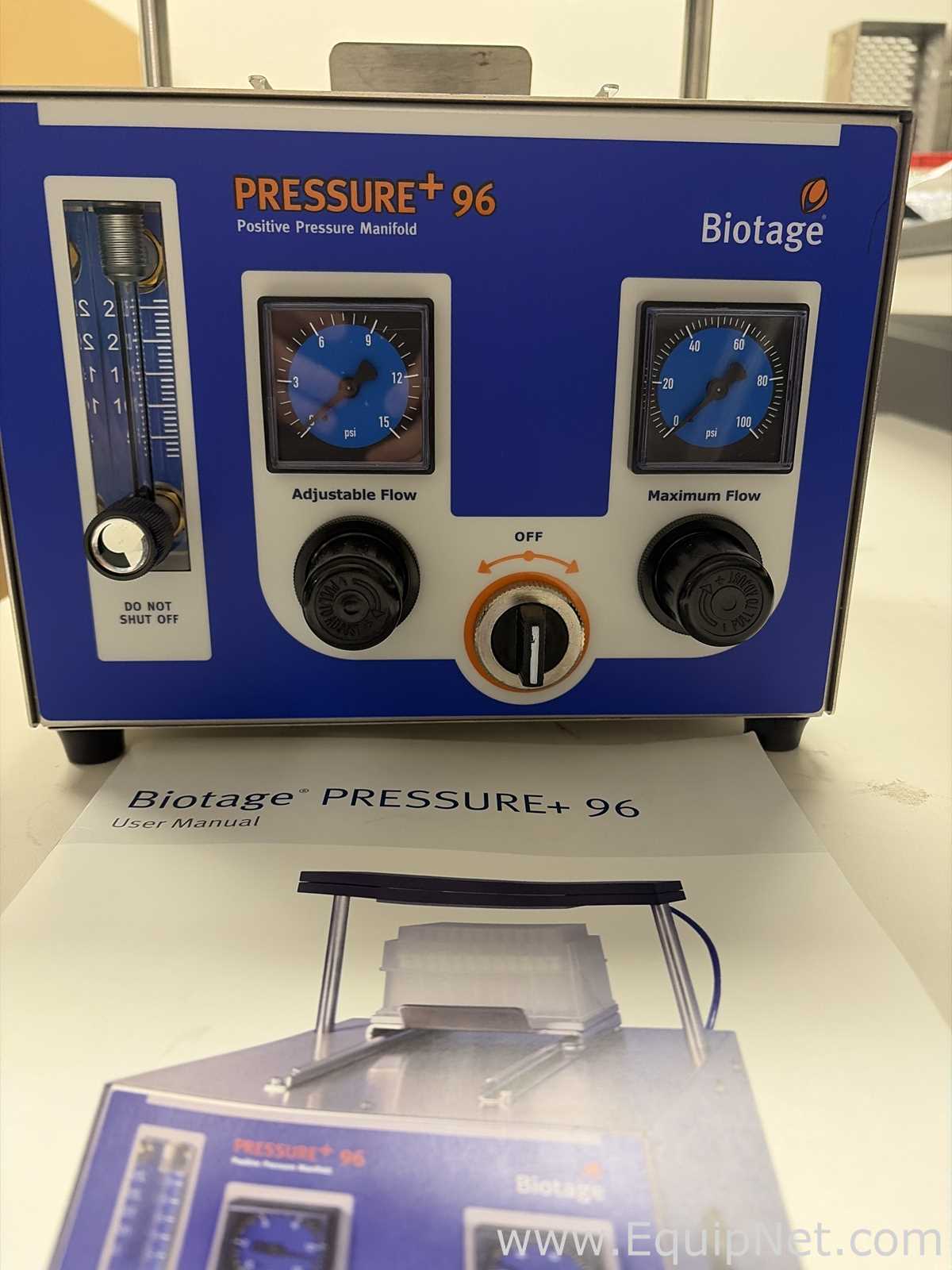

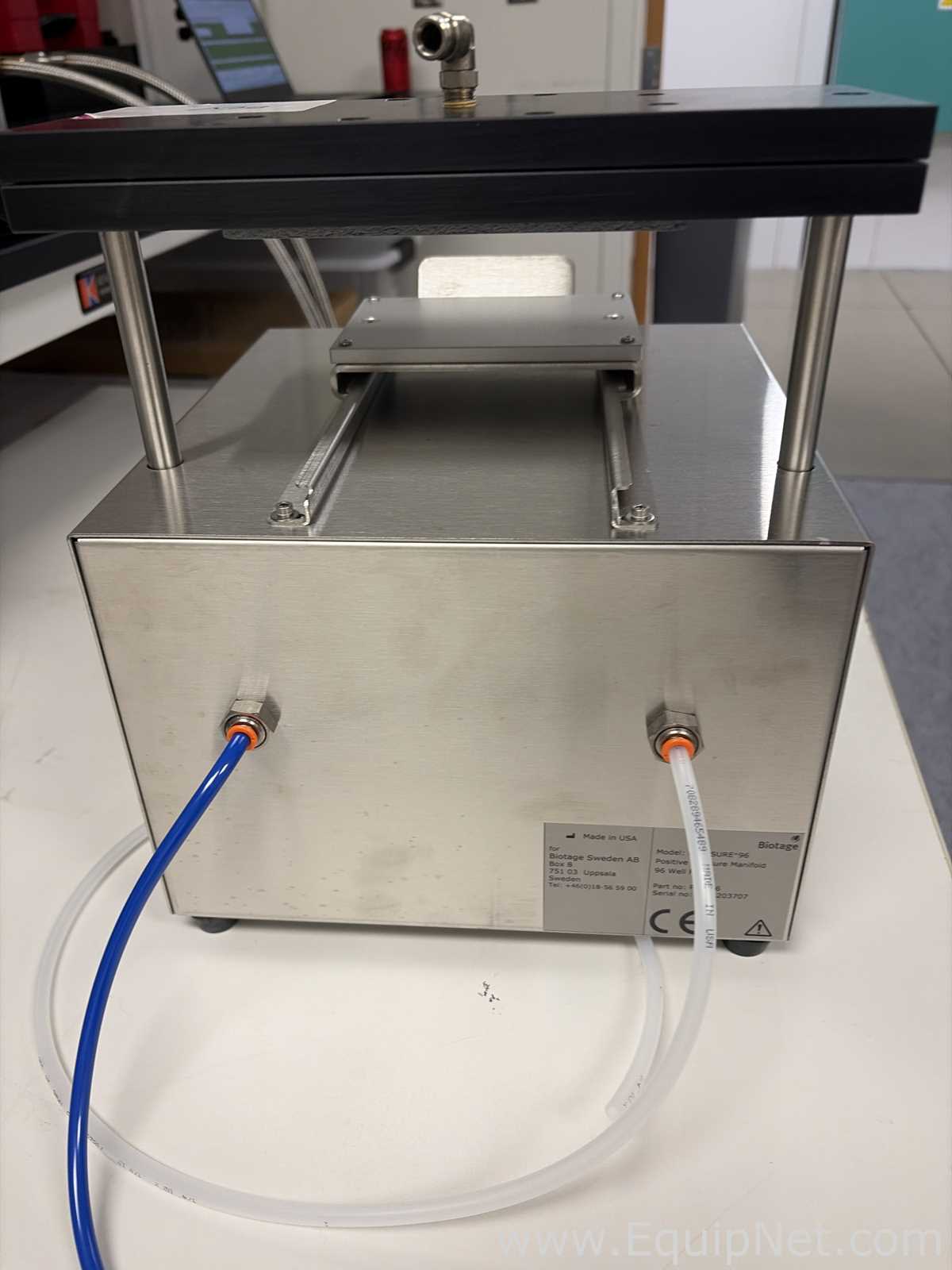

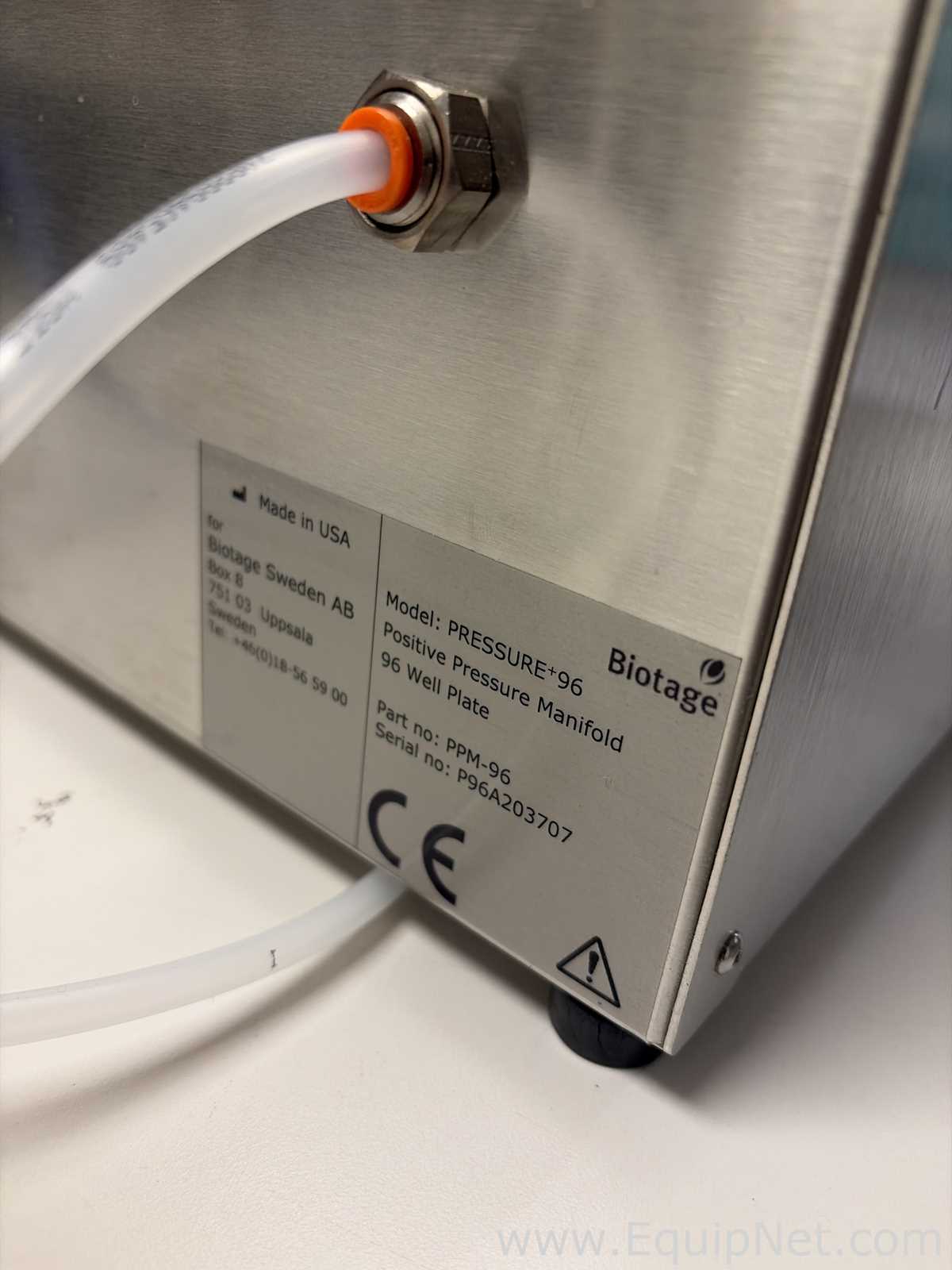

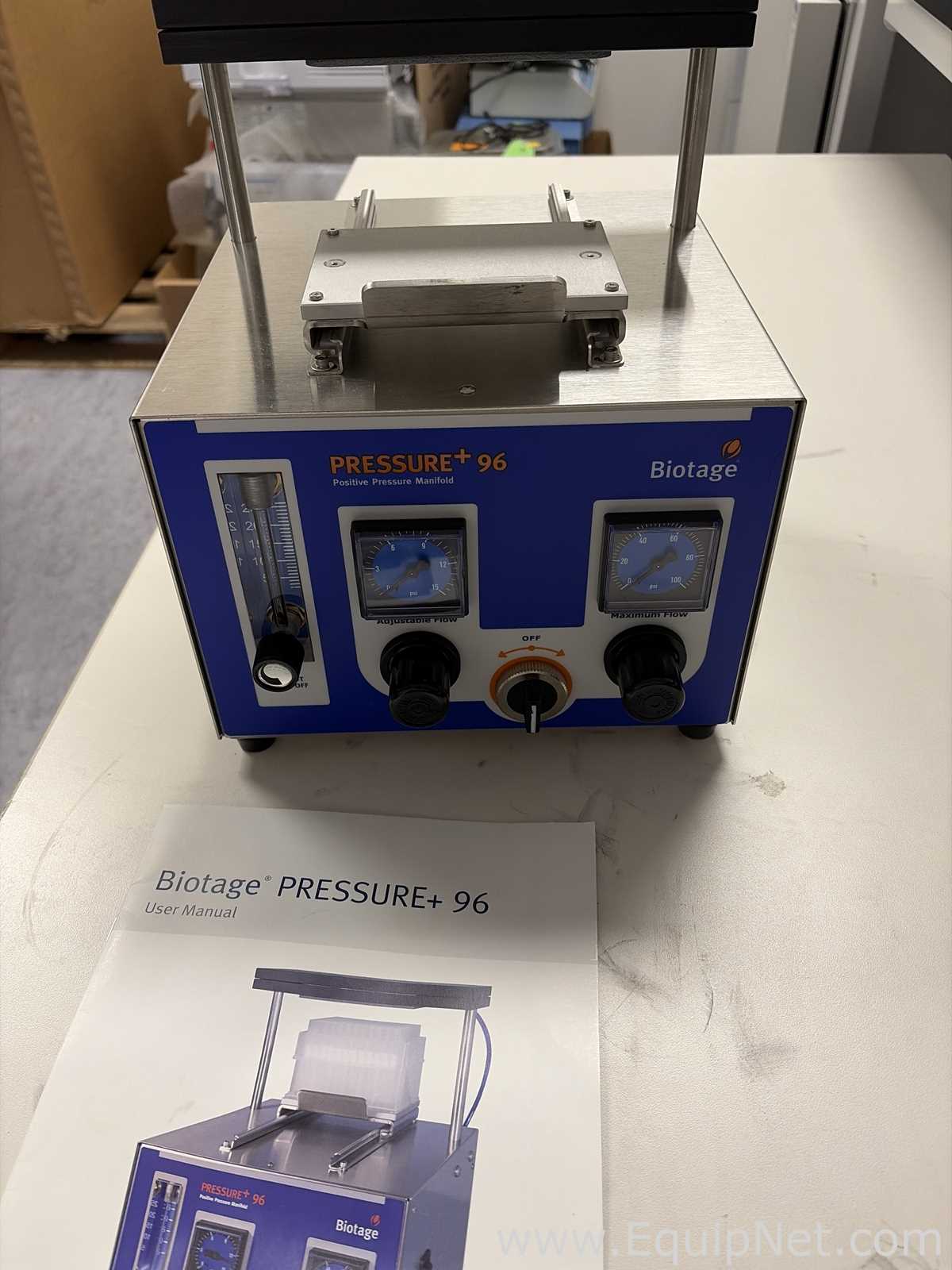

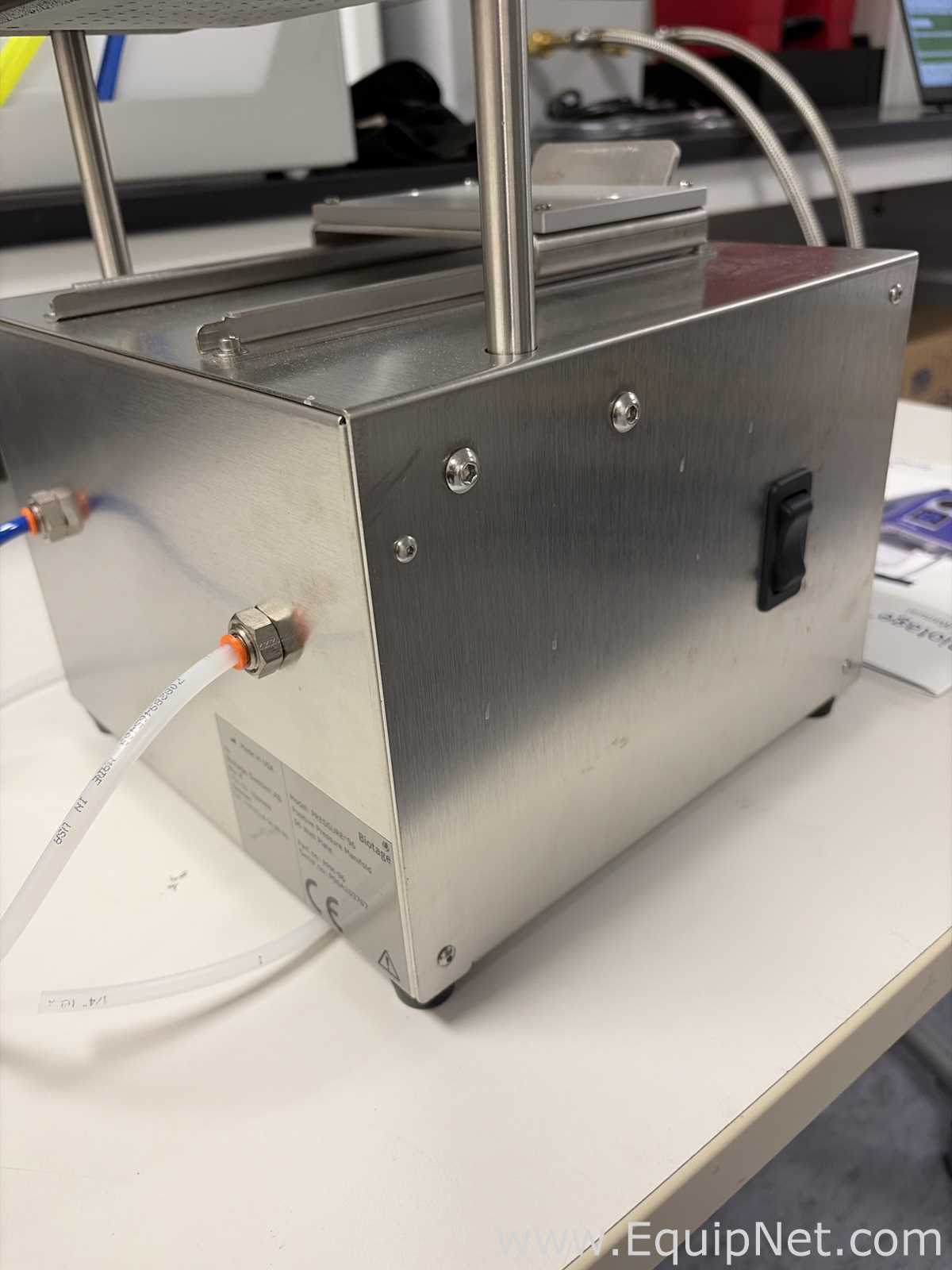

Biotage PRESSURE+ 96 positive pressure manifold (part no. PPM-96, serial no. P96A203707) for processing 96-well SPE plates and 96-well collection formats. The unit uses regulated gas pressure rather than vacuum to push samples and solvents through sorbent beds, giving uniform, controllable flow across all 96 wells for sample preparation in analytical and bioanalytical laboratories. The front control panel carries a variable-area flow meter marked DO NOT SHUT OFF, an Adjustable Flow regulator with a 0-15 psi gauge, a Maximum Flow regulator with a 0-100 psi gauge, and a central OFF selector valve, so the operator can set a gentle conditioning/loading flow and switch to a high-pressure elution or dry-down step. The plate is clamped between a stainless steel base deck and an upper pressure head carried on four stainless steel posts; a rocker switch is fitted to the side panel and the rear panel has two bulkhead gas fittings with blue and clear supply tubing attached in the photos. Construction is brushed stainless steel with a black anodized pressure head on rubber feet, and the rear nameplate shows the CE mark, Made in USA for Biotage Sweden AB, Uppsala. A Biotage PRESSURE+ 96 user manual is shown with the unit in the photos. The field user recorded the item simply as a Biotage pressure plate manifold; no further condition, testing or service information was provided. The photos show a complete, assembled benchtop unit with normal handling marks on the stainless panels.
