TYPE OF MACHINERY:

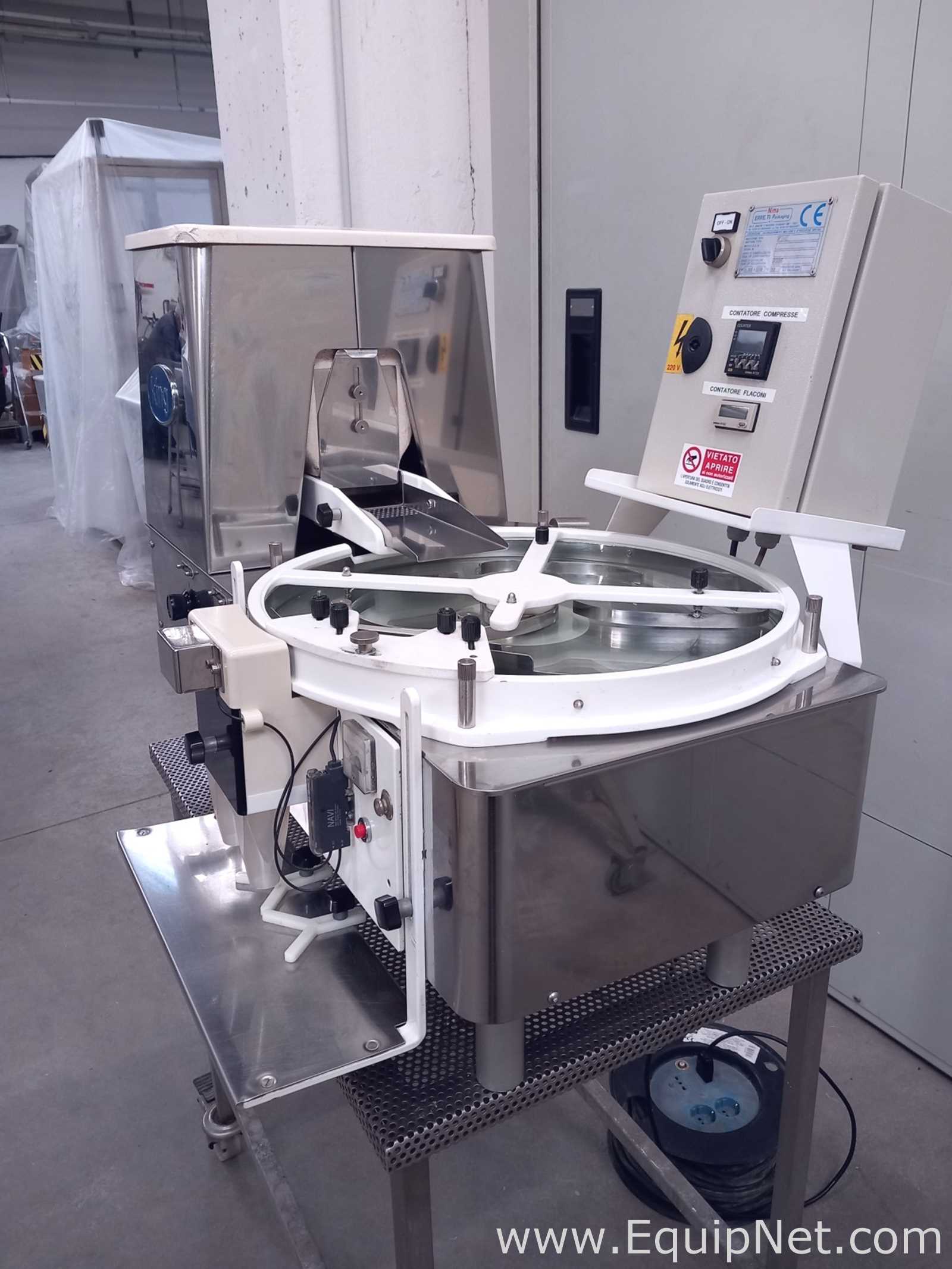

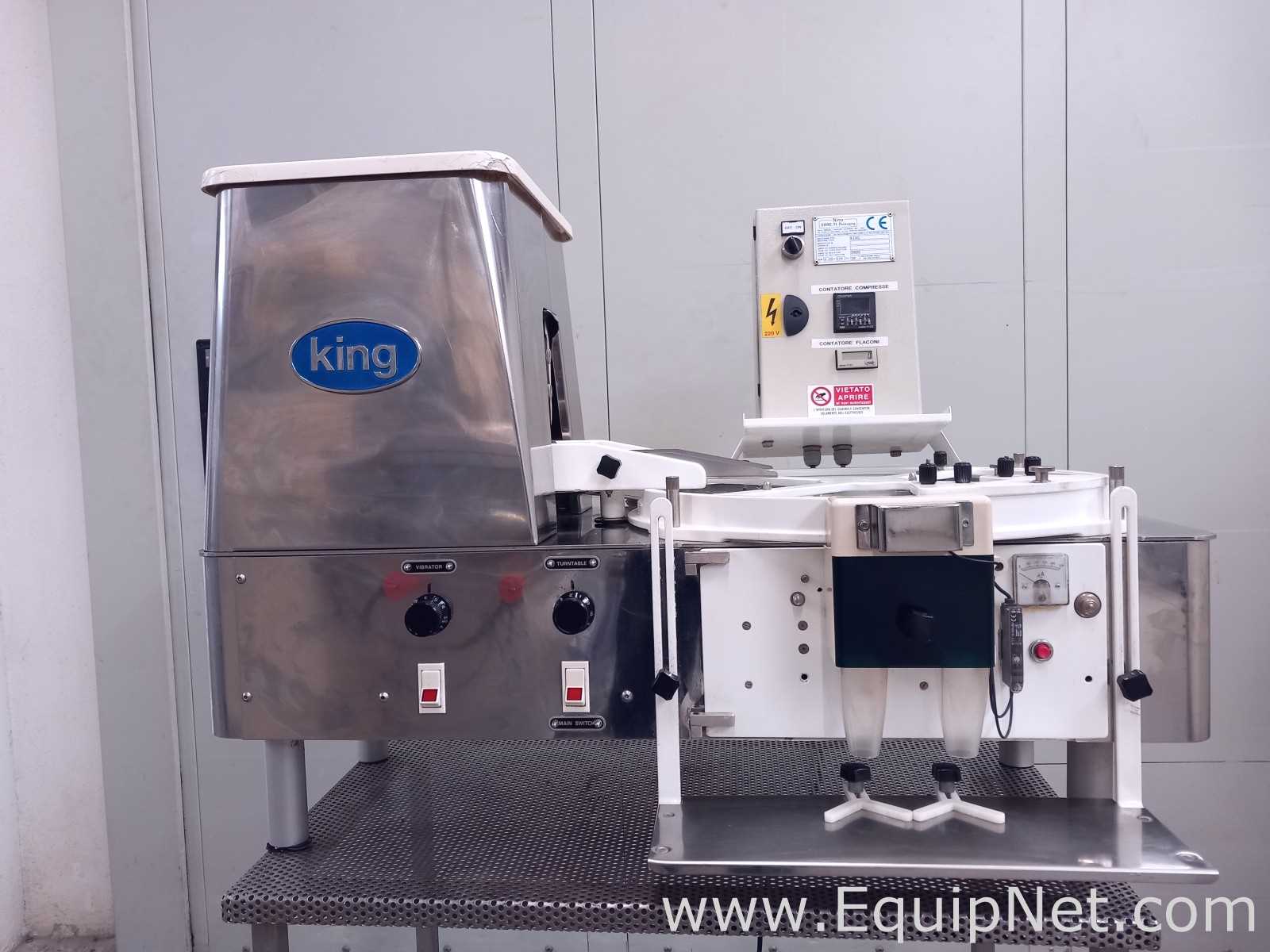

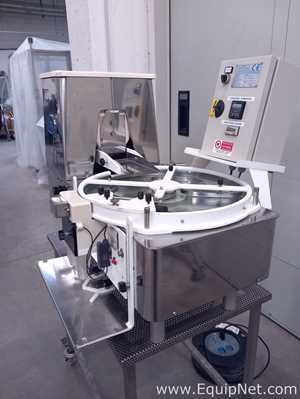

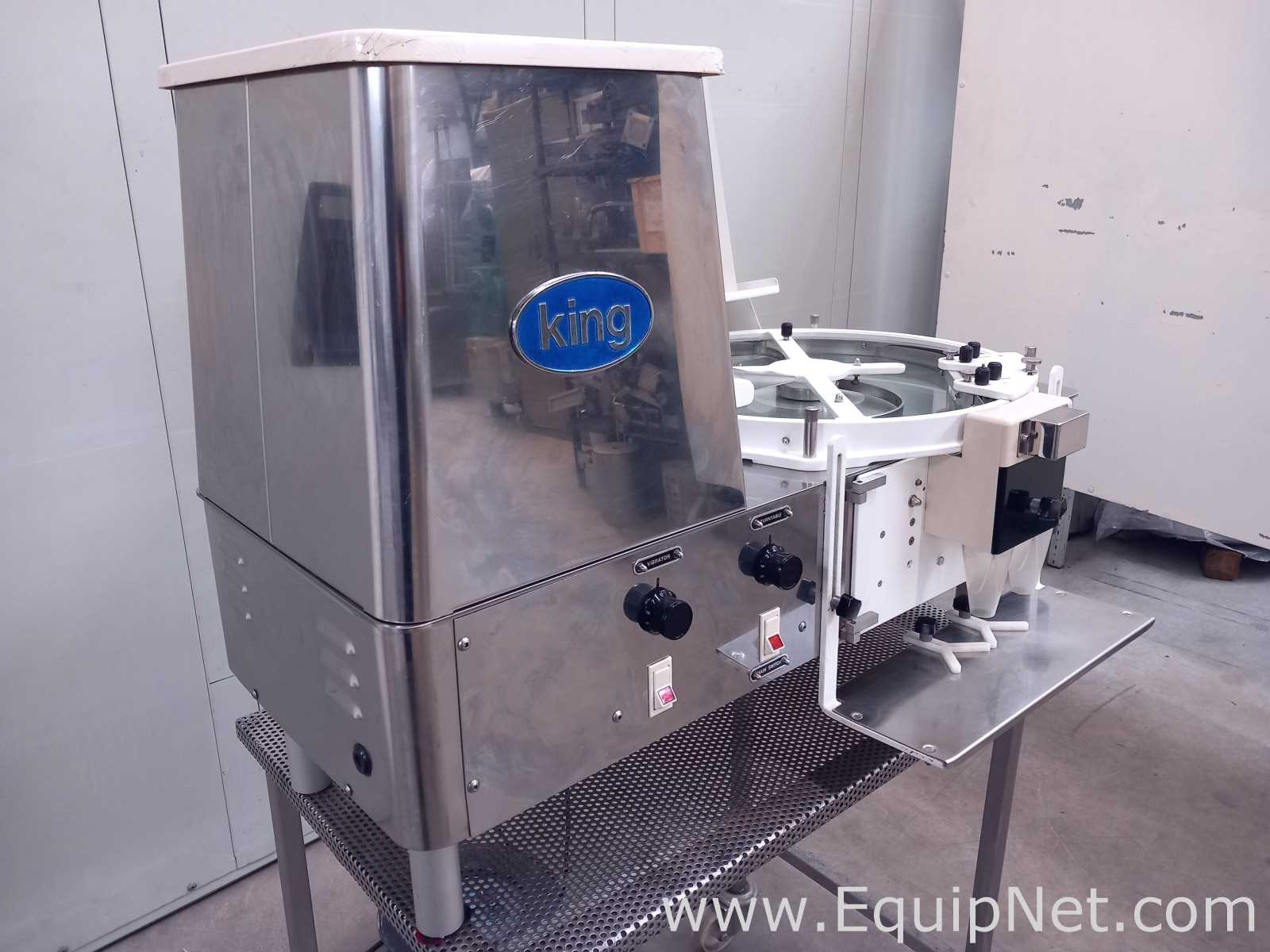

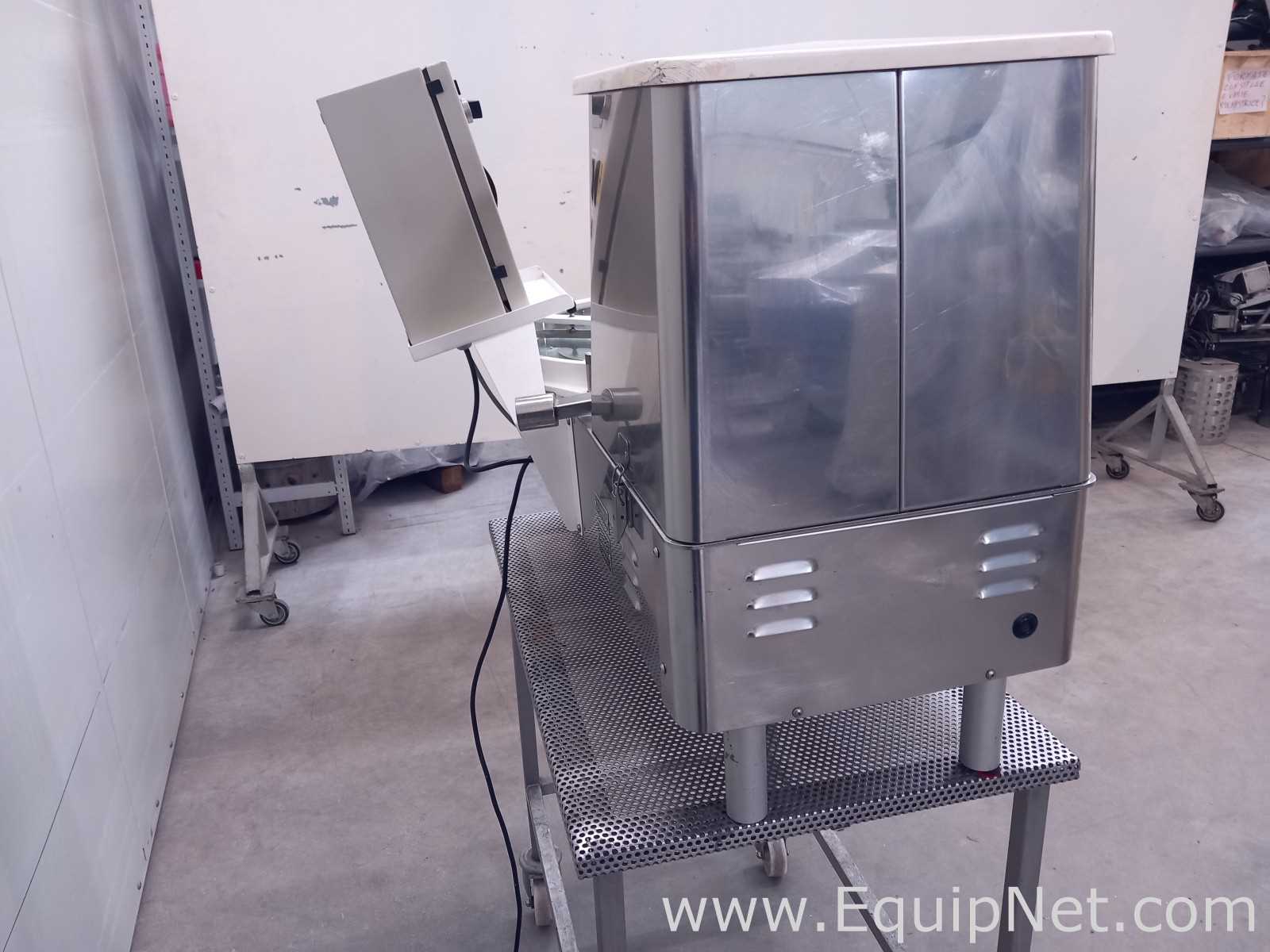

Semi-automatic tablet counter in stainless steel.

APPLICATION SECTOR:
Production, Pharmaceutical, Cosmetic, Food

FEATURES:

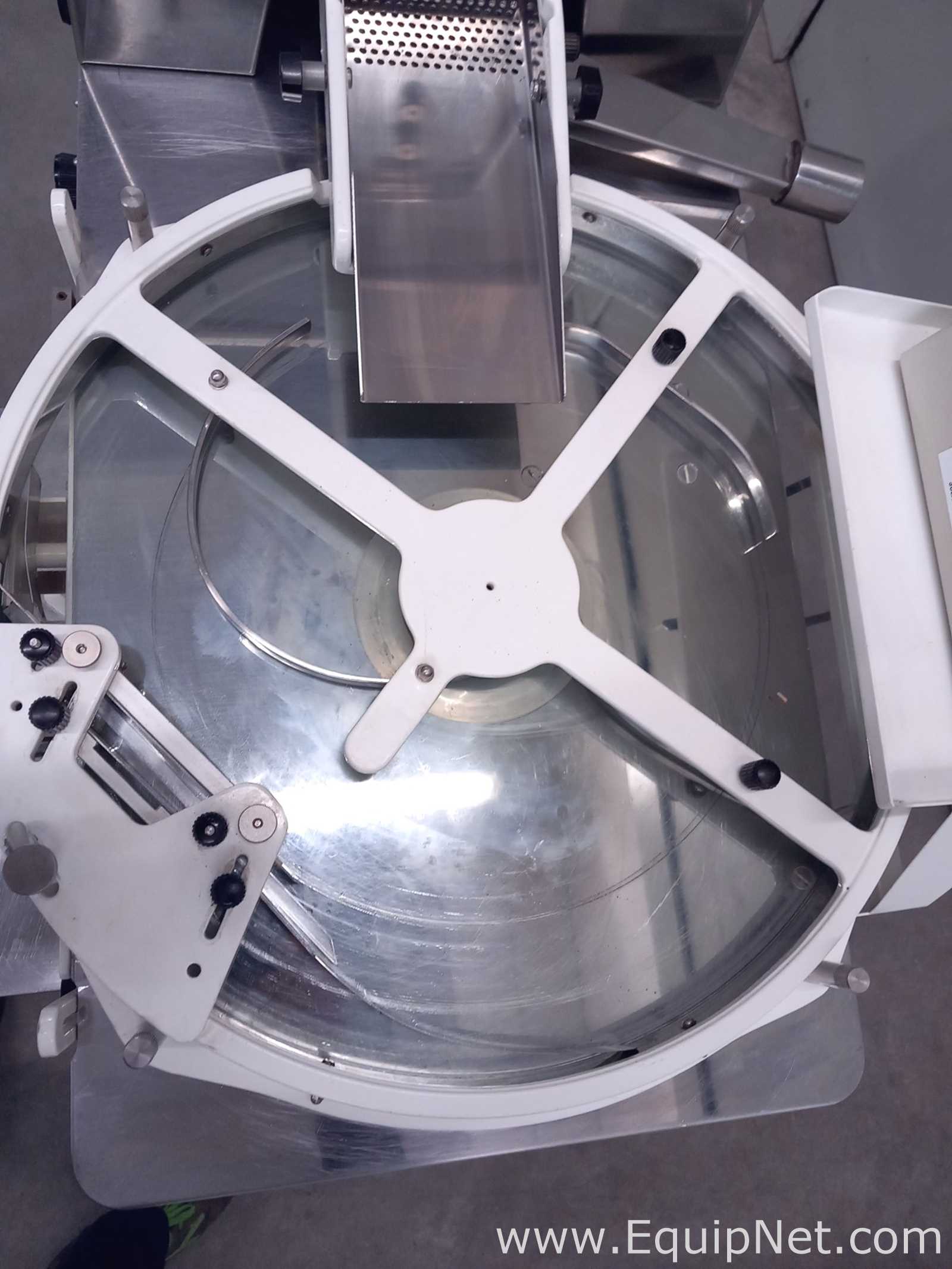

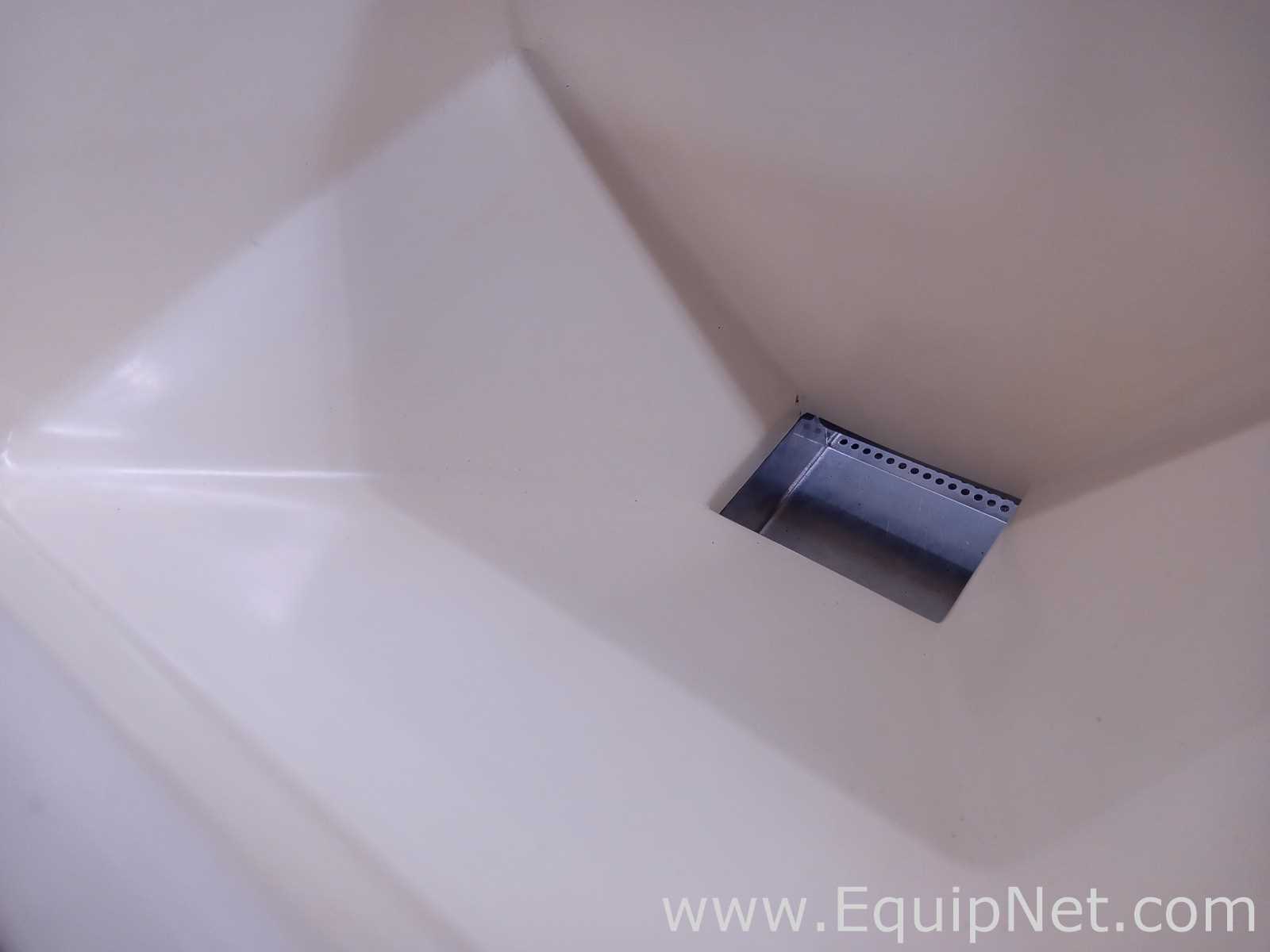

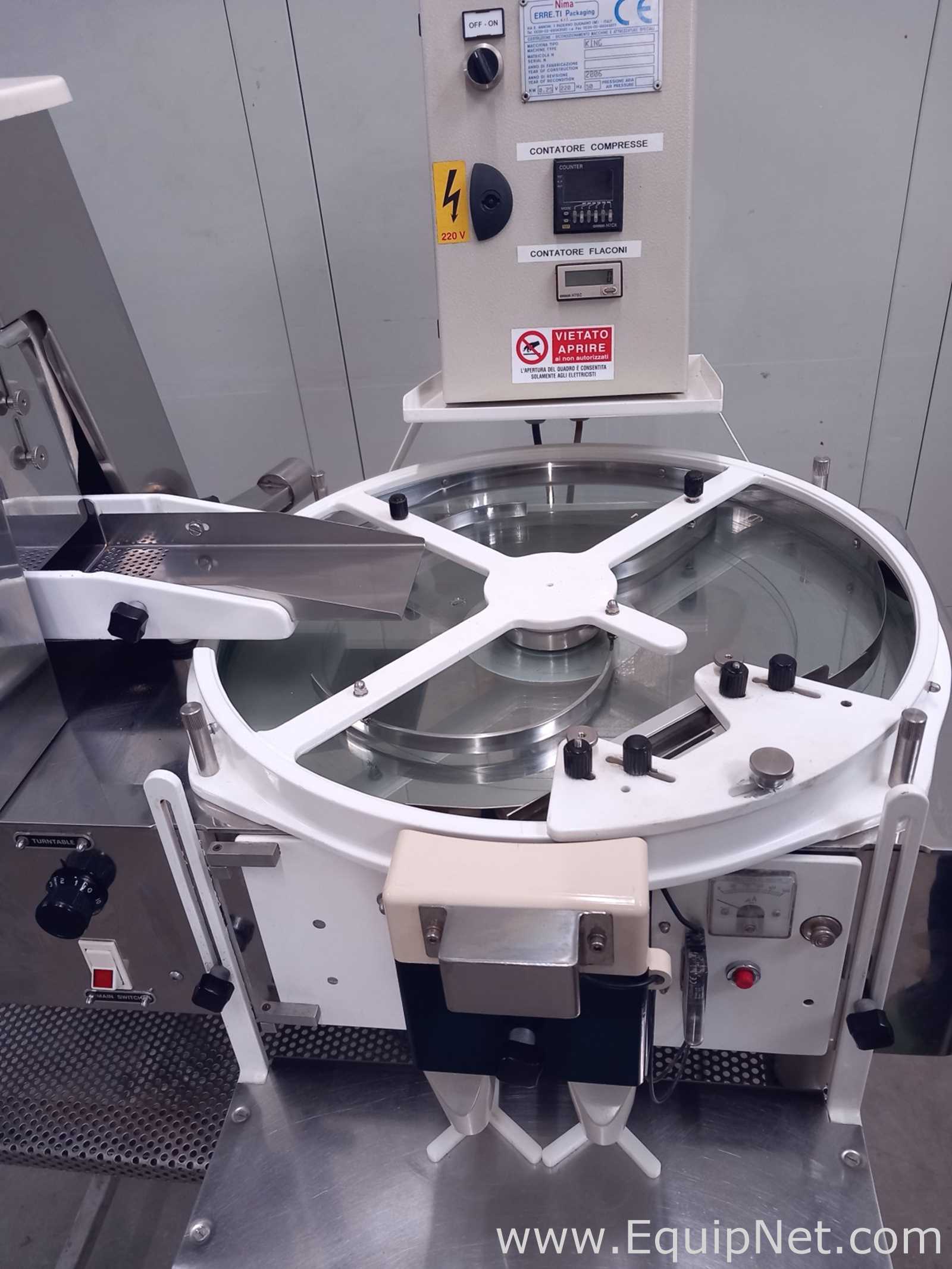

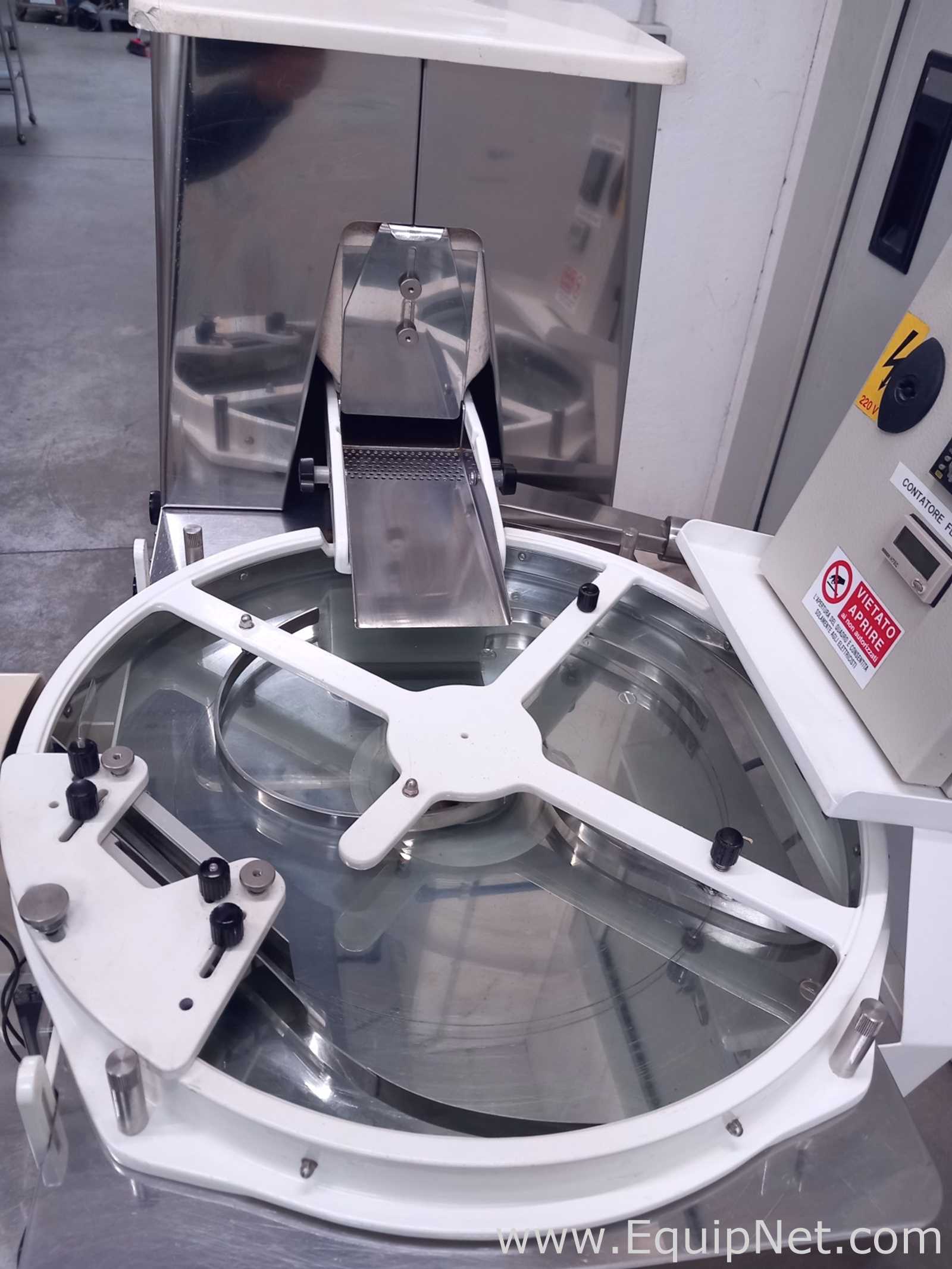

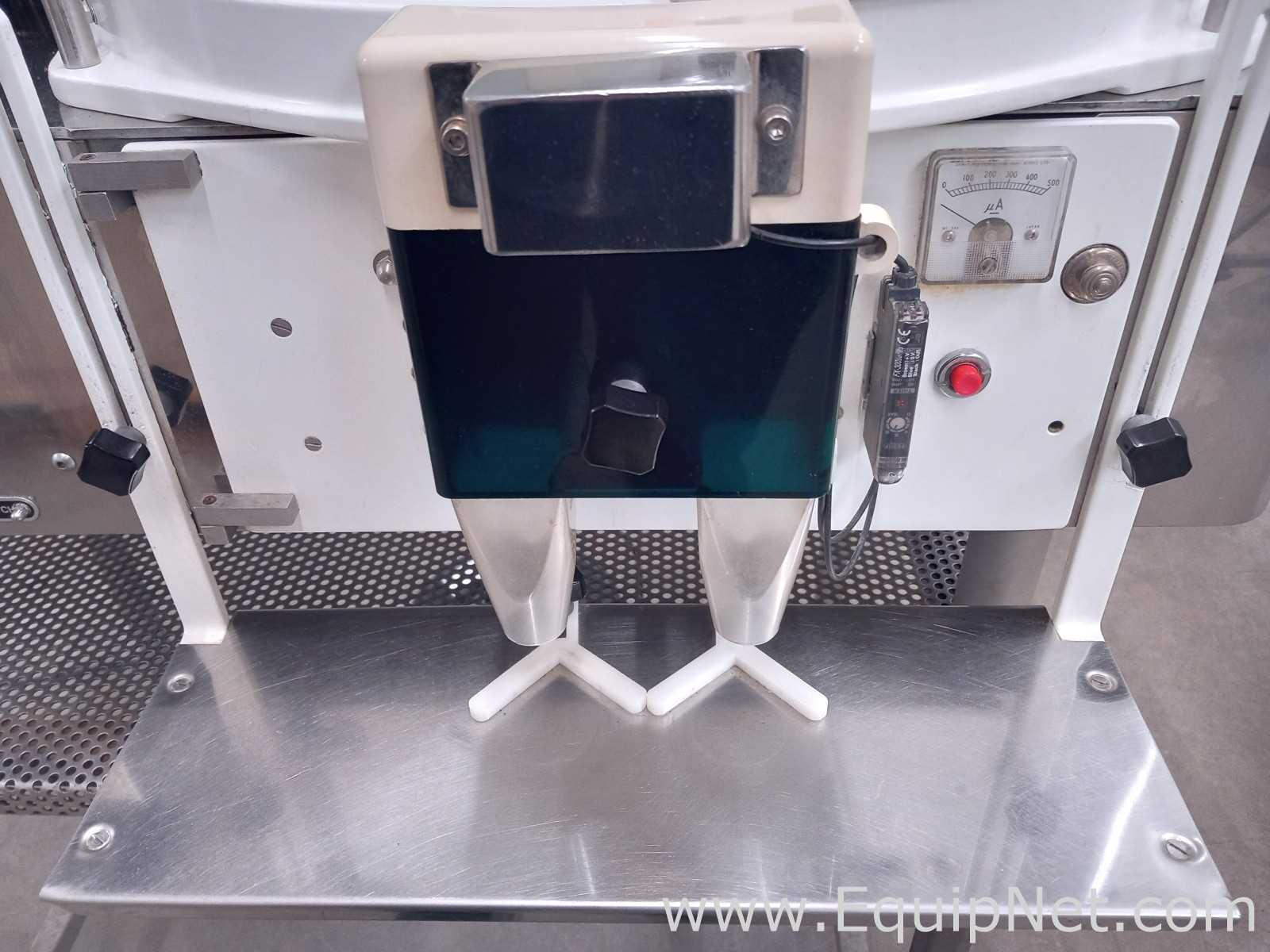

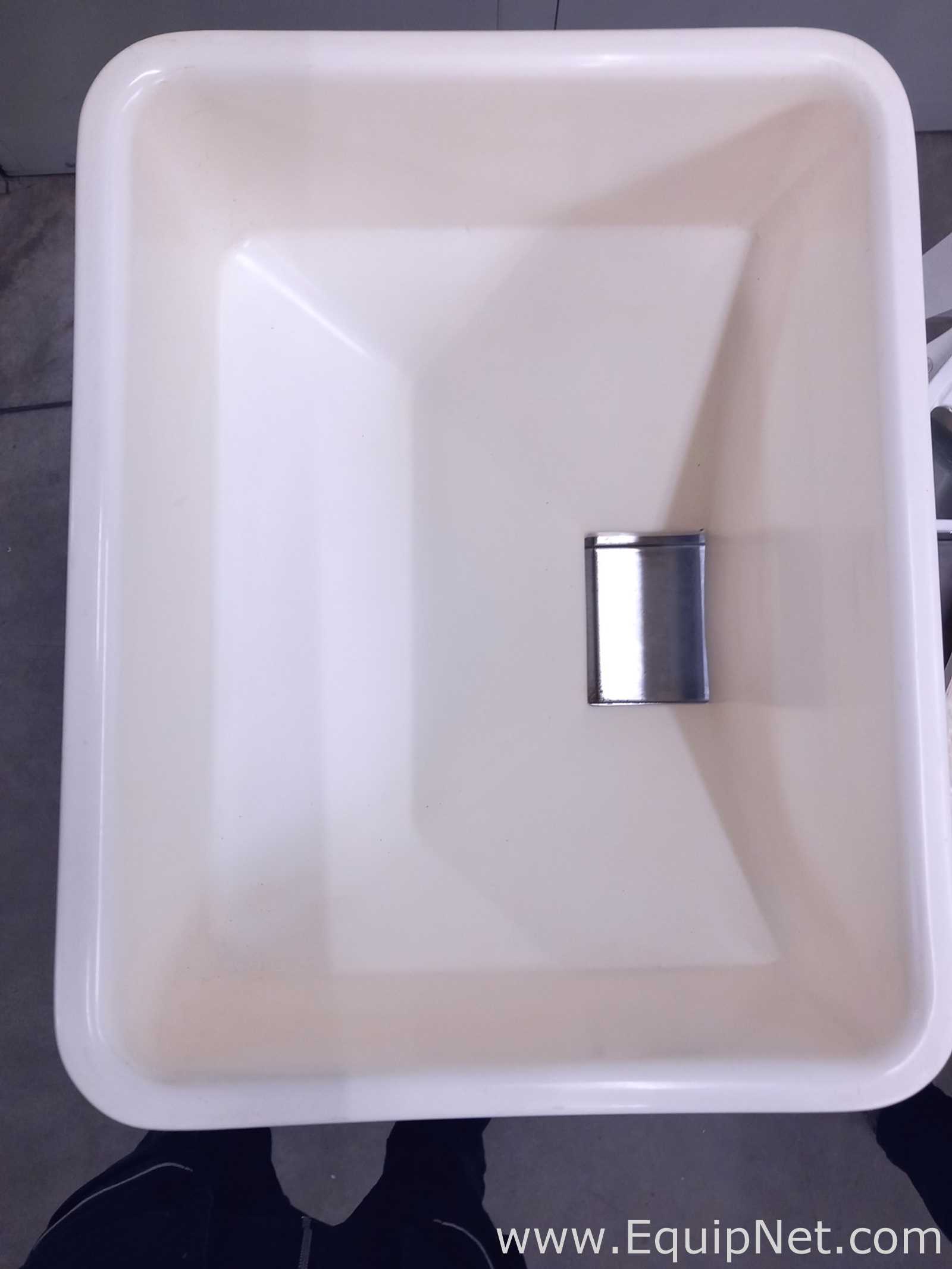

The KING TB4 counter offers an extremely versatile and precise counting method for various types of coated and uncoated tablets, capsules, hard and soft gelatin capsules. The machine is highly adaptable, quick to install and clean, with excellent design. The TB4 machine can be considered as two units: a feeding unit consisting of a hopper, a vibrating chute with a rotating glass disc below its outlet, and a counting unit composed of a photocell and light source that drives a counter. The hopper contains loose tablets with an adjustable plate at the outlet to allow the passage of tablets of various sizes. The product moves along the vibrating chute and falls onto a glass rotating plate driven by a geared motor. This rotating plate carries the tablets clockwise, deflecting the products outward into a single line through guides mounted near the glass until reaching the pickup and outlet plate at the front of the machine. At the outlet, a photocell and a light source group are mounted so that a single row of tablets falls individually, interrupting the falling light beam, thus registering them on the electronic counter. The tablets then fall beyond a flap mechanism which tilts after a preselected count has been reached, directing the tablets into another container. This configuration allows filling of separate containers. At the final outlet position, two plastic outlet funnels are mounted to channel the product into containers. An adjustable shelf is mounted to accommodate various container heights. The standard counter will very accurately count any number of tablets from 1 to 10,000.

TECHNICAL SPECIFICATIONS
Voltage: 220 Volt
Frequency: 50 Hz
Power: 0.25 Kw
Dimensions (LxWxH) mm: 900 x 750 x 670 h
Weight: 50 kg
