DESCRIPTION:

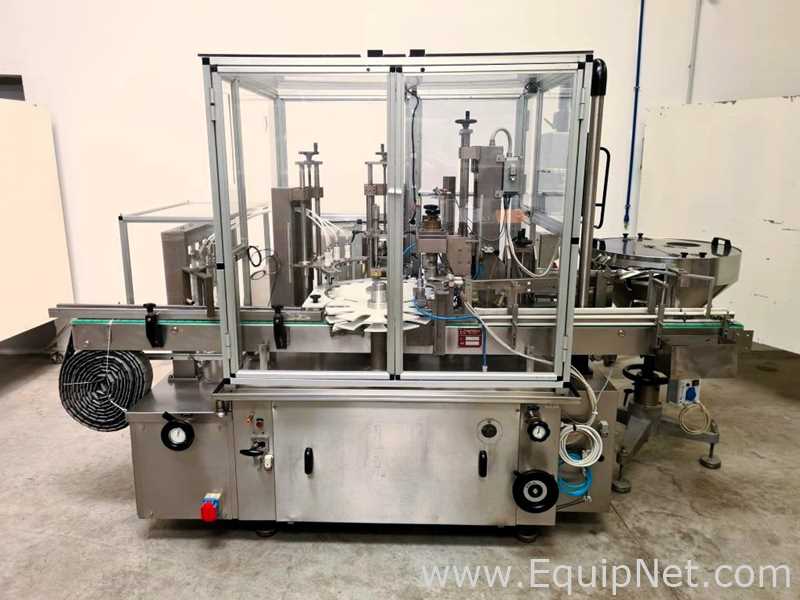

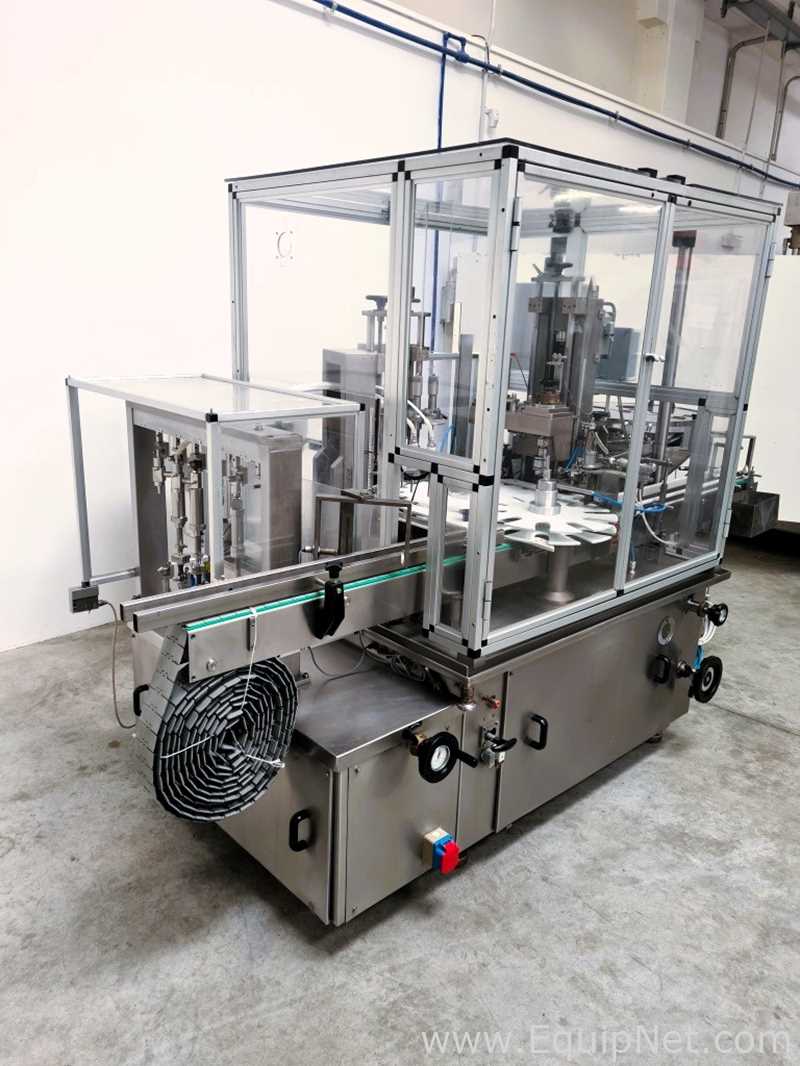

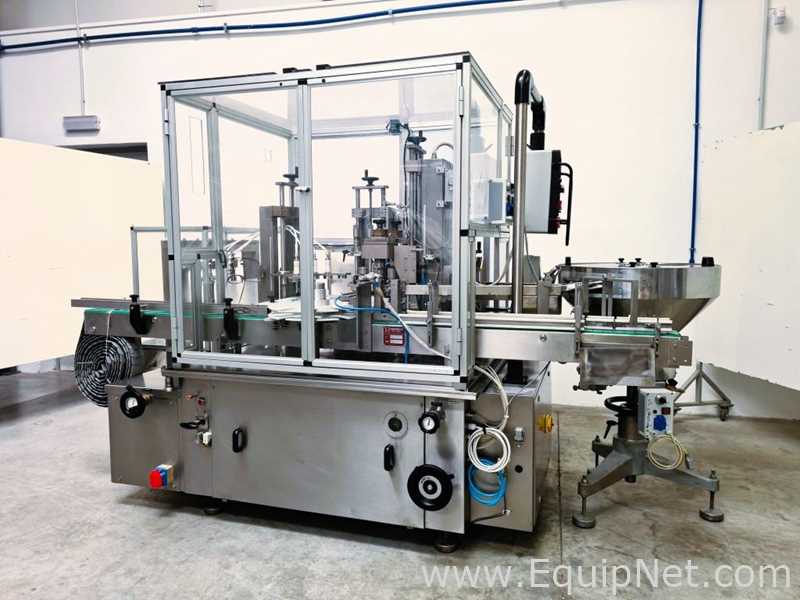

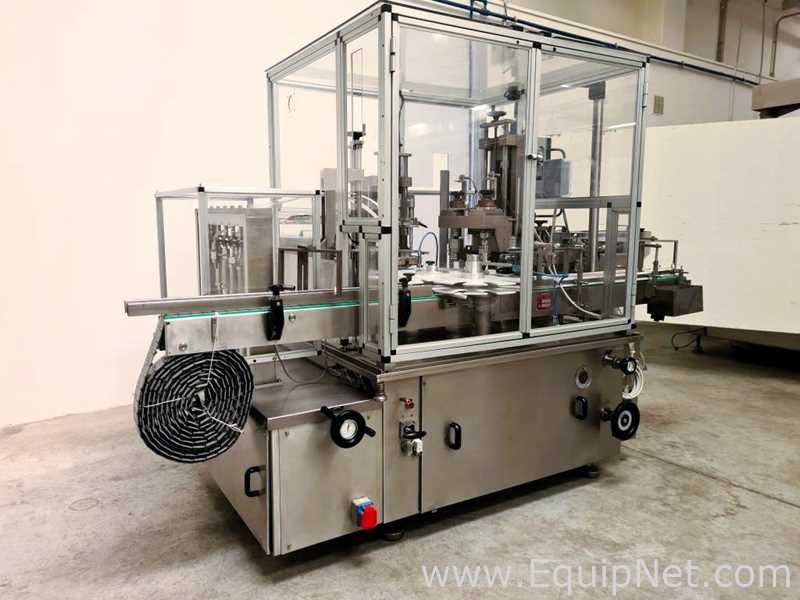

Bottle filling & closing machine for liquids, works with continuous movements, mechanical and automatic operation for filling and closing of bottles. The line is mainly composed of a rotary filling/capping machine and of rotary orientators and feeders. It is suitable for the treatment of all kinds of cosmetic products and is designed to handle a wide range of containers. Highly flexible and designed with constructive modularity these machines are very well known for their robustness and reliability.

SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.

MAIN FEATURES:

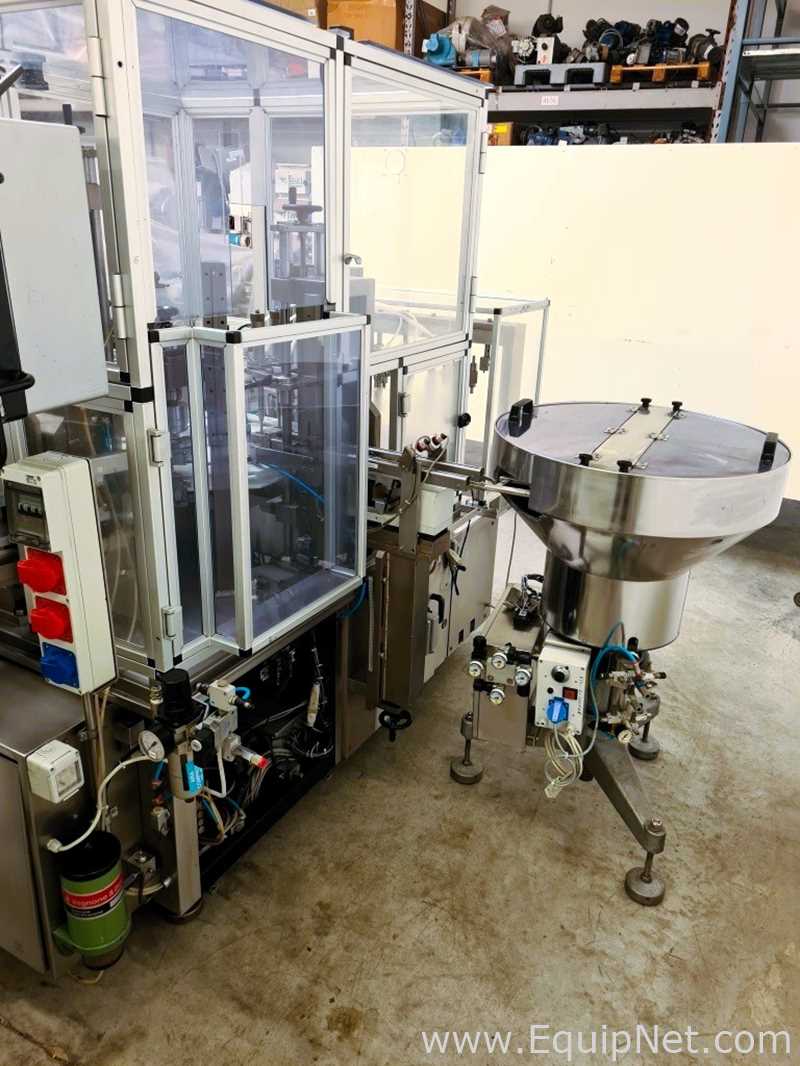

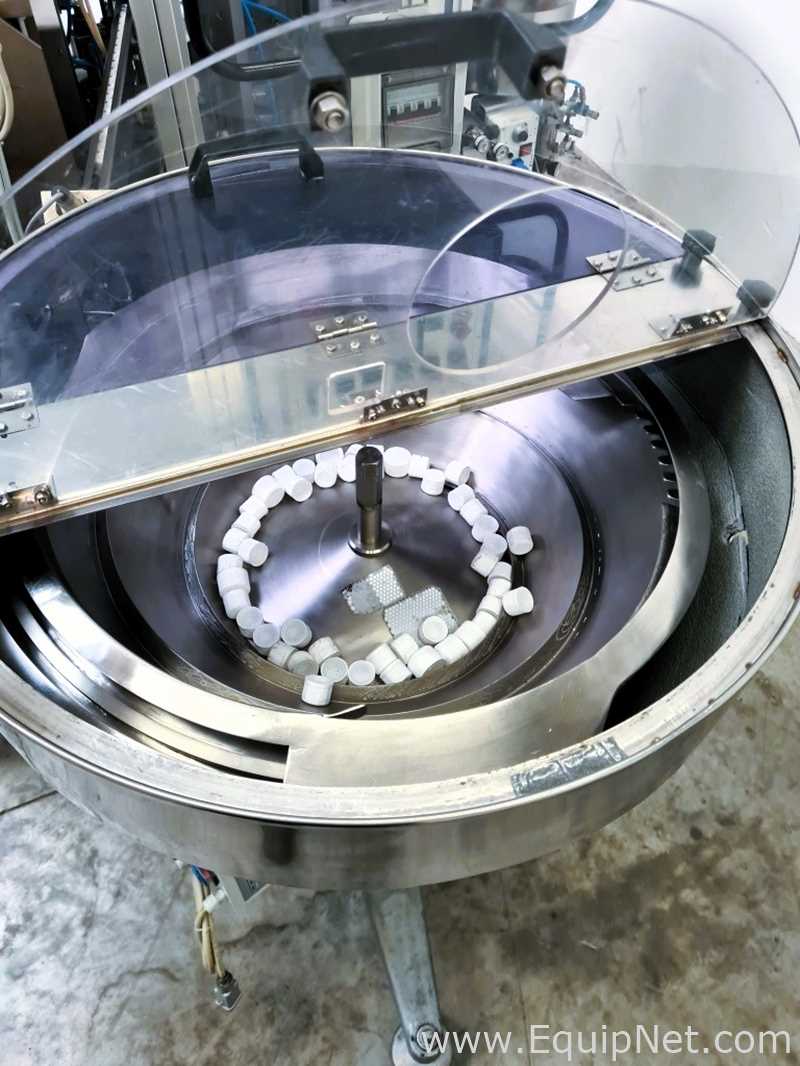

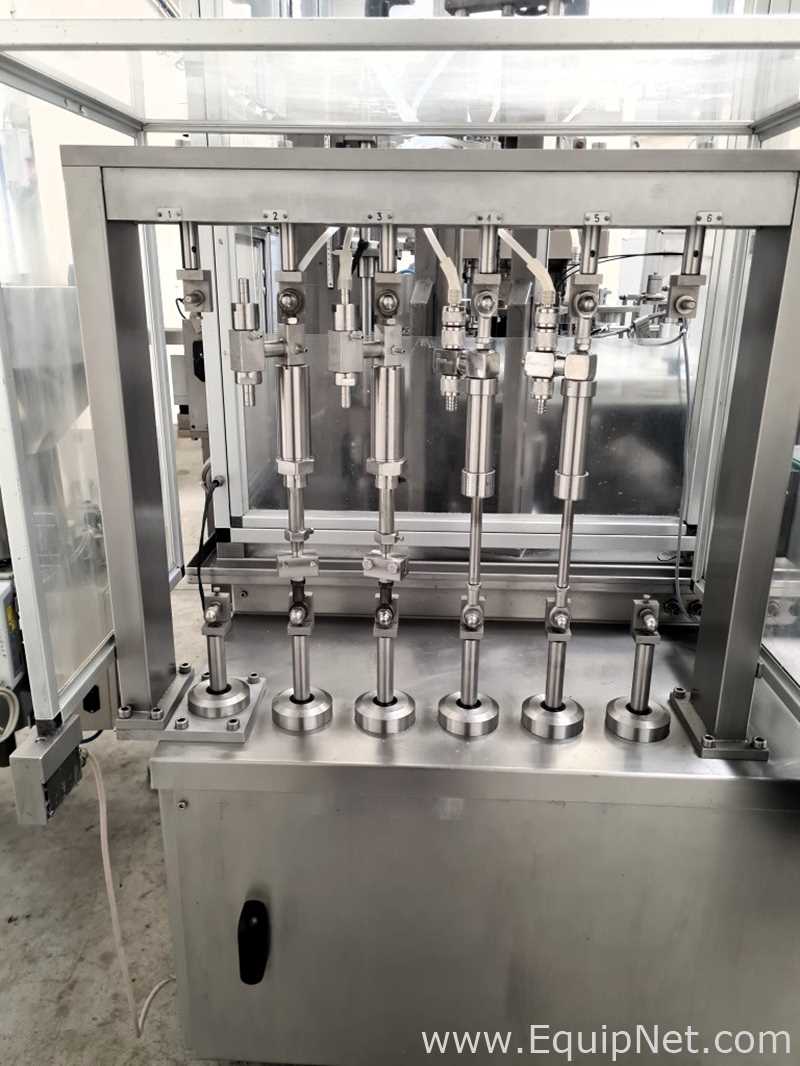

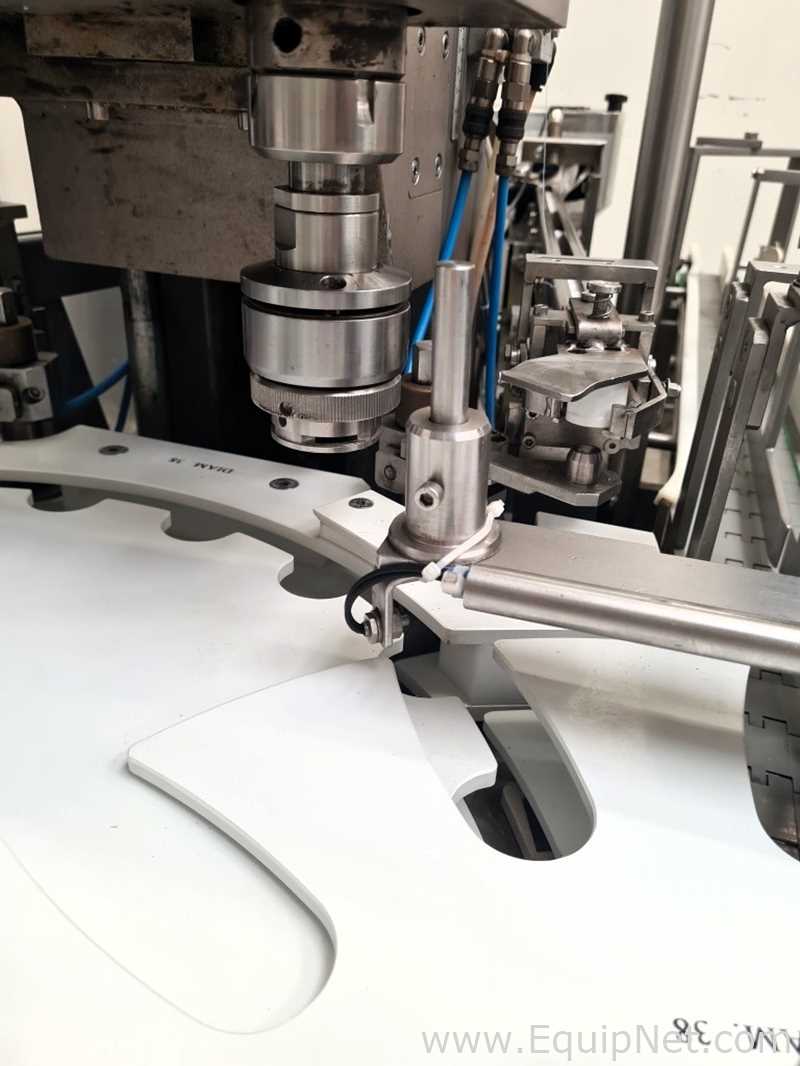

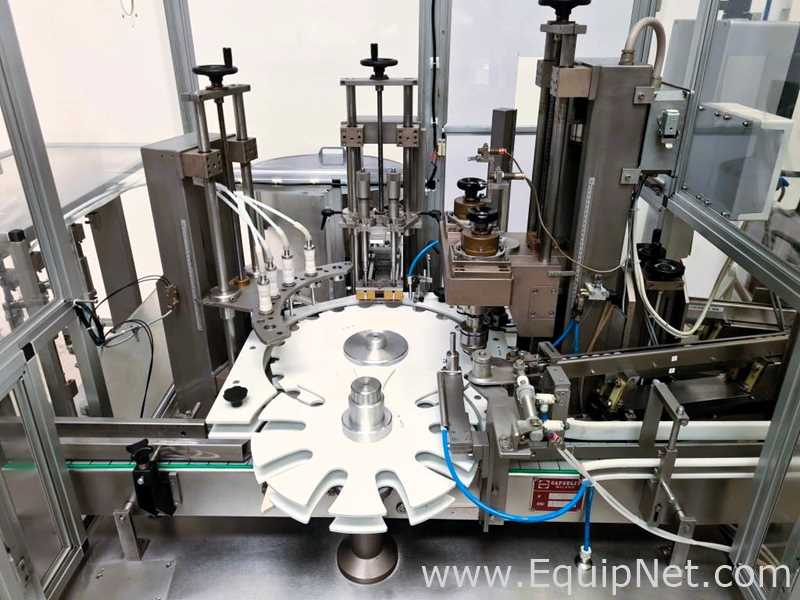

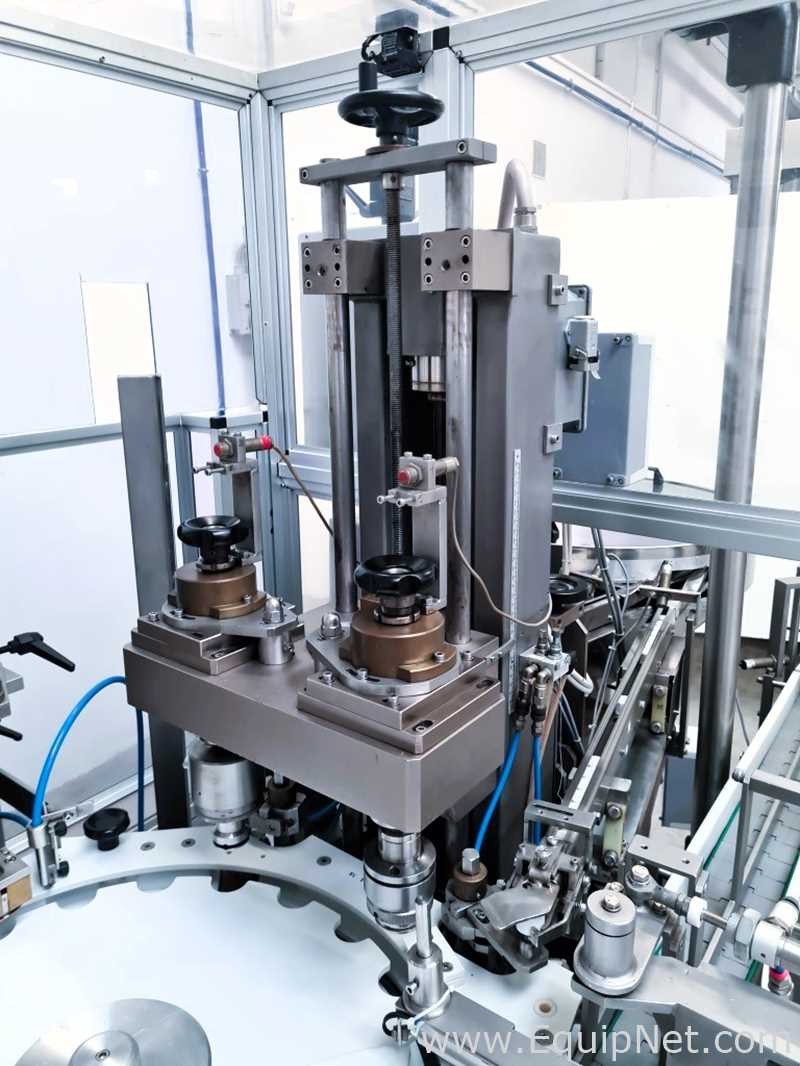

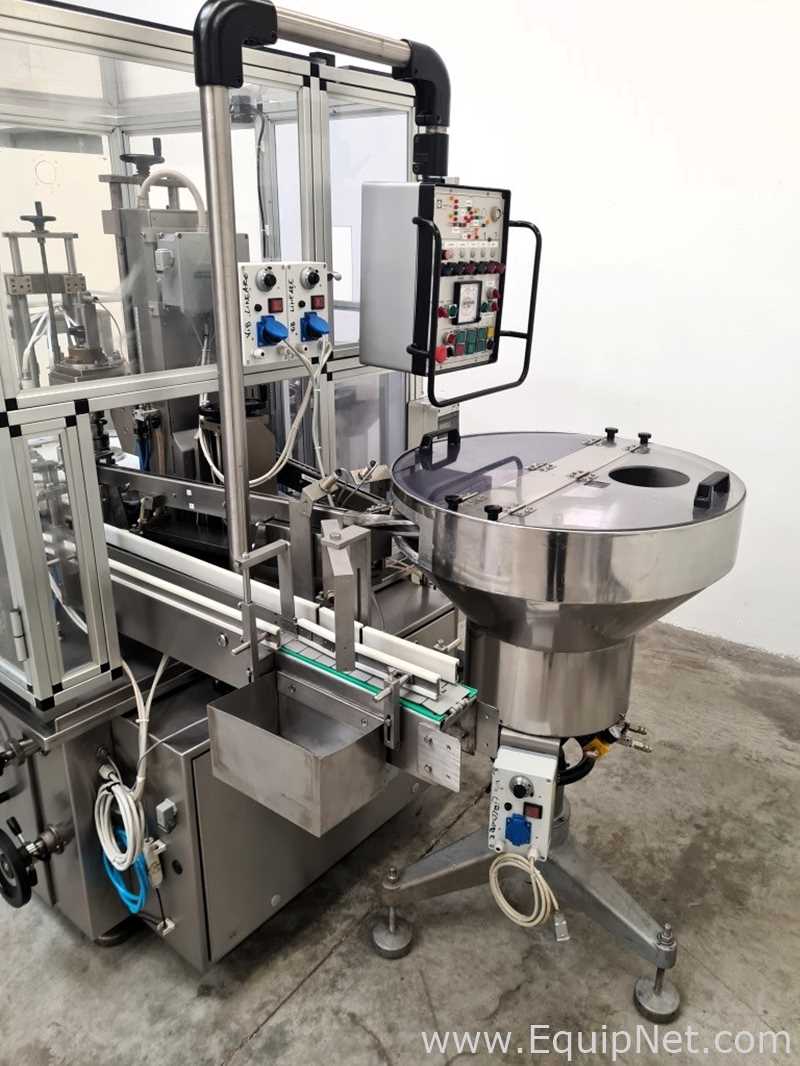

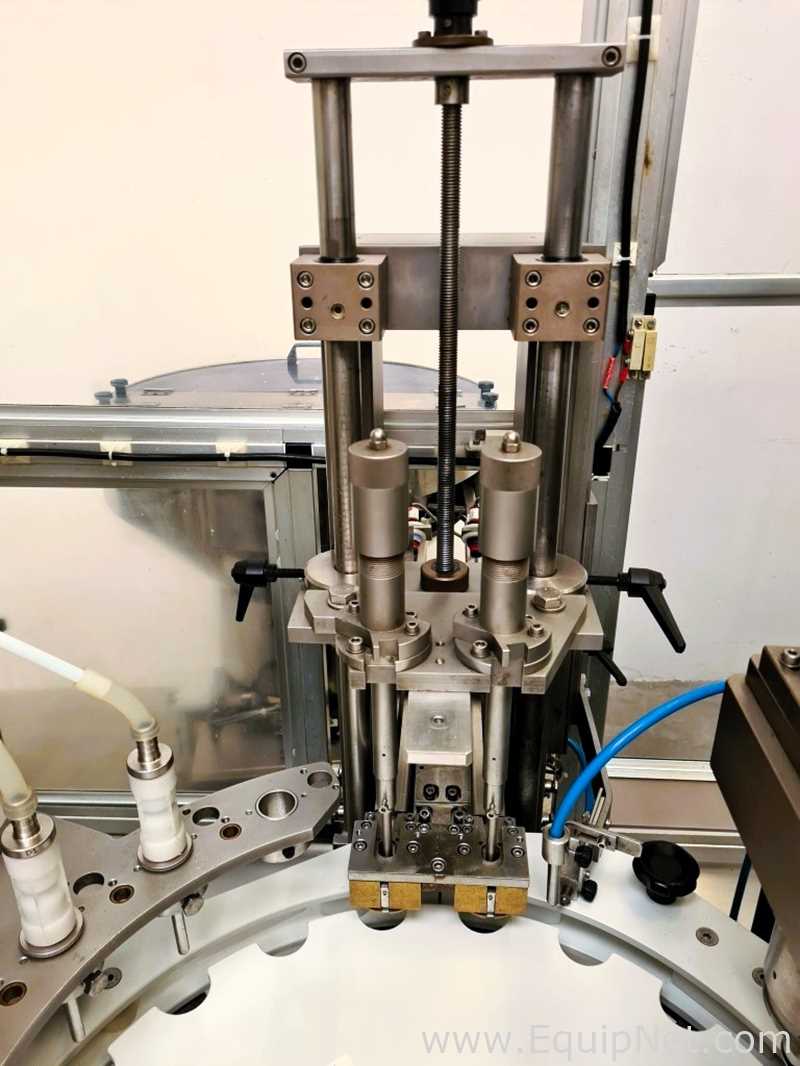

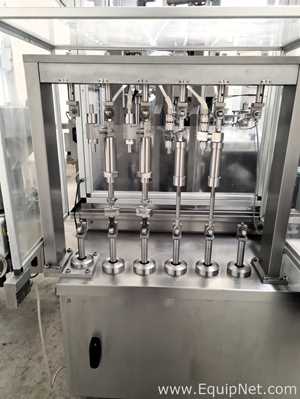

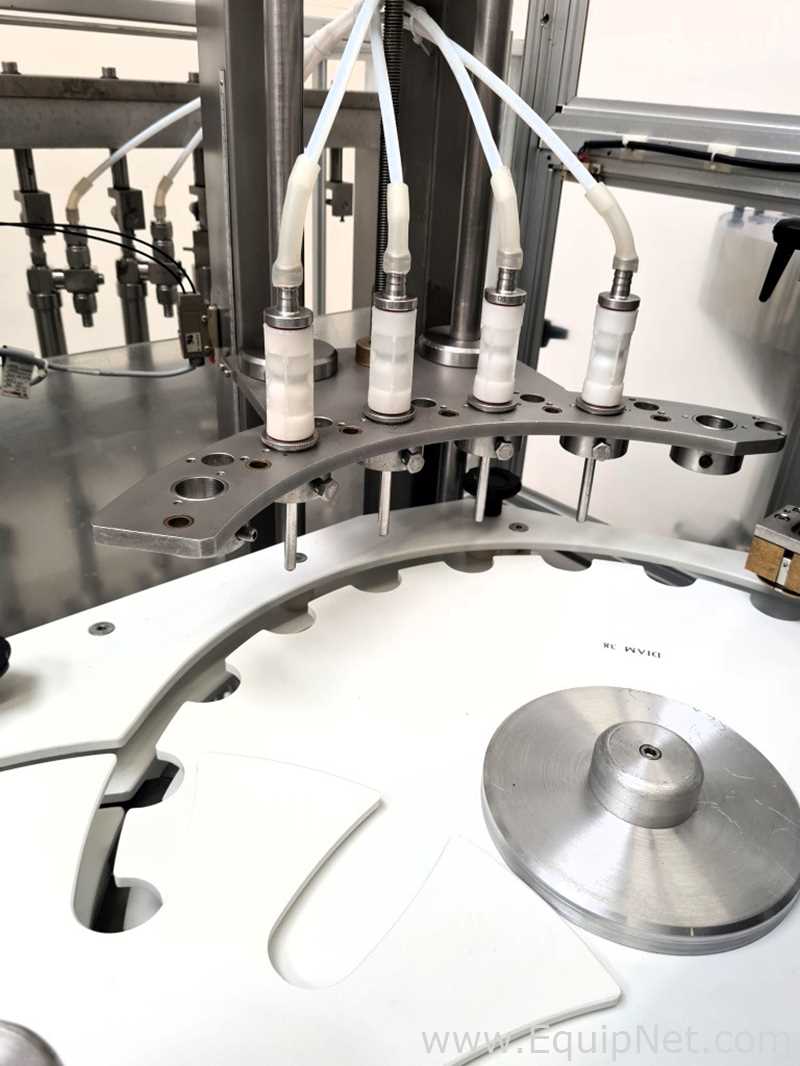

Constructive modularity, easy size change-over and compact overall design. The technological solutions, the quality of materials and ease of use are the elements that ensure the operational reliability of this machine. The caps and the bottles are fed to the filling machine after which the individual bottles are positioned to be filled. Afterwards the bottles arrive at the filling station equipped with dosing syringes where they are filled and then proceed towards the closing station where they are closed. Further on the bottles filled and closed arrive to the discharge conveyor belt that feeds them directly to the next machine. Closure type is by pressure for cap with safety and dropper. There are 6 filling stations, 2 dropper insertion stations and 2 cap closing stations. The machine is equipped with 2 vibrating cup feeders.

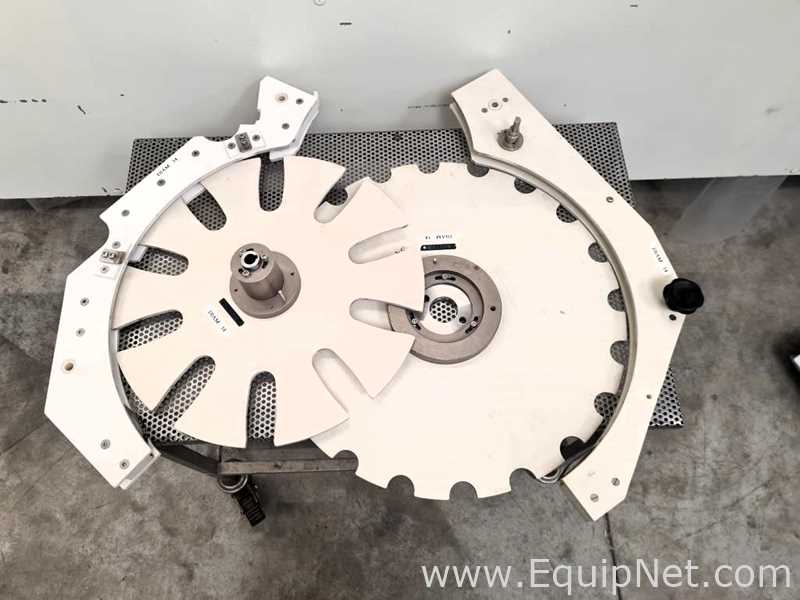

Change formats are available for the following bottle sizes upon request: diam. 30/32/34/35/43 mm.

Year: 1985

TECHNICAL DATA
Dimensions mm 3040 x 2350 x 1980
Weight Kg 1200
Bottle format installed diam. mm 38

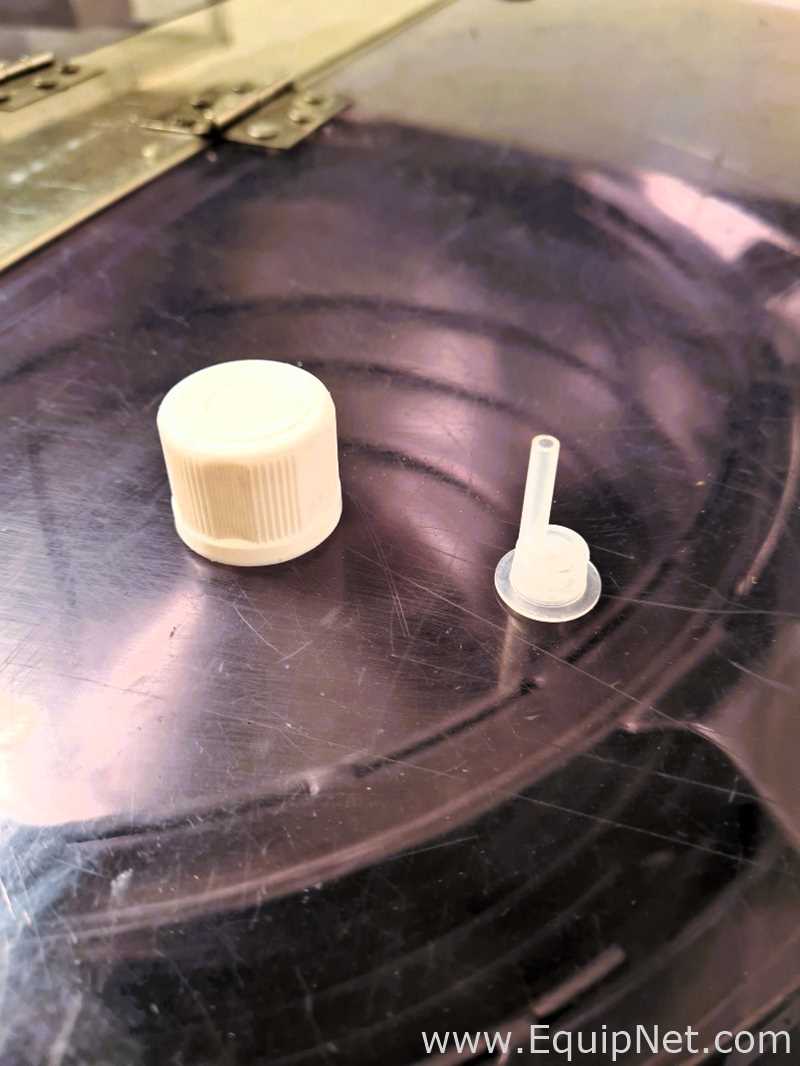

Current cap format dim. mm Diam. 25 x 20 h
Current dropper format dim. mm Diam. 15 x 25 h
