Descrição do equipamento

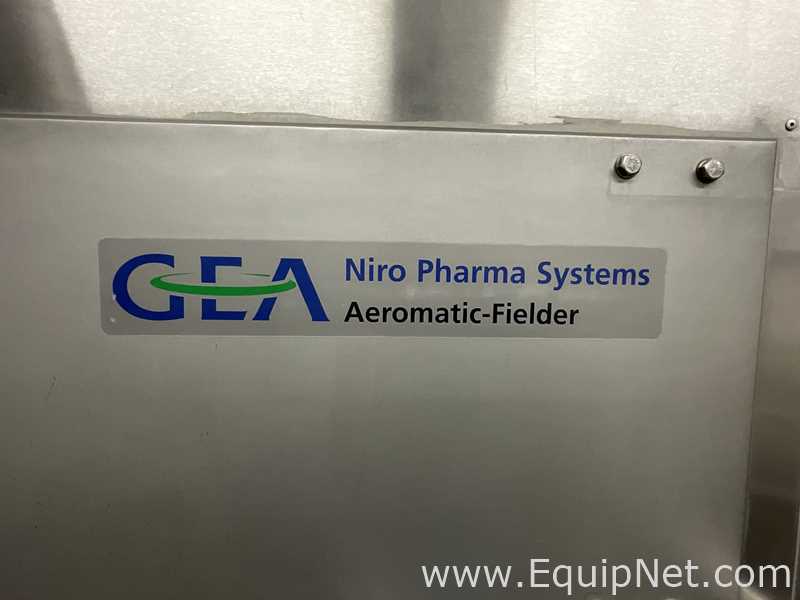

GEA Niro Aeromatic Fielder Granulator and Fluid Bed Dryer System

Granulation, Drying and Milling system for bulk compression blends of API. System can process in lots of 200Kg, total batch size run was 600Kg.

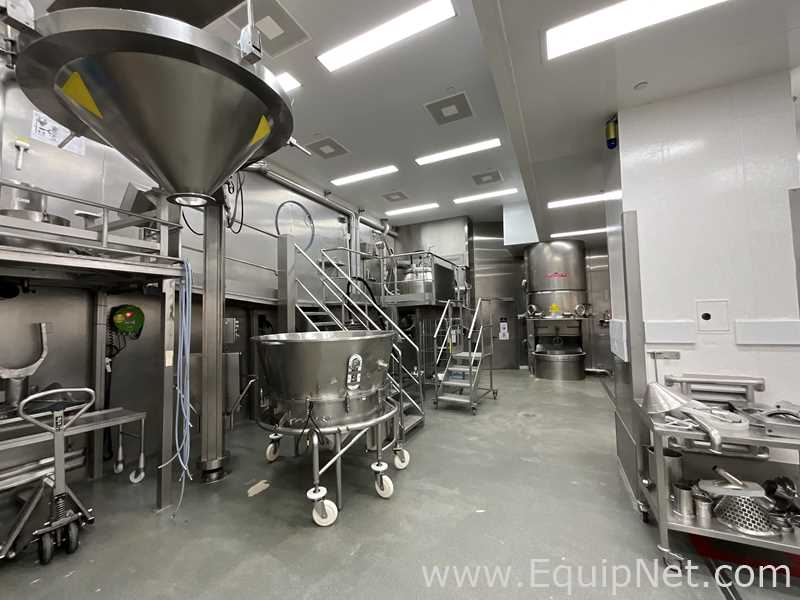

System includes solution addition via a stainless steel tank direct to the granulator. Wet and Dry Milling. Following drying the dryer basket is attached to the lift and is inverted over a cone and then dry milled into an IBC.

Listing includes the following items.

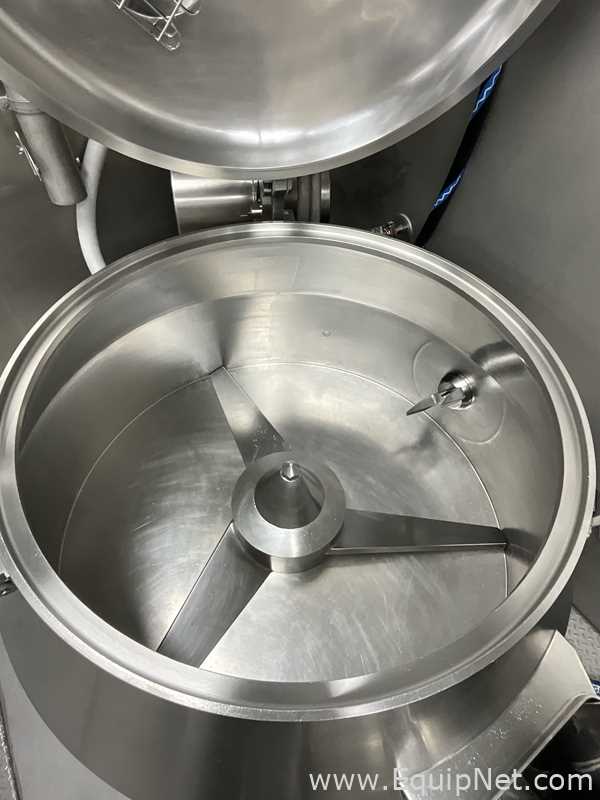

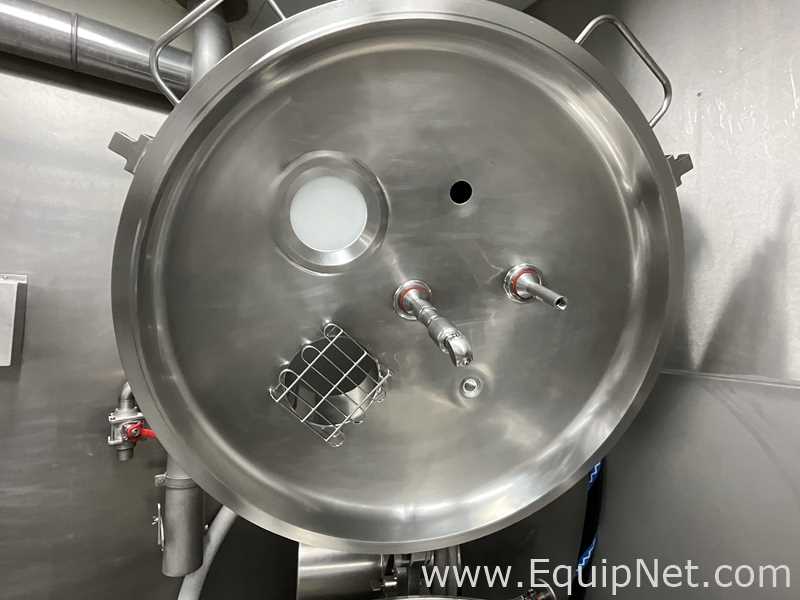

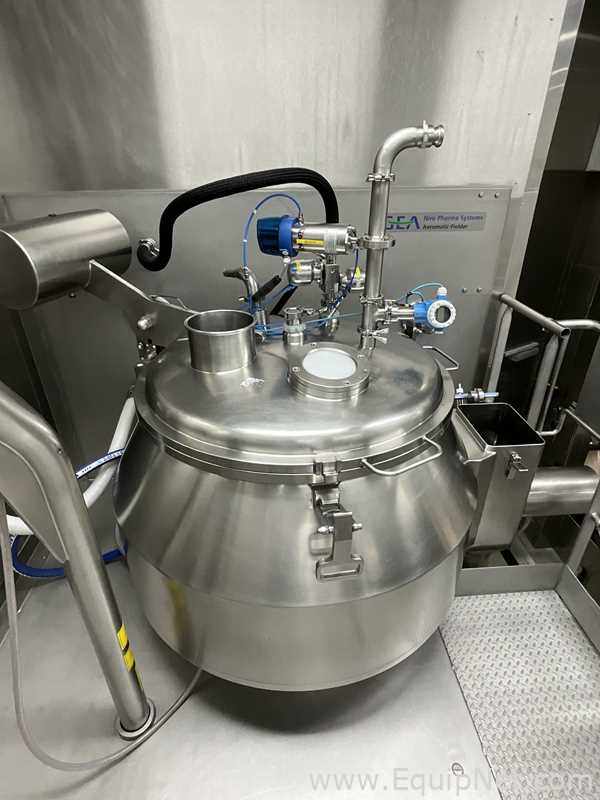

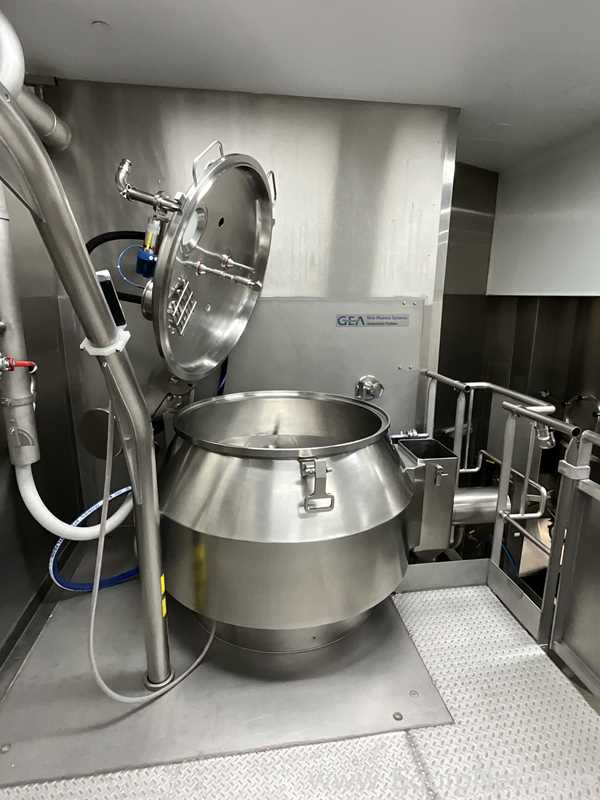

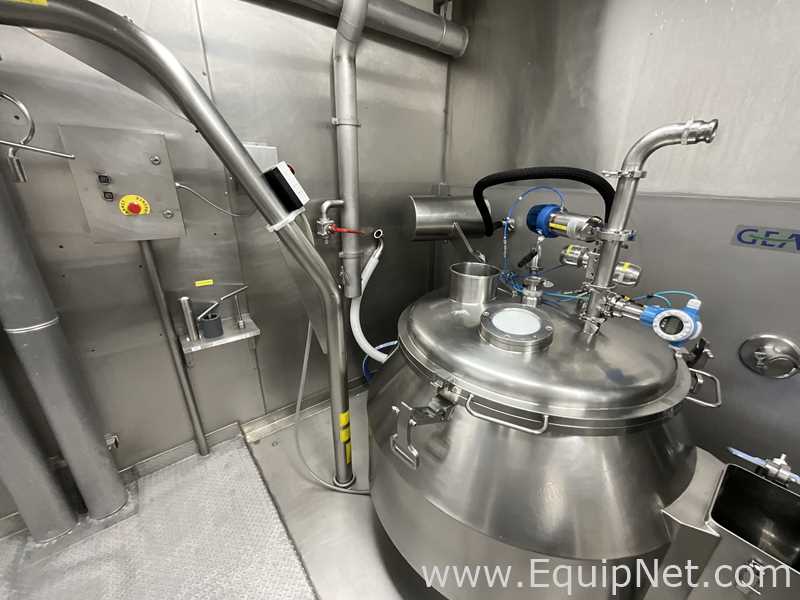

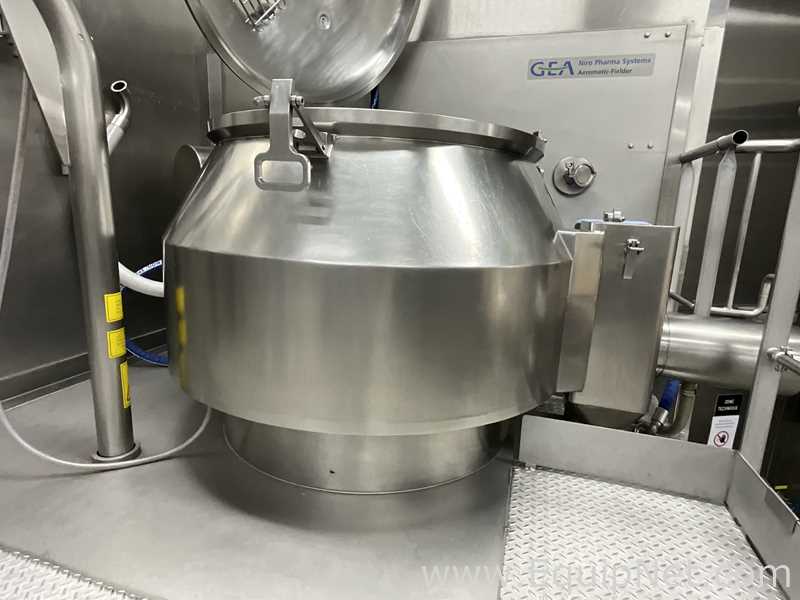

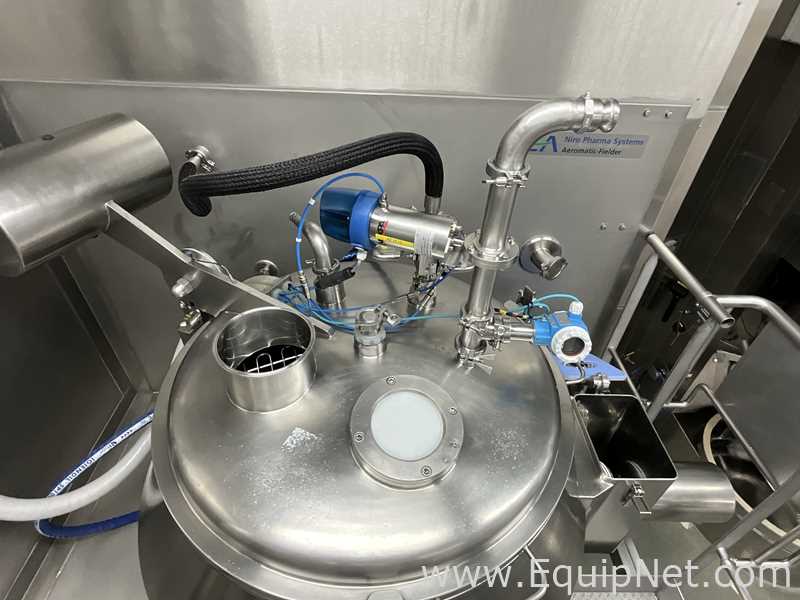

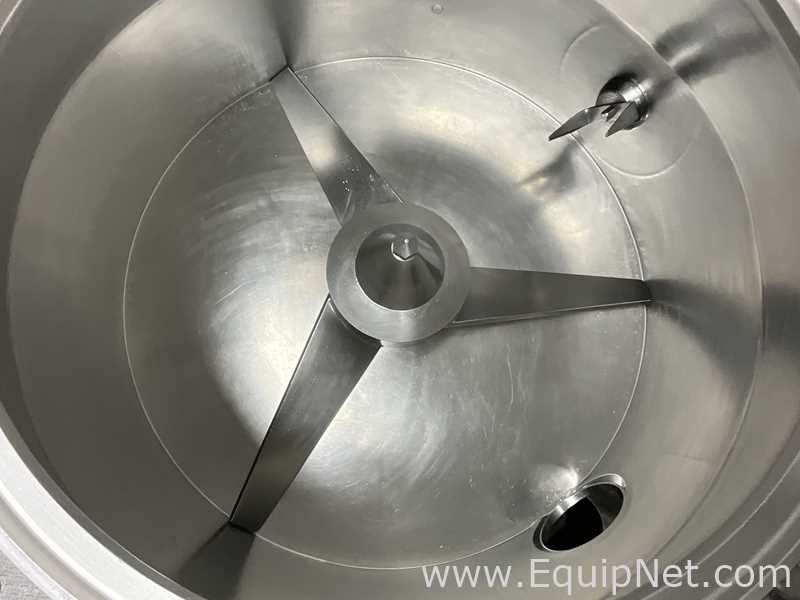

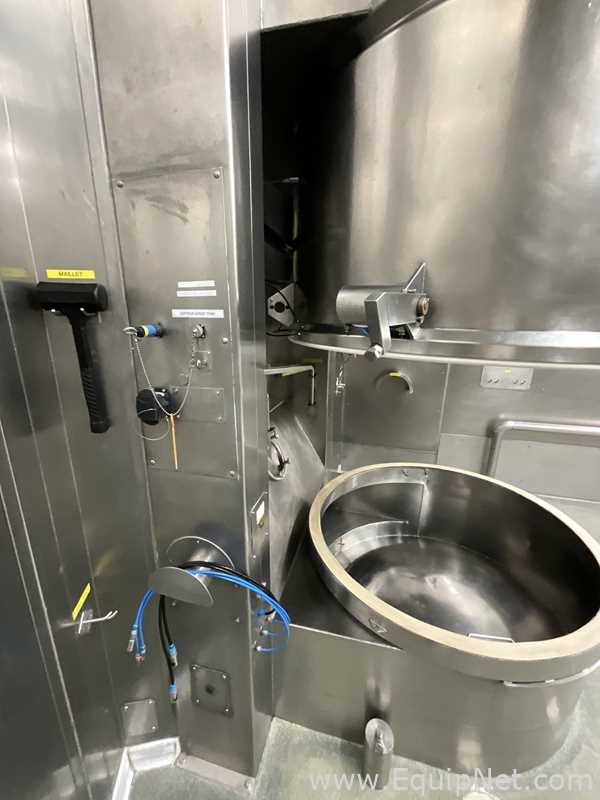

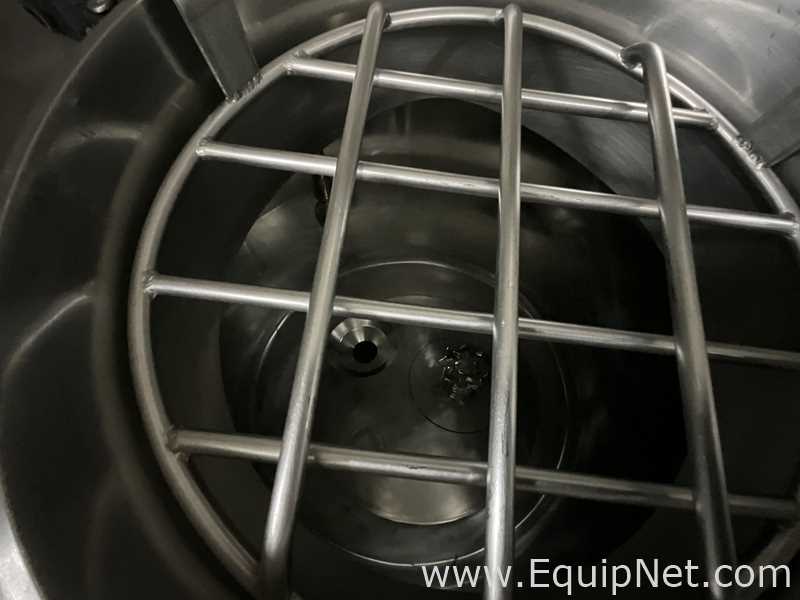

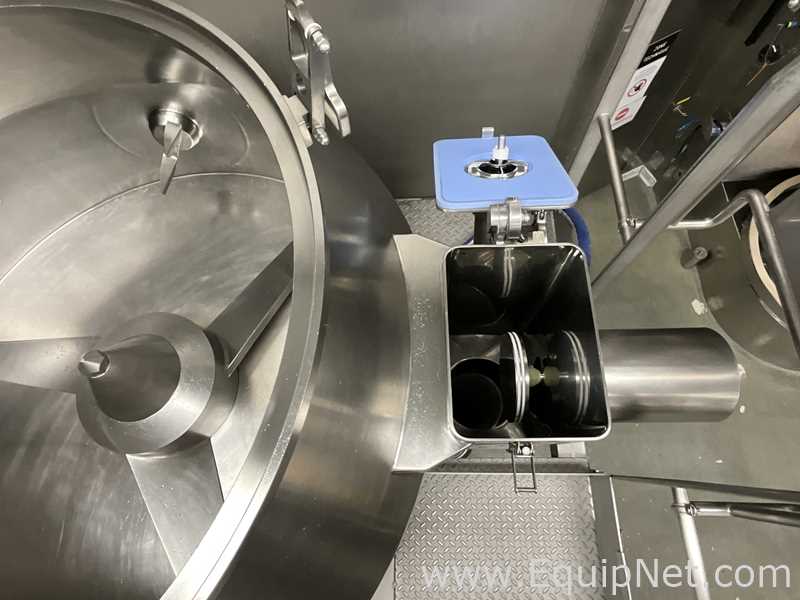

  • Item 1/12 - GEA Niro Aeromatic Fielder Jacketed Granulator. 1000mm diameter lid. Main agitator operates at 0-160rpm. Side mounted mixing blade (chopper) operates at 0-3000rpm

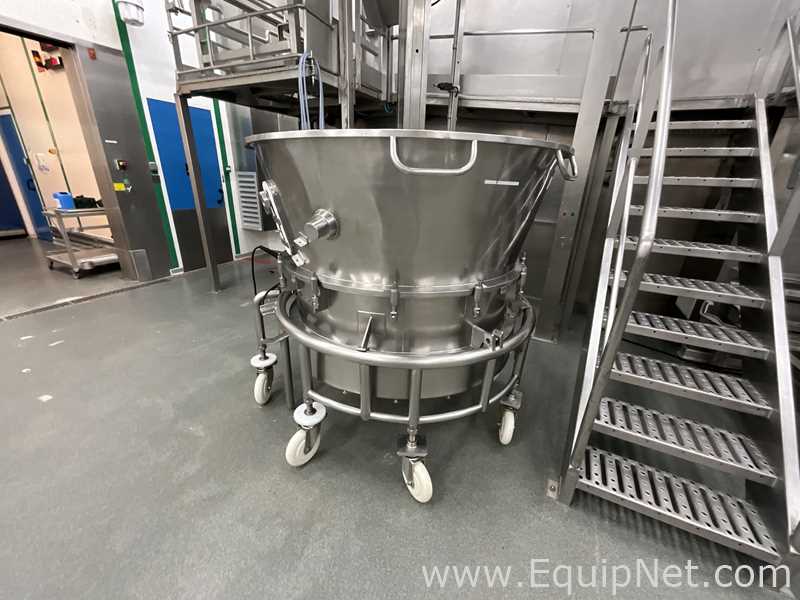

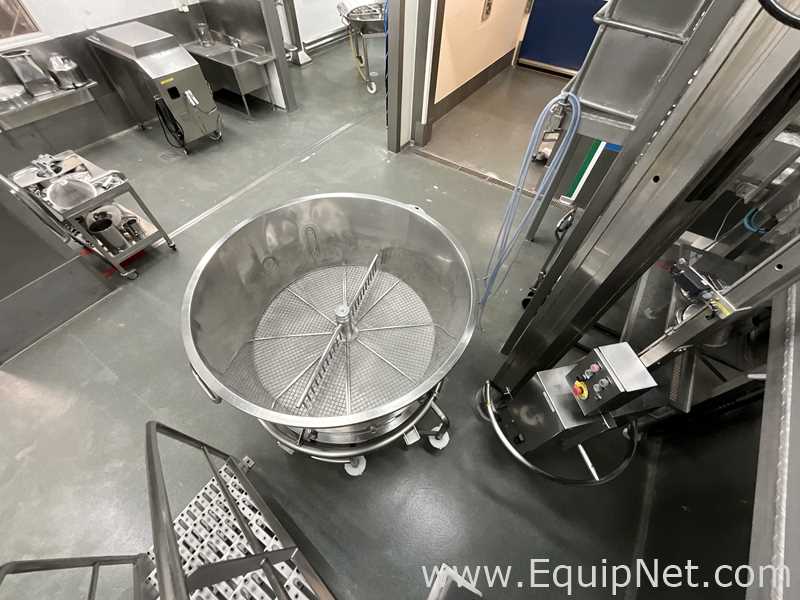

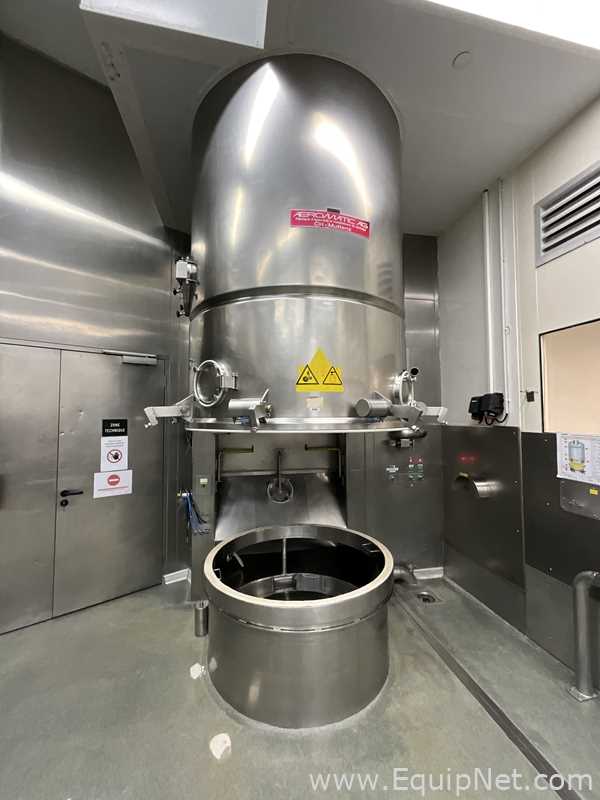

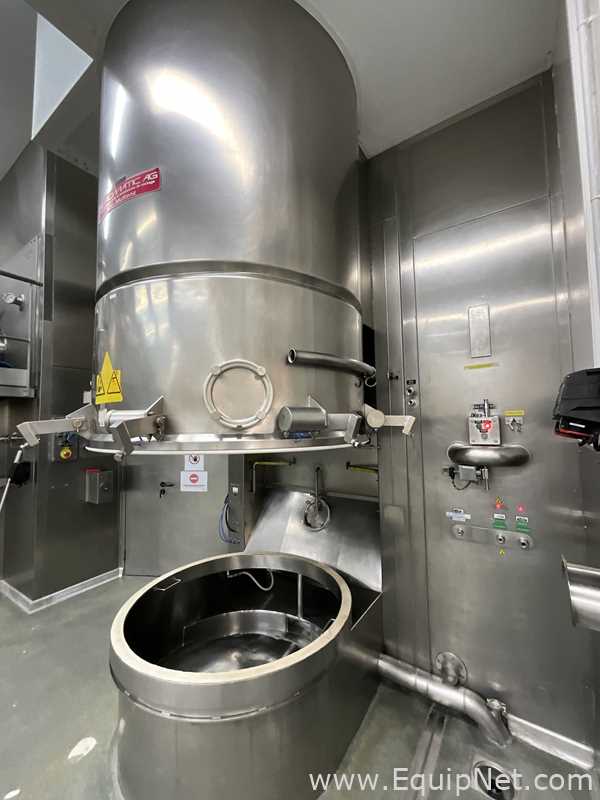

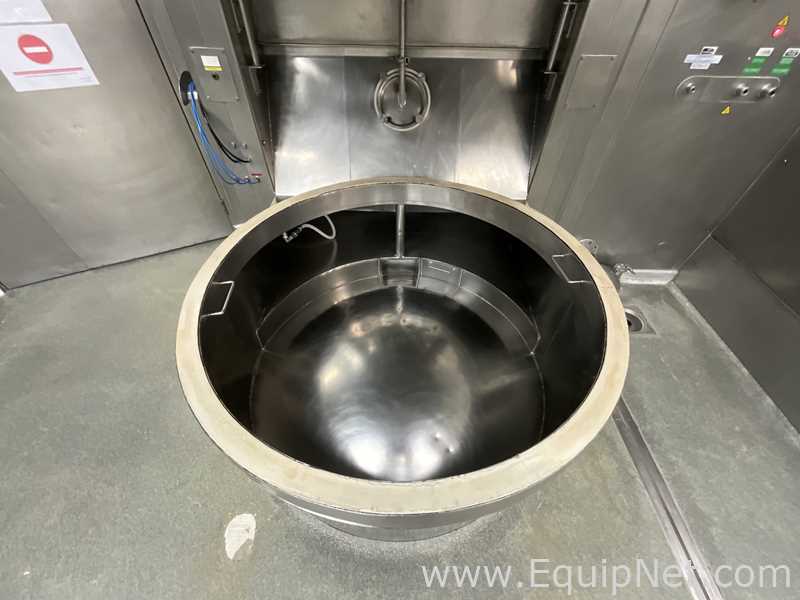

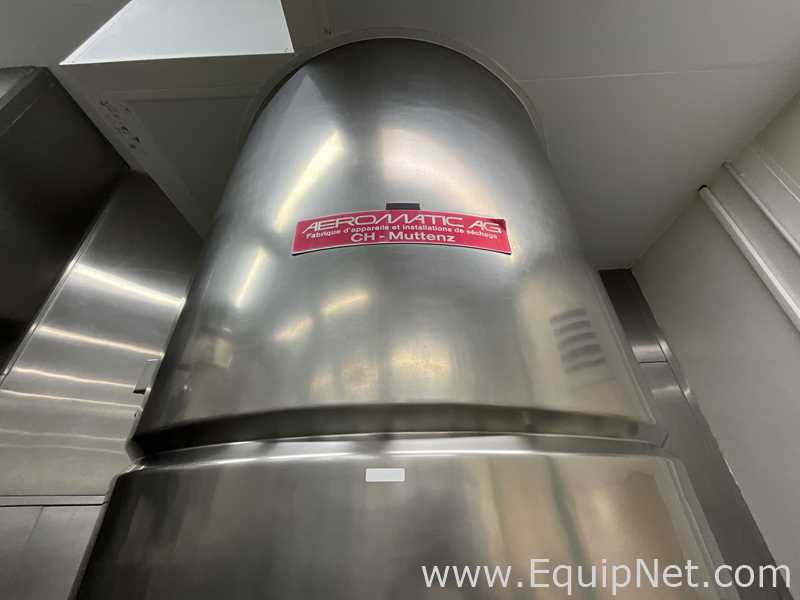

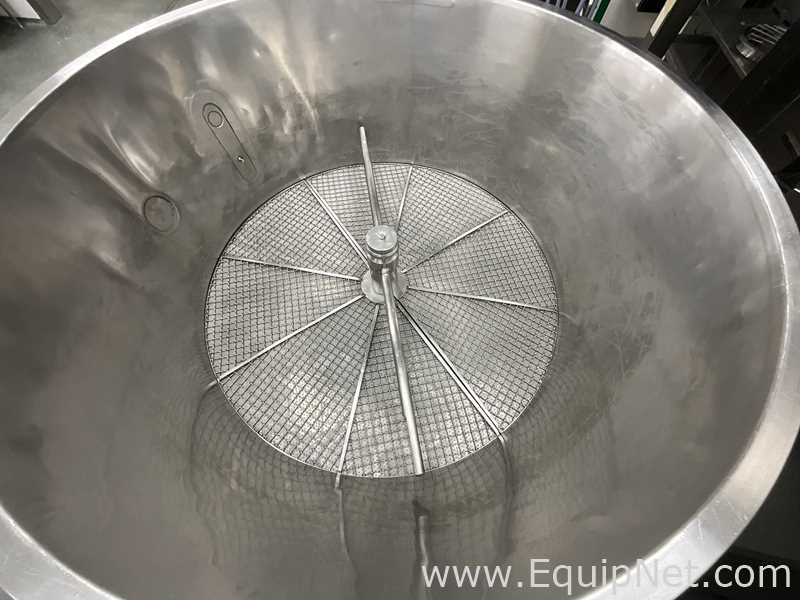

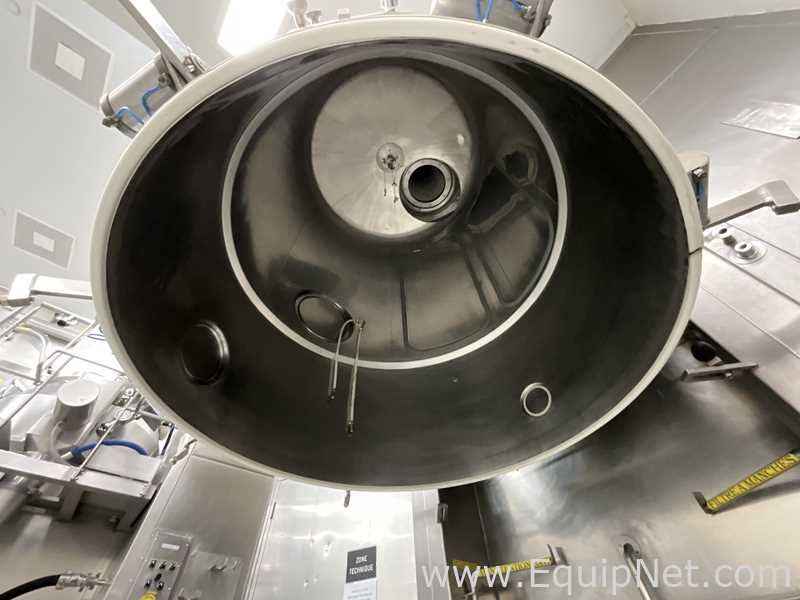

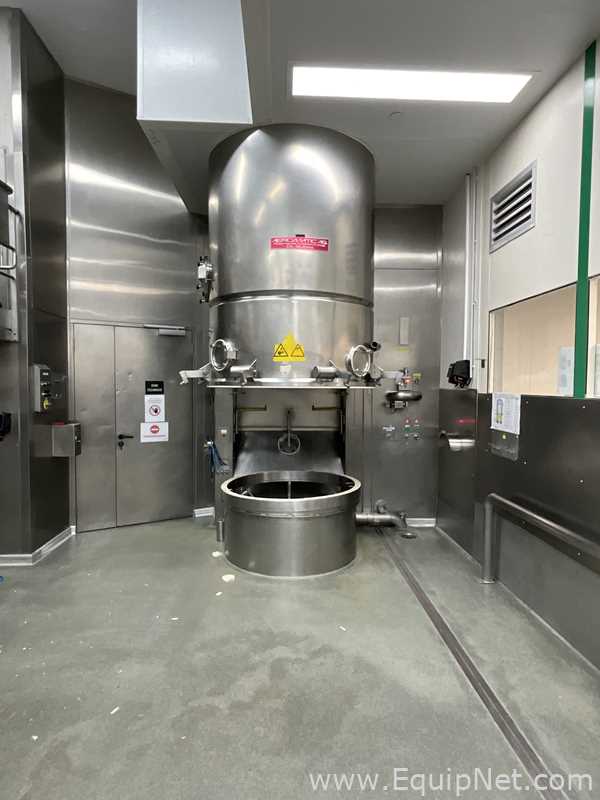

  • Item 2/12 - Aeromatic AG Fluid Bed Dryer. PMA800, 800 Litre gross capacity, 600 Litre working capacity.

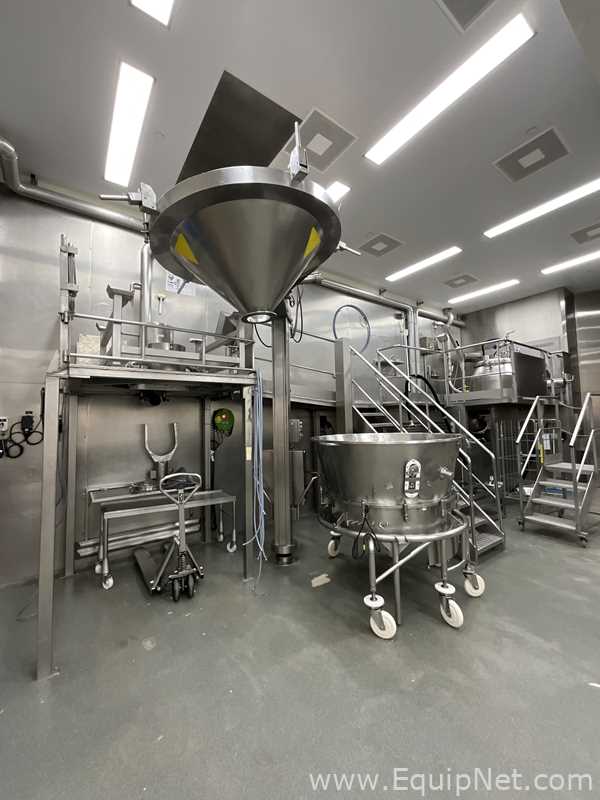

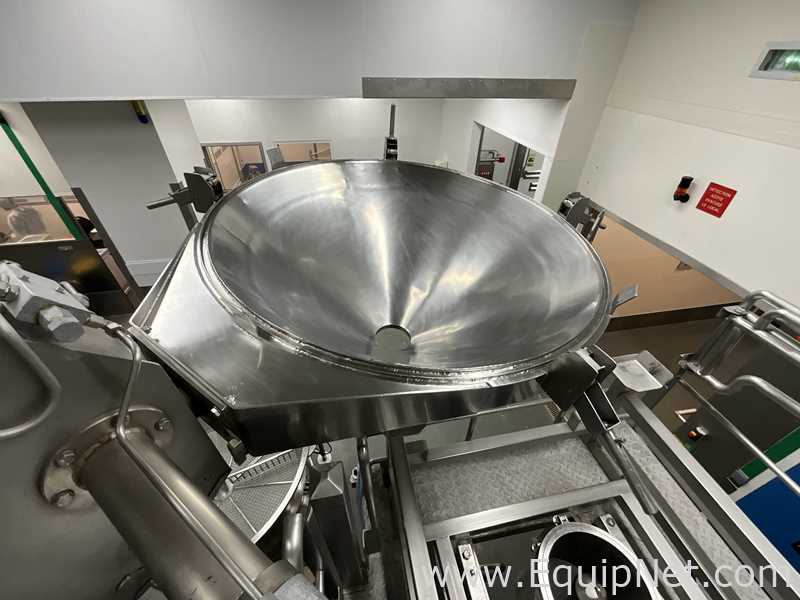

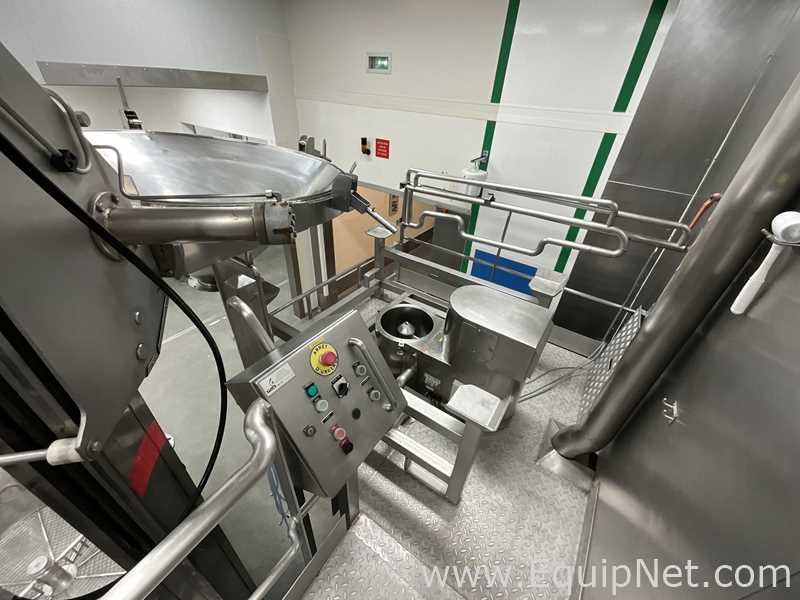

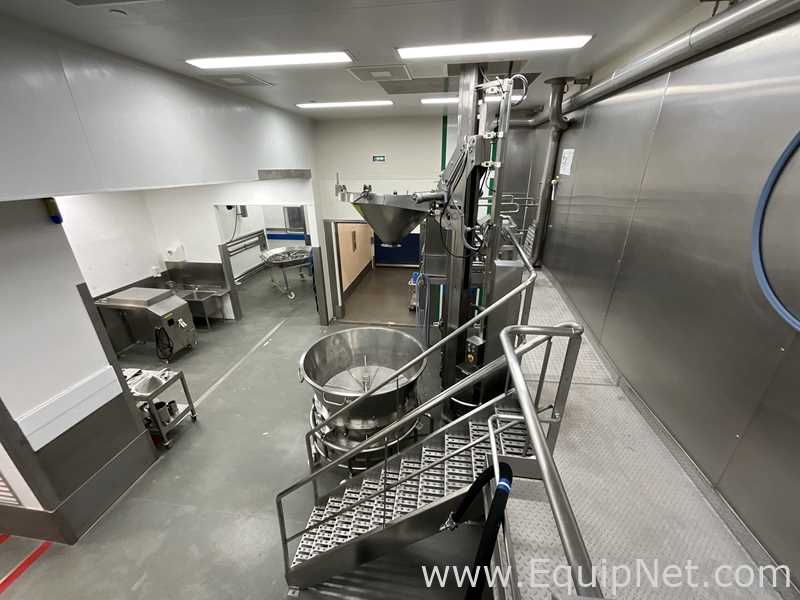

  • Item 3/12 - Fluid Bed Dryer Bed Basket Lift and Inverter. Mill feed cone is coupled to the base of the FBD and the assembly is inverted. Lift positions the assembly over the Comil.

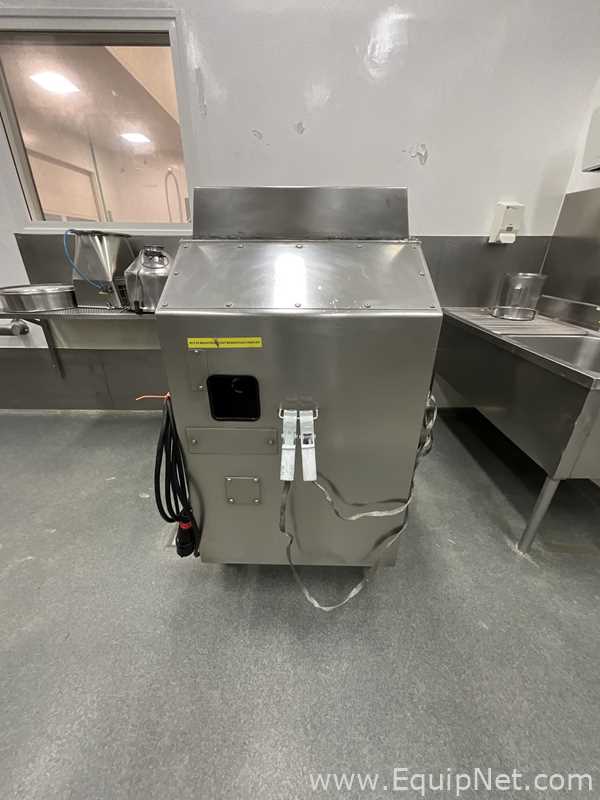

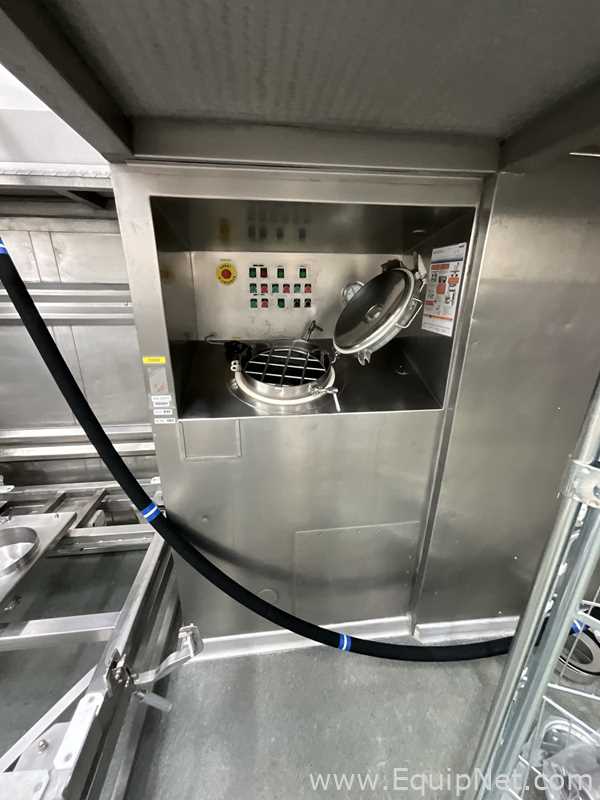

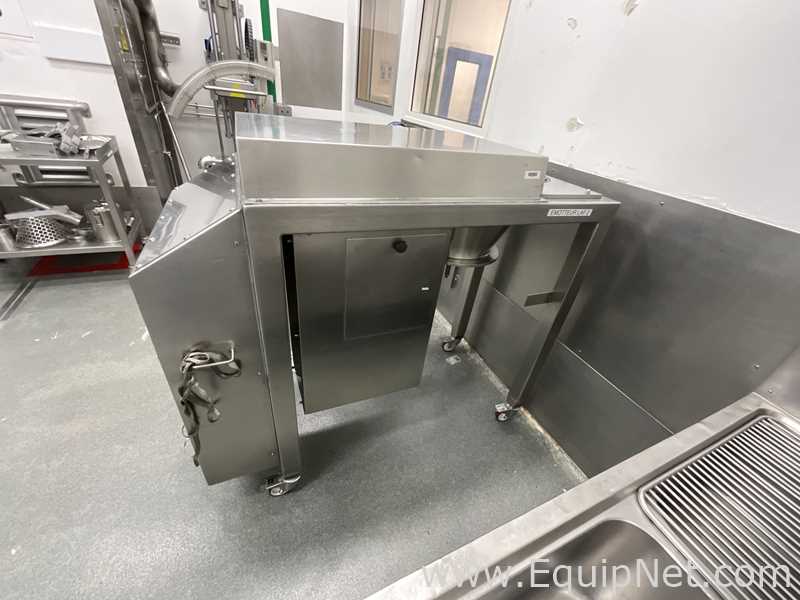

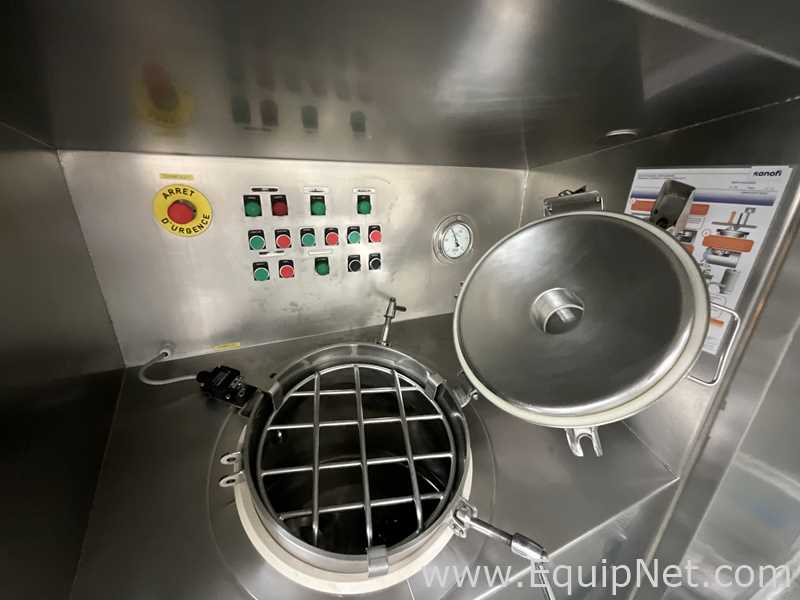

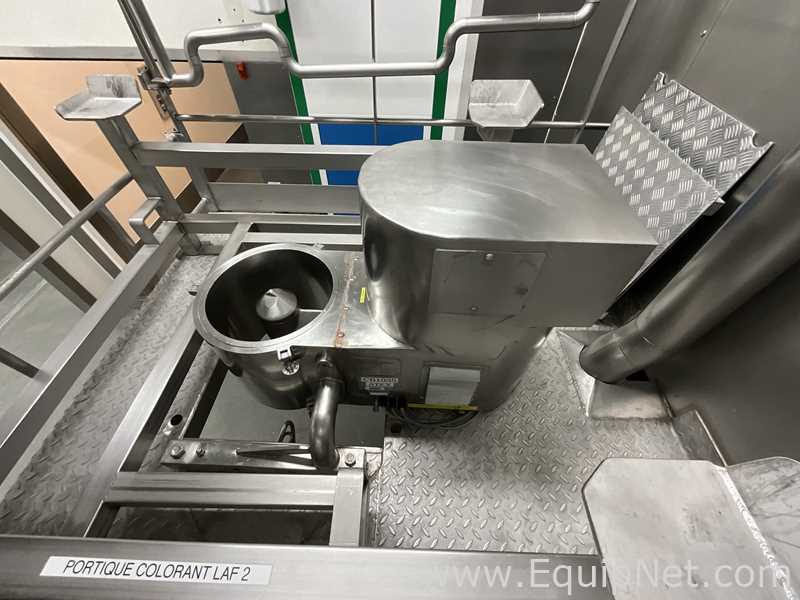

  • Item 4/12 - Frette Comil Dry Mill

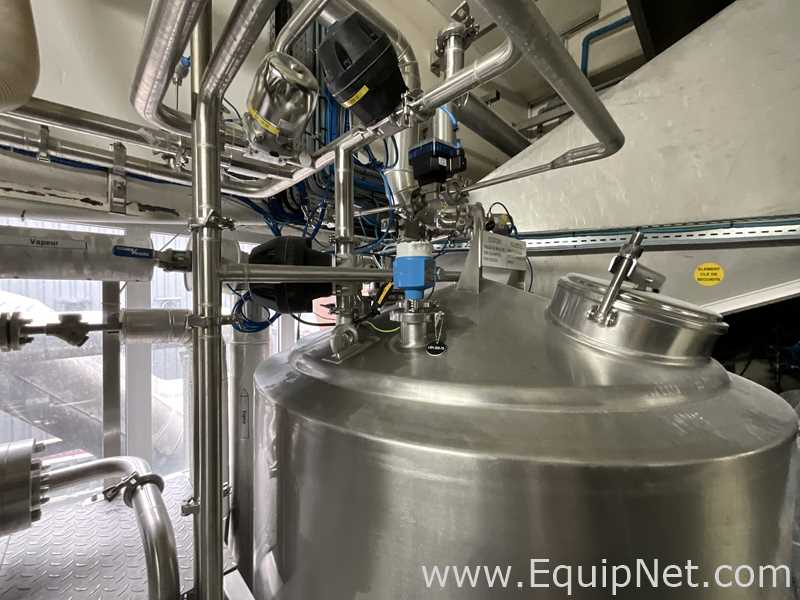

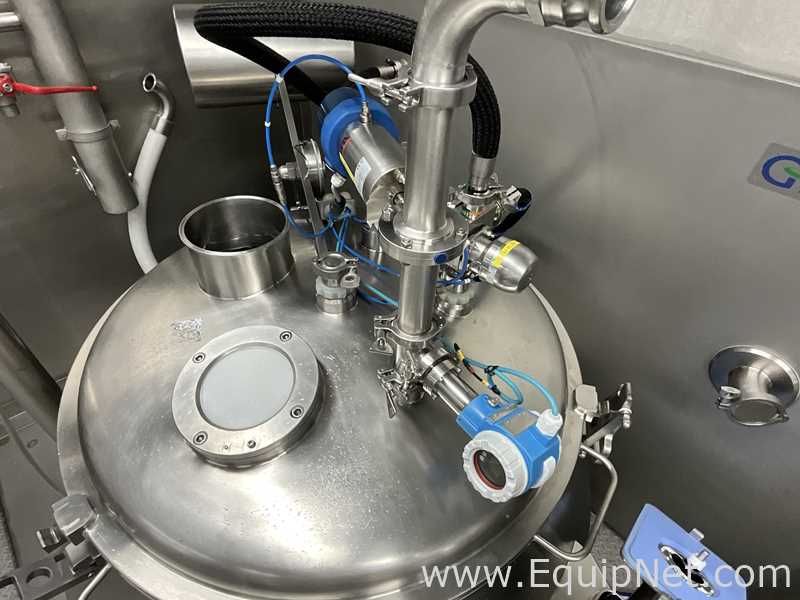

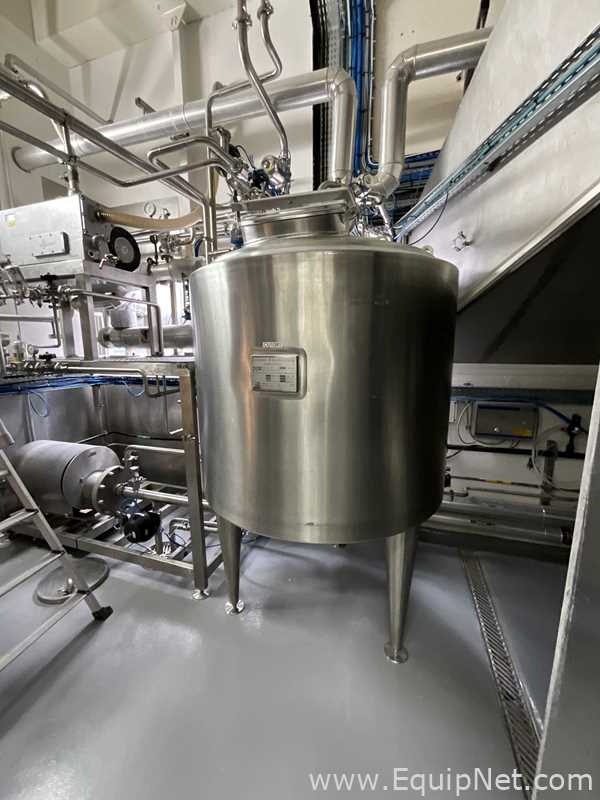

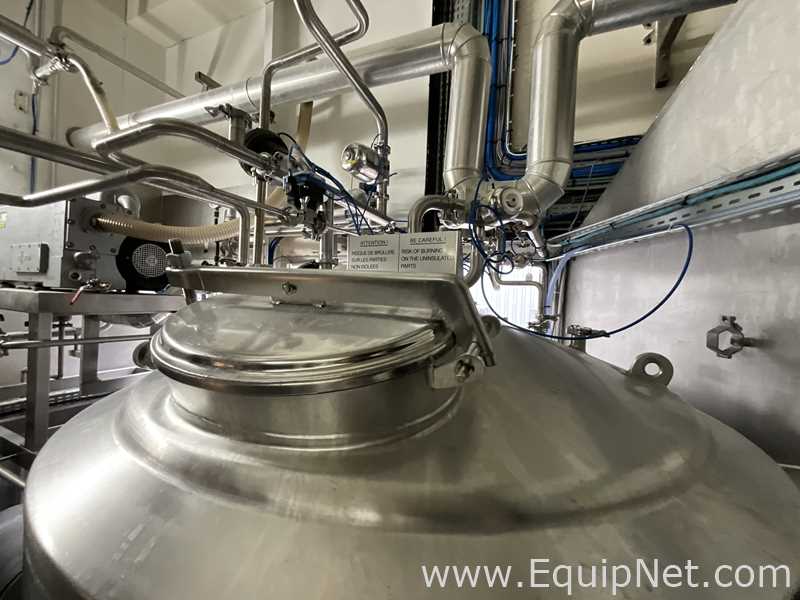

  • Item 5/12 - Vertical Stainless Steel Solution Preparation and Addition Tank

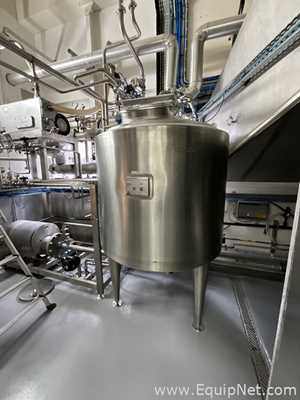

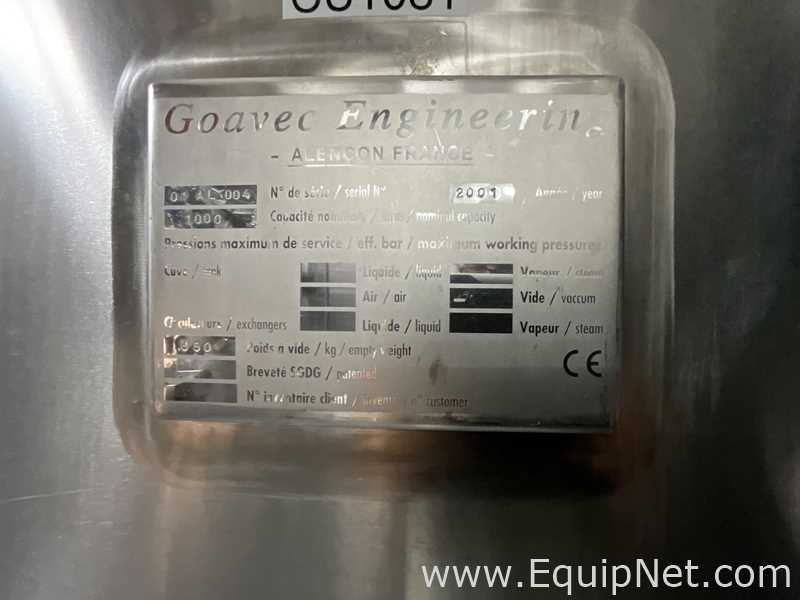

  • Item 6/12 - Goavec Engineering 1000 Litre Stainless Steel Vertical CIP Tank. Fully welded insulation. S/N = 01AL004, YOM = 2001.

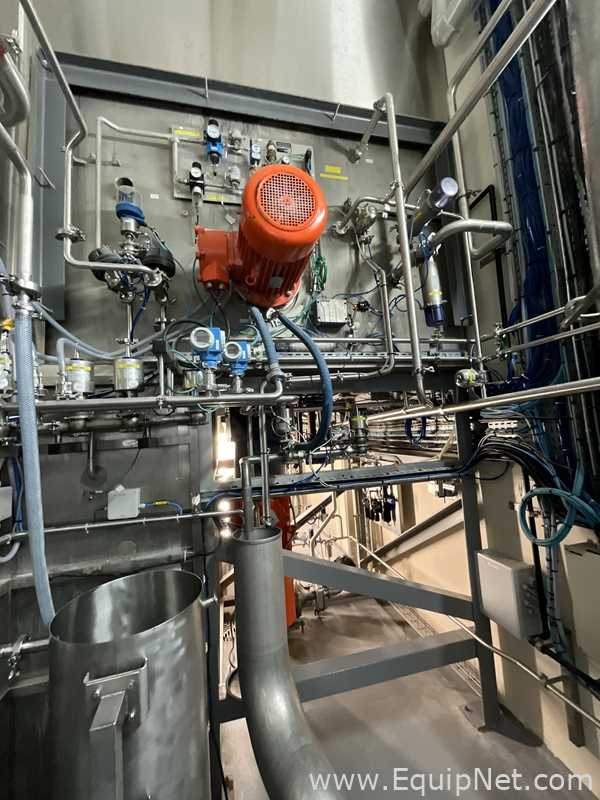

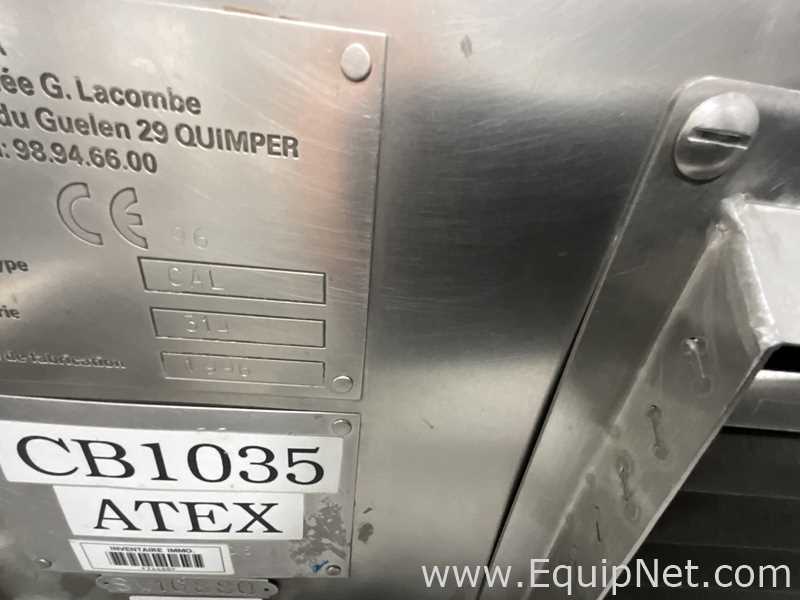

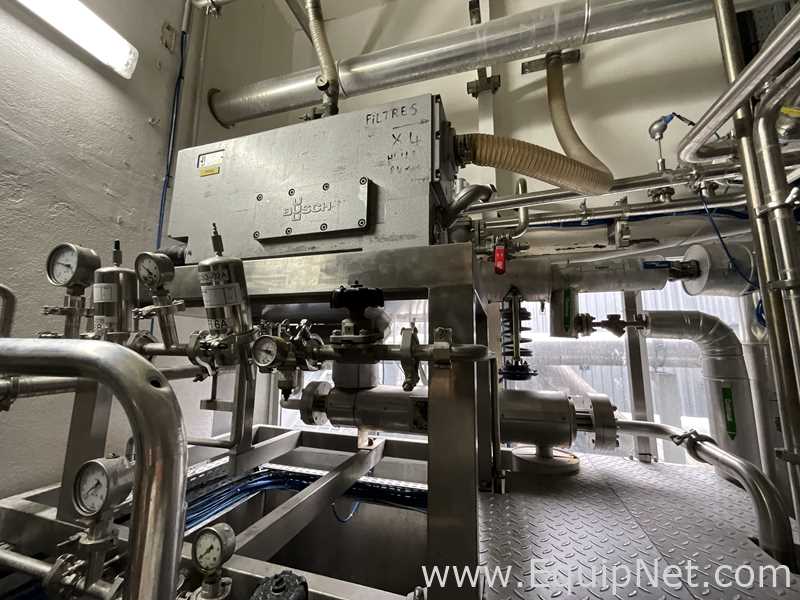

  • Item 7/12 - Calorifier and Distribution Skid. Stainless Steel Skid with Fristam FPE 752A Stainless Steel contact Parts centrifugal pump for CIP solution distribution, S/N = 0482440120. CIAT Stainless Steel shell and tube steam heat exchanger. Busch vacuum pump.

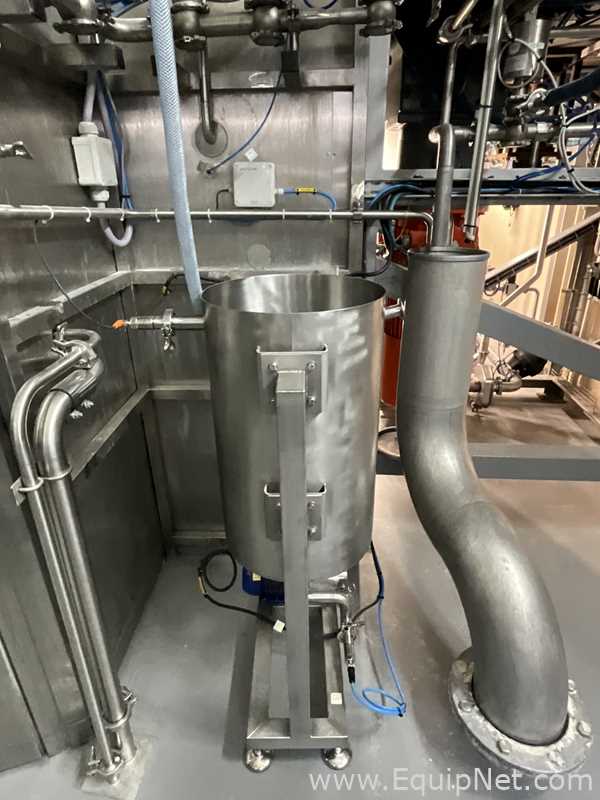

  • Item 8/12 - Stainless Steel Vertical CIP Solution Prep Tank and Pump, 80 Litre gross capacity.

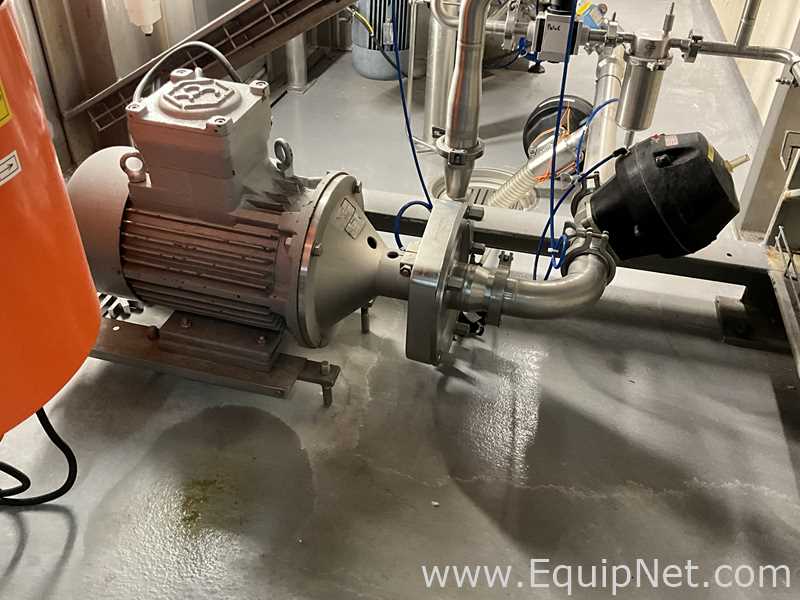

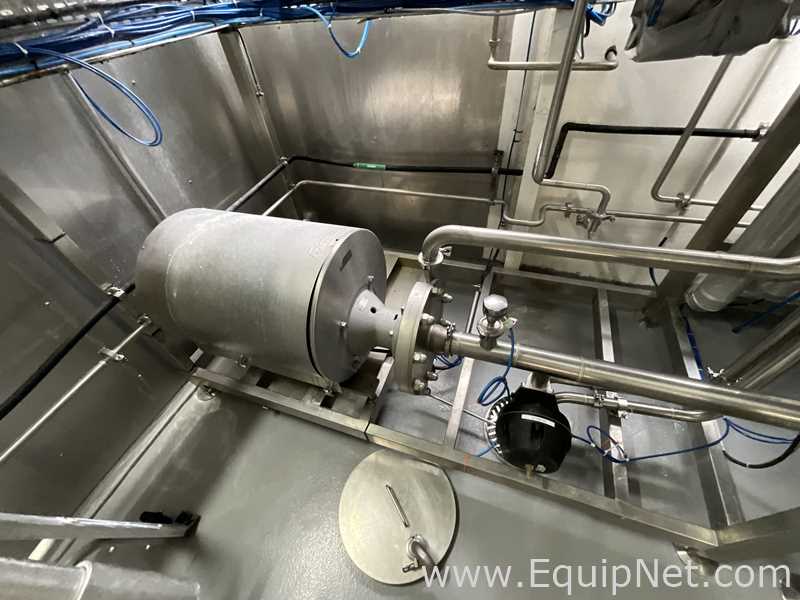

  • Item 9/12 - Fristam FPE 742A Stainless Steel Contact Parts Centrifugal Pump
  • Item 10/12 - Stainless Steel Parts on Trolley
  • Item 11/12 - Air Handling Unit for FBD
  • Item 12/12 - System PLC in Enclosure



  • Especificações:
    Padrão
    Métrico
    Nome do fabricante
    GEA Niro


    Ano:
    2001
    2001

    Modelo:
    Aeromatic Fielder
    Aeromatic Fielder

    Capacidade Tamanho:
    211,41 gal
    800 L

    Tensão:
    380 VOLTS
    380 VOLTS

    Frequência:
    50 HERTZ
    50 HERTZ

    Fase:
    3
    3

    Forma Recomendável da Embalagem:
    PALLET CUSTOMIZADO
    PALLET CUSTOMIZADO


    Dimensões:
    Padrão
    Métrico

    Veja todas as dimensões do item

    Item #1:
    78,74 x 78,74 x 118,11 IN - 4.409,24 LBS
    2000,00 x 2000,00 x 3000,00 MM - 2.000,00 KGS

    Item #2:
    47,24 x 39,37 x 47,24 IN - 220,46 LBS
    1200,00 x 1000,00 x 1200,00 MM - 100,00 KGS

    Item #3:
    196,85 x 78,74 x 118,11 IN - 5.511,55 LBS
    5000,00 x 2000,00 x 3000,00 MM - 2.500,00 KGS

    Item #4:
    59,06 x 23,62 x 86,61 IN - 440,92 LBS
    1500,00 x 600,00 x 2200,00 MM - 200,00 KGS

    Item #5:
    70,87 x 70,87 x 236,22 IN - 5.511,55 LBS
    1800,00 x 1800,00 x 6000,00 MM - 2.500,00 KGS

    Item #6:
    106,3 x 66,93 x 204,72 IN - 3.306,93 LBS
    2700,00 x 1700,00 x 5200,00 MM - 1.500,00 KGS

    Item #7:
    66,93 x 27,56 x 57,09 IN - 1.102,31 LBS
    1700,00 x 700,00 x 1450,00 MM - 500,00 KGS

    Item #8:
    39,37 x 39,37 x 78,74 IN - 2.204,62 LBS
    1000,00 x 1000,00 x 2000,00 MM - 1.000,00 KGS

    Item #9:
    59,06 x 59,06 x 98,43 IN - 1.322,77 LBS
    1500,00 x 1500,00 x 2500,00 MM - 600,00 KGS

    Item #10:
    82,68 x 51,18 x 98,43 IN - 1.212,54 LBS
    2100,00 x 1300,00 x 2500,00 MM - 550,00 KGS

    Item #11:
    23,62 x 23,62 x 55,12 IN - 220,46 LBS
    600,00 x 600,00 x 1400,00 MM - 100,00 KGS

    Item #12:
    19,69 x 31,50 x 23,62 IN - 330,69 LBS
    500,00 x 800,00 x 600,00 MM - 150,00 KGS

    Total:
    850,39 x 78,74 x 236,22 in - 25793,82 lb
    21600 x 2000 x 6000 MM - 11700 KGS
