HPLC Agilent Technologies Agilent 1290 Infinity

Agilent Technologies 1290 Infinity UHPLC System with Diode Array Detector

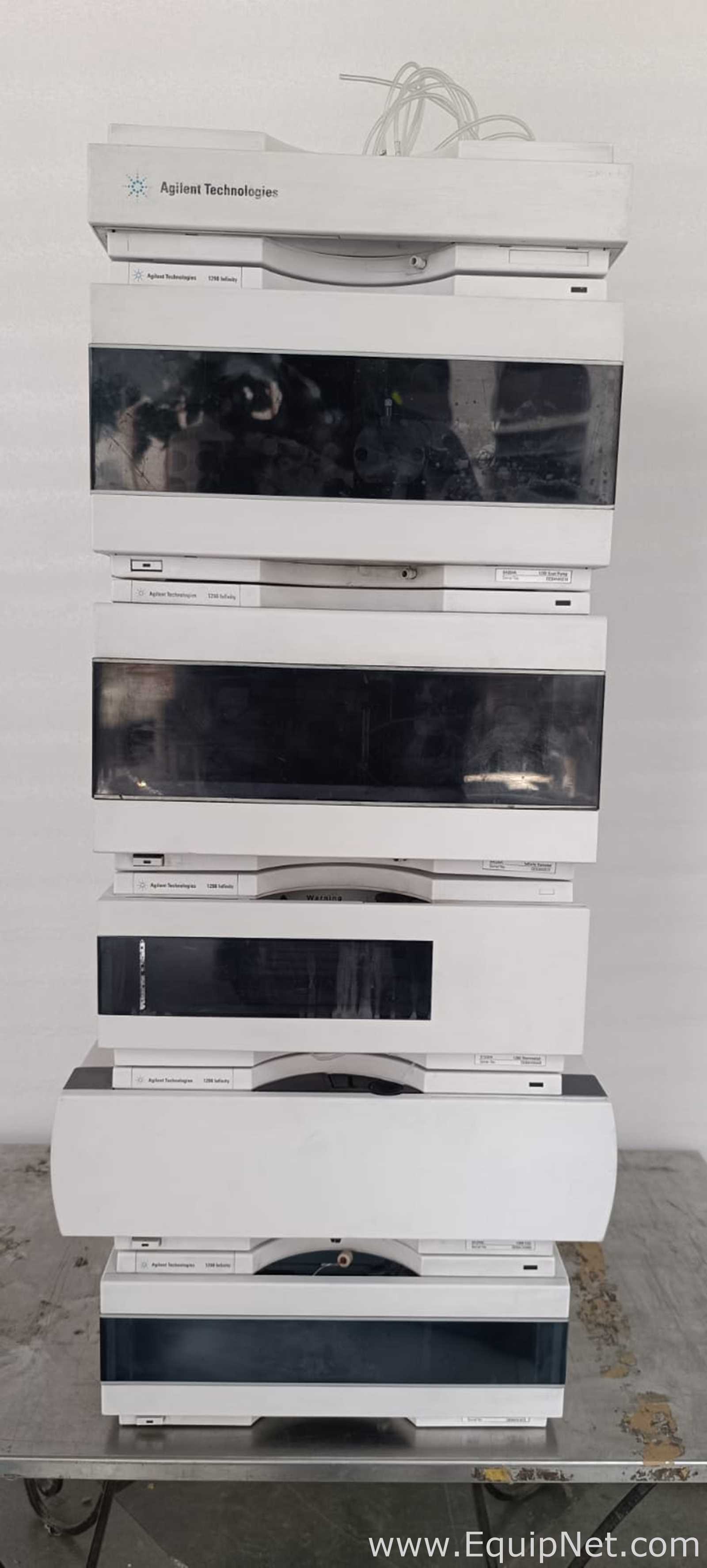

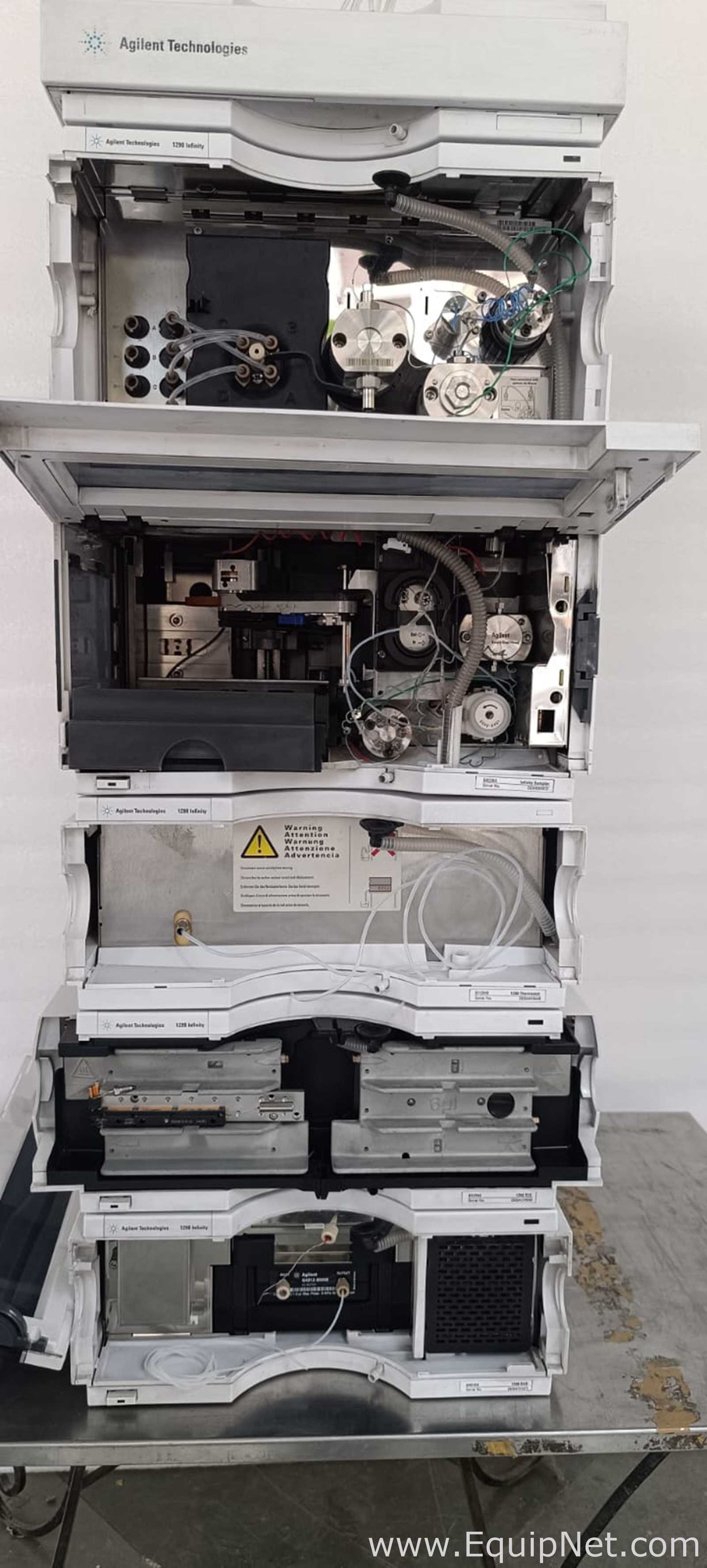

A complete Agilent 1290 Infinity ultra-high-performance liquid chromatography stack, offered as five instrument modules plus the Agilent solvent cabinet, assembled as pictured.

System configuration

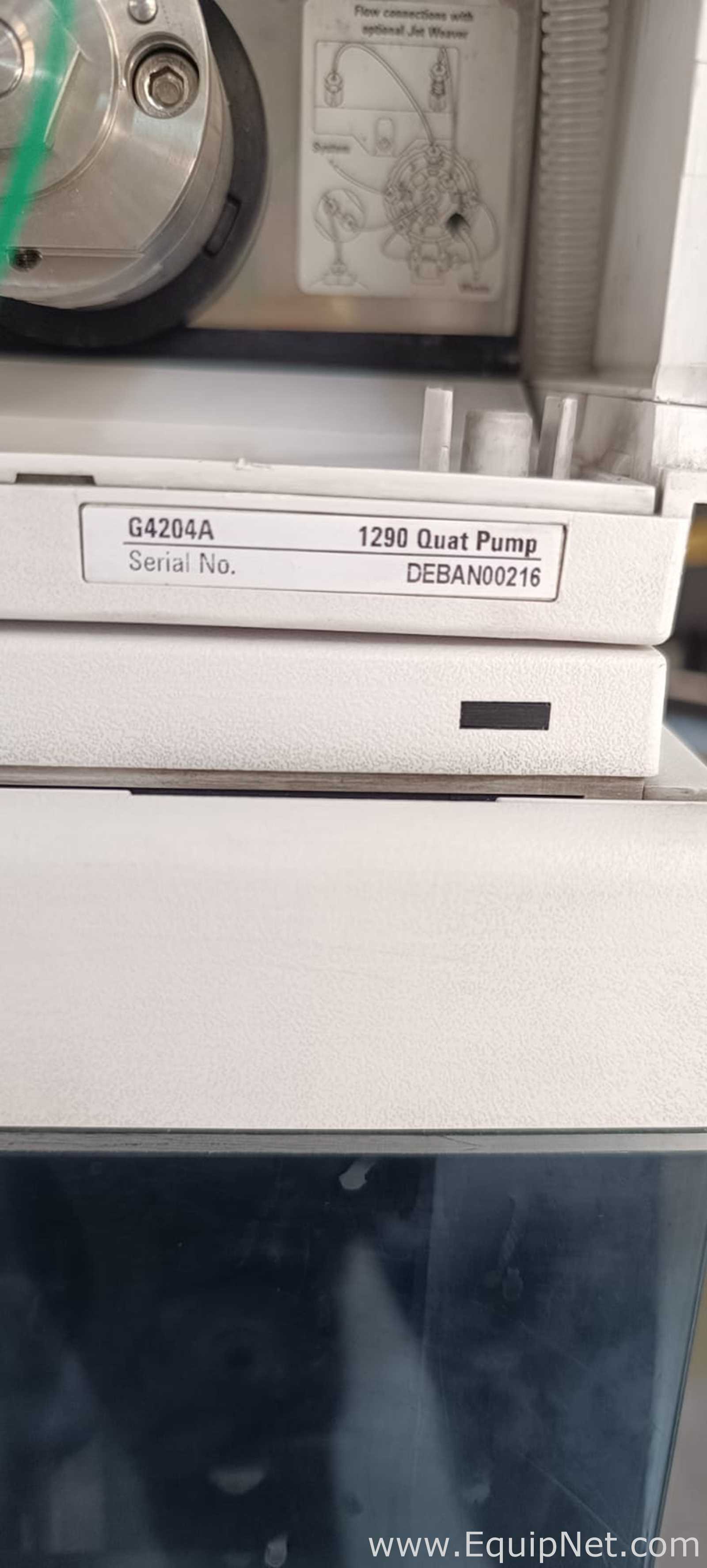

• Agilent G4204A 1290 Infinity Quaternary Pump - S/N DEBAN00216. Four-solvent low-pressure gradient pump.

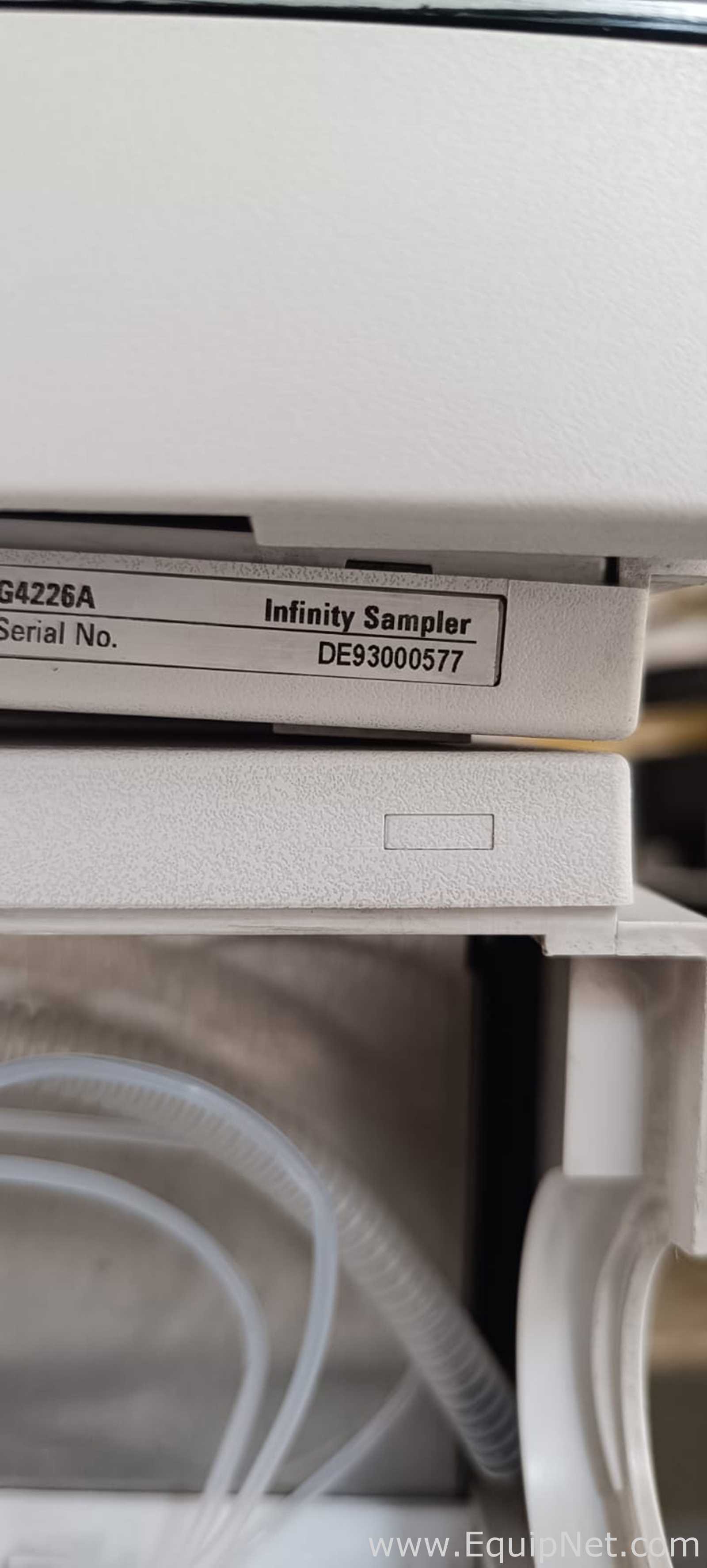

• Agilent G4226A 1290 Infinity Autosampler ("Infinity Sampler") - S/N DE93000577.

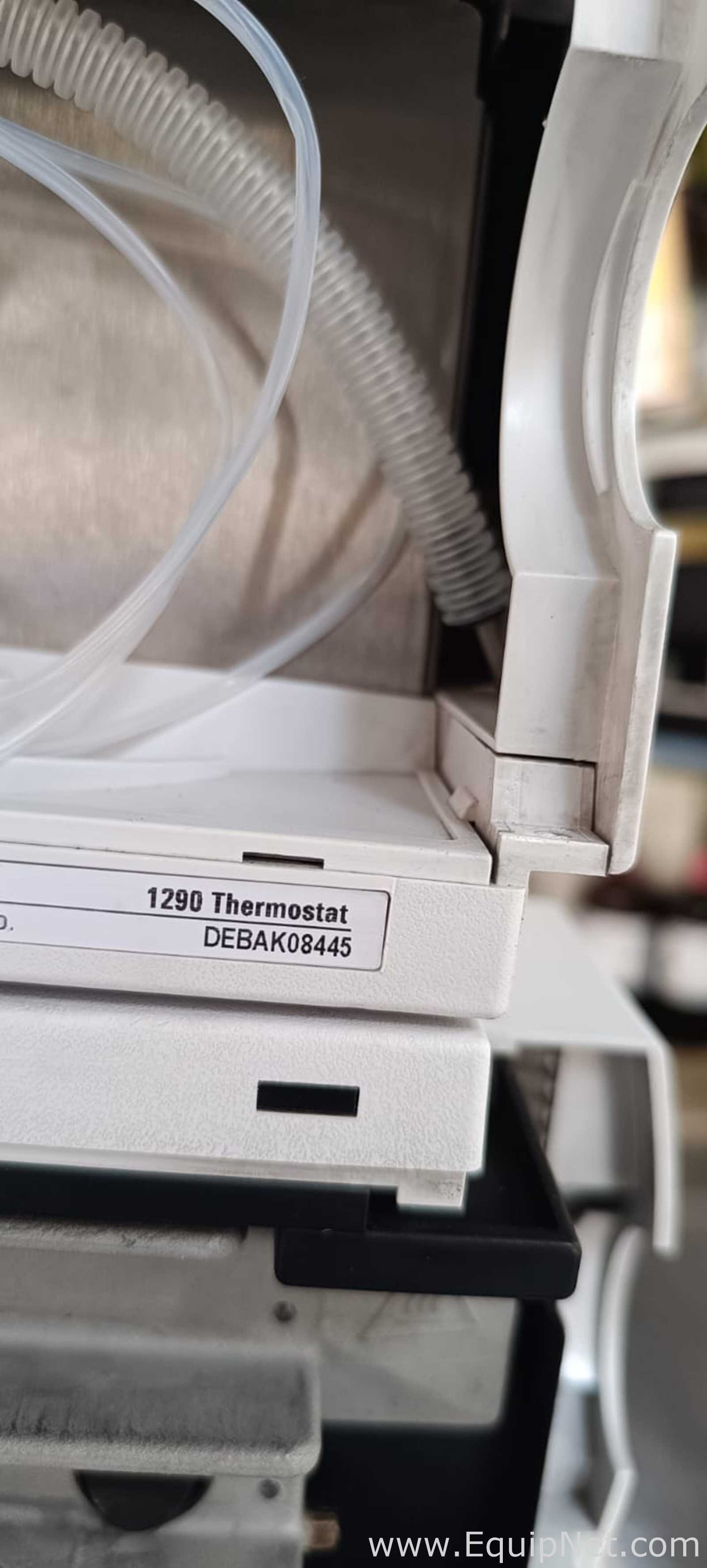

• Agilent 1290 Infinity Thermostat for the autosampler - S/N DEBAK08445. The part number is not legible on the unit in the photographs; Agilent 1290 Thermostat modules are G1330B.

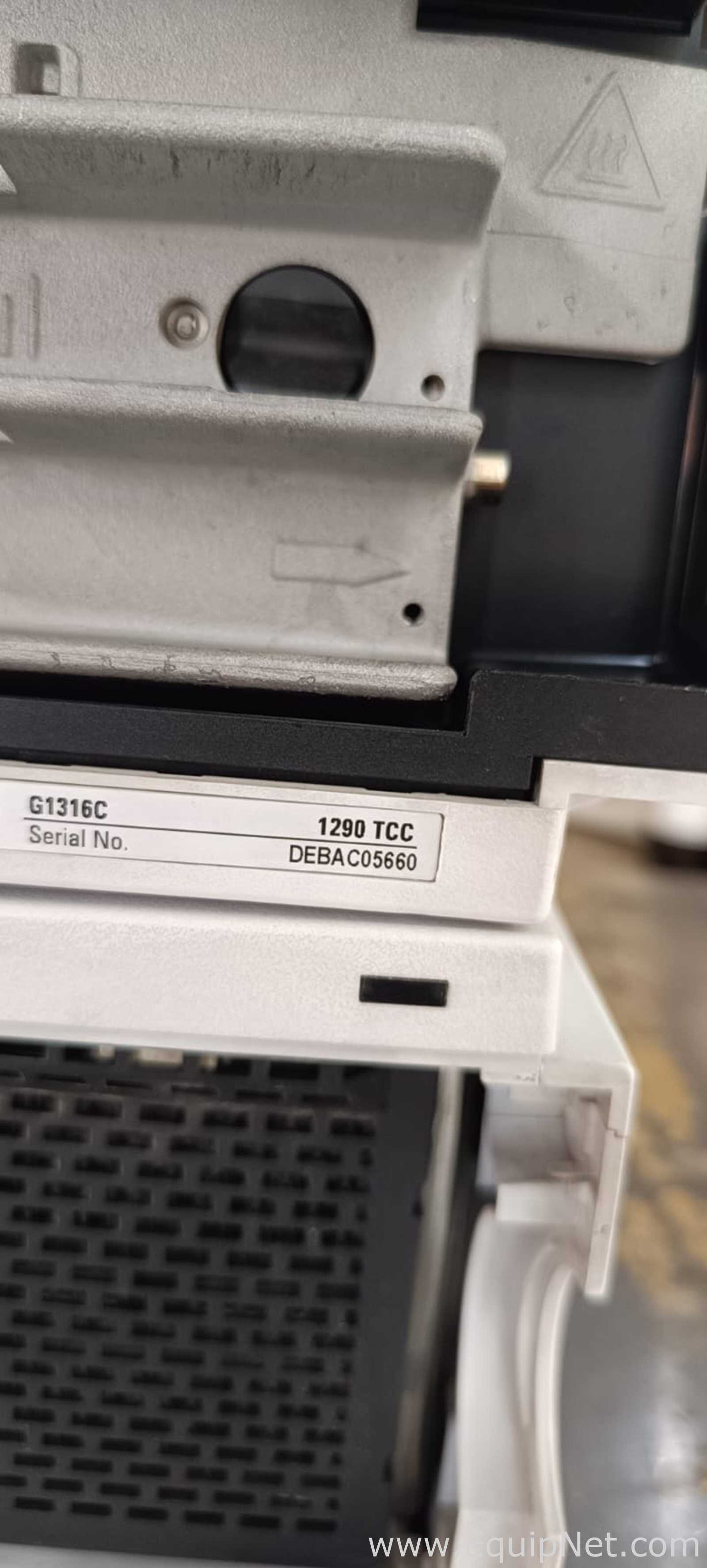

• Agilent G1316C 1290 Infinity Thermostatted Column Compartment (TCC) - S/N DEBAC05660.

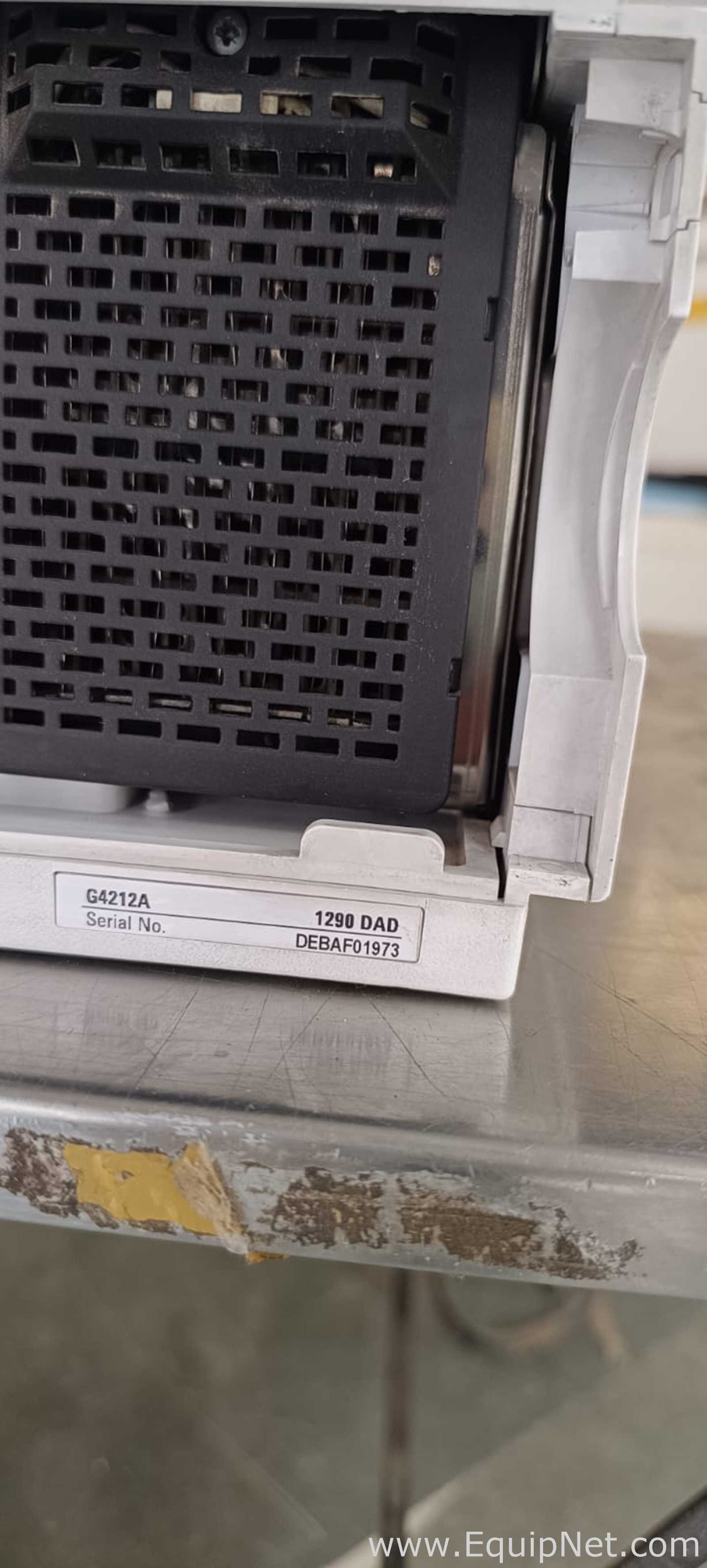

• Agilent G4212A 1290 Infinity Diode Array Detector - S/N DEBAF01973, fitted with a cartridge flow cell marked "Agilent G4212-6...".


• Agilent solvent cabinet / bottle tray, mounted on top of the stack.

The system is configured as a single-detector UHPLC: quaternary pump, thermostatted autosampler, thermostatted column compartment and diode array detection. There is no second or third detector, no mass spectrometer and no fraction collector.

A note on the model designation

This is a first-generation 1290 Infinity system, not a 1290 Infinity II. Every module front panel reads 1290 Infinity, and every module ID plate carries a first-generation part number (G4204A, G4226A, G1316C, G4212A); Infinity II modules carry G7xxx part numbers.
