Número do item 1090387
Linha de Envase de Líquidos Various
Moeda Aceitável de Vendedores:
$65,000.00 USD
Fazer uma ofertaLocalização: WA, Estados Unidos
Nível de Remoção:
Por que recomendamos visita aos equipamentos?
*Todas as ofertas são enviadas em moeda dos vendedores
Não encontrou o que você está procurando? Nós podemos encontrar para você
Descrição do equipamento

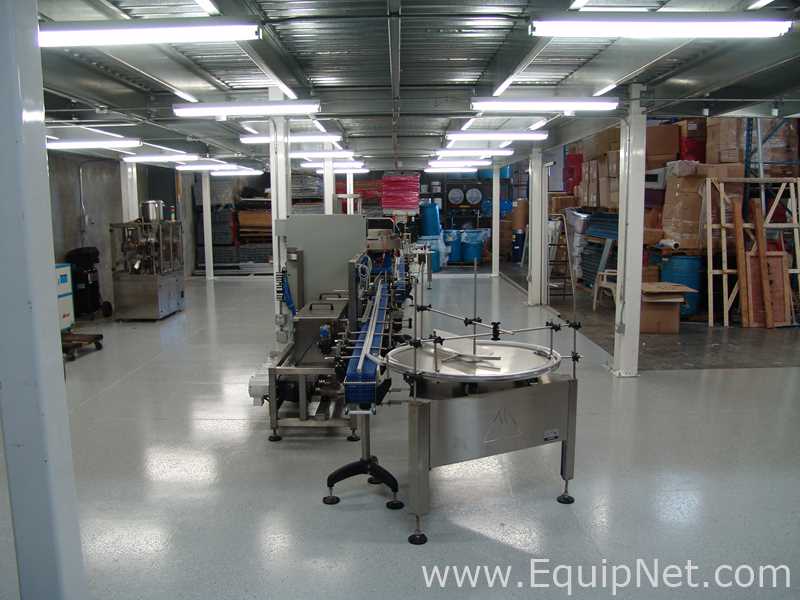

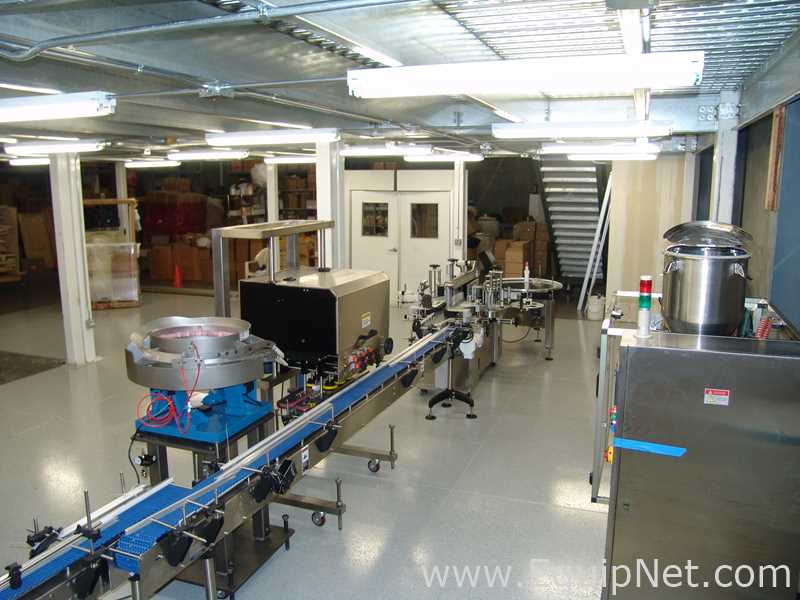

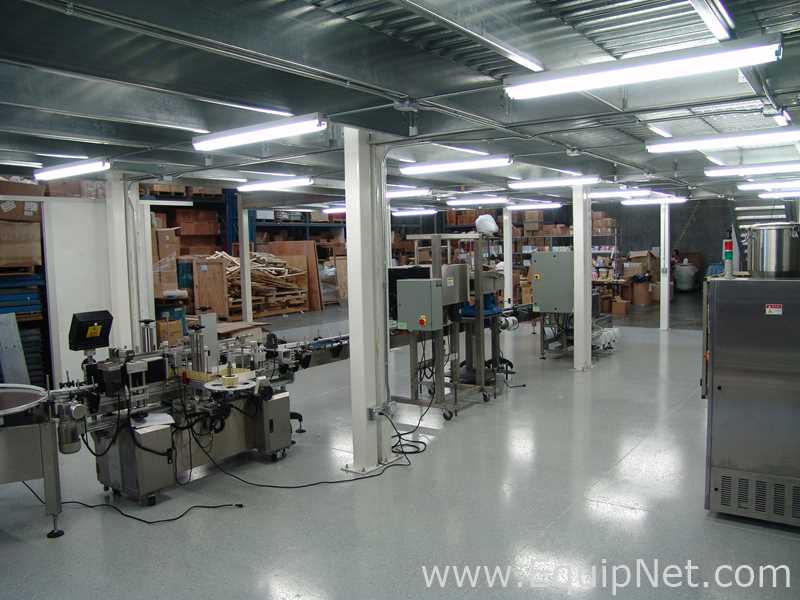

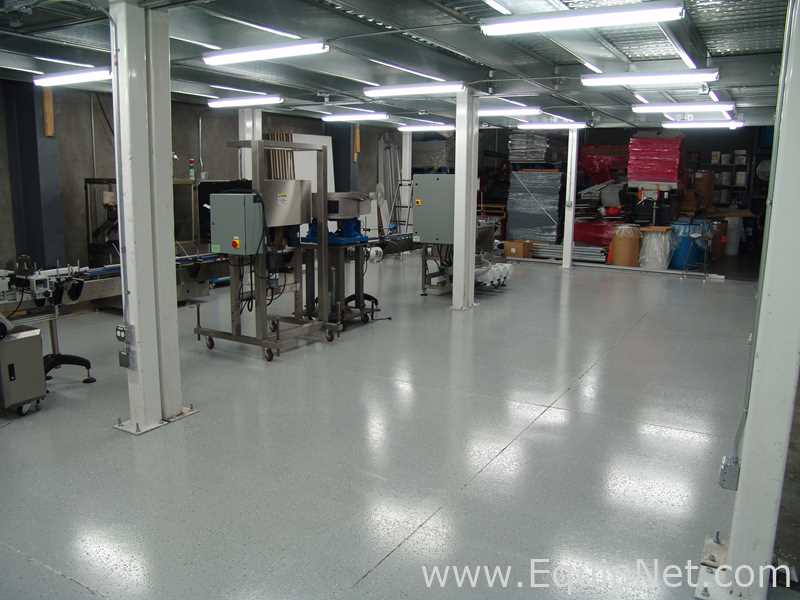

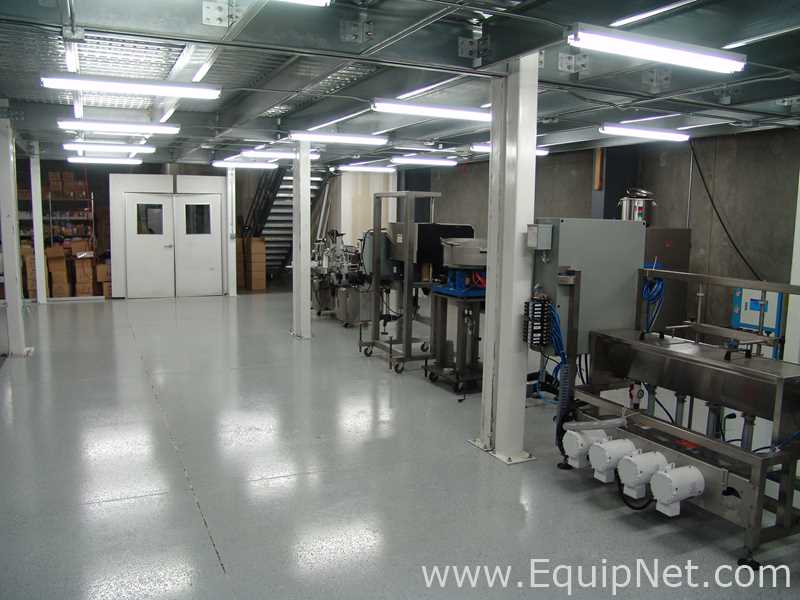

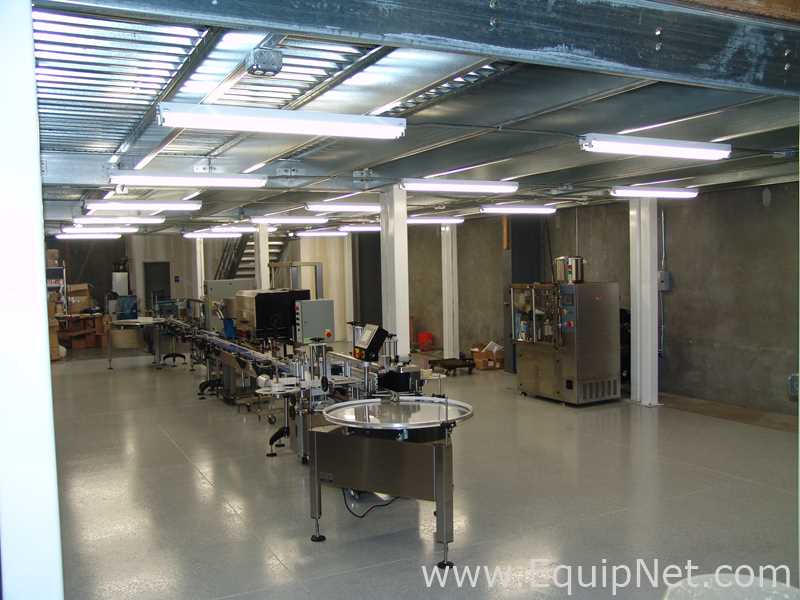

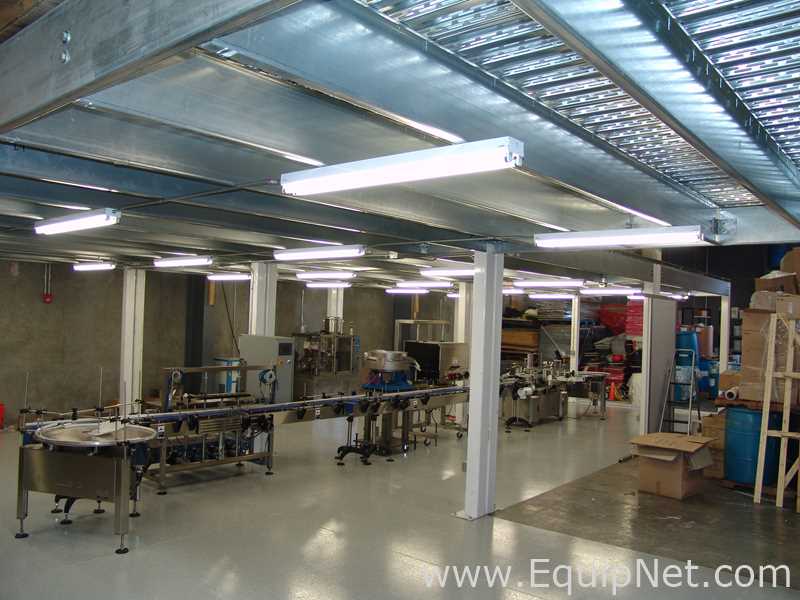

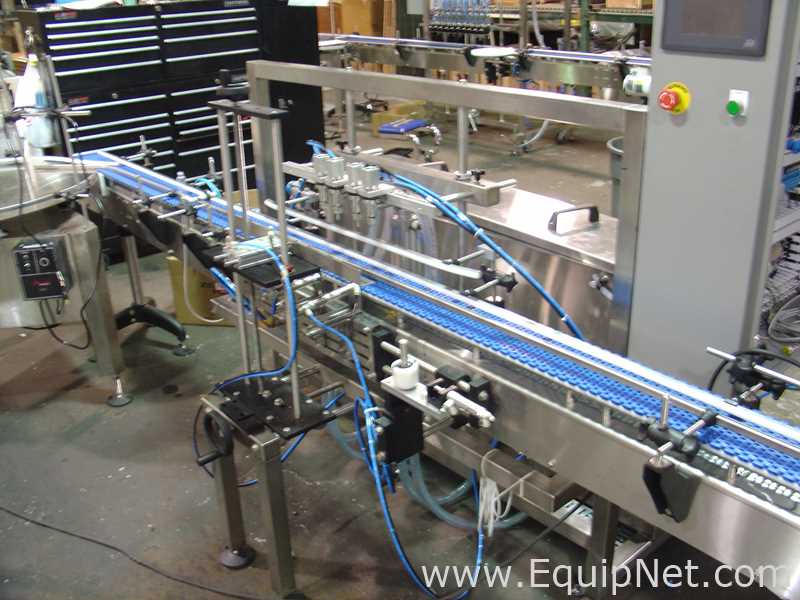

Four Head Positive Displacement Pump Filling, Capping & Labeling Bottling Line
Four (4) Head Filling Machine with Positive Placement Pumps, Sturdy stainless steel tubular frame on adjustable leveling legs & casters
Filling Line was in operation prior to being shut down and is currently in storage

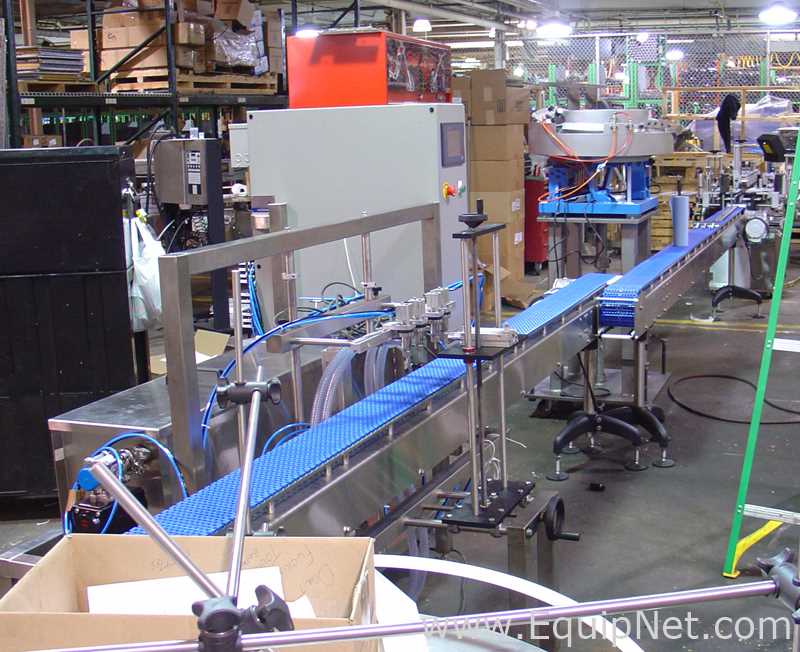

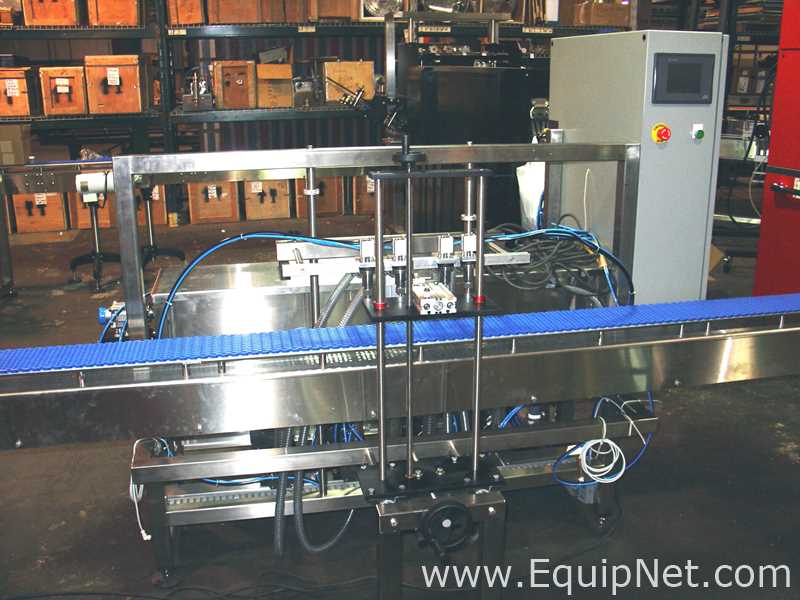

Positive Displacement Pump Filler Module
• Sturdy stainless steel tubular frame on adjustable leveling legs and casters
• Easy height adjustment up to 12" tall containers
• Stainless steel filler reservoir
• Filler product re-supply system with electronic float system and check valve
• PLC Control System with digital LCD touch screen display
• Digital filling volume setting for each pump from touch screen
• Revolution sensor-based pump RPM pulse counting system.
• Automatic bottle indexing system (moves bottles automatically)
• No bottle/no fill vision system (insures no attempted fill of missing bottles)
• Anti-bottle backup vision system (prevents filling if bottles are jammed downstream)
• Overall electronic production counter
• Pneumatic gates to stop containers or Star wheel bottle indexing.
• Conveyors start/stop control system.
• Memory locations for fill and indexing set-up recipes

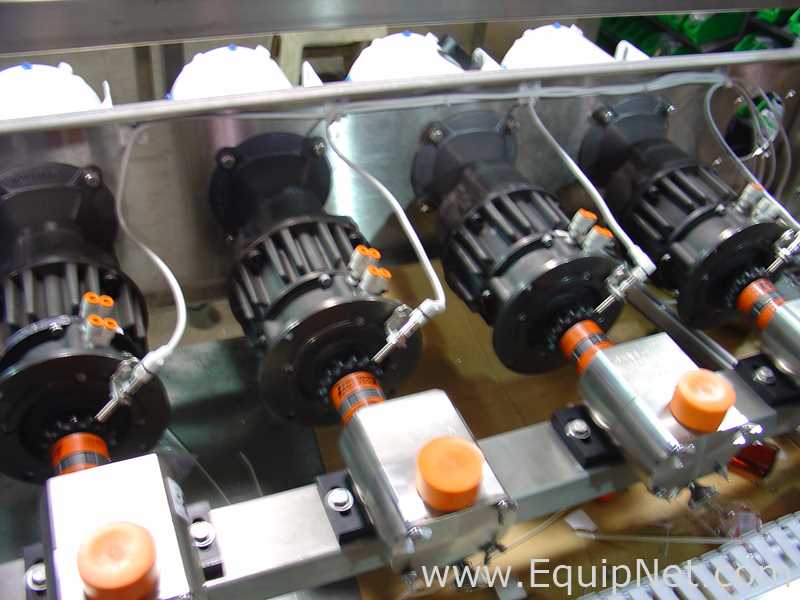

Four Pump & Drive System
• Variable Speed Motor, Gear Reducer, Clutch/Brake, and stainless-steel positive displacement pump
Four Bottom close stainless steel nozzle assembly
Automatic Neck Locating System
• Stainless steel and anodized aluminum construction
• Crank height adjustment for variable container sizes
• Grabber bar with tool-less adjustment bottle guides
Diving Head Mechanism
• Stainless steel and aluminum frame
• Air-actuated operation
Capping Machine, Inline 6 Spindle Cap Tightener
• Fully adjustable for caps from 8 mm to 110 mm
• Fully adjustable from 1 inch to 14-inch-high containers
• Heavy duty 304 Stainless steel Tig-welded C frame
• 6 capping discs, with bottom screws change over
• Direct gear motor transmission through coupling for capping belts movement
• DC gear motor for independent speed control of gripper belts
• Capping discs adjustment by frontal knobs, with lock nut hand wheel
• Hand Crank for manual height adjustment
• Gripper belt in/out adjustment by hand wheel
• Priced with single, opposing, 3/4" Gripper Belts (other models available)
• No change parts needed for a wide range of containers.
• Electric and pneumatic requirements: ·110 Volts, 60Hz, 15 Amps. ·5 CFM @ 80 p.s.i.
• Cap Delivery Chute, tool-less adjustment on 4 axes for versatility, can be fed manually or by automatic sorting system

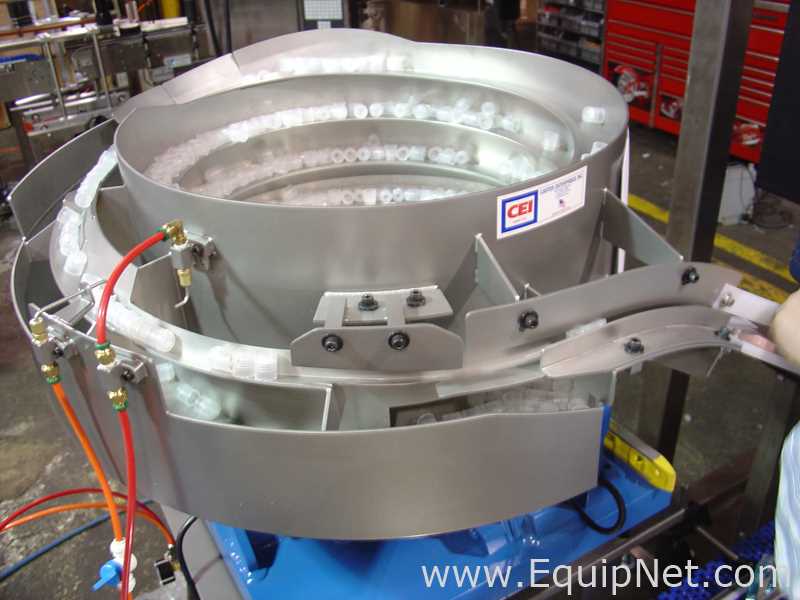

Cap Vibratory Bowl Sorter/Feeder with 27" Vibratory Cap Sorting Bowl
• 27" Bowl diameter with 304 stainless steel construction, tooled for various caps
• Alternating Vibration Coil and Control Cube, for adjusting sorter speed
• Heavy-duty Bowl Cart, with powder-coated steel frame, leveling legs and casters

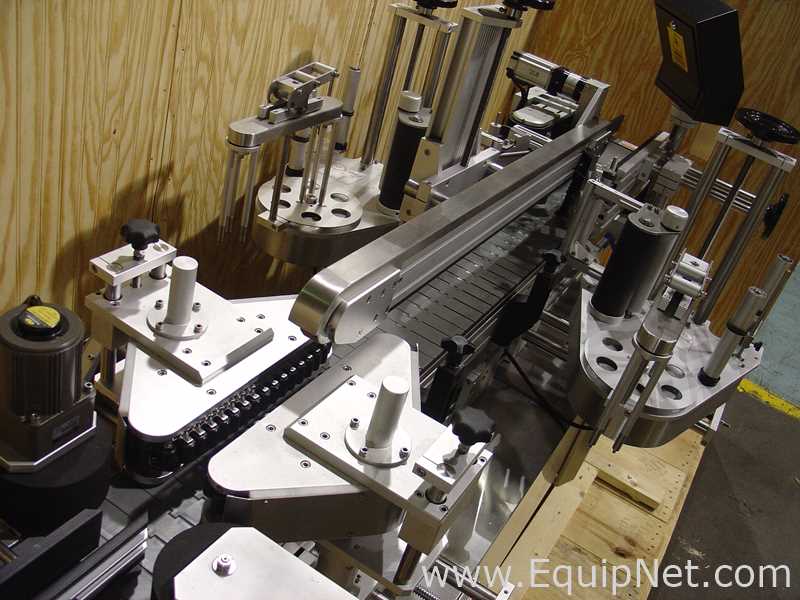

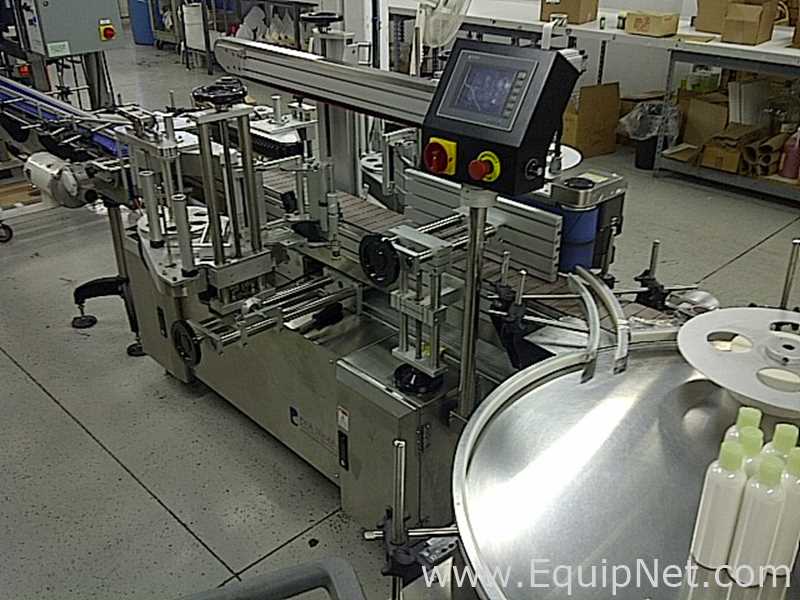

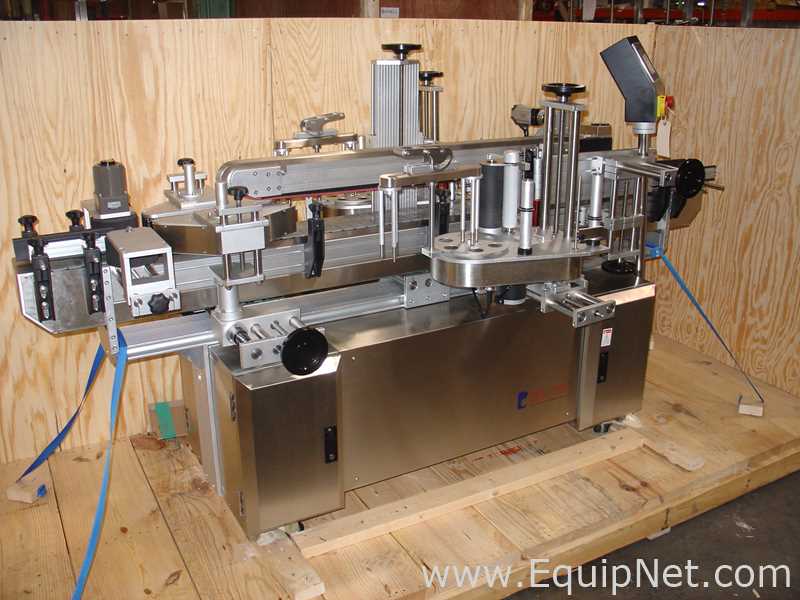

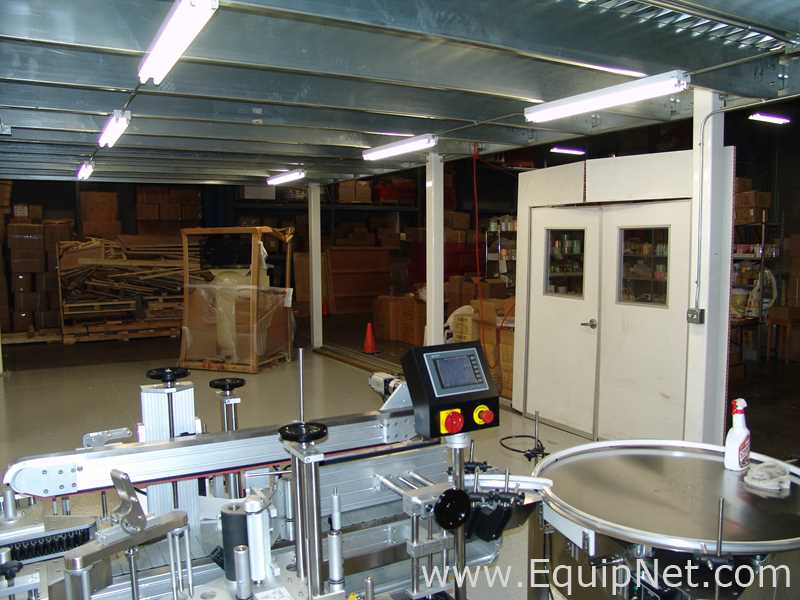

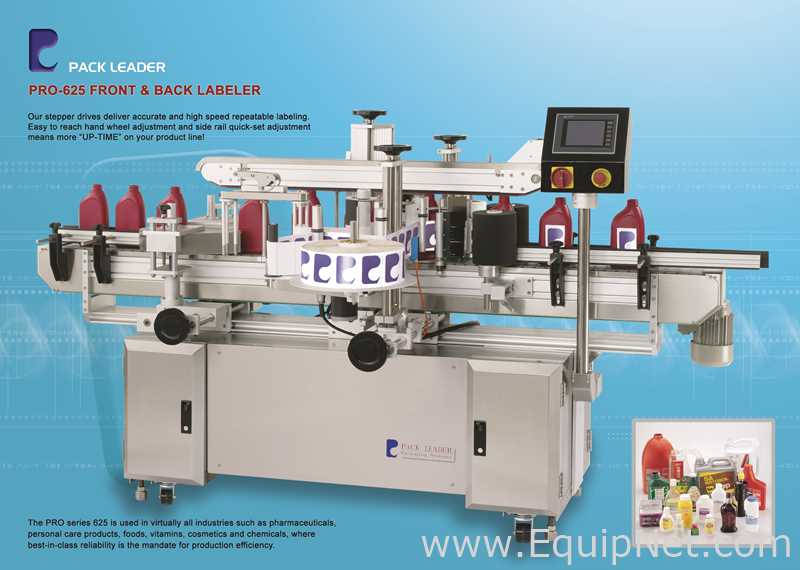

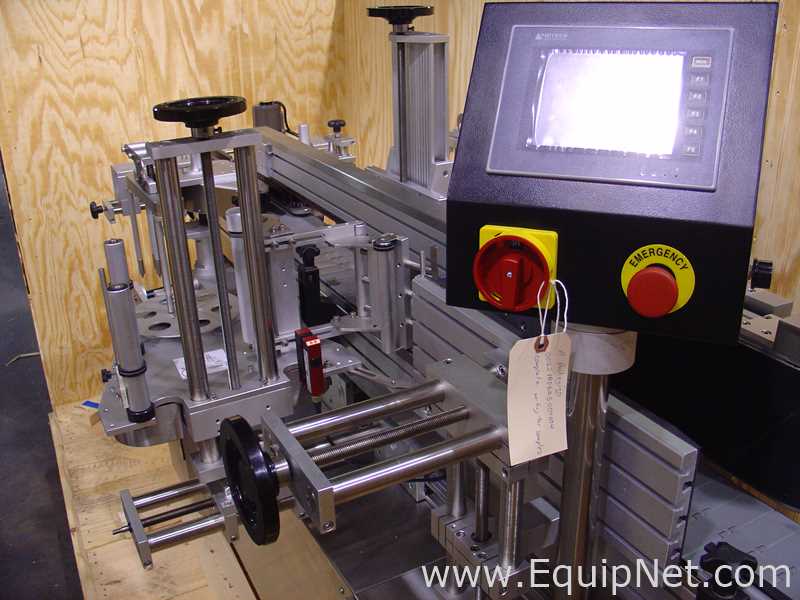

Pack Leader Pro-625 Two-Sided Pressure Sensitive Labeler with Wrap Station Feature
• The LAW-6250-PL automatic front & back labeling system comes equipped with a 6 5/16"iinch wide (adjustable) X 8’ long variable speed conveyor
• Features include a stepper motor drive for label and power assisted web take up
• Labeling heads speed automatically synchronizes with conveyor speed.
• Non-contact photo eye sensors and an auto teach function for new labels
• Handles many different size containers and can be used in virtually all industries such as pharmaceuticals, personal care products, foods, vitamins, cosmetics, and chemicals.
• One touch automatic label detection and setup
• Built-in touch screen operation manual
• Built-in touch screen troubleshooting guide
• Low or Missing label detection with automatic stop system to prevent mislabeling
• Label counter and Count down feature to allow precise run of set number of labels
• Auto Shut Off
• Specifications: Voltage: 220/110 VAC 50/60 HZ 1 phase Power: 1,320 WA
• Conveyor speed: 0-40m/min. Dispensing speed: 40 m/min max.
• Applicator height: 150mm(5 7/8")/200mm(7 7/8") Conveyor width: 160mm (6 5/16")
• Spool diameter: 76mm(3")
• Measurement: 2,420mm (L)*1,800mm(W)*1,450mm(H)
• Full or Partial Wrap Labeling Feature
Turntables
1 APS 40" ACCUMULATING TURNTABLE
• 304 stainless steel Disc top
• 304 stainless steel frame construction
• Line height 30-36"
• Clockwise or Counterclockwise rotation
• 115/230Volt/1f/50-60Hz Variable speed control box mounted on machine cabinet
• Single rail system with HDPE bottle contact surface and tool-less adjustments
APS 40" LOADING TURNTABLE
• 304 stainless steel disc top
• 304 stainless steel frame construction
• Overhead support system for bottle diverter
• Line height 30-36"
• Clockwise or Counterclockwise rotation
• 115/230Volt/1f/50-60Hz Variable speed control box mounted on machine cabinet
• Single rail system with HDPE bottle contact surface and tool-less adjustments
Conveyors-15' x 6.0" Sanitary Conveyors
• 304 Stainless steel closed-shell construction
• 6.0" Delrin chain belt, elevated on spacer for easier washing above & below the belt
• Optional open link chain for faster removal
• 115V/1f/50-60Hz Variable Frequency Drive
• Washdown duty 90Volt DC motor
• 36:1 gear reducer
• Speeds up to 67' per minute
• Single stainless steel rail system with HDPE wear strip & tool-less brackets
• Sturdy stainless steel tubular frame on adjustable leveling legs and casters
• Easy height adjustment up to 12" tall containers
• Stainless steel filler reservoir
• Filler product re-supply system with electronic float system and check valve
• PLC Control System with digital LCD touch screen display
• Digital filling volume setting for each pump from touch screen
• Revolution sensor-based pump RPM pulse counting system.
• Automatic bottle indexing system (moves bottles automatically)
• No bottle/no fill vision system (insures no attempted fill of missing bottles)
• Anti-bottle backup vision system (prevents filling if bottles are jammed downstream)
• Overall electronic production counter
• Pneumatic gates to stop containers or Star wheel bottle indexing.
• Conveyors start/stop control system.
• Memory locations for fill and indexing set-up recipes
• Variable Speed Motor, Gear Reducer, Clutch/Brake, and stainless-steel positive displacement pump
• Stainless steel and anodized aluminum construction
• Crank height adjustment for variable container sizes
• Grabber bar with tool-less adjustment bottle guides
• Stainless steel and aluminum frame
• Air-actuated operation
• Fully adjustable for caps from 8 mm to 110 mm
• Fully adjustable from 1 inch to 14-inch-high containers
• Heavy duty 304 Stainless steel Tig-welded C frame
• 6 capping discs, with bottom screws change over
• Direct gear motor transmission through coupling for capping belts movement
• DC gear motor for independent speed control of gripper belts
• Capping discs adjustment by frontal knobs, with lock nut hand wheel
• Hand Crank for manual height adjustment
• Gripper belt in/out adjustment by hand wheel
• Priced with single, opposing, 3/4" Gripper Belts (other models available)
• No change parts needed for a wide range of containers.
• Electric and pneumatic requirements: ·110 Volts, 60Hz, 15 Amps. ·5 CFM @ 80 p.s.i.
• Cap Delivery Chute, tool-less adjustment on 4 axes for versatility, can be fed manually or by automatic sorting system
• 27" Bowl diameter with 304 stainless steel construction, tooled for various caps
• Alternating Vibration Coil and Control Cube, for adjusting sorter speed
• Heavy-duty Bowl Cart, with powder-coated steel frame, leveling legs and casters
• The LAW-6250-PL automatic front & back labeling system comes equipped with a 6 5/16"iinch wide (adjustable) X 8’ long variable speed conveyor
• Features include a stepper motor drive for label and power assisted web take up
• Labeling heads speed automatically synchronizes with conveyor speed.
• Non-contact photo eye sensors and an auto teach function for new labels
• Handles many different size containers and can be used in virtually all industries such as pharmaceuticals, personal care products, foods, vitamins, cosmetics, and chemicals.
• One touch automatic label detection and setup
• Built-in touch screen operation manual
• Built-in touch screen troubleshooting guide
• Low or Missing label detection with automatic stop system to prevent mislabeling
• Label counter and Count down feature to allow precise run of set number of labels
• Auto Shut Off
• Specifications: Voltage: 220/110 VAC 50/60 HZ 1 phase Power: 1,320 WA
• Conveyor speed: 0-40m/min. Dispensing speed: 40 m/min max.
• Applicator height: 150mm(5 7/8")/200mm(7 7/8") Conveyor width: 160mm (6 5/16")
• Spool diameter: 76mm(3")
• Measurement: 2,420mm (L)*1,800mm(W)*1,450mm(H)
• Full or Partial Wrap Labeling Feature
Turntables
1 APS 40" ACCUMULATING TURNTABLE
• 304 stainless steel Disc top
• 304 stainless steel frame construction
• Line height 30-36"
• Clockwise or Counterclockwise rotation
• 115/230Volt/1f/50-60Hz Variable speed control box mounted on machine cabinet
• Single rail system with HDPE bottle contact surface and tool-less adjustments
• 304 stainless steel disc top
• 304 stainless steel frame construction
• Overhead support system for bottle diverter
• Line height 30-36"
• Clockwise or Counterclockwise rotation
• 115/230Volt/1f/50-60Hz Variable speed control box mounted on machine cabinet
• Single rail system with HDPE bottle contact surface and tool-less adjustments
• 304 Stainless steel closed-shell construction
• 6.0" Delrin chain belt, elevated on spacer for easier washing above & below the belt
• Optional open link chain for faster removal
• 115V/1f/50-60Hz Variable Frequency Drive
• Washdown duty 90Volt DC motor
• 36:1 gear reducer
• Speeds up to 67' per minute
• Single stainless steel rail system with HDPE wear strip & tool-less brackets
Especificações:
Padrão
Métrico
Nome do fabricante
Various
Tipo de Enchedor:
INLINE
INLINE
Número de Cabeças:
Four
Four
Forma Recomendável da Embalagem:
PALLET
PALLET
Dimensões:
Padrão
Métrico
Total:
1 x 1 x 1 IN - 1 LBS
25,40 x 25,40 x 25,40 mm - 0,45 kg
Aviso Legal
Recomendamos que você entre em contato com a EquipNet para agendar uma visita ao equipamento (19) 3277-1125, [email protected].
WA
Quaisquer itens que não estão na descrição, mas aparecem nas representações visuais, não serão incluídos na venda. Remoção, desmontagem, embalagem, seguro e frete: custos de responsabilidade do comprador.
Quaisquer itens que não estão na descrição, mas aparecem nas representações visuais, não serão incluídos na venda. Remoção, desmontagem, embalagem, seguro e frete: custos de responsabilidade do comprador. Poderão haver requisitos específicos na execução dos serviços dentro da área do vendedor. Poderá ser obrigatória a realização dos serviços somente por empresas que já são homologadas pelo vendedor.
