DESCRIPTION:

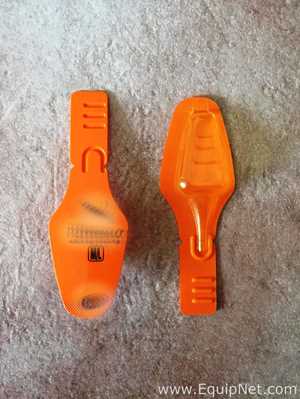

The VT240 is a thermoforming and filling machine built in accordance with GMP (Good Manufacturing Practices) standards. It's designed for producing thermoformed single-dose containers from various materials like laminated films, aluminum, or special papers. This versatile machine is ideal for packaging a wide range of products including liquids, gels, creams, and dense, semi-dense products, as well as powders. Its applications span across the pharmaceutical, cosmetic, food, and chemical sectors.

SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.

MAIN FEATURES:

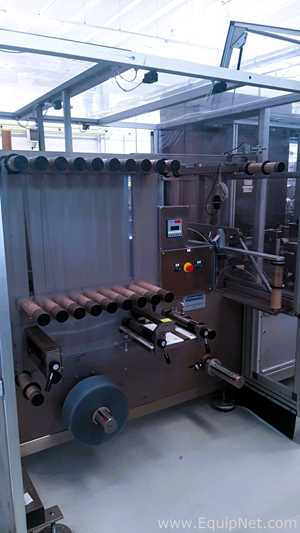

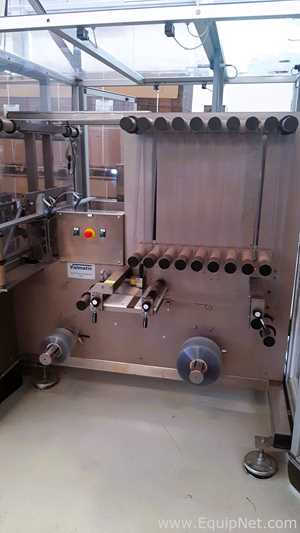

The VT240 boasts a cantilevered design, which significantly improves operator accessibility for quicker format changes and easier cleaning. A key feature is its film magazine, capable of handling one or two films, ensuring continuous production by eliminating stops for reel changes. It also includes an automatic inert gas blowing system for the containers, a humidity control system, and internal environment monitoring. For the pharmaceutical industry, the VT240 can be built to comply with CFR 21 Part 11 regulations published by the FDA (Food and Drug Administration), highlighting its adherence to strict industry standards.

Year: 2005

TECHNICAL DATA:
• Dimensions: 7389 x 1950 x 1646 height (mm)
• Weight: 5,400 Kg (two-reel version)
• Production Cycles: 35 cycles / minute
• Filling Capacity: from 0.2 ml to 330 ml
• Materials Used: PVC/PE, PET/PE, PVC/PVDC/PE, PET/EVOH/PE, PP/PET/EVOH/PE, ACLAR/PET/PE, PS/PE, PP/PE, PCTFE/PET/PE/EVOH/PE, PP/COC/PP/PE, PP/COC/EVOH/PP, and other thermoformable materials laminated with aluminum or paper.
• Machine Pitch: 240 mm
• Maximum Film Thickness: 500 micron
• Film Width: 120 mm to 400 mm
• External Reel Diameter: 500 mm
• Internal Reel Diameter: 70/76 mm
• Construction Materials: Stainless steel AISI 304 + ERGAL 55
