Manipulador de Ar Carrier Corporation 39MN14WL4848211XXE

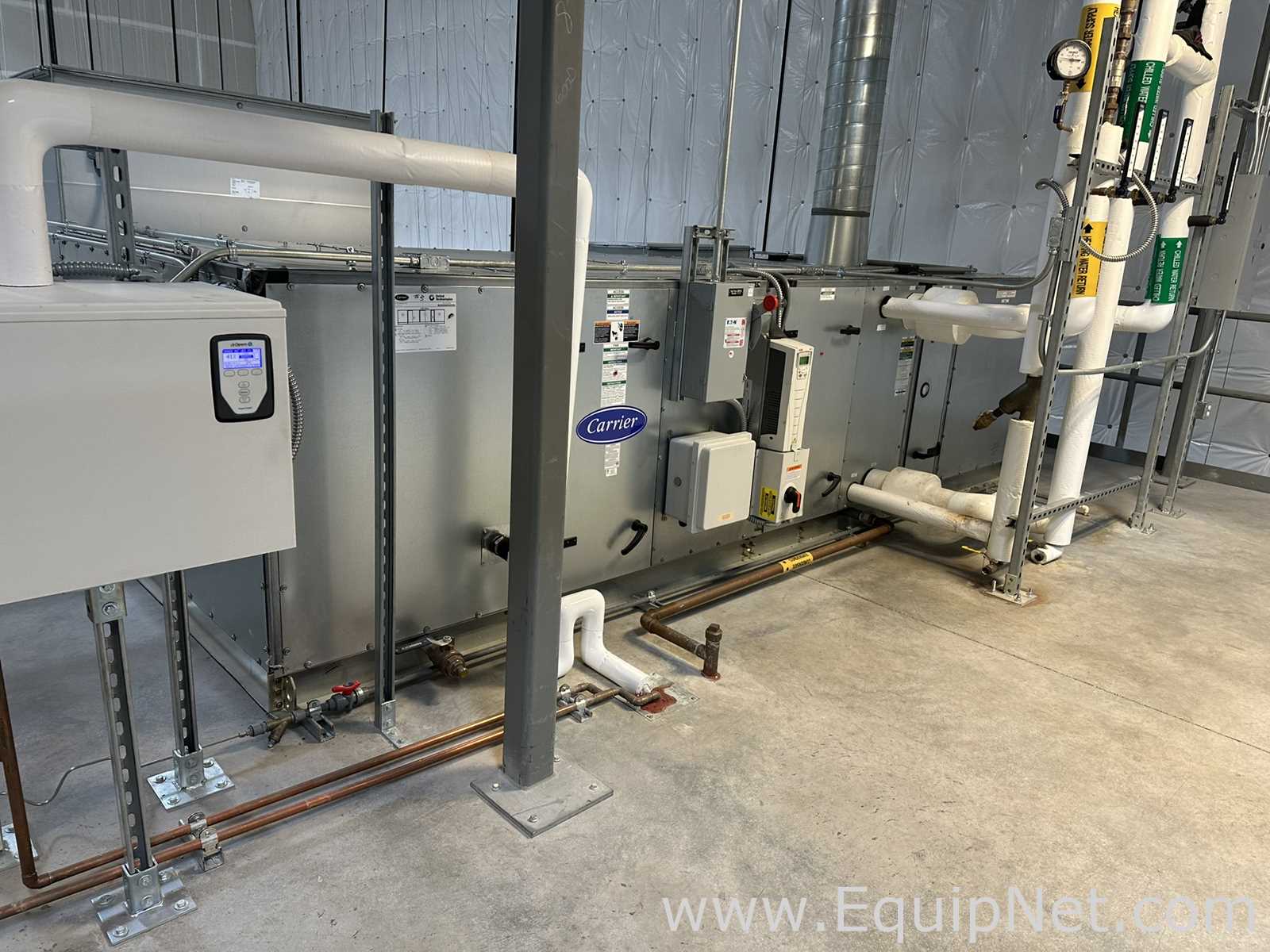

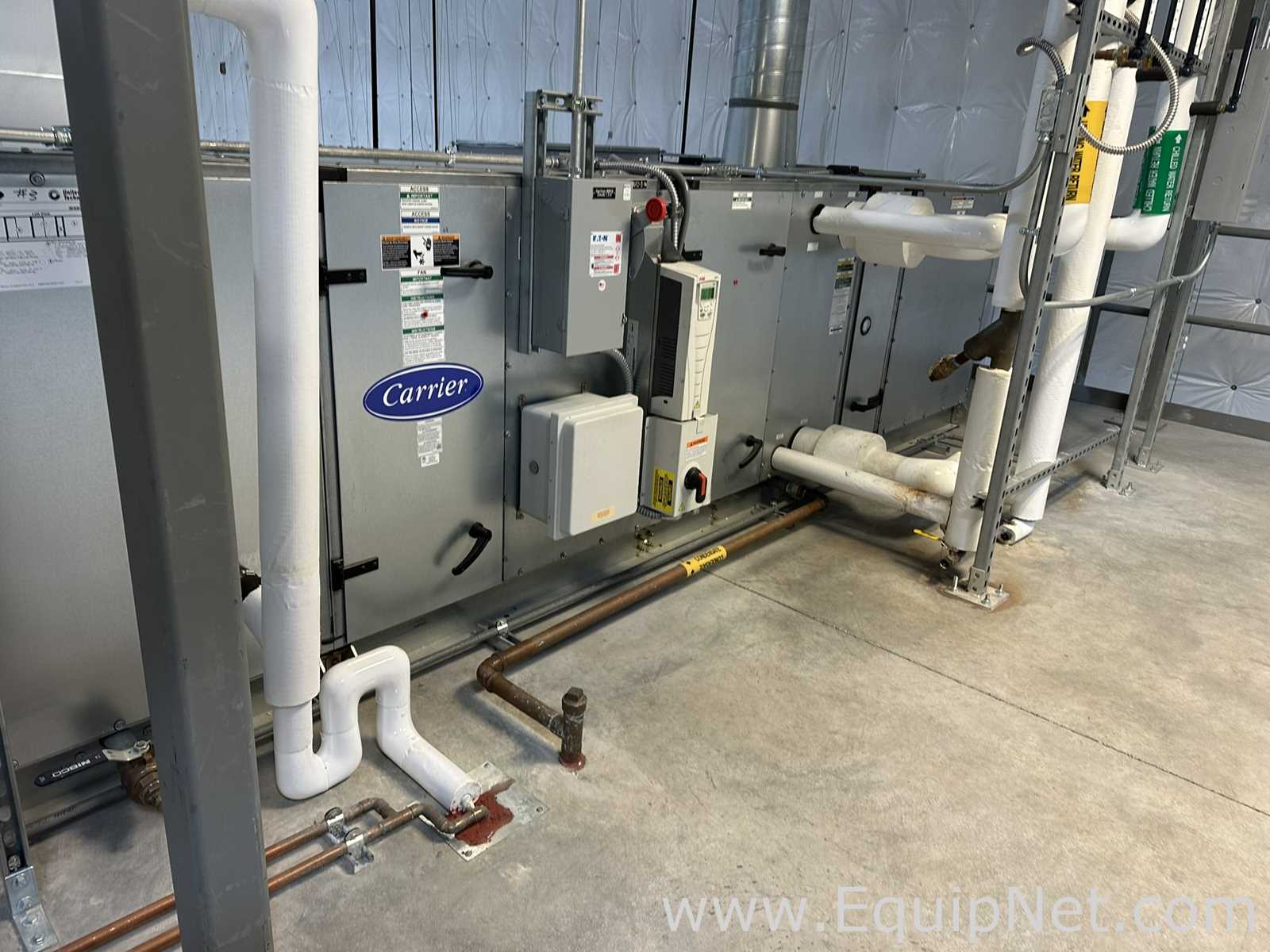

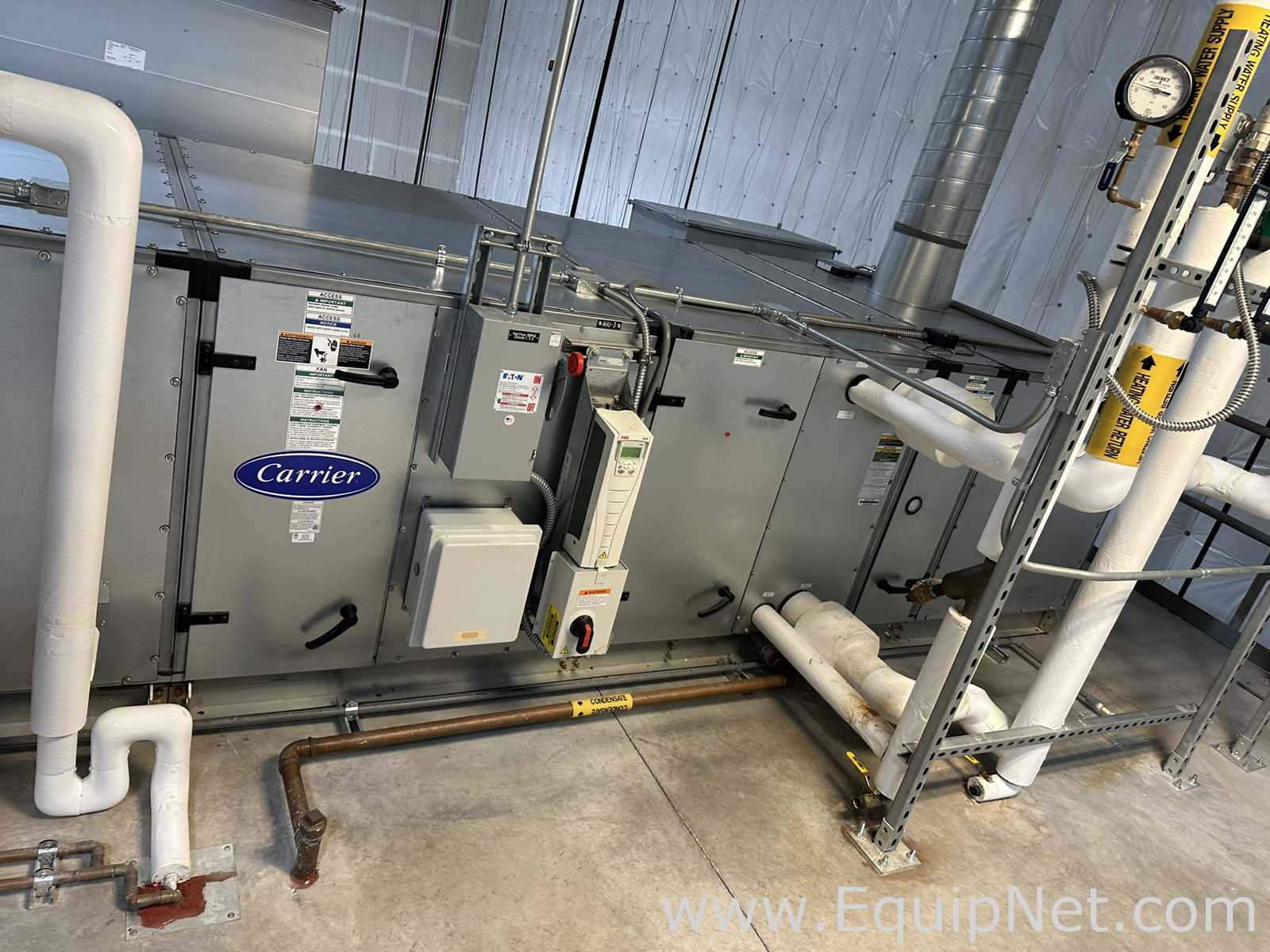

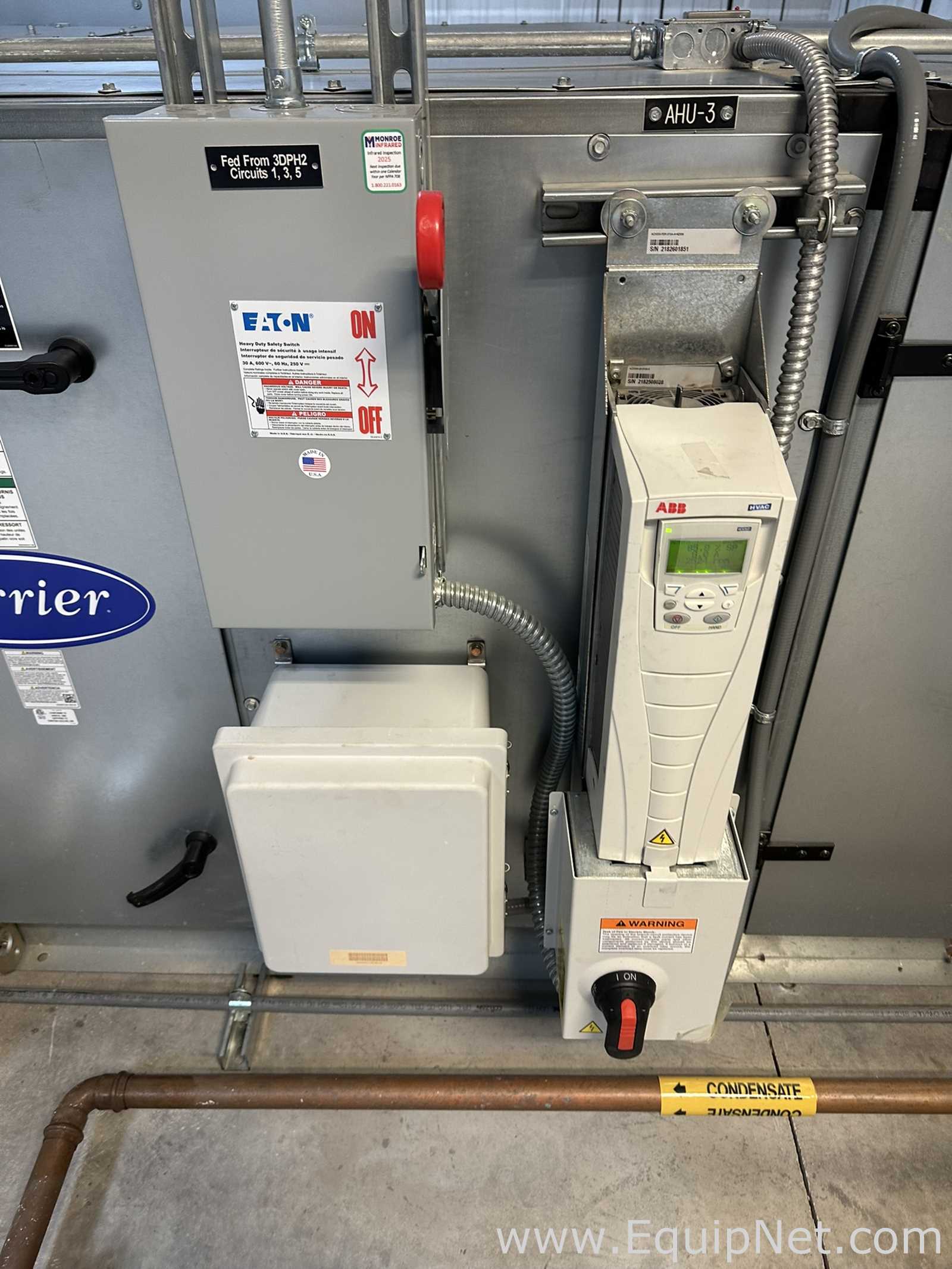

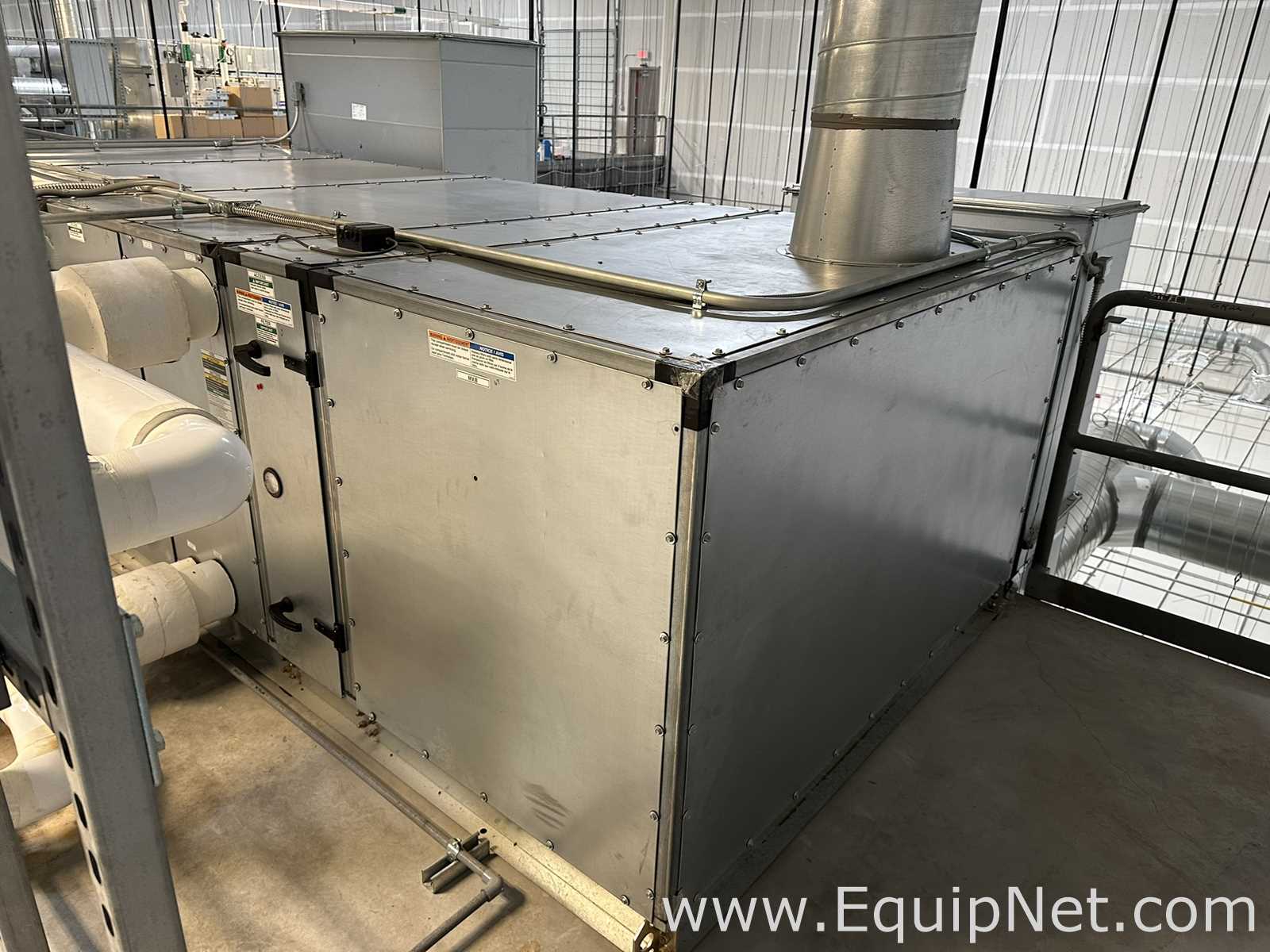

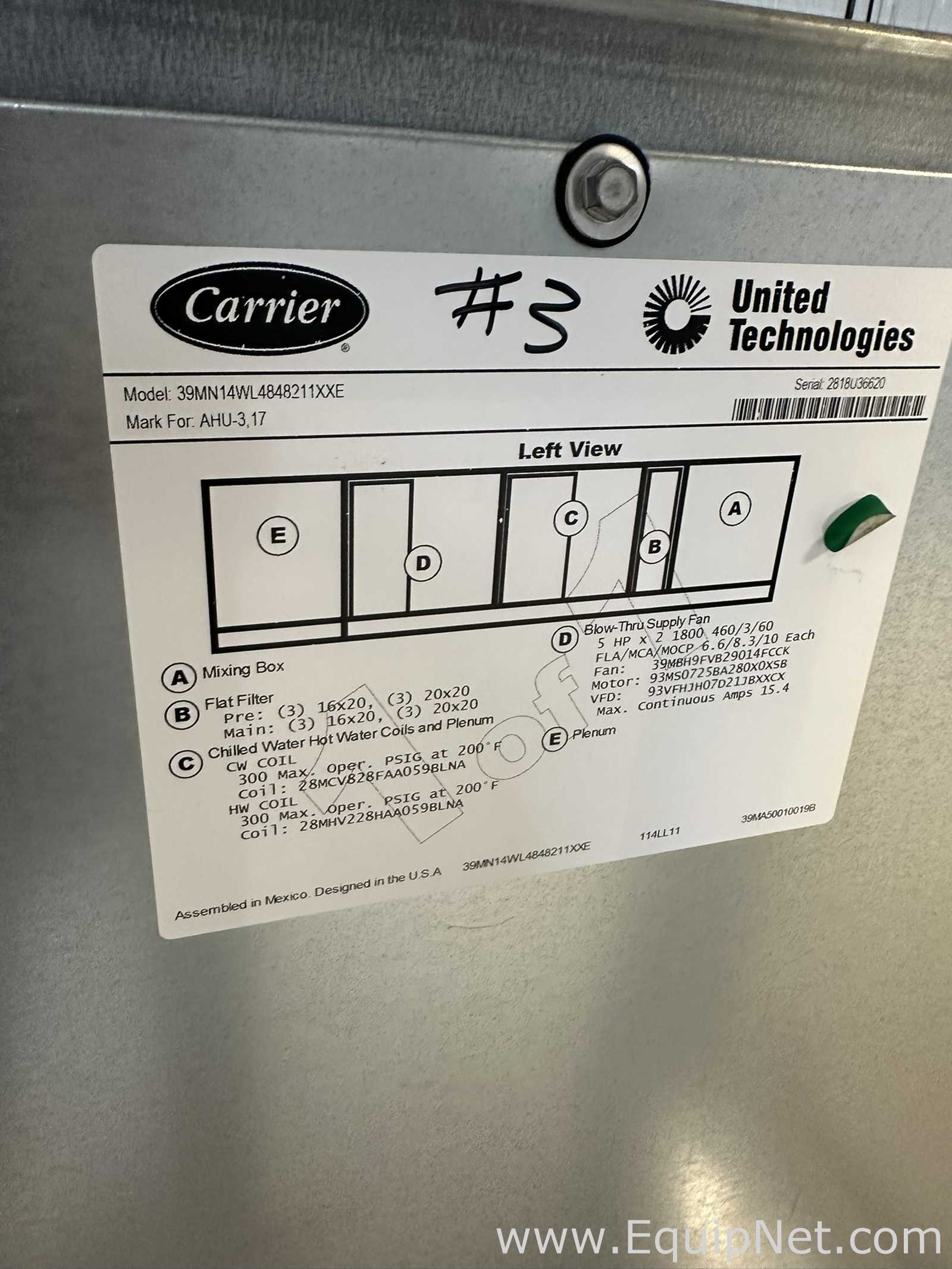

Carrier model 39MN14WL4848211XXE indoor custom air handling unit (39M series), serial 2818U36620, built in 2018 and tagged in service as AHU-3. The unit is a horizontal, multi-section draw-thru/blow-thru air handler built on a galvanized steel casing with hinged, latched access doors on each section for filter, coil and fan service. Per the unit nameplate, the airside arrangement runs mixing box, flat filter section, chilled water and hot water coils with plenum, blow-thru supply fan section, and discharge plenum. The filter section holds pre-filters of (3) 16x20 and (3) 20x20 plus main filters of (3) 16x20 and (3) 20x20. The chilled water coil (28MCV828FAA059BLNA) and hot water coil (28MHV228HAA059BLNA) are each rated 300 PSIG maximum operating pressure at 200 degrees F. The supply fan section uses two 5 HP, 1800 RPM motors rated 460V/3-phase/60 Hz, FLA/MCA/MOCP 6.6/8.3/10 each, with a maximum continuous draw of 15.4 amps. Controls and electrical visible in the photos include an ABB HVAC variable frequency drive with keypad mounted on the unit casing, a fan-mounted disconnect switch, an Eaton 30A/600V heavy duty safety switch fed from panel 3DPH2 (circuits 1, 3, 5), and a junction/control enclosure. A separate wall-mounted controller with a lit display is adjacent to the unit. The VFD display was lit at the time of the site visit. The unit is shown installed in a mechanical area, hard-piped to insulated chilled water and heating water supply and return lines with condensate piping, and connected to round and rectangular ductwork. It will require disconnection of electrical, piping and duct connections, and rigging equipment, to remove. Overall dimensions approximately 180 in L x 72 in W x 62 in H, estimated shipping weight 3000 lbs.
