Manipulador de Ar Carrier Corporation 39MN21W025BGG11XGE

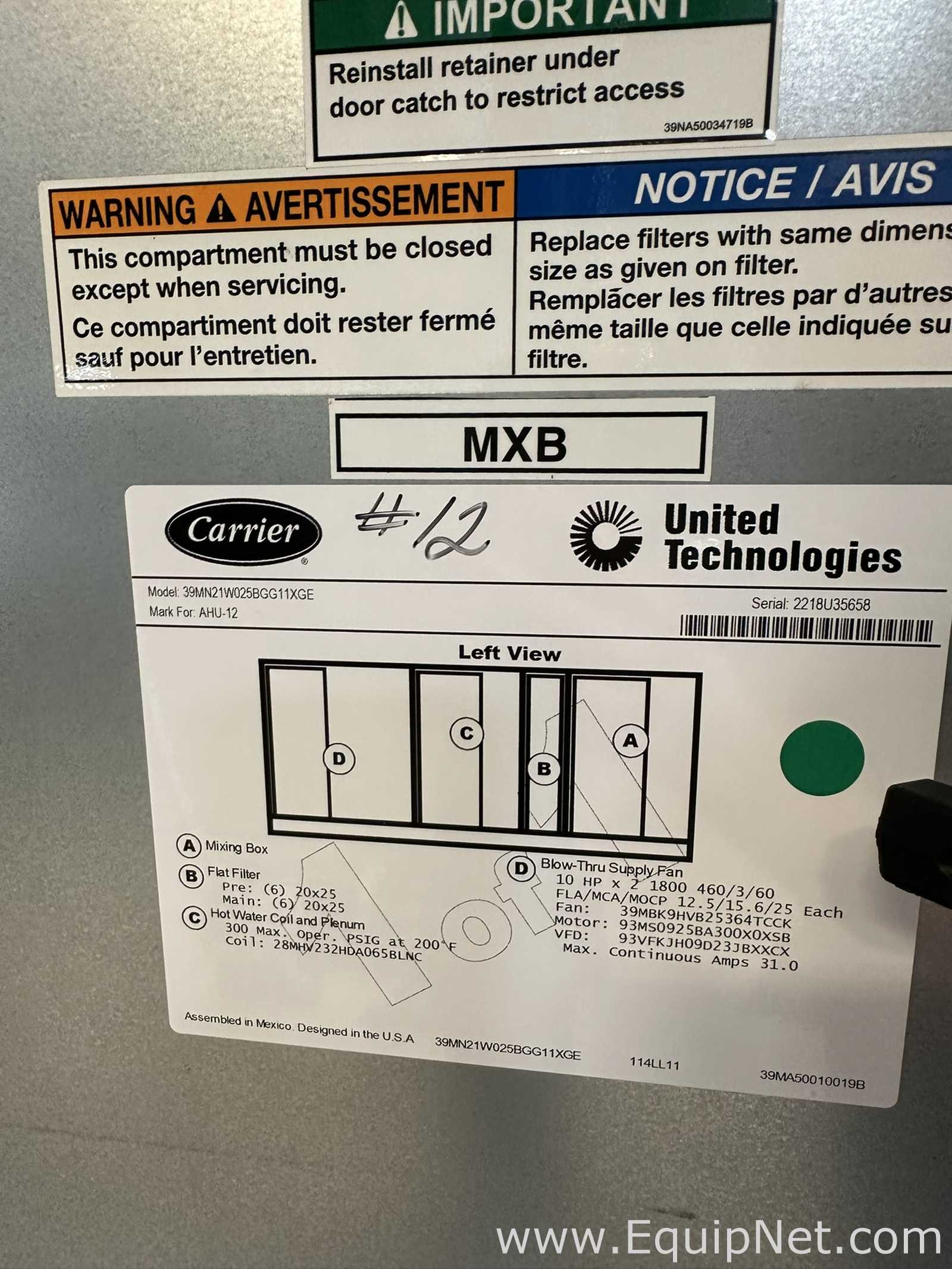

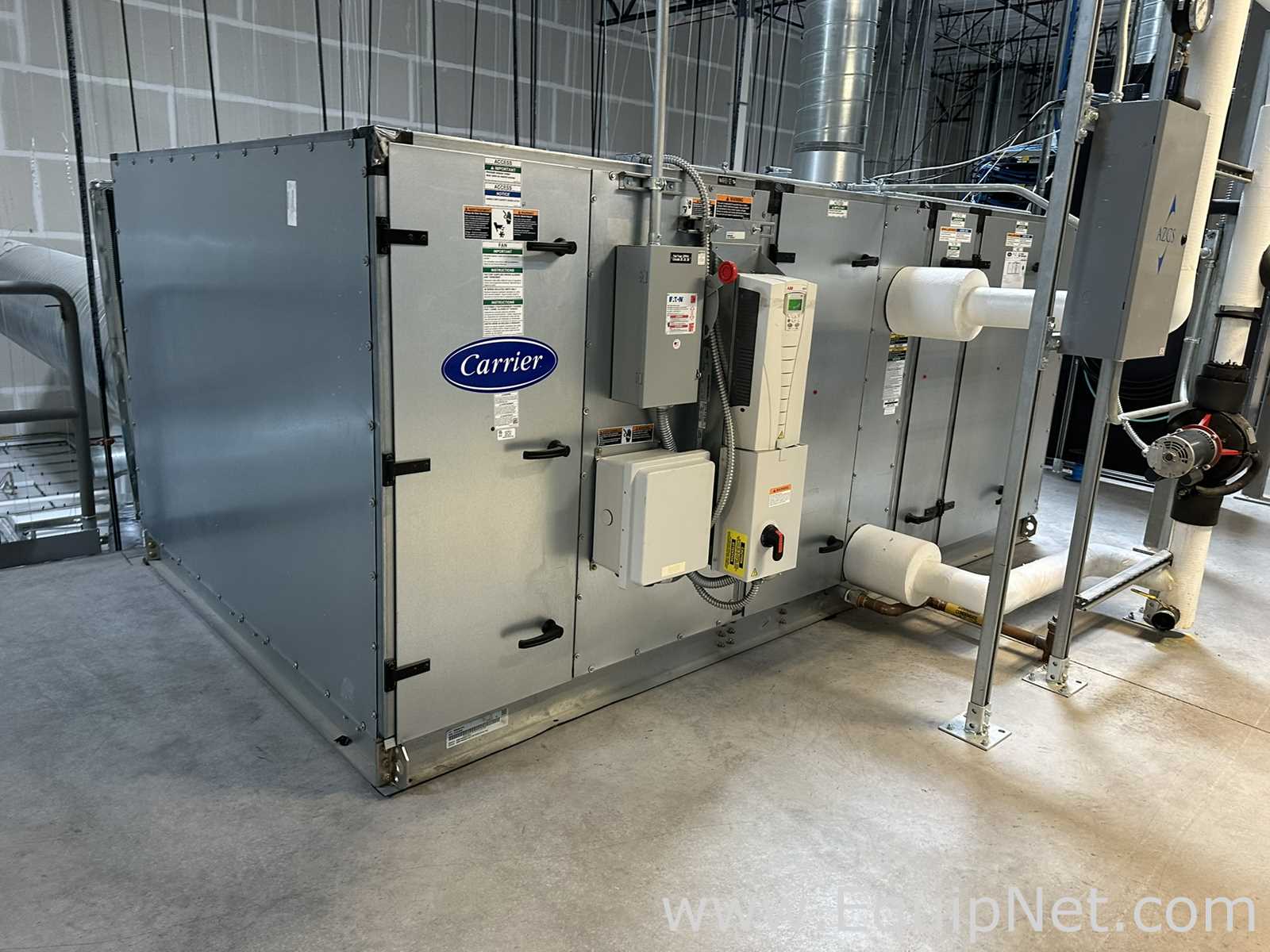

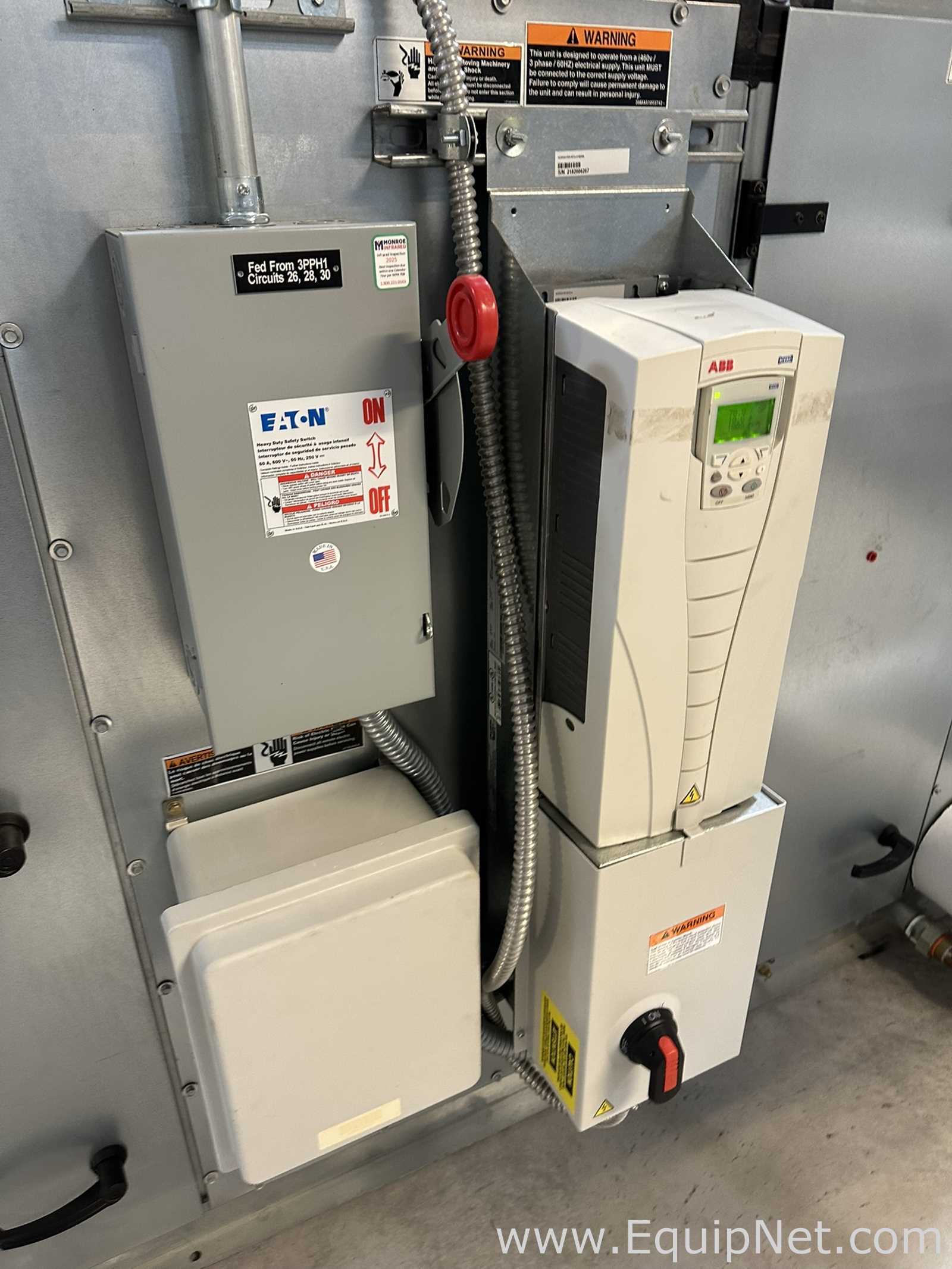

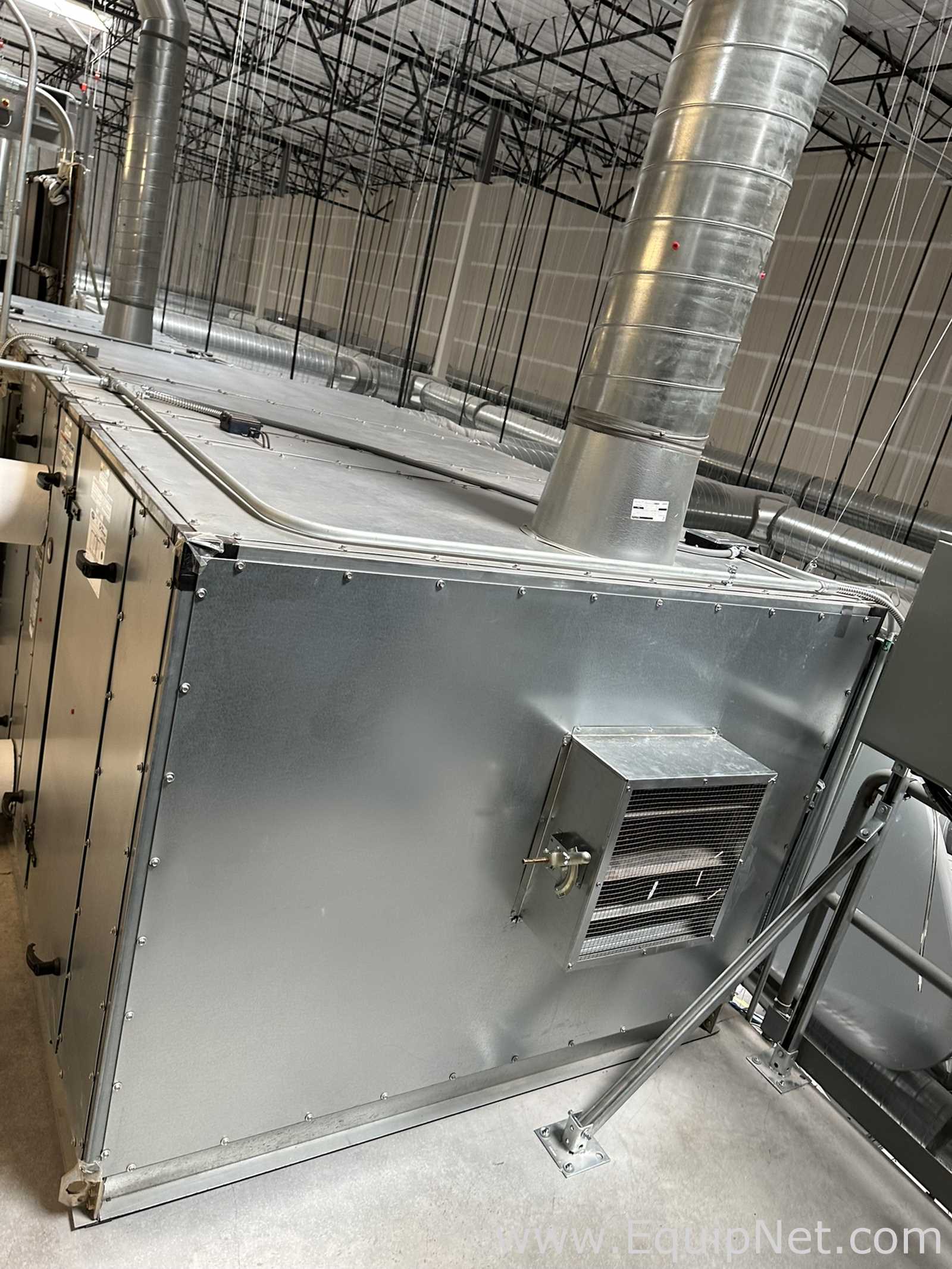

Carrier model 39MN21W025BGG11XGE (Aero 39M series) indoor semi-custom central station air handling unit, factory-marked AHU-12, serial 2218U35658. The unit is a double-wall, draw-through configured modular cabinet arranged, per the unit nameplate, as a mixing box, flat filter section, hot water coil and plenum, and a blow-thru supply fan section. Carrier lists the 25W unit size at approximately 12,500 nominal CFM. The supply fan section is driven by two 10 HP, 1800 RPM motors rated 460V/3-phase/60 Hz (FLA/MCA/MOCP 12.5/15.6/25 each, 31.0 max continuous amps for the unit). Fan assembly 39MBK9HVB25364TCCK with motors 93MS0925BA300X0XSB are listed on the nameplate. Filtration is (6) 20x25 pre-filters and (6) 20x25 main flat filters. The hot water coil (28MHV232HDA065BLNC) is rated 300 PSIG maximum operating pressure at 200 F. Controls and power components mounted on the unit exterior include an ABB variable frequency drive with keypad, a secondary disconnect/drive enclosure, and an Eaton 60 A, 600 V heavy duty safety switch fed from panel 3PPH1, circuits 26, 28, 30. The VFD keypad display was illuminated when photographed, indicating the unit was energized. The air handler is shown installed and in service: it sits on a floor-mounted support frame with braced legs, is connected to round sheet metal supply/return ductwork, is hardwired, and has insulated hot water piping run to the coil section. It will require disconnection of power, piping and ductwork, and rigging or heavy equipment, before removal. Overall footprint is approximately 168 in long x 90 in wide x 84 in high with an estimated shipping weight of 4,000 lbs.
