Listing# 1107670
Two Harro Hofliger Continuous Pod and Disc Filling and Packaging Lines
Pre-Owned Harro Hofliger Packaging Line for Sale
Request More Info
Make An Offer
Location: MO, USA
Level of Removal: Already Crated
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description

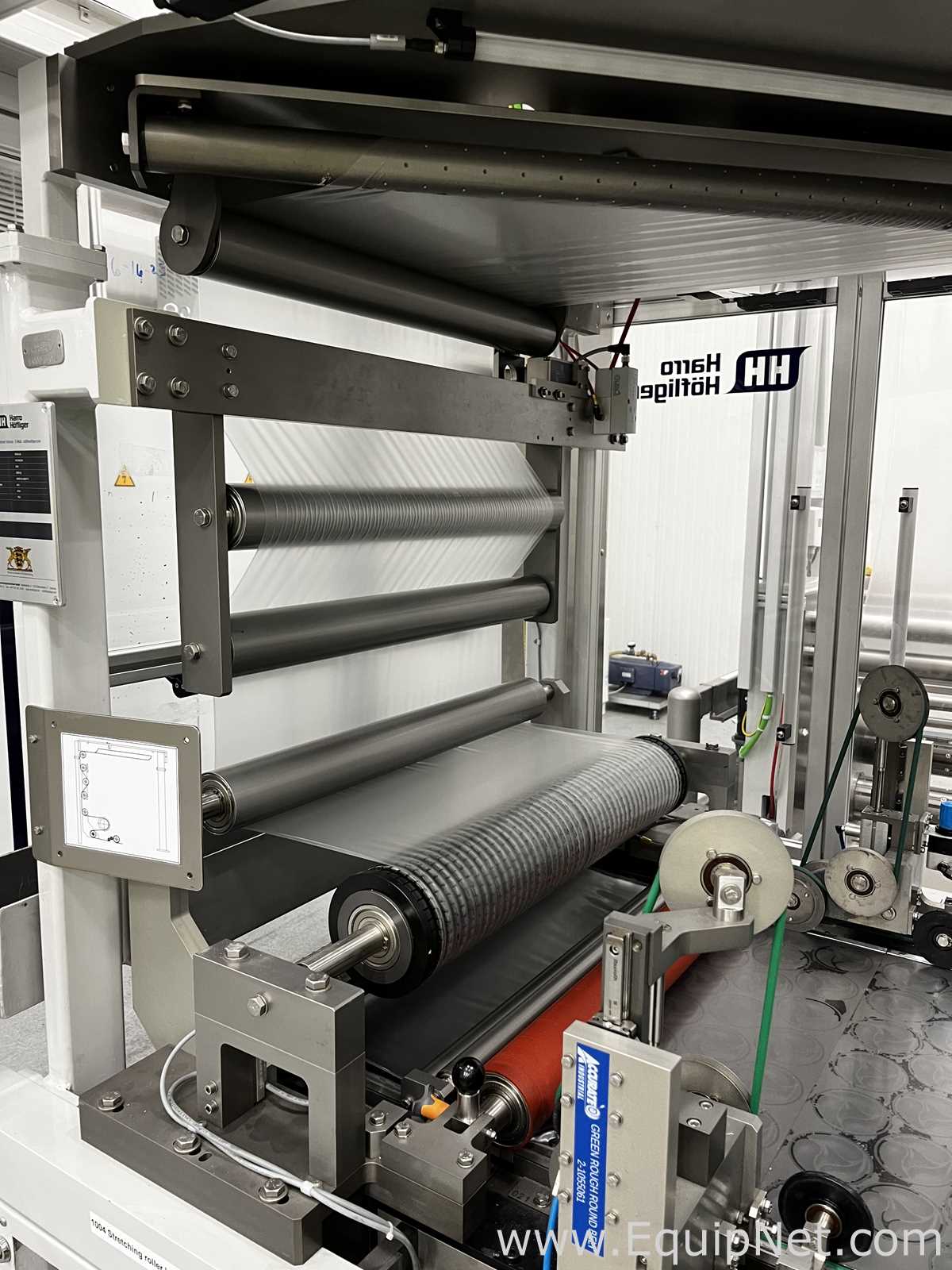

Two Harro Hofliger Continuous Pod and Disc Filling and Packaging Lines

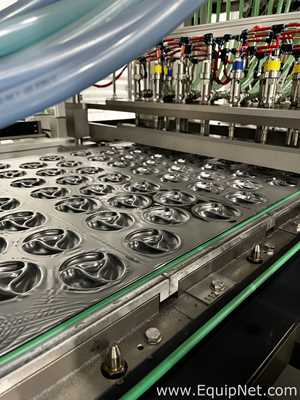

PFM-K is intended for manufacturing single and multi-chamber products made of PVOH or plastic. A chain transport moves the format plates through the machine. After deep pulling of the film using a vacuum or a cold/warm forming process, the chambers are filled with powder and/or liquid. The chambers are then sealed with cover film and cut or punched out of the format plates.
Examples of Final Products
Portion packs for customer care and medical products
Dishwasher pads
Dishwasher tabs
Coffee pads
Contact lenses

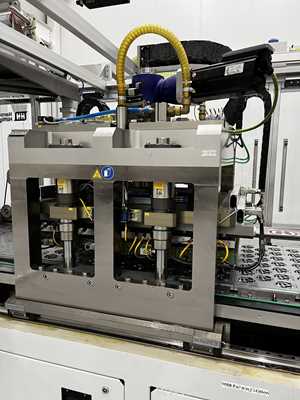

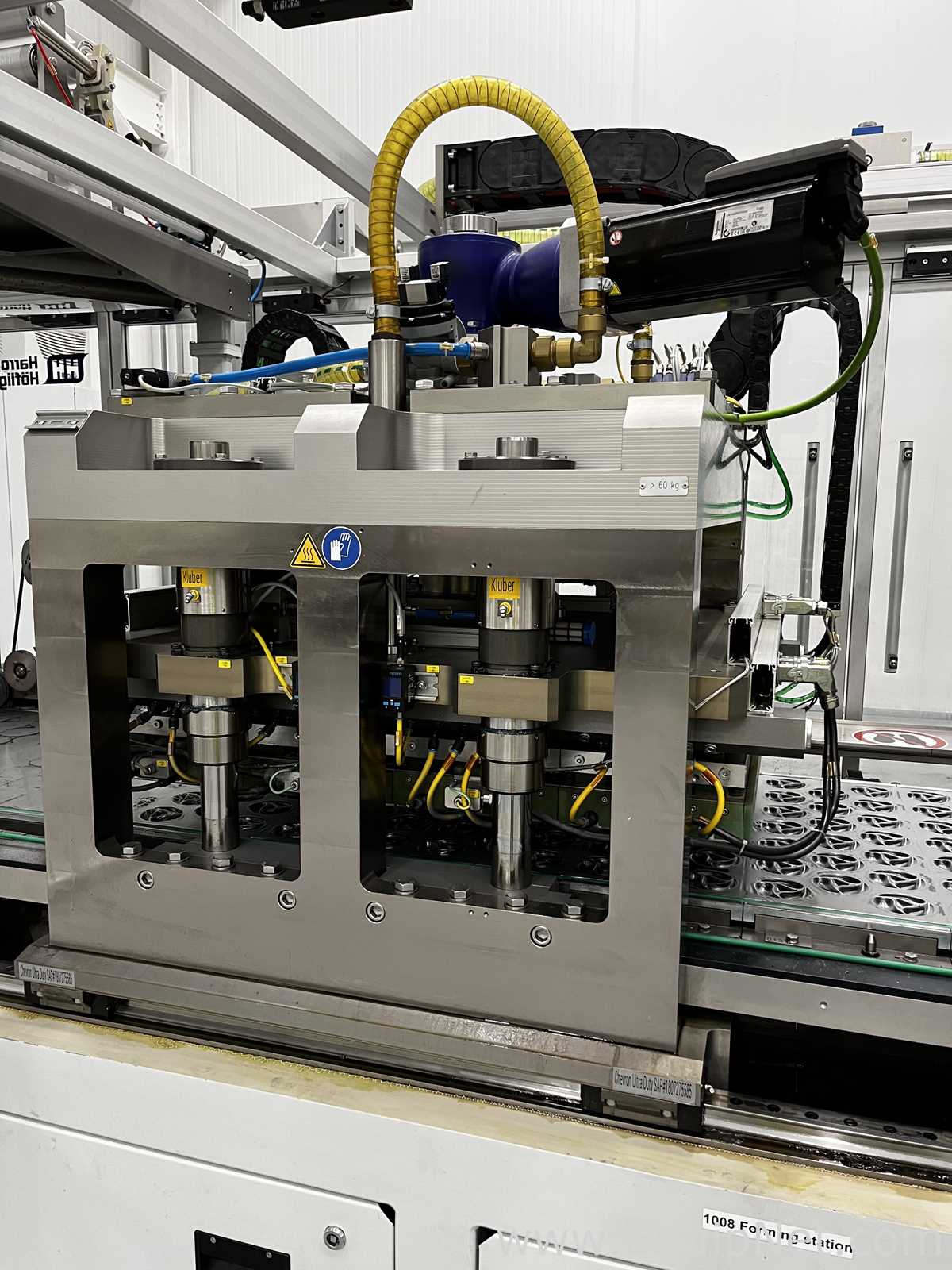

Forming: A variety of methods are available for the forming process. In addition to thermoforming, deep drawing or vacuum forming is applied. These processes are integrated into the system platforms developed by Harro Höfliger with the product-specific function stations.
Dosing systems for liquids are used in the form of modules in pharmaceutical and medical production platforms at Harro Höfliger. This way, custom project requirements can be tailored as needed. The systems can be variably adapted to the defined performance specifications.
Sealing is one of the central processes when connecting several product layers. We apply several technologies for this process. Depending on the material characteristics, we use such applications as platen sealing, roller sealing (hot and cold), pulse sealing, ultrasonic sealing or thermal sealing.
Major equipment includes:

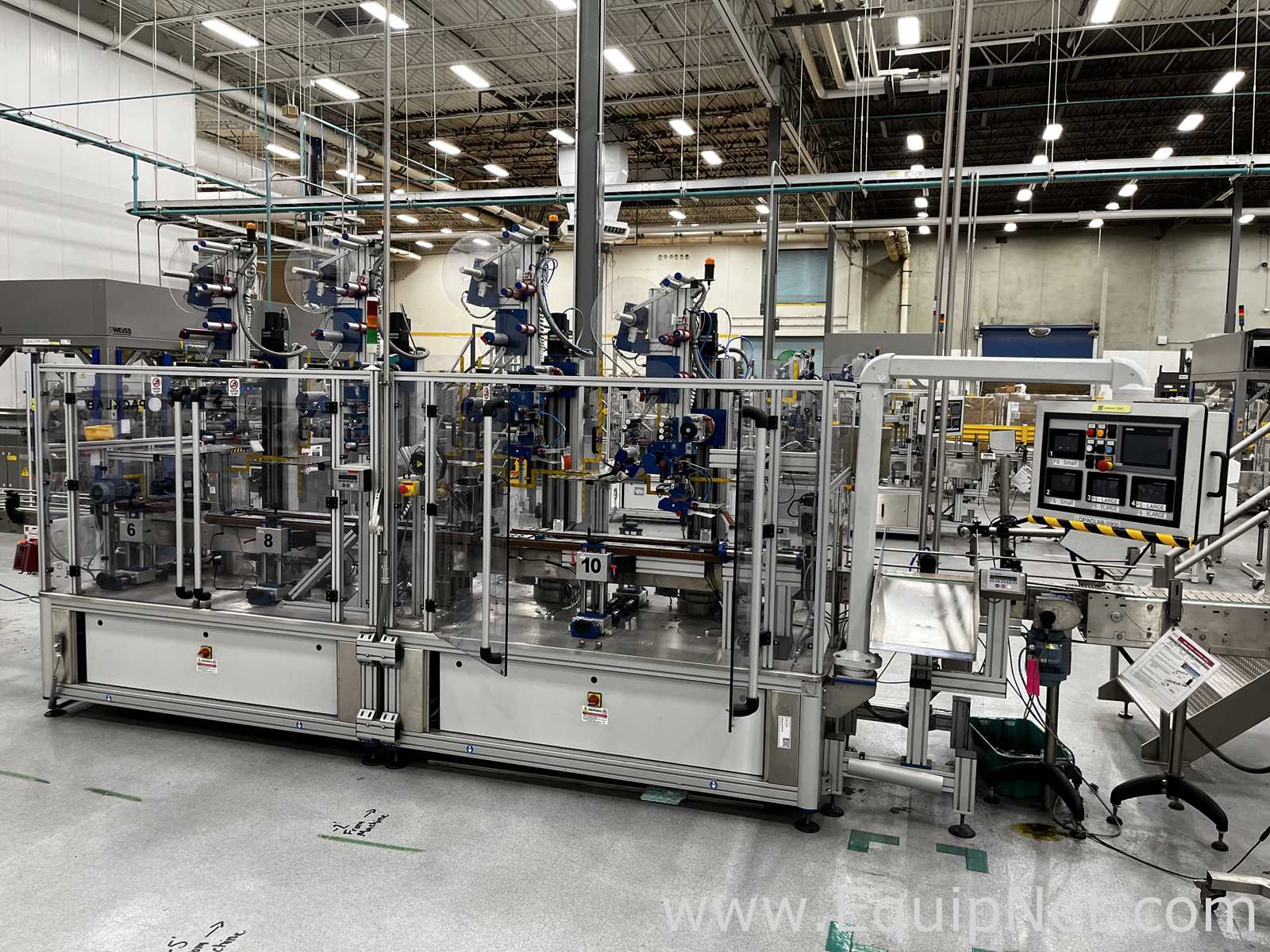

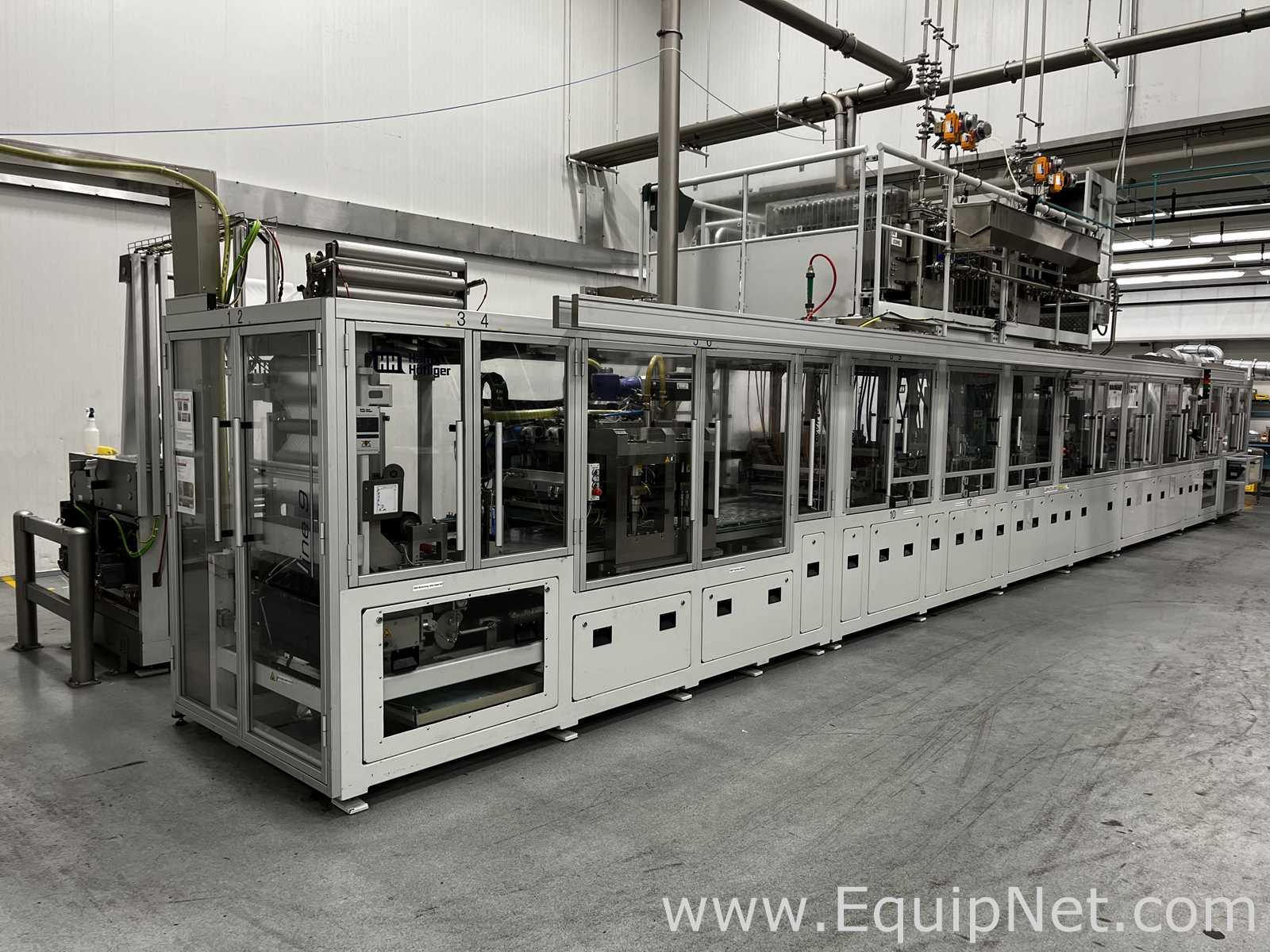

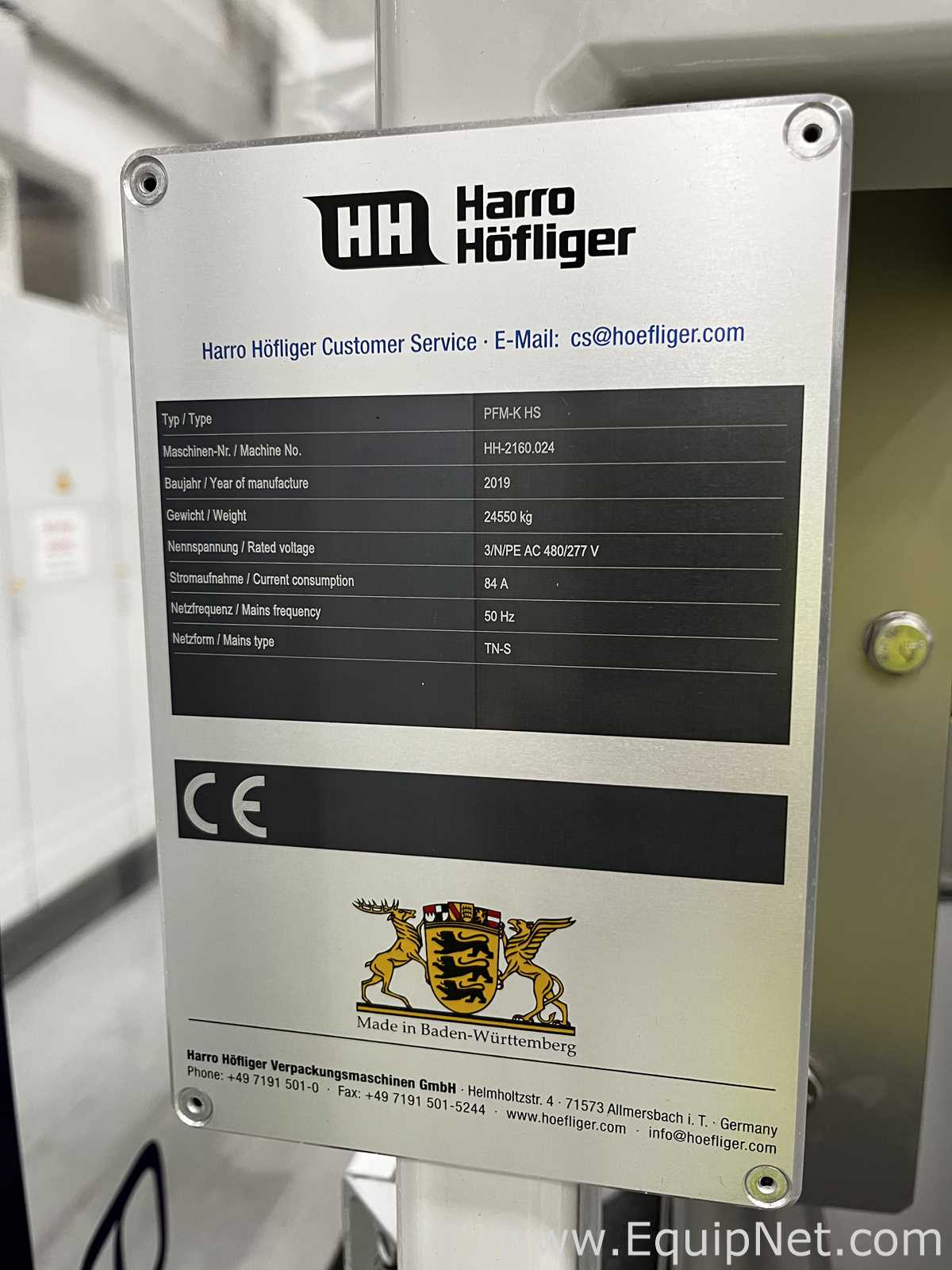

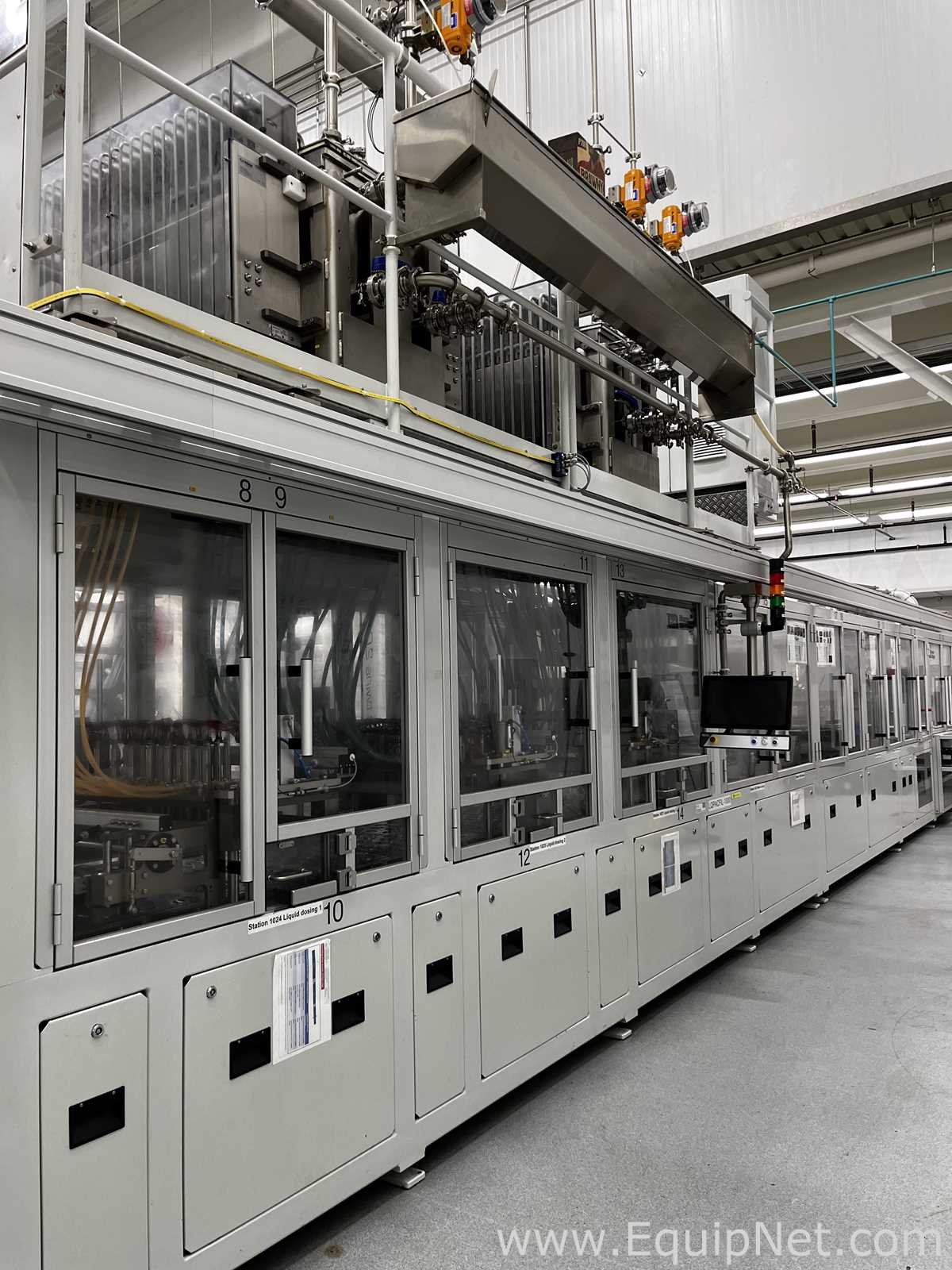

Twin Harro Hofliger Type PFM-K-HS Filling and Packaging Lines including Liquid Dosing Chambers

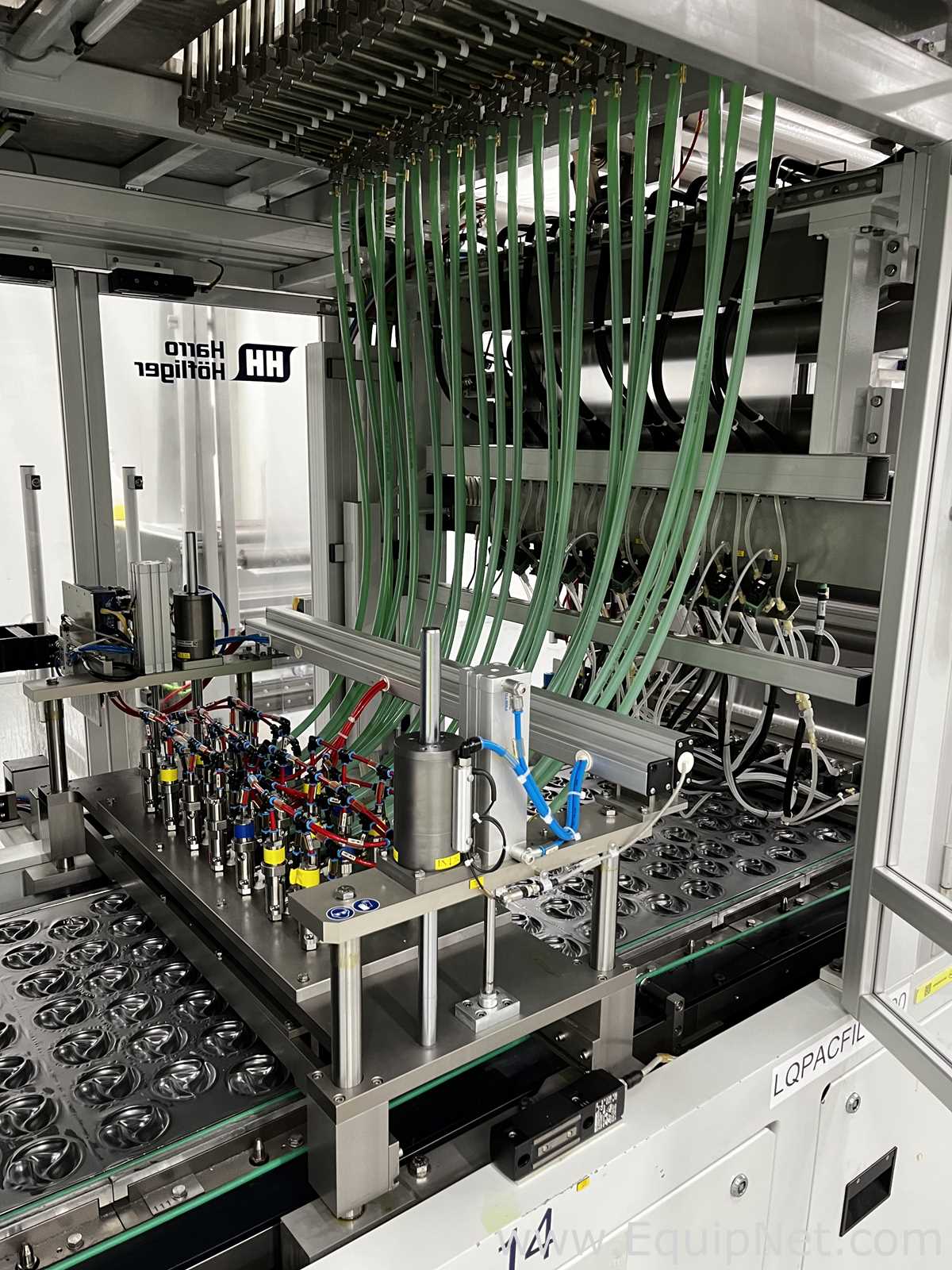

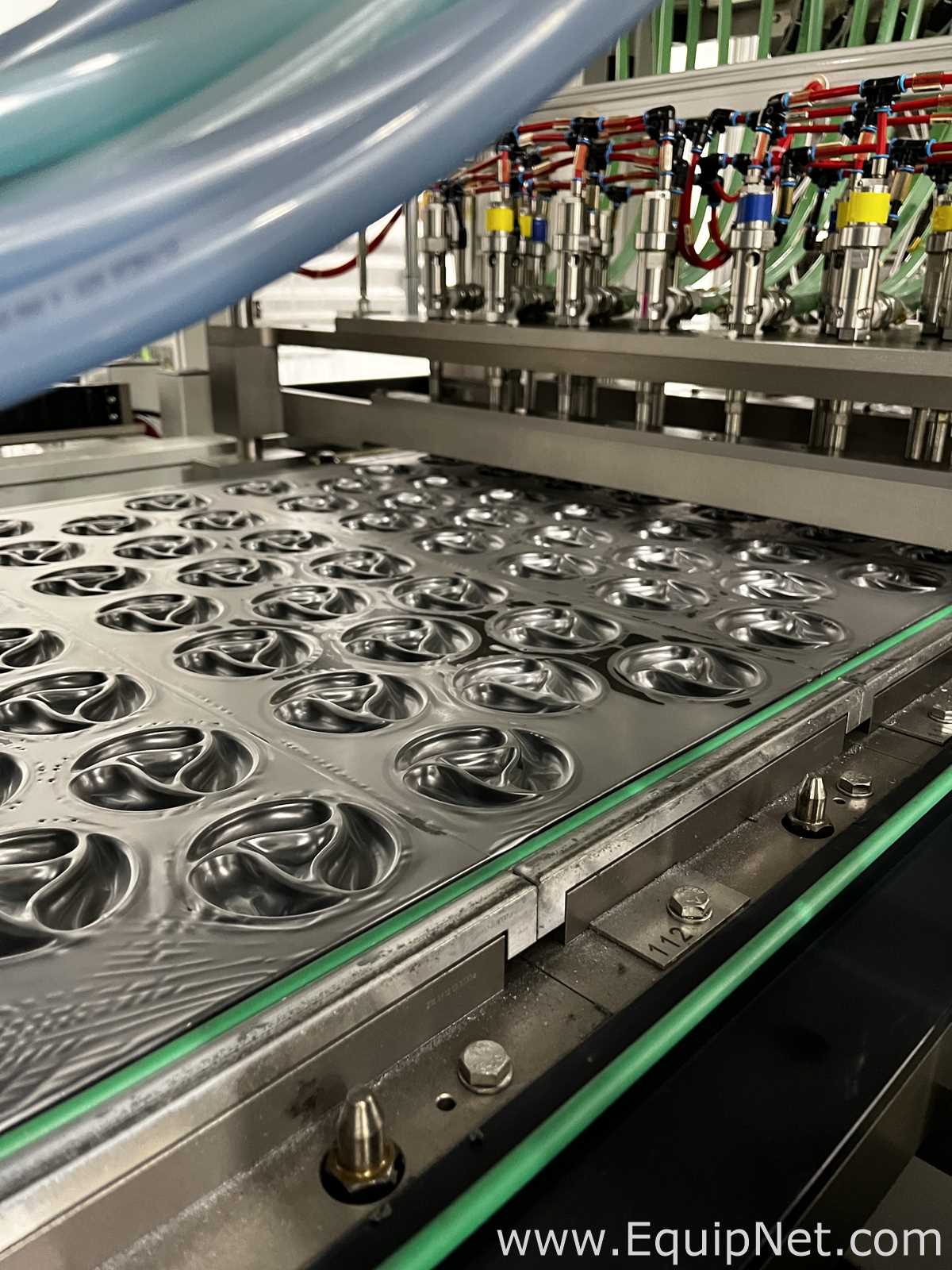

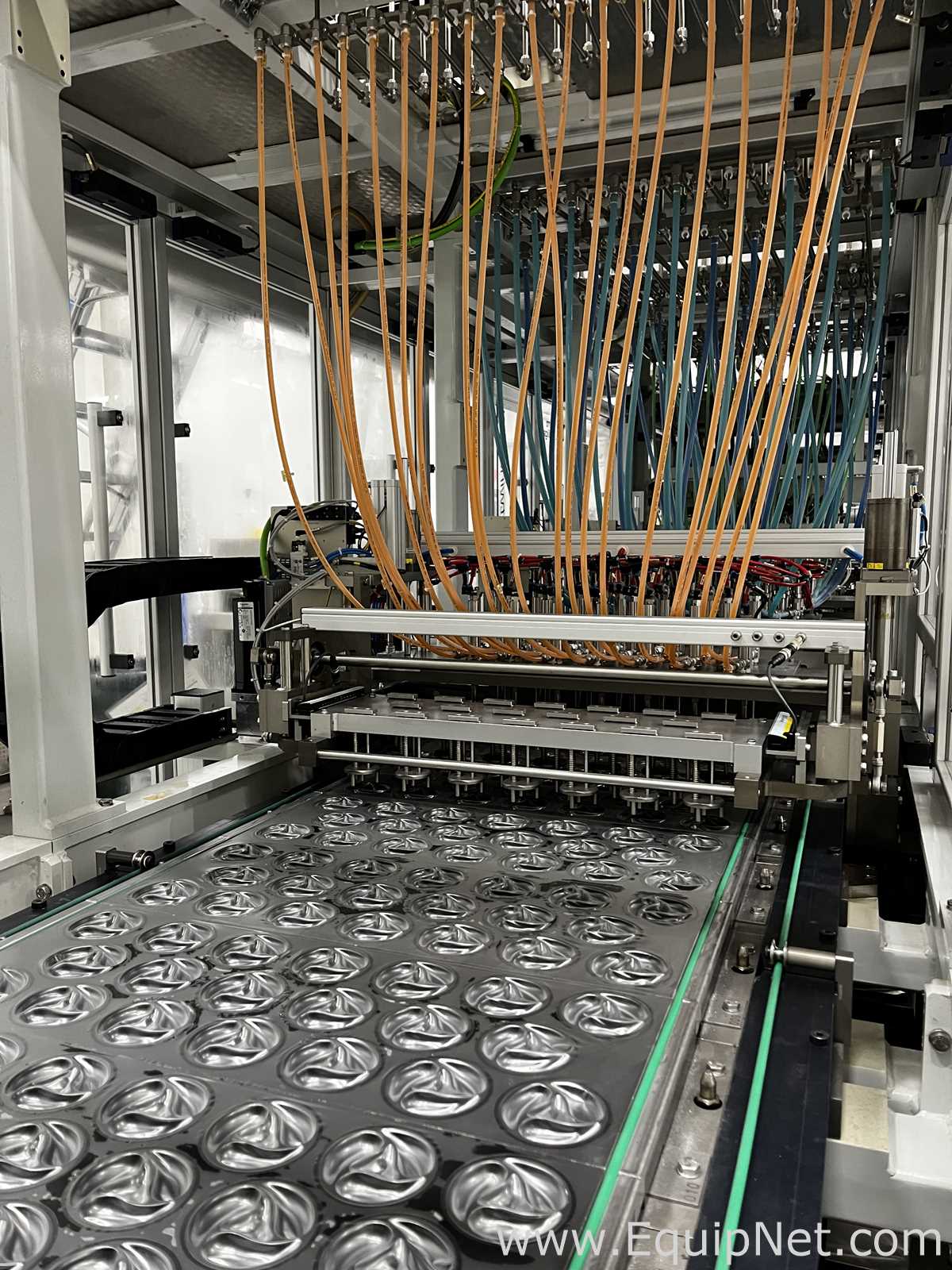

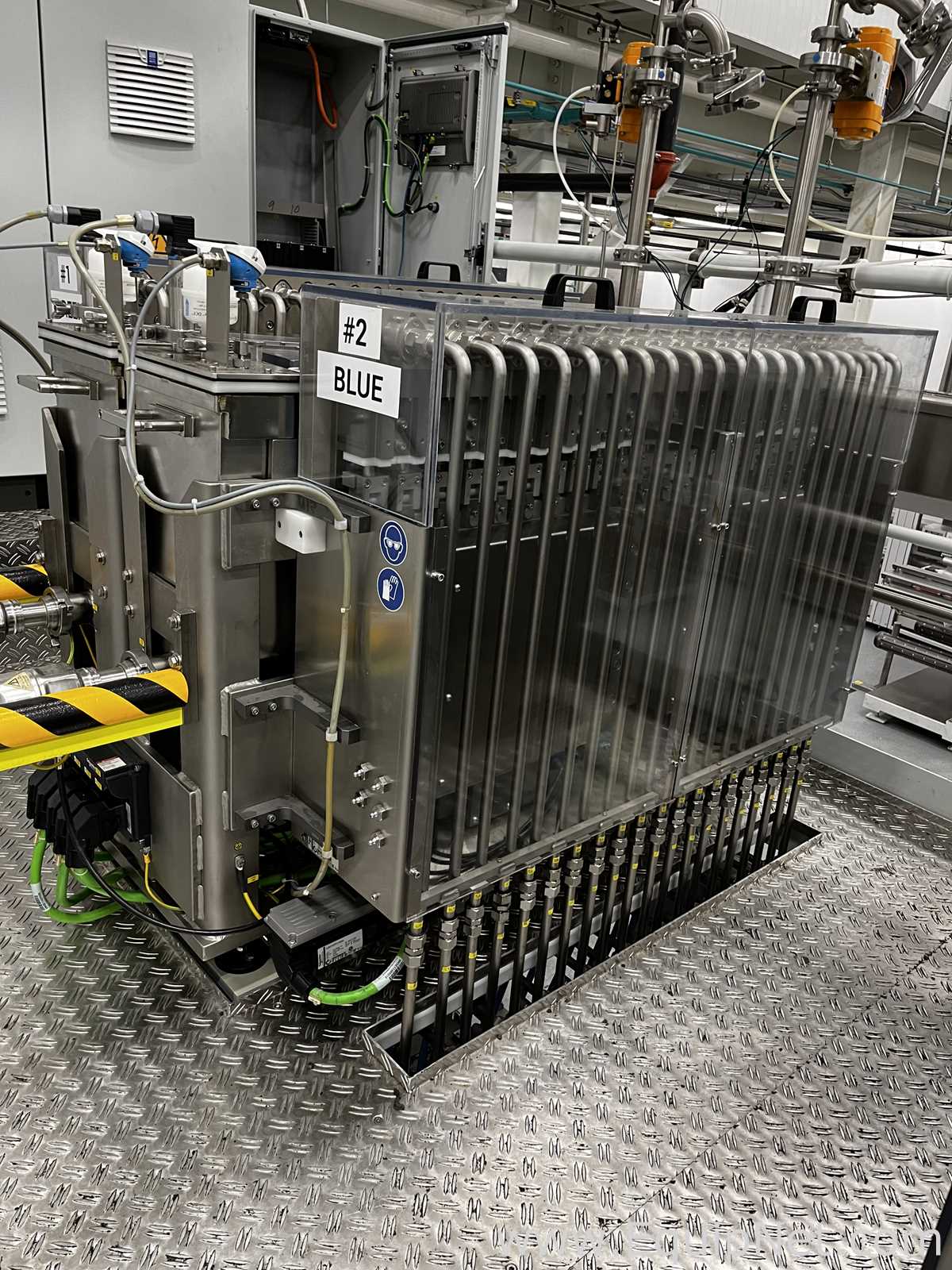

Multi Lane Liquid Pac Filling Stations

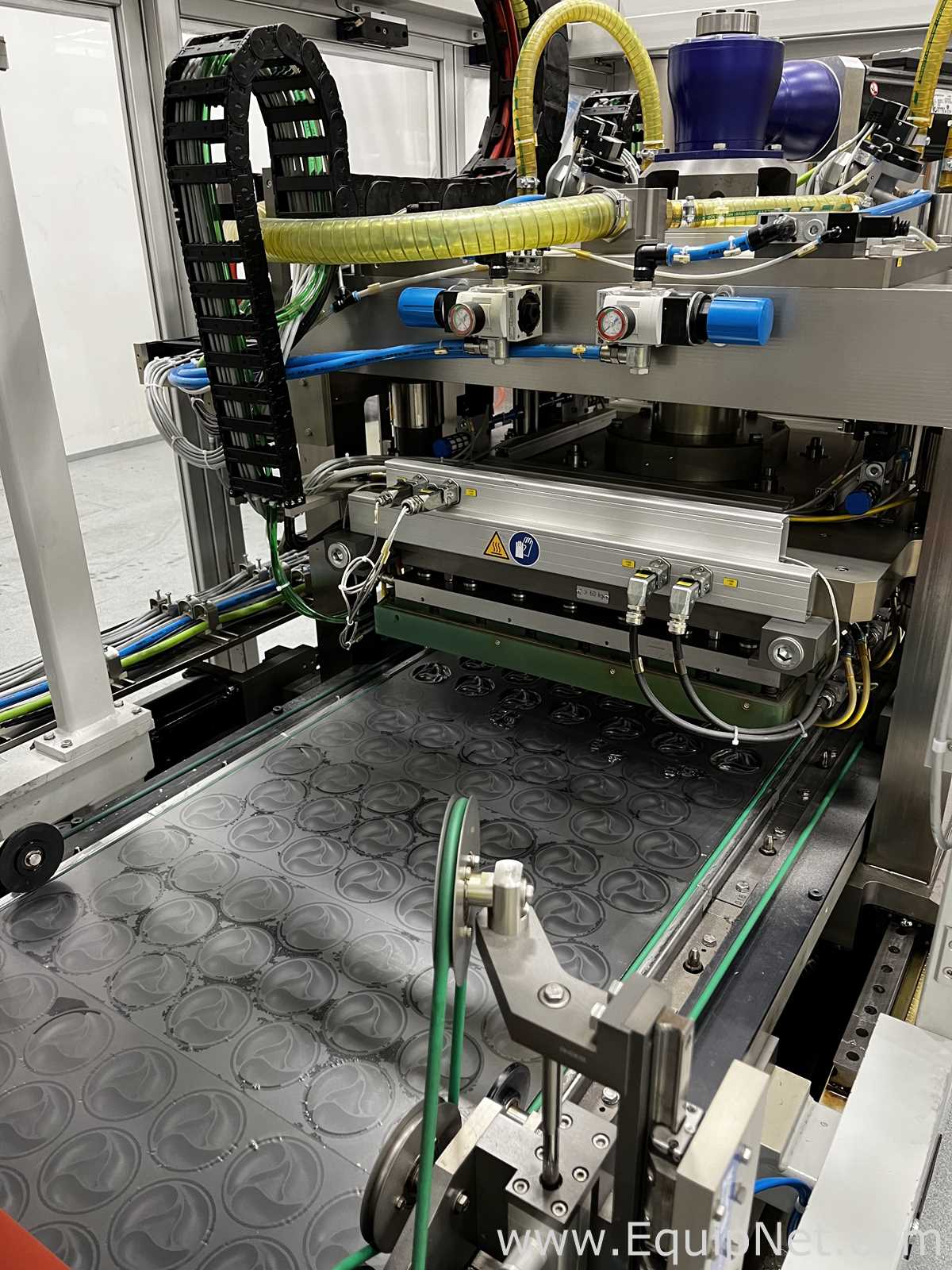

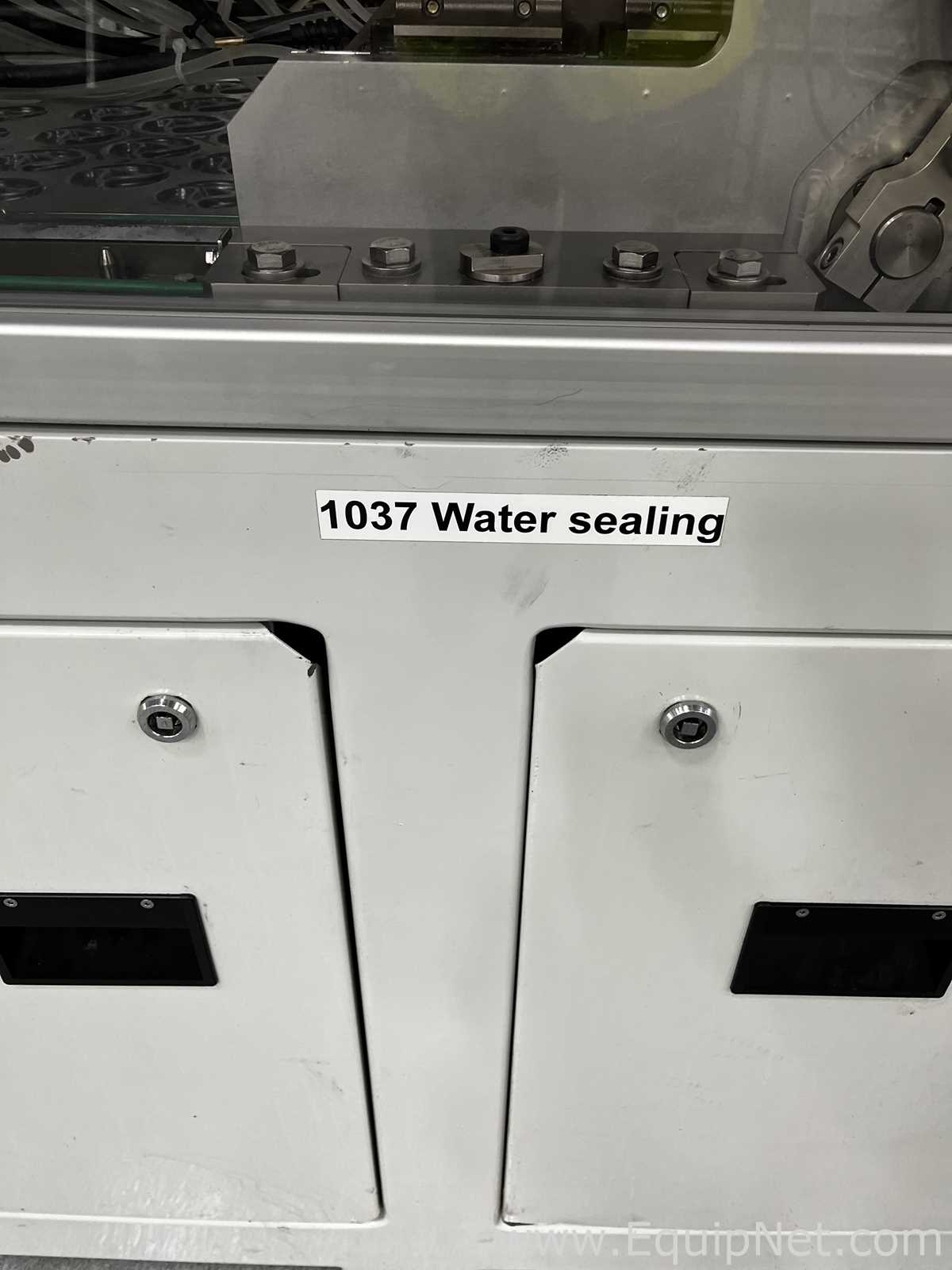

Sealing Station

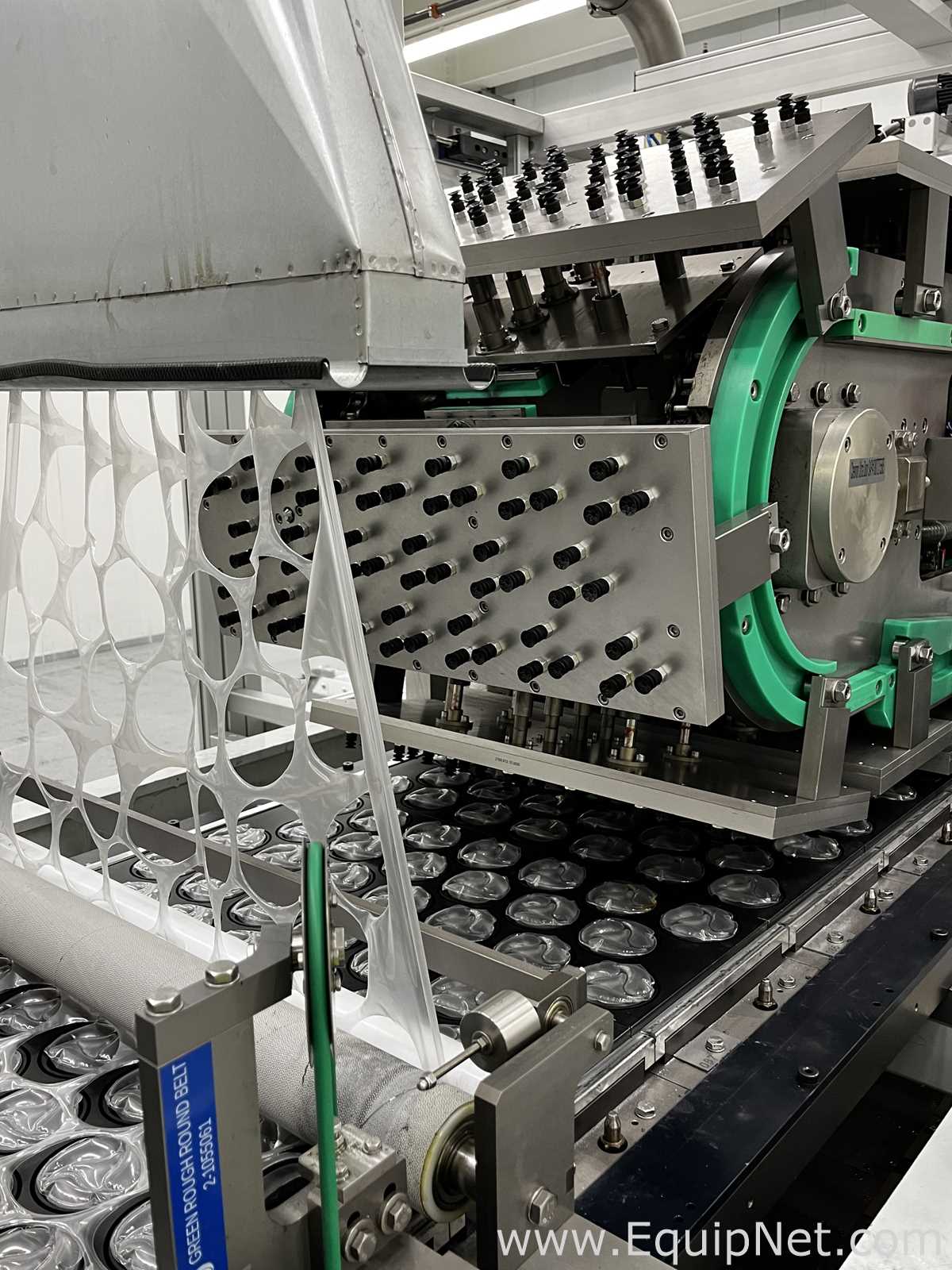

Punching Station

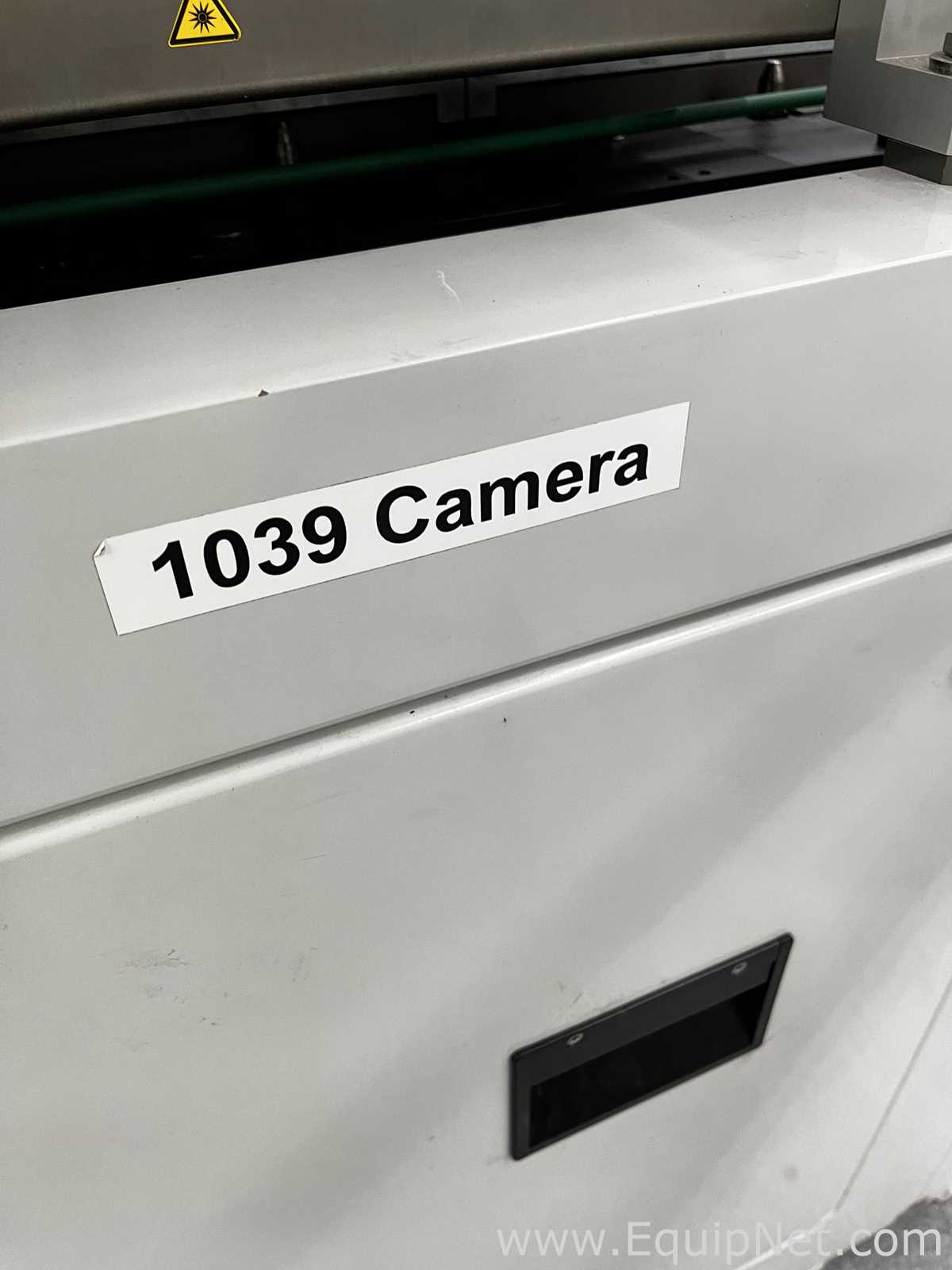

Camera Inspection Systems

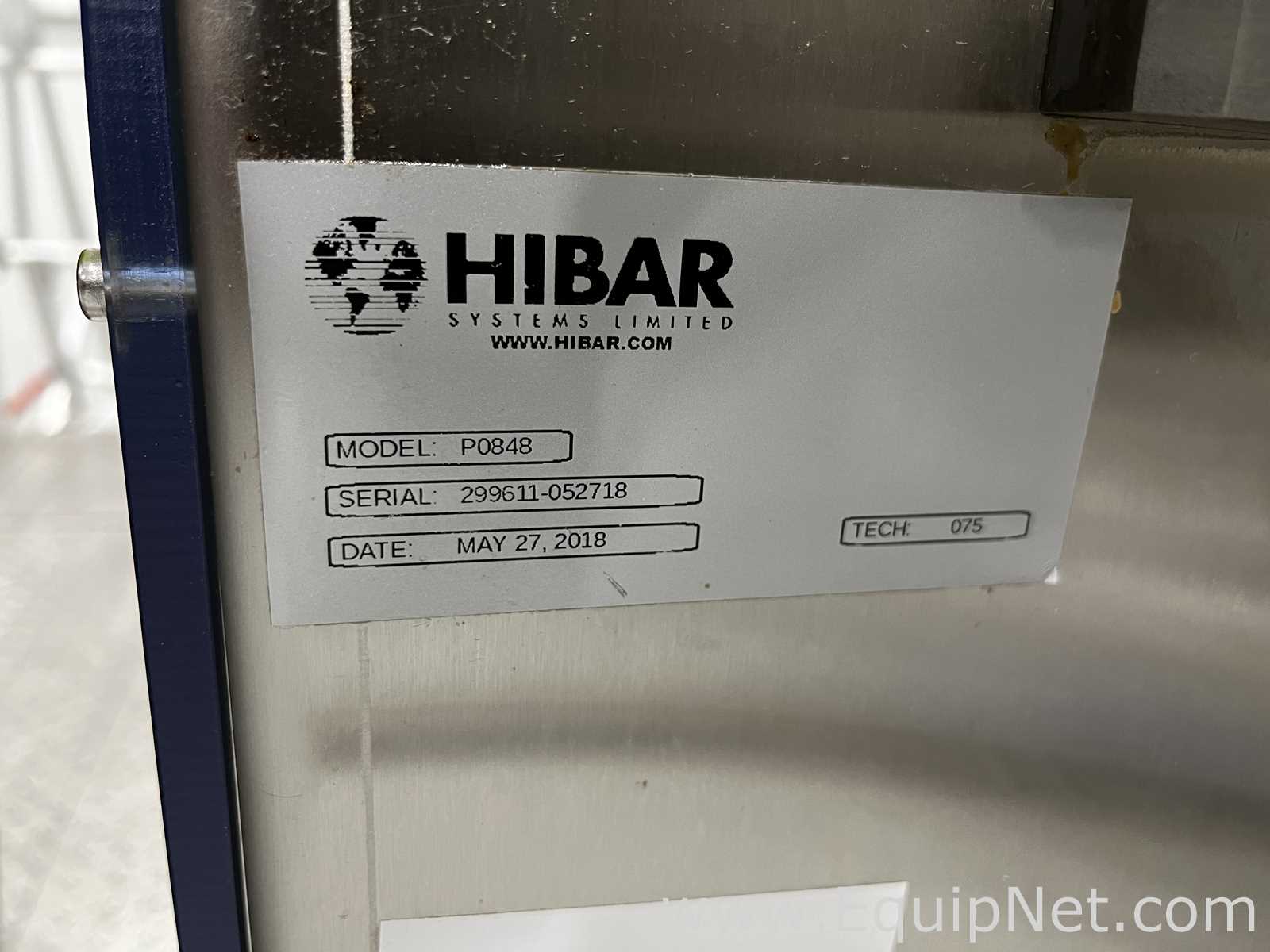

Hibar Syatems Ltd. Model P0848 Dosing System

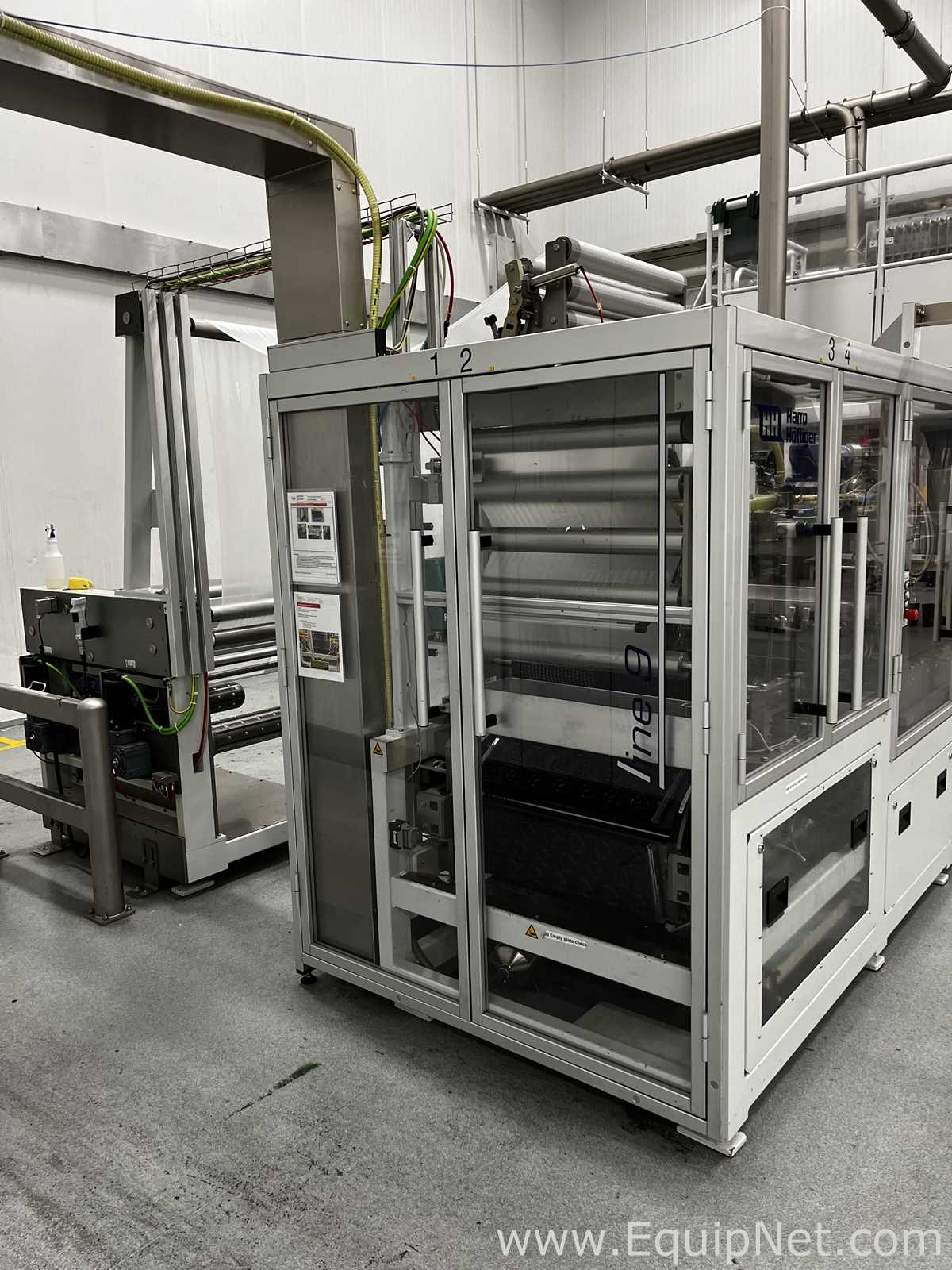

Lidder Systems
Jet-A-Mark Advanced FPS Ink Jet Systems

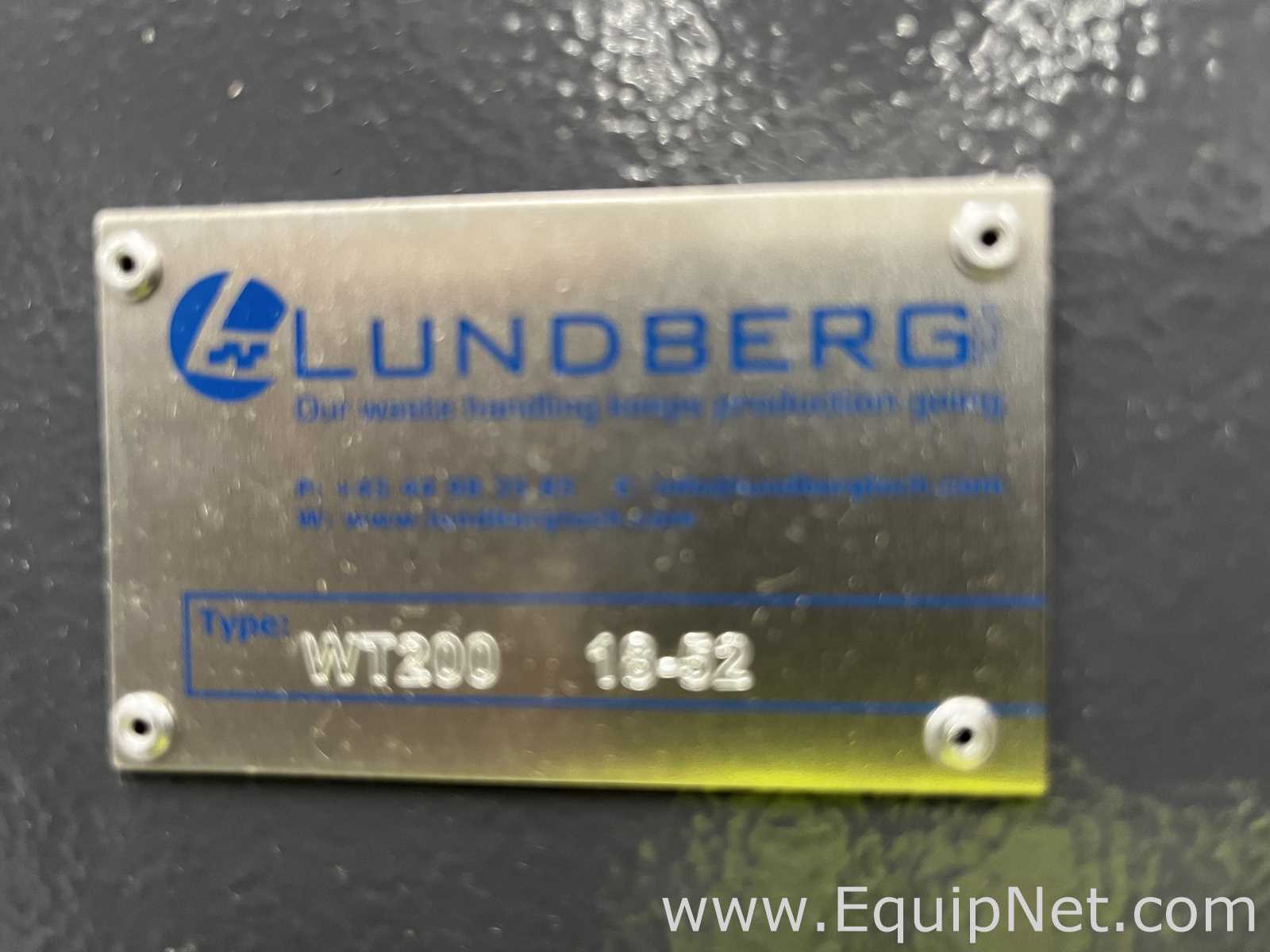

Two (2) Lundberg Type WT200 Waste Bins to Convey, Cut & Collect Trim Waste

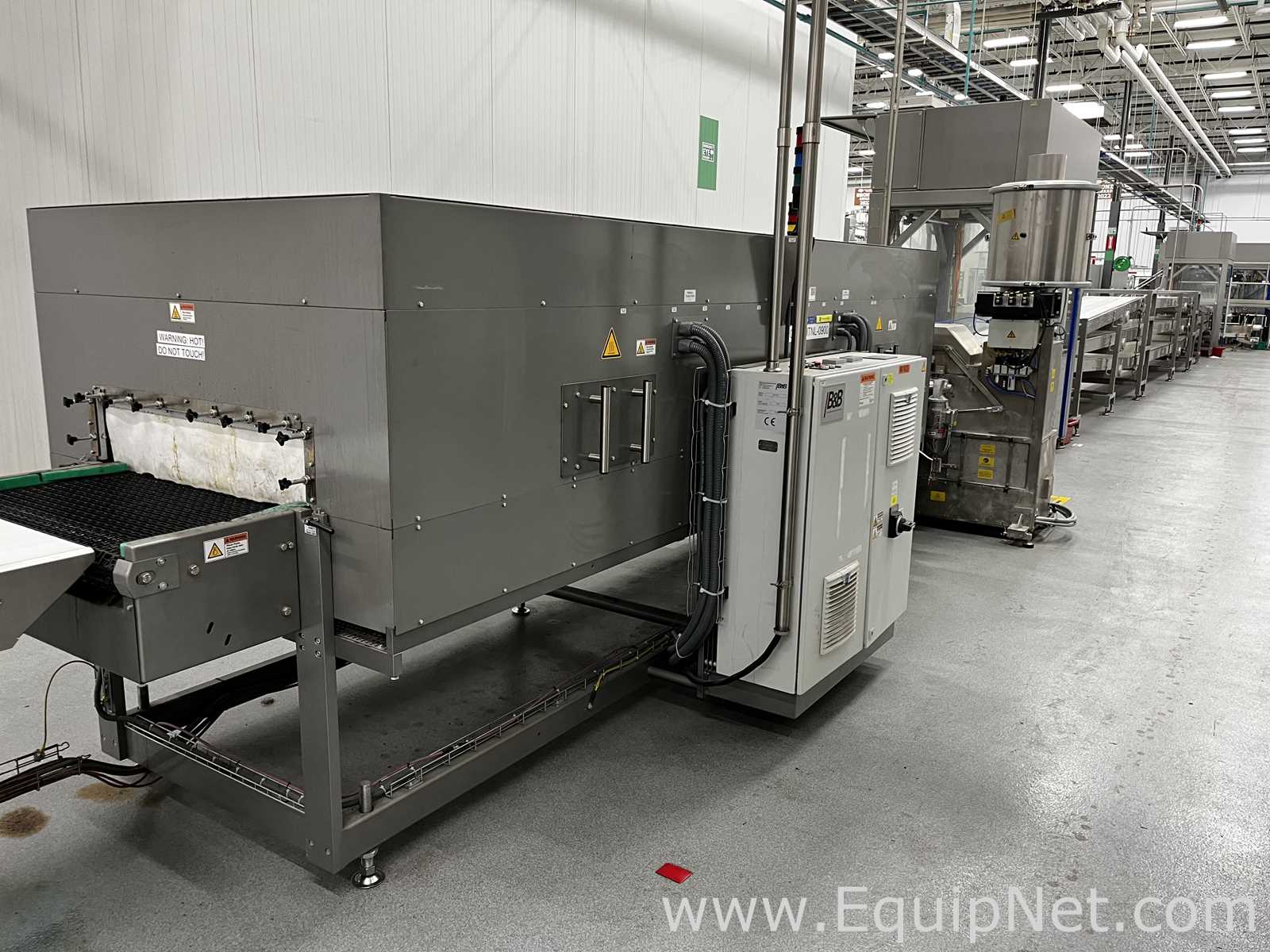

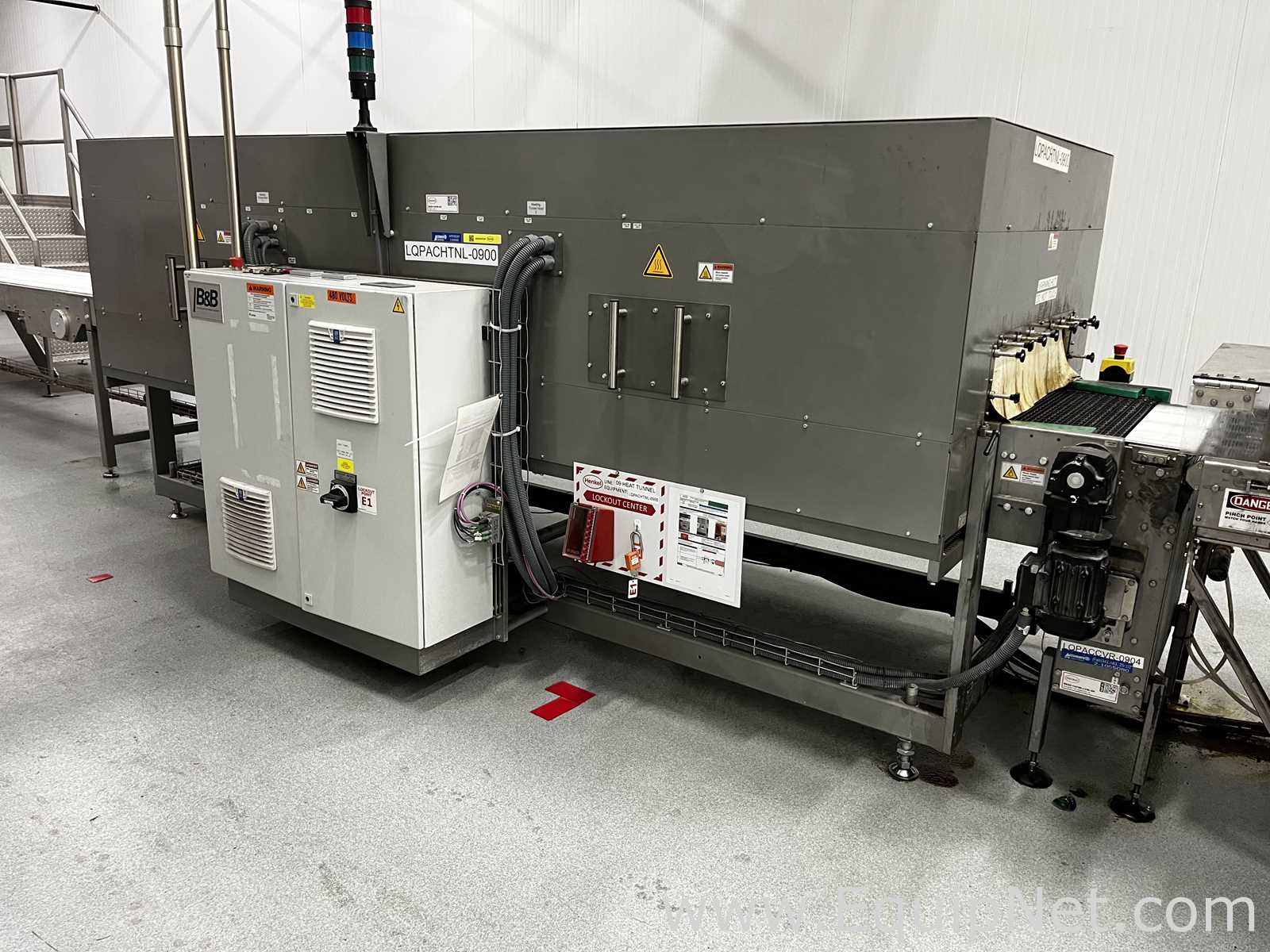

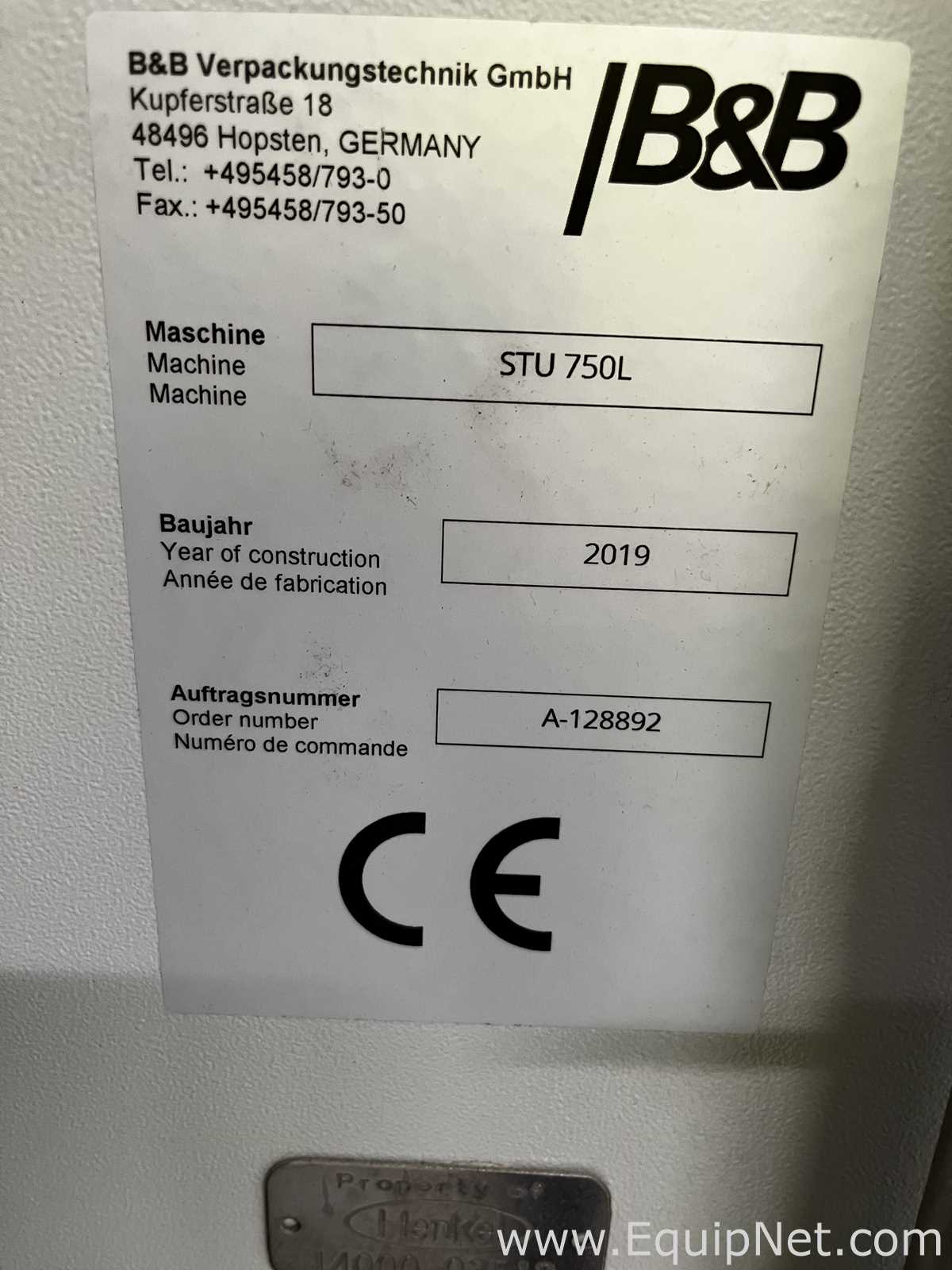

B&B Verpackungstechnik GmbH STU 750L is a high-performance Industrial Shrink Tunnel, CE

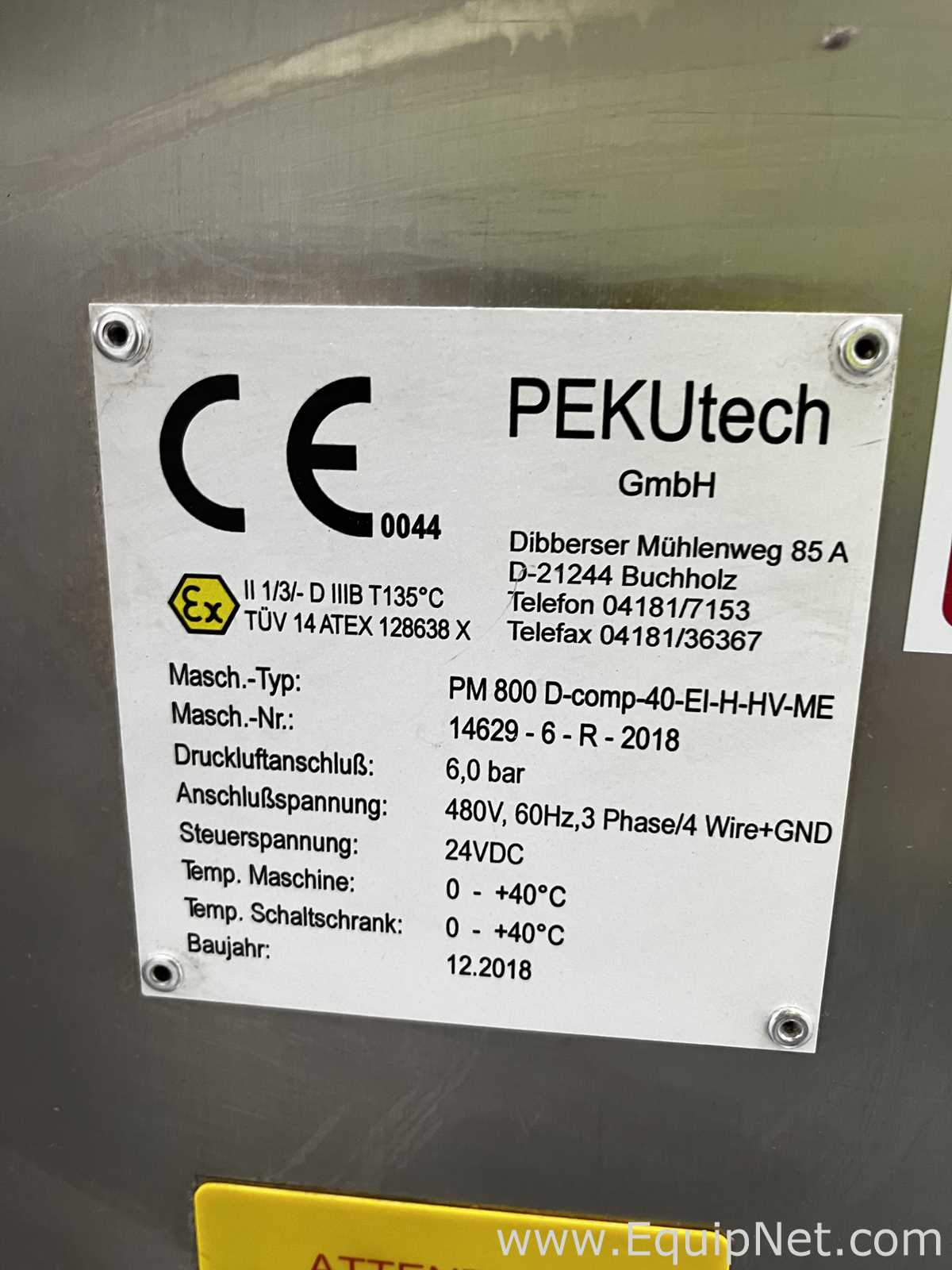

PEKUtech GmbH model PM 800 D-comp-40-El-H-HV-ME Powder Coating Machine

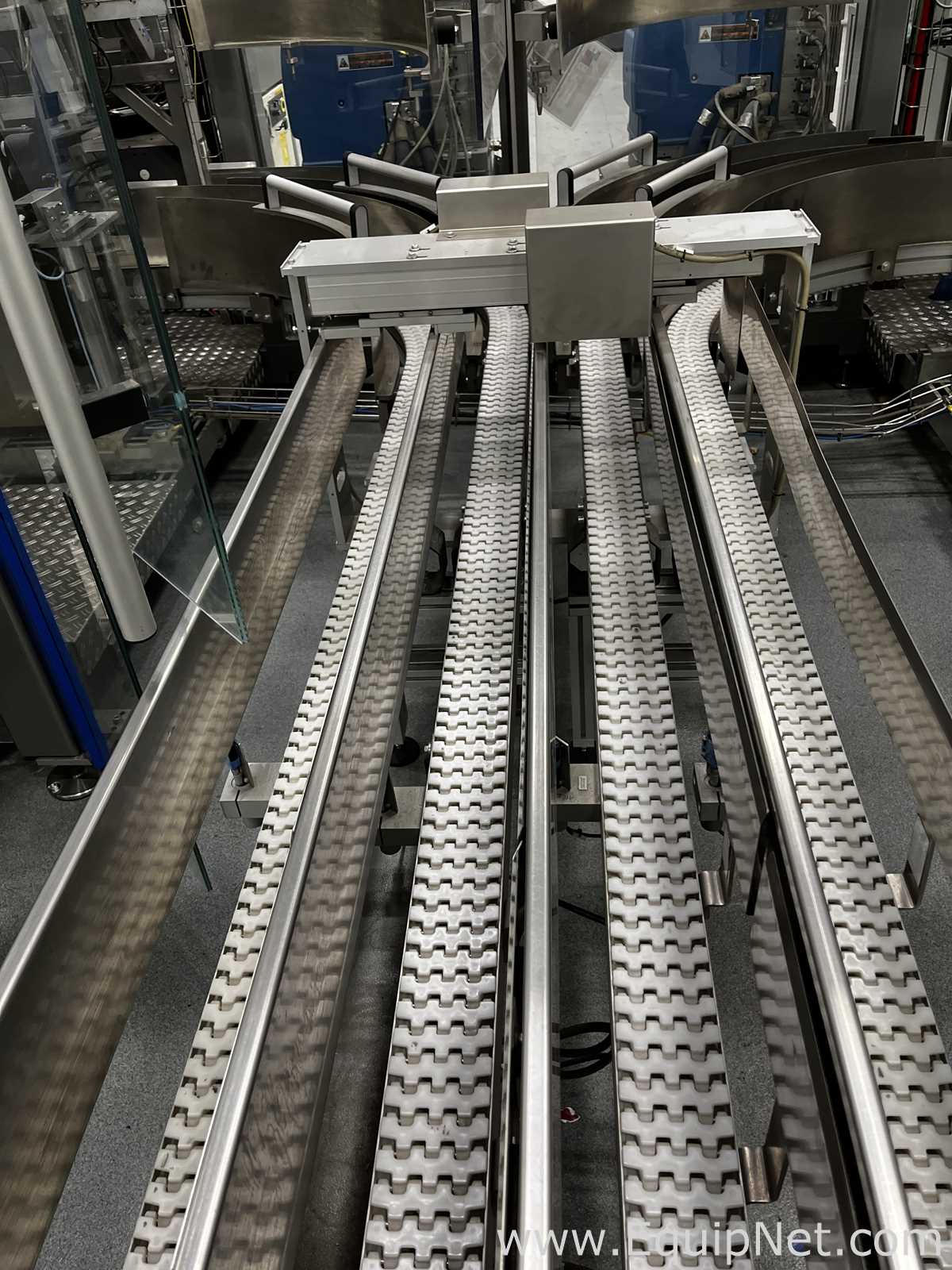

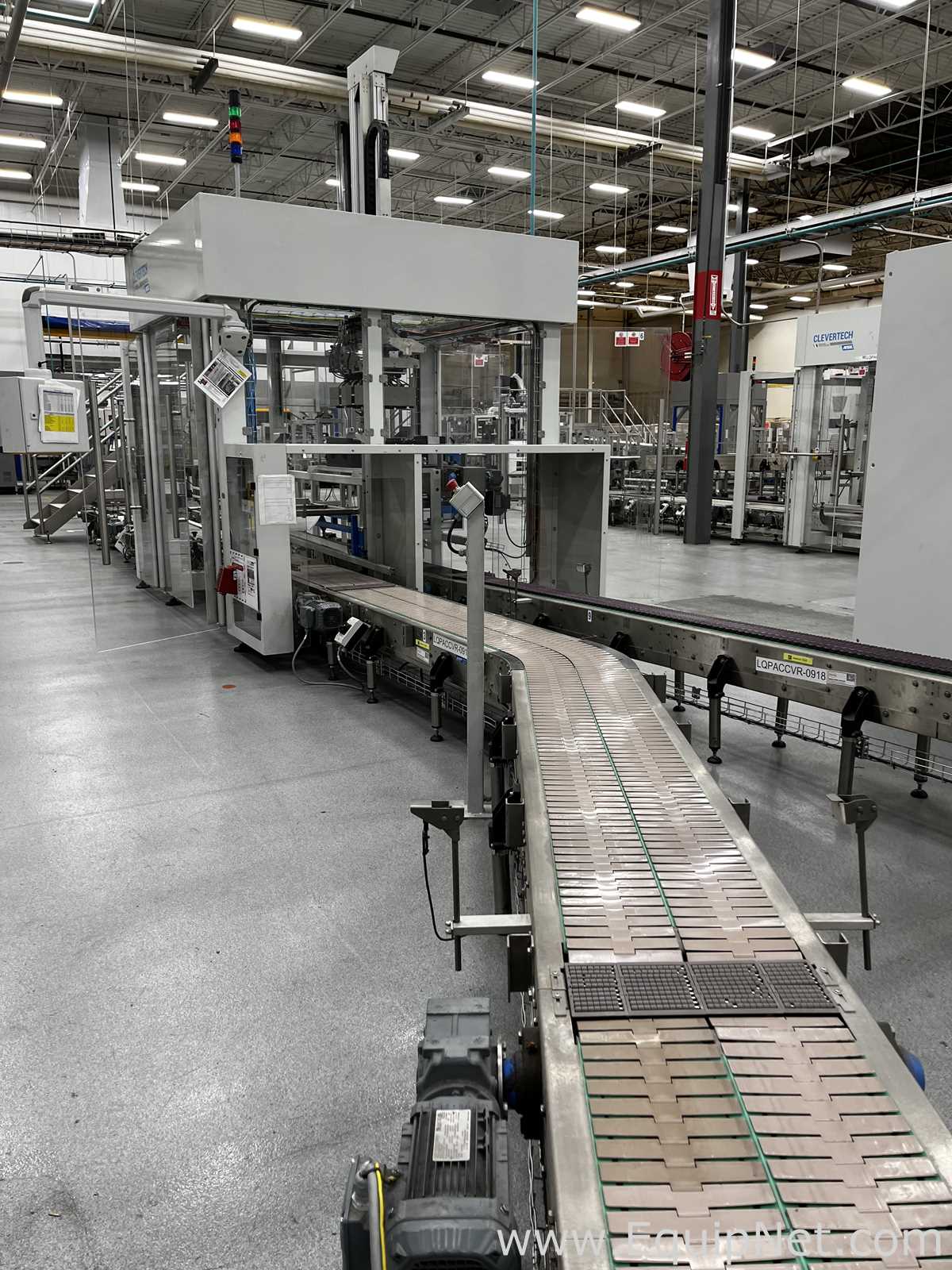

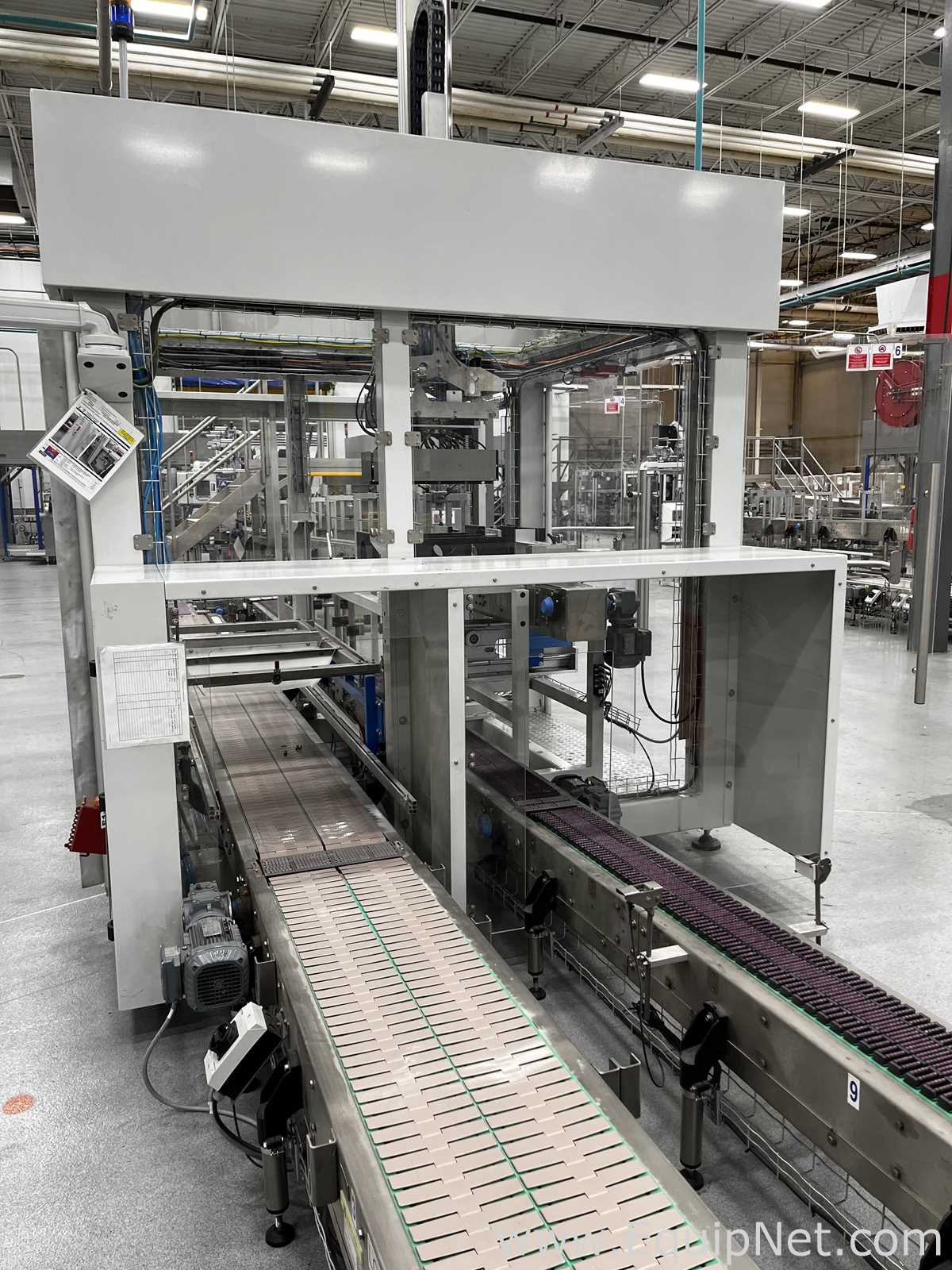

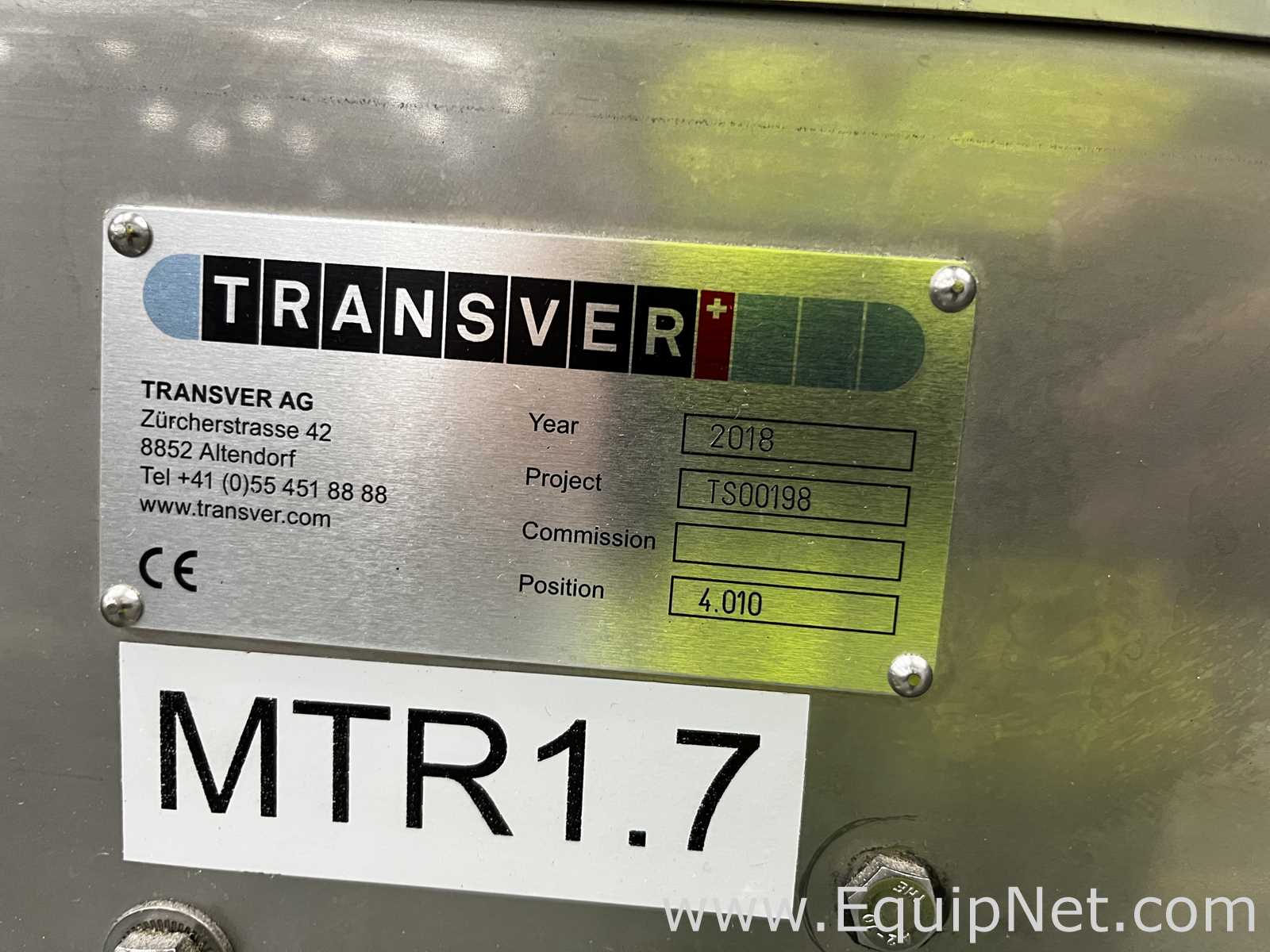

Multiple Transver Conveyor Systems

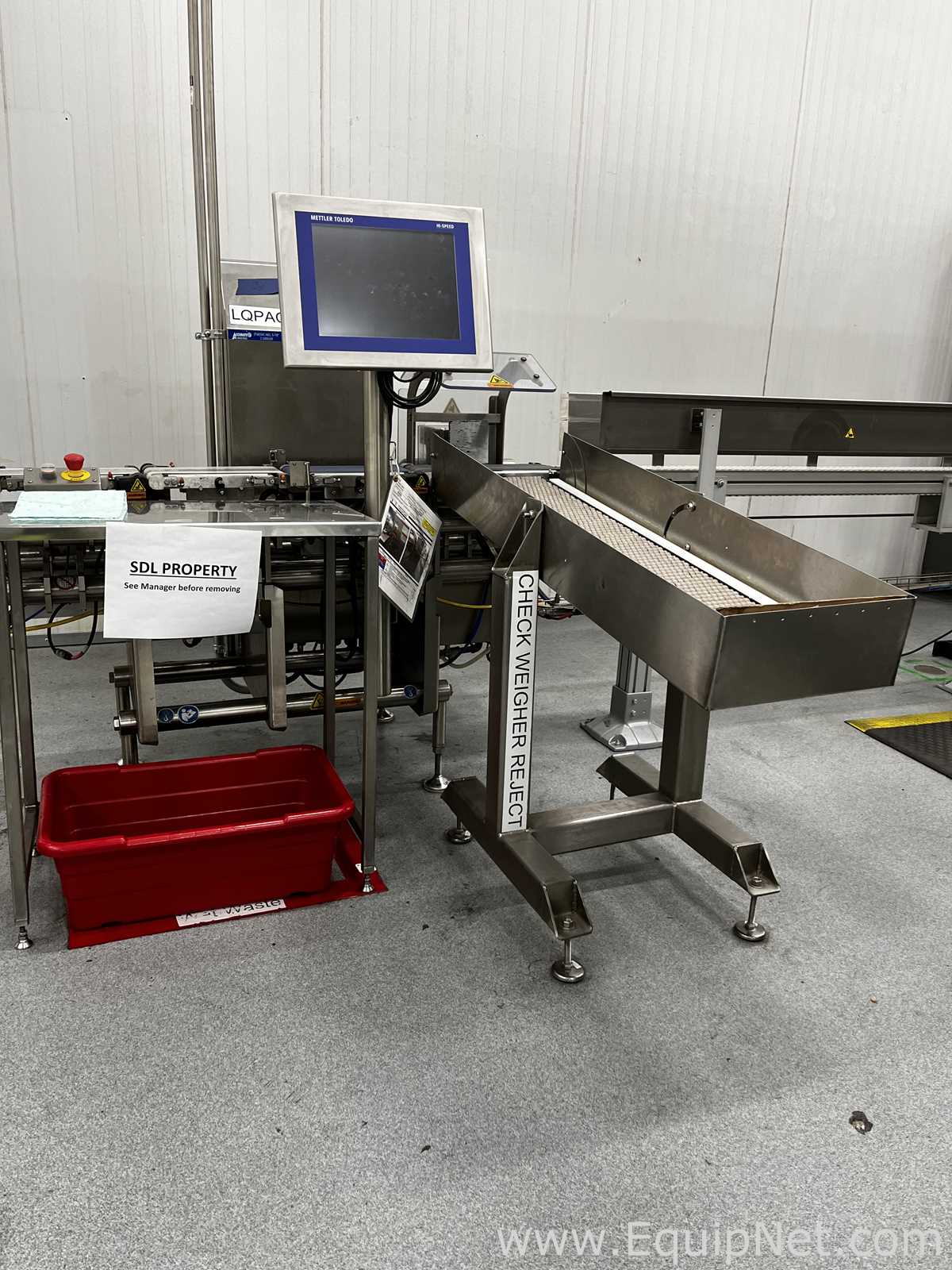

Check Weighers

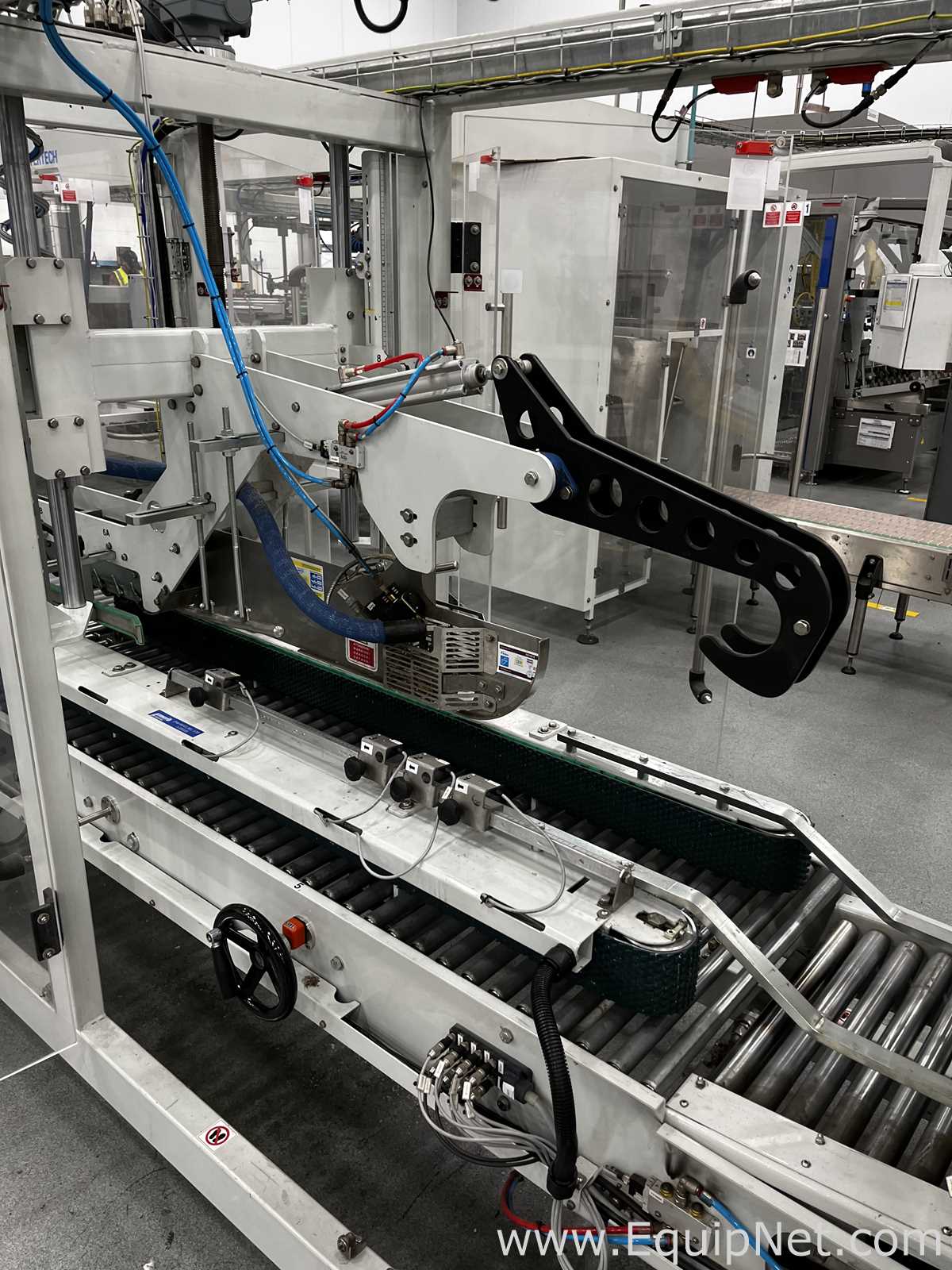

Case Sealers

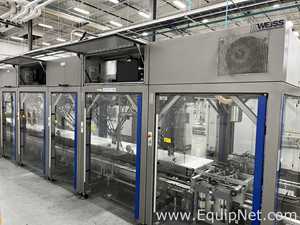

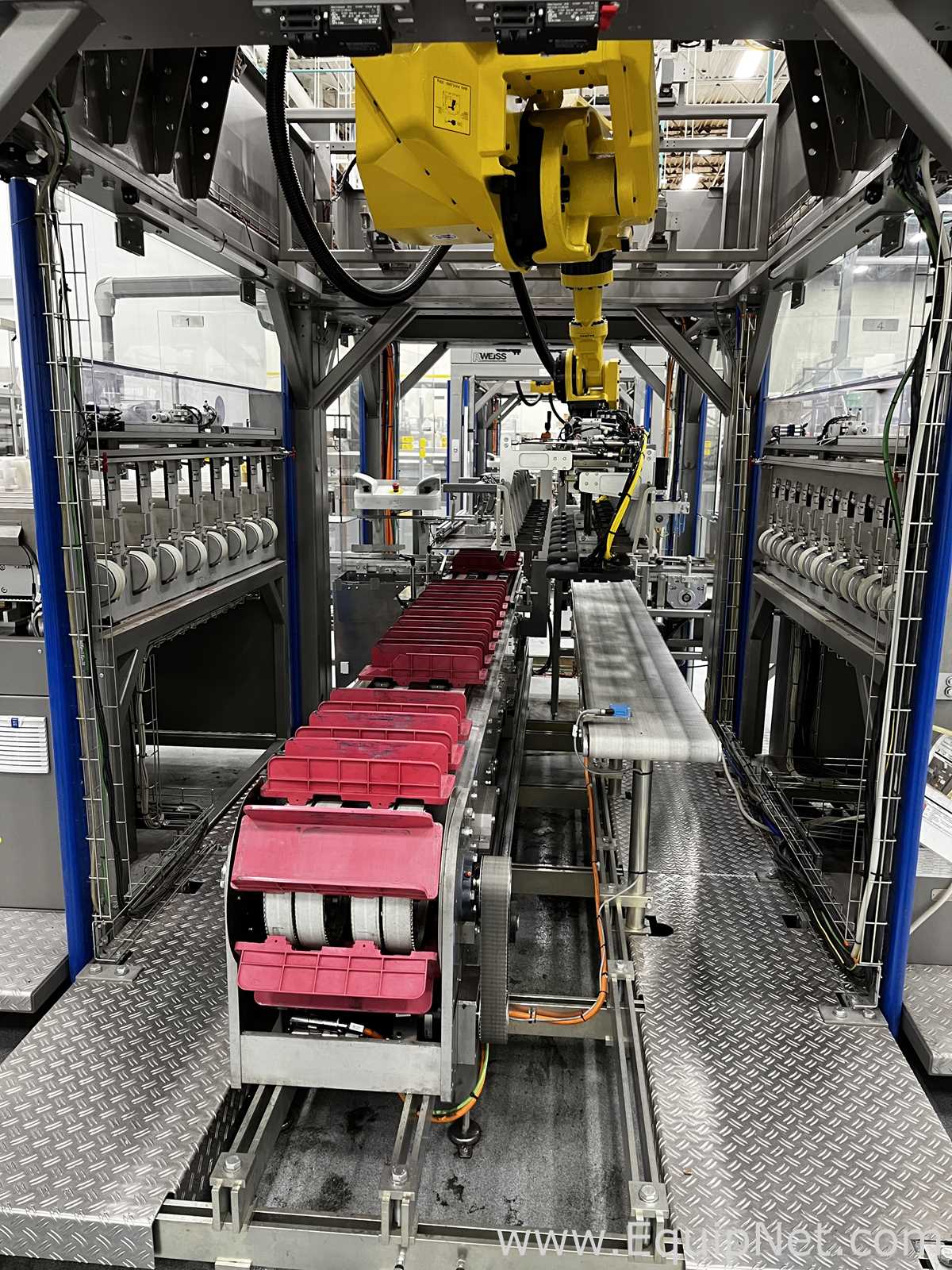

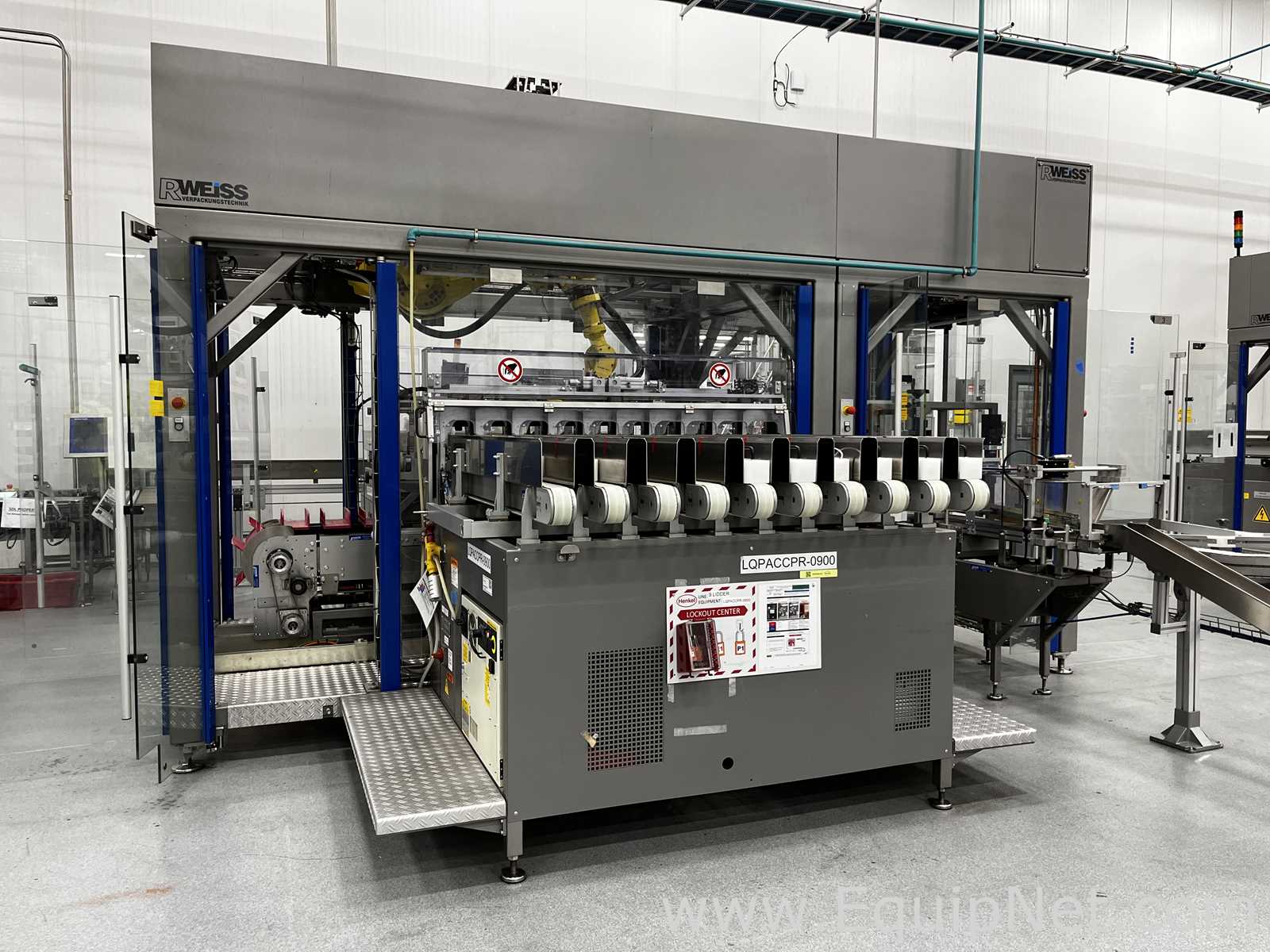

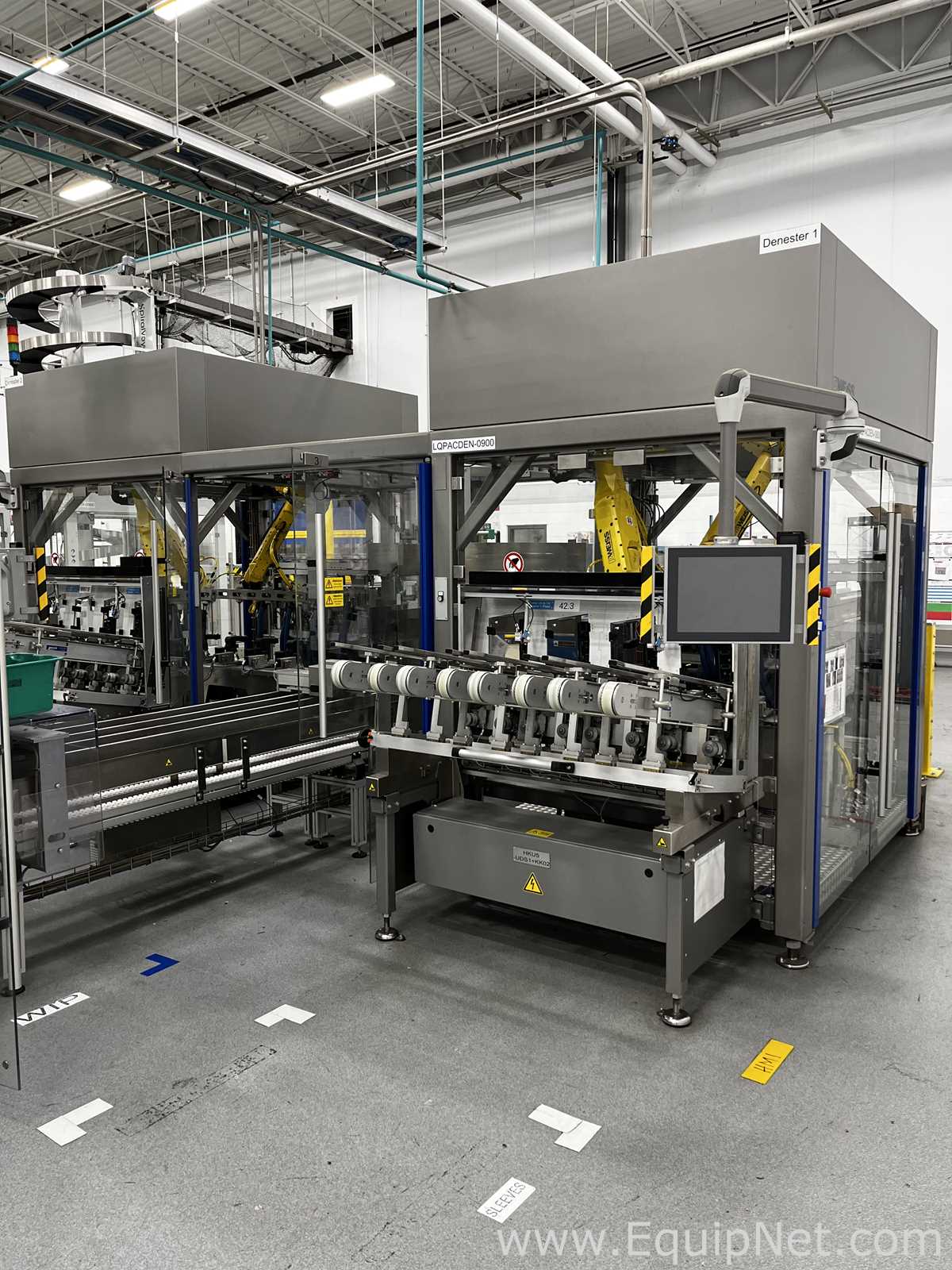

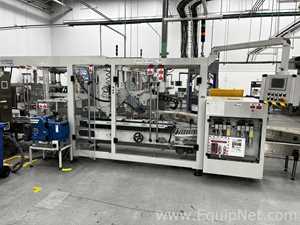

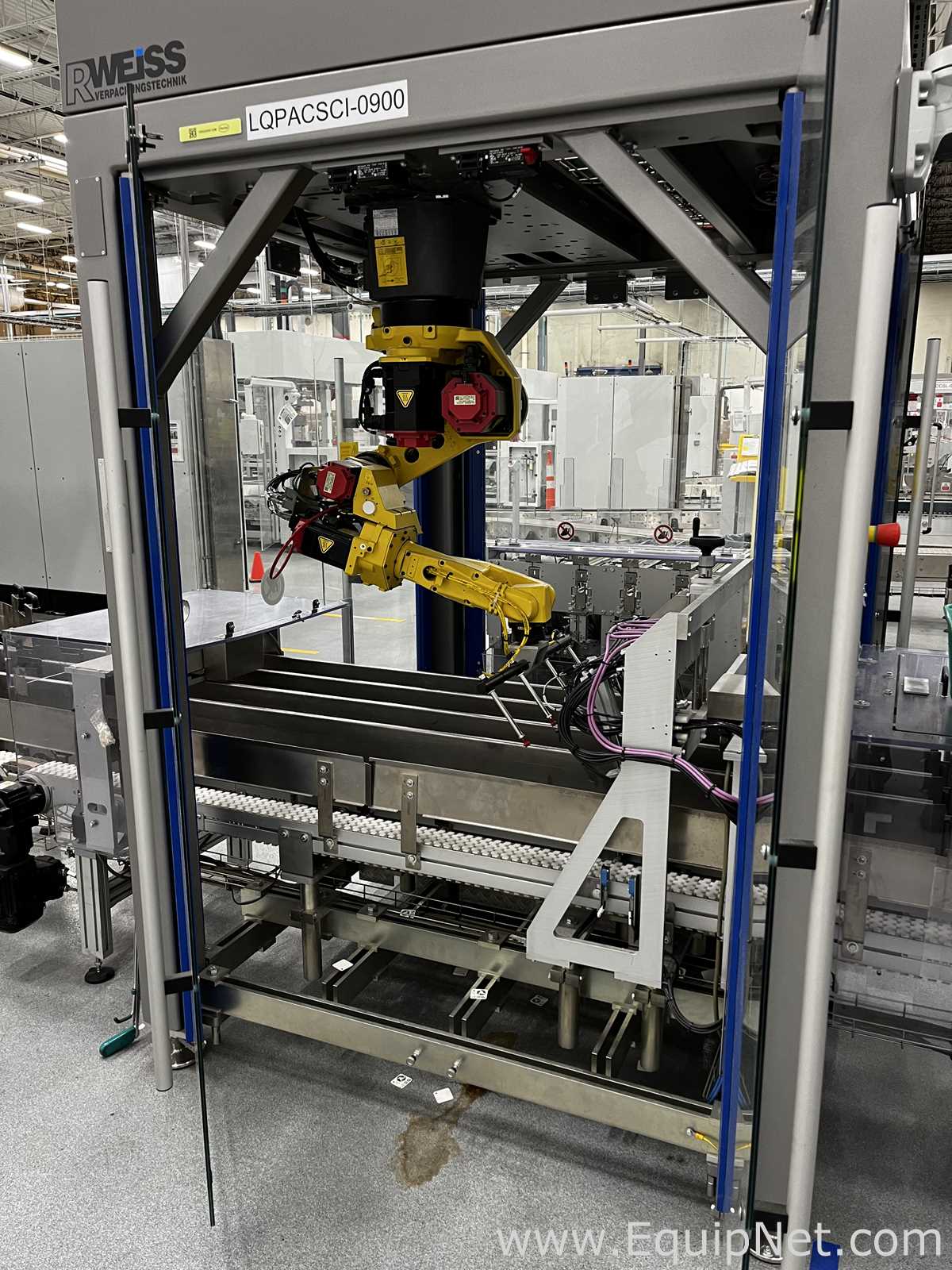

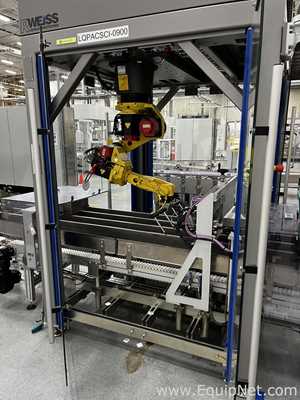

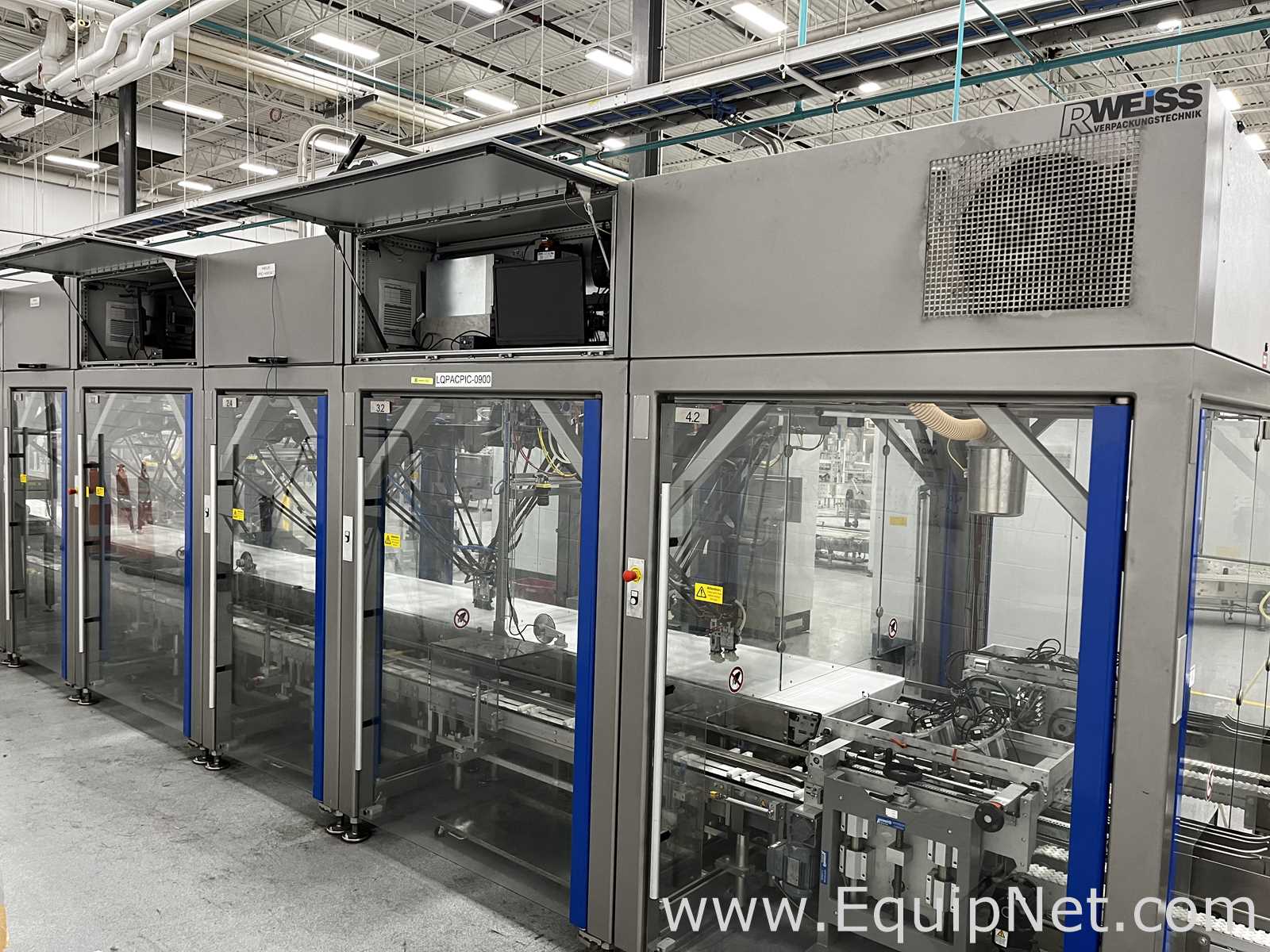

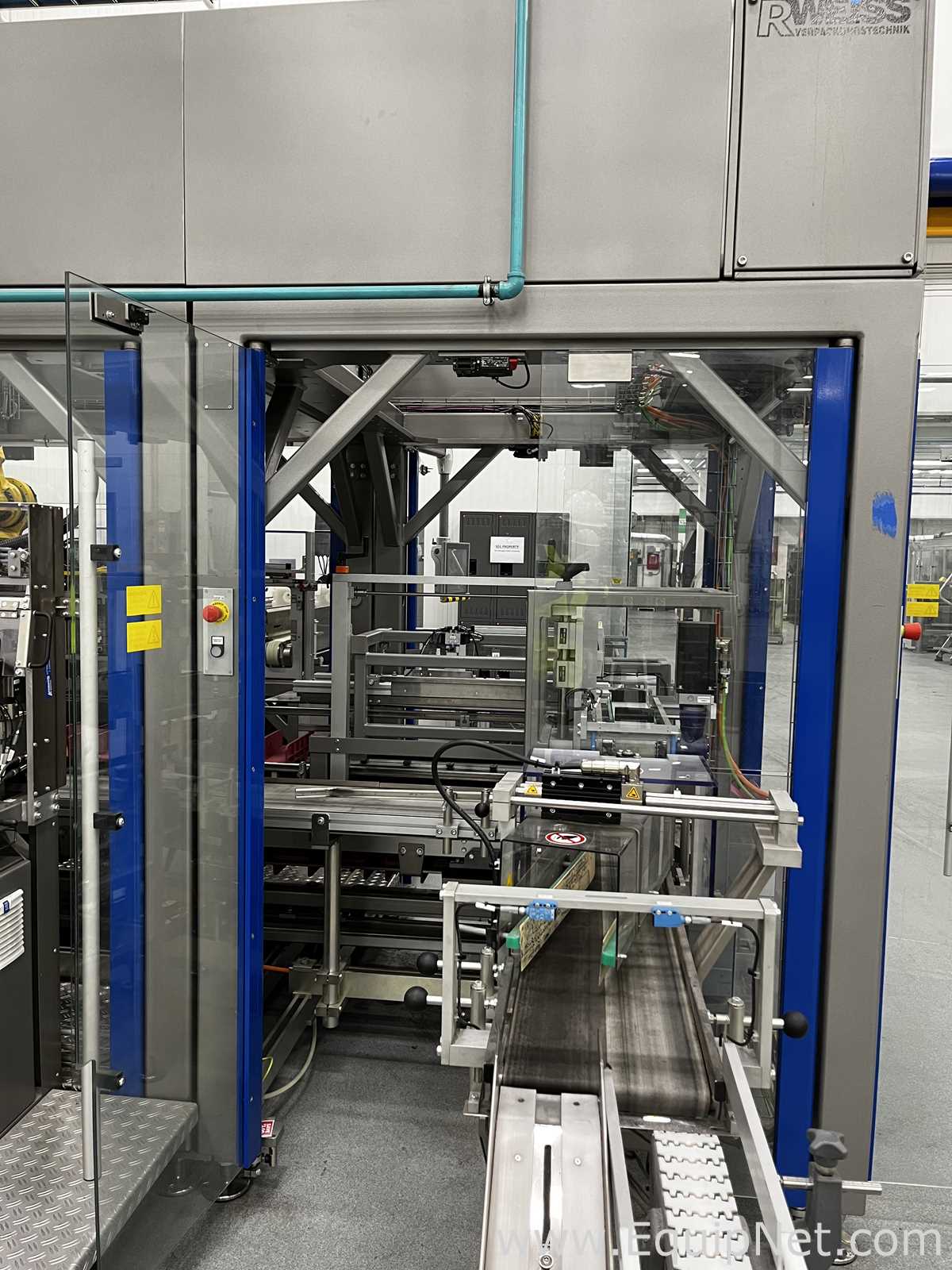

R. Weiss Verpackungstechnik Robotic Dual Denester Pick & Place and Case Packing Systems with Nordson Glue Closures,Dual-Lane Output: Operates two lanes simultaneously to feed downstream equipment smoothly (such as filling, top-loading, or sealing lines) without creating a bottleneck

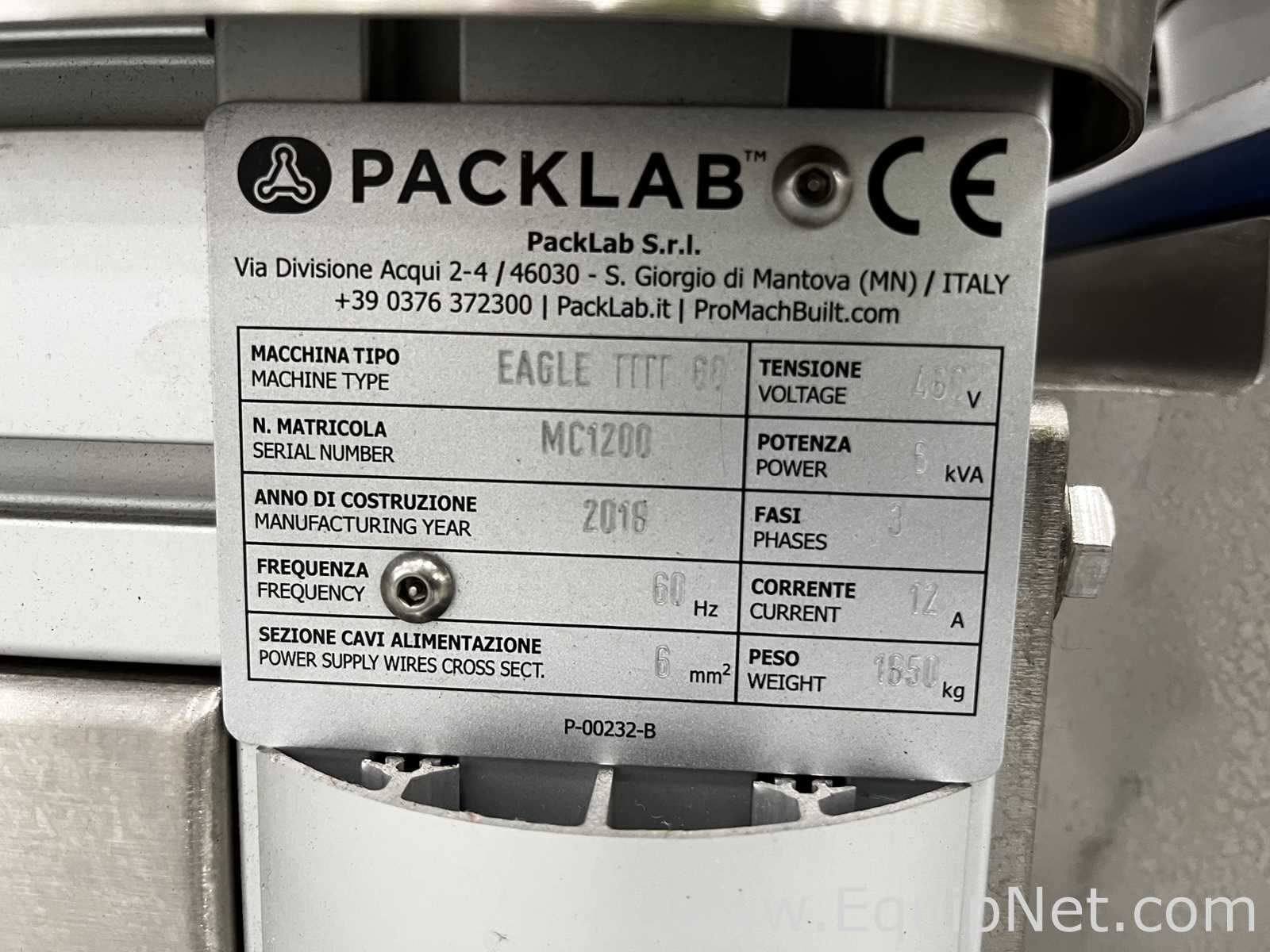

Dual Packlab S.r.l. machine type Eagle 60 pressure sensitive linear Labeling Systems

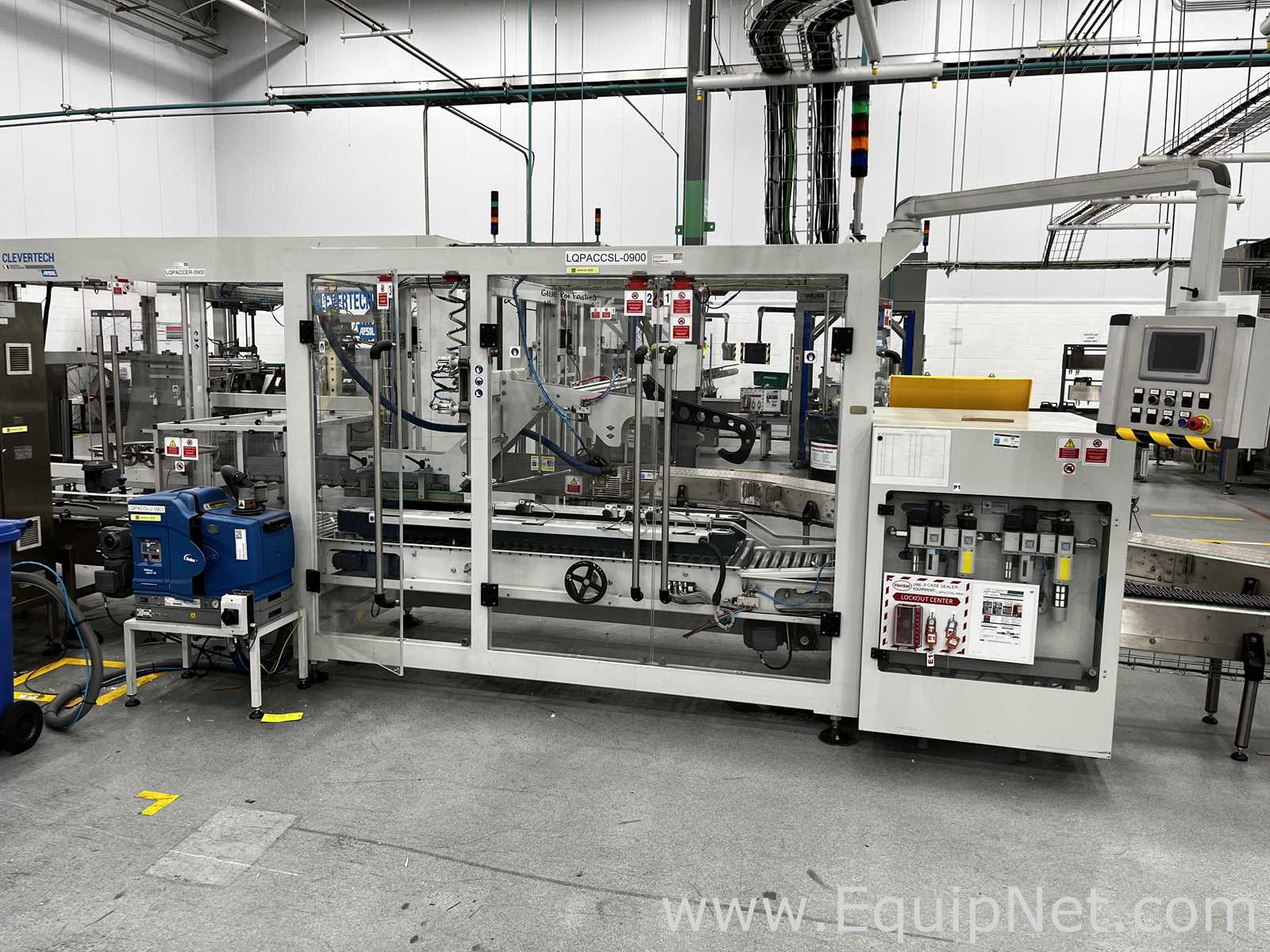

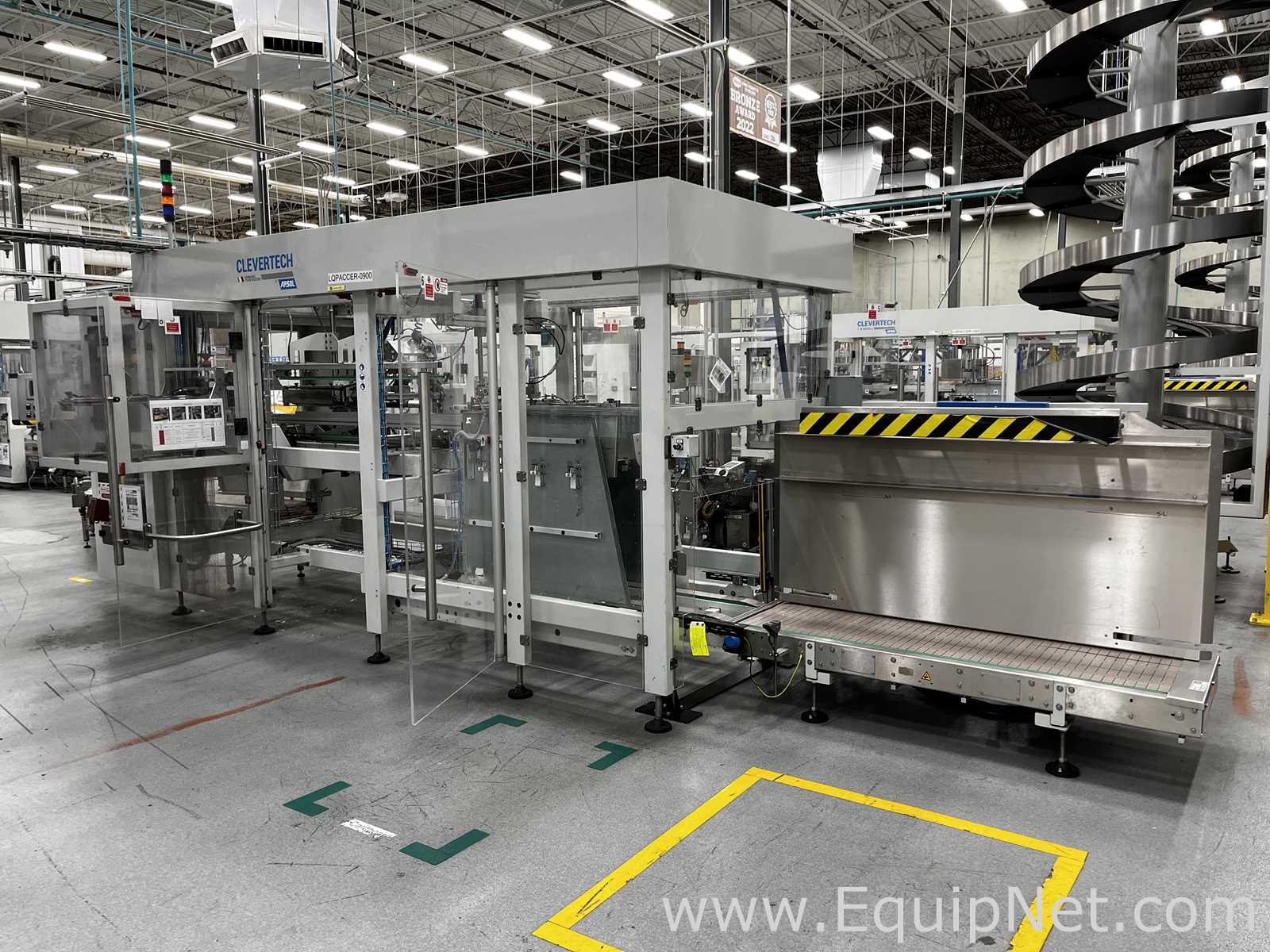

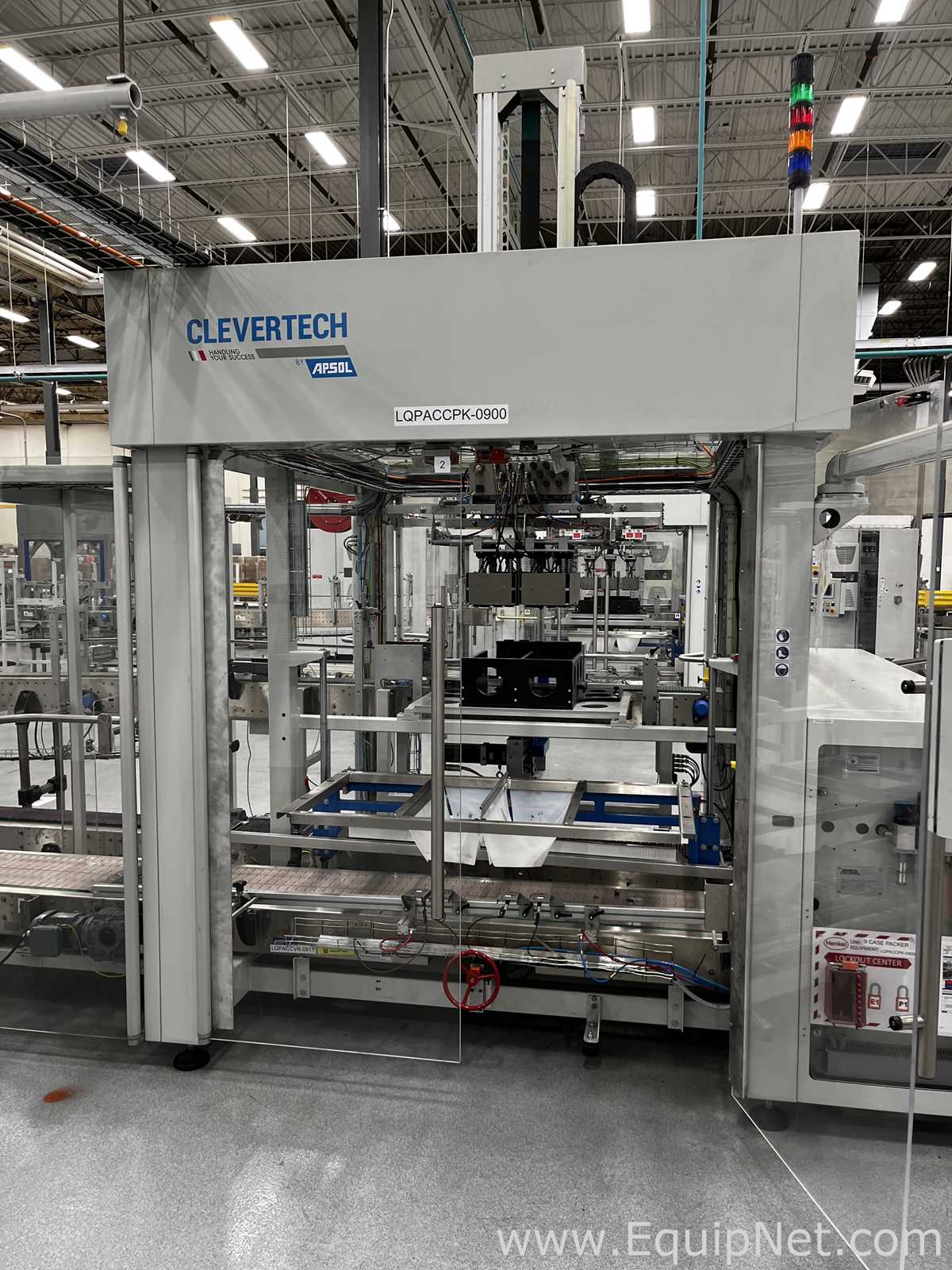

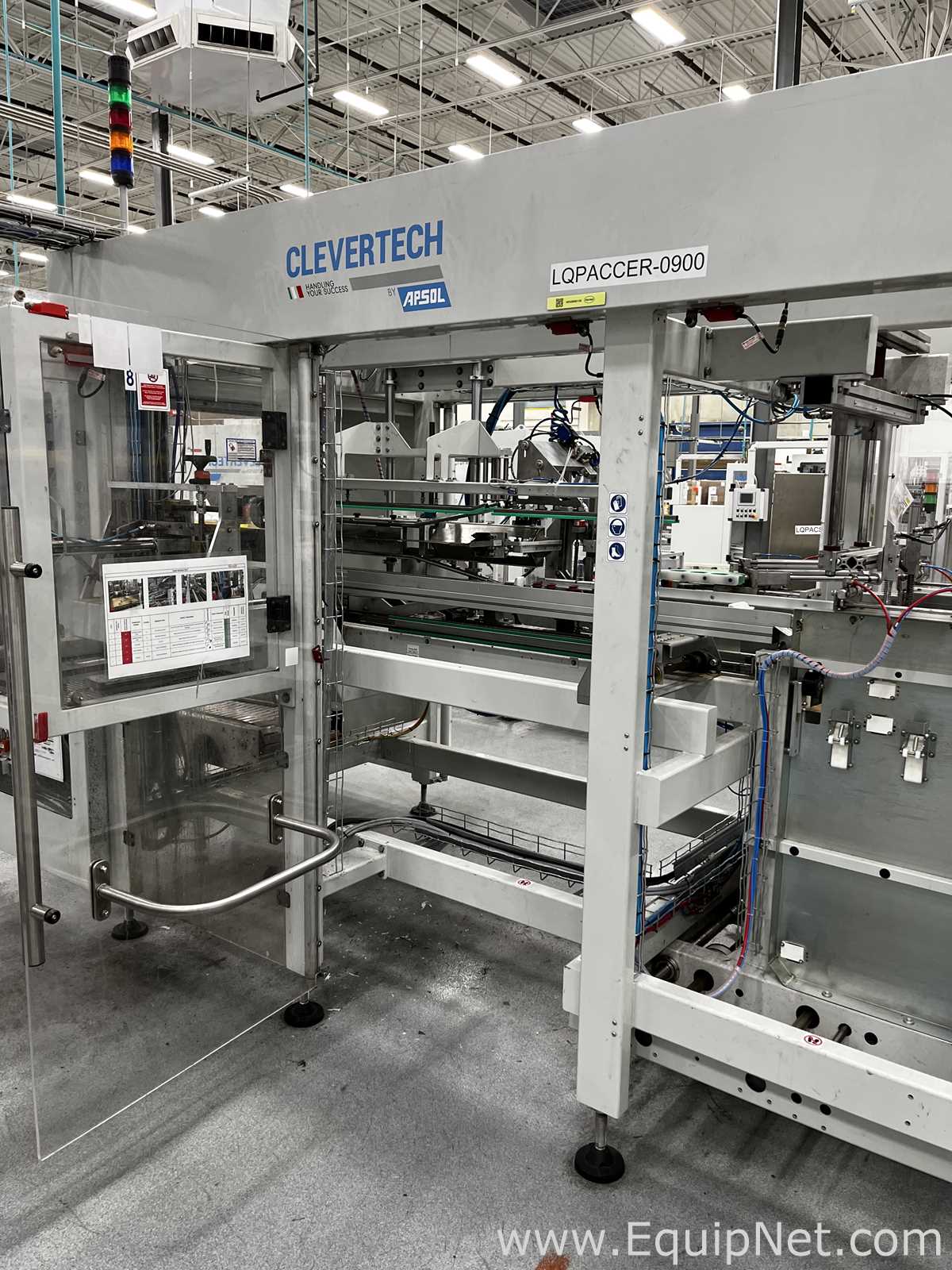

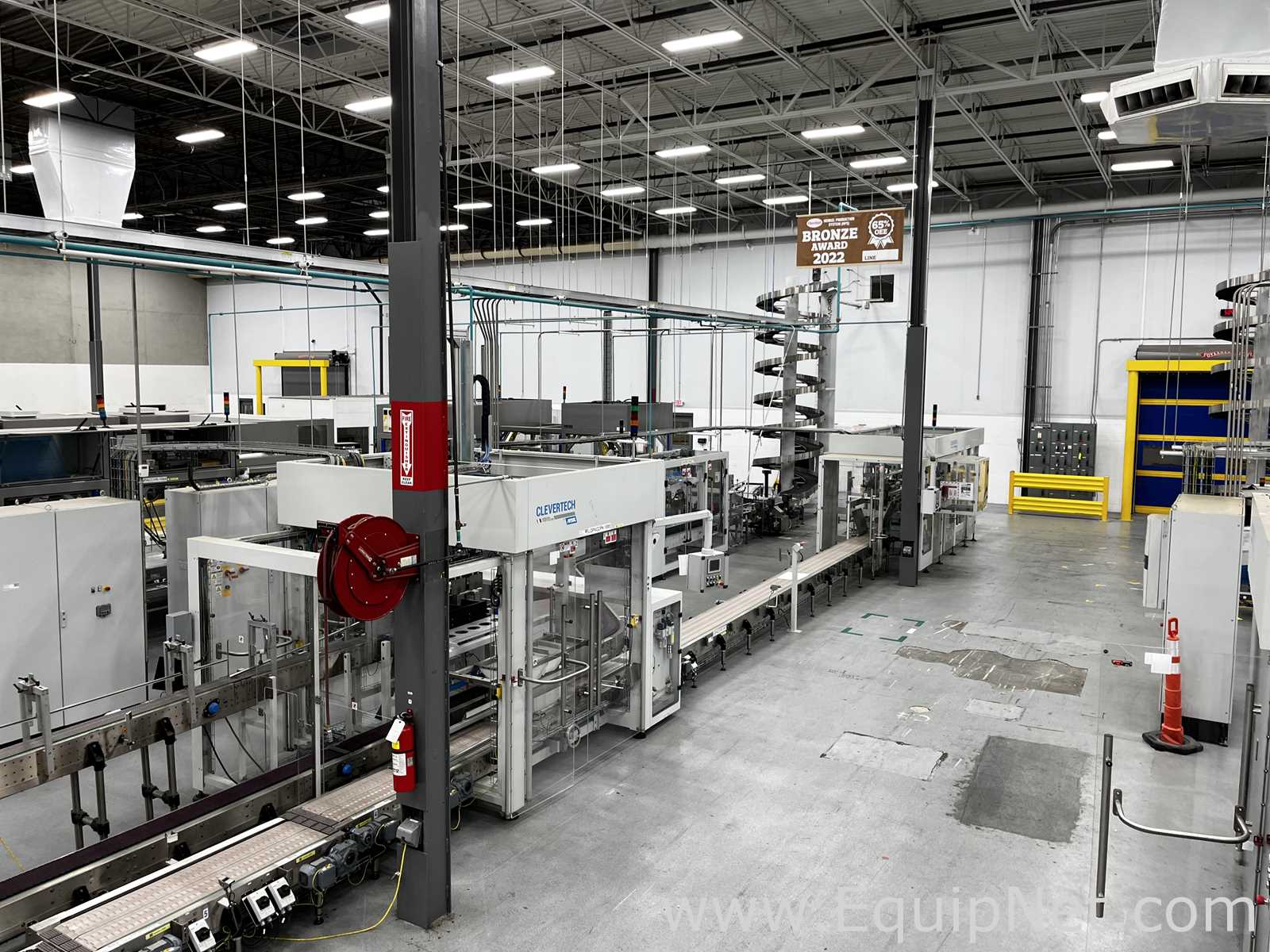

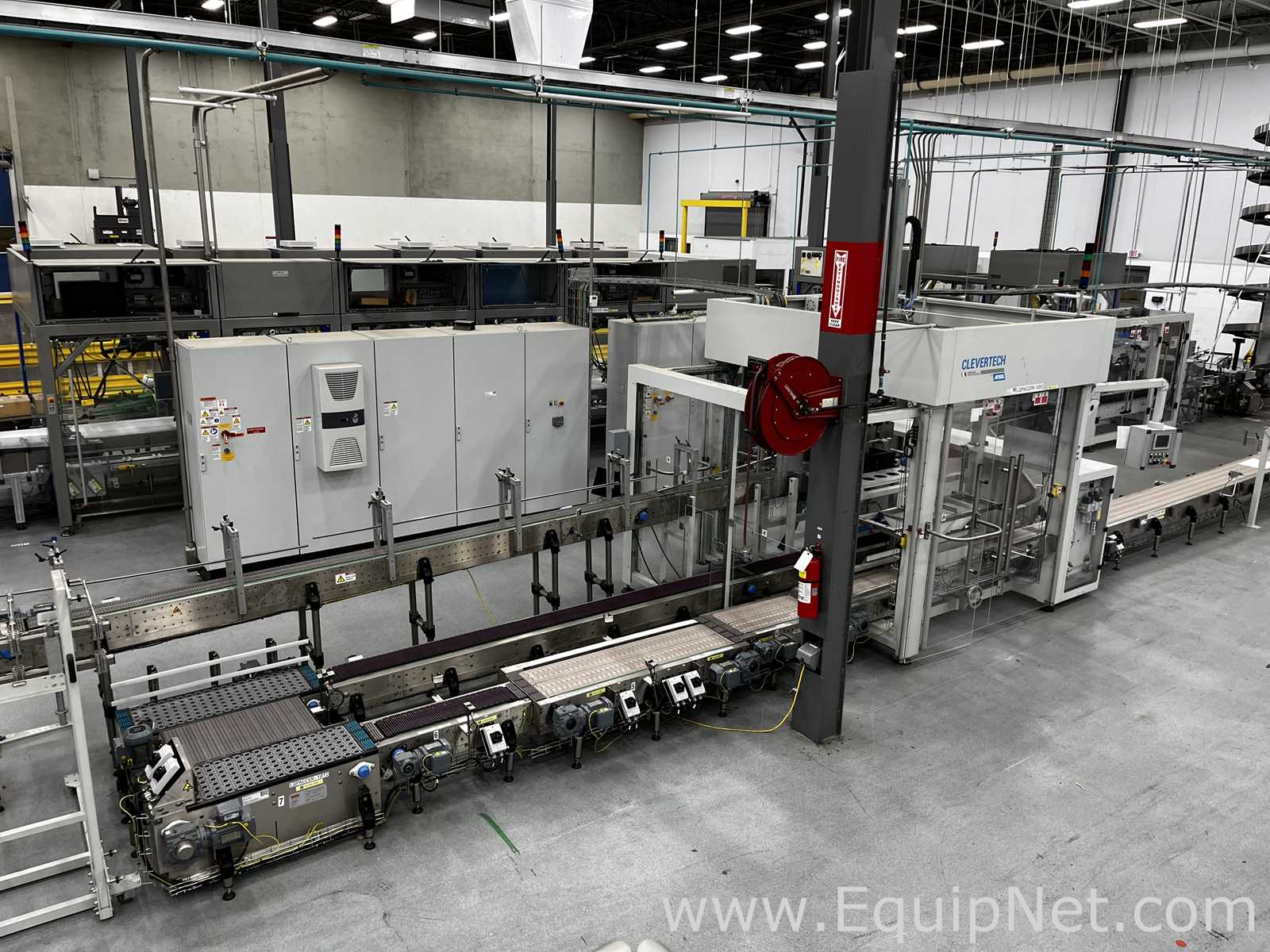

Dual Clevertech Case Packing Lines
All Electrical, Vacuum Pumps

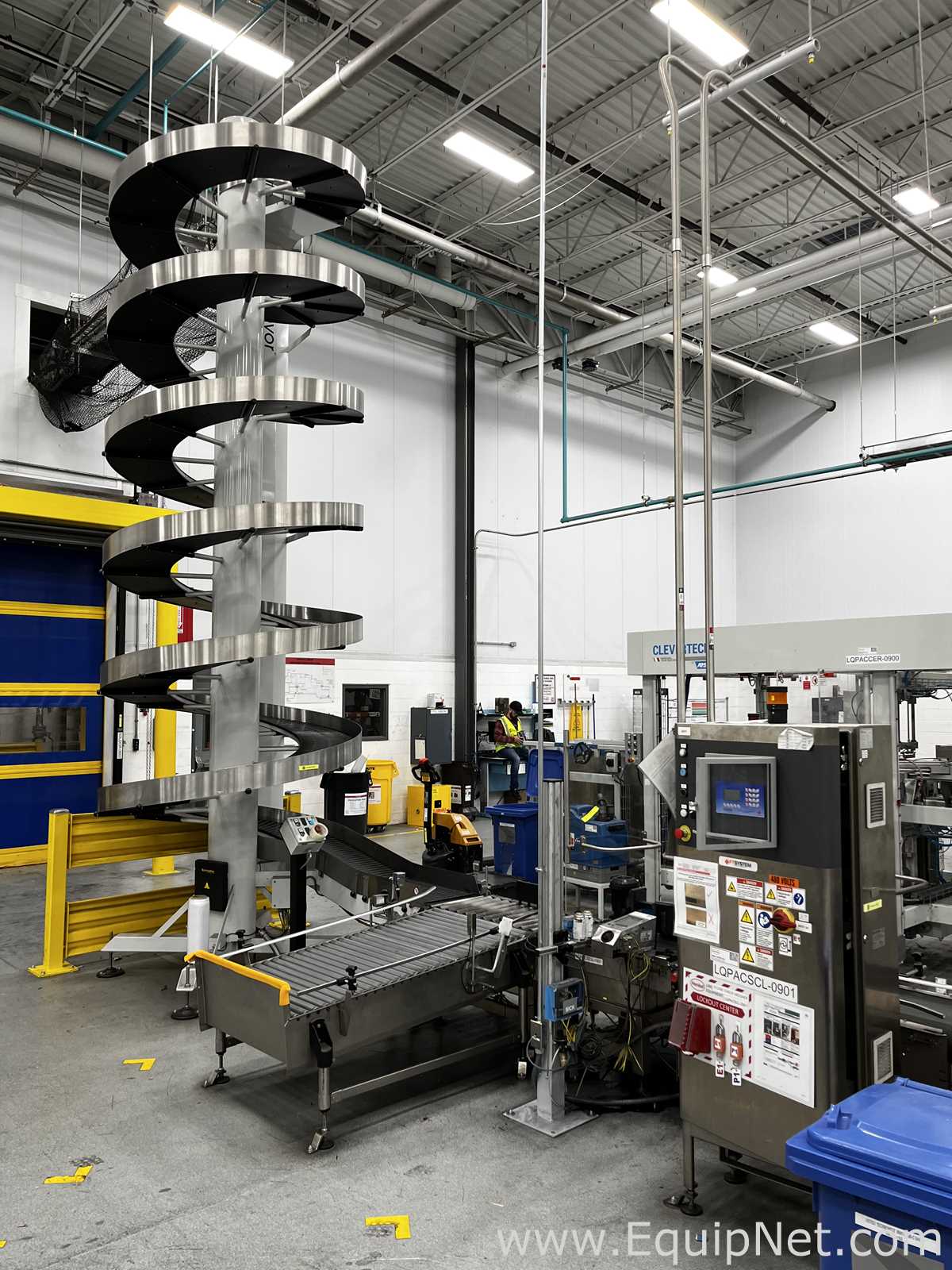

Conveyors, Elevators Mezzanines

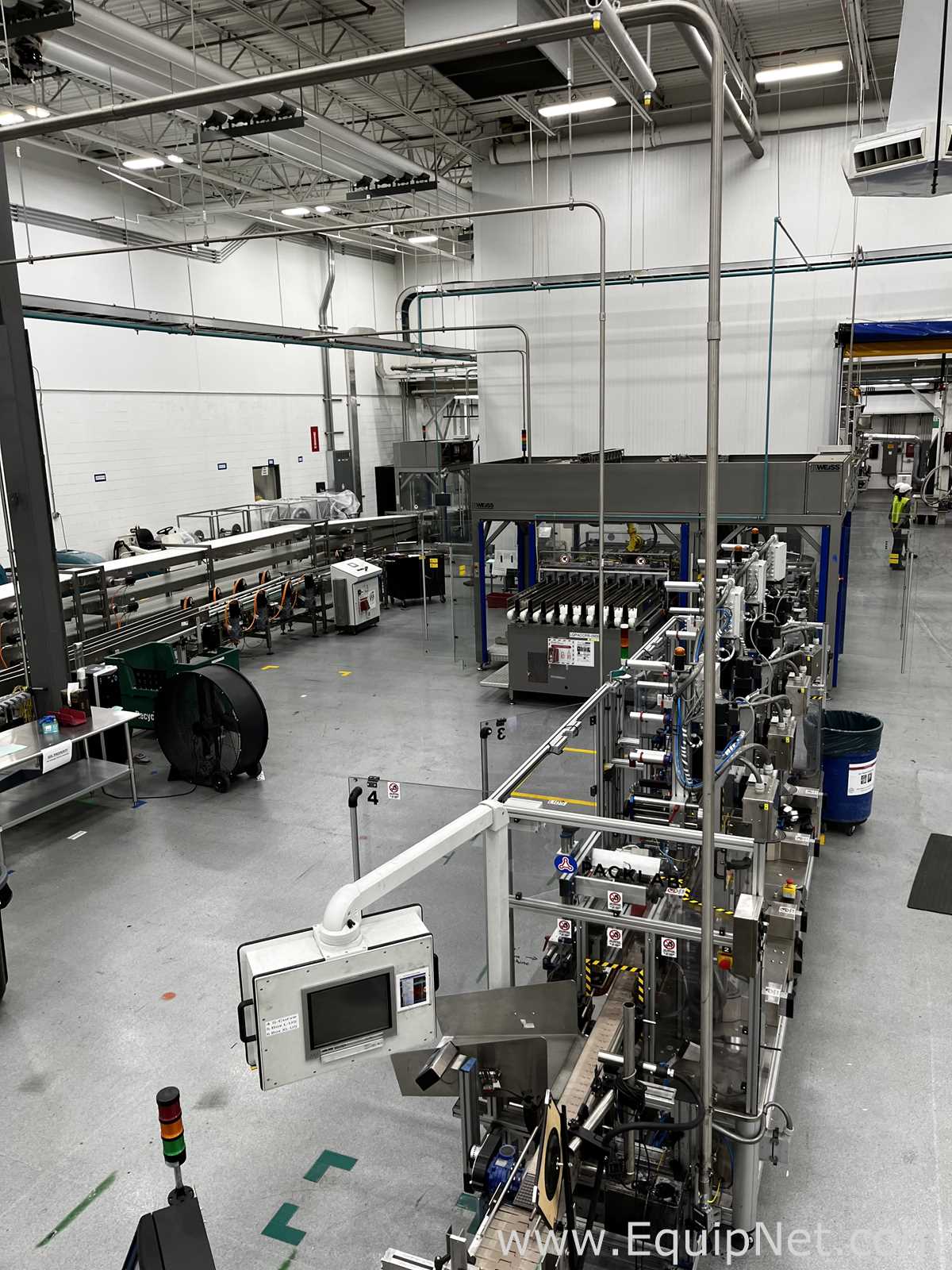

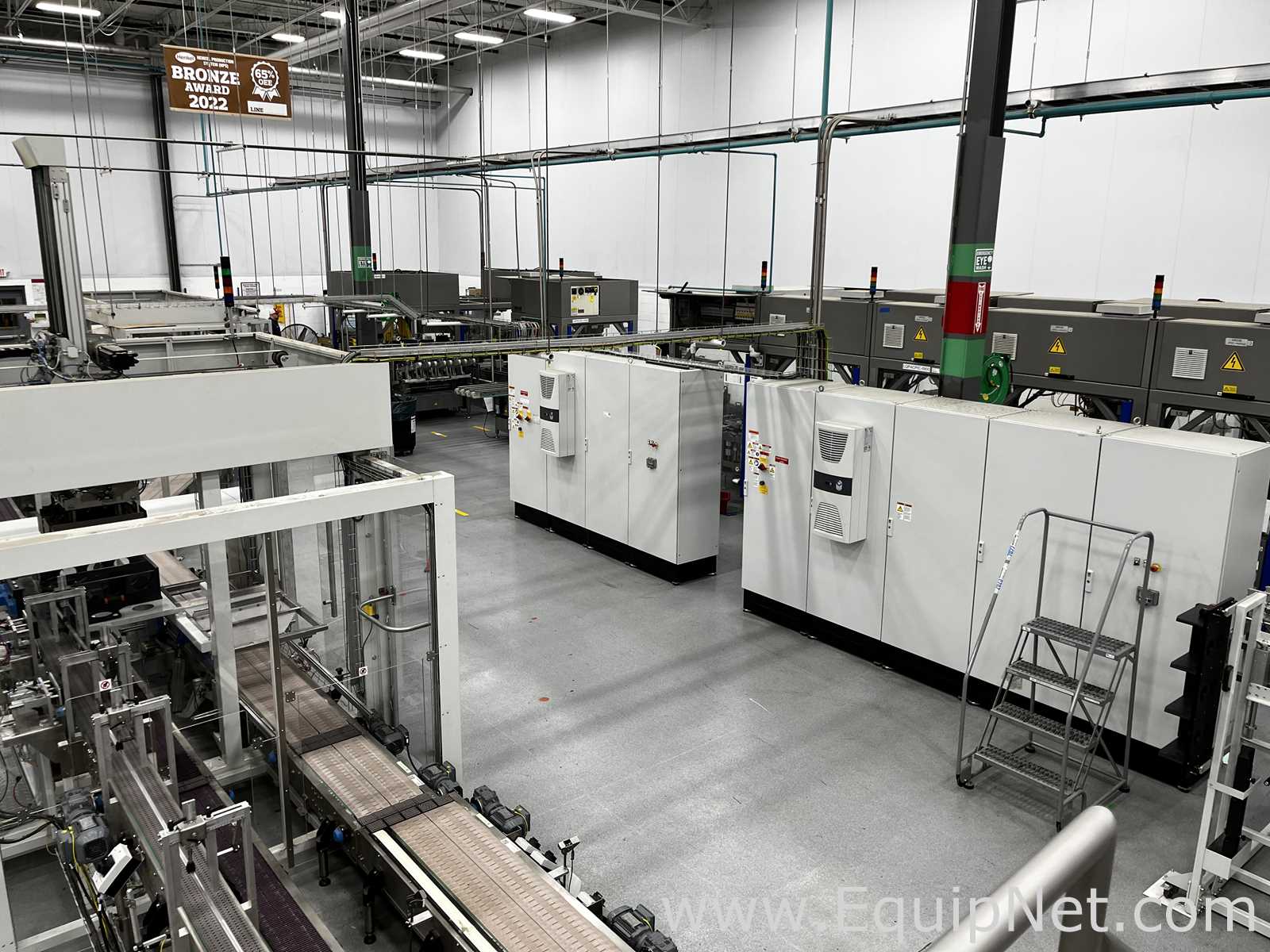

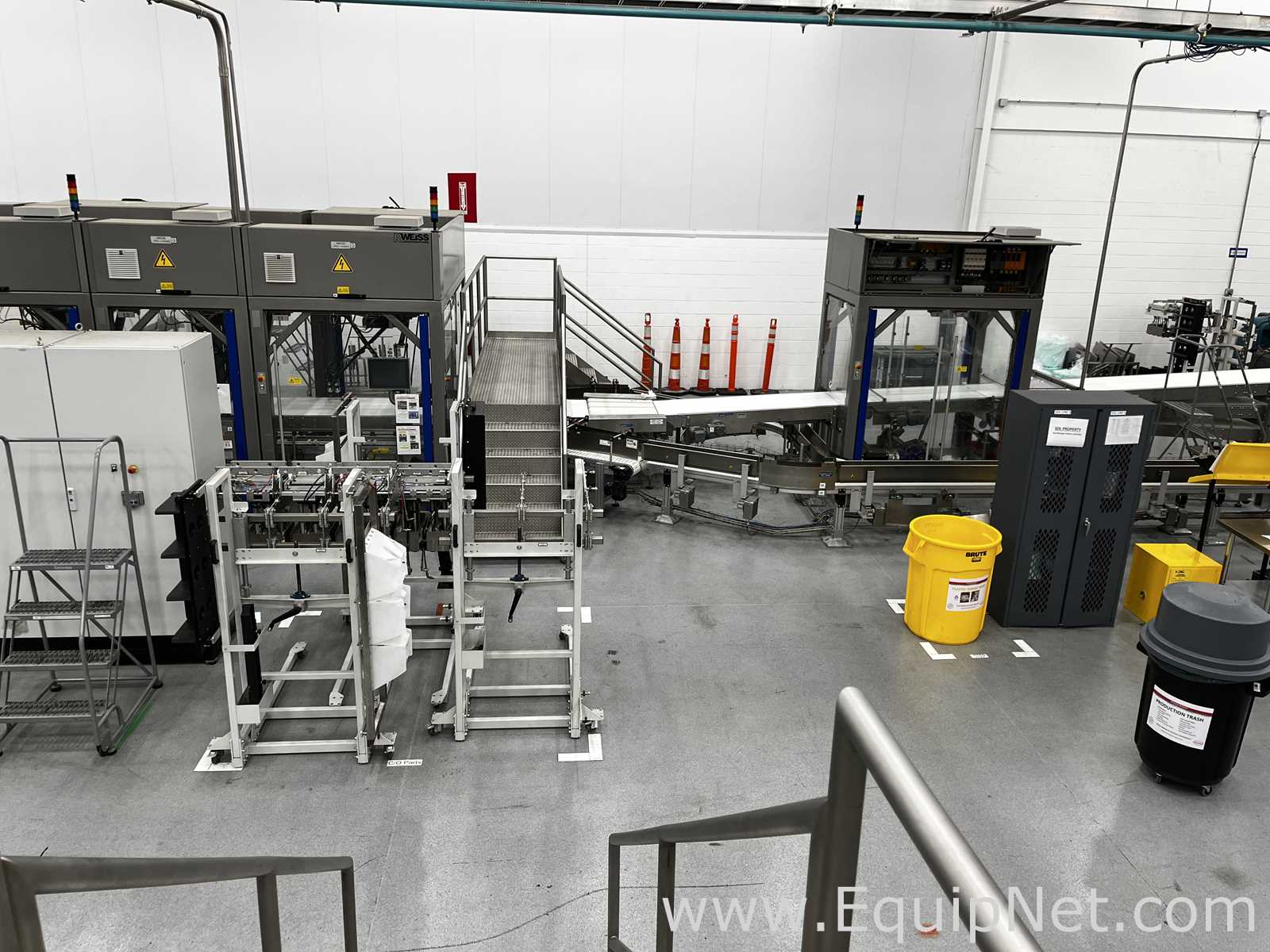

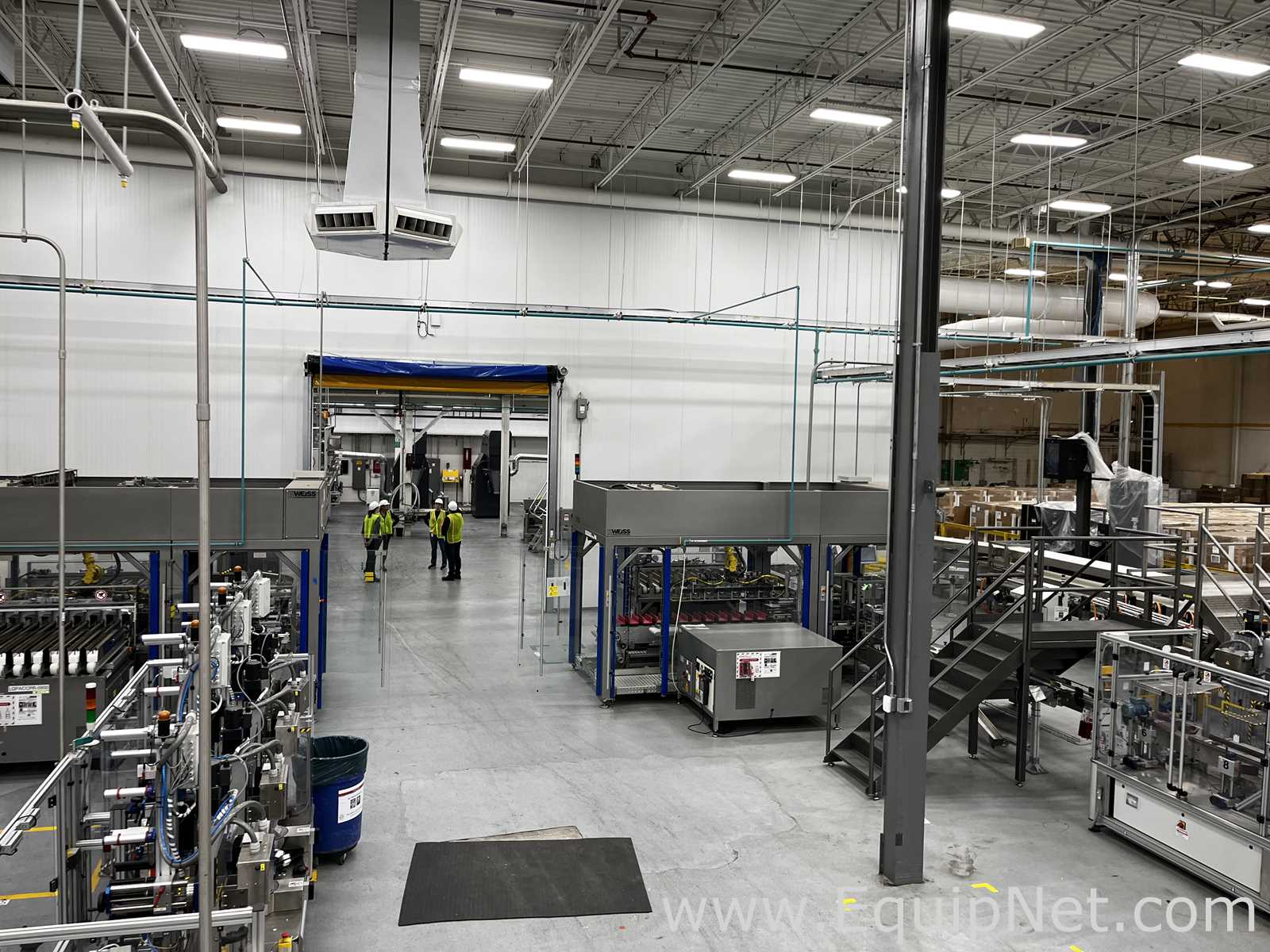

Pictures shown as Equipment was installed. Equipment has now been removed from production, crated and stored in a warehouse
Additional pictures and contents of Packaged Crates avaiable upon request
Portion packs for customer care and medical products
Dishwasher pads
Dishwasher tabs
Coffee pads
Contact lenses
Specifications:
Standard
Metric

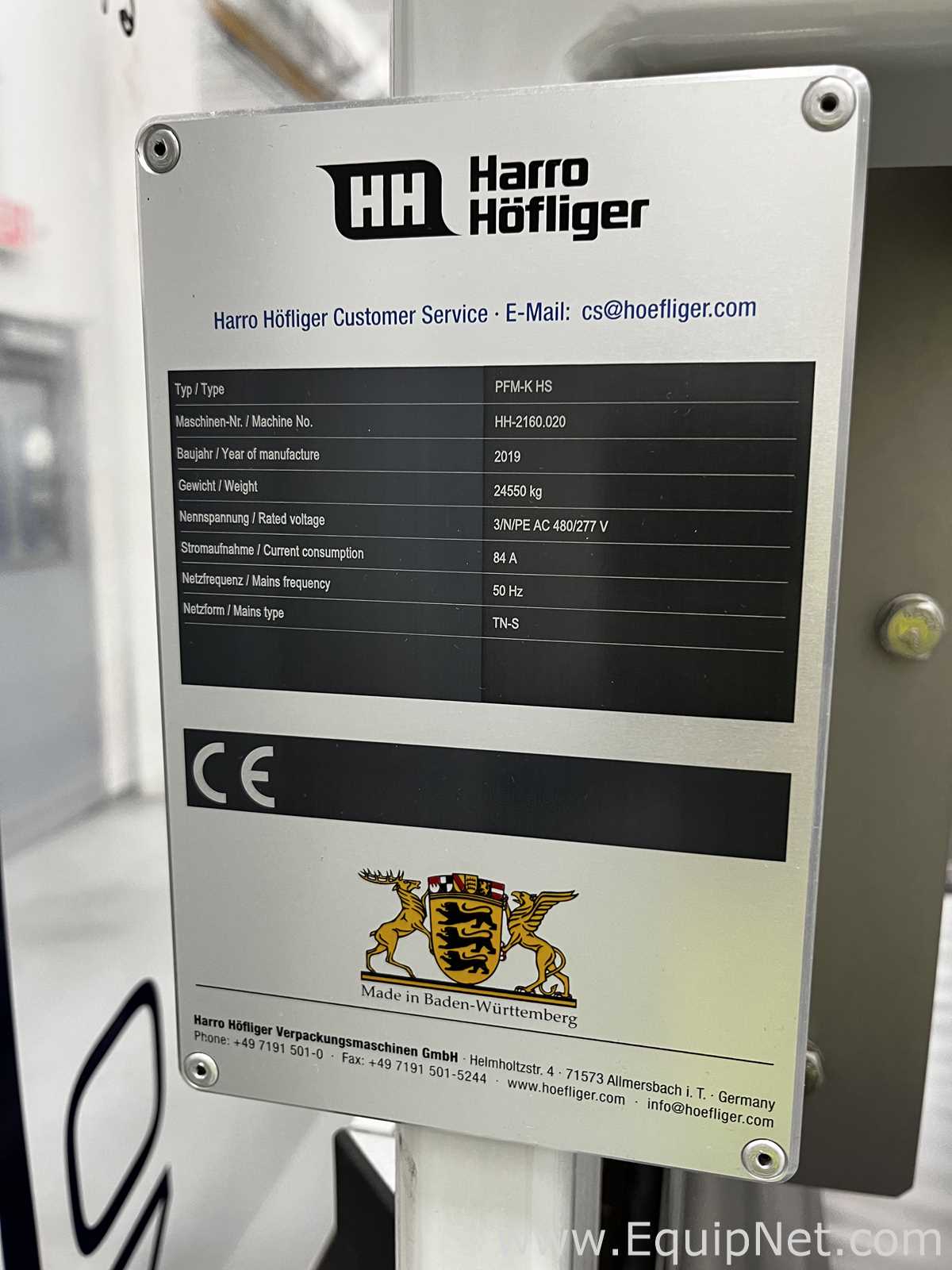

Manufacturer Name
Harro Hofliger
Serial Number:
HH-2160.024 & HH-2160.020
HH-2160.024 & HH-2160.020
Year:
2019
2019
Products Run:
Pods & Discs
Pods & Discs
Voltage:
480/277
VOLTS
480/277
VOLTS
CE Marked:
YES
YES
Frequency:
50
HERTZ
50
HERTZ
Phase:
3
3
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in
MO
This equipment is subject to a removal and loading charge.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
